  1. SearchTrees Chapter 8

  2. Binary Search Trees • The binary search is a very efficient search algorithm, without insertion and deletion, when we store ordered data in the array structure. • When we use linked list, in that case we have to use sequential search as an inefficient search algorithm. • Binary search trees provide a suitable structure.

  3. Binary Search Trees Definition • All terms in the left subtree are less than the root. • All terms in the right subtree are greater than or equal to the root. • Each subtree is itself a binary search tree. < K Figure 8-1

  4. Binary Search Trees Figure 8-2

  5. Binary Search Trees Figure 8-3

  6. Binary Search Trees Preorder traversal? Postorder traversal? Inorder traversal? Figure 8-4

  7. Binary Search Trees Binary Search TreesFind the smallest value algorithm findsmallestBST(val root <pointer>) This algorithm finds the smallest node in a BST. PRE root is a pointer to a non-empty BST. Return address of smallest node 1. if (root->left null) 1. return (root) 2. return findsmallestBST(root->left) end findsmallestBST

  8. Binary Search Trees Find the smallest node in BST. Figure 8-5

  9. Binary Search Trees Binary Search TreesFind the largest value algorithm findlargestBST(val root <pointer>) This algorithm finds the larges node in a BST. PRE root is a pointer to a non-empty BST. Return address of largest node 1. if (root->right null) 1. return (root) 2. return findlargestBST(root->right) end findlargestBST

  10. Binary Search Tree Search Finding a specific node in the tree! Figure 8-6

  11. We are looking for node 20. Figure 8-7

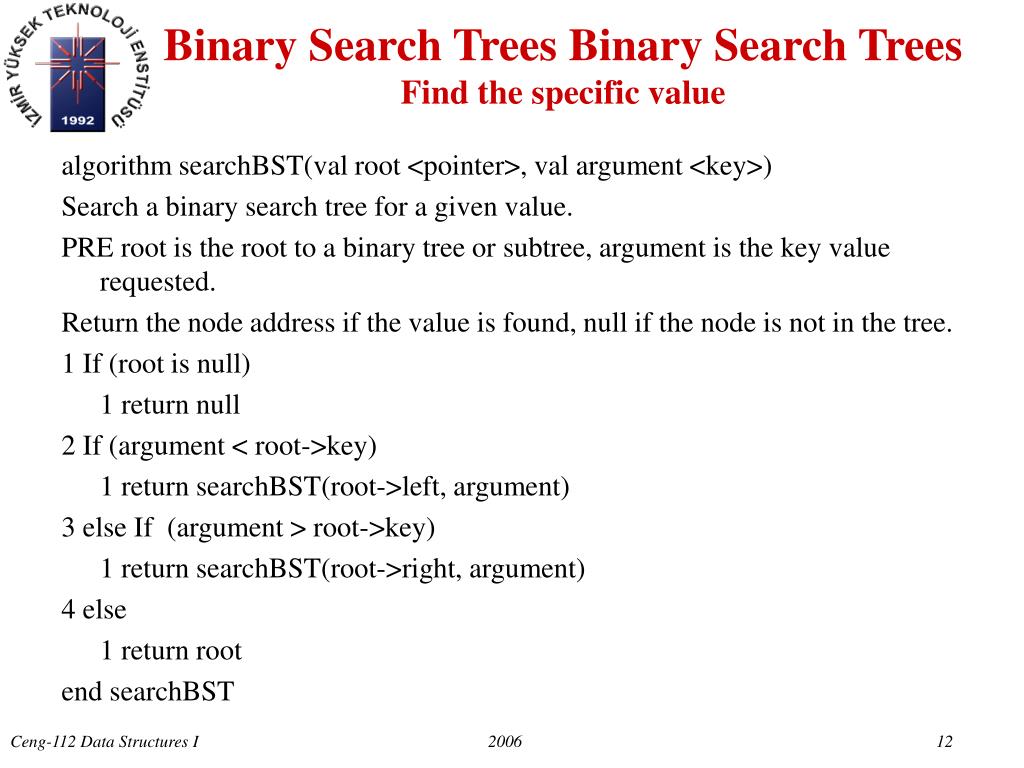

  12. Binary Search Trees Binary Search TreesFind the specific value algorithm searchBST(val root <pointer>, val argument <key>) Search a binary search tree for a given value. PRE root is the root to a binary tree or subtree, argument is the key value requested. Return the node address if the value is found, null if the node is not in the tree. 1 If (root is null) 1 return null 2 If (argument < root->key) 1 return searchBST(root->left, argument) 3 else If (argument > root->key) 1 return searchBST(root->right, argument) 4 else 1 return root end searchBST

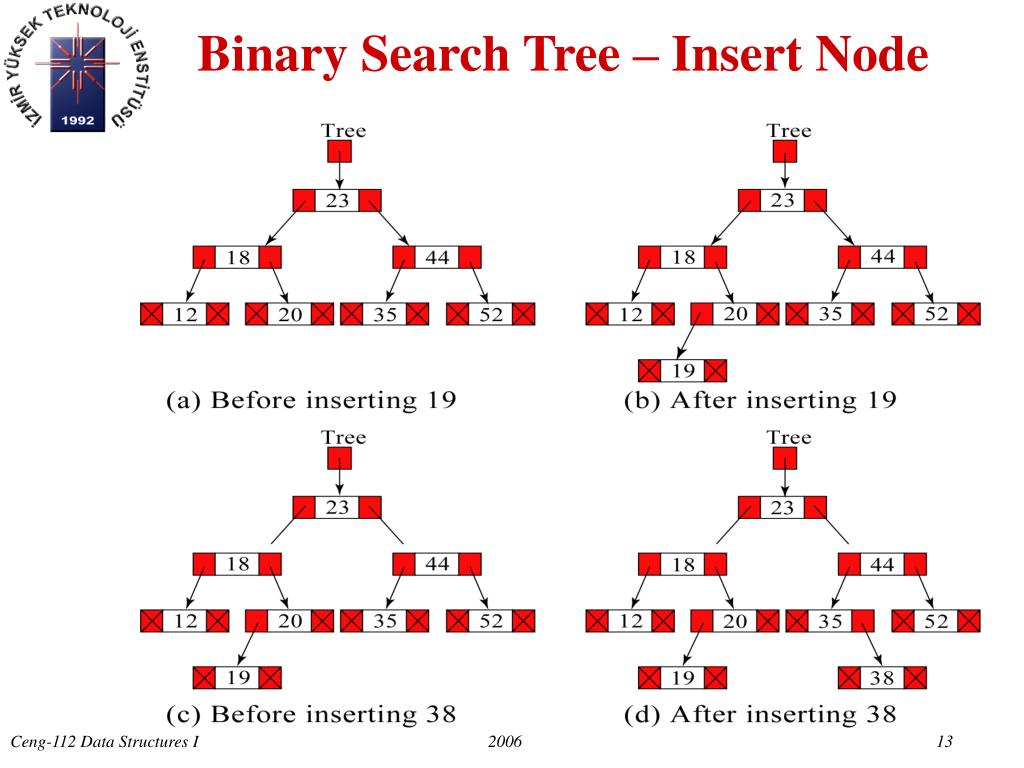

  13. Binary Search Tree – Insert Node

  14. Binary Search Tree – Insert Node algorithm insertBST(ref root <pointer>, val new <pointer>) Insert node containing new node into BST using iteration PRE root is address of the first node in a BST, new is address of node containing data to be inserted. POST new node inserted into tree.

  15. Binary Search Tree – Insert Node 1 If (root is null) 1 root = new 2 else 1 pwalk = root 2 loop (pwalk not null) 1 parent =pwalk 2 If (new->key < pwalk->key) 1 pwalk=pwalk->left 3 else pwalk=pwalk->right Location for new node found 3 If (new->key < parent->key) 1 parent->left=new 4 else parent->right=new 3 return end insertBST

  16. Binary Search Tree – Delete Node

  17. Binary Search Tree – Delete Node

  18. Binary Search Tree – Delete Node algorithm deleteBST(ref root <pointer>, val dltkey <key>) This algorithm deletes a node from BST. Pre root is pointer to tree containing data to be deleted, dltkey is key of node to be deleted. Post node deleted & memory rcycled, if dltkey not found, root unchanged. Return true if node deleted, false if not found.

  19. Binary Search Tree – Delete Node 1 If (root null) 1 return false 2 If (dltkey < root->key) return deleteBST(root->left, dltkey) 3 else If (dltkey > root->key) return deleteBST(root->right, dltkey) 4 else /*(Delete node found --- Test for leaf node)*/ 1 If (root ->left null) 1 dltprt=root, root =root->right, recycle(dltprt), return true 2 else If (root->right null) 1 dltprt=root, root =root->left, recycle(dltprt), return true 3 else /*Node is not a leaf, find largest node on left subtree*/ 1 dltprt = root->left 2 loop (dltprt->right not null) 1 dltprt=dltprt->right 3 root->data =dltprt->data 4 return deleteBST(root->left, dltprt->data.key) end deleteBST

  20. HW-8 • Create a BST with positive integer numbers which are taken from the screen. • Write the BST delete function which establishes to delete desired node from the BST. • Write the BST list function which lists the nodes in the BST with inorder traversal. • Collect all above functions under a user menu. Load your HW-8 to FTP site until 14 May. 07 at 09:00 am.

  21. AVL Trees In 1962, two Russian mathematicians, G. M. Adelson-Velskil and E. M. Landis created balanced binary tree structure that is named after them – the AVL trees. O(n) O(log2n) |HL-HR| < = 1 Height balanced trees.

  22. AVL Trees – Balancing When we insert a node into a tree or delete a node from a tree, the resulting tree may be unbalanced and we must rebalance it. Figure 8-14 (a and b)

  23. All unbalanced trees fall into one of these four cases: • Left to left • Right to right • Right of left • Left of right

  24. LEFT-OF-LEFT We must balance the left-height tree by rotating the out-of-balance node to the right. Figure 8-15

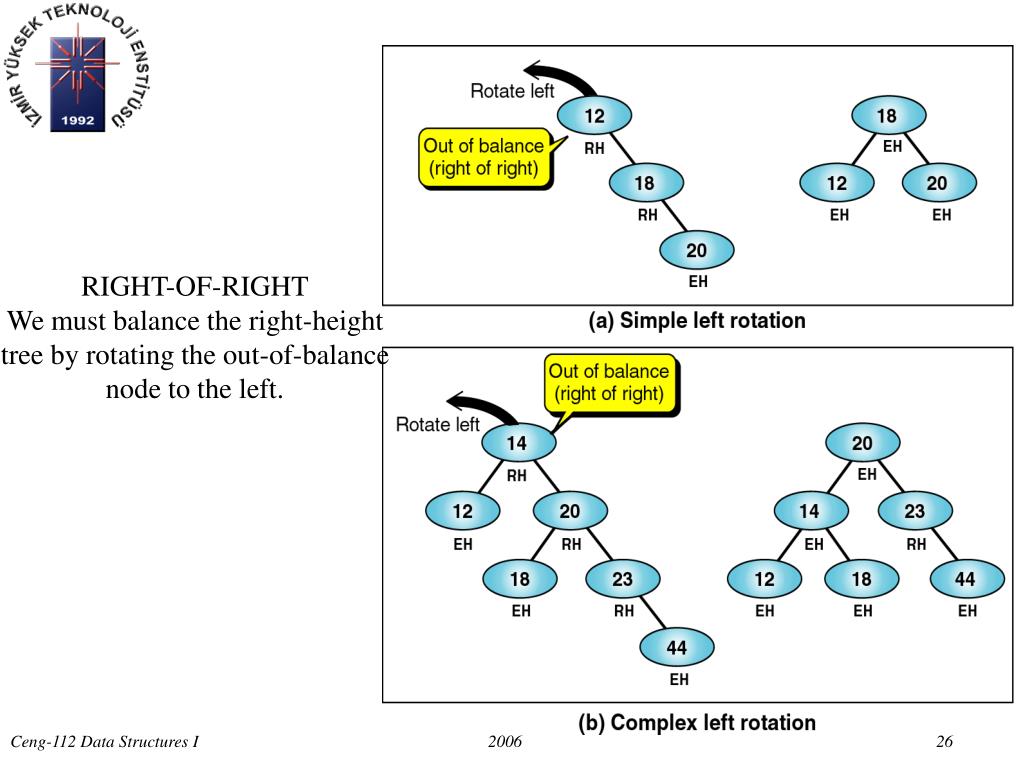

  25. RIGHT-OF-RIGHT We must balance the right-height tree by rotating the out-of-balance node to the left. Figure 8-16

  26. RIGHT-OF-LEFT • Rotate left • Rotate right Figure 8-17

  27. LEFT-OF-RIGHT • Rotate right • Rotate left Figure 8-18

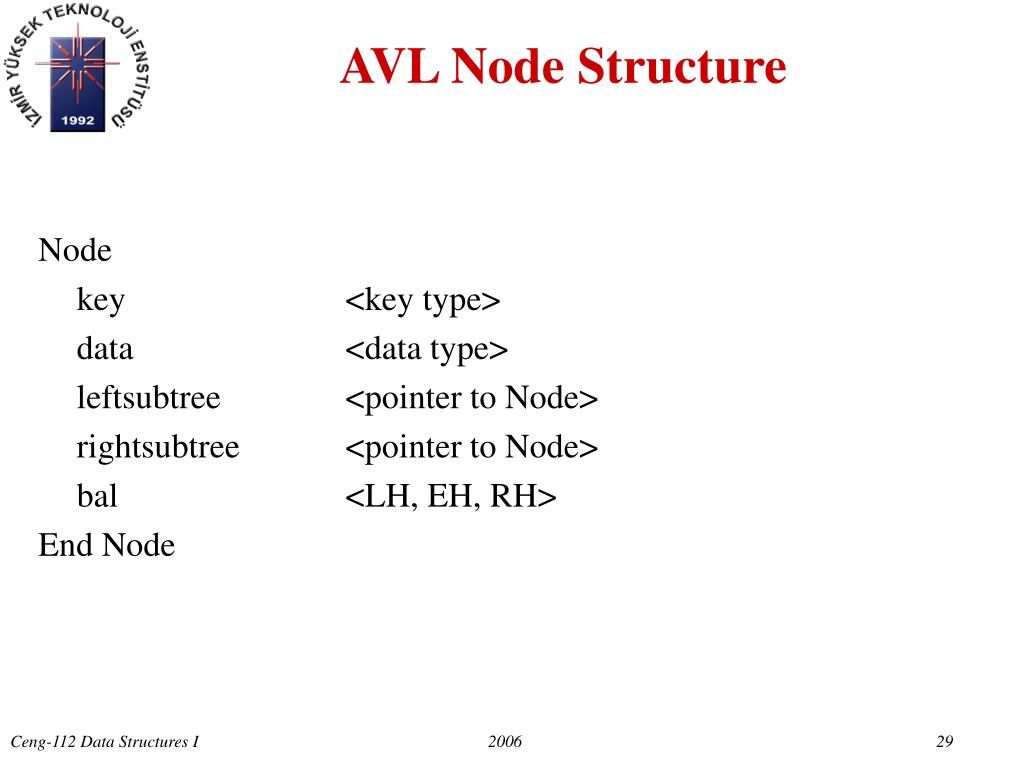

  28. AVL Node Structure Node key <key type> data <data type> leftsubtree <pointer to Node> rightsubtree <pointer to Node> bal <LH, EH, RH> End Node

  29. AVL Rotate Algorithm algorithm rotateRight( ref root <tree pointer>) This algorithm exchanges pointers to rotate the tree right. PRE root points to tree to be rotated. POST Node rotated and root updated. 1 tempPtr = root->left 2 root->left = tempPtr->right 3 tempPtr->right = root 4 root = tempPtr 5 return end rotateRight

  30. AVL Insert • The search and retrieval algorithms are the same as for any binary tree. • Inorder travelsal is used because AVL trees are search trees. • As a binary search tree, we have to find suitable leaf node on left or right subtree, then we connect new node to this parent node and begin back out of tree. • As we back out of tree we check the balance of each node. If we find unbalanced node we balance it and continue up the tree. • Not all inserts create an out of balance condition.

  31. AVL Insert Algorithm algoritm AVLInsert (ref root <tree pointer>, ref newPtr <tree pointer>, ref taller <boolean>) Using recursion, insert a node into AVL tree. PRE root is a pointer to first node in AVL tree/subtree newPtr is a pointer to new node to be inserted. POST taller is a boolean: true indicating the subtree height has increased, false indicating same height.

  32. AVL Insert Algorithm 1 if (root null) // Insert at root // 1 taller = true 2 root= newPtr 2 else 1 if (newPtr->key < root->key) //left subtree // 1 AVLInsert(root->left, newPtr, taller) 2 if (taller) // insertion is completed and height is changed // 1 if (root left-height) 1 leftBalance(root, taller) 2 else if (root right-height) 1 taller =false 3 adjust balance factor 2 else if (newPtr->key > root->key) //right subtree // 1 AVLInsert(root->right, newPtr, taller) 2 if (taller) // insertion is completed and height is changed // 1 if (root left-height) 1 taller =false 2 else if (root right-height) 1 rihtBalance(root, taller) 3 adjust balance factor 3 else 1 error (“Dupe Data”) 2 recycle(newPtr) 3 taller = false 3 return end AVLInsert

  33. AVL Left Balance Algorithm algorithm leftBalance(ref root <tree pointer>, ref taller <boolean>) This algorithm is entered when the root is left heavy (the left subtree is higher then the right subtree) PRE root is a pointer to the root of the (sub)tree, taller is true. POST root and taller has been updated. 1 leftTree = root->left 2 if (leftTree left-heigh) //Case 1: Left of left, single rotation required. // 1 rotateRight (root) 2 adjust balance factors 3 taller false 3 else // Case 2: Right of left. Double rotation required. // 1 rightTree = leftTree->right 2 adjust balance factors 3 rotateLeft (leftTree) 4 rotateRight (root) 5 taller = false 4 return end leftBalance

  34. AVL Delete Balancing Figure 8-22

  35. Excercise Which of the trees in the following figure is a valid binary search tree and which one is not? Figure 8-25

  36. Excercise Travers the binary search tree using a inorder traversal. Figure 8-26

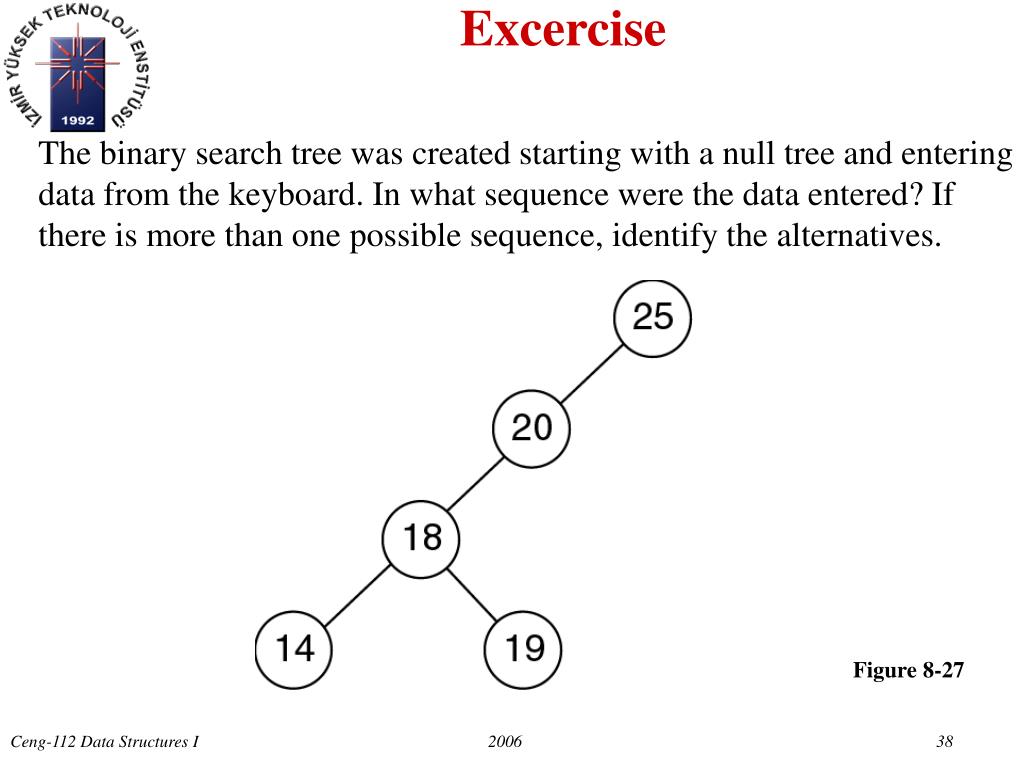

  37. Excercise The binary search tree was created starting with a null tree and entering data from the keyboard. In what sequence were the data entered? If there is more than one possible sequence, identify the alternatives. Figure 8-27

  38. Excercise The binary search tree was created starting with a null tree and entering data from the keyboard. In what sequence were the data entered? If there is more than one possible sequence, identify the alternatives. Figure 8-28

  39. Excercise Insert 44, 66 and 77 in the binary search tree. Figure 8-29

  40. Excercise Delete the node 60 and then 85 from the tree. Figure 8-30

  41. Excercise Balance the tree. Figure 8-31

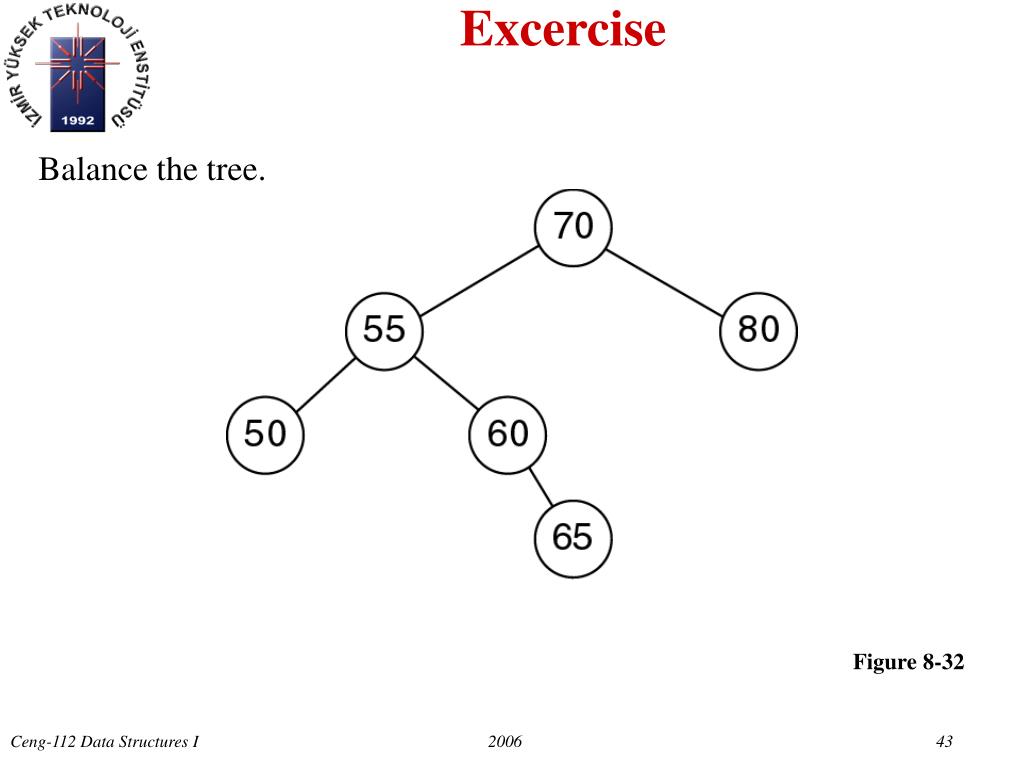

  42. Excercise Balance the tree. Figure 8-32

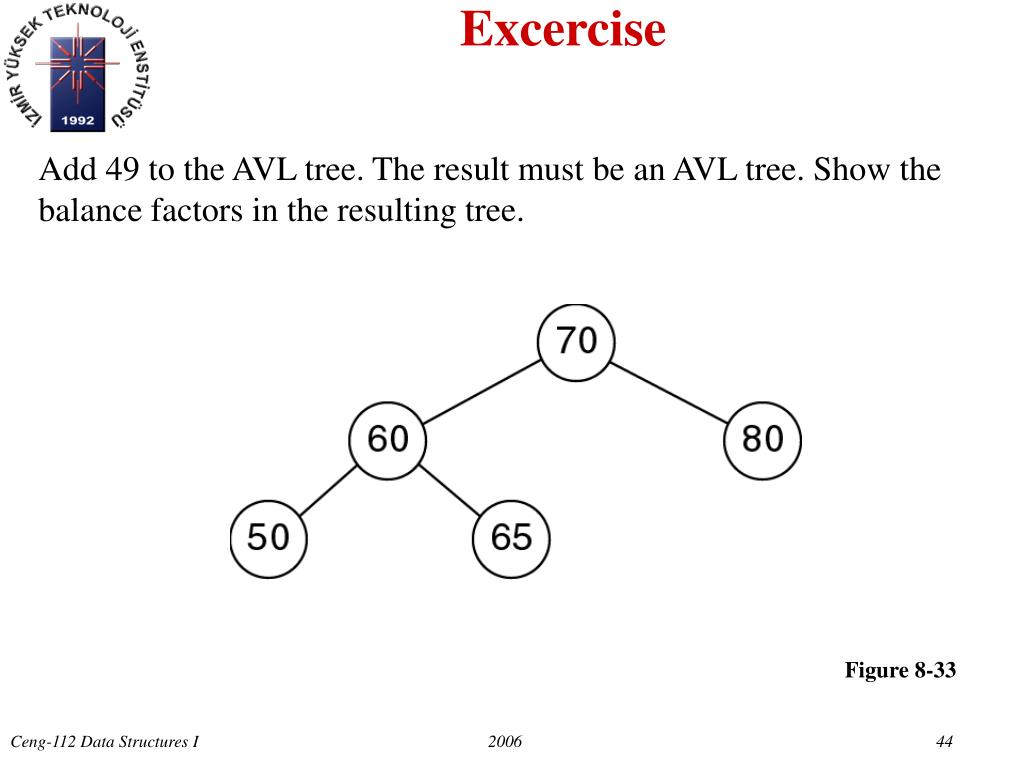

  43. Excercise Add 49 to the AVL tree. The result must be an AVL tree. Show the balance factors in the resulting tree. Figure 8-33

  44. Excercise Add 68 to the AVL tree. The result must be an AVL tree. Show the balance factors in the resulting tree. Figure 8-33

  45. HW-9 • Create an AVL tree with positive integer numbers which are taken from the screen. • Write the AVL delete function which establishes to delete desired node from the AVL. • Write the AVL list function which lists the nodes in the AVL with inorder traversal. • Collect all above functions under a user menu. Load your HW-9 to FTP site until 14 May. 07 at 09:00 am.
