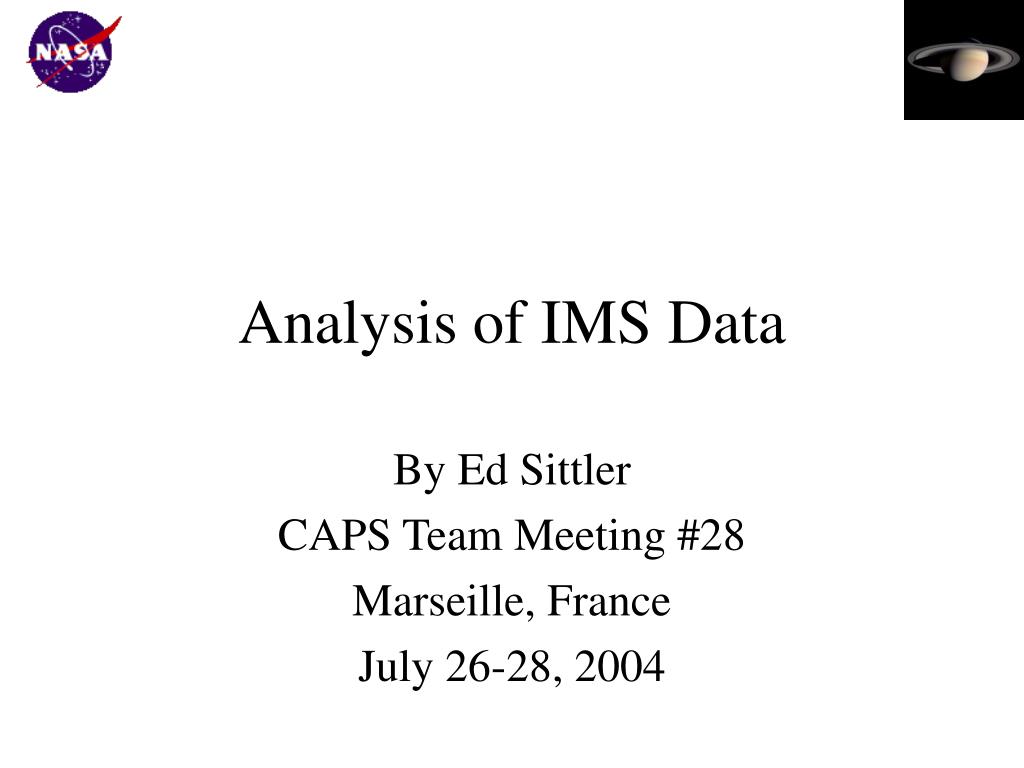

  1. Analysis of IMS Data By Ed Sittler CAPS Team Meeting #28 Marseille, France July 26-28, 2004

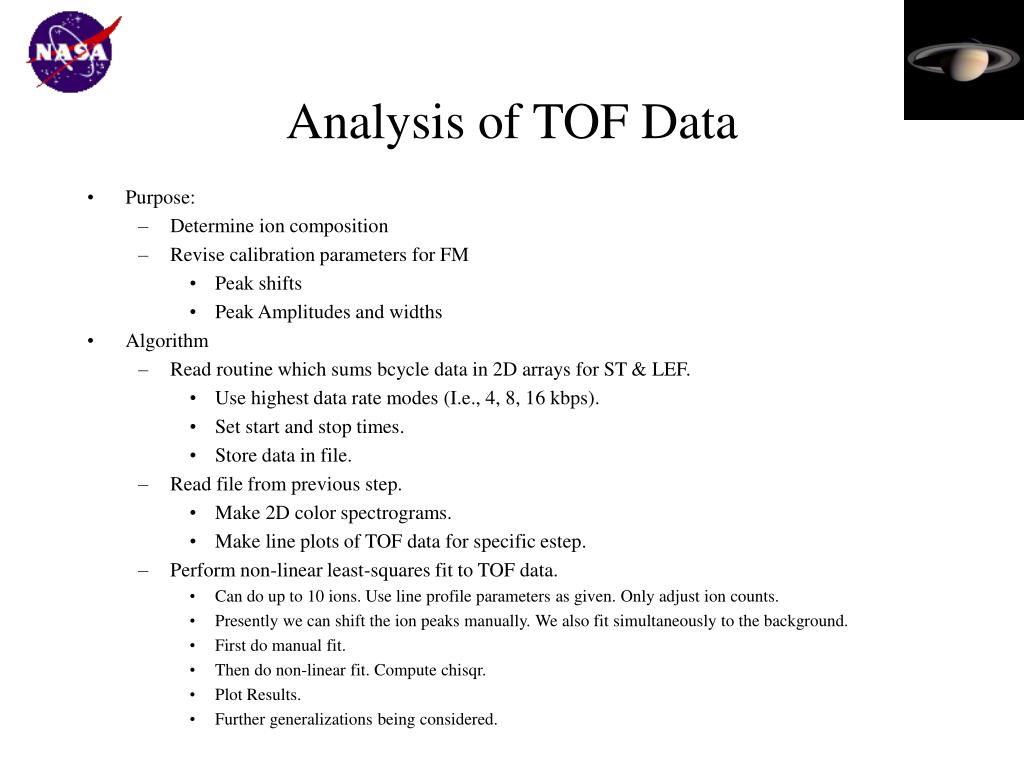

  2. Analysis of TOF Data • Purpose: • Determine ion composition • Revise calibration parameters for FM • Peak shifts • Peak Amplitudes and widths • Algorithm • Read routine which sums bcycle data in 2D arrays for ST & LEF. • Use highest data rate modes (I.e., 4, 8, 16 kbps). • Set start and stop times. • Store data in file. • Read file from previous step. • Make 2D color spectrograms. • Make line plots of TOF data for specific estep. • Perform non-linear least-squares fit to TOF data. • Can do up to 10 ions. Use line profile parameters as given. Only adjust ion counts. • Presently we can shift the ion peaks manually. We also fit simultaneously to the background. • First do manual fit. • Then do non-linear fit. Compute chisqr. • Plot Results. • Further generalizations being considered.

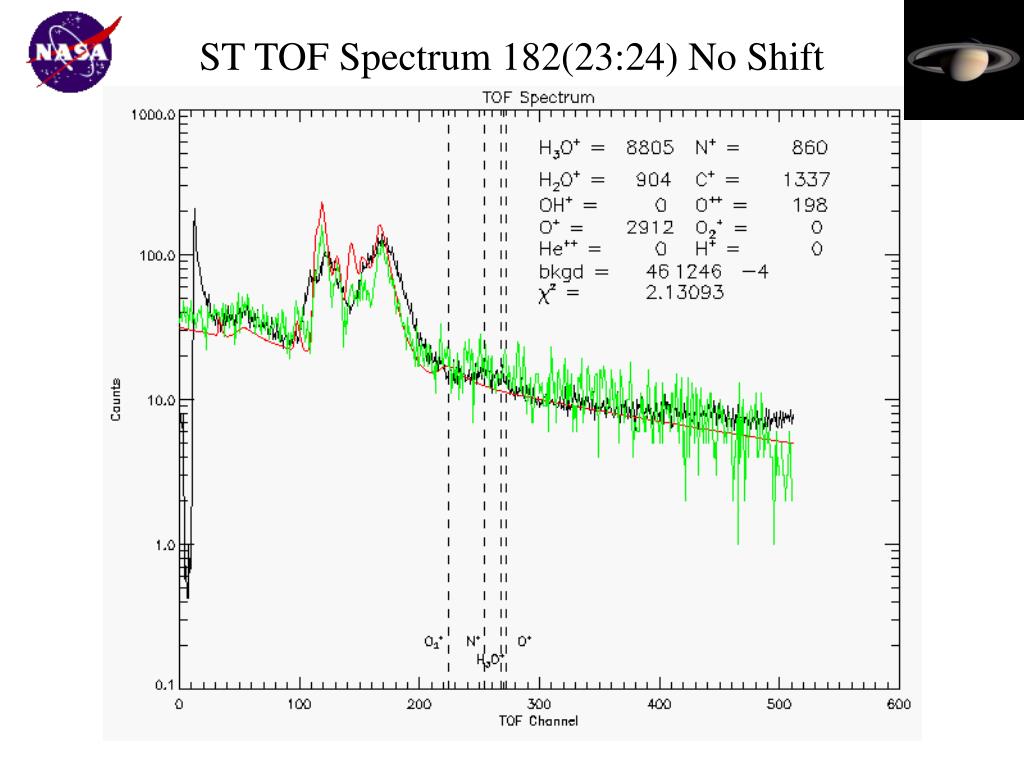

  3. ST TOF Spectrum 182(23:24) No Shift

  4. ST TOF Spectrum 182(23:24) Shifted

  5. LEF TOF Spectrum 182(23:24)

  6. ST TOF Spectrum 182(18:24) No Shift

  7. ST TOF Spectrum 182(18:24) Shifted

  8. LEF TOF Spectrum 182(18:24)

  9. ST TOF Spectrum 182(18:24) E = 30 eV

  10. LEF TOF Spectrum 182(18:24) E = 30 eV

  11. Summary of TOF Analysis Results • Composition of H+, N+, Water Group Ions & O2+. Detection of H2+ ? • Shift ~ 16 channels (2048) seems to be required. • With no shift H3O+ tends to dominate, C+ more important and N+ less important. • With shift H2O+ tends to dominate, N+ more important and C+ less important. • LEF data shows H+, N+ and Water Group Ions. No C+ seen. O2+ can produce peak near N+ peak, but to shorter TOF. Therefore, less favored by data. Although O2+ is present it is not sufficiently intense. • LEF data set ideal for detection of N+ since O+ has low sensitivity in LEF data (I.e., O+ tends to want electrons). • ST O- peak shoulder to lower TOF not understood. • Electronic peaks? Remove bad data (I.e., revise script pgm).

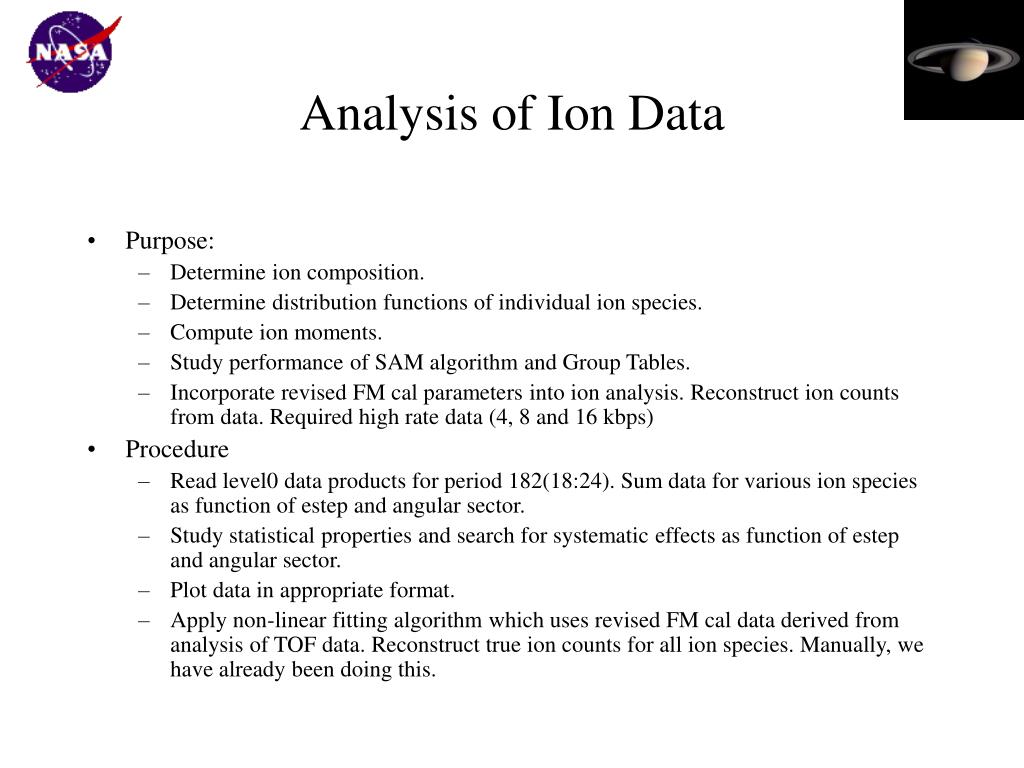

  12. Analysis of Ion Data • Purpose: • Determine ion composition. • Determine distribution functions of individual ion species. • Compute ion moments. • Study performance of SAM algorithm and Group Tables. • Incorporate revised FM cal parameters into ion analysis. Reconstruct ion counts from data. Required high rate data (4, 8 and 16 kbps) • Procedure • Read level0 data products for period 182(18:24). Sum data for various ion species as function of estep and angular sector. • Study statistical properties and search for systematic effects as function of estep and angular sector. • Plot data in appropriate format. • Apply non-linear fitting algorithm which uses revised FM cal data derived from analysis of TOF data. Reconstruct true ion counts for all ion species. Manually, we have already been doing this.
