Phylogenetics 3

Assessing confidence in phylogenies

Distance methods

Models of molecular evolution

slide2

Estimating confidence in tree topologies

Congruence

Consensus trees

The bootstrap applied to phylogenetics

Bremer support (the Decay Index)

Distance methods and models of molecular evolution

General introduction to distance methods

Distance transformations and introduction to models of molecular evolution

Phylogenetic clustering methods using distances

ways of measuring support

Just because you have the shortest tree, how do you know it is correct? Of course, you will never know with absolute certainty that it is correct, but there are various methods for assessing confidence…

Ways of measuring support
  • Congruence among independent datasets (but not multiple analyses of the same data)
    • e.g., multiple independent loci, molecular and morphological data
  • Bootstrap support
    • nonparametric way to assess relative branch support applicable to all optimality criteria (jacknife support is similar)
  • Bremer support
    • parsimony-based measure of relative branch support
  • Posterior probabilities
    • will discuss later

© Paul Lewis

slide4

Consensus trees are used to display congruence among trees graphically

Consensus trees summarize information in multiple trees (e.g., multiple equally parsimonious trees, bootstrap trees, etc). Strict and Majority Rule are the most commonly employed consensus methods, but there are others.

Li and Graur Fig. 5.25

bootstrapping

Bootstrapping is a statistical resampling technique used to assess confidence.

Bootstrapping

Suppose you sequence the 18S rRNA gene and estimate

the tree.

What tree would you have estimated had you chosen a

different gene to sequence?

Which parts of the tree (i.e. splits) would you expect

to be present in trees estimated from genes like the one

you sampled?

Felsenstein, J. 1985. Confidence intervals on phylogenies: an approach using

the bootstrap. Evolution 39:783-791.

© Paul Lewis

slide6

It is not possible to rerun evolution and generate independent replicates of the data. So, bootstrapping uses “pseudosamples” to obtain the variance of the estimate of the phylogeny.

Swofford et al. Fig. 33

bootstrapping first step

1

2

3

4

Bootstrapping can also be thought of as an exercise in reweighting of characters...

Bootstrapping: first step

There are k characters in this dataset, each with a weight of 1

From the original data,

estimate a tree using, say,

parsimony (could use NJ,

LS, ML, etc., however)

© Paul Lewis

bootstrapping first replicate

1

2

3

4

Bootstrapping: first replicate

Sum of weights equals k (i.e.,

each bootstrap

dataset has same

number of sites

as the original)

From the bootstrap dataset,

estimate the tree using the

same method you used for

the original dataset

© Paul Lewis

bootstrapping second replicate

1

3

2

4

Bootstrapping: second replicate

Note that weights are different this time, reflecting the random sampling with replacement used to generate the weights

This time the tree that is

estimated is different than

the one estimated using the

original dataset.

© Paul Lewis

bootstrapping 20 replicates

1

1

1

2

2

2

4

4

4

3

3

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

2

3

2

2

2

2

2

2

2

2

2

2

2

2

1

3

3

2

3

3

3

3

3

3

3

3

3

3

3

3

3

3

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

2

4

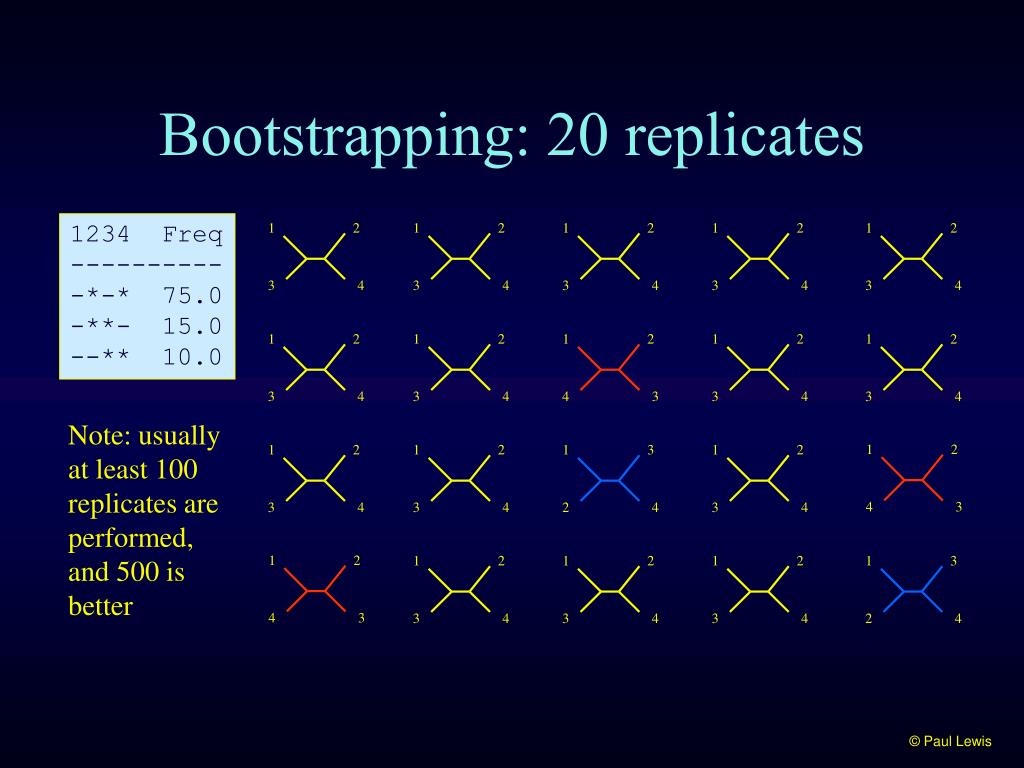

Bootstrapping: 20 replicates
  • Freq
  • ----------
  • -*-* 75.0
  • -**- 15.0
  • --** 10.0

Note: usually

at least 100

replicates are

performed,

and 500 is

better

© Paul Lewis

slide12

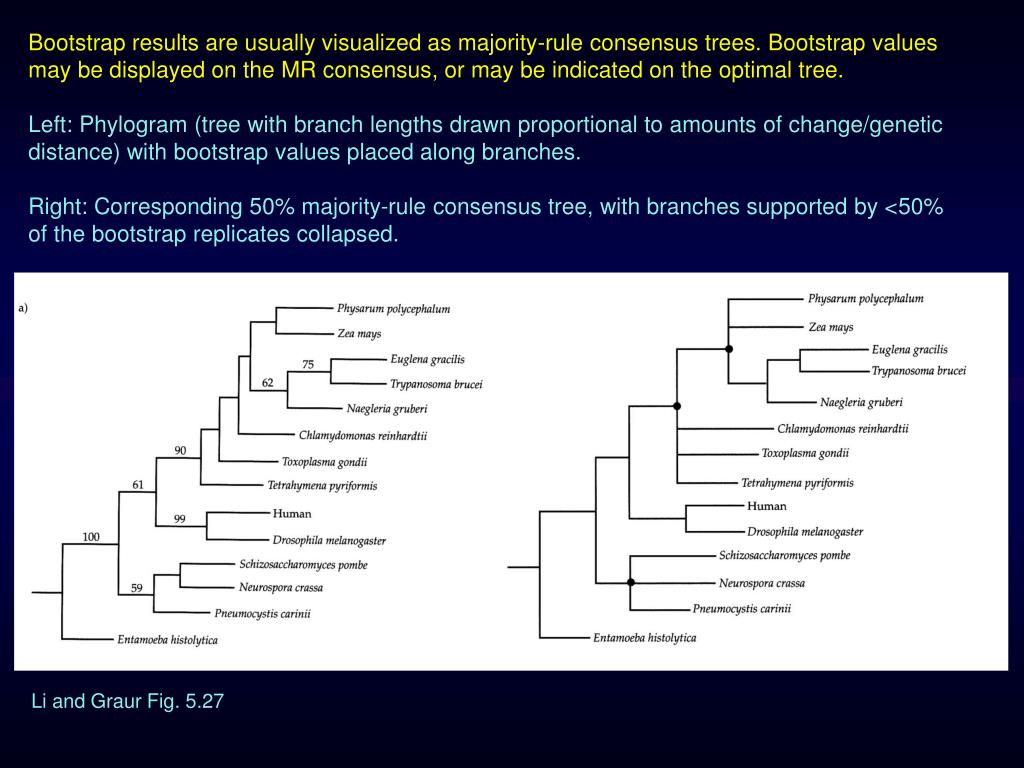

Bootstrap results are usually visualized as majority-rule consensus trees. Bootstrap values may be displayed on the MR consensus, or may be indicated on the optimal tree.

Left: Phylogram (tree with branch lengths drawn proportional to amounts of change/genetic distance) with bootstrap values placed along branches.

Right: Corresponding 50% majority-rule consensus tree, with branches supported by <50% of the bootstrap replicates collapsed.

Li and Graur Fig. 5.27

bootstrapping comments

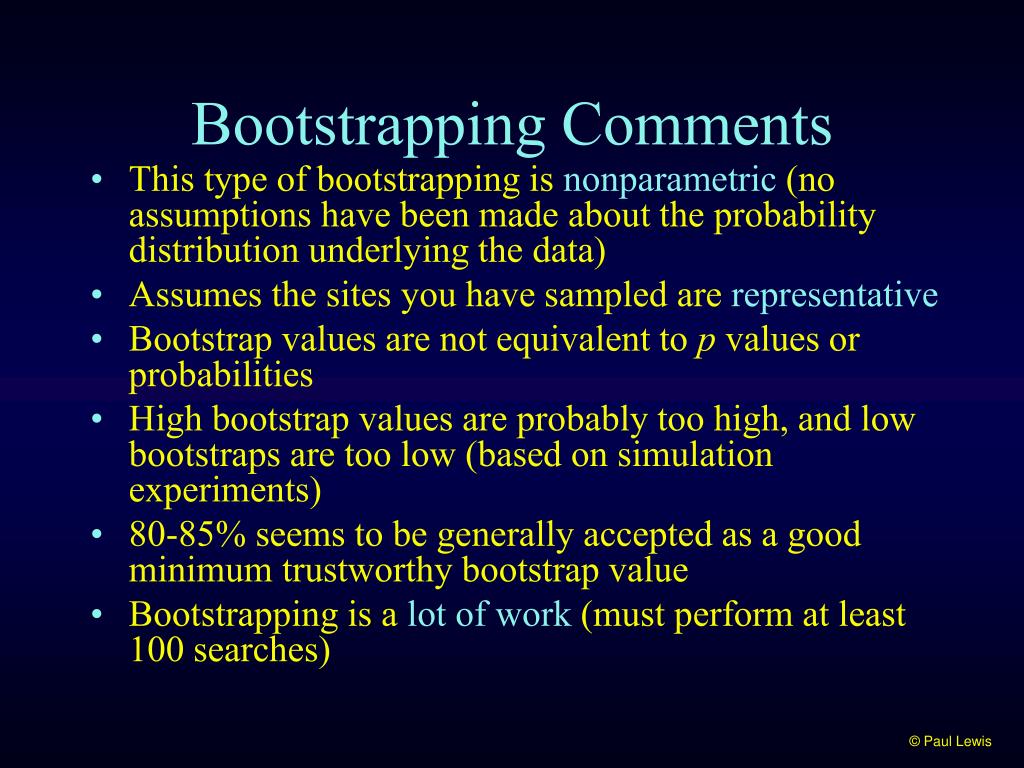

Bootstrapping Comments
  • This type of bootstrapping is nonparametric (no assumptions have been made about the probability distribution underlying the data)
  • Assumes the sites you have sampled are representative
  • Bootstrap values are not equivalent to p values or probabilities
  • High bootstrap values are probably too high, and low bootstraps are too low (based on simulation experiments)
  • 80-85% seems to be generally accepted as a good minimum trustworthy bootstrap value
  • Bootstrapping is a lot of work (must perform at least 100 searches)

© Paul Lewis

nodal support

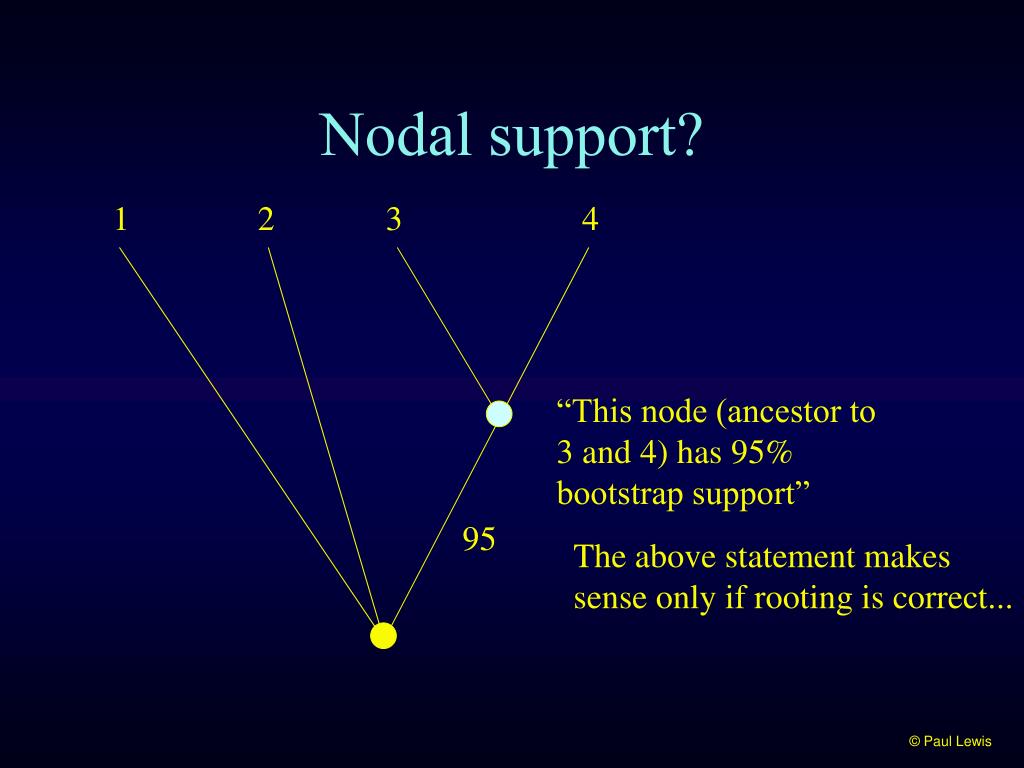

Nodal support?

1

2

3

4

“This node (ancestor to

3 and 4) has 95%

bootstrap support”

95

The above statement makes

sense only if rooting is correct...

© Paul Lewis

or branch support
...or branch support?

4

3

1

2

Now it is the ancestor of

1 and 2 that that has

95% bootstrap support

95

Saying that the branch (or

split) has 95% bootstrap

support always works

© Paul Lewis

slide16

Bremer Support (aka the Decay Index)

An alternative measure of confidence (robustness) based on parsimony.

The universe of trees from analysis of a dataset on algae

2 most-parsimonious trees

No. trees

411

414

415

416

417

418

next-best tree

3 steps longer

Tree length

© Paul Lewis

slide17

411 steps

 415 steps

Strict consensus made from sets of trees up to 425 steps

 424 steps

 425 steps

 416 steps

Consensus trees become progressively less resolved as the allowable length of the input trees increases.

© Paul Lewis

slide18

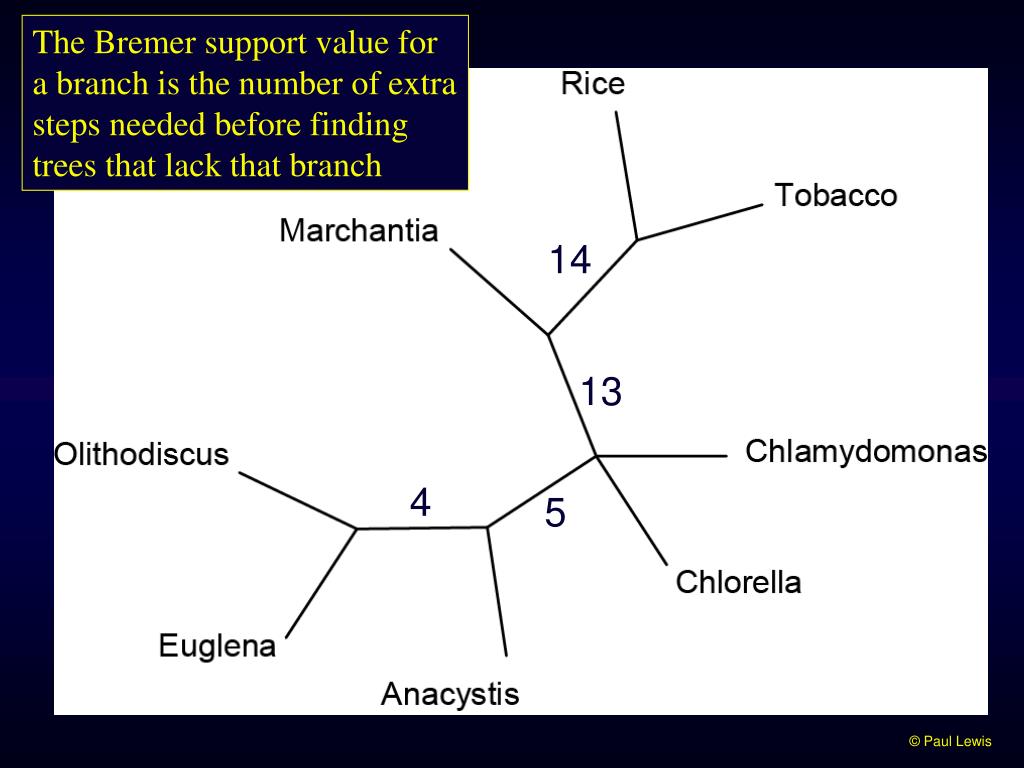

The Bremer support value for

a branch is the number of extra

steps needed before finding

trees that lack that branch

14

13

4

5

© Paul Lewis

slide19

Here bootstrap values (%) are shown

for comparison

14

100%

100%

13

5

4

74%

76%

© Paul Lewis

slide20

Estimating confidence in tree topologies

Congruence

Consensus trees

The bootstrap applied to phylogenetics

Bremer support (the Decay Index)

Distance methods and models of molecular evolution

General introduction to distance methods

Distance transformations and introduction to models of molecular evolution

Phylogenetic clustering methods using distances

slide21

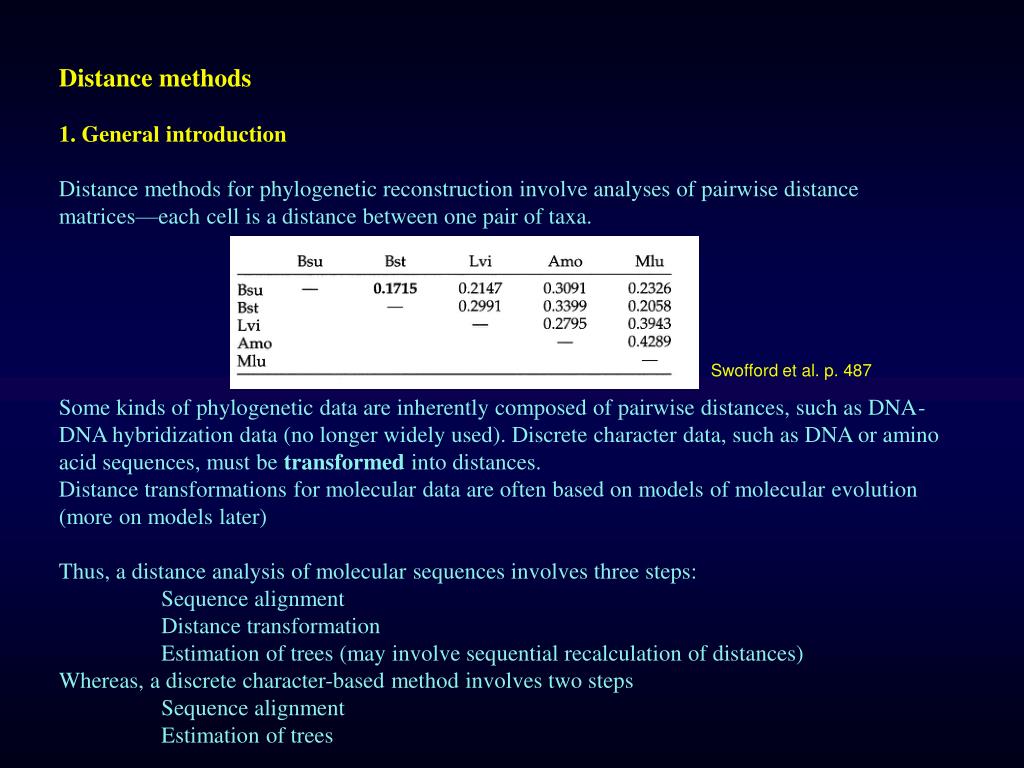

Distance methods

  • 1. General introduction
  • Distance methods for phylogenetic reconstruction involve analyses of pairwise distance matrices—each cell is a distance between one pair of taxa.
  • Some kinds of phylogenetic data are inherently composed of pairwise distances, such as DNA-DNA hybridization data (no longer widely used). Discrete character data, such as DNA or amino acid sequences, must be transformed into distances.
  • Distance transformations for molecular data are often based on models of molecular evolution (more on models later)
  • Thus, a distance analysis of molecular sequences involves three steps:
      • Sequence alignment
      • Distance transformation
      • Estimation of trees (may involve sequential recalculation of distances)
  • Whereas, a discrete character-based method involves two steps
      • Sequence alignment
      • Estimation of trees

Swofford et al. p. 487

slide22

1

3

a

d

c

b

e

4

2

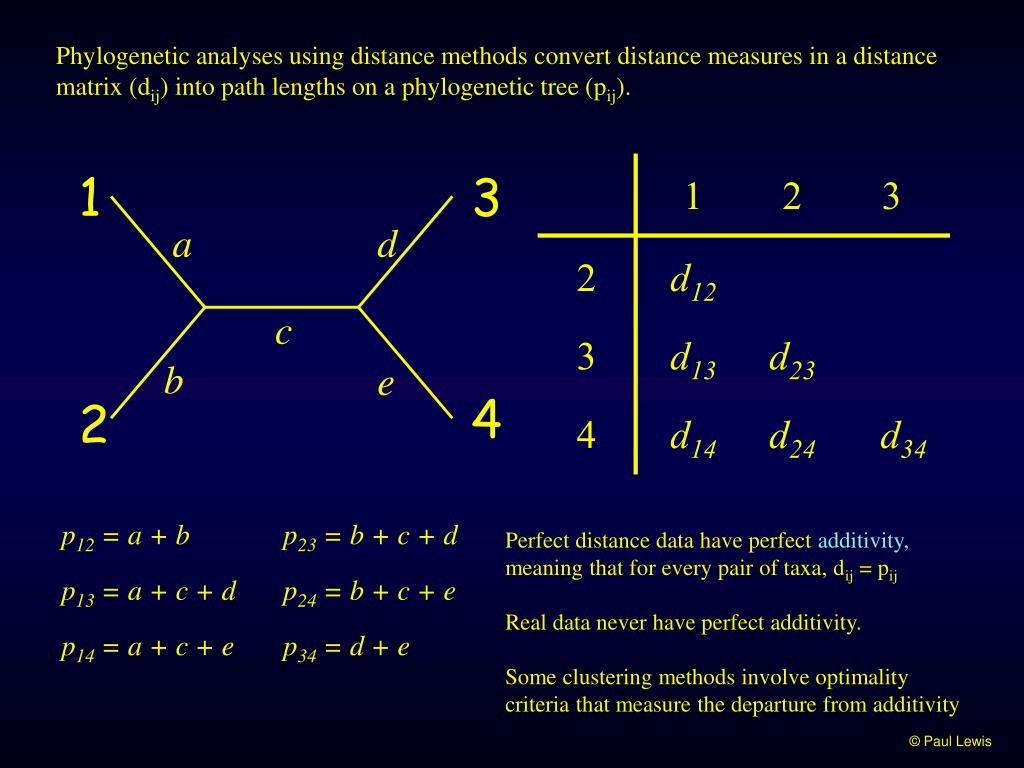

Phylogenetic analyses using distance methods convert distance measures in a distance matrix (dij) into path lengths on a phylogenetic tree (pij).

p12 = a + b

p23 = b + c + d

Perfect distance data have perfect additivity, meaning that for every pair of taxa, dij = pij

Real data never have perfect additivity.

Some clustering methods involve optimality criteria that measure the departure from additivity

p13 = a + c + d

p24 = b + c + e

p14 = a + c + e

p34 = d + e

© Paul Lewis

slide23

Advantages of distance methods

    • Fast (significant, especially when using bootstrapping)
    • Allow use of models of molecular evolution
  • Disadvantages of distance methods
    • Distances may not capture all the information about sequence variation
    • Tree inference is decoupled from inferences about evolution of individual characters (e.g., no way to determine which sites are evolving at high/low rates)
    • Hard to combine different types of data (e.g., molecules/morphology; nucleotides/amino acids)
slide24

2. Distance transformations for molecular data, and introduction to models of molecular evolution

A divergence matrix provides a general framework for describing distance transformations for sequence data.

Consider two sequences with an aligned length of N positions. Each cell in the divergence matrix is the frequency with which a pair of nucleotides occurs at each aligned positions

Swofford et al. p. 454

slide25

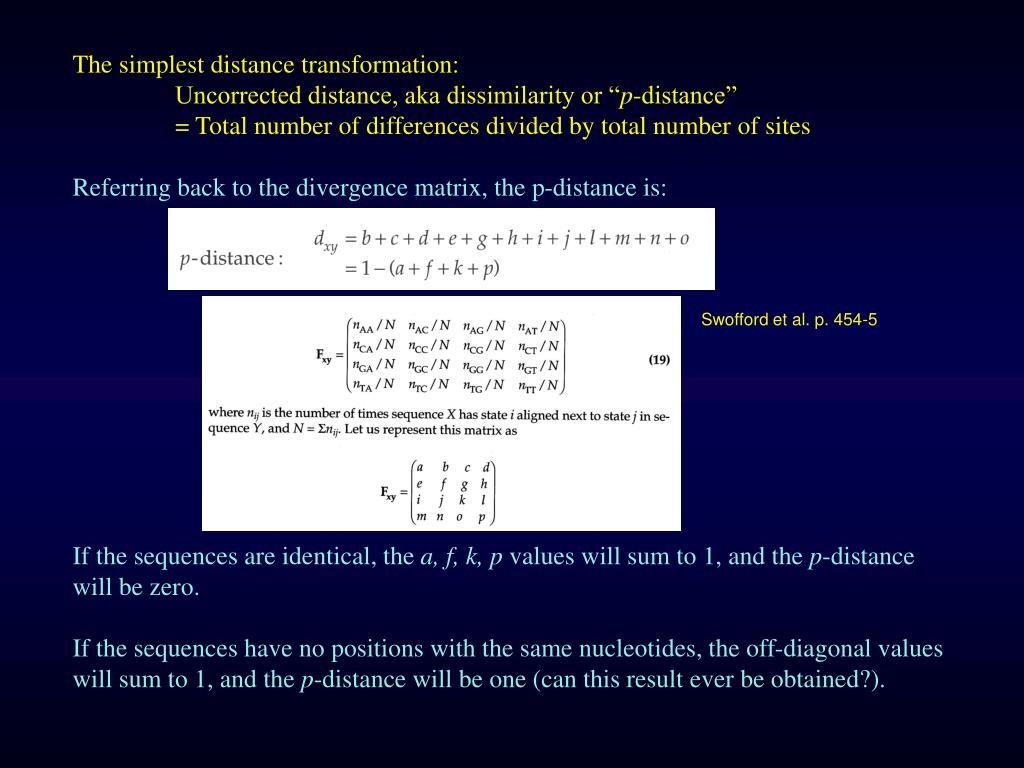

The simplest distance transformation:

      • Uncorrected distance, aka dissimilarity or “p-distance”
      • = Total number of differences divided by total number of sites
  • Referring back to the divergence matrix, the p-distance is:
  • If the sequences are identical, the a, f, k, p values will sum to 1, and the p-distance will be zero.
  • If the sequences have no positions with the same nucleotides, the off-diagonal values will sum to 1, and the p-distance will be one (can this result ever be obtained?).

Swofford et al. p. 454-5

slide26

A

A

A

Problems with p-distances: Multiple hits destroy additivity

Over short evolutionary timescales, the number of differences observed in two aligned sequences will be approximately equal to the number of substitutions that actually occurred along the branches of the tree separating those sequences.

But, over long evolutionary timescales, there may be multiple substitutions (“multiple hits”) at the same sites, which will cause the observed differences to underestimate the actual number of substitutions that have occurred

G

G

G

A

A → G

A → G

Similarity

expected

for short

divergences

A → G

Unfortunately,

some similarity

is also expected for

long divergences.

Molecular homoplasy!

Impossible to detect a priori, because characters are so simple (ACGT)

Difference

expected

for long

divergences

© Paul Lewis

A

A

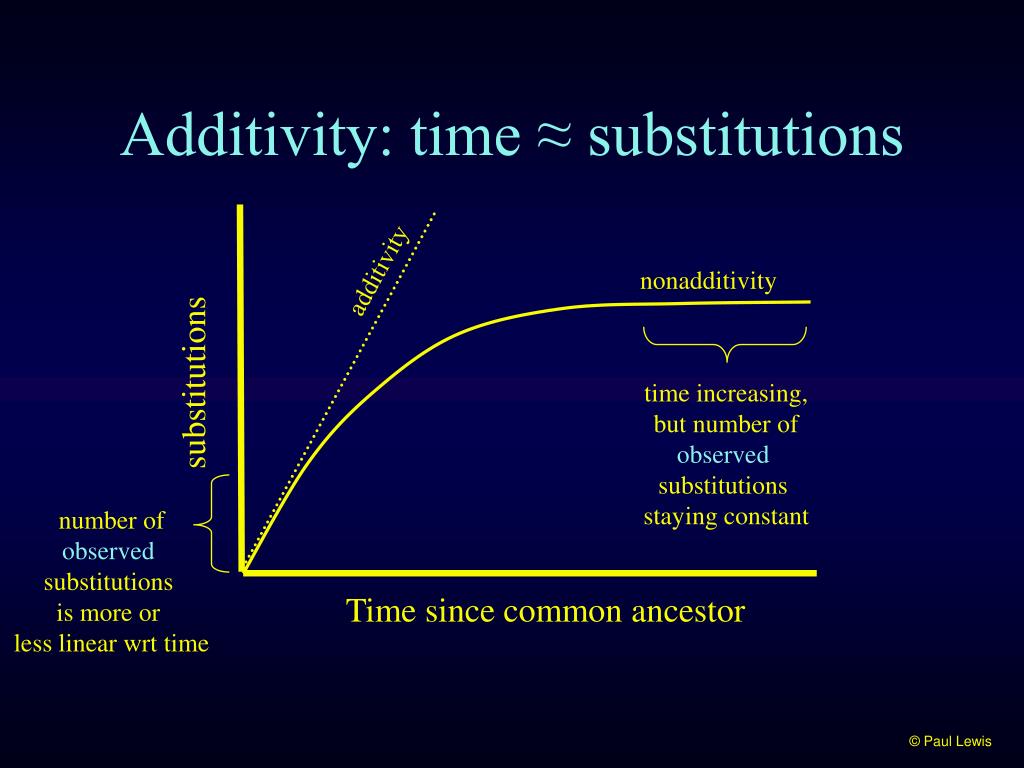

additivity time substitutions
Additivity: time ≈ substitutions

additivity

nonadditivity

substitutions

time increasing,

but number of

observed

substitutions

staying constant

number of

observed

substitutions

is more or

less linear wrt time

Time since common ancestor

© Paul Lewis

over a really really long time
Over a really, really long time...

A

A

If a really large number of substitutions have occurred,

it no longer matters what base we started with

Probability of seeing same state at both ends is thus 1/4

(if base frequencies are equal)

Probability of seeing a difference is thus 3/4

Bottom line: 1/4 of the similarities are misleading because they are due to chance

© Paul Lewis

probability of a present as a function of time

Another way to say the same thing as the previous slide…

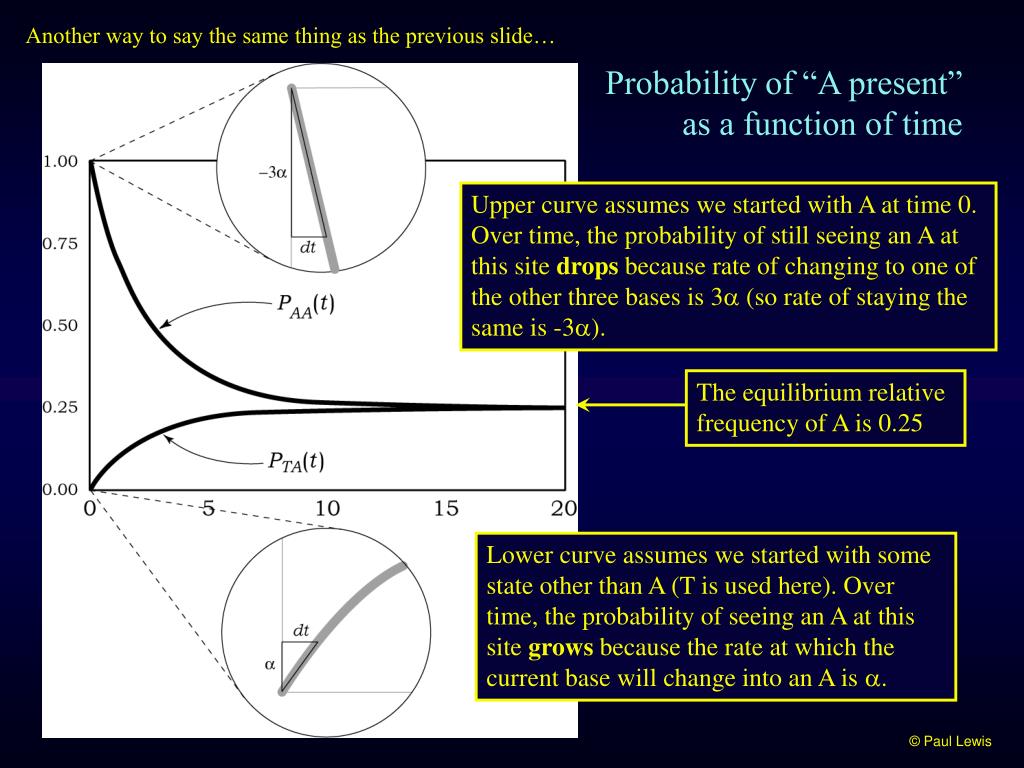

Probability of “A present” as a function of time

Upper curve assumes we started with A at time 0.

Over time, the probability of still seeing an A at

this site drops because rate of changing to one of

the other three bases is 3a (so rate of staying the

same is -3a).

The equilibrium relative

frequency of A is 0.25

Lower curve assumes we started with some state other than A (T is used here). Over time, the probability of seeing an A at this site grows because the rate at which the current base will change into an A is a.

© Paul Lewis

slide30

Distance transformations that “correct” for multiple hits based on models of molecular evolution can make p-distances more additive.

Jukes-Cantor (JC69) one-parameter model

Assumes that all transformations between nucleotides occur at the same rate

Kimura (K80 or K2P) two-parameter model

Assumes that transitions and transversions occur at different rates

AC

AC

Transitions

Transversions

GT

GT

K2P

JC69

jc69 rate matrix

Models of molecular evolution are based on matrices that specify transformation rates.

Models vary in the numbers and kinds of parameters used to determine elements in the rate matrix

JC69* rate matrix

1 parameter:

a

“To” state

“From”

state

*Jukes, T. H., and C. R. Cantor. 1969. Evolution of protein molecules. Pages 21-132 in H. N. Munro (ed.), Mammalian Protein Metabolism. Academic Press, New York.

© Paul Lewis

slide32

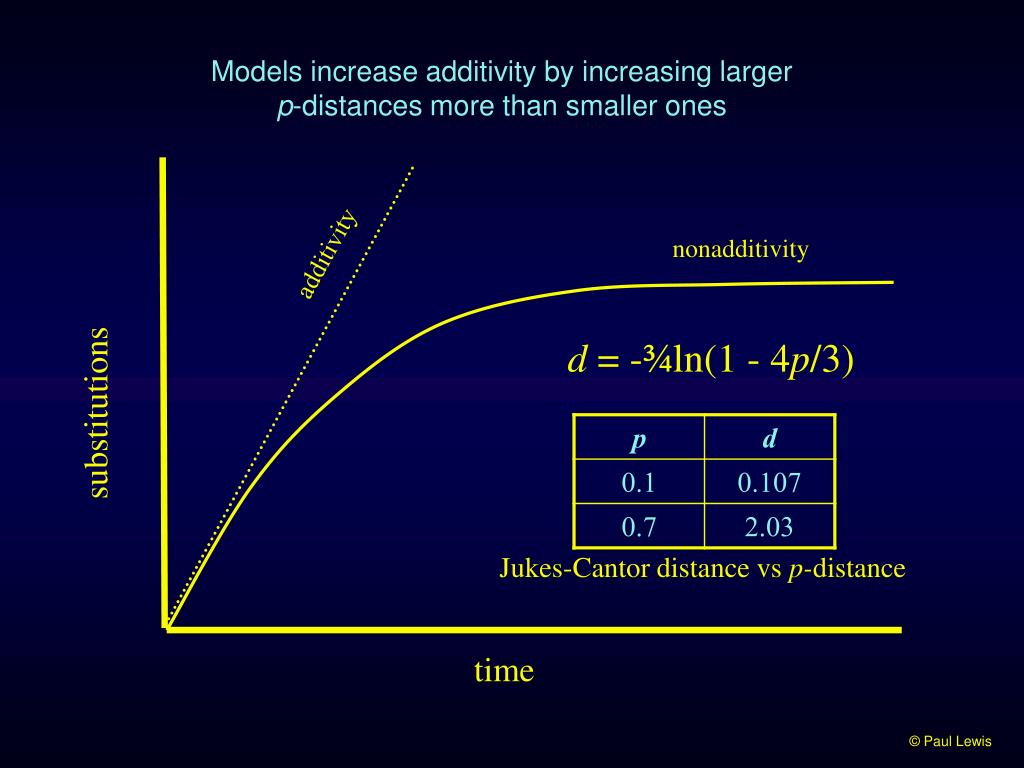

nonadditivity

additivity

substitutions

time

Models increase additivity by increasing larger

p-distances more than smaller ones

d = -¾ln(1 - 4p/3)

Jukes-Cantor distance vs p-distance

© Paul Lewis

k80 or k2p rate matrix
K80* (or K2P) rate matrix

2 parameters:

a

b

“To” state

rate of transversions is b

rate of transitions is a

“From”

state

The diagonal elements

make rows sum to 0

*Kimura, M. 1980. A simple method for estimating evolutionary rate of base substitutions through comparative studies of nucleotide sequences. Journal of Molecular Evolution 16:111-120.

© Paul Lewis

k80 rate matrix looks different but really the same

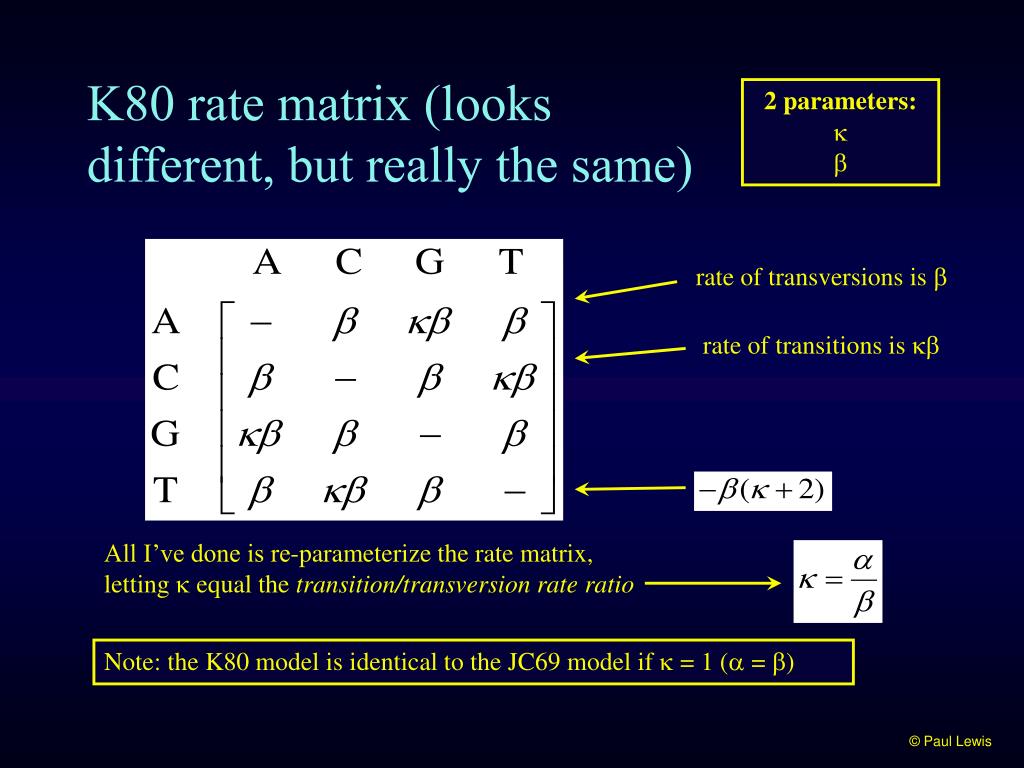

K80 rate matrix (looks different, but really the same)

2 parameters:

k

b

rate of transversions is b

rate of transitions is kb

All I’ve done is re-parameterize the rate matrix,

letting k equal the transition/transversion rate ratio

Note: the K80 model is identical to the JC69 model if k = 1 (a = b)

© Paul Lewis

slide35

Distance correction for K80 (K2P) model:

This distance correction separates the proportion of transitions (P) vs. transversions (Q) and reflects the principle that these types of substitutions occur at different rates.

Distances estimated with the K80 (two parameter) correction may differ from those estimated with JC69 (one parameter) correction, especially when sequences are long, and divergences are great.

Swofford et al. p. 454-6

slide36

Many other models of molecular evolution have been described, not all of which have straightforward distance corrections. Examples:

Felsenstein 1981 (F81) model: Transformation rates determined by mean substitution rate (m) and equilibrium base frequencies (e.g., pA)

4 parameters:

pA

pC

pG

m

Identical to the JC69 model if all the base frequencies are set to ¼.

*Felsenstein, J. 1981. Evolutionary trees from DNA sequences: a maximum likelihood approach. Journal of Molecular Evolution 17:368-376.

© Paul Lewis

slide37

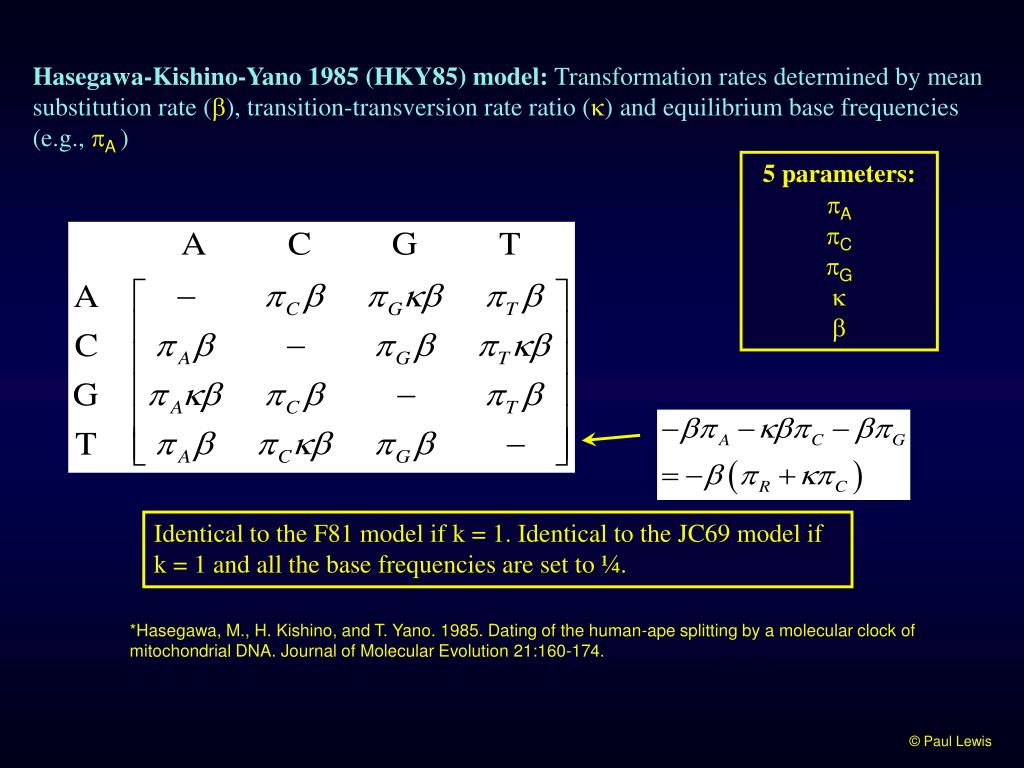

Hasegawa-Kishino-Yano 1985 (HKY85) model: Transformation rates determined by mean substitution rate (b), transition-transversion rate ratio (k) and equilibrium base frequencies (e.g., pA)

5 parameters:

pA

pC

pG

k

b

Identical to the F81 model if k = 1. Identical to the JC69 model if k = 1 and all the base frequencies are set to ¼.

*Hasegawa, M., H. Kishino, and T. Yano. 1985. Dating of the human-ape splitting by a molecular clock of mitochondrial DNA. Journal of Molecular Evolution 21:160-174.

© Paul Lewis

slide38

Generalized time reversible (GTR) model: Transformation rates determined by mean substitution rate (m), relative rate parameters (a-e) and base frequencies (e.g., pA)

9 parameters:

pA

pC

pG

a

b

c

d

e

m

-m (pAc + pCe + pGf)

Identical to the JC69 model if a = b = c = d = e = f = 1 and all the base frequencies are set to ¼.

*Lanave, C., G. Preparata, C. Saccone, and G. Serio. 1984. A new method for calculating evolutionary substitution rates. Journal of Molecular Evolution 20:86-93.

© Paul Lewis

slide39

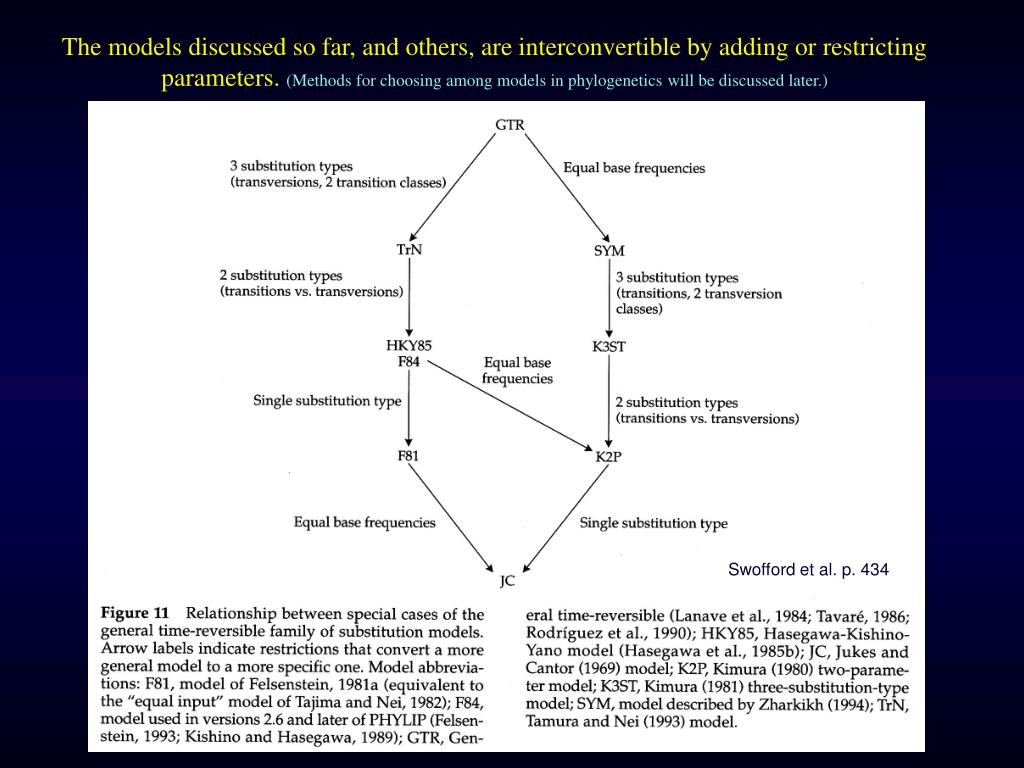

The models discussed so far, and others, are interconvertible by adding or restricting parameters.(Methods for choosing among models in phylogenetics will be discussed later.)

Swofford et al. p. 434

slide40

3. Phylogenetic analyses using distance matrices

UPGMA

Neighbor-Joining

Least-squares methods

slide41

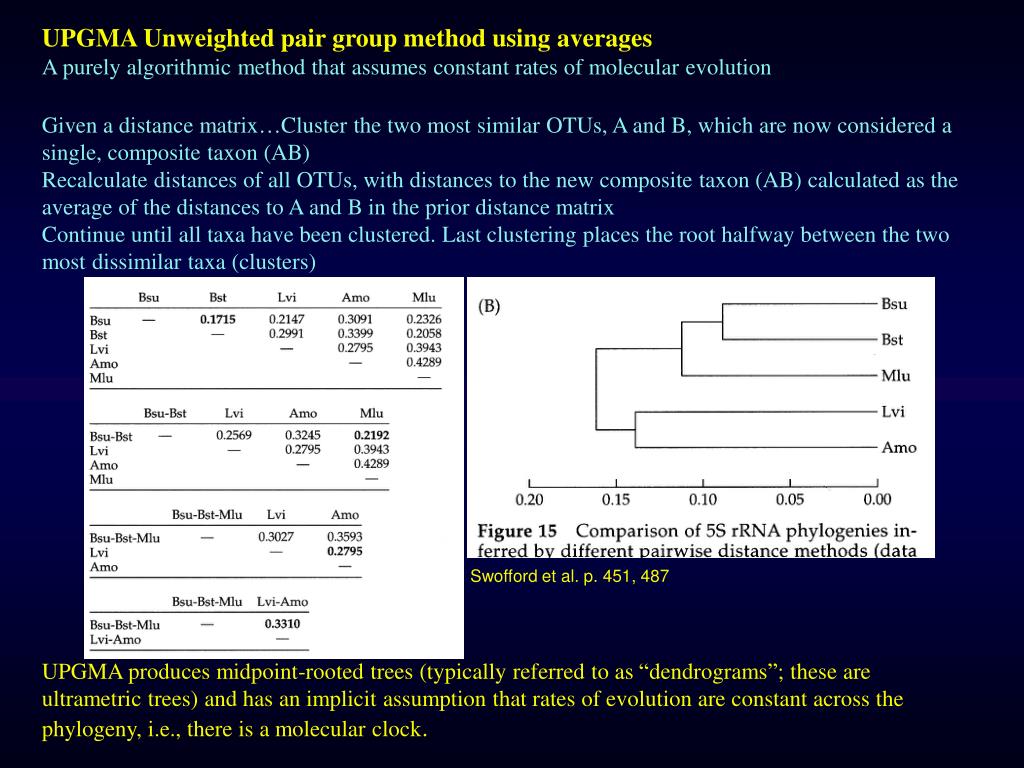

UPGMA Unweighted pair group method using averages

A purely algorithmic method that assumes constant rates of molecular evolution

Given a distance matrix…Cluster the two most similar OTUs, A and B, which are now considered a single, composite taxon (AB)

Recalculate distances of all OTUs, with distances to the new composite taxon (AB) calculated as the average of the distances to A and B in the prior distance matrix

Continue until all taxa have been clustered. Last clustering places the root halfway between the two most dissimilar taxa (clusters)

UPGMA produces midpoint-rooted trees (typically referred to as “dendrograms”; these are ultrametric trees) and has an implicit assumption that rates of evolution are constant across the phylogeny, i.e., there is a molecular clock.

Swofford et al. p. 451, 487

slide42

Neighbor-Joining (NJ)

A very fast (and popular) method of “star decomposition”

Given a distance matrix and a completely

unresolved star topology…

“Decompose” the tree by sequentially clustering

pairs of taxa to create internal branches

At each step, cluster the pair of taxa (neighbors)

that minimizes the tree length, calculated as:

N = no. OTUs, dij = distance between OTUS i, j

NJ produces unrooted trees in which branch lengths

leading to sister taxa may be unequal (i.e., there is no

assumption of a molecular clock).

Although NJ uses the sum of branch lengths as a criterion

for selecting each pair of “neighbors” it is nonetheless an

algorithmic method that does not employ an optimality

criterion for choosing among trees.

A pair of neighbors that is clustered during NJ analysis cannot be “unclustered”.

Li and Graur p. 188, 189.

slide43

1

3

a

d

c

b

e

4

2

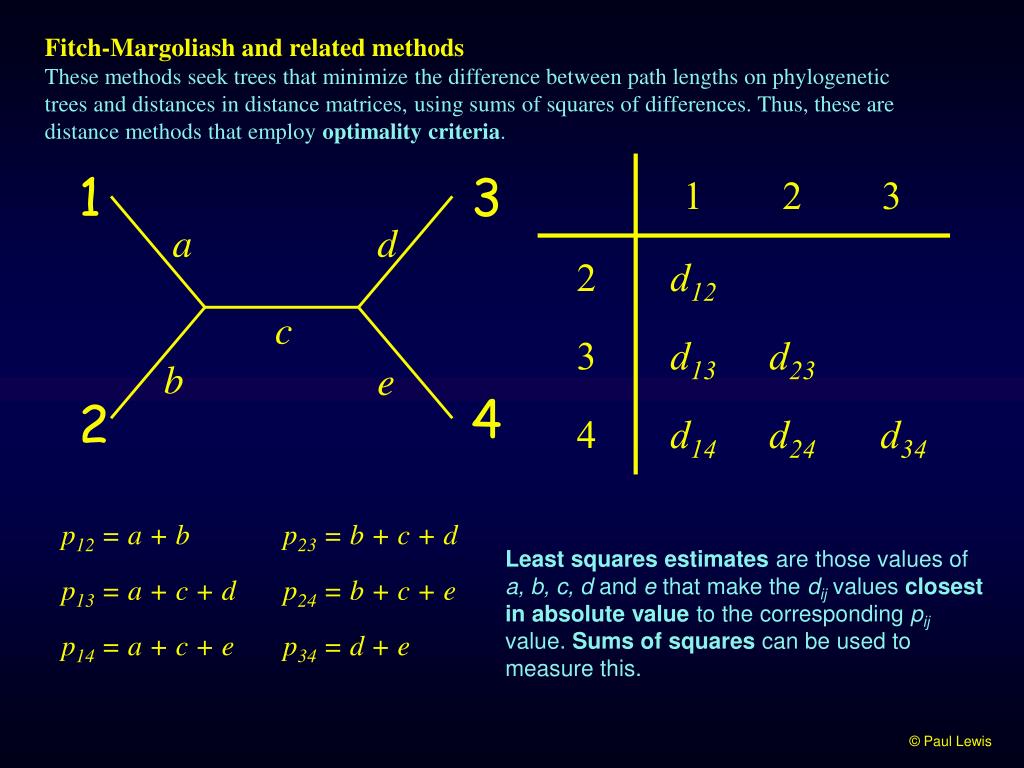

Fitch-Margoliash and related methods

These methods seek trees that minimize the difference between path lengths on phylogenetic trees and distances in distance matrices, using sums of squares of differences. Thus, these are distance methods that employ optimality criteria.

p12 = a + b

p23 = b + c + d

Least squares estimates are those values of a, b, c, d and e that make the dij values closest in absolute value to the corresponding pij value. Sums of squares can be used to measure this.

p13 = a + c + d

p24 = b + c + e

p14 = a + c + e

p34 = d + e

© Paul Lewis

sum of squares
Sum of squares

The powerk is most commonly one of these choices:

k = 0 Cavalli-Sforza & Edwards (1967)

k = 2 Fitch & Margoliash (1967)

*Cavalli-Sforza, L. L., and A. W. F. Edwards. 1967. Evolution 32:550-570.

**Fitch, W. M., and E. Margoliash. 1967. Science 155:279-284.

JC69 distances from

primate mtDNA

Data from: Brown, W., E. Prager, A. Wang, and A. Wilson. 1982. Mitochondrial DNA sequences of primates,

tempo and mode of evolution. Journal of Molecular Evolution 18:225-239.

© Paul Lewis

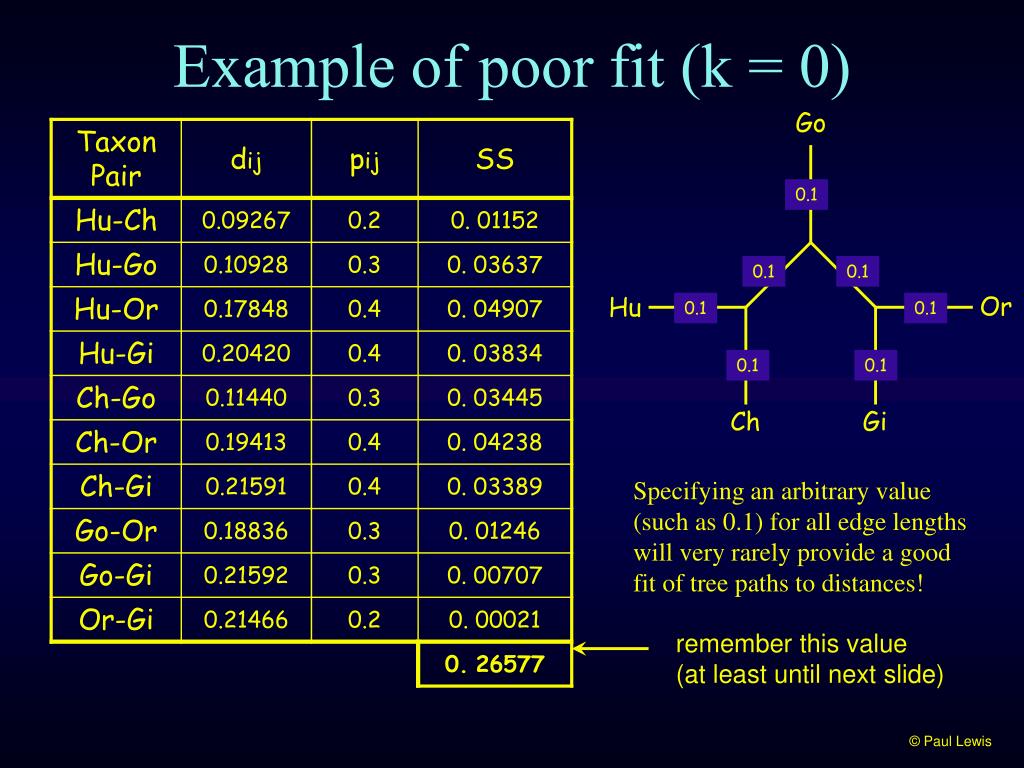

example of poor fit k 0
Example of poor fit (k = 0)

Go

0.1

0.1

0.1

Or

Hu

0.1

0.1

0.1

0.1

Ch

Gi

Specifying an arbitrary value

(such as 0.1) for all edge lengths

will very rarely provide a good

fit of tree paths to distances!

remember this value

(at least until next slide)

© Paul Lewis

least squares edge lengths k 0

Go

0.05790

0.00761

0.03691

0. 04092

0.09482

Or

Hu

0.05175

0.11984

Ch

Gi

Least squares edge lengths (k = 0)

much better!

© Paul Lewis

slide47

Sources:

Paul Lewis, Dept. of Ecology and Evolutionary Biology, University of Connecticut. EEB 349: Phylogenetics http://www.eeb.uconn.edu/people/plewis/index.php

DL Swofford, GJ Olsen, PJ Waddell, DM Hillis. 1996. Phylogenetic Inference. Pp. 407-514 in DM Hillis, C Moritz, BK mable (eds.). Molecular Systematics 2nd Ed. Sinauer Assoc.

D Graur, WH Li. 2000. Fundamentals of Molecular Evolution 2nd Ed. Sinauer Assoc.

S Freeman, JC Herron. 2001. Evolutionary Analysis 2nd Ed. Prentice Hall.

NA Campbell, JB Reece. 2005. Biology 7th Ed. Pearson.
