natural admin utilities
Natural Admin.; Utilities

SYSTP

SYSTRANS

NATLOAD/NATUNLD

SYSRDC

SYSMAIN

SYSBPM

systp natural 228

I’d like this from a

remote CICS

For debugging a stalled

region!

SYSTP(Natural 228)

14:46:53 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - Menu - User: DMDSAC

Code Function

---- --------------------------------

U NATURAL User Sessions

R NATURAL Roll Facilities

G NATURAL Thread Groups

T NATURAL Storage Threads

C NCI Global System Information

P NCI Generation Options

D NATURAL Thread Group Definitions

S NATURAL Swap Information

L NATURAL Local Server Information

O Own NATURAL User Session

A System Administration Facilities

Z Applied NCI Zaps

. Exit NATURAL Application

---- --------------------------------

Code ..

Command ===>

systp displaying user sessions by time
SYSTPDisplaying user sessions (by time)

15:02:17 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL User Sessions - User: DMDSAC

M TID User ID Tran Start Date / Time Last Act Status Program Logon ID

------------------------------------------------------------------------------

T041 SMETHURS NT2S 01-10-12 07:25:32 10:17:47 Rld GNOA710M HEPPSB

T042 SMETHURS NT2S 01-10-12 07:25:43 10:22:13 Rld ISP-BR-M PAYISPF

T047 CHANG NT2I 01-10-12 07:28:04 07:30:45 Rld ISP-MEN1 NATISPF

T04D MCGOVERN NT2S 01-10-12 07:29:49 14:45:45 Rld ISP-BR-M HEPPSB

T055 PETTIBOC NT2S 01-10-12 07:30:19 13:40:07 Rld GNOA710M HEPPSB

T056 COCHRANE NT2S 01-10-12 07:42:33 15:00:09 Rld PPNP576M HEPPSB

T0A3 KEITH NT2I 01-10-12 07:43:04 07:43:08 Rld ISP-MEN1 NATISPF

T07F LEONARD NT2I 01-10-12 08:40:13 11:28:51 Rld MNTFIM1 SYSDIC

T0DD DMDSAC NT2I 01-10-12 07:49:47 15:02:17 Act SCPMNU1M SYSTP

T122 LFCRLSN NT2S 01-10-12 07:55:33 10:15:23 Rld PPNP576M HEPPSB

IR44 IVRUSER NTI0 01-10-12 12:14:08 13:46:58 Ina IVRMAIN IVRCICS

T1ED BURNETTM NT2S 01-10-12 08:14:52 10:22:31 Rld PPNP576M HEPPSB

T248 TUTTLE NT2I 01-10-12 08:25:30 14:32:35 Rld GNTS501M SEC-ADM

T24B TUTTLE NT2I 01-10-12 13:40:44 14:13:05 Rld SRMMUS-1 SYSSEC

T278 LEONARD NT2C 01-10-12 08:32:29 11:10:38 Rld MDR0002 SYSAOS

Top of List

Command ===>

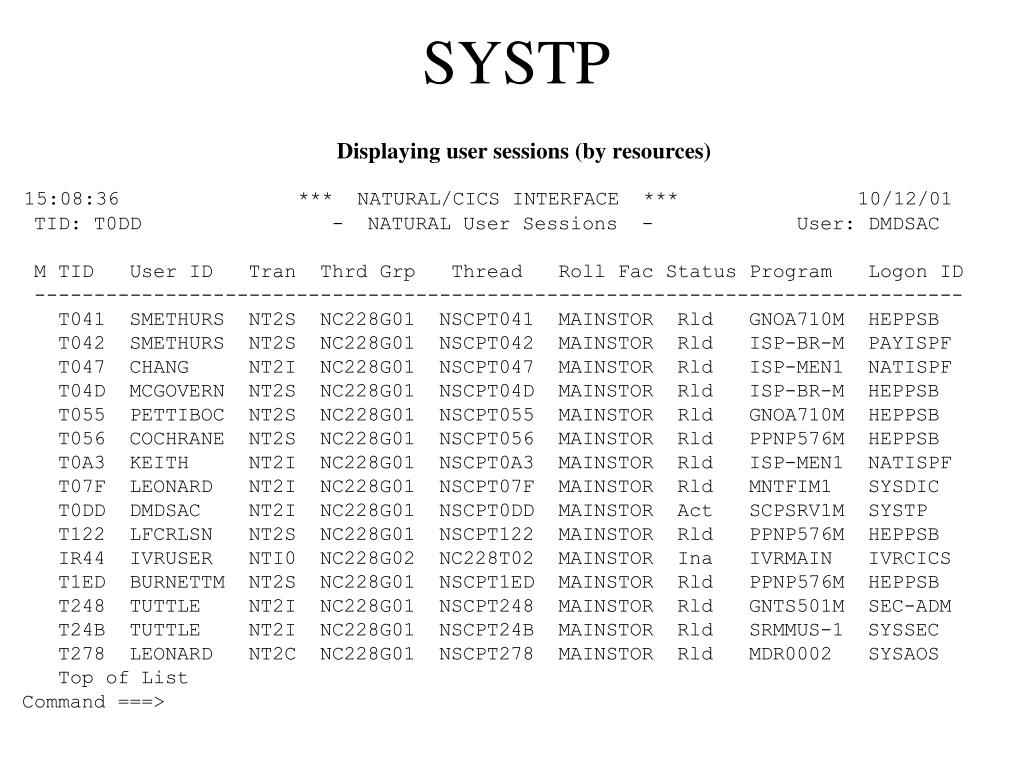

systp displaying user sessions by resources
SYSTPDisplaying user sessions (by resources)

15:08:36 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL User Sessions - User: DMDSAC

M TID User ID Tran Thrd Grp Thread Roll Fac Status Program Logon ID

------------------------------------------------------------------------------

T041 SMETHURS NT2S NC228G01 NSCPT041 MAINSTOR Rld GNOA710M HEPPSB

T042 SMETHURS NT2S NC228G01 NSCPT042 MAINSTOR Rld ISP-BR-M PAYISPF

T047 CHANG NT2I NC228G01 NSCPT047 MAINSTOR Rld ISP-MEN1 NATISPF

T04D MCGOVERN NT2S NC228G01 NSCPT04D MAINSTOR Rld ISP-BR-M HEPPSB

T055 PETTIBOC NT2S NC228G01 NSCPT055 MAINSTOR Rld GNOA710M HEPPSB

T056 COCHRANE NT2S NC228G01 NSCPT056 MAINSTOR Rld PPNP576M HEPPSB

T0A3 KEITH NT2I NC228G01 NSCPT0A3 MAINSTOR Rld ISP-MEN1 NATISPF

T07F LEONARD NT2I NC228G01 NSCPT07F MAINSTOR Rld MNTFIM1 SYSDIC

T0DD DMDSAC NT2I NC228G01 NSCPT0DD MAINSTOR Act SCPSRV1M SYSTP

T122 LFCRLSN NT2S NC228G01 NSCPT122 MAINSTOR Rld PPNP576M HEPPSB

IR44 IVRUSER NTI0 NC228G02 NC228T02 MAINSTOR Ina IVRMAIN IVRCICS

T1ED BURNETTM NT2S NC228G01 NSCPT1ED MAINSTOR Rld PPNP576M HEPPSB

T248 TUTTLE NT2I NC228G01 NSCPT248 MAINSTOR Rld GNTS501M SEC-ADM

T24B TUTTLE NT2I NC228G01 NSCPT24B MAINSTOR Rld SRMMUS-1 SYSSEC

T278 LEONARD NT2C NC228G01 NSCPT278 MAINSTOR Rld MDR0002 SYSAOS

Top of List

Command ===>

systp selecting a user session
SYSTPSelecting a user session

15:03:58 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL User Session Statistics - User: DMDSAC

Session Start: Friday 01-10-12 07:25:32 Last Actions: 91-10-12 10:17:47

User SMETHURS at Terminal T041 Transid NT2S Session Resumes: 14

Cur Strg Used: 399 Swap-Ins: 14

Max Strg Used: 401 Thread Switches: 1

Common Thread Size: 600 Thread Group: NC228G01 Roll-Ins: 14

Max Strg Used: 579 of Type = GETM

Roll Facility: MAINSTOR

Thread Size: 600 Thread Name: NSCPT041 Roll Recs (Last): 3

Max Strg Used: 579 Roll Recs (Max): 3

Roll Record Size: 32748

NATURAL Logon ID: HEPPSB Slot Size: 19

NATURAL Program: GNOA710M Restart Rec. No.: 3

Slot Number: n/a

Operational Status: Rolled Out Compressed Length: 66

Compressed

Command ===>

systp display roll facilities
SYSTPDisplay roll facilities

15:12:37 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Roll Facilities - User: DMDSAC

M Facility Record Slot No. of Facility Users Roll Counts Status

Name Size Size Slots Cur / Max Out / In

------------------------------------------------------------------------------

MAINSTOR 32748 19 n/a 33 36 3269 3250

none 0

------------------------------------------------------------------------------

Total: n/a 33 3269 3250

Top of List

Command ===>

systp thread groups
SYSTPThread Groups

15:14:40 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Thread Groups - User: DMDSAC

M Group Group Users Thread TCBs Thread Strg Queue Sizes VSAM Main

Name Cur / Max Type Act/Max Size Used Cur / Max atMax Aux

------------------------------------------------------------------------------

NC228G01 20 23 GETM 600 579 1 4 3 x

NC228G02 3 3 PGM 4 4 500 278 0 0 0 x

NC228G03 3 3 PGM 4 4 500 278 0 0 0 x

NC228G04 3 3 PGM 4 4 500 278 0 0 0 x

NC228G05 4 4 PGM 4 4 500 278 0 0 0 x

Top of List

Command ===>

systp thread group definitions
SYSTPThread group definitions

15:16:48 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Thread Group Definitions - User: DMDSAC

M Grp Group Roll ThrdSize Threads Transaction Codes / Task Request Keys

No. Type Fac. (GETM) Fm / To

------------------------------------------------------------------------------

1 GETM Aux 600 NT2I NT2D NT2B

15:18:04 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Thread Group Definitions - User: DMDSAC

M Grp Group Roll ThrdSize Threads Transaction Codes / Task Request Keys

No. Type Fac. (GETM) Fm / To

------------------------------------------------------------------------------

2 PGM Aux 1 4 NTI0 MAN0

systp program storage threads
SYSTPProgram Storage Threads

15:19:05 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Program Storage Threads - User: DMDSAC

M Thread Grp Thrd Strg Use Roll-Ins Queue Sizes Term Task

Name No. Size Used Count Log. / Phys. Cur / Max AtMax ID No.

------------------------------------------------------------------------------

NC228T01 2 500 278 4 3 0 0 1 4 IR40

NC228T02 2 500 278 3 2 0 0 1 3 IR44

NC228T03 2 500 278 5 4 0 0 1 5 IR48

NC228T04 2 500 0 0 0 0 0 0 0

NC228T05 3 500 278 6 5 0 0 1 6 IR37

NC228T06 3 500 278 2 1 0 0 1 2 IR41

NC228T07 3 500 278 4 3 0 0 1 4 IR45

NC228T08 3 500 0 0 0 0 0 0 0

NC228T09 4 500 278 5 4 0 0 1 5 IR38

NC228T10 4 500 278 6 5 0 0 1 6 IR42

NC228T11 4 500 278 4 3 0 0 1 4 IR46

NC228T12 4 500 0 0 0 0 0 0 0

NC228T13 5 500 278 4 3 0 0 1 4 IR39

NC228T14 5 500 278 2 1 0 0 1 2 IR43

systp global system info
SYSTPGlobal System Info.

15:25:07 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - Global System Information - User: DMDSAC

System started on Friday 01-10-12 at 07:25:32

Cur Max Available Resources: KB Type

NATURAL User Sessions: 32 / 36 Swap Pool: not avail

Concurrent SCP Active: 0 / 1 Local Buffer Pool: not avail

UCB Block Extensions: 0 / 0 Sort Buffer Pool: not avail

Slots in 1st UCB Block: 250 DL/1 Buffer Pool: not avail

Slots in UCB Block Extns: 32 Edit Buffer Pool: 2048 GETM above

VSAM Roll File Slots: 0 Max Thread Size: 600

Possible Roll Facilities: 2 VSAM Roll Files: No

Thread Groups: 5 Aux TempStor: No

SCB Recoveries: 0 Main TempStor: Yes

Log Destination: No

Global Environment (Pool ID): No Error Msg Dest.: No

Trace Active: No

Message Switching: Yes

Size of SCB Extension (B): 1256 Assembled Last: 00-07-14 13.29

Command ===>

systp global system info parms
SYSTPGlobal system info. (parms)

15:27:04 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - Generation Options - User: DMDSAC

Common Name Prefix: NC228 Invoke Backend Unconditionally: YES

System Control Block: NC228CB Backout Transaction when Abend: YES

Local Buffer Pool: NC228BP Parm List on Call in Commarea: YES

Local Swap Pool: NC228SWP Return Message in Commarea: YES

NATURAL Nucleus Name: NATSHR22 Restart Info in Commarea: YES

ADABAS Linkage Module: ADABAS Optmize 3270 Data Stream: YES

Message Switch Trans ID: NMSG *INIT-PROGRAM Restart Trans ID: YES

TempStor Key Roll Prefix: NAT2 Screen Refresh after CALL: YES

TempStor Key Link Prefix: NCOM Screen Refresh after Resume: YES

Destination for Logging: NLOG *INIT-USER for VSE Submit: YES

Destination for MVS Submit: NRJE Determine Addressing Mode: YES

Error Message Destination: NERR Use 'LAST' Option on SEND: NO

Hardcopy A.M. Indicator: 8 Check Trans ID in Data Stream: NO

ADABAS Calls until Suspend: 100 Upper Case Translation Support: YES

CMROLL Calls until Suspend: 128 TP System User ID Usage: YES

Line Size for non-bi-synch: 80 Recovery Task Wait Interval: 0

SENDER Console Terminal ID: CN01 Assembled Last: 97-03-07 13.54

systp global system info macro
SYSTPGlobal system info (macro)

15:28:37 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - Generation Options - User: DMDSAC

PREFIX NC228 BACKEND YES

PREFIX-CB NC228CB BACKOUT YES

PREFIX-BP NC228BP COMACAL YES

PREFIX-SWP NC228SWP COMAMSG YES

NUCNAME NATSHR22 COMARET YES

ADANAME ADABAS OPT3270 YES

MSGTRAN NMSG PSTRNID YES

TSKEY (1st Sub-Parameter) NAT2 RESENDC YES

TSKEY (2nd Sub-Parameter) NCOM RESENDS YES

LOGDEST NLOG RJEUSER YES

RJEDEST NRJE SETAMOD YES

MSGDEST NERR SNDLAST NO

HARDCPY 8 TRNCHCK NO

ADACALL 100 UCTRAN YES

MAXROLL 128 USERID YES

LINESIZ 80 WAITIME 0

CONSOLE CN01 CDATE / CTIME 97-03-07 13.54

systp thread group def
SYSTPThread Group Def.

15:31:14 *** NATURAL/CICS INTERFACE *** 10/12/01

TID: T0DD - NATURAL Thread Group Definitions - User: DMDSAC

M Grp Group Roll ThrdSize Threads Transaction Codes / Task Request Keys

No. Type Fac. (GETM) Fm / To

------------------------------------------------------------------------------

1 GETM Aux 600 NT2I NT2D NT2B

2 PGM Aux 1 4 NTI0 MAN0

3 PGM Aux 5 8 NTI1 MAN1

4 PGM Aux 9 12 NTI2 MAN2

5 PGM Aux 13 16 NTI3 MAN3

systp swap pool definitions

We do not use

swap pools. I

can’t offer much

here. Sorry.

SYSTPSwap pool definitions

15:33:35 *** NATURAL SWAP Information *** 10/12/01

User DMDSAC Menu Library SYSTP

Code Function

---- -----------------------------------

S Show Swap Information

B NATURAL Buffer Usage Statistics

U Update Swap Pool Reorg Control Data

R Show Swap Pool Reorg Control Data

D Deactivate/Activate Swap Pool

? Help

. Exit

---- -----------------------------------

Code ... _

systp nat314
SYSTPNat314

08:10:50 ***** NATURAL SYSTP UTILITY ***** 2001-10-16

User DMDSAC - Main Menu - TID S003

Code Function

E Environment-Dependent Functions

M NATURAL Monitoring (SYSMON)

F NATURAL Print/Work Files (SYSFILE)

S NATURAL Swap Information

B Buffer Usage Statistics (BUS)

R NATURAL Subsystems and Roll Server Information

T NATURAL Thread Usage Statistics

? Help

. Exit

Code ..

systp nat314 swp parameter service
SYSTP (nat314)SWP parameter service

08:18:16 ***** NATURAL SYSTP UTILITY ***** 2001-10-16

User DMDSAC - SWP Parameter Service - TID S003

Code Function

S Parameter Maintenance

P Password Maintenance

? Help

. Exit

Code .. _

systp nat 314 thread usage stats
SYSTPNat 314 Thread Usage Stats.

Code Function

A Activate Statistics

D Deactivate and Print Statistics

P Print Statistics

S Show Statistics

G Show Physical Getmain Statistics

. Exit

Code _

systp thread usage stats
SYSTPThread Usage Stats.

07:56:41 ***** NATURAL SYSTP UTILITY ***** 2001-10-

User DMDSAC Thread Usage Statistics Library SYSTP

2001-10-16 07:56:41

No. Ext. Buffer Defined Size Max. Allocated Size Max. Used Size

--- ----------- ------------ ------------------- --------------

1 BB#ESIZE 65536 79904 15424

2 ISIZE 8192 8192 4664

3 ZSIZE 45056 45056 32

4 SORTSZE 10240 120 120

5 CFWSIZE 32768 32768 13088

6 RUNSIZE 16384 16384 7888

7 DATSIZE 51200 51200 27152

----------------------------------------------------------------------------

Sum of external buffer sizes ... 233624 Bytes 229 KB

Sum of internal buffer sizes ... 168072 Bytes 165 KB

Sum of physical getmains ....... 0 Bytes 0 KB

Max. used thread length .. 401696 Bytes 393 KB

Max. compressed thread length .. 62405 Bytes 61 KB

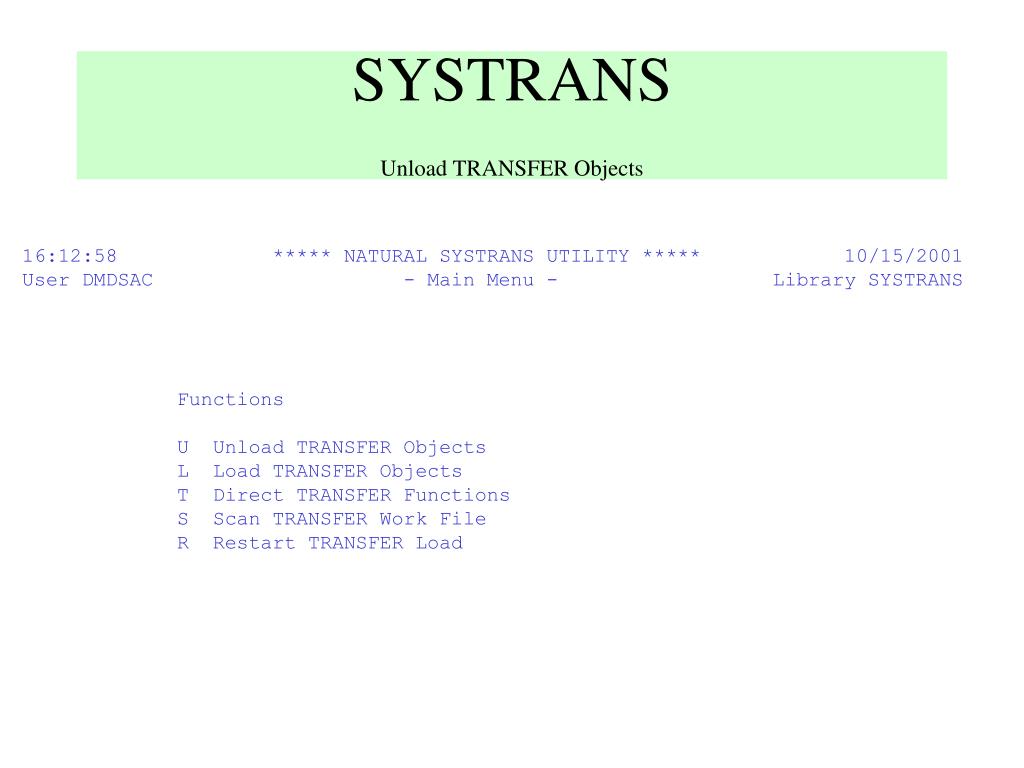

systrans unload transfer objects
SYSTRANSUnload TRANSFER Objects

16:12:58 ***** NATURAL SYSTRANS UTILITY ***** 10/15/2001

User DMDSAC - Main Menu - Library SYSTRANS

Functions

U Unload TRANSFER Objects

L Load TRANSFER Objects

T Direct TRANSFER Functions

S Scan TRANSFER Work File

R Restart TRANSFER Load

systrans unload transfer objects20
SYSTRANSUnload TRANSFER Objects

+---------------------------------------------------

| General Unload Options

|

| Conversion EBCDIC ===> ASCII ..... N (Y/N)

| User-Defined Conversion Table .... N (Y/N)

| Substitute Line References ....... N (Y/N)

| Report ........................... Y (Y/N)

| Include Line Numbers ............. N (Y/N)

| Use Work File Input .............. N (Y/N)

| Use Selection List ............... N (Y/N)

|

| Use ENTIRE CONNECTION work file... N (Y/N)

+---------------------------------------------------

systrans unload transfer objects21
SYSTRANSUnload TRANSFER Objects

Objects to be unloaded

N NATURAL Objects

M NATURAL Maps

D DDMs

F ADABAS FDT

E Error Message Texts

C Command Processors

L Library

systrans unload transfer objects22
SYSTRANSUnload TRANSFER Objects

+--------------------------------------------------------

| Unload NATURAL Objects

|

| S/C Type ....................... S

| From Library ................... ________

| Object Name .................... *_______

| Object Type .................... *______________

| To Library ..................... ________

|

+--------------------------------------------------------

systrans load transfer objects
SYSTRANSLoad Transfer Objects

+----------------------------------------------------

| General Load Options

|

| User-Defined Conversion Table .... N (Y/N/F)

| Report ........................... Y (Y/N)

| Translate Sources to Upper Case .. N (Y/N)

| Save Restart Information ......... N (Y/N)

| Modify Library Names ............. N (Y/N)

|

| Use ENTIRE CONNECTION work file .. N (Y/N)

+----------------------------------------------------

slide24

+-------------------------------------------------------------+-------------------------------------------------------------

| Load DDMs

|

| DDM Name ......................... ________________________________

| Library .......................... *_______

|

| Replace .......................... N (Y/N)

|

+-------------------------------------------------------------

+----------------------------------------------------

| Load ADABAS FDTs

|

| DBID ............................. _____

| FNR .............................. _____

|

| Replace .......................... N (Y/N)

|

+----------------------------------------------------

systrans load transfer objects25
SYSTRANSLoad Transfer Objects

+---------------------------------------------------

| Load Error Message Texts

|

| Message Type ..................... *

| Library .......................... *_______

| Message Number ................... 1___ - 9999

| Language Code .................... *_______

|

| Replace .......................... N (Y/N)

|

+---------------------------------------------------

+---------------------------------------------------

| Load NATURAL Command Processors

|

| Library .......................... *_______

| Object Name ...................... ________

|

| Replace .......................... N (Y/N)

|

+---------------------------------------------------

systrans load transfer objects26
SYSTRANSLoad Transfer Objects

+-----------------------------------------------------------------------

| Load NATURAL Library

|

| Library .......................... *_______

| Load NATURAL Objects ............. Y (Y/N)

| Range of NATURAL Objects ....... *_______

| Types of NATURAL Objects ....... *______________

| Load Maps ........................ Y (Y/N)

| Range of Maps .................. *_______

| Load DDMs ........................ Y (Y/N)

| Range of DDMs .................. *_______________________________

| Load Error Messages .............. Y (Y/N)

| Message Number ................. 1 - 9999

| Language Code .................. *_______

| Load Command Processors .......... Y (Y/N)

| Range of Command Processors .... *_______

| Replace .......................... N (Y/N)

+-----------------------------------------------------------------------

systrans direct transfer objects
SYSTRANS Direct TRANSFER Objects

Functions

D Direct Transfer (using RPC)

R Restart Direct Transfer

P Get Report from Direct Transfer Load

L Define Local TRANSFER System

test dblog
TEST DBLOG +

Using TEST DBLOG I found SCPTSK1P. Invoking it gave me:

0001 */

0002 12:59:51 2001-08-13

0003

0004 CICS Terminal ID: HW59 VTAM Net Name: A1IP869E

0005 NATURAL Term. ID: HW59

0006 Op.System Name: MVS1 Operating System: MVS/ESA SP6.0.9

0007 CICS System ID: SI07 TP Monitor: CICS/ESA 4.1

0008 Application ID: A1CICS7

0009 CICS User ID: HWAB01 NATURAL User ID: HWAB01

0010

0011 Transaction ID: TANT Current Program: TANTNAT at 0D100000

0012 Task Number: 611 Entry to NATURAL at 0D111E10

0013 Addressing Mode: 31 Execution Key: USER

%c copied it to my work area. It's now in NATUAL do with it what you want.

I did it manually but it can be done with natural I would assume.

Al Blakey
