  1. Climate Change and Ozone Loss Chapter 16

  2. Mt. Pinatubo, Philippines 1991 eruption Temporary world cooling Climate modeling Hansen’s model Studying a Volcano to Understand Climate Change Fig. 16-1, p. 367

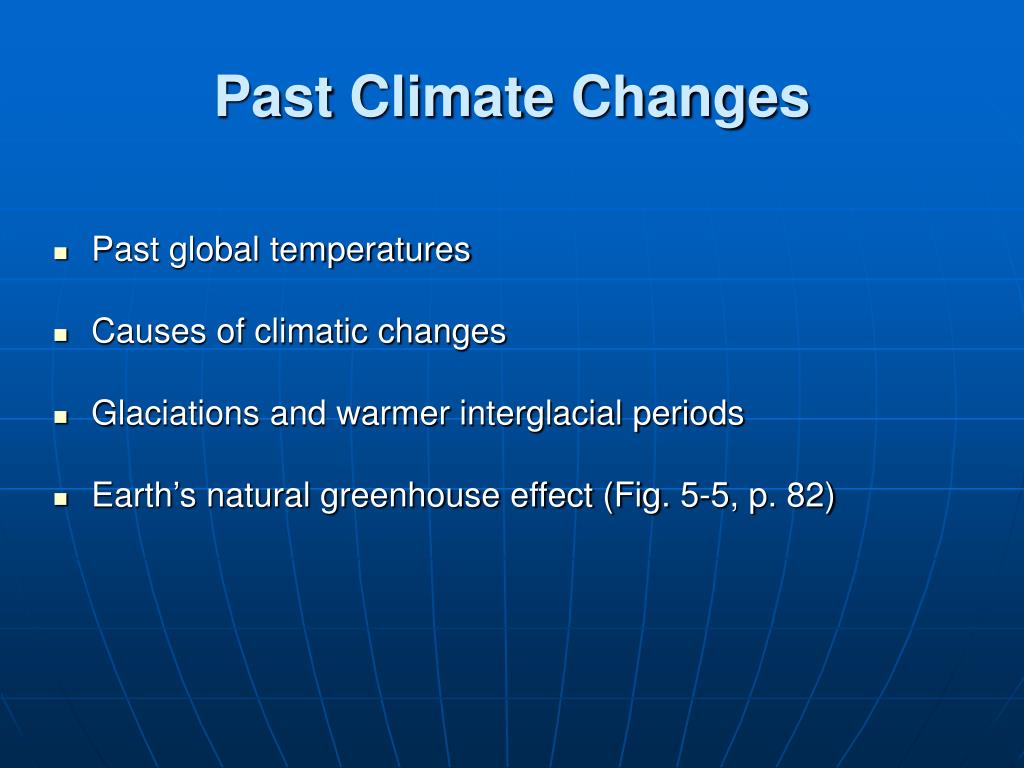

  3. Past Climate Changes • Past global temperatures • Causes of climatic changes • Glaciations and warmer interglacial periods • Earth’s natural greenhouse effect (Fig. 5-5, p. 82)

  4. Average Global Temperature over the Past 900,000 Years 17 16 15 14 Average surface temperature (°C) 13 12 11 10 9 900 800 700 600 500 400 300 200 100 Present Thousands of years ago Fig. 16-2a, p. 369

  5. Average temperature over past 10,000 years = 15°C (59°F) Temperature Changes Over Past 22,000 Years 2 Agriculture established 1 0 –1 Temperature change (°C) – 2 End of last ice age – 3 – 4 – 5 20,000 10,000 2,000 1,000 200 100 Now Years ago Fig. 16-2b, p. 369

  6. Temperature Changes Over Past 1,000 Years 1.0 0.5 0.0 Temperature change (°C) –0.5 –1.0 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2101 Year Fig. 16-2c, p. 369

  7. Average Global Temperature Over Past 130 Years 15.0 14.8 14.6 14.4 Average surface temperature (°C) 14.2 14.0 13.8 13.6 1860 1880 1900 1920 1940 1960 1980 2000 2020 Year Fig. 16-2d, p. 369

  8. Ice Cores: Records of Past Climates Fig. 16-3, p. 369

  9. Greenhouse Effect (b) The earth's surface absorbs much of the incoming solar radiation and degrades it to longer-wavelength infrared (IR) radiation, which rises into the lower atmosphere. Some of this IR radiation escapes into space as heat and some is absorbed by molecules of greenhouse gases and emitted as even longer wavelength IR radiation, which warms the lower atmosphere. (c) As concentrations of greenhouse gases rise, their molecules absorb and emit more infrared radiation, which adds more heat to the lower atmosphere. (a) Rays of sunlight penetrate the lower atmosphere and warm the earth's surface. Fig. 5-5, p. 82

  10. Major Greenhouse Gases • Water vapor • Carbon dioxide (CO2) • Methane (CH4) • Nitrous oxide (N2O) • Table 16-1, p. 370

  11. Table 16-1, p. 370

  12. Atmospheric Carbon Dioxide and Global Temperatures 380 360 340 320 300 Concentration of carbon dioxide in the atmosphere (ppm) 280 Carbon dioxide 260 240 +2.5 220 0 200 Variation of temperature (˚C) from current level –2.5 180 –5.0 –7.5 Temperature change –10.0 End of last ice age 160 120 80 40 0 Thousands of years before present Fig. 16-4, p. 370

  13. Climate Change and Human Activities • Human emissions of greenhouse gases • US carbon dioxide emissions • Troposphere warming • 20th century warmest in 1000 years • Average global temperatures rising • 16 warmest years since 1980 • Glaciers and floating sea ice melting • Melting permafrost and release of more greenhouse gases • Rising sea level

  14. Increases in Average Atmospheric Carbon Dioxide Since 1860 410 360 Parts per million 310 260 1800 1900 2000 2100 Year Carbon dioxide (CO2) Fig. 16-5a, p. 371

  15. Increases in Average Atmospheric Methane Since 1860 2.4 1.8 Parts per million 1.2 0.6 2000 1900 2100 1800 Year Methane (CH4) Fig. 16-5b, p. 371

  16. Increases in Average Atmospheric Nitrous Oxide Since 1860 320 310 300 Parts per million 290 260 1900 2000 2100 1800 Year Nitrous oxide (N2O) Fig. 16-5c, p. 371

  17. Shrinking Arctic Sea Ice (1979-2003) Fig. 16-6, p. 372

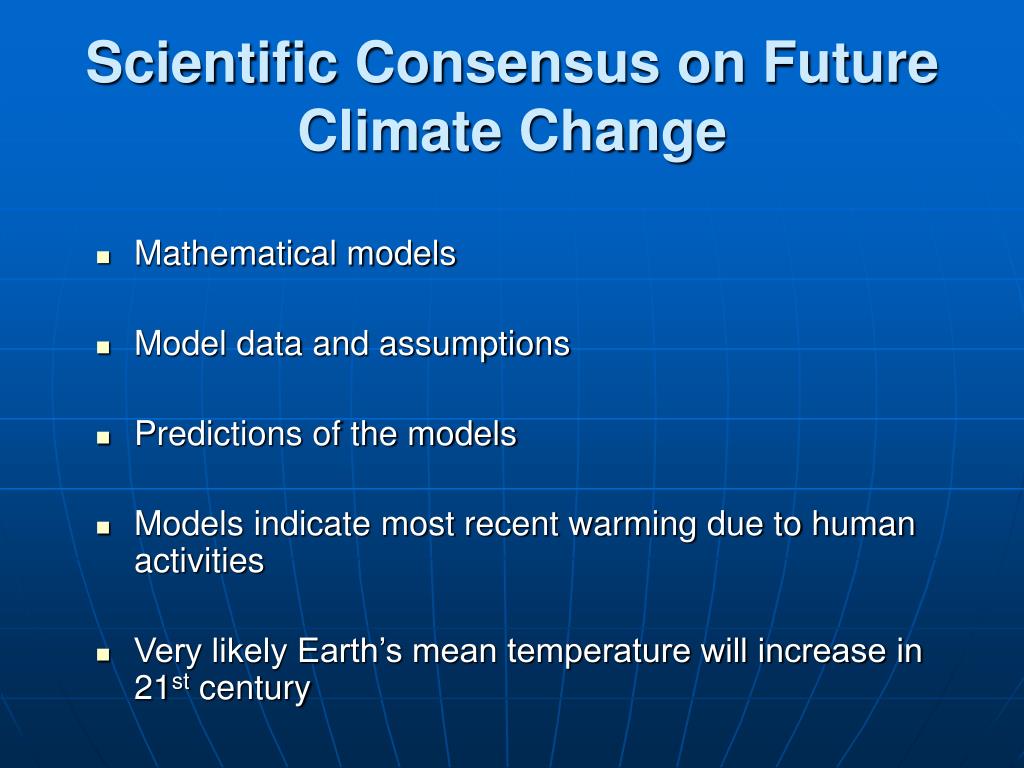

  18. Scientific Consensus on Future Climate Change • Mathematical models • Model data and assumptions • Predictions of the models • Models indicate most recent warming due to human activities • Very likely Earth’s mean temperature will increase in 21st century

  19. Processes that Determine Average Temperature and Greenhouse Gas Content Troposphere Cooling from increase CO2 removal by plants and soil organisms CO2 emissions from land cleaning, fires, and decay Warming from decrease Aerosols Heat and CO2 removal Heat and CO2 emissions Greenhouse gases Ice and snow cover Shallow ocean Land and soil biotoa Long-term storage Natural and human emissions Deep ocean Fig. 16-7, p. 372

  20. Measured Average Temperatures and Future Predictions Fig. 16-8, p. 373

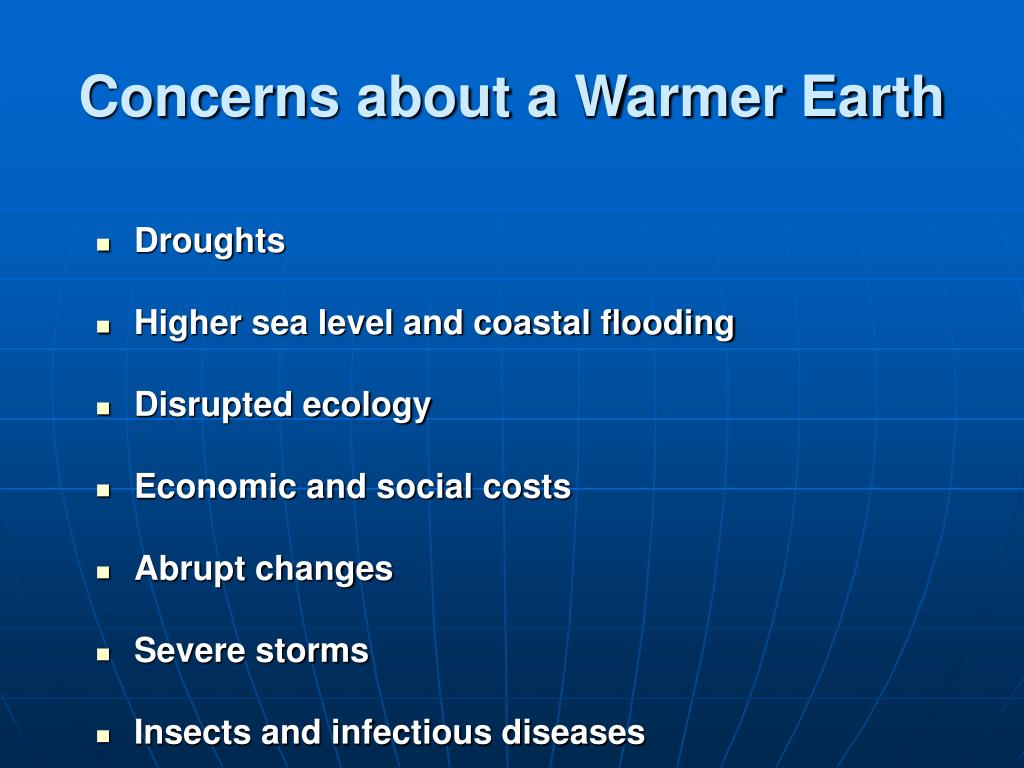

  21. Concerns about a Warmer Earth • Droughts • Higher sea level and coastal flooding • Disrupted ecology • Economic and social costs • Abrupt changes • Severe storms • Insects and infectious diseases

  22. Factors Affecting the Earth’s Temperature • Ability of oceans to store carbon dioxide • Local global cooling is possible • Effects of cloud cover • Jet contrails • Aerosols: volcanic eruptions and human activities • Sulfate and black carbon aerosols • Photosynthesis • Methane emissions: methane hydrates

  23. Shallow and Deep Ocean Currents Fig. 16-9, p. 374

  24. Agriculture Water Resources Forests • Changes in forest composition and locations • Disappearance of some forests, especially ones at high elevations • Increased fires from drying • Loss of wildlife habitat and species • Changes in water supply • Decreased water quality • Increased drought • Increased flooding • Snowpack reduction • Melting of mountaintop glaciers • Shifts in food-growing areas • Changes in crop yields • Increased irrigation demands • Increased pests, crop diseases, and weeds in warmer areas Biodiversity Sea Level and Coastal Areas • Rising sea levels • Flooding of low-lying islands and coastal cities • Flooding of coastal estuaries, wetlands, and coral reefs • Beach erosion • Disruption of coastal fisheries • Contamination of coastal aquifiers with salt water • Extinction of some plant and animal species • Loss of habitats • Disruption of aquatic life Weather Extremes Human Health • Decreased deaths from cold weather • Increased deaths from heat and disease • Disruption of food and water supplies • Spread of tropical diseases to temperate areas • Increased respiratory disease and pollen allergies • Increased water pollution from coastal flooding • Increased formation of photochemical smog Human Population • Prolonged heat waves and droughts • Increased flooding from more frequent, intense, and heavy rainfall in some areas • Increased deaths from heat and disruption of food supplies • More environmental refugees • Increased migration Benefits and Negative Impacts of Global Warming Fig. 16-10, p. 376

  25. Possible Effects of Global Warming on Beech Trees Beech Future range Overlap Present range Fig. 16-11, p. 377

  26. Rising Sea Levels Threaten Islands Fig. 16-12, p. 377

  27. Why Climate Change is a Difficult Problem • Complex causes • Global problem: How can we all agree? • Long-term problem • Harmful and beneficial effects of climate change not spread evenly • Can’t stop climate change, only slow rate and adapt • Solutions are difficult and controversial

  28. Options to Deal with Climate Change • “Wait and see” strategy: we need more research • “Act now” strategy • “Act now with no regrets” strategy

  29. Solutions to Global Warming Solutions Global Warming Prevention Cleanup Cut fossil fuel use (especially coal) Remove CO2 from smokestack and vehicle emissions Shift from coal to natural gas Store (sequester) CO2 by planting trees Improve energy efficiency Shift to renewable energy resources Sequester CO2 deep underground Transfer energy efficiency and renewable energy technologies to developing countries Sequester CO2 in soil by using no-till cultivation and taking crop land out of production Reduce deforestation Sequester CO2 in the deep ocean Use more sustainable agriculture Repair leaky natural gas pipelines and facilities Limit urban sprawl Reduce poverty Use feeds that reduce CH4 emissions by belching cows Slow population growth Fig. 16-13, p. 379

  30. Removing Carbon Dioxide from the Atmosphere Tanker delivers CO2 from plant to rig Oil rig Coal power plant Tree plantation CO2 is pumped down from rig for deep ocean disposal Abandoned oil field Crop field Switchgrass CO2 is pumped down to reservoir through abandoned oil field Spent oil reservoir is used for CO2 deposit = CO2 deposit = CO2 pumping Fig. 16-14, p. 380

  31. Government Roles in Reducing the Threat of Climate Change • Funding for carbon dioxide removal technologies • Carbon taxes • Energy taxes • Decreasing other taxes • Leveling the economic playing field • Technology transfer • Kyoto Protocol • What other countries, cities and businesses are doing

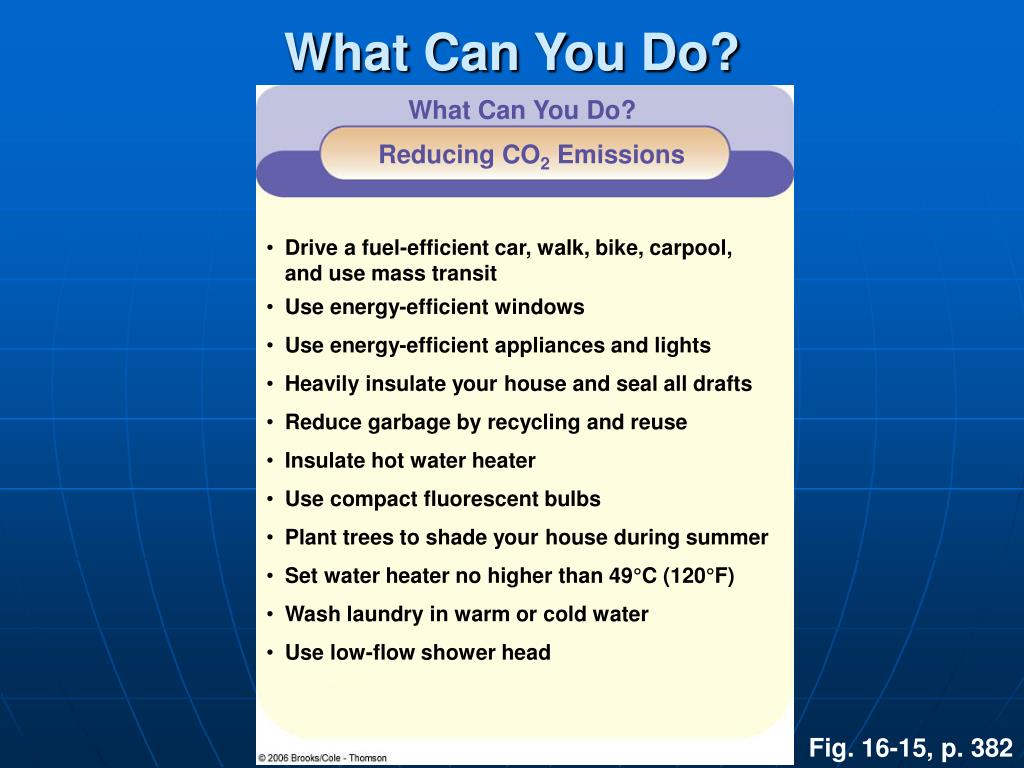

  32. What Can You Do? What Can You Do? Reducing CO2 Emissions • Drive a fuel-efficient car, walk, bike, carpool, • and use mass transit • Use energy-efficient windows • Use energy-efficient appliances and lights • Heavily insulate your house and seal all drafts • Reduce garbage by recycling and reuse • Insulate hot water heater • Use compact fluorescent bulbs • Plant trees to shade your house during summer • Set water heater no higher than 49°C (120°F) • Wash laundry in warm or cold water • Use low-flow shower head Fig. 16-15, p. 382

  33. Develop crops that need less water Waste less water Connect wildlifereserves with corridors Move people away from low-lyingcoastal areas Stockpile 1- to 5-yearsupply of key foods Move hazardous material storagetanks away from coast Prohibit new constructionon low-lying coastal areasor build houses on stilts Expand existingwildlife reservestoward poles Preparing for Climate Changes Fig. 16-16, p. 382

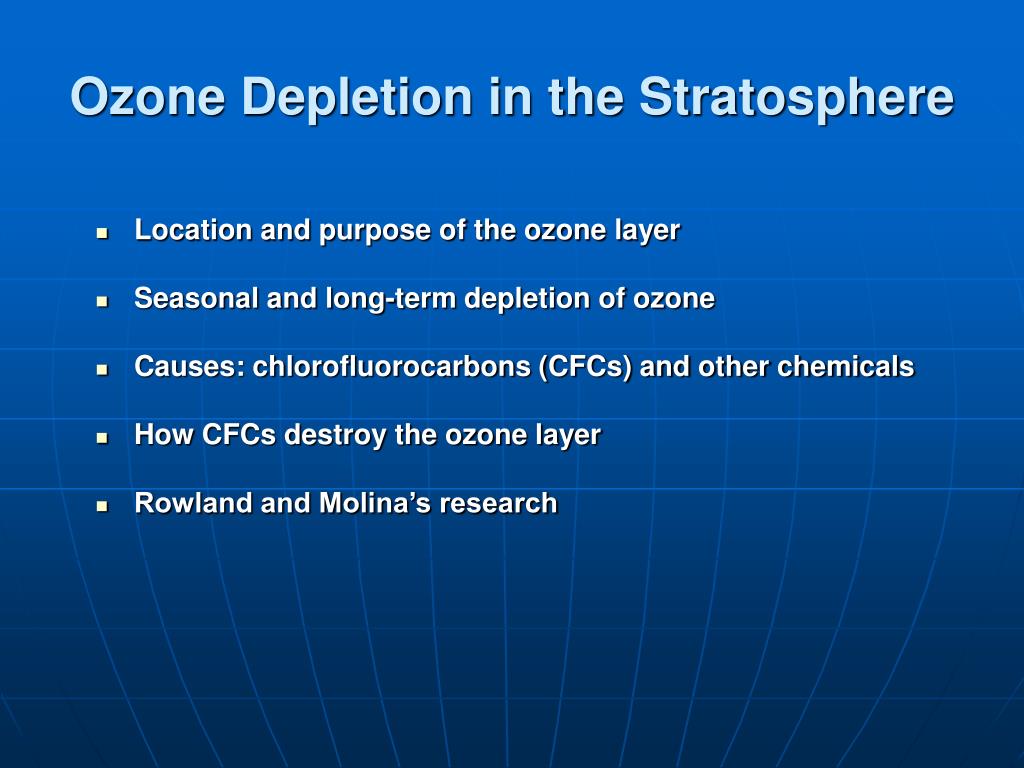

  34. Ozone Depletion in the Stratosphere • Location and purpose of the ozone layer • Seasonal and long-term depletion of ozone • Causes: chlorofluorocarbons (CFCs) and other chemicals • How CFCs destroy the ozone layer • Rowland and Molina’s research

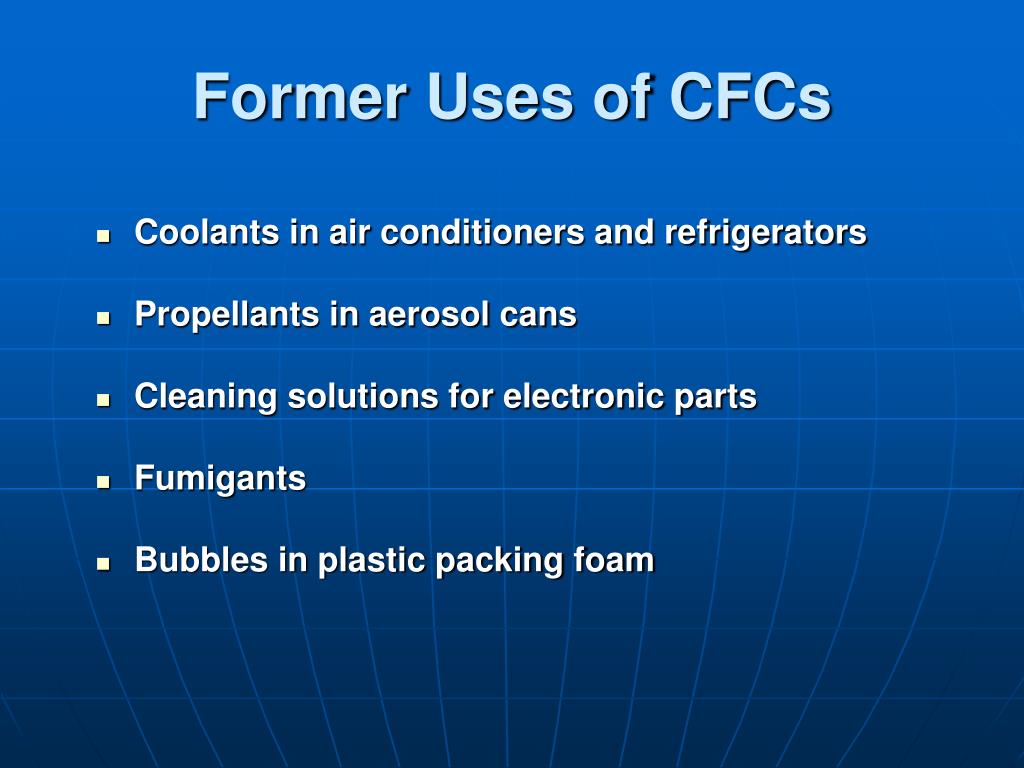

  35. Former Uses of CFCs • Coolants in air conditioners and refrigerators • Propellants in aerosol cans • Cleaning solutions for electronic parts • Fumigants • Bubbles in plastic packing foam

  36. Ozone Thinning • Seasonal • More severe over Antarctica than the Arctic • Consequences • Models

  37. Consequences of Ozone Loss Natural Capital Degradation Effects of Ozone Depletion • Human Health • Worse sunburn • More eye cataracts • More skin cancers • Immune system suppression • Food and Forests • Reduced yields for some crops • Reduced seafood supplies from reduced phytoplankton • Decreased forest productivity for UV-sensitive tree species • Wildlife • Increased eye cataracts in some species • Decreased population of aquatic species sensitive to UV radiation • Reduced population of surface phytoplankton • Disrupted aquatic food webs from reduced phytoplankton • Air Pollution and Materials • Increased acid deposition • Increased photochemical smog • Degradation of outdoor paints and plastics • Global Warming • Accelerated warming because of decreased ocean uptake of CO2 from atmosphere by phytoplankton and CFCs acting as greenhouse gases Fig. 16-17, p. 384

  38. Skin Cancers Ultraviolet A Ultraviolet B Thin layer of dead cells Hair Epidermis Squamous cells Basal layer Sweat gland Melanocyte cells Dermis Basal cell Blood vessels Squamous Cell Carcinoma Melanoma Basal Cell Carcinoma Fig. 16-18a, p. 385

  39. Skin Cancers DO NOT POST TO INTERNET DO NOT POST TO INTERNET Squamous Cell Carcinoma Melanoma DO NOT POST TO INTERNET Basal Cell Carcinoma Fig. 16-18bcd, p. 385

  40. Reducing Exposure to Ultraviolet Radiation What Can You Do? Reducing Exposure to UV-Radiation • Stay out of the sun, especially between 10 A.M. and 3 P.M. • Do not use tanning parlors or sunlamps. • When in the sun, wear protective clothing and sun– • glasses that protect against UV-A and UV-B radiation. • Be aware that overcast skies do not protect you. • Do not expose yourself to the sun if you are taking antibiotics or birth control pills. • Use a sunscreen with a protection factor of 15 or 25 if • you have light skin. • Examine your skin and scalp at least once a month for moles or warts that change in size, shape, or color or sores that keep oozing, bleeding, and crusting over. If you observe any of these signs, consult a doctor immediately. Fig. 16-19, p. 386

  41. Protecting the Ozone Layer • Slow recovery of the ozone layer • Montreal Protocol: Reducing CFC emissions • Copenhagen Protocol • International cooperation • Individuals Matter, p. 386: Ray Turner and His Refrigerator
