Presentation Transcript
slide1

3DVAR Retrieval of 3D Moisture Field from Slant-path Water Vapor Observations of a High-resolution HypotheticalGPS Network

Haixia Liu and Ming Xue

Center for Analysis and Prediction of Stormsand School of Meteorology

University of Oklahoma

16th Conf. Num. Wea. Pred

January 2004

background and motivation

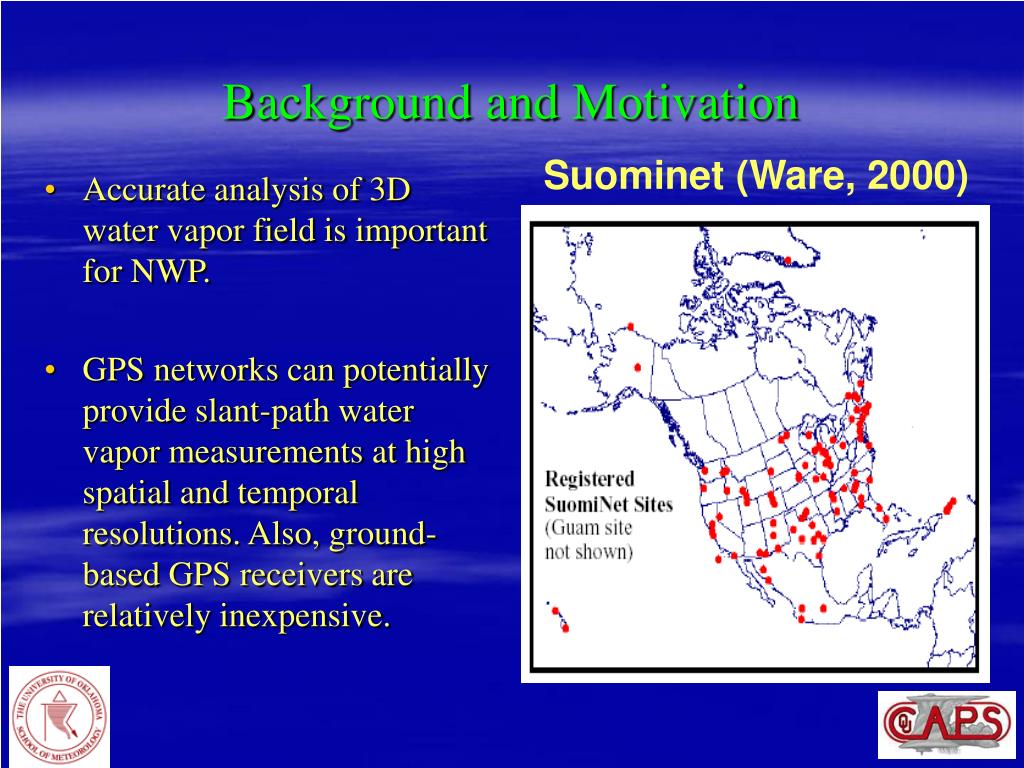

Background and Motivation

Suominet (Ware, 2000)

  • Accurate analysis of 3D water vapor field is important for NWP.
  • GPS networks can potentially provide slant-path water vapor measurements at high spatial and temporal resolutions. Also, ground-based GPS receivers are relatively inexpensive.
background and motivation continued

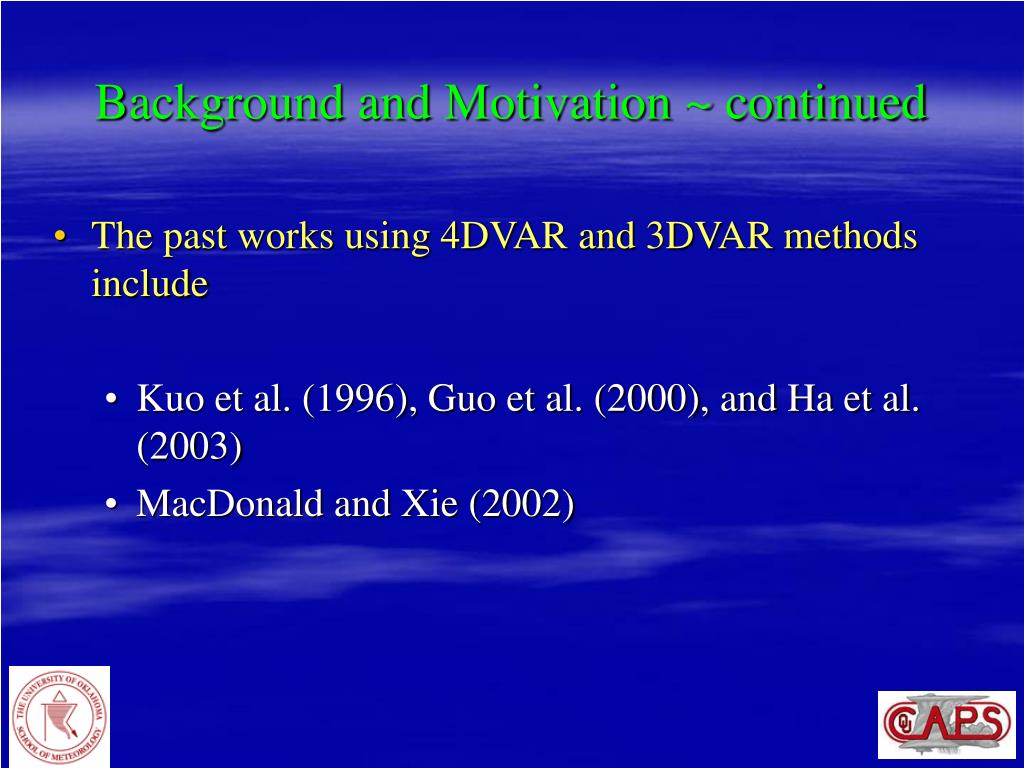

Background and Motivation ~ continued
  • The past works using 4DVAR and 3DVAR methods include
    • Kuo et al. (1996), Guo et al. (2000), and Ha et al. (2003)
    • MacDonald and Xie (2002)
this work

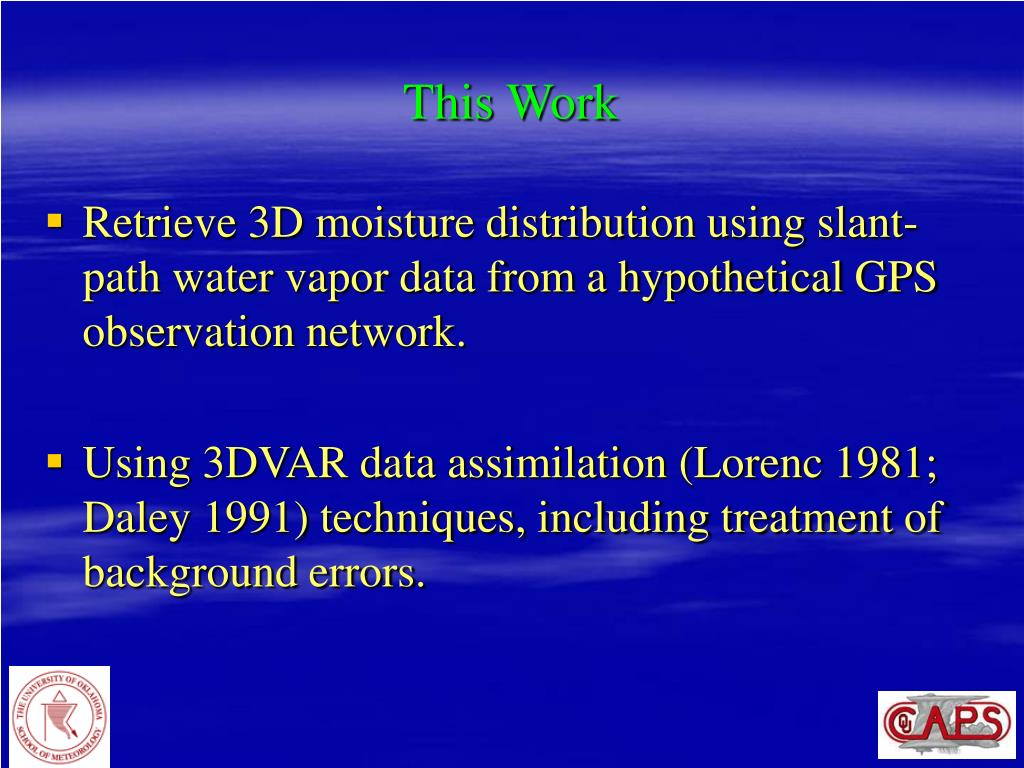

This Work
  • Retrieve 3D moisture distribution using slant-path water vapor data from a hypothetical GPS observation network.
  • Using 3DVAR data assimilation (Lorenc 1981; Daley 1991) techniques, including treatment of background errors.
outline

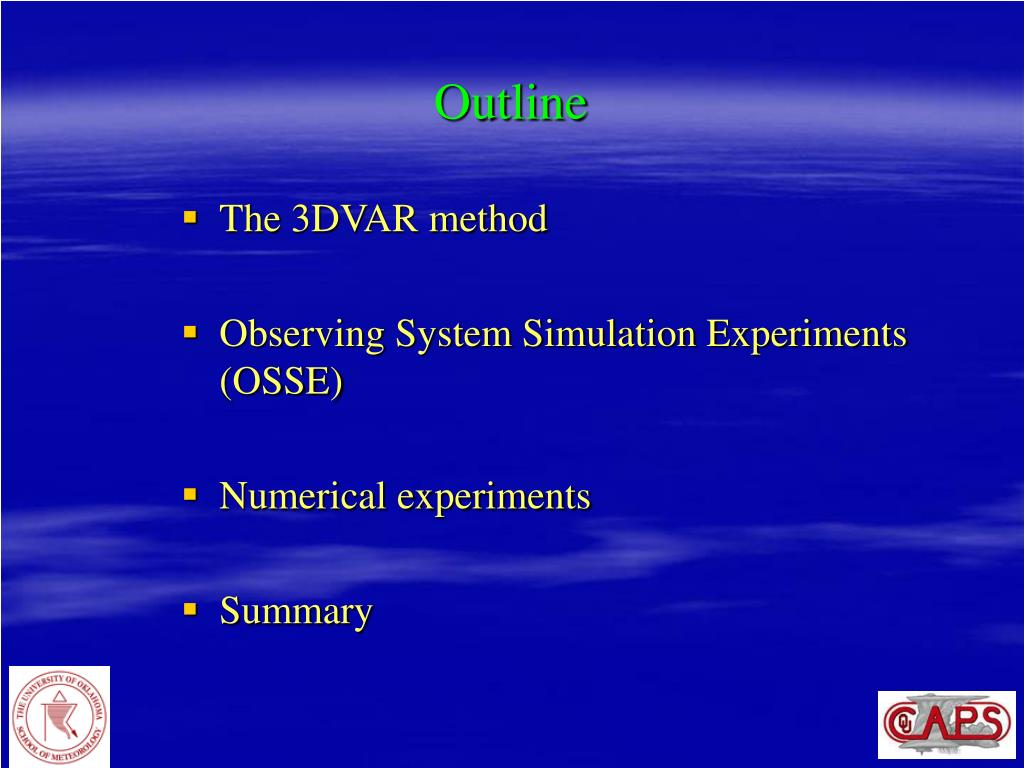

Outline
  • The 3DVAR method
  • Observing System Simulation Experiments (OSSE)
  • Numerical experiments
  • Summary
3dvar assimilation system

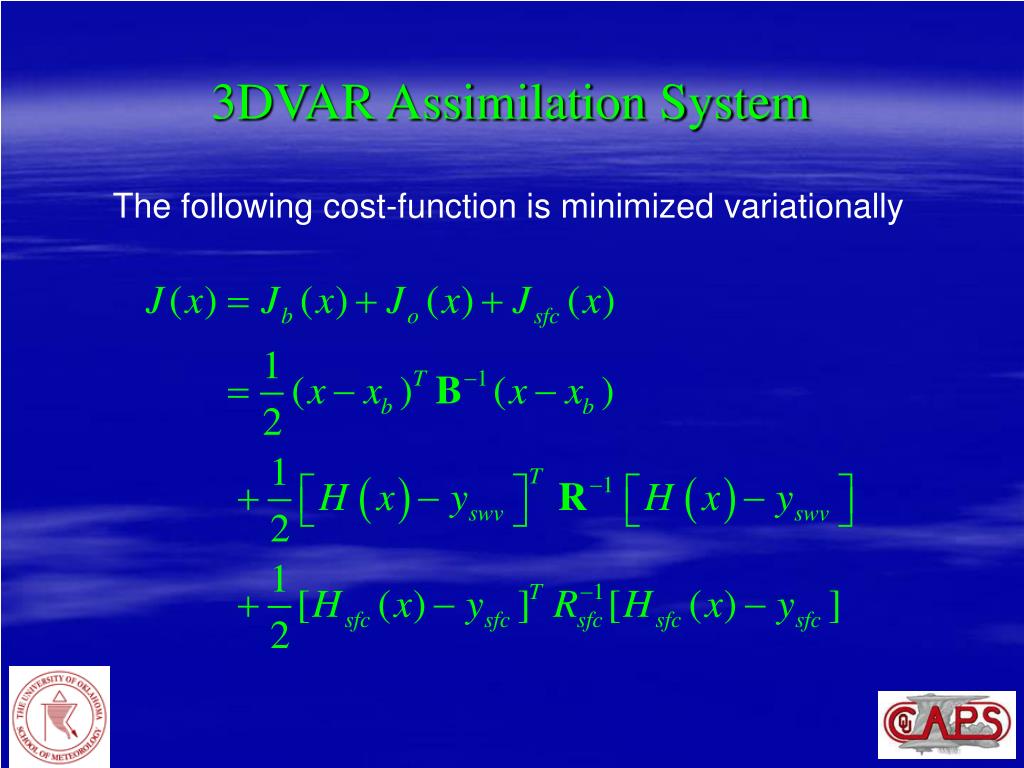

3DVAR Assimilation System

The following cost-function is minimized variationally

slide7

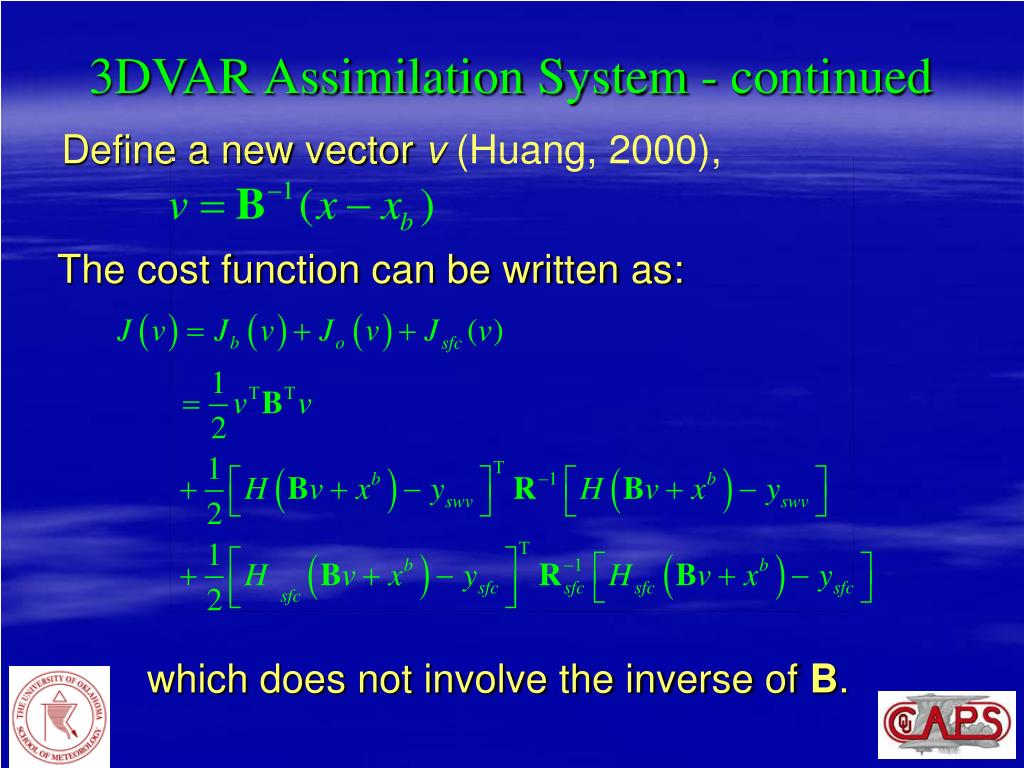

3DVAR Assimilation System - continued

Define a new vector v(Huang, 2000),

The cost function can be written as:

which does not involve the inverse of B.

slide8

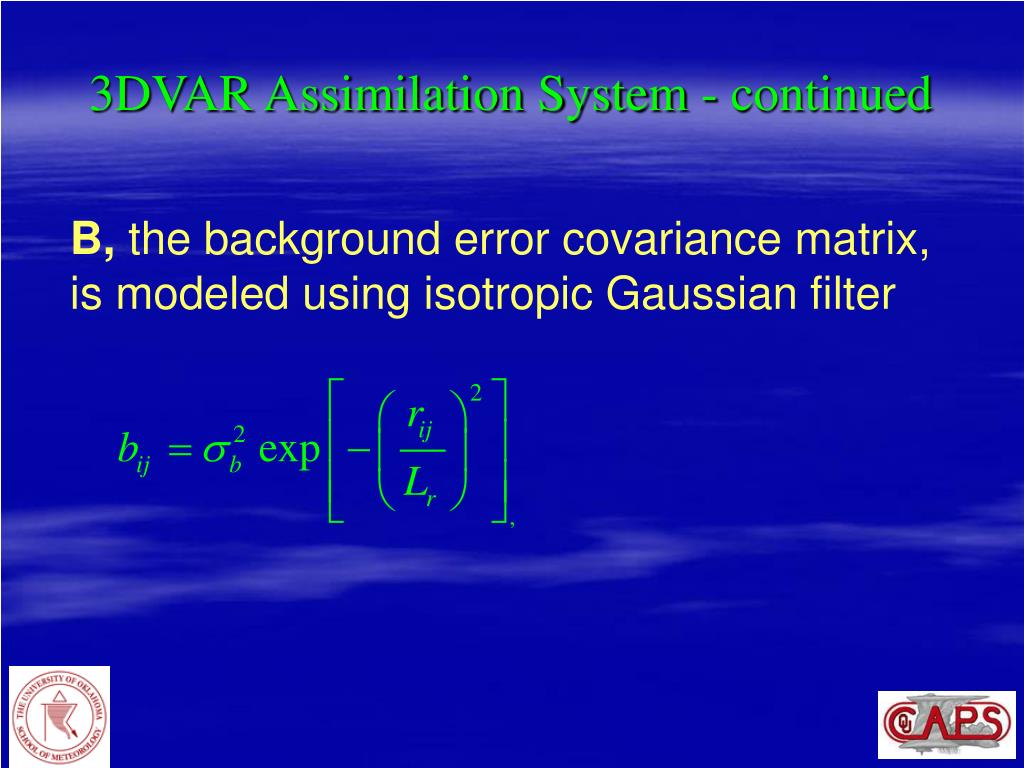

3DVAR Assimilation System - continued

B, the background error covariance matrix, is modeled using isotropic Gaussian filter

slide9

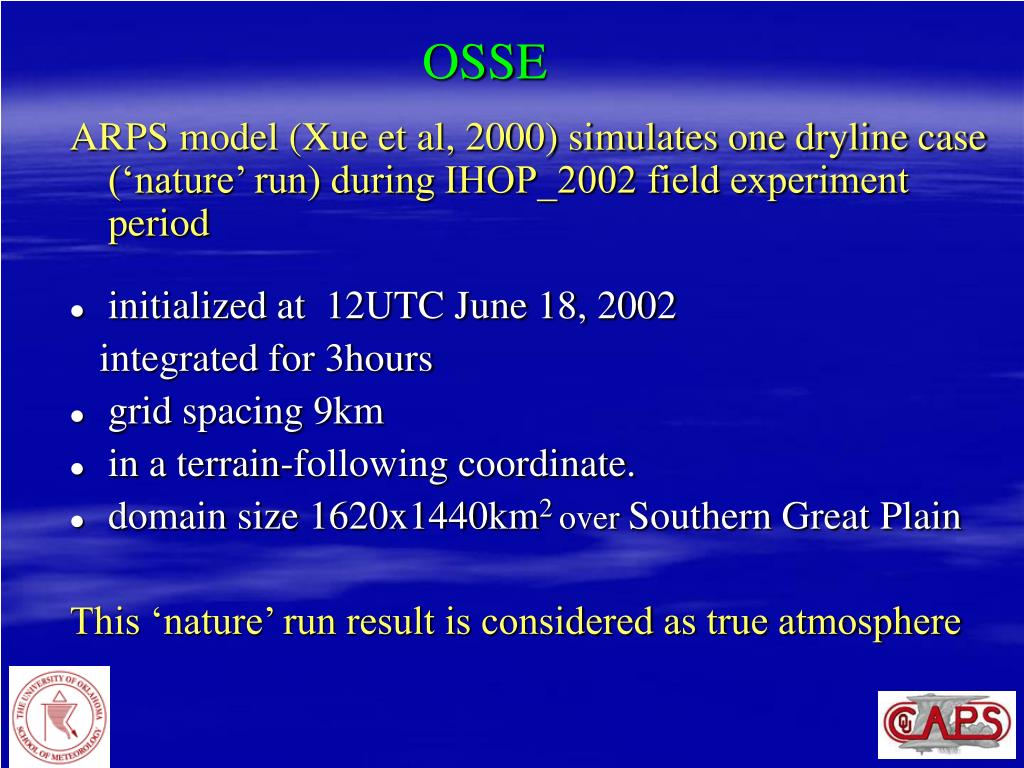

OSSE

ARPS model (Xue et al, 2000) simulates one dryline case (‘nature’ run) during IHOP_2002 field experiment period

  • initialized at 12UTC June 18, 2002

integrated for 3hours

  • grid spacing 9km
  • in a terrain-following coordinate.
  • domain size 1620x1440km2 over Southern Great Plain

This ‘nature’ run result is considered as true atmosphere

slide10

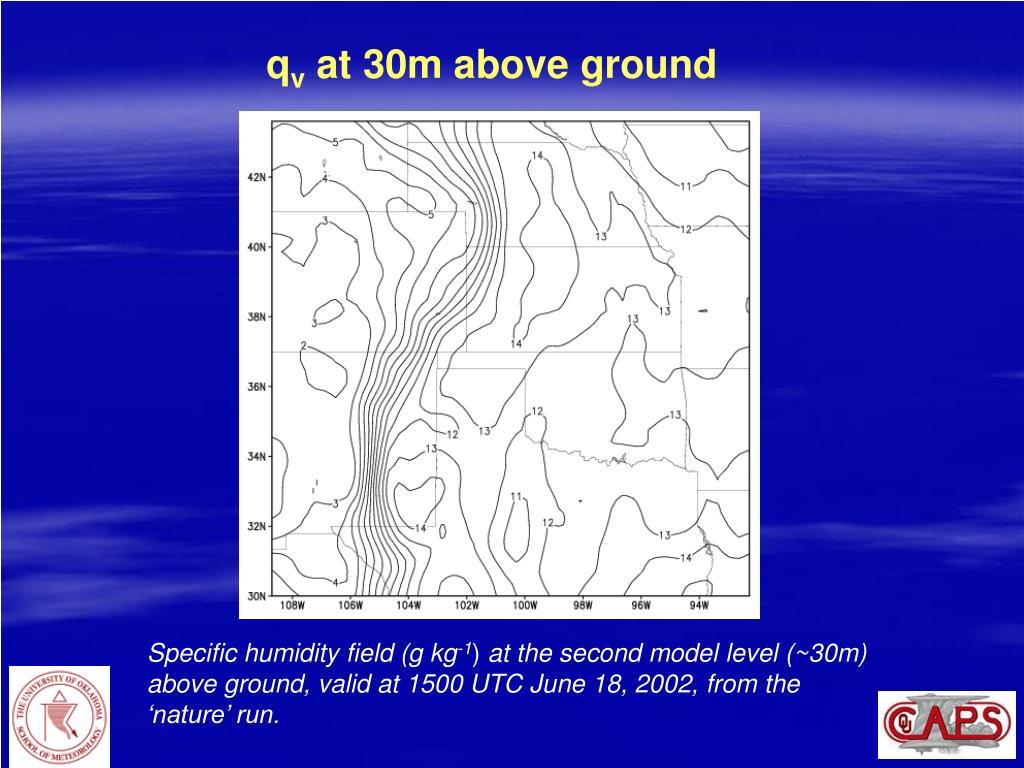

qv at 30m above ground

Specific humidity field (g kg-1) at the second model level (~30m) above ground, valid at 1500 UTC June 18, 2002, from the ‘nature’ run.

hypothetical gps network1

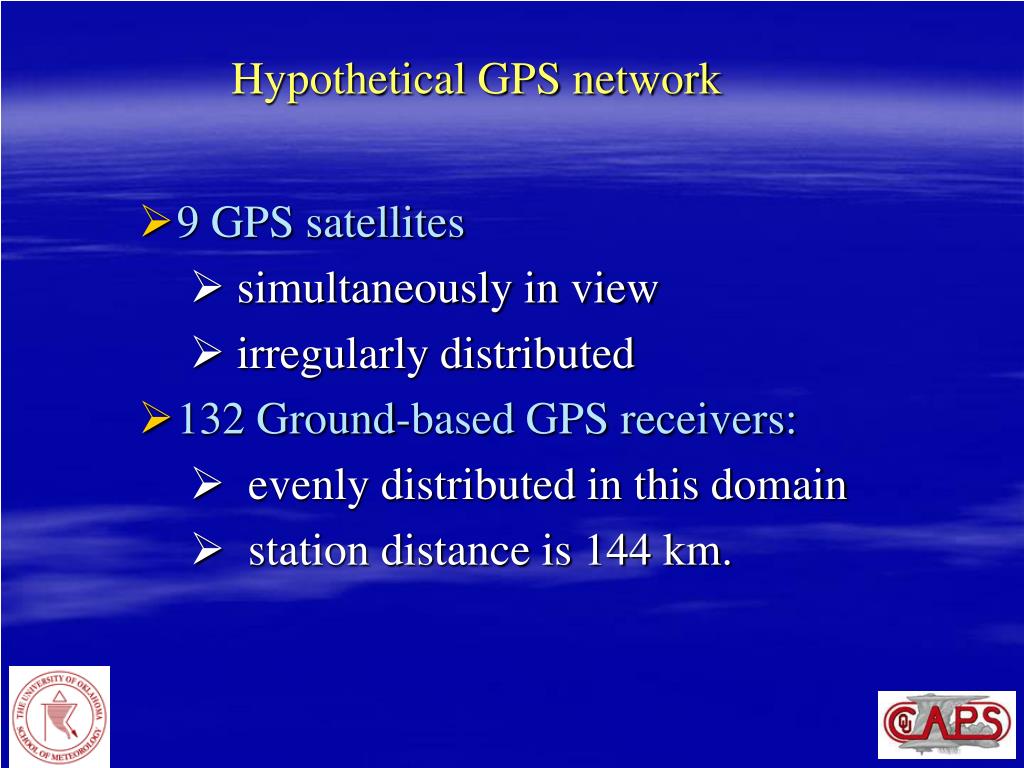

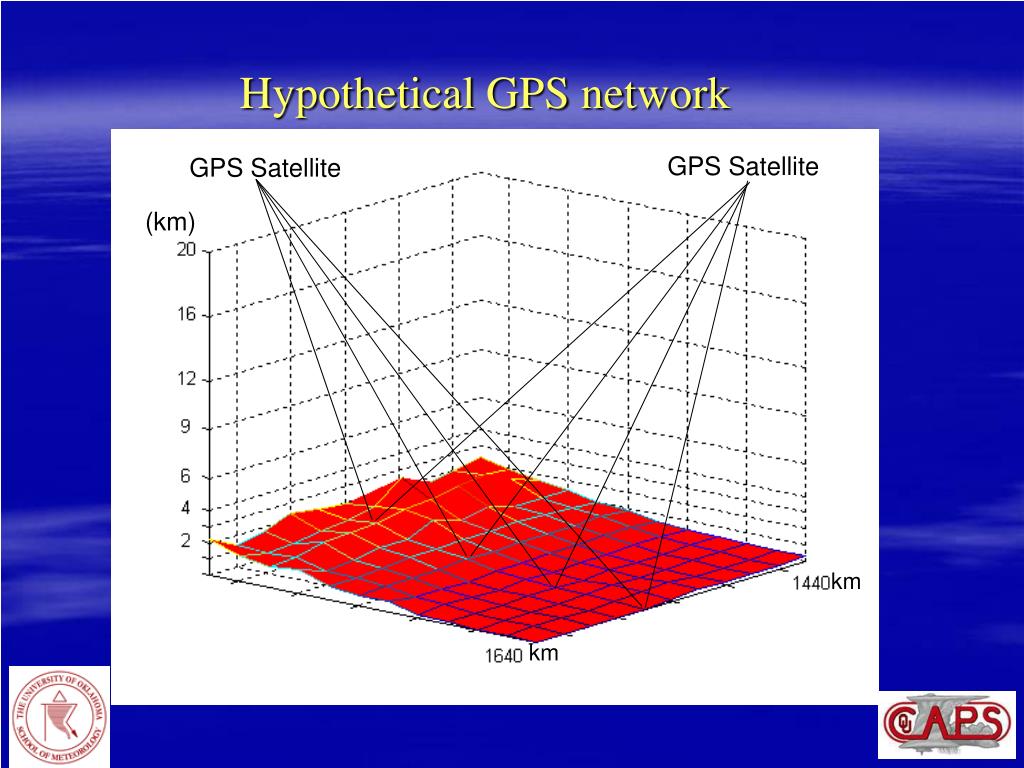

Hypothetical GPS network
  • 9 GPS satellites
    • simultaneously in view
    • irregularly distributed
  • 132 Ground-based GPS receivers:
    • evenly distributed in this domain
    • station distance is 144 km.
slant path water vapor swv observations
Slant-path Water Vapor (SWV) Observations

With this hypothetical GPS observing network and moisture field of ‘nature’ run is sampled to produce the SWV observations:

control experiment

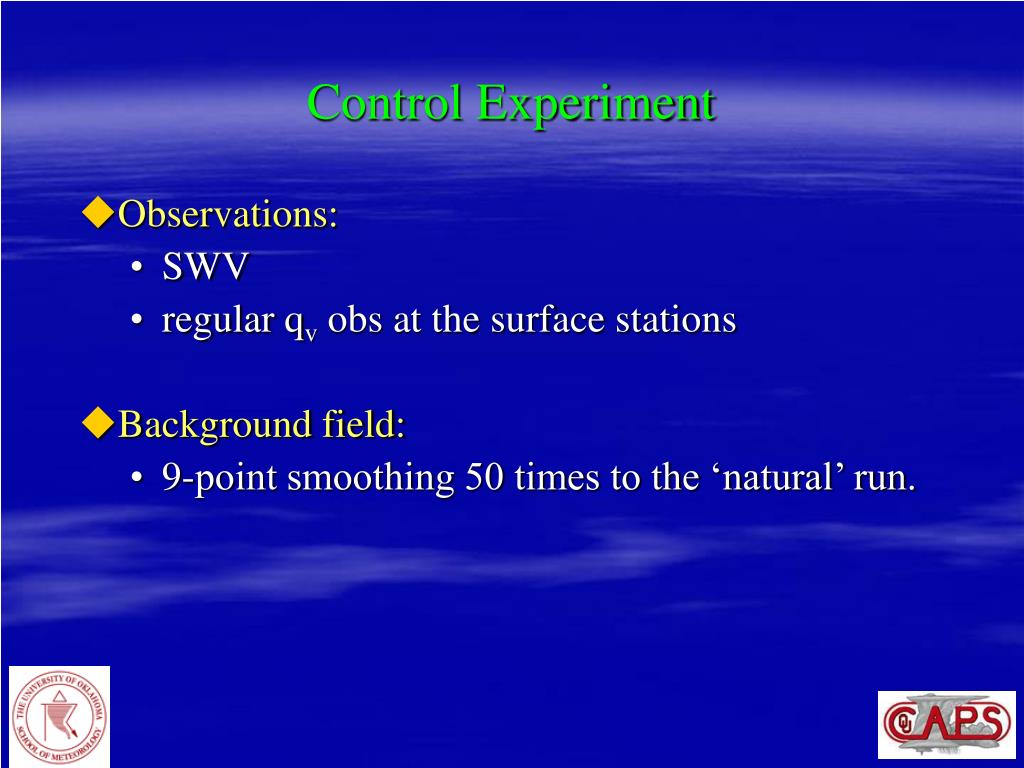

Control Experiment
  • Observations:
    • SWV
    • regular qv obs at the surface stations
  • Background field:
    • 9-point smoothing 50 times to the ‘natural’ run.
slide15

Analysis Increment from Control

“Nature”

qv increment ~30m above ground

The increment fields of qv (g kg-1) at ~30m above ground

slide16

Analysis Increment from Control

“Nature”

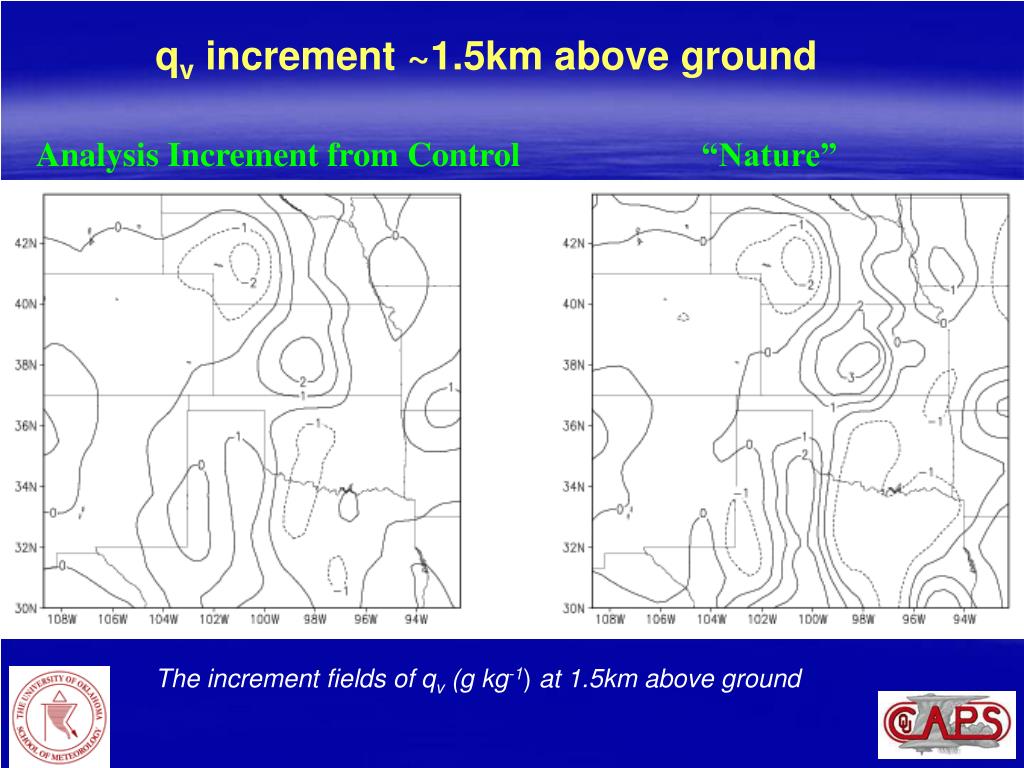

qv increment ~1.5km above ground

The increment fields of qv (g kg-1) at 1.5km above ground

slide17

Analysis Increment from Control

“Nature”

qv increment ~3km above ground

The increment fields of qv (g kg-1) at 3km above ground

slide18

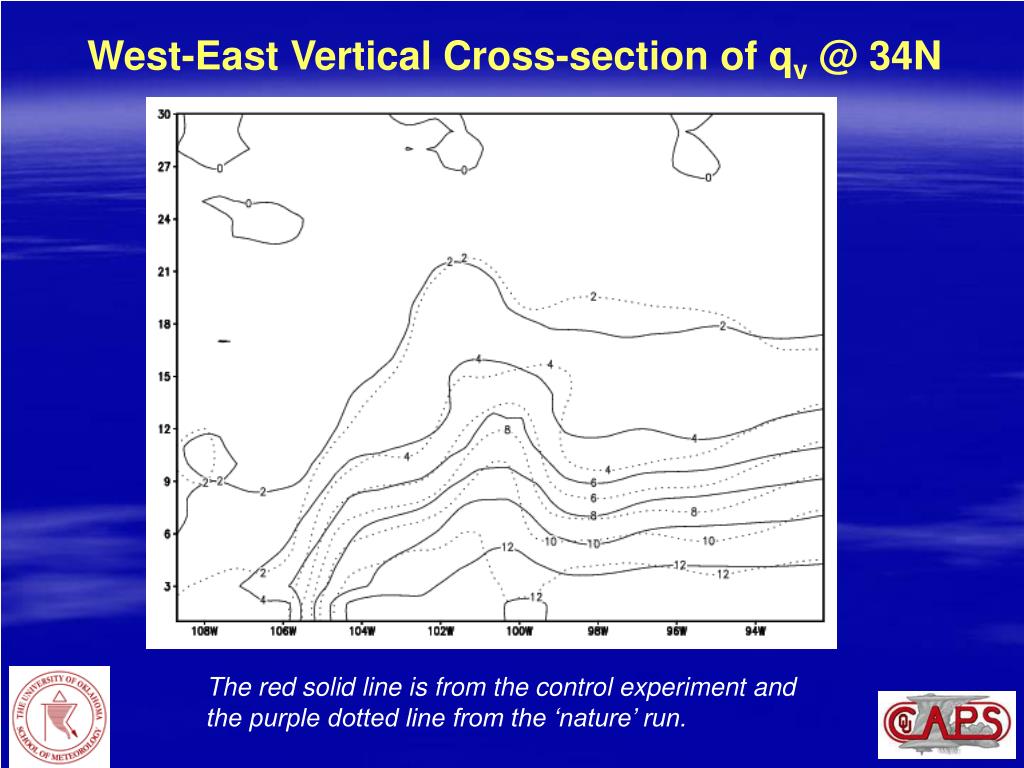

West-East Vertical Cross-section of qv @ 34N

The red solid line is from the control experimentand the purple dotted line from the ‘nature’ run.

sensitivity experiments

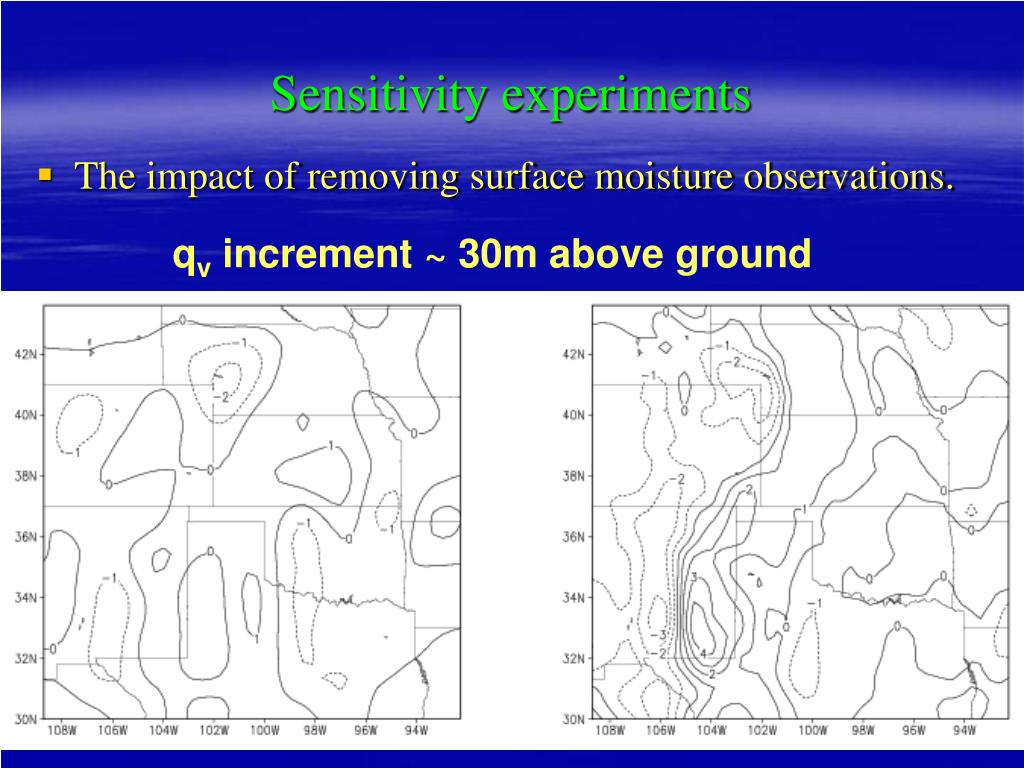

Sensitivity experiments
  • The impact of removing surface moisture observations.

qv increment ~ 30m above ground

slide20

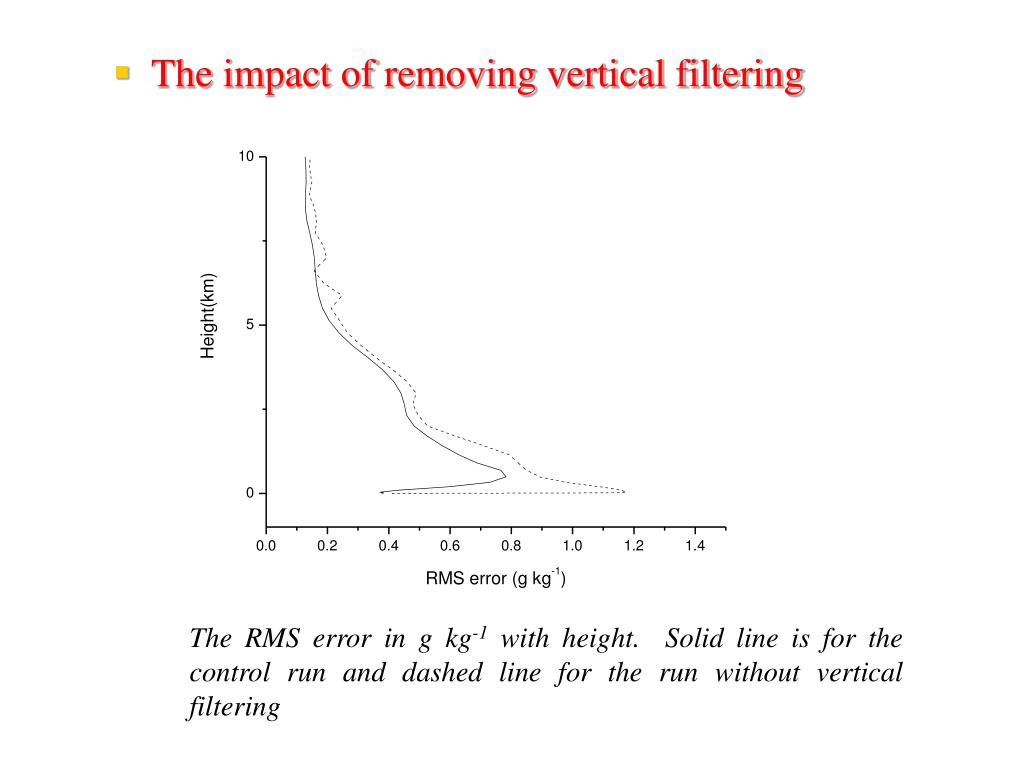

The impact of removing vertical filtering
  • The RMS error in g kg-1 with height. Solid line is for the control run and dashed line for the run without vertical filtering
summary
Summary
  • Our 3DVAR system incorporating background error through an isotropic Gaussian filter properly recovers 3D meso-scale moisture structure in a dryline case.
  • Surface observations are important for accurate analysis of qv field at low levels because of the absence of overlapping paths
  • The vertical filter is beneficial, especially in data-sparse regions such as the low levels.
future work

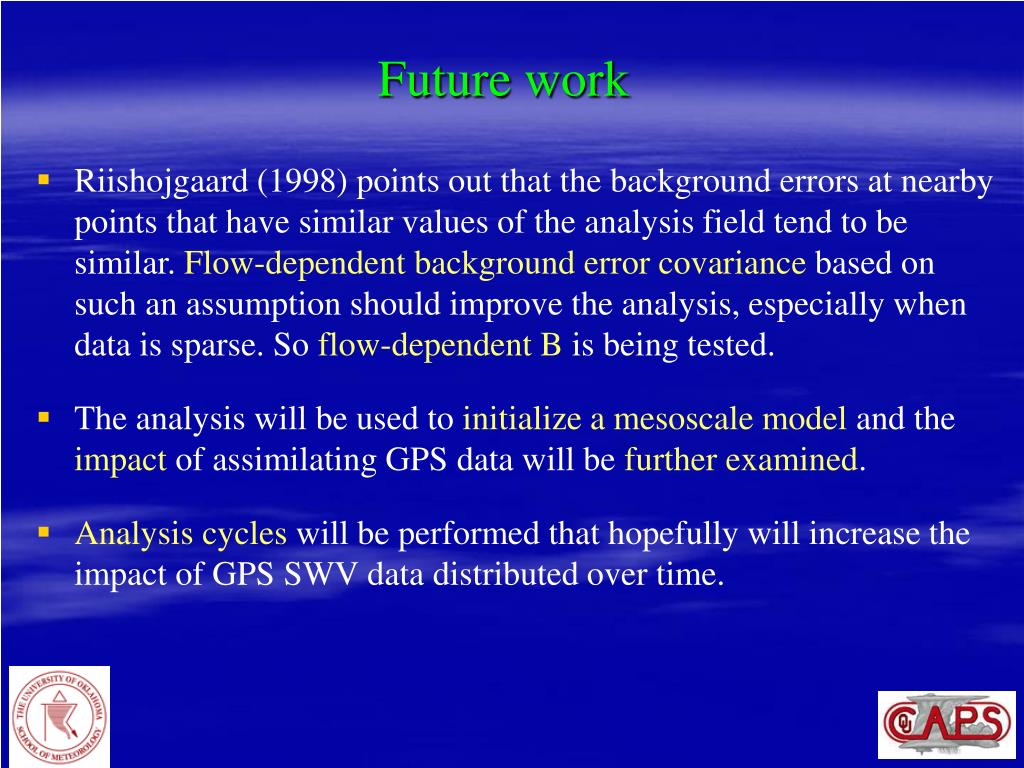

Future work
  • Riishojgaard (1998) points out that the background errors at nearby points that have similar values of the analysis field tend to be similar. Flow-dependent background error covariance based on such an assumption should improve the analysis, especially when data is sparse. So flow-dependent B is being tested.
  • The analysis will be used to initialize a mesoscale model and the impact of assimilating GPS data will be further examined.
  • Analysis cycles will be performed that hopefully will increase the impact of GPS SWV data distributed over time.
