  1. Presented By Types ofFlanges www.nufitpipingsolutions.com

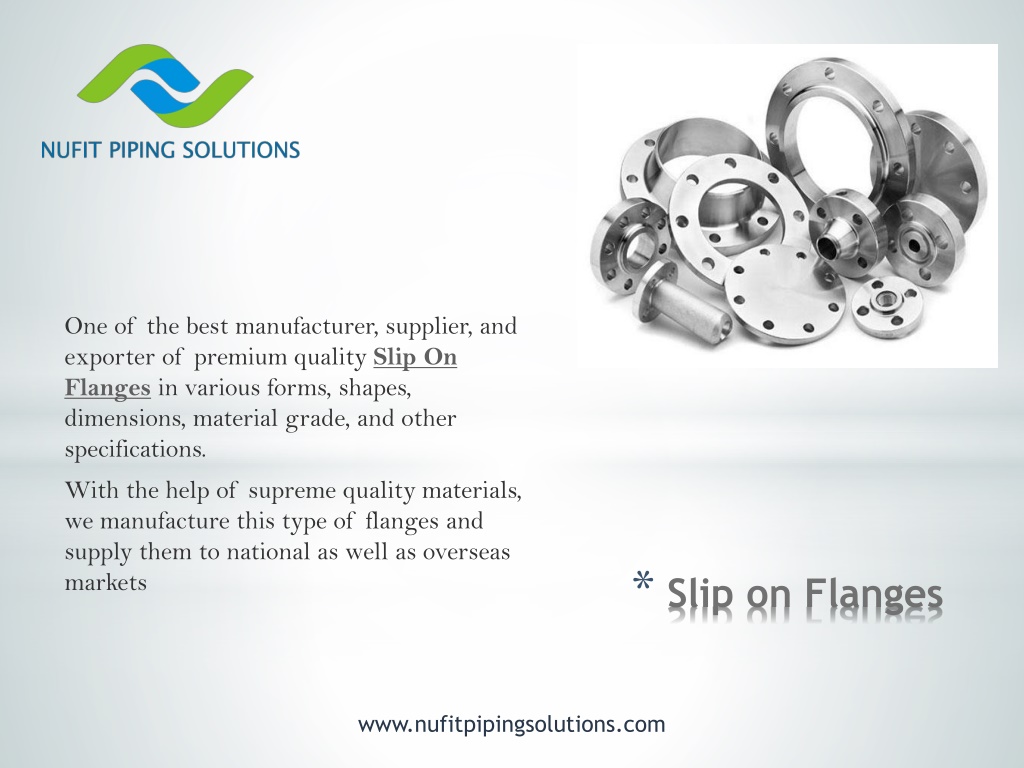

  2. Slip on Flanges One of the best manufacturer, supplier, and exporter of premium quality Slip On Flanges in various forms, shapes, dimensions, material grade, and other specifications. With the help of supreme quality materials, we manufacture this type of flanges and supply them to national as well as overseas markets www.nufitpipingsolutions.com

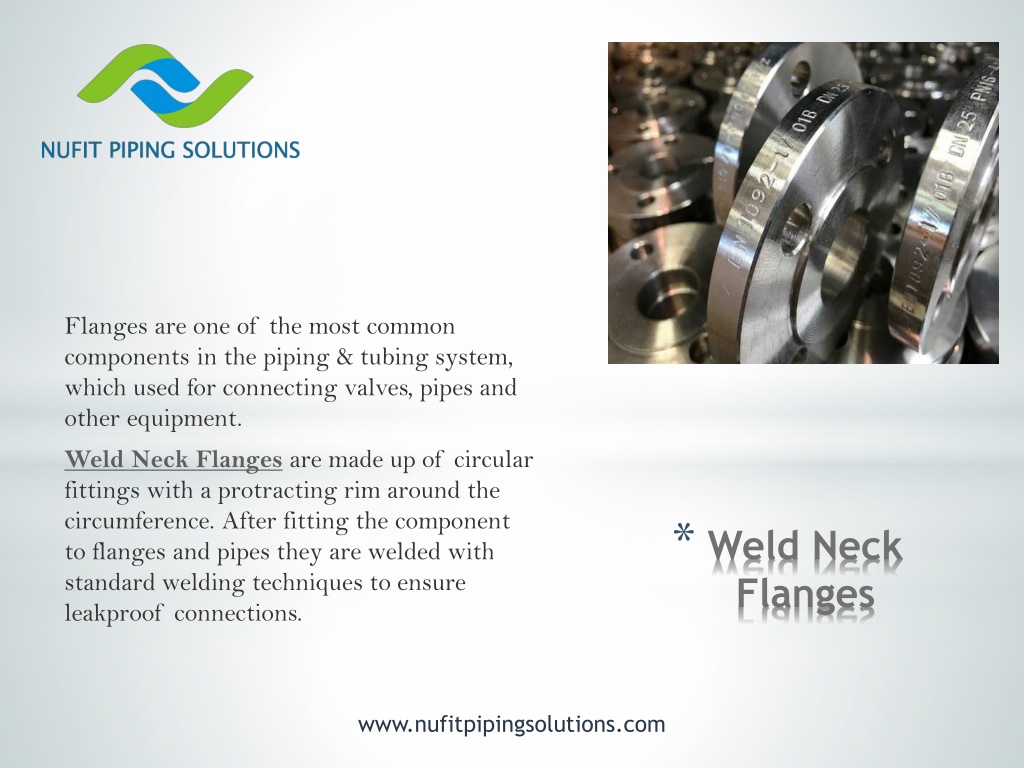

  3. Weld Neck Flanges Flanges are one of the most common components in the piping & tubing system, which used for connecting valves, pipes and other equipment.  Weld Neck Flanges are made up of circular fittings with a protracting rim around the circumference. After fitting the component to flanges and pipes they are welded with standard welding techniques to ensure leakproof connections. www.nufitpipingsolutions.com

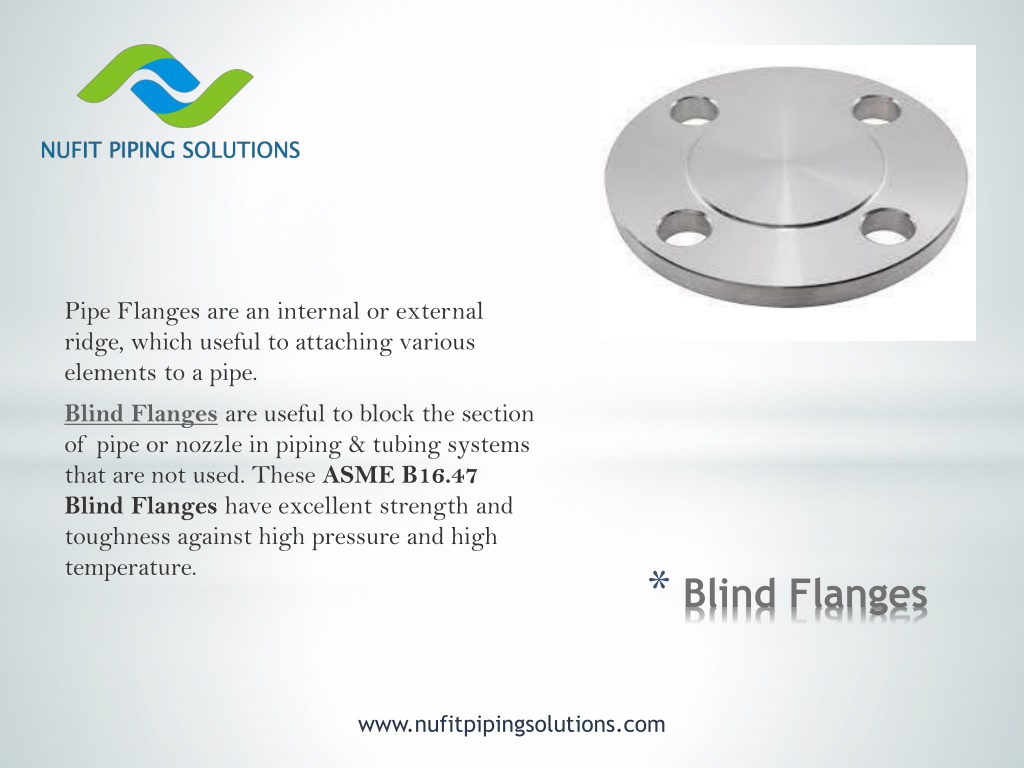

  4. Blind Flanges Pipe Flanges are an internal or external ridge, which useful to attaching various elements to a pipe.  Blind Flangesare useful to block the section of pipe or nozzle in piping & tubing systems that are not used. These ASME B16.47 Blind Flanges have excellent strength and toughness against high pressure and high temperature. www.nufitpipingsolutions.com

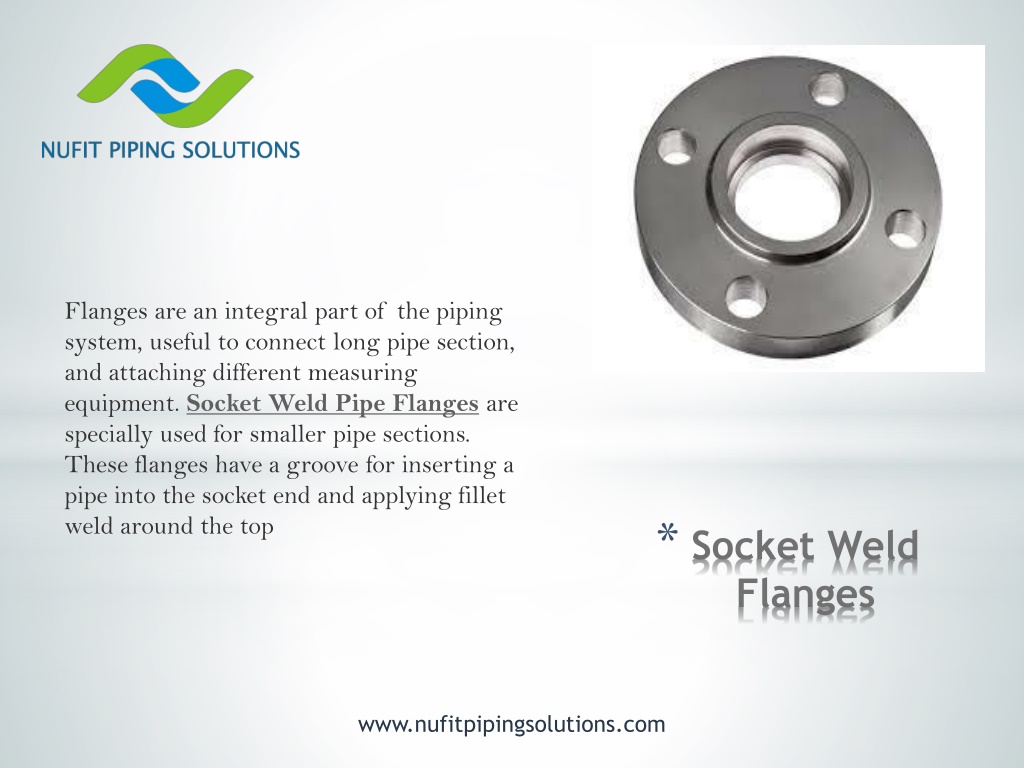

  5. Socket Weld Flanges Flanges are an integral part of the piping system, useful to connect long pipe section, and attaching different measuring equipment. Socket Weld Pipe Flanges are specially used for smaller pipe sections. These flanges have a groove for inserting a pipe into the socket end and applying fillet weld around the top www.nufitpipingsolutions.com

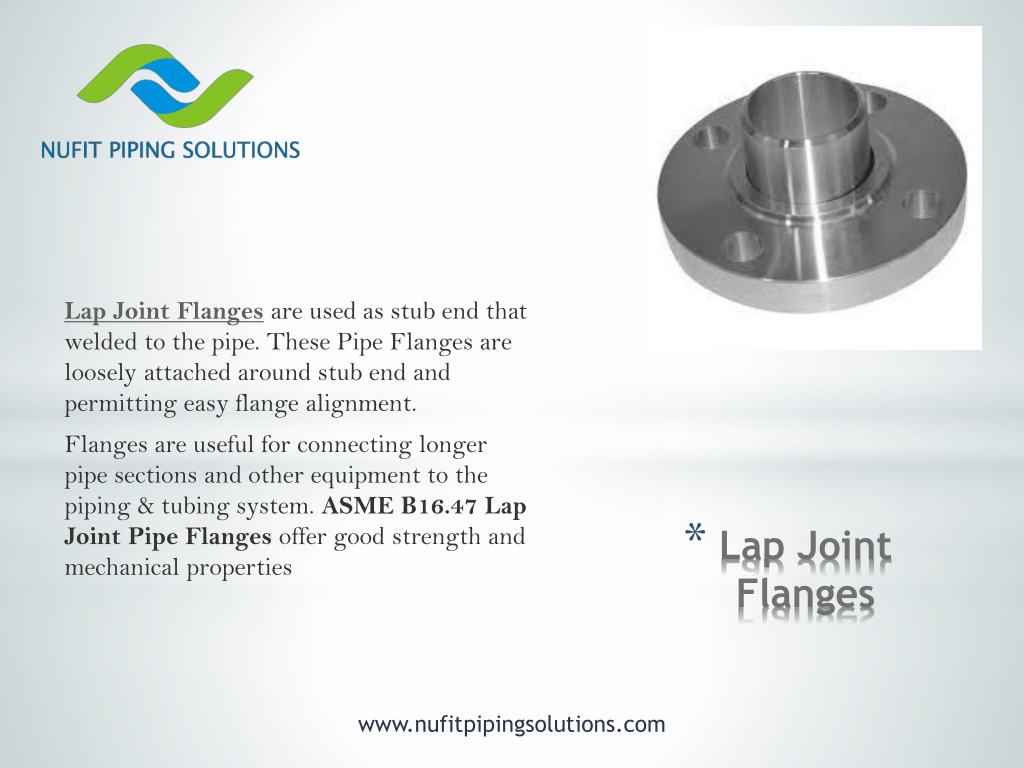

  6. Lap Joint Flanges Lap Joint Flanges are used as stub end that welded to the pipe. These Pipe Flanges are loosely attached around stub end and permitting easy flange alignment. Flanges are useful for connecting longer pipe sections and other equipment to the piping & tubing system. ASME B16.47 Lap Joint Pipe Flanges offer good strength and mechanical properties www.nufitpipingsolutions.com

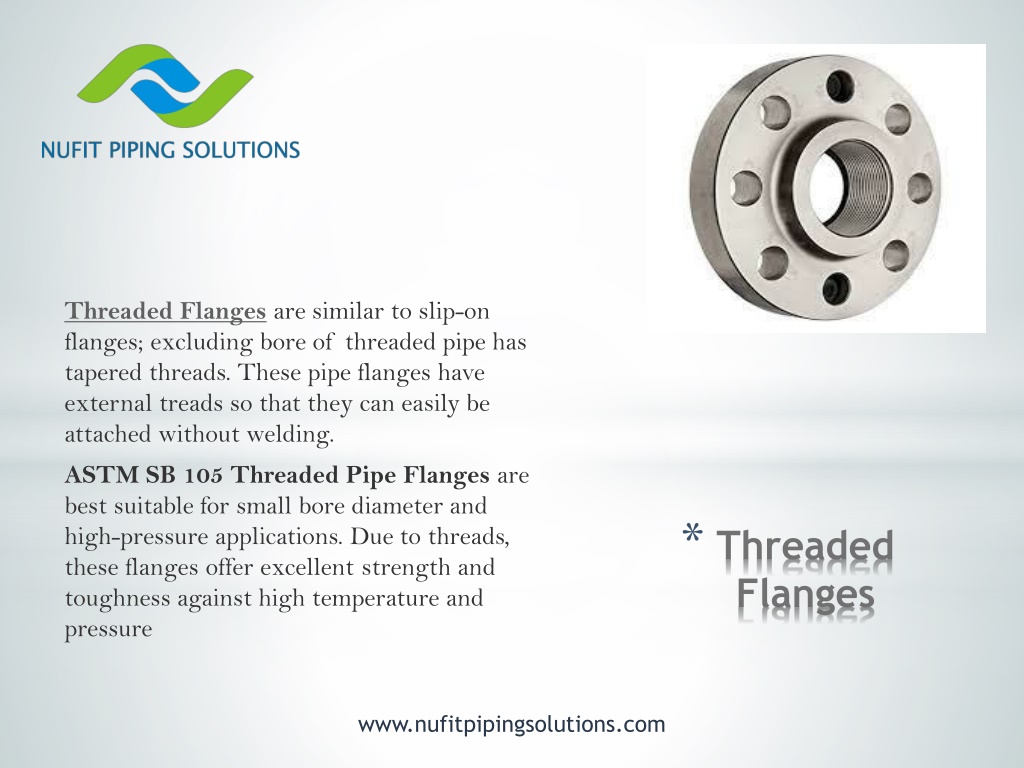

  7. Threaded Flanges Threaded Flanges are similar to slip-on flanges; excluding bore of threaded pipe has tapered threads. These pipe flanges have external treads so that they can easily be attached without welding.  ASTM SB 105 Threaded Pipe Flanges are best suitable for small bore diameter and high-pressure applications. Due to threads, these flanges offer excellent strength and toughness against high temperature and pressure www.nufitpipingsolutions.com

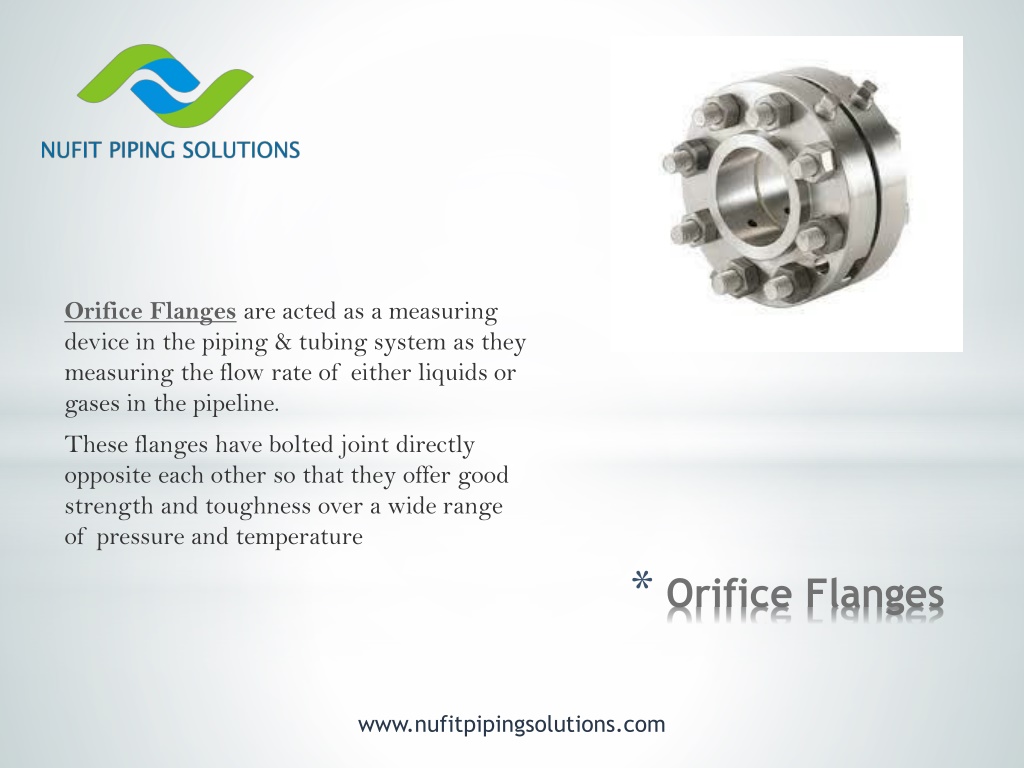

  8. Orifice Flanges Orifice Flanges are acted as a measuring device in the piping & tubing system as they measuring the flow rate of either liquids or gases in the pipeline. These flanges have bolted joint directly opposite each other so that they offer good strength and toughness over a wide range of pressure and temperature www.nufitpipingsolutions.com

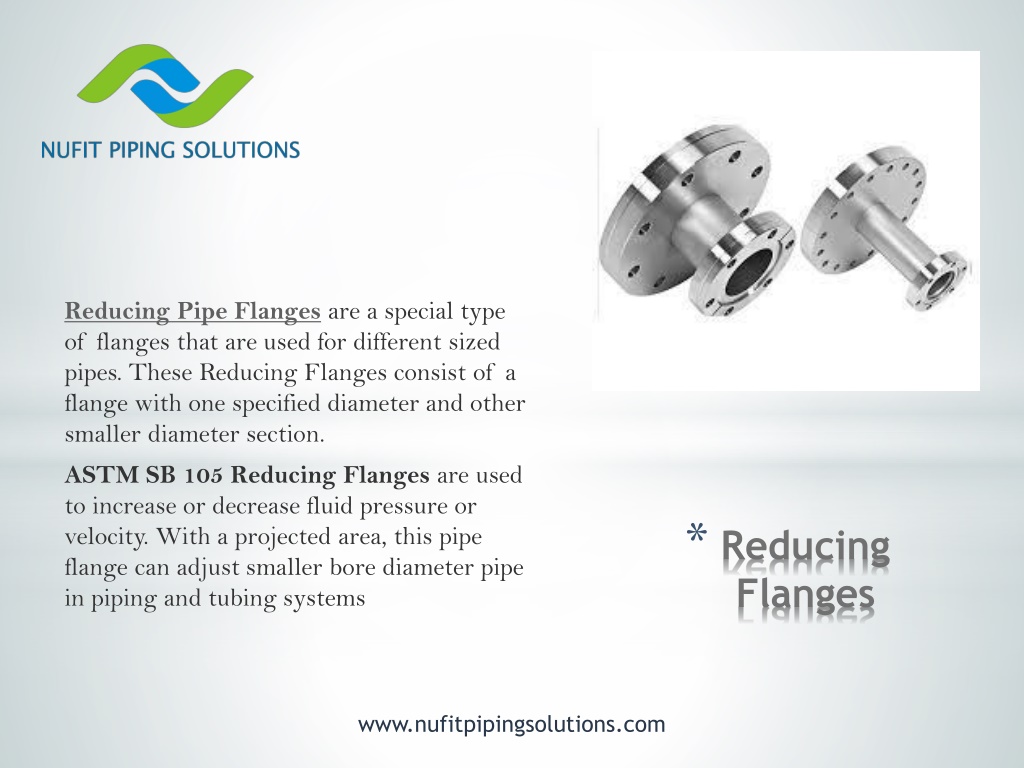

  9. Reducing Flanges Reducing Pipe Flanges are a special type of flanges that are used for different sized pipes. These Reducing Flanges consist of a flange with one specified diameter and other smaller diameter section.  ASTM SB 105 Reducing Flanges are used to increase or decrease fluid pressure or velocity. With a projected area, this pipe flange can adjust smaller bore diameter pipe in piping and tubing systems www.nufitpipingsolutions.com

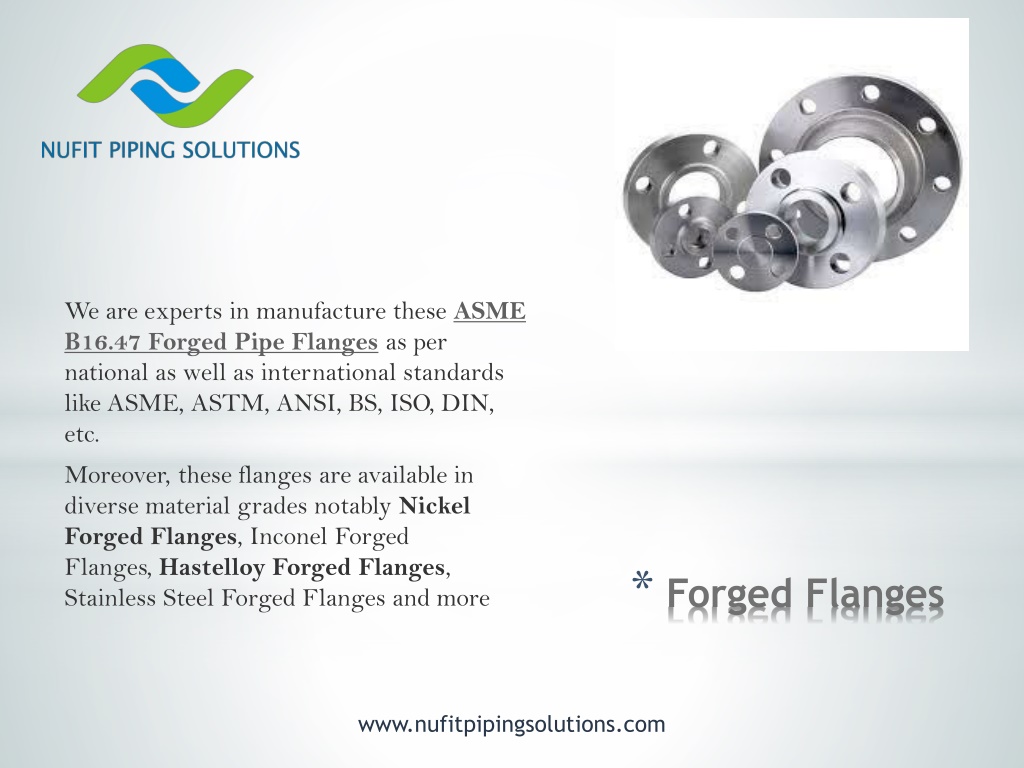

  10. Forged Flanges We are experts in manufacture these ASME B16.47 Forged Pipe Flangesas per national as well as international standards like ASME, ASTM, ANSI, BS, ISO, DIN, etc. Moreover, these flanges are available in diverse material grades notably Nickel Forged Flanges, Inconel Forged Flanges, Hastelloy Forged Flanges, Stainless Steel Forged Flanges and more www.nufitpipingsolutions.com

  11. Get in Touch www.nufitpipingsolutions.com Email: sales@nufitpiping.com Nufit Piping Solutions is a leading manufacturer, supplier and exporter of Pipe flanges with full range pressure class and different materials For further information about the kinds of flanges they offer, visit our website.

  12. ThankYou! Email: sales@nufitpiping.com
