  1. Eric Ellett Larry Price Dan Grum Jason Rice Packaging Specifications and Design

  2. What is GNMS? • GNMS is a multi-touch capable surface designed for use with  • games and other media. The surface will be table-sized for an  • immersive computing experience.

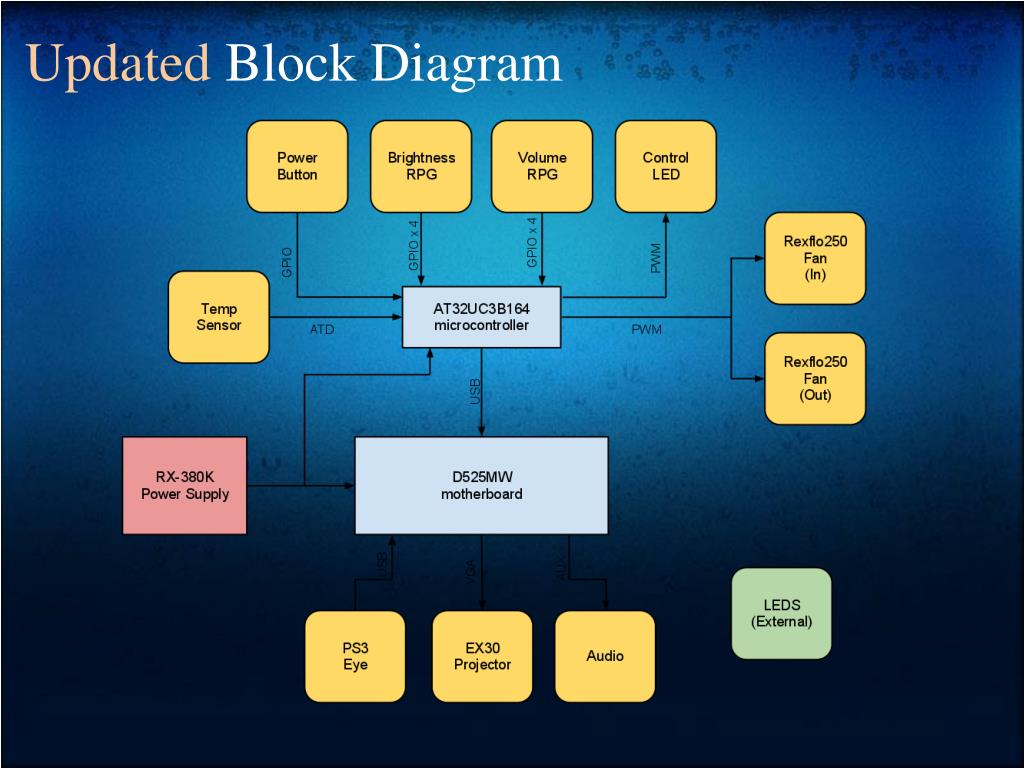

  3. Updated Block Diagram

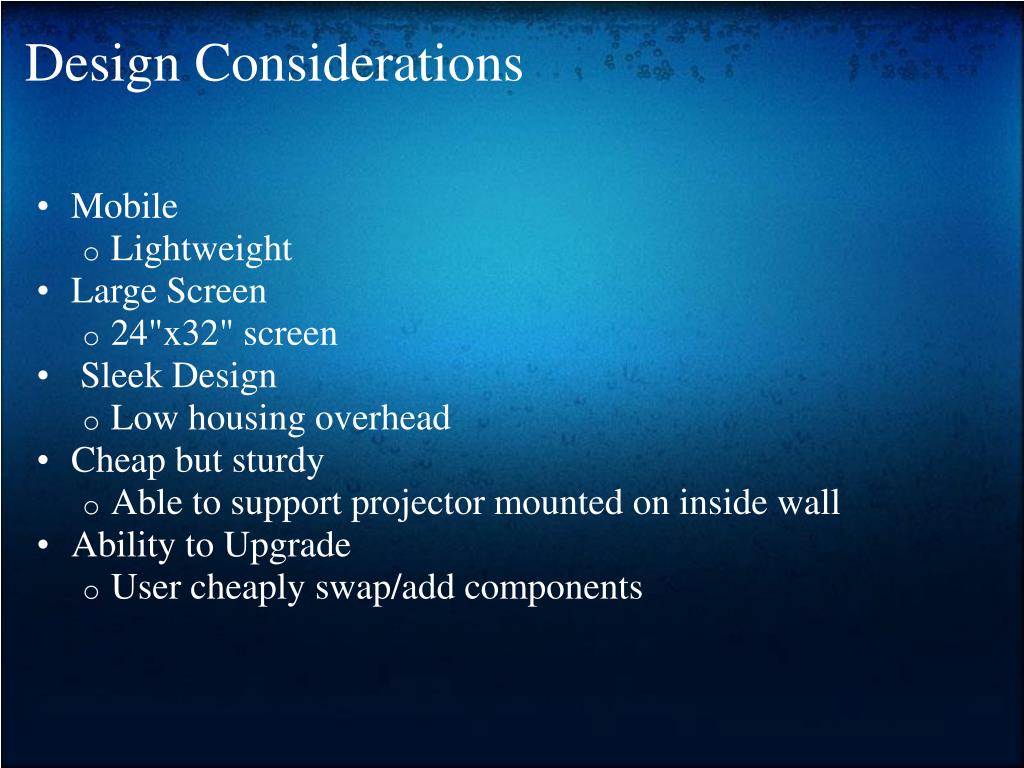

  4. Design Considerations • Mobile • Lightweight  • Large Screen • 24"x32" screen •  Sleek Design • Low housing overhead • Cheap but sturdy • Able to support projector mounted on inside wall • Ability to Upgrade • User cheaply swap/add components

  5. Microsoft Surface 2.0 • 40" LCD Screen • 81 lbs • 43"x 28"x 28.6" • Design Pros • Sleek • Lightweight • Leg room to allow users to be closer •  Design Cons • Not Mobile Image courtesy Microsoft Corporation

  6. ExoDesk • 40" LCD Screen • Prototype stages

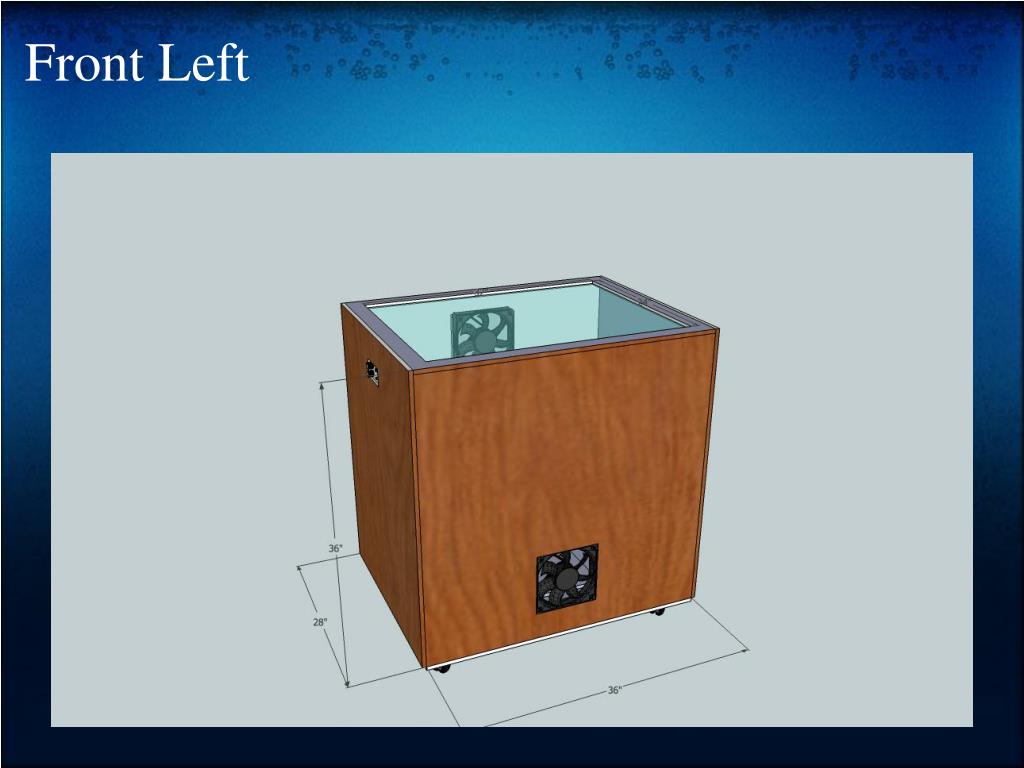

  7. Front Left

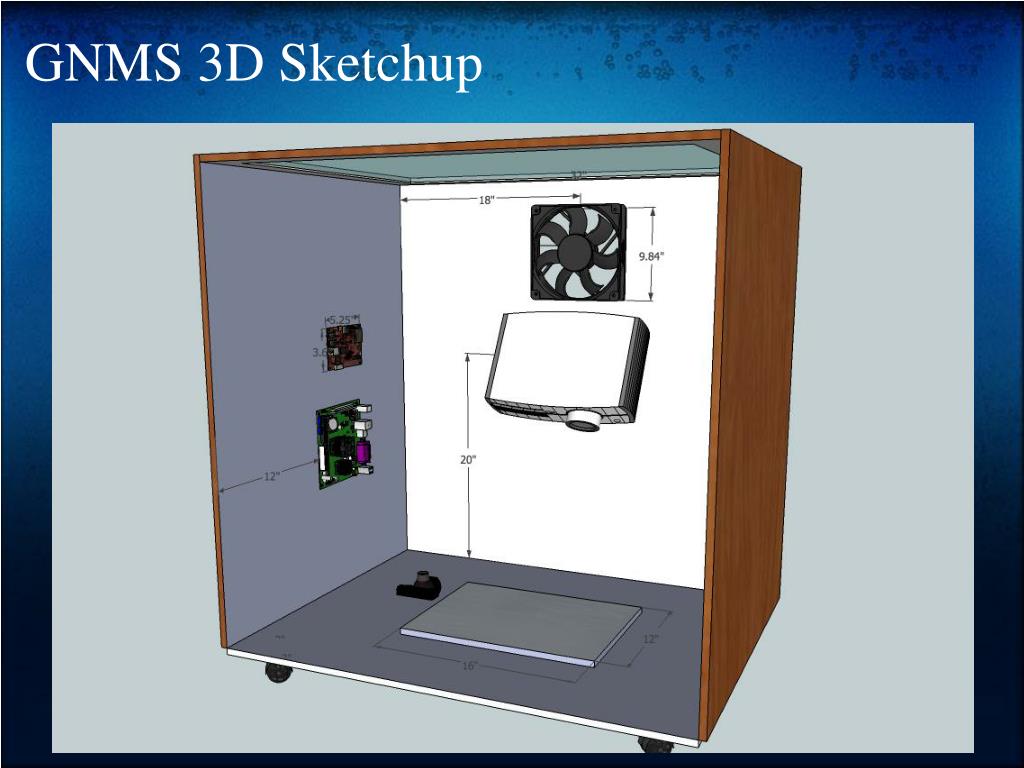

  8. GNMS 3D Sketchup

  9. Preliminary PCB Footprint

  10. ?

  11. Cost of Materials • Total Surface area of plywood needed: • (28 X 36) X 3 = 3024 • (36 X 36) X 2 = 2596 • Total 5616 in2 • Price Per Square Inch: .00324 USD/Inch^2 • Estimated Cost: $18.24 • Estimated Cost Based Upon Available Sizes: Around $30.00 • Total Length of 2 by 4 • 36 X 8 = 288 • 28 X 4 = 112 • Total  400 in • Price Per Inch: 0.025 USD/Inch • Estimated Cost: $10.00 • Estimated Cost Based Upon Available Sizes: Around $15.00 • Cost of Acrylic: $117

  12. Top View
