Estimation of in situ UV penetration

DESCRIPTION

This study aims to develop a model for in situ UV penetration (Kd(UV)) by utilizing a comprehensive global database of measured Kd(UV) and remote sensing reflectance (Rrs(λ)), using GSM01 retrievals. The model incorporates the equation Kmodel(λ) = Kw(λ) + CC * exp(-S(λ-443)) + aph * GSM01_chl + GSM01_bbp(λ/443) - 1. Key parameters were determined through extensive data analysis, resulting in a model fit suitable for chlorophyll concentrations under 1.5 mg/m³. Detailed outcomes and parameter estimations are discussed.

1 / 11

Download Presentation

Estimation of in situ UV penetration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

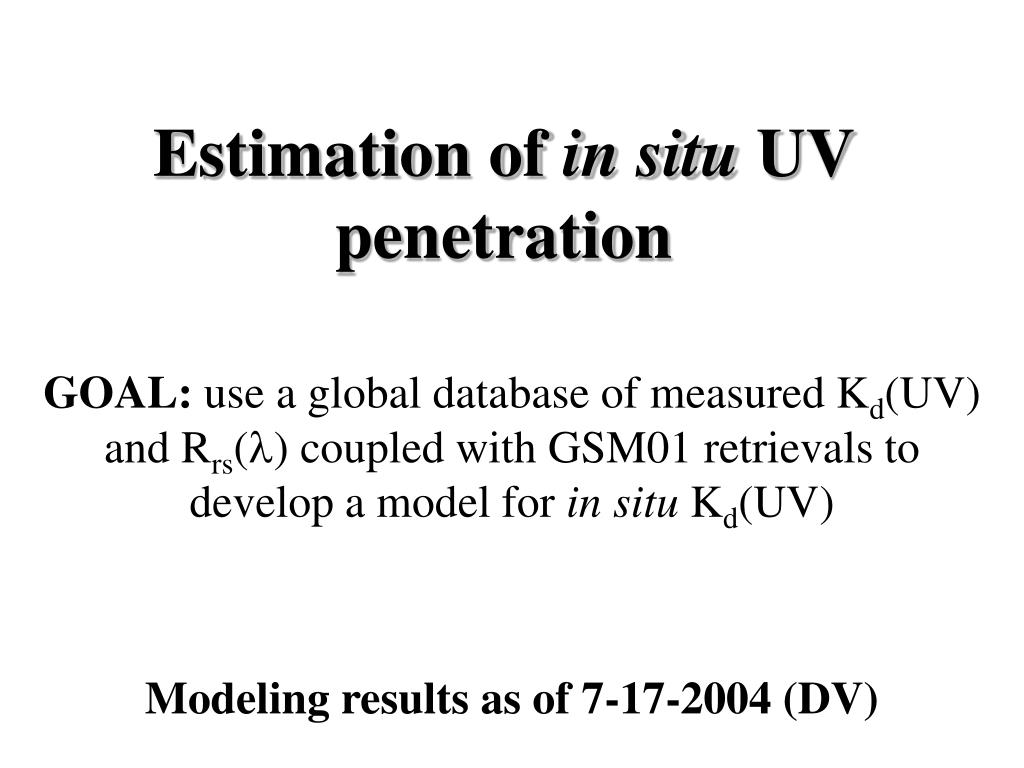

  1. Estimation of in situ UV penetration GOAL: use a global database of measured Kd(UV) and Rrs() coupled with GSM01 retrievals to develop a model for in situKd(UV) Modeling results as of 7-17-2004 (DV)

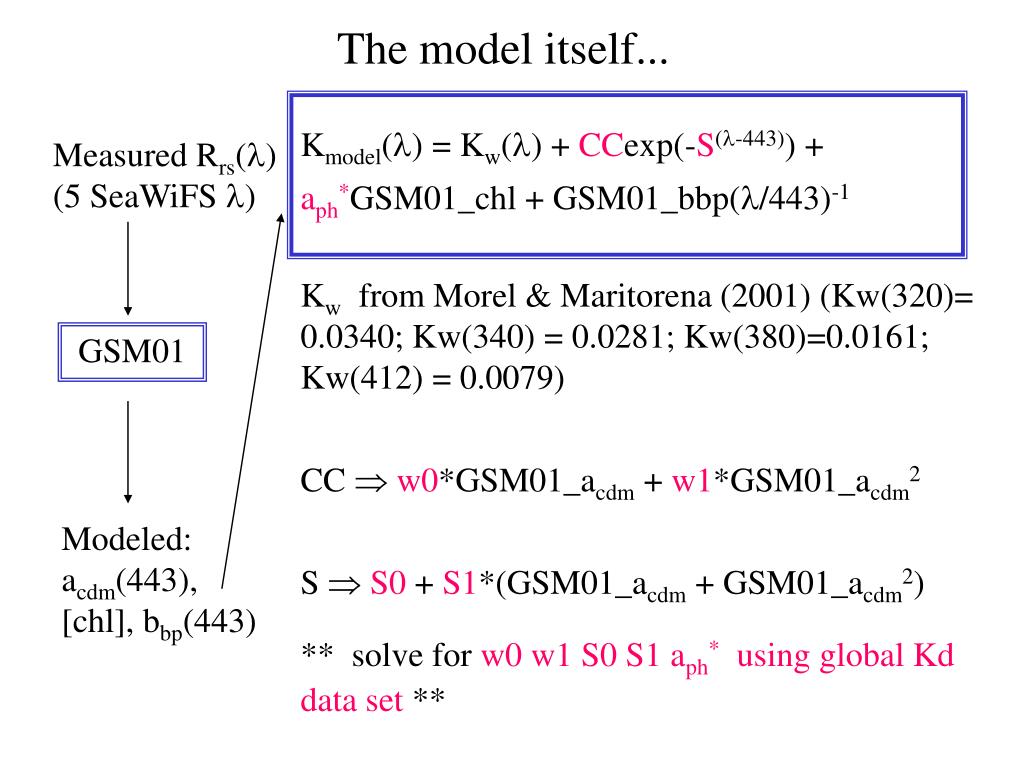

  2. The model itself... Kmodel() = Kw() + CCexp(-S(-443)) + aph*GSM01_chl + GSM01_bbp(/443)-1 Kw from Morel & Maritorena (2001) (Kw(320)= 0.0340; Kw(340) = 0.0281; Kw(380)=0.0161; Kw(412) = 0.0079) CC  w0*GSM01_acdm + w1*GSM01_acdm2 S  S0 + S1*(GSM01_acdm + GSM01_acdm2) ** solve for w0 w1 S0 S1 aph* using global Kd data set ** Measured Rrs() (5 SeaWiFS ) GSM01 Modeled: acdm(443), [chl], bbp(443)

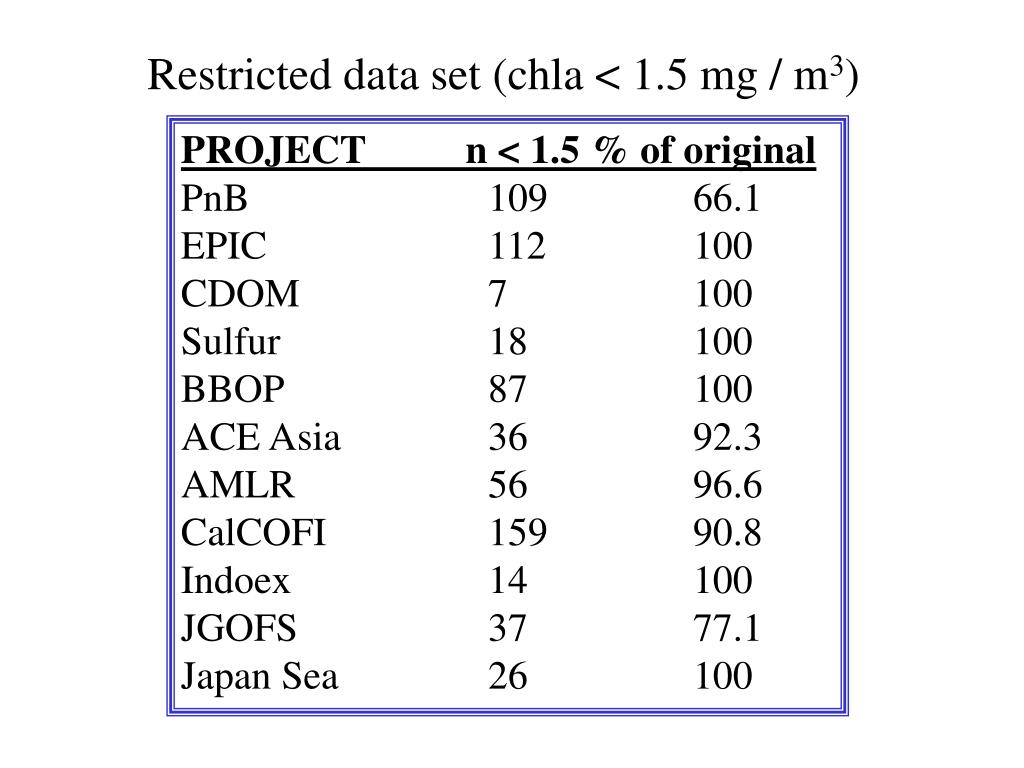

  3. Restricted data set (chla < 1.5 mg / m3) PROJECT n < 1.5 % of original PnB 109 66.1 EPIC 112 100 CDOM 7 100 Sulfur 18 100 BBOP 87 100 ACE Asia 36 92.3 AMLR 56 96.6 CalCOFI 159 90.8 Indoex 14 100 JGOFS 37 77.1 Japan Sea 26 100

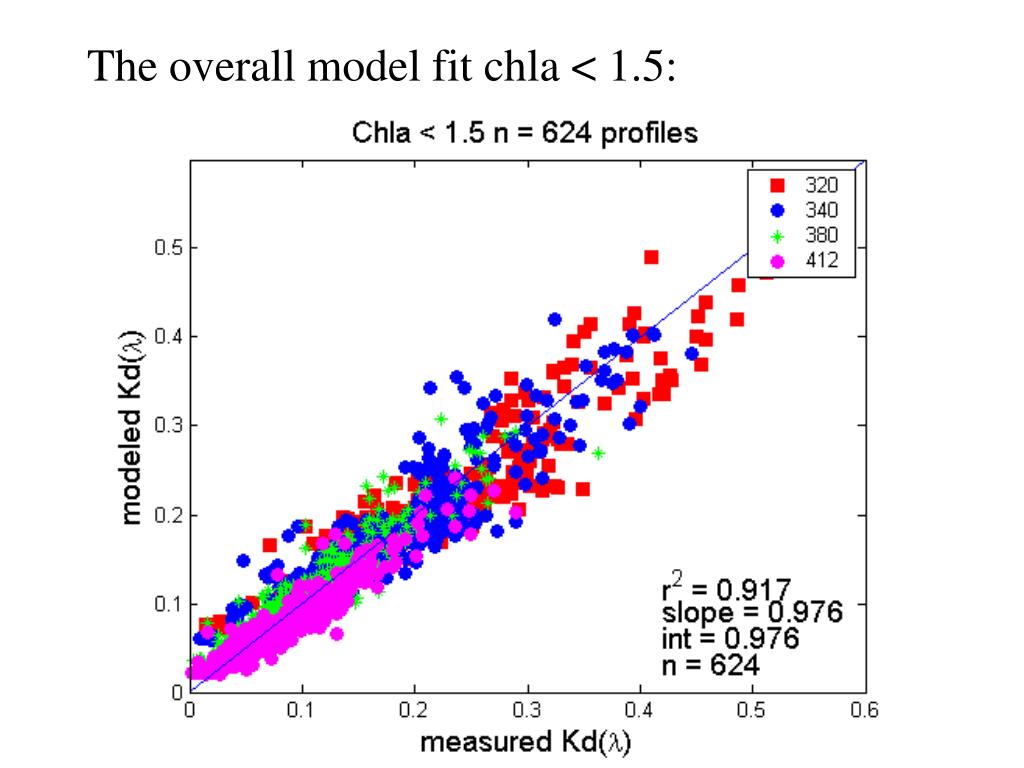

  4. The overall model fit chla < 1.5:

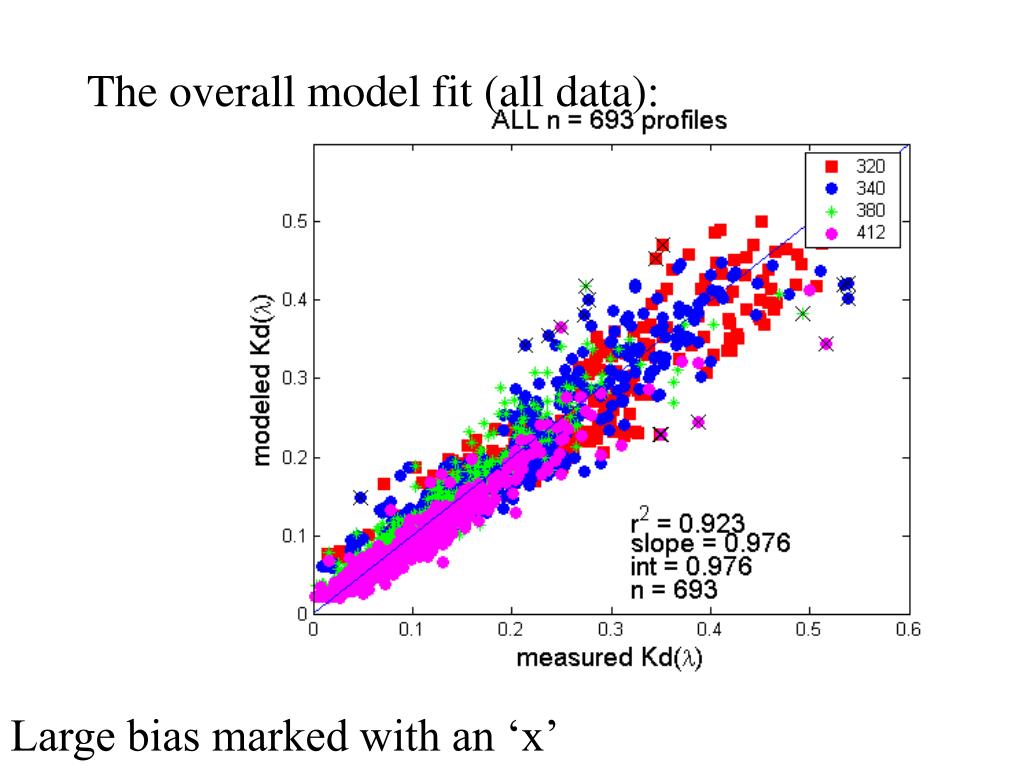

  5. The overall model fit (all data): Large bias marked with an ‘x’

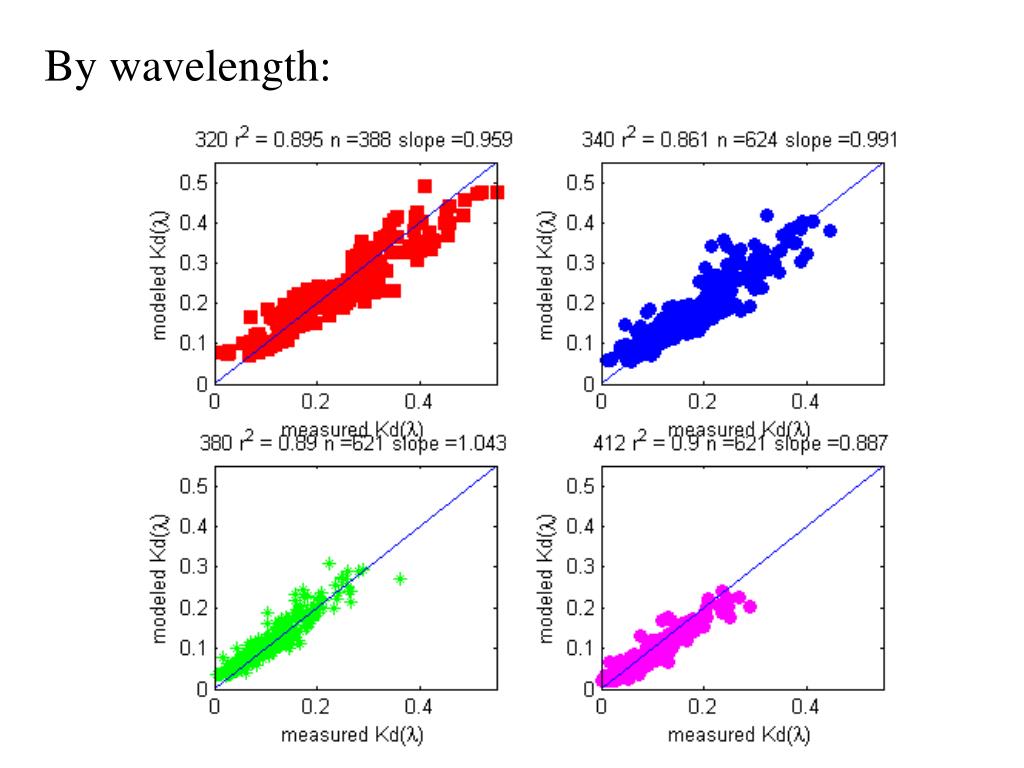

  6. By wavelength:

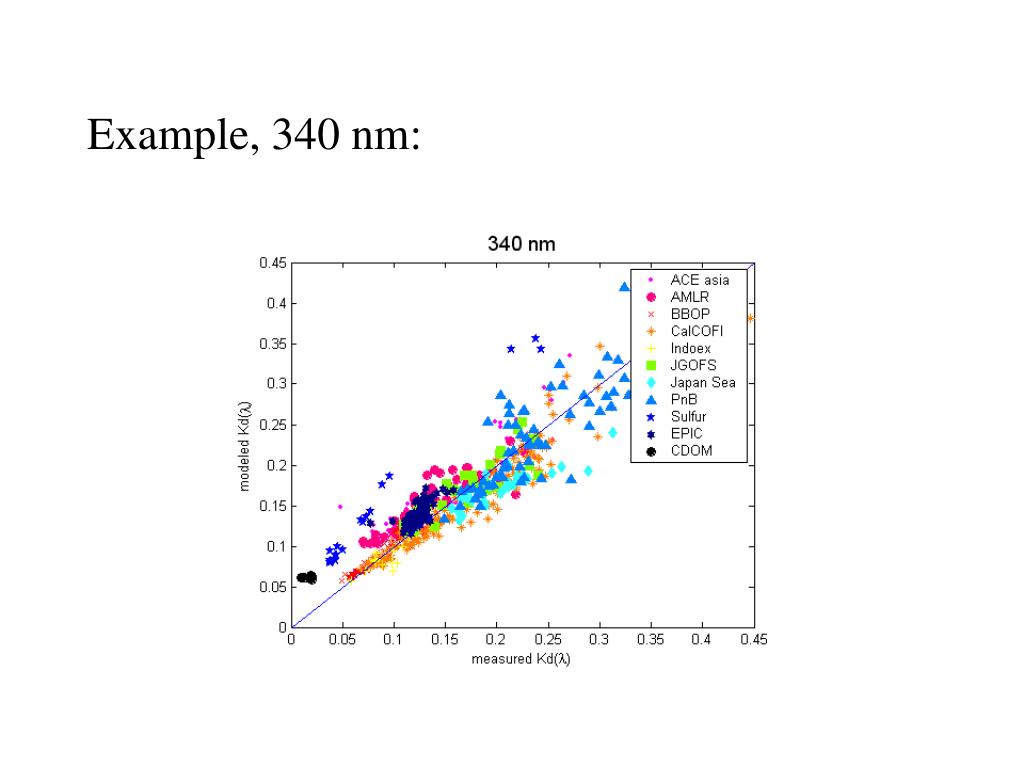

  7. Example, 340 nm:

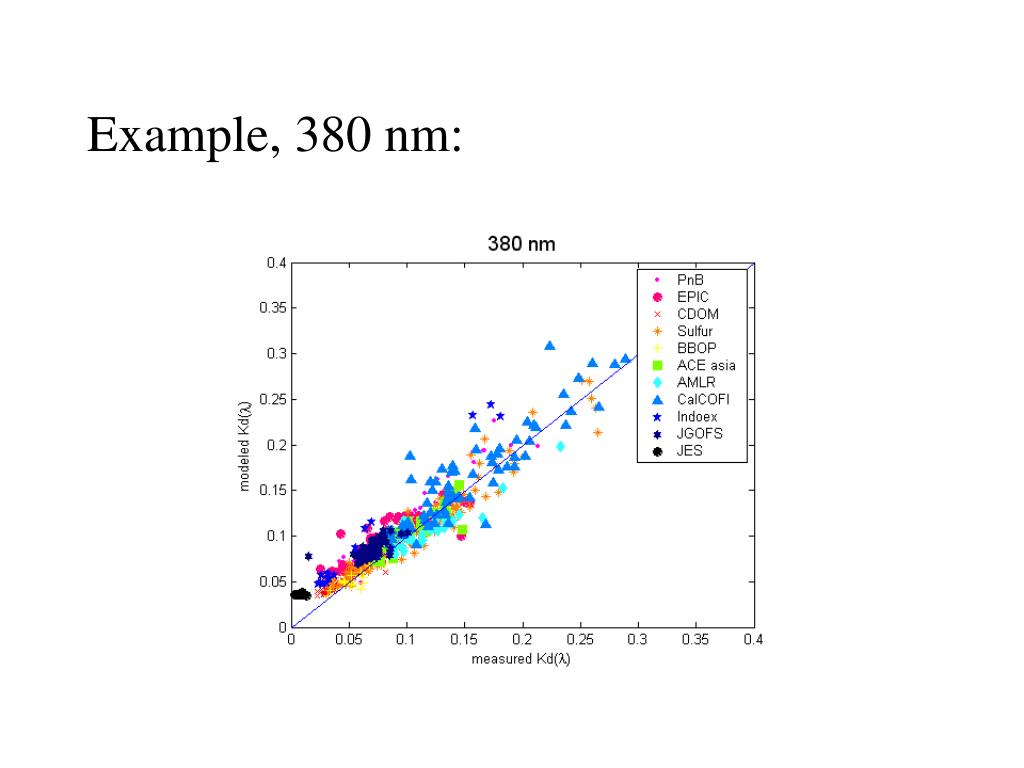

  8. Example, 380 nm:

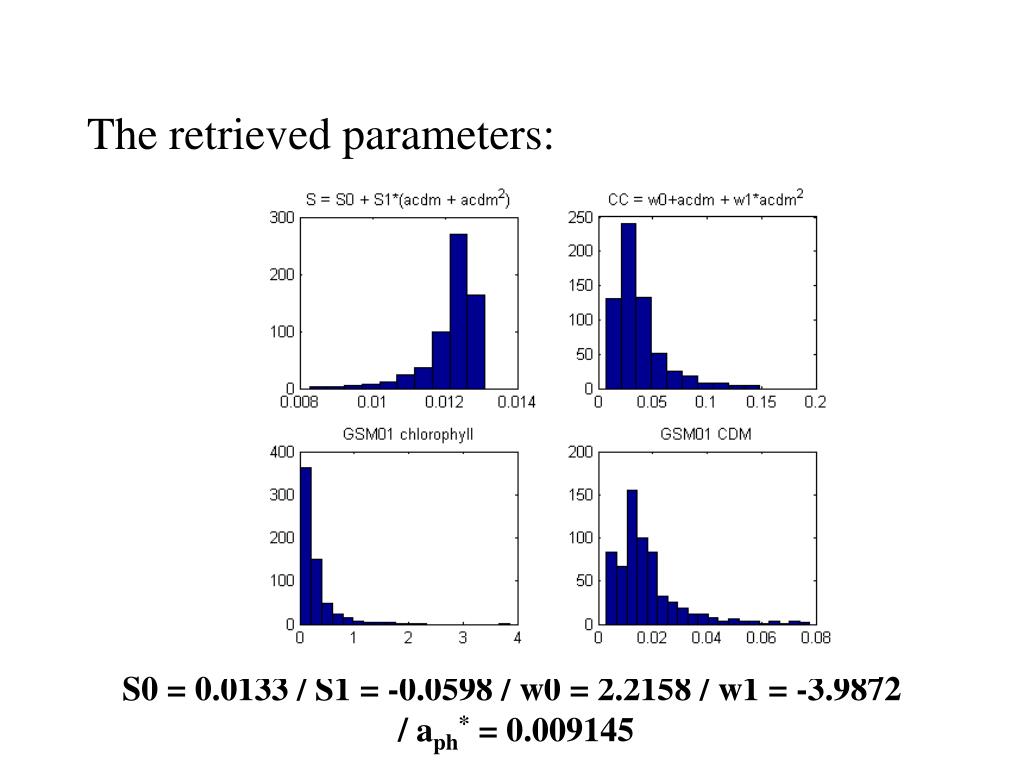

  9. The retrieved parameters: S0 = 0.0133 / S1 = -0.0598 / w0 = 2.2158 / w1 = -3.9872 / aph* = 0.009145

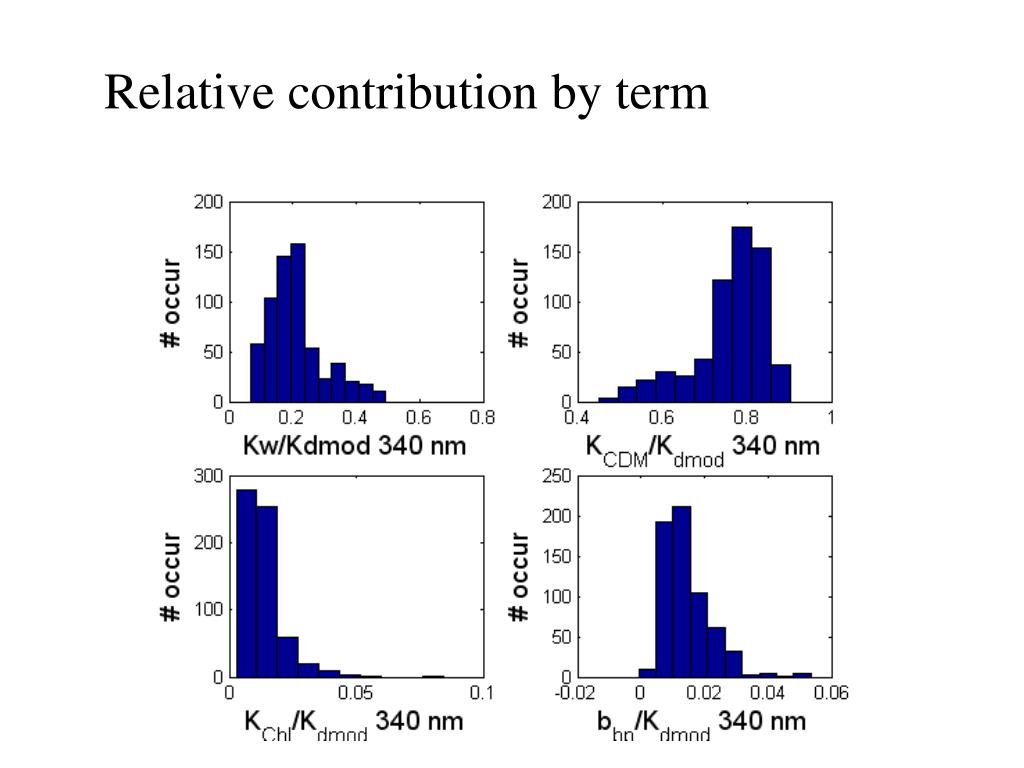

  10. Relative contribution by term
