  1. Integrated Error Management in MoD Services Pål Halvorsen, Thomas Plagemann, and Vera Goebel University of Oslo, UniK- Center for Technology at Kjeller Norway

  2. Overview • Application Scenario • Integrated Error Management • Basic idea • Code requirements • Possible solutions • Evaluation • Conclusions

  3. Application Scenario Media-on-Demand server: Applicable in applications like News- or Video-on-Demand provided by city-wide cable or pay-per-view companies Multimedia Storage Server Network Network • Retrieval is the bottleneck:Some important factors: • Memory management • Communication protocol processing • Error management • Project goals:Optimize performance within a single server: • Reduce resource requirements • Maximize number of clients

  4. FEC Decoder FEC Encoder Traditional Error Management

  5. FEC Decoder FEC Encoder Integrated Error Management

  6. Correcting Code Requirements • Erasure (known errors) and error (unknown errors) correcting • Decoding throughput (recovery performance) • Amount of redundant data • Applicable within a single file • Cost of decoding function dependent on the corruption rate

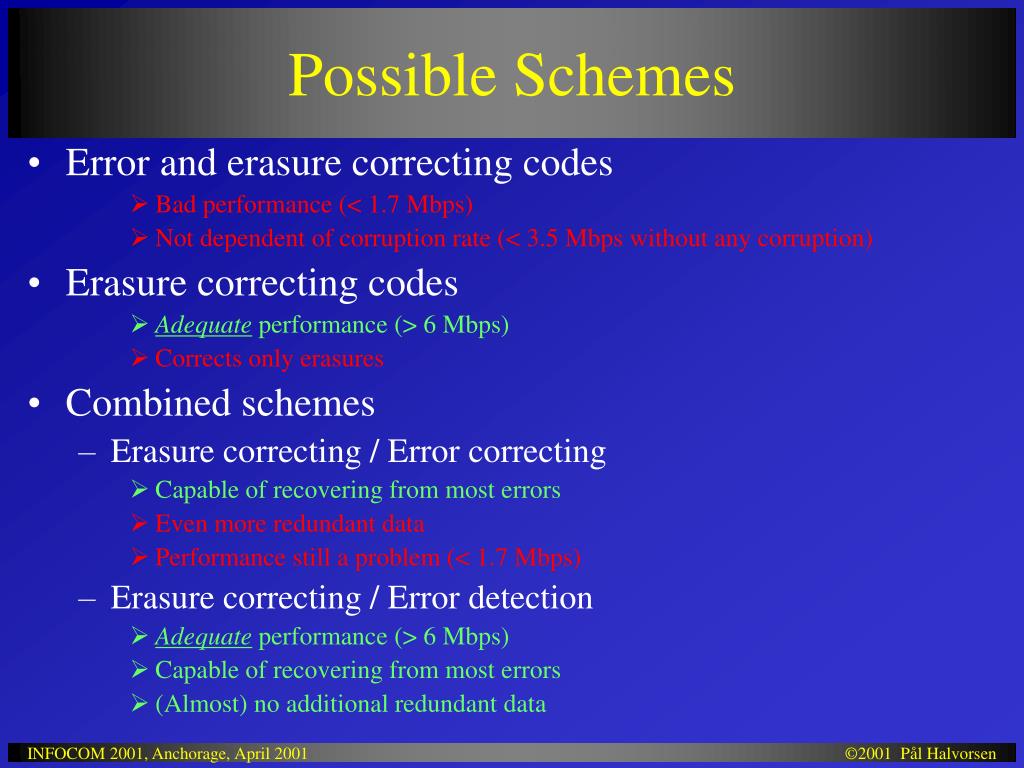

  7. Possible Schemes • Error and erasure correcting codes • Bad performance (< 1.7 Mbps) • Not dependent of corruption rate (< 3.5 Mbps without any corruption) • Erasure correcting codes • Adequate performance (> 6 Mbps) • Corrects only erasures • Combined schemes • Erasure correcting / Error correcting • Capable of recovering from most errors • Even more redundant data • Performance still a problem (< 1.7 Mbps) • Erasure correcting / Error detection • Adequate performance (> 6 Mbps) • Capable of recovering from most errors • (Almost) no additional redundant data

  8. Prototype Design • Combination of the traditional UDP checksum and an erasure correcting code (Cauchy-based Reed-Solomon Erasure) • Disk array with 8 disks, i.e., 7 information disks and 1 parity disk: • Write operations a la RAID level 4/5 • Read operations a la RAID level 0 • One codeword, contained in one or more stripes, is read as one read operation • Each striping unit consists multiple symbols each transmitted as a UDP packet

  9. Codeword Size and Amount of Redundancy Requirements: • Codeword_size  n  stripe_size, n  Z • Recover from one disk failure and (most) network errors  Our current approach: • Using a codeword of 256 symbols with 32 redundant symbols  corrects one out of 8 disks  corrects most errors in the network according to our error model, i.e., any 32 out of 256 packets

  10. Correcting codethroughput suggests a largesymbol size Packet (Symbol) Sizes - I Lowthroughput

  11. Packet (Symbol) Sizes - II • Correcting code (startup) delay suggests a small symbol size Lowthroughput Highstartup delay

  12. Results and Observations – IExperimental Setup • Assuming coding performance is only bottleneck • Transmitted a 225 MB file(corresponding to a 5 minutes 6 Mbps playout) • Used a worst-case loss scenario • Used several different machines

  13. Results and Observations – IIServer Side • No extra disk space needed • No additional time needed to retrieve parity data • No overhead managing retransmissions • Increased buffer space and bandwidth requirement of 12.5% storing and transmitting redundant data. • Encoding throughput limitation of ~3 Mbps (Intel, 166 MHz) to ~25 Mbps (Intel, 933 MHz) is eliminated by retrieving parity data from disk •  The server can support more concurrent users

  14. Results and Observations – III Client Side • Increased buffer requirement for decoding the received data (2 MB, 3 MB, 5 MB, and 9 MB using 1 KB, 2 KB, 4 KB, and 8 KB packets, respectively) • Additional CPU requirements recovering lost/corrupted data • Additional (worst case) startup delay between ~0.1 s (Intel, 933 MHz) and ~4.5 s (Intel, 166 MHz) decoding the first block can be experienced • In-time decoding •  hiccup free presentation

  15. Conclusion • The INSTANCE project aims at optimizing the data retrieval in an MoD server • Integrated Error Management • Future work • More information: www.unik.no/~paalh/instance
