Surface Area & Volume

Lesson 22. Surface Area & Volume. Volume of Composite Solids. Warm-Up. Write the volume formula for each solid. Square prism Rectangular prism Triangular pyramid Cylinder Cone Pentagonal pyramid. Volume of Composite Solids. Target: Calculate the volume of composite solids.

nodin
Download Presentation

Surface Area & Volume

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

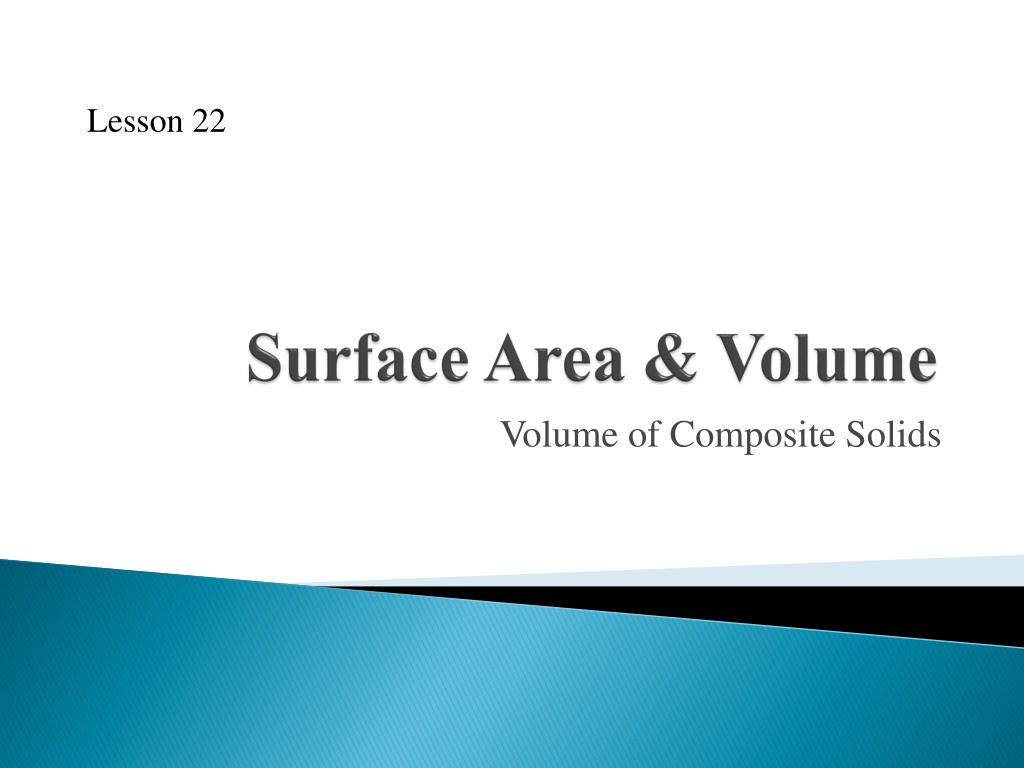

  1. Lesson 22 Surface Area & Volume Volume of Composite Solids

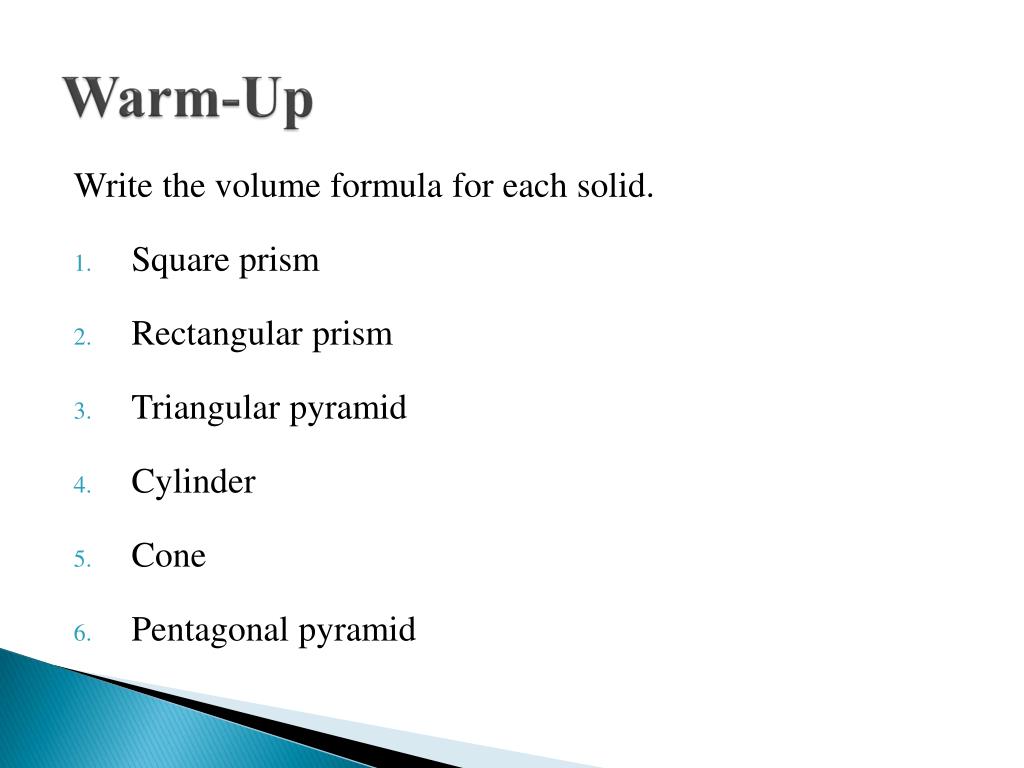

  2. Warm-Up Write the volume formula for each solid. • Square prism • Rectangular prism • Triangular pyramid • Cylinder • Cone • Pentagonal pyramid

  3. Volume of Composite Solids Target: Calculate the volume of composite solids.

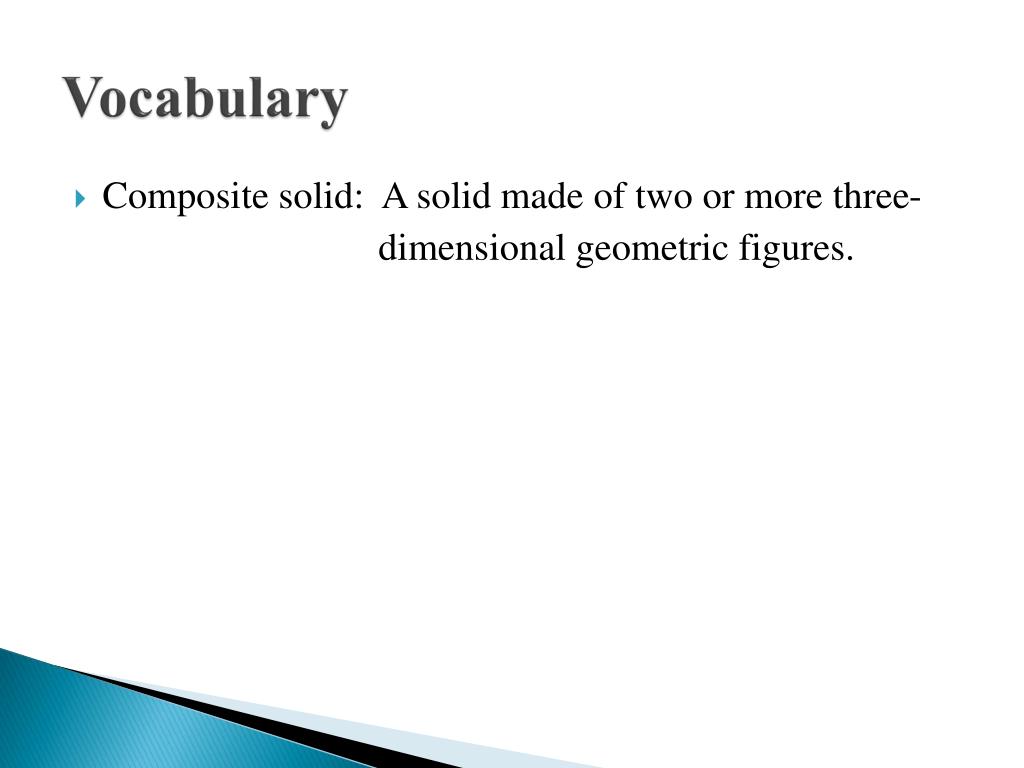

  4. Vocabulary • Composite solid: A solid made of two or more three- dimensional geometric figures.

  5. Volume of Composite Solids • Identify the different types of solids in the figure. • Calculate the volume of each solid. • Find the sum of the volumes.

  6. Example 1 Find the volume of the composite solid. Use 3.14 for π. • This composite figure is made of a cylinder and a cone. • Write each formula. • Substitute known values. • Find the value of the power. • Multiply. • Find the sum of the volumes. V ≈ 50.24 + 12.56 = 62.8 • The volume of the solid is about 62.8 ft3.

  7. Example 2 Find the approximate remaining volume when a cylindrical hole is drilled out of the prism. Use 3.14 for . • This prism is made of a prism and with a cylinder removed. • Write the formulas needed. • Substitute known values. • Find the value of the power. • Multiply. • Find the difference of the volumes. V ≈ 512 – 100.48 ≈ 411.52 • The remaining volume is about 411.52 cm3.

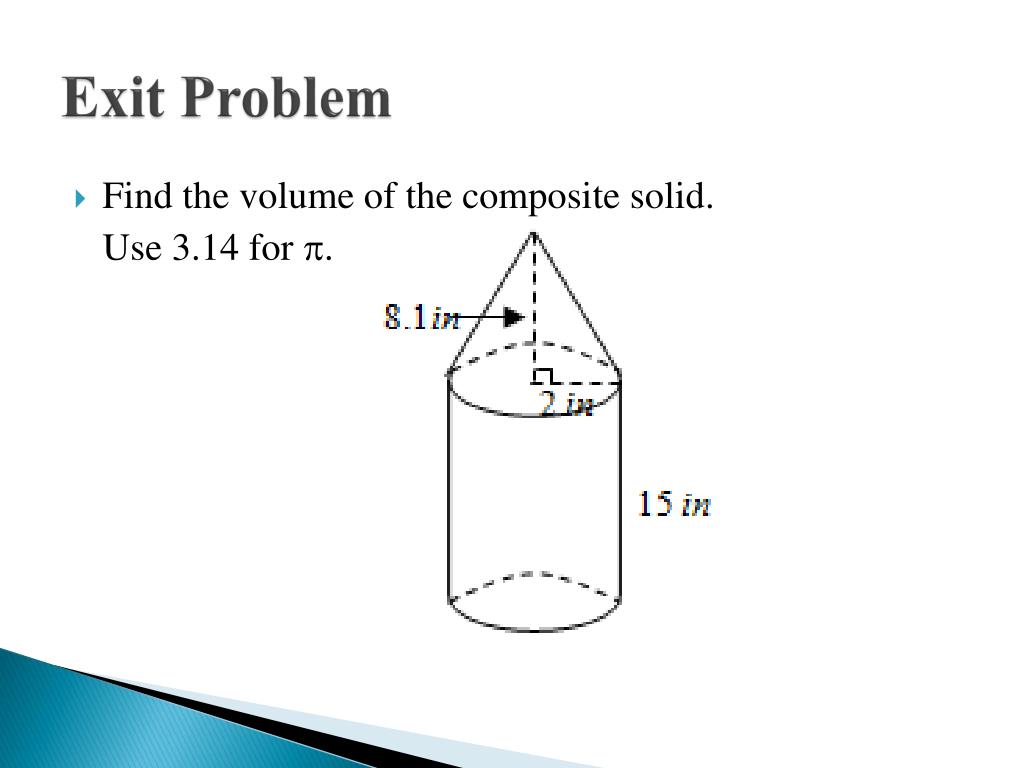

  8. Exit Problem • Find the volume of the composite solid. Use 3.14 for .

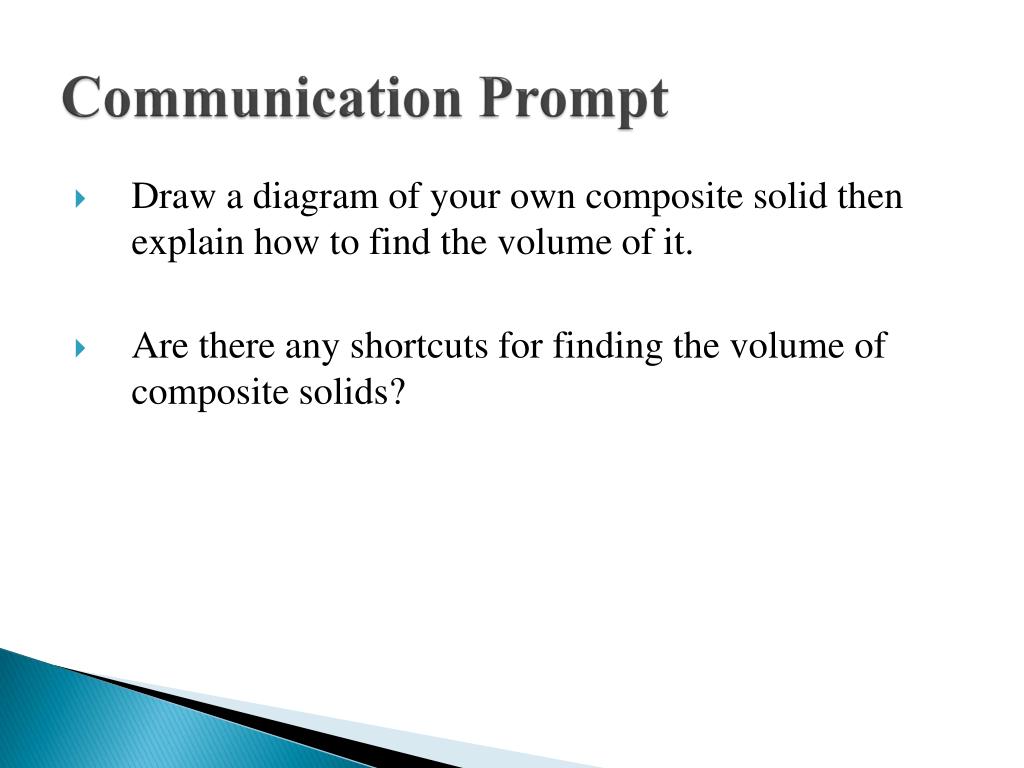

  9. Communication Prompt • Draw a diagram of your own composite solid then explain how to find the volume of it. • Are there any shortcuts for finding the volume of composite solids?
