  1. Sol- Gel Technology Aytan Muradova

  2. Introduction • Hydrolyses • Polymerization • Growth of nanostructures • Agglomeration

  3. The prime requisite for obtaining good quality in this technology • Variation of PH • Temperature • Time • Concentration of Reagent • Concentration of Catalyzor • H2O/Si • Phase transition Sol Gel • Drying

  4. Sol- Gel Processing RO Me or Me salt +H2O Stabilizer Nanodisperse Oxide Sol (Particulate or Polymeric) -H2O Gel -H2O Xerogel T > 400 C -H2O -Stabilizer Porous Oxide

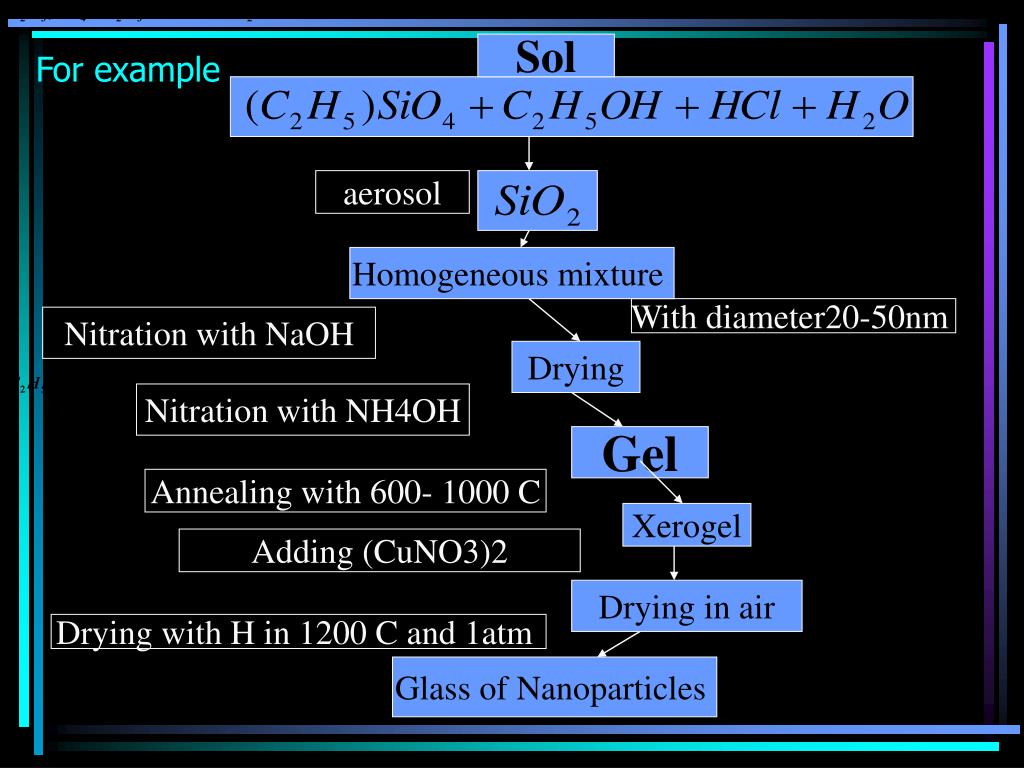

  5. Sol For example aerosol Homogeneous mixture With diameter20-50nm Nitration with NaOH Drying Nitration with NH4OH Gel Annealing with 600- 1000 C Xerogel Adding (CuNO3)2 Dryingin air Drying with H in 1200 C and 1atm Glass of Nanoparticles

  6. Preparation of thin films • RO3=Si-OR + H2O (RO)3=Si-O-Si+ R-OH (Hydrolyses) • (RO)3=Si-OH+(RO)3=Si-OR (RO)3=Si-OSi=(RO)3+ ROH • (RO)3=Si-OH+HO-Si+(RO)3 (RO)3+Si-O-Si=(RO)3+H2O

  7. Thank you for attention!
