Presentation Transcript
Case studies on information exchange package documentation iepd development l.jpg

Case Studies on Information Exchange Package Documentation (IEPD) Development

GJXDM Users Conference

Atlanta, Georgia

June 9, 2005


Iepd goals and objectives l.jpg
IEPD Goals and Objectives (IEPD) Development

  • Define IEPDs (Information Exchange Package Documentation) to support interoperability among justice systems

  • Expand and refine GJXDM/DD through experienced feedback; resolve vague definitions

  • Constrain/restrict down to key choices to support interoperability

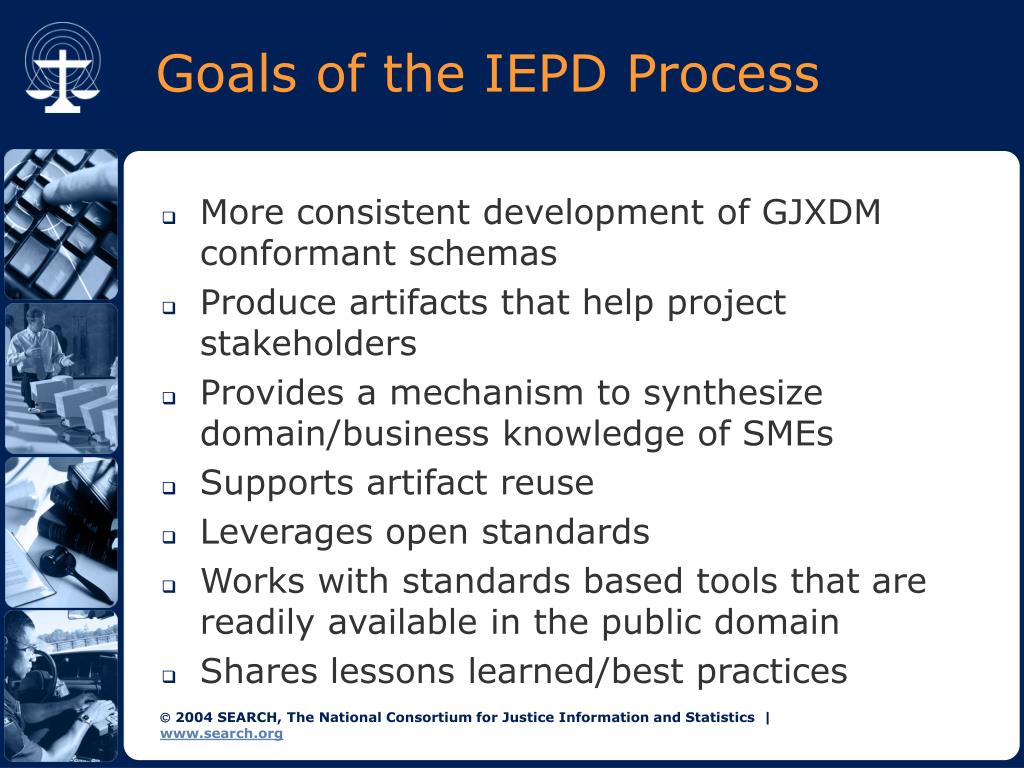

Goals of the iepd process l.jpg
Goals of the IEPD Process (IEPD) Development

  • More consistent development of GJXDM conformant schemas

  • Produce artifacts that help project stakeholders

  • Provides a mechanism to synthesize domain/business knowledge of SMEs

  • Supports artifact reuse

  • Leverages open standards

  • Works with standards based tools that are readily available in the public domain

  • Shares lessons learned/best practices


Iepds developed 2004 2005 l.jpg
IEPDs Developed 2004-2005 (IEPD) Development

  • Sentencing Order

  • Amber Alert

  • Field Interview Report

  • Charging Document

  • Incident Reporting

  • Uniform Rap Sheet

  • Booking/Arrest Report

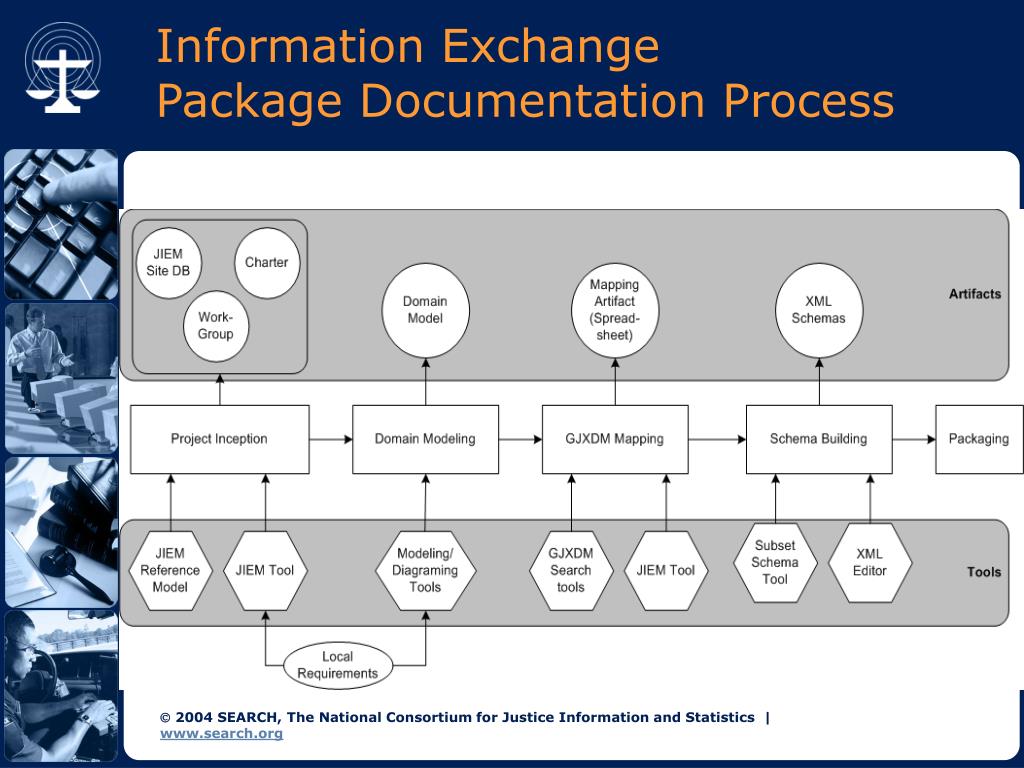

Information exchange package documentation process l.jpg
Information Exchange (IEPD) DevelopmentPackage Documentation Process

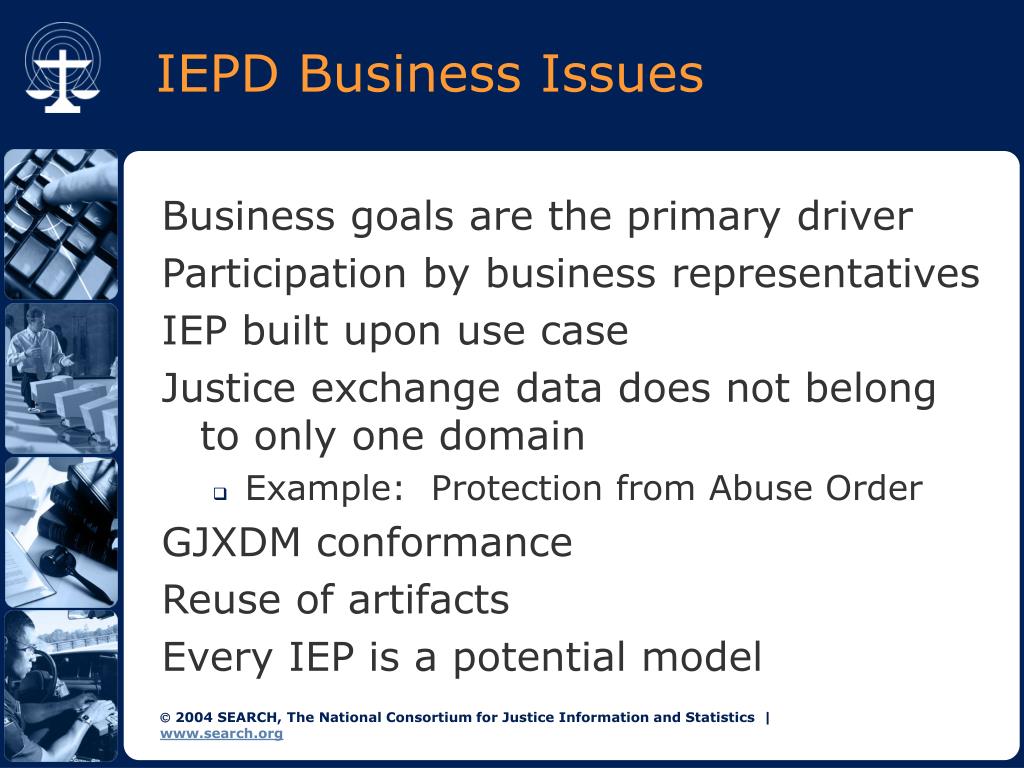

Iepd business issues l.jpg
IEPD Business Issues (IEPD) Development

  • Business goals are the primary driver

  • Participation by business representatives

  • IEP built upon use case

  • Justice exchange data does not belong to only one domain

    • Example: Protection from Abuse Order

  • GJXDM conformance

  • Reuse of artifacts

  • Every IEP is a potential model

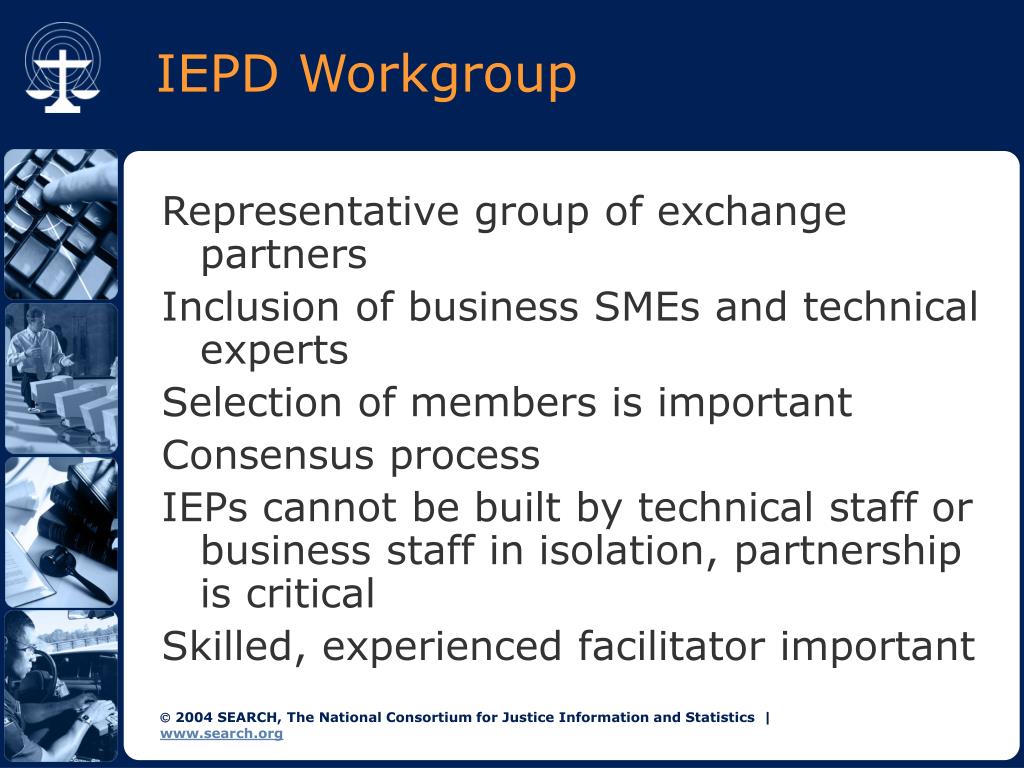

Iepd workgroup l.jpg
IEPD Workgroup (IEPD) Development

  • Representative group of exchange partners

  • Inclusion of business SMEs and technical experts

  • Selection of members is important

  • Consensus process

  • IEPs cannot be built by technical staff or business staff in isolation, partnership is critical

  • Skilled, experienced facilitator important


Workgroup facilitator skills l.jpg
Workgroup: Facilitator skills (IEPD) Development

  • Organization and project management

  • Neutrality

  • Understanding of the domain

  • Understanding of IEPD process

  • Understanding of domain modeling

    • UML

    • Object-oriented design

  • Understanding of GJXDM

  • Awareness of national reference material


Workgroup sme member skills l.jpg
Workgroup: SME member skills (IEPD) Development

  • Understanding of business processes

    • Triggering and subsequent processes

    • Required content

    • Relationships

  • Ability to describe the semantic meaning of the data

  • Ability to “think outside the box”

    • As-is processes versus to-be processes

    • Openness to change semantic concepts to align with GJXDM

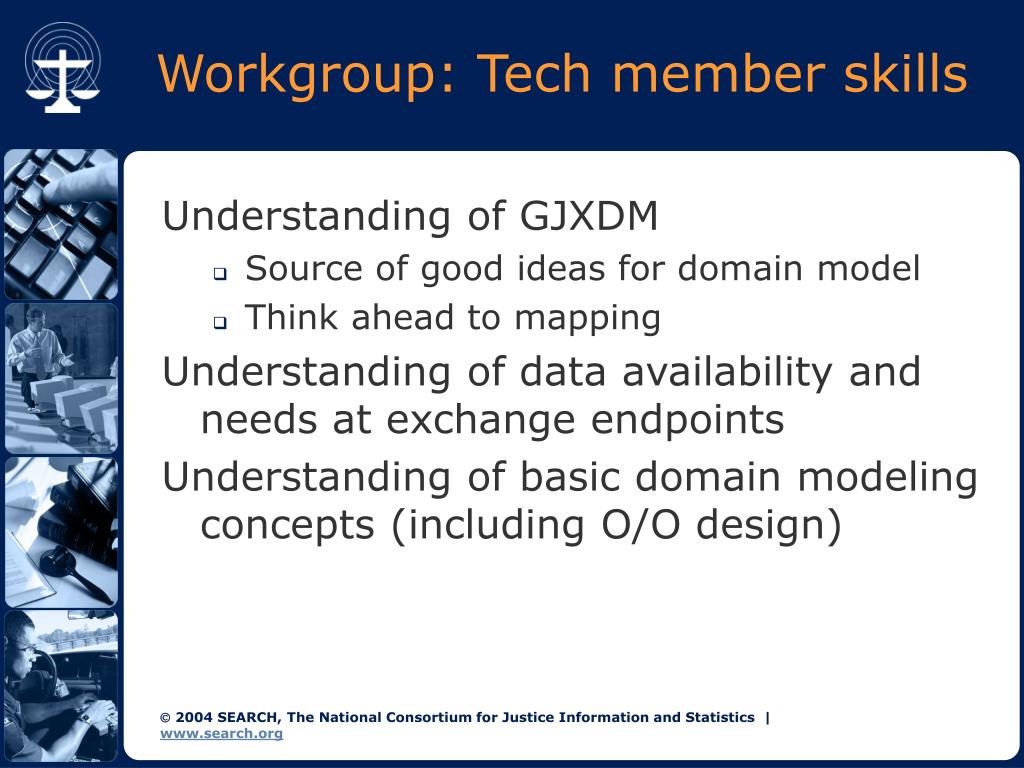

Workgroup tech member skills l.jpg
Workgroup: Tech member skills (IEPD) Development

  • Understanding of GJXDM

    • Source of good ideas for domain model

    • Think ahead to mapping

  • Understanding of data availability and needs at exchange endpoints

  • Understanding of basic domain modeling concepts (including O/O design)


Project planning l.jpg
Project planning (IEPD) Development

  • Obviously, depends on the document

  • Rough guidelines:

    • Domain modeling (face-to-face, 2-3 days)

    • Mapping (face-to-face for 1-2 days, another 1-2 days remote)

    • Schema building (facilitator or tech member(s) only, 2-3 days)

    • Packaging (1 day)


Iepd process l.jpg
IEPD Process (IEPD) Development

  • JIEM/Exchange Requirements

  • Domain Modeling

  • GJXDM Mapping

  • Subset Schema (SSGT)

  • Extension, Document, Constraint

  • Sample XML Instance

  • Packaging

  • Horizontal Analysis/Reuse

  • Education and Outreach


Incident reporting iepd l.jpg
Incident Reporting IEPD (IEPD) Development

  • Project funded by COPS Office

  • Participants:

    • Local Law Enforcement

    • State Law Enforcement

      • NIBRS, UCR, Repository

    • FBI

    • Prosecution

    • Statistical Crime Reporting



Domain modeling motivation l.jpg
Domain Modeling: Motivation (IEPD) Development

  • In building an IEP, it is very helpful to have:

    • A precise definition/description of document structure

    • A description that can be understandable and verifiable by all stakeholders (bridge the communication gap)

    • A description technique that facilitates interactive design


Domain modeling uml l.jpg

Pros (IEPD) Development

Precise and formal, yet…

Graphical and understandable by stakeholders

Supports O/O concepts inherent in XML Schema

Supported by low-cost tools

Industry/developer buy-in and adoption

Domain Modeling: UML


Domain modeling uml17 l.jpg

Cons (IEPD) Development

Need to educate stakeholders about notation

Learning curve for modeler (learning notation)

Can lock into tools if you’re not careful

Domain Modeling: UML

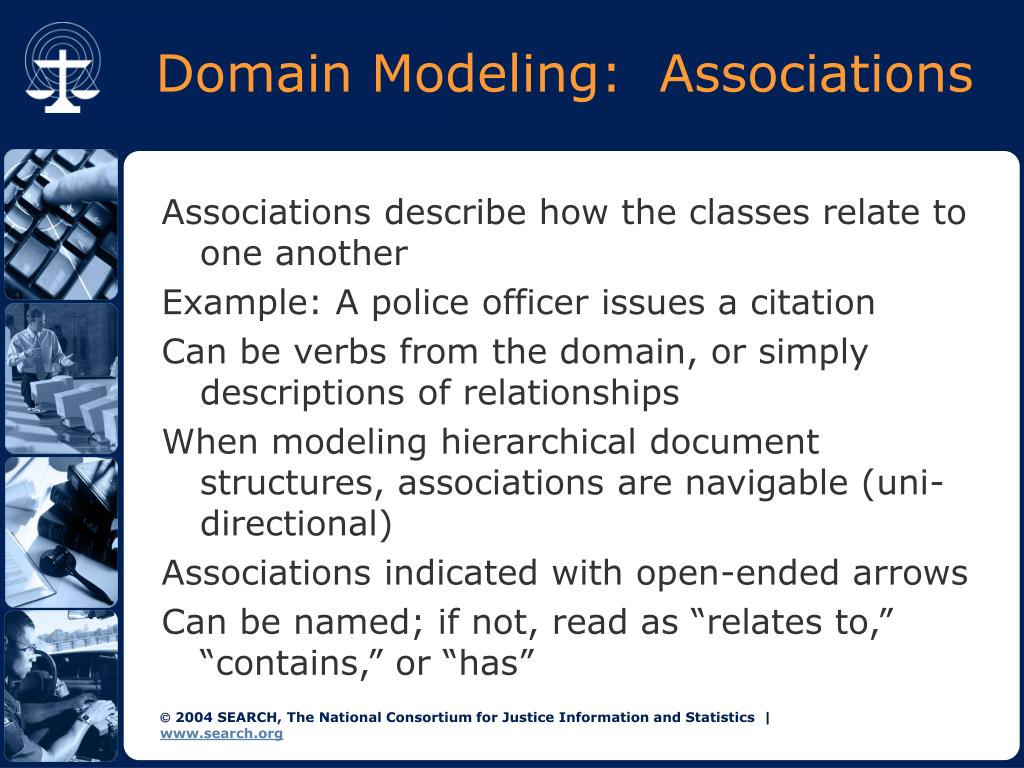

Domain modeling associations l.jpg
Domain Modeling: Associations (IEPD) Development

  • Associations describe how the classes relate to one another

  • Example: A police officer issues a citation

  • Can be verbs from the domain, or simply descriptions of relationships

  • When modeling hierarchical document structures, associations are navigable (uni-directional)

  • Associations indicated with open-ended arrows

  • Can be named; if not, read as “relates to,” “contains,” or “has”

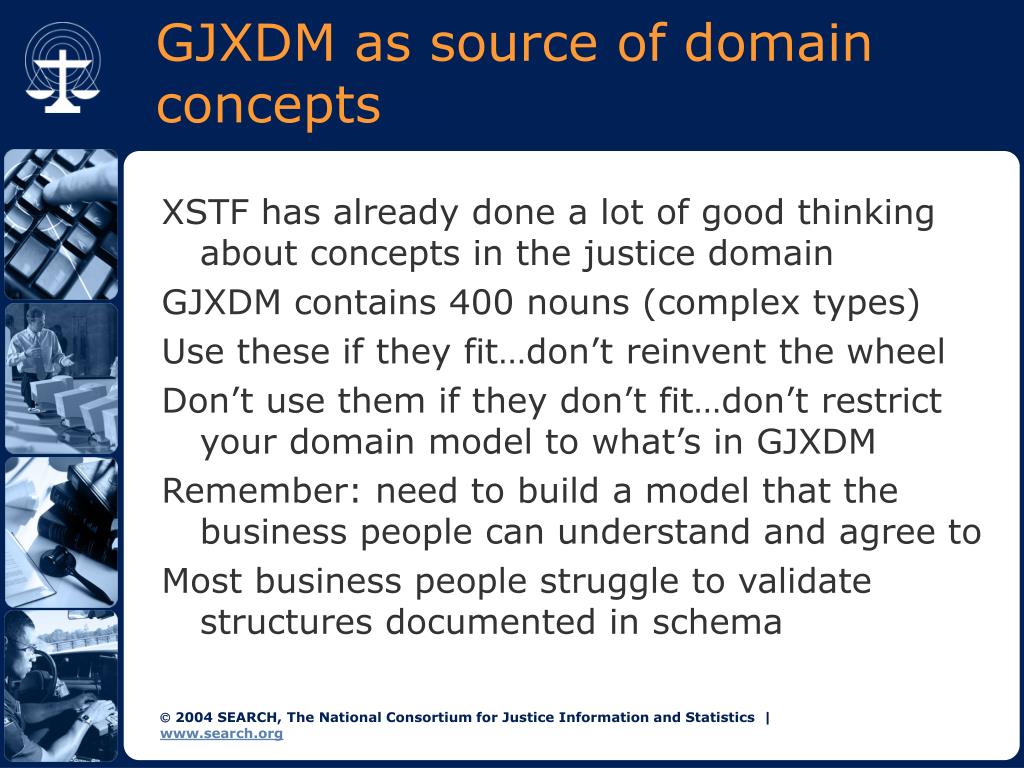

Gjxdm as source of domain concepts l.jpg
GJXDM as source of domain concepts (IEPD) Development

  • XSTF has already done a lot of good thinking about concepts in the justice domain

  • GJXDM contains 400 nouns (complex types)

  • Use these if they fit…don’t reinvent the wheel

  • Don’t use them if they don’t fit…don’t restrict your domain model to what’s in GJXDM

  • Remember: need to build a model that the business people can understand and agree to

  • Most business people struggle to validate structures documented in schema



Mapping to gjxdm l.jpg
Mapping to GJXDM (IEPD) Development

  • To build schema, each class/property in the domain model must be mapped to a type/element in GJXDM

  • Sometimes mapping can be represented in path-like notation

  • Sometimes it can only be described in prose

  • Makes automated mapping (and schemas generated from the domain model) very difficult

  • Sometimes domain concepts are missing from GJXDM; these are mapped to elements in an extension schema (your own namespace)


Mapping to gjxdm22 l.jpg
Mapping to GJXDM (IEPD) Development

  • Spreadsheet with four columns:

    • Class

    • Property or Association

    • GJXDM Mapping (path or prose, extensions color-coded)

    • Notes


Gjxdm mapping incident report l.jpg
GJXDM Mapping: Incident Report (IEPD) Development

  • Incident Report Mapping


Ssgt want list l.jpg
SSGT Want List (IEPD) Development


Ssgt want list26 l.jpg
SSGT Want List (IEPD) Development


Packaging l.jpg
Packaging (IEPD) Development

  • Subset Schema

  • Constraint Schema

  • Extension Schema

  • Document Schema

  • Sample XML Instance

  • IEPD


Tools l.jpg
Tools (IEPD) Development

  • Wide tool support for UML

    • Visio

    • Eclipse plug-ins

    • ArgoUML

    • Rational Rose and XDE

  • Keep in mind that the primary purpose of a domain model is communication.

  • Many people beyond you (and your IT department) will be reading the model, so it has to be accessible to them using tools they already have (or can acquire cheaply).

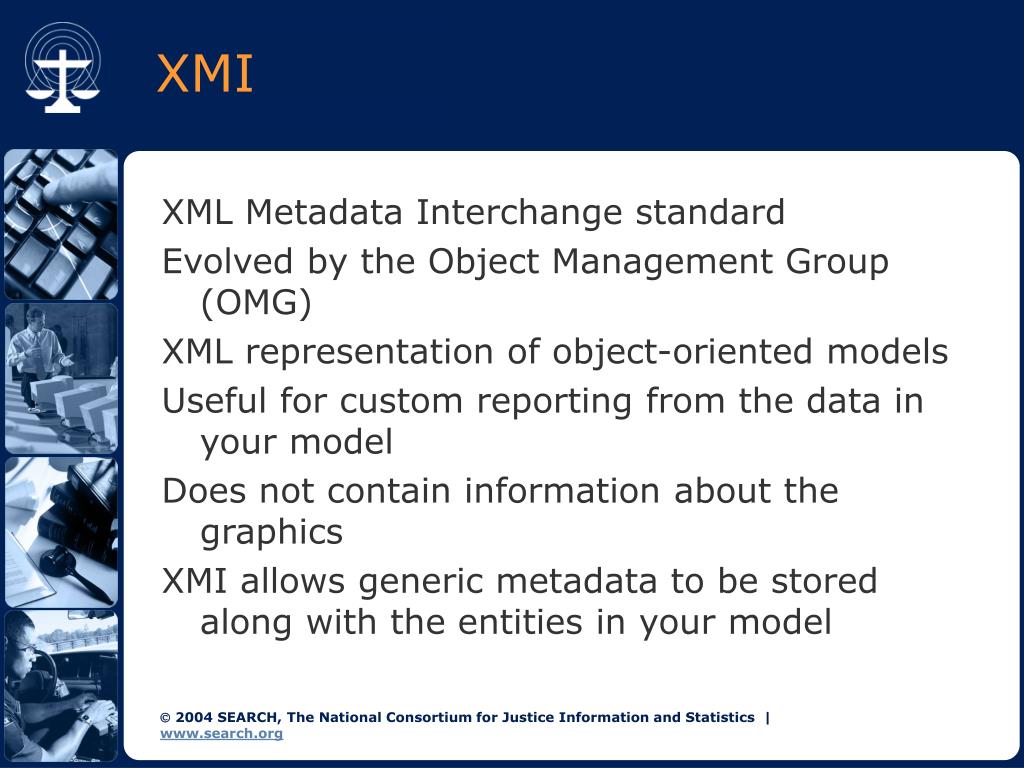

Slide29 l.jpg
XMI (IEPD) Development

  • XML Metadata Interchange standard

  • Evolved by the Object Management Group (OMG)

  • XML representation of object-oriented models

  • Useful for custom reporting from the data in your model

  • Does not contain information about the graphics

  • XMI allows generic metadata to be stored along with the entities in your model

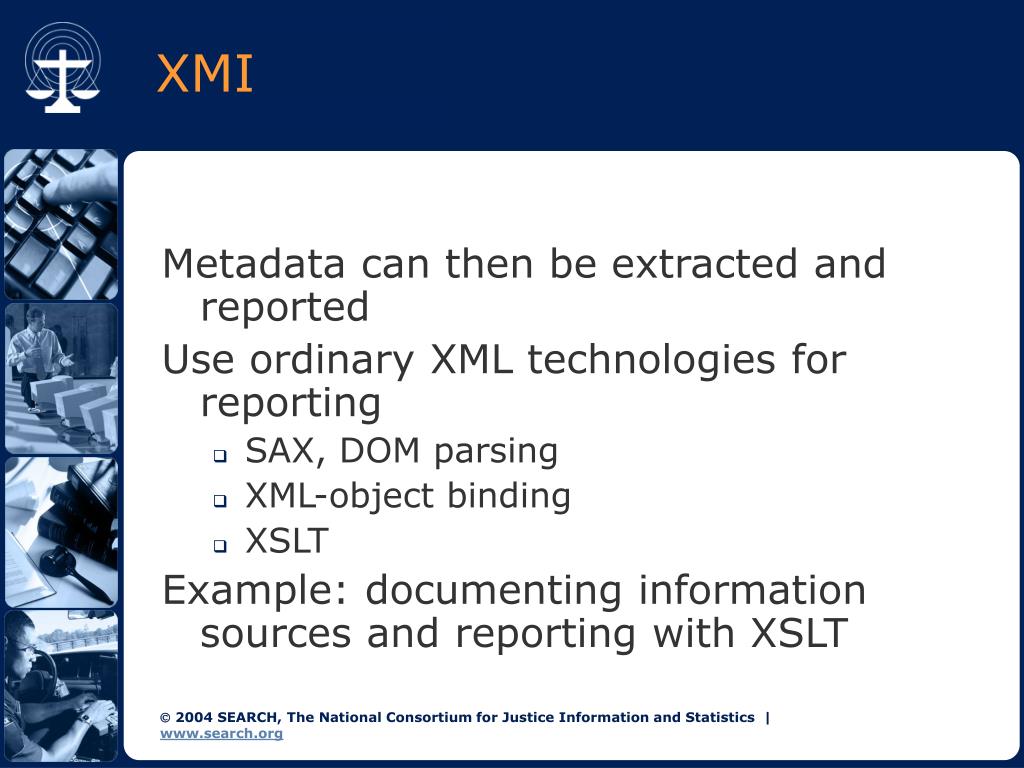

Slide30 l.jpg
XMI (IEPD) Development

  • Metadata can then be extracted and reported

  • Use ordinary XML technologies for reporting

    • SAX, DOM parsing

    • XML-object binding

    • XSLT

  • Example: documenting information sources and reporting with XSLT


Lessons learned l.jpg
Lessons Learned (IEPD) Development

  • Facilitation is critical

  • Can be successful in bringing together business and technical experts

  • Iterative process

  • Domain modeling can accelerate the development process

  • For most domain structures GJXDM is a good fit, Exceptions: Associations

  • Project completed with low cost open tools


Resources l.jpg
Resources (IEPD) Development

  • Information Exchange Package Documentation Guidelines

  • Process Overview whitepaper (by justiceintegration.com, adopted by IJIS XML Advisory Committee)

  • Example IEPDs


Resources33 l.jpg
Resources (IEPD) Development

  • Domain-Driven Design, by Eric Evans

  • UML Distilled, by Martin Fowler

  • Analysis Patterns, by Martin Fowler

  • Modeling XML Applications with UML, by David Carlson

  • Object-Oriented Design Heuristics, by Arthur Riel


Iepd goals and objectives34 l.jpg
IEPD Goals and Objectives (IEPD) Development

  • Remember: the goal is to exchange messages, not to build databases

  • The more we standardize the container and the payload of components, the more it supports our goals

  • Standard, non-proprietary, consistently structured artifacts helps all of us to leverage IEPDs as models for information sharing


Thank you l.jpg
Thank you! (IEPD) Development


Case studies on information exchange package documentation iepd development36 l.jpg

Case Studies on Information Exchange Package Documentation (IEPD) Development

GJXDM Users Conference

Atlanta, Georgia

June 9, 2005
