Advances in Designing Clockless Digital Systems

This work by Prof. Steven M. Nowick from Columbia University explores the transition from synchronous to asynchronous digital systems. Synchronous systems utilize a global clock and centralized control, but face significant challenges with complexity, speed, and power consumption. Asynchronous systems, which operate without a clock, offer potential advantages such as lower power usage, increased scalability, and robustness. The presentation discusses recent developments, ongoing challenges in design, and the future of CAD tools for asynchronous systems.

nishi
Download Presentation

Advances in Designing Clockless Digital Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Advances in Designing Clockless Digital Systems Prof. Steven M. Nowick nowick@cs.columbia.edu Department of Computer Science Columbia University New York, NY, USA

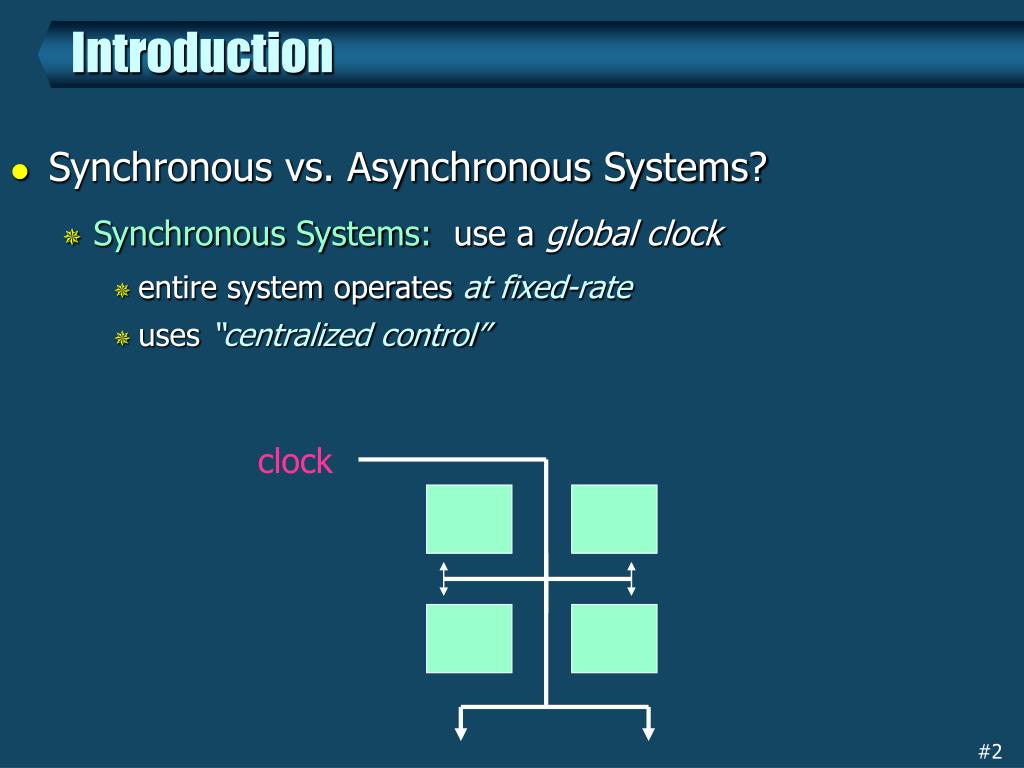

  2. Introduction • Synchronous vs. Asynchronous Systems? • Synchronous Systems: use a global clock • entire system operates at fixed-rate • uses “centralized control” clock

  3. Introduction (cont.) • Synchronous vs. Asynchronous Systems? (cont.) • Asynchronous Systems:no global clock • components can operate atvarying rates • communicate locally via “handshaking” • uses “distributed control” “handshaking interfaces” (channels)

  4. Trends and Challenges Trends in Chip Design: next decade • “Semiconductor Industry Association (SIA) Roadmap” (97-8) Unprecedented Challenges: • complexity and scale (= size of systems) • clock speeds • power management • reusability & scalability • “time-to-market” Design becoming unmanageable using a centralized single clock (synchronous) approach….

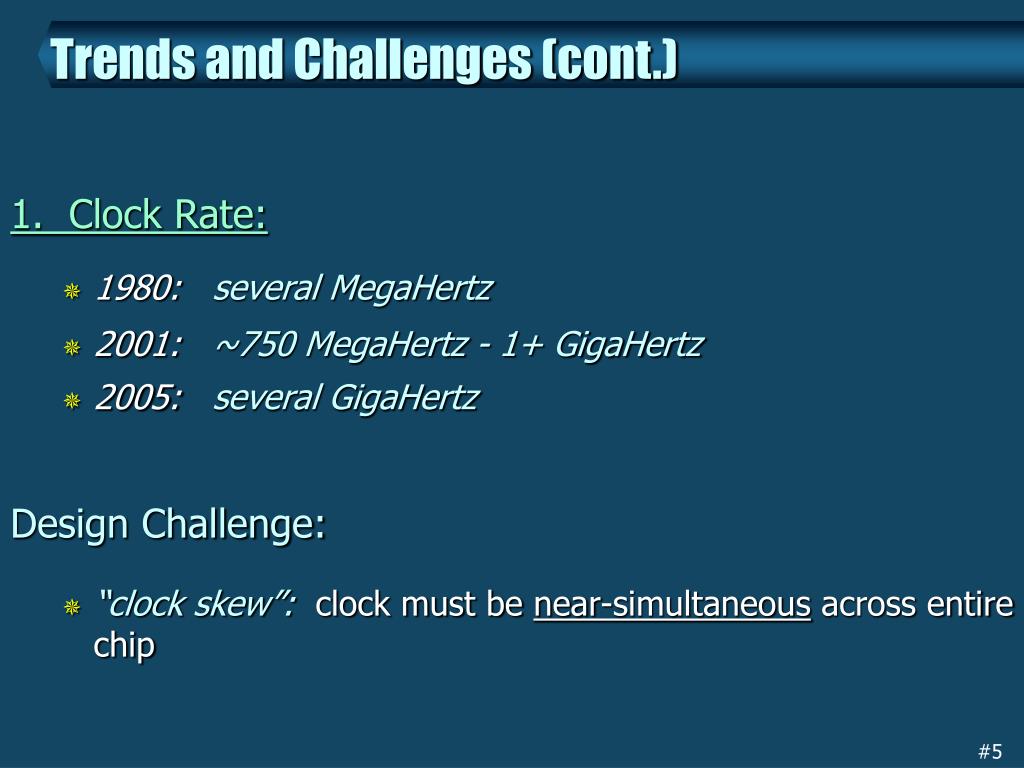

  5. Trends and Challenges (cont.) 1. Clock Rate: • 1980: several MegaHertz • 2001: ~750 MegaHertz - 1+ GigaHertz • 2005:several GigaHertz Design Challenge: • “clock skew”: clock must be near-simultaneous across entire chip

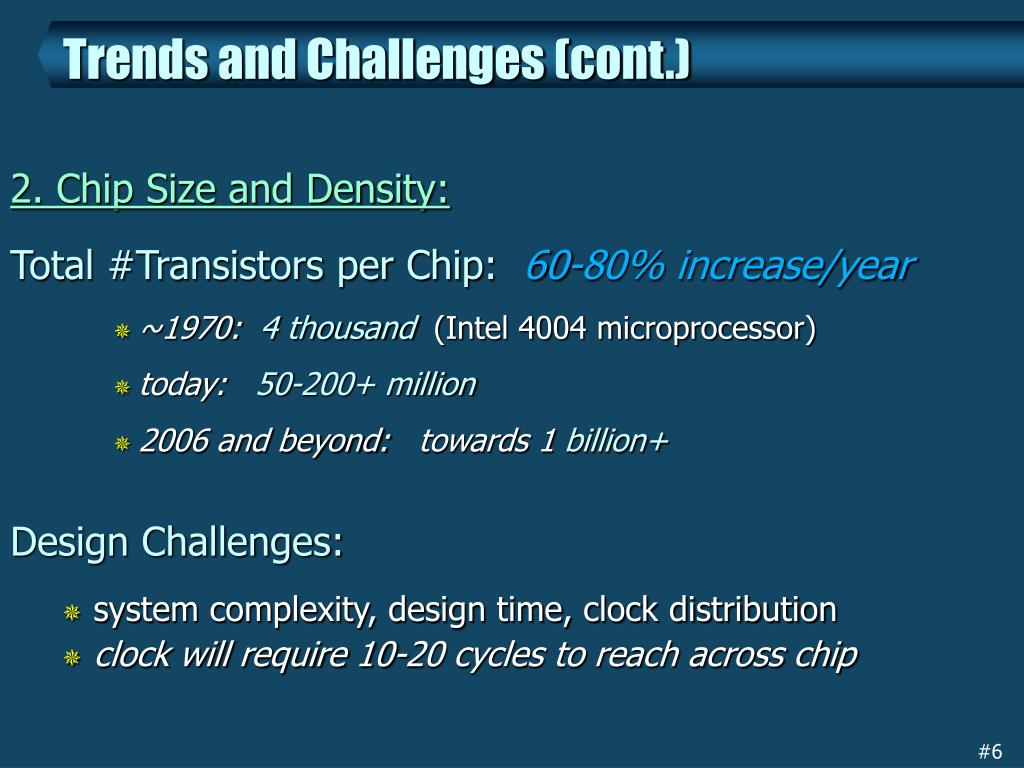

  6. Trends and Challenges (cont.) 2. Chip Size and Density: Total #Transistors per Chip: 60-80% increase/year • ~1970: 4 thousand(Intel 4004 microprocessor) • today: 50-200+ million • 2006 and beyond:towards 1billion+ Design Challenges: • system complexity, design time, clock distribution • clock will require 10-20 cycles to reach across chip

  7. Trends and Challenges (cont.) 3. Power Consumption • Low power: ever-increasing demand • consumer electronics: battery-powered • high-end processors: avoid expensive fans, packaging Design Challenge: • clock inherently consumes power continuously • “power-down” techniques: complex, only partly effective

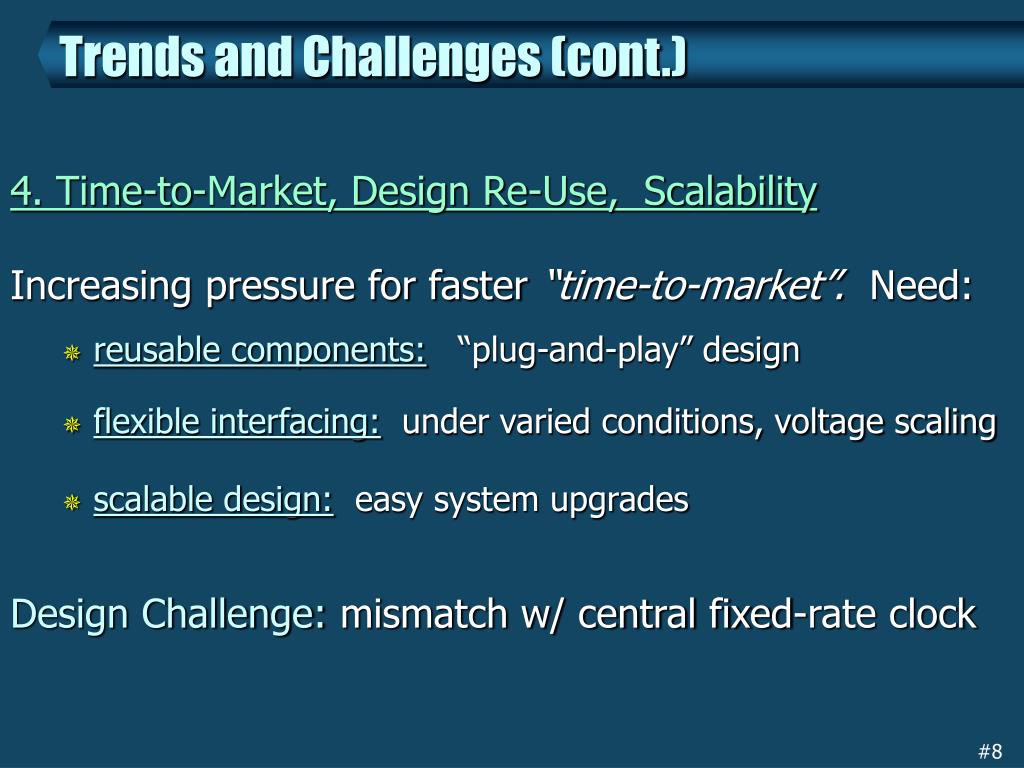

  8. Trends and Challenges (cont.) 4. Time-to-Market, Design Re-Use, Scalability Increasing pressure for faster “time-to-market”. Need: • reusable components: “plug-and-play” design • flexible interfacing:under varied conditions, voltage scaling • scalable design:easy system upgrades Design Challenge: mismatch w/ central fixed-rate clock

  9. Trends and Challenges (cont.) 5. Future Trends: “Mixed Timing” Domains Chips themselves becoming distributed systems…. • contain many sub-regions, operating at different speeds: Design Challenge:breakdown of single centralized clock control

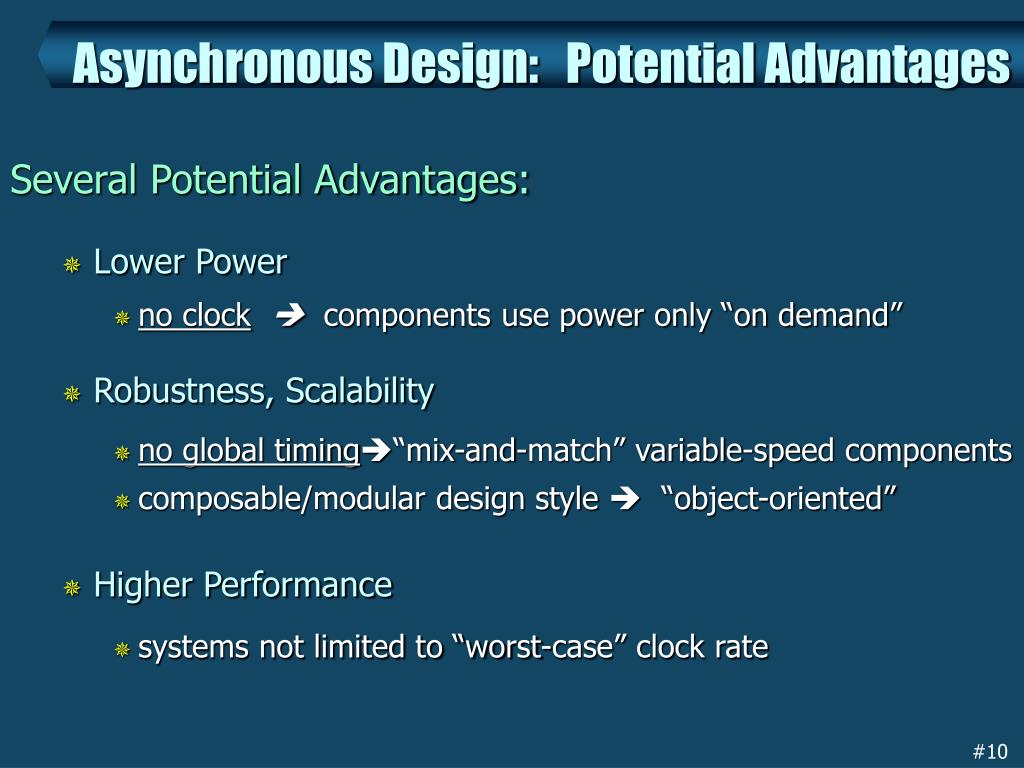

  10. Asynchronous Design: Potential Advantages Several Potential Advantages: • Lower Power • no clock components use power only “on demand” • Robustness, Scalability • no global timing“mix-and-match” variable-speed components • composable/modular design style  “object-oriented” • Higher Performance • systems not limited to “worst-case” clock rate

  11. Asynchronous Design: Some Recent Developments 1. Philips Semiconductors: • commercial use: 100 million async chips for consumer electronics: pagers, cell phones, smart cards, digital passports, automotive • 3-4x lower power, less electromagnetic interference (“EMI”) 2. Intel: • experimental: Pentium instruction-length decoder = “RAPPID” (1990’s) • 3-4x faster than synchronous subsystem 3. Sun Labs: • commercial use: high-speed FIFO’s in recent “Ultra’s” (memory access) 4. IBM Research: • experimental: high-speed pipelines, filters, mixed-timing systems Recent Startups: Fulcrum, Theseus Logic, Handshake Solutions, Silistrix

  12. Asynchronous CAD Tools: Recent Developments DARPA’s “CLASS” Program:Clockless Initiative (2003-07) Goals: - CAD tool: produce viable commercial-grade async tool flow - demonstration: a complex Boeing ASIC chip Participants: • Lead (PI): Boeing • Industrial participants: • Philips (via async incubated startup, “Handshake Solutions”) • Theseus Logic, Codetronix • Academic participants: • Columbia, UNC, UW, Yale, OSU Targets: cover wide “design space” – very robust to high-speed circuits Columbia’s role: (i) high-speed pipelines, (ii) CAD optimizations

  13. Asynchronous Design: Challenges • Critical Design Issues: • components must communicate cleanly: ‘hazard-free’ design • highly-concurrent designs: much harder to verify! • Lack of Automated “Computer-Aided Design” Tools: • most commercial “CAD” tools targeted to synchronous

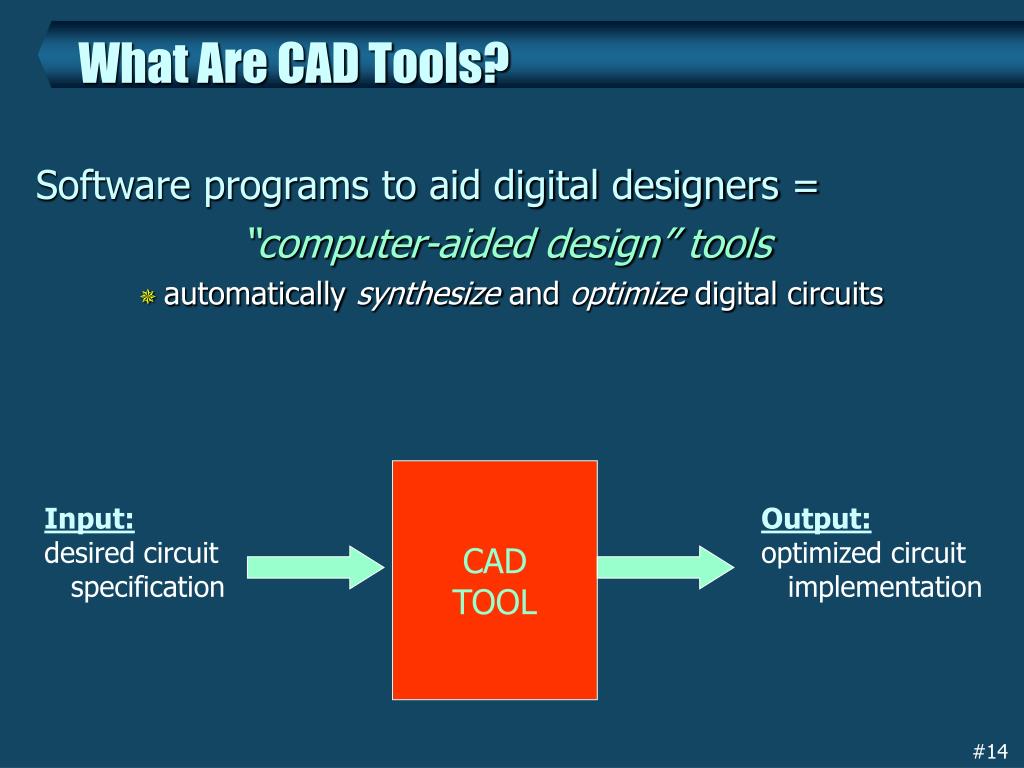

  14. What Are CAD Tools? Software programs to aid digital designers = “computer-aided design” tools • automatically synthesize and optimize digital circuits CAD TOOL Input:desired circuit specification Output:optimized circuit implementation

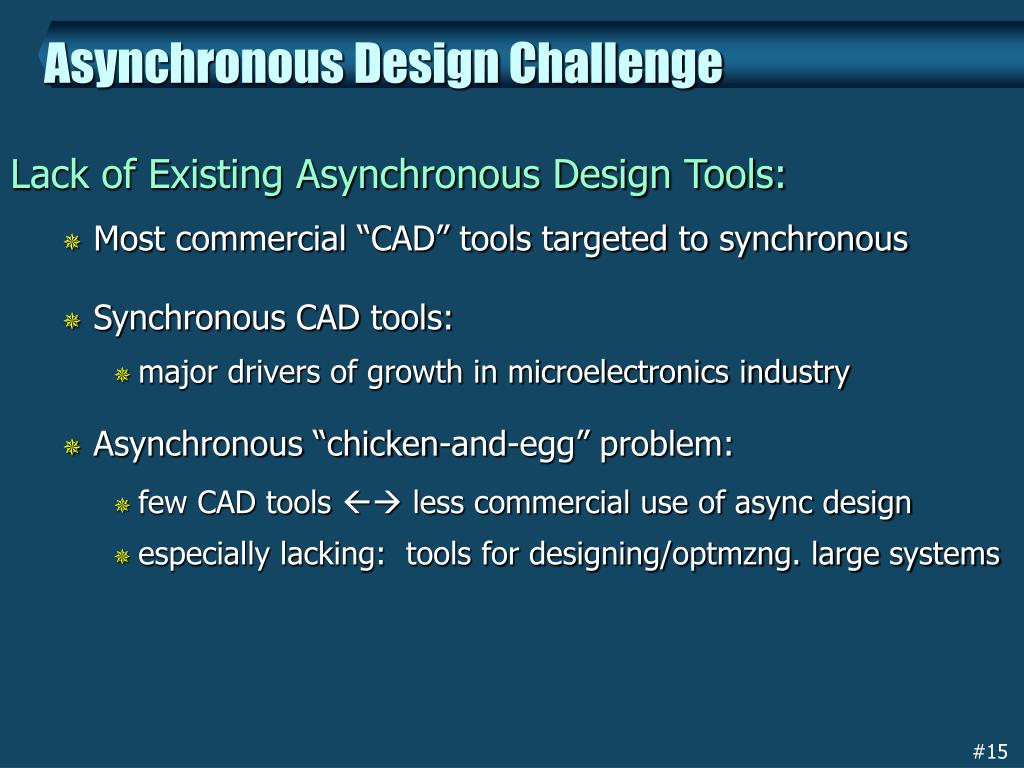

  15. Asynchronous Design Challenge Lack of Existing Asynchronous Design Tools: • Most commercial “CAD” tools targeted to synchronous • Synchronous CAD tools: • major drivers of growth in microelectronics industry • Asynchronous “chicken-and-egg” problem: • few CAD tools  less commercial use of async design • especially lacking: tools for designing/optmzng. large systems

  16. Overview: My Research Areas • CAD Tools for Asynchronous Controllers (FSM’s) • “MINIMALIST” Package: for synthesis + optimization • Other Research Areas: • CAD Tools for Designing Large-Scale Async Systems • Mixed-Timing Interface Circuits: • for interfacing sync/async systems • High-Speed Asynchronous Pipelines

  17. CAD Tools for Async Controllers MINIMALIST: developed at Columbia University [1994-] • extensible CAD package for synthesis of asynchronous controllers • integrates synthesis, optimization and verification tools • used in 80+ sites/17+ countries (being taught in IIT Bombay) • URL:http://www.cs.columbia.edu/async Includes several optimization tools: • State Minimization • CHASM: optimal state encoding • 2-Level Hazard-Free Logic Minimization • Verilog back-end Key goal: facilitate design-space exploration

  18. 0 Inputs: req-send treq rd-iq adbld-out ack-pkt Outputs: tack peack adbld 1 2 3 8 4 9 10 5 6 7 Example: “PE-SEND-IFC” (HP Labs) req-send-/ -- req-send+ treq+ rd-iq+/ adbld+ adbld-out+/ peack+ adbld-out- treq- ack-pkt+/ peack+ rd-iq-/ peack- adbld- tack+ From HP Labs“Mayfly” Project:B.Coates, A.Davis, K.Stevens,“The Post Office Experience: Designing a Large Asynchronous Chip”, INTEGRATION: the VLSI Journal, vol. 15:3, pp. 341-66 (Oct. 1993) ack-pkt+/ peack- tack- adbld-out- treq- rd-id+/ adbld+ adbld-out+/ peack+ treq-/ tack- treq+/ tack+ adbld-out- treq+ rd-iq+/ adbld+ rd-iq-/ peack- adbld- tack- ack-pkt- treq-/ peack- tack- adbld-out- treq+ ack-pkt+/ peack+ tack+

  19. EXAMPLE (cont.): Design-Space Explorationusing MINIMALIST: optimizing for area vs. speed Examples:

  20. Functional Unit Start Functional Unit C:=X<a B:=2dx+dx Loop C< 0 End Functional Unit M:=U*X1 X:=X+dx C:=X<a Register Register Endloop CAD Tools for Large-Scale Asynchronous Systems Target Architecture: Input Specification: = “Control Data-flow Graph” control unit Ctrlr 1 Ctrlr 2 Ctrlr 3 Target: - synthesize distributed control - 1 controller per functional unit [Theobald/Nowick, IEEE Design Automation Conf. (2001)]

  21. Asynchronous Domain Asynchronous Domain Synchronous Domain 2 Synchronous Domain 1 Mixed-Timing Interfaces Goal: provide low-latency communication between “timing domains” Challenge: avoid synchronization errors

  22. Asynchronous Domain Asynchronous Domain Synchronous Domain 2 Synchronous Domain 1 Mixed-Timing Interfaces: Solution Async-Sync FIFO Sync-Async FIFO Async-Sync FIFO Mixed-Clock FIFO’s Solution:insert mixed-timing FIFO’s provide safe data transfer … developed complete family of mixed-timing interface circuits[Chelcea/Nowick, IEEE Design Automation Conf. (2001)]

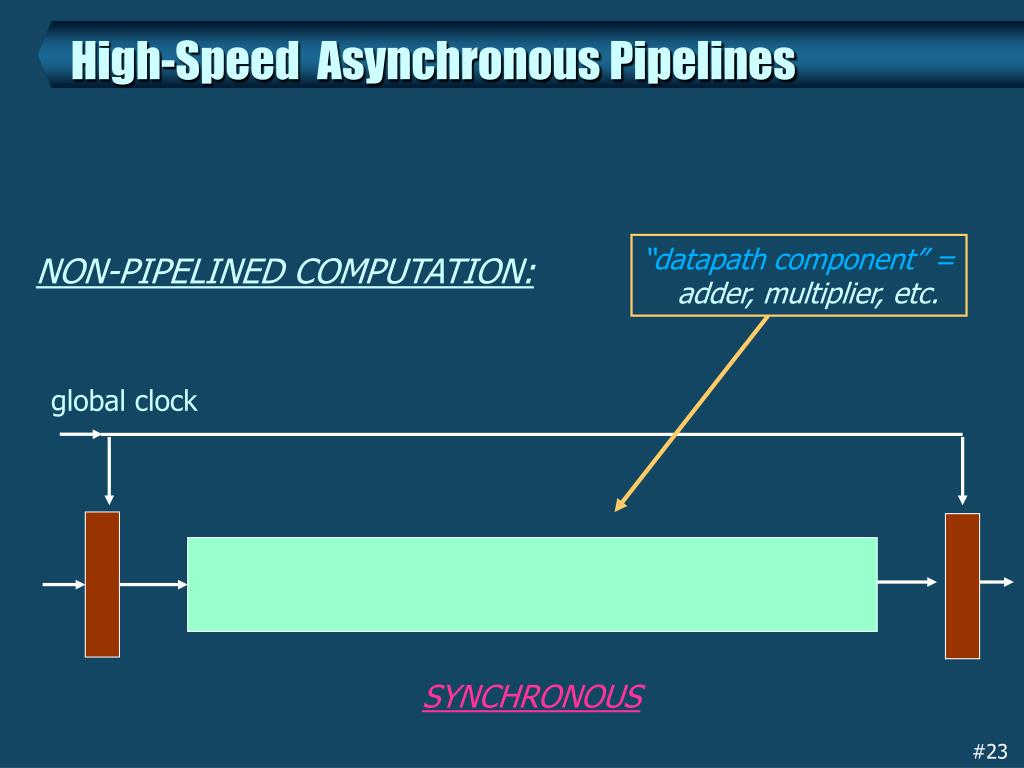

  23. High-Speed Asynchronous Pipelines “datapath component” = adder, multiplier, etc. NON-PIPELINED COMPUTATION: global clock SYNCHRONOUS

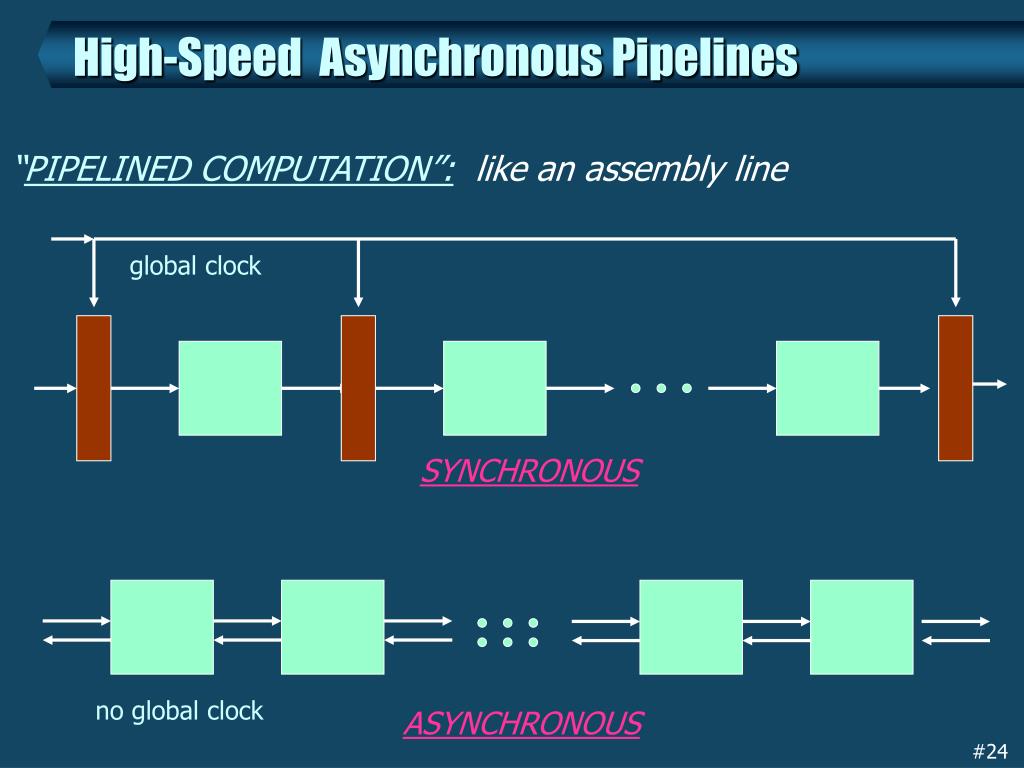

  24. High-Speed Asynchronous Pipelines “PIPELINED COMPUTATION”:like an assembly line global clock SYNCHRONOUS no global clock ASYNCHRONOUS

  25. High-Speed Asynchronous Pipelines Goal: extremely fast async datapath components • speed: comparable to fastest existing synchronous designs • additional benefits: • dynamically adapt to variable-speed interfaces: voltage scaling! • “elastic” processing of data in pipeline • no clock distribution Contributions: 3 new async pipeline styles[SINGH/NOWICK] • MOUSETRAP:static logic • High-Capacity/Lookahead:dynamic logic Obtain multi-GigaHertz speeds Used by IBM, currently incorporated into Philips tool flow

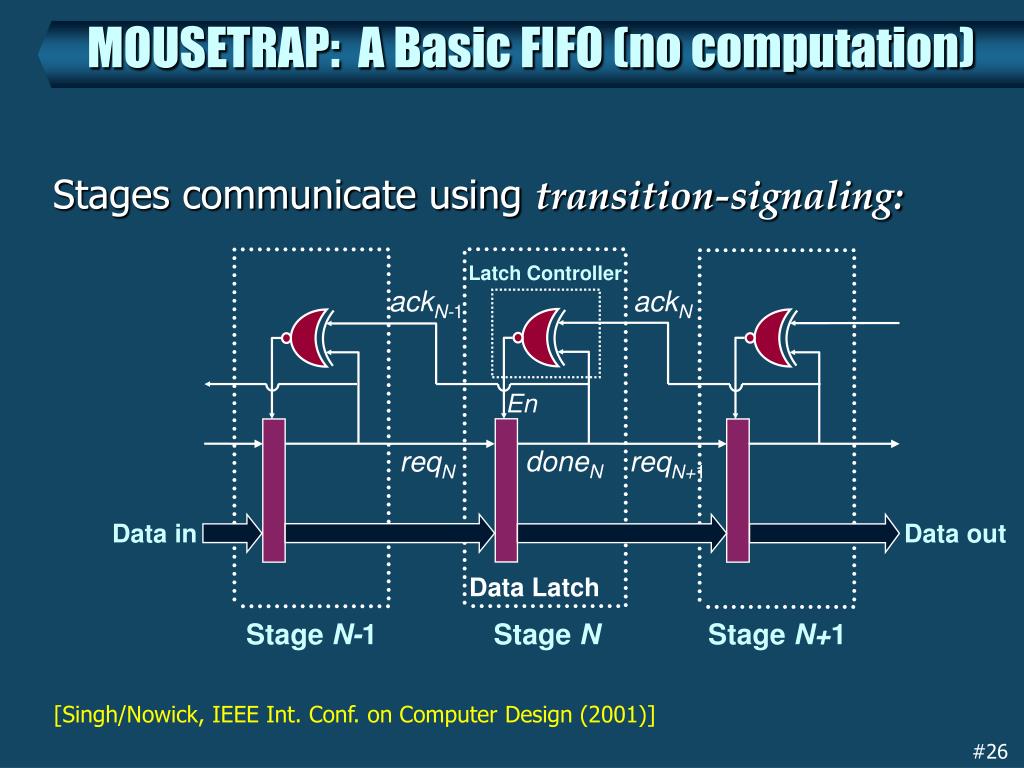

  26. MOUSETRAP: A Basic FIFO (no computation) Stages communicate using transition-signaling: Latch Controller ackN-1 ackN En doneN reqN reqN+1 Data in Data out Data Latch Stage N-1 Stage N Stage N+1 [Singh/Nowick, IEEE Int. Conf. on Computer Design (2001)]

  27. logic logic logic “MOUSETRAP” Pipeline: w/computation Function Blocks:use “synchronous” single-rail circuits (not hazard-free!) “Bundled Data” Requirement: • each “req”must arrive after data inputs valid and stable Latch Controller ackN-1 ackN reqN+1 reqN delay delay delay doneN Data Latch Stage N-1 Stage N Stage N+1

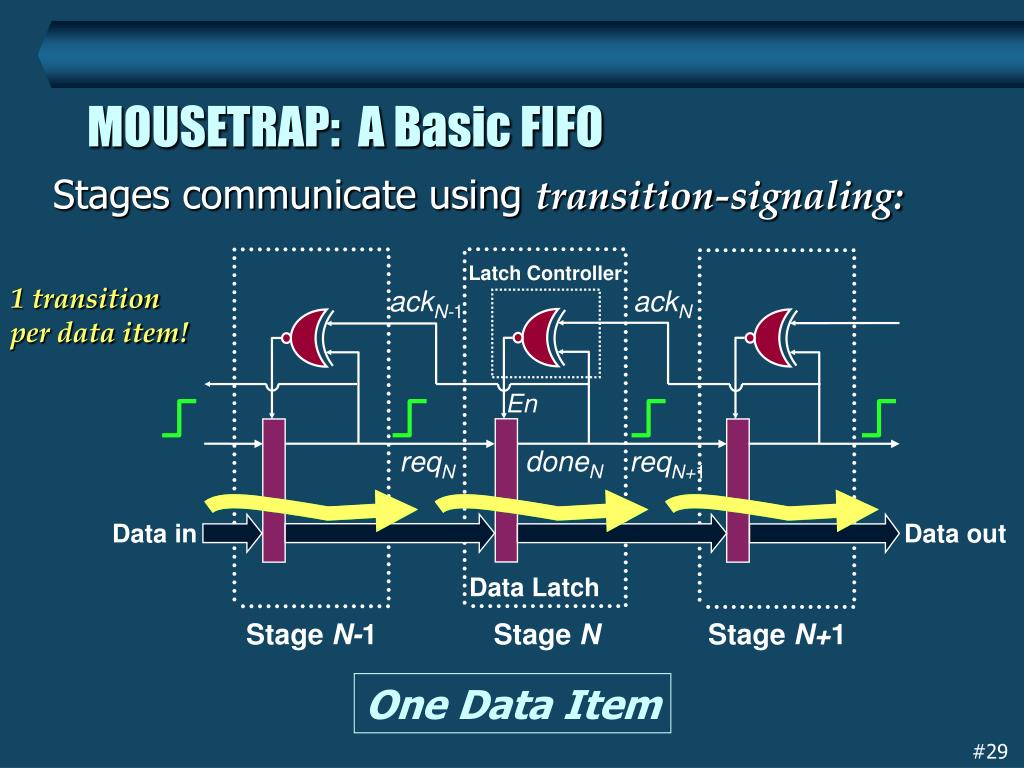

  28. MOUSETRAP: A Basic FIFO Stages communicate using transition-signaling: Latch Controller 1 transition per data item! ackN-1 ackN En doneN reqN reqN+1 Data in Data out Data Latch Stage N-1 Stage N Stage N+1 One Data Item
