Everything To Know About Electrical Fuse

1. Everything To Know About Electrical Fuse Created by Zirco VIT Industries

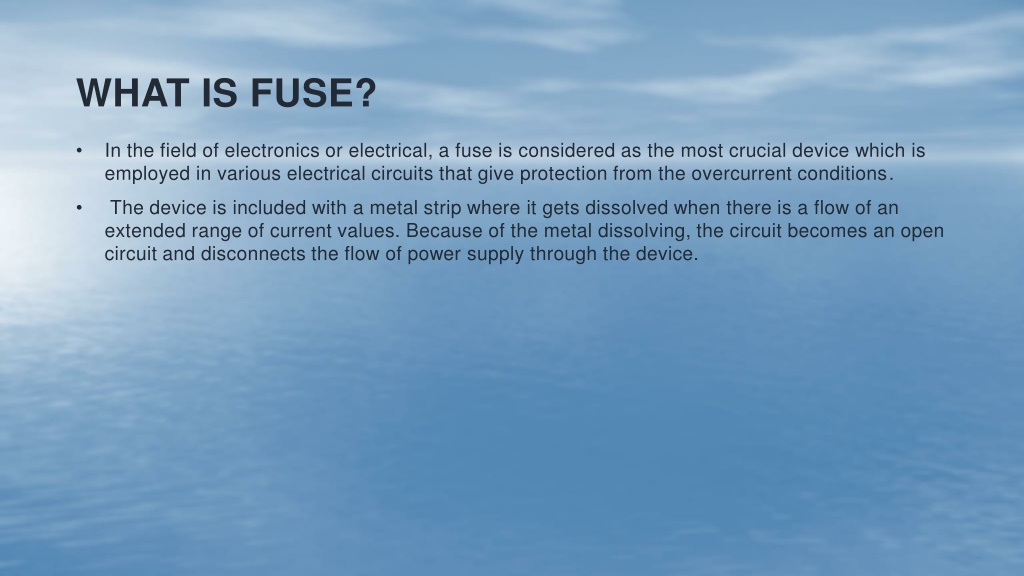

2. What is Fuse? • In the field of electronics or electrical, a fuse is considered as the most crucial device which is employed in various electrical circuits that give protection from the overcurrent conditions. • The device is included with a metal strip where it gets dissolved when there is a flow of an extended range of current values. Because of the metal dissolving, the circuit becomes an open circuit and disconnects the flow of power supply through the device.

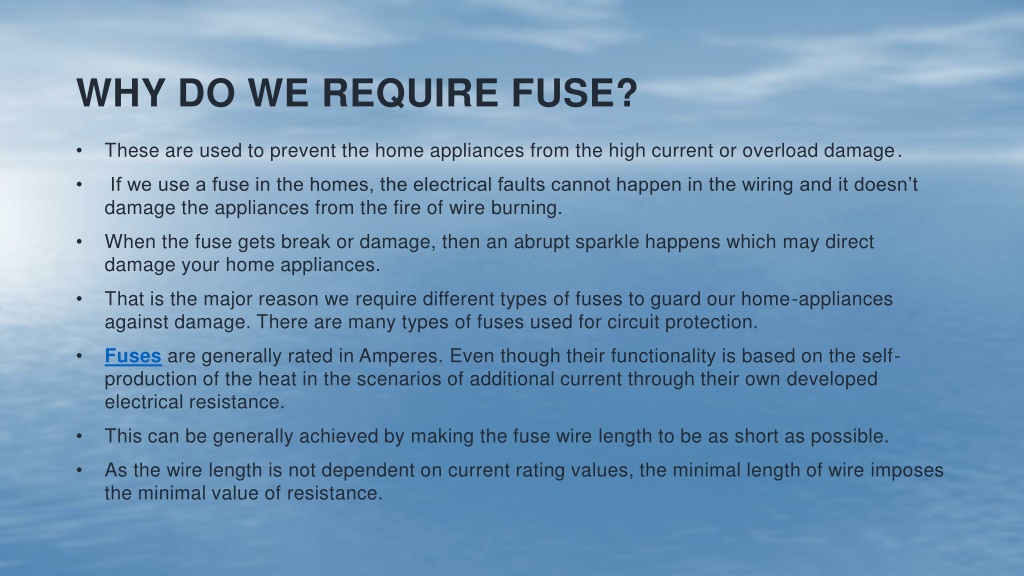

3. Why Do We Require Fuse? • These are used to prevent the home appliances from the high current or overload damage. • If we use a fuse in the homes, the electrical faults cannot happen in the wiring and it doesn’t damage the appliances from the fire of wire burning. • When the fuse gets break or damage, then an abrupt sparkle happens which may direct damage your home appliances. • That is the major reason we require different types of fuses to guard our home-appliances against damage. There are many types of fuses used for circuit protection. • Fusesare generally rated in Amperes. Even though their functionality is based on the self-production of the heat in the scenarios of additional current through their own developed electrical resistance. • This can be generally achieved by making the fuse wire length to be as short as possible. • As the wire length is not dependent on current rating values, the minimal length of wire imposes the minimal value of resistance.

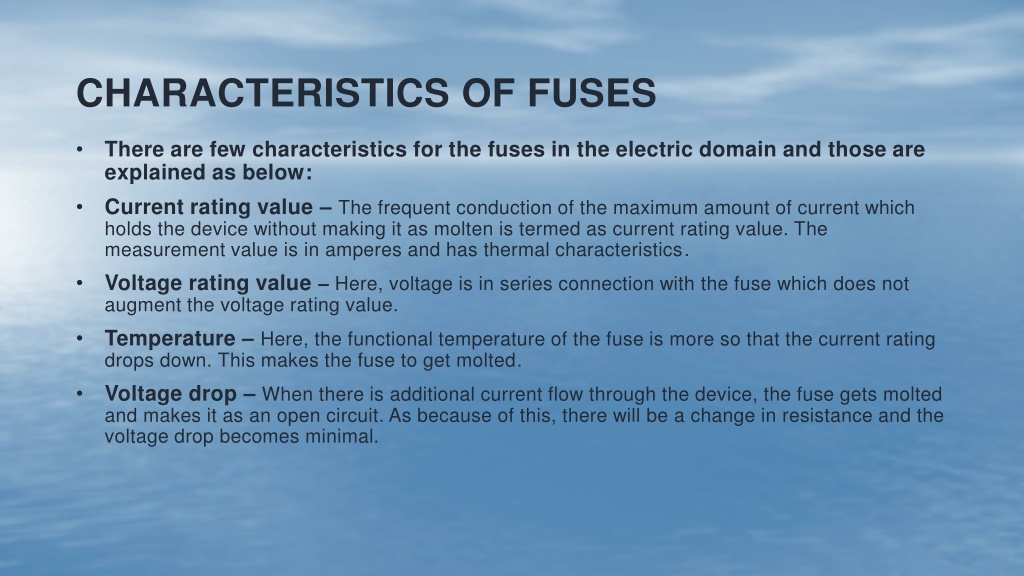

4. Characteristics of Fuses • There are few characteristics for the fuses in the electric domain and those are explained as below: • Current rating value – The frequent conduction of the maximum amount of current which holds the device without making it as molten is termed as current rating value. The measurement value is in amperes and has thermal characteristics. • Voltage rating value – Here, voltage is in series connection with the fuse which does not augment the voltage rating value. • Temperature – Here, the functional temperature of the fuse is more so that the current rating drops down. This makes the fuse to get molted. • Voltage drop – When there is additional current flow through the device, the fuse gets molted and makes it as an open circuit. As because of this, there will be a change in resistance and the voltage drop becomes minimal.

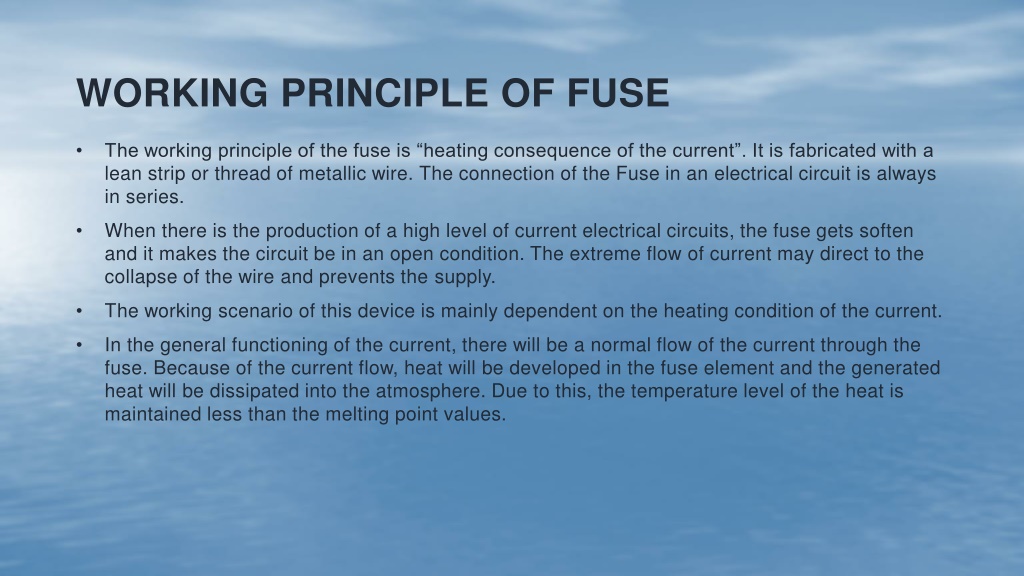

5. Working Principle of Fuse • The working principle of the fuse is “heating consequence of the current”. It is fabricated with a lean strip or thread of metallic wire. The connection of the Fuse in an electrical circuit is always in series. • When there is the production of a high level of current electrical circuits, the fuse gets soften and it makes the circuit be in an open condition. The extreme flow of current may direct to the collapse of the wire and prevents the supply. • The working scenario of this device is mainly dependent on the heating condition of the current. • In the general functioning of the current, there will be a normal flow of the current through the fuse. Because of the current flow, heat will be developed in the fuse element and the generated heat will be dissipated into the atmosphere. Due to this, the temperature level of the heat is maintained less than the melting point values.

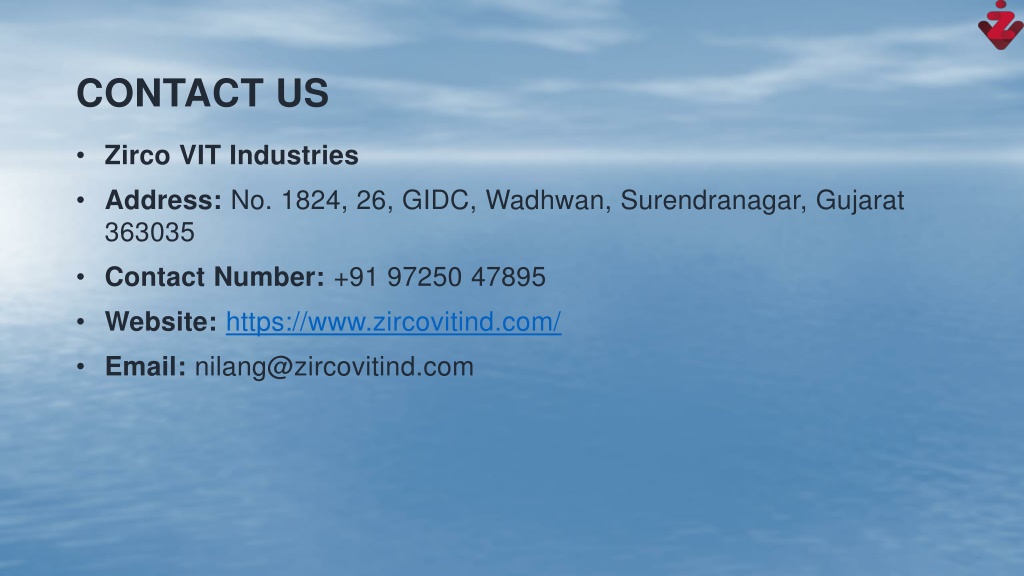

6. Contact Us • Zirco VIT Industries • Address: No. 1824, 26, GIDC, Wadhwan, Surendranagar, Gujarat 363035 • Contact Number: +91 97250 47895 • Website: https://www.zircovitind.com/ • Email: nilang@zircovitind.com

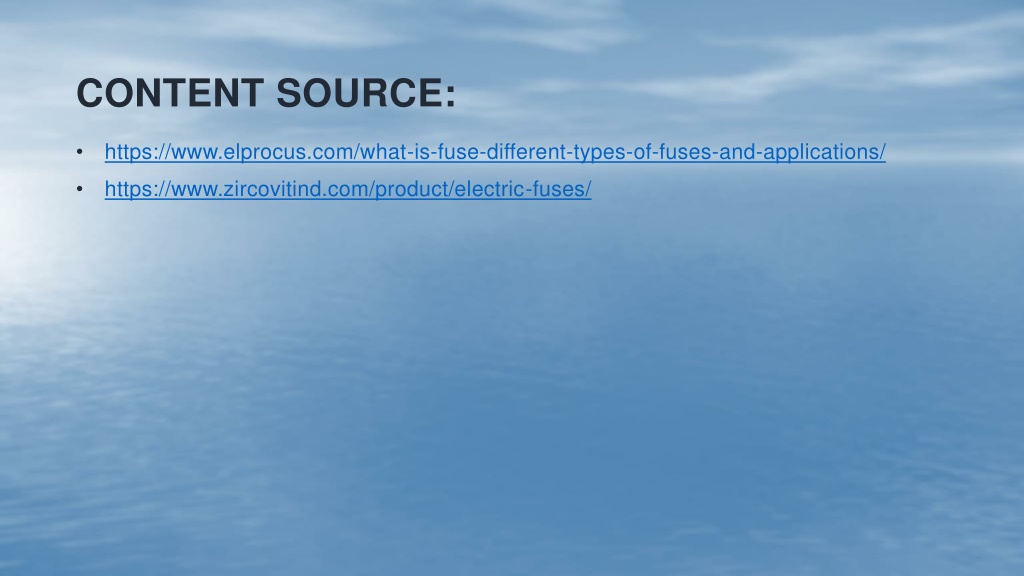

7. Content Source: • https://www.elprocus.com/what-is-fuse-different-types-of-fuses-and-applications/ • https://www.zircovitind.com/product/electric-fuses/
