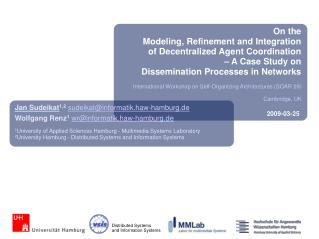

On the

Modeling, Refinement and Integration

of Decentralized Agent Coordination

– A Case Study on

Dissemination Processes in Networks

International Workshop on Self-Organizing Architectures (SOAR 09)

Cambridge, UK

2009-03-25

distributed systems architectures
Distributed Systems Architectures
  • Challenge:
    • Building adaptive applications that are scalable, robust, …
  • Architectural Choices:
  • Managed Hierarchical Decentral

Pyramid of

Managing

Entities

Managing

Entity

Scalability,

Robustness, …

Here:

Utilization of

Self-Organizing

Processes

  • Local adaptive entities: software agents
  • Problematic: effective coordination
self organization as a software design principle
Self-Organization as a (Software) Design Principle
  • Self-Organization:
    • physical, biological and social phenomena,
    • global structures arise from the local interactions of autonomous individuals (e.g. particles, cells, agents, ...)
    • Structures are:
      • Adapted to changing environments
      • Maintained while being subject to perturbations
  • Attractive for software architects:
    • Decentralized coordination strategies / mechanisms
      • No single point of failure
      • Conceive application dynamics  resemble phenomena
      • Blending of functionality and coordination aspects (Reuse, Redesign)
  • Requirement: Systematic conception / integration
    • Declarative configuration of agent coordination
    • Enactment architecture

(Sudeikat & Renz 2008, 2009)

proposal programming model for self organization
Proposal: Programming Model for Self-Organization
  • Self-organizing processes result from coupled feedbacks between system elements
    • Context dependent amplification / damping of element activities
  • Systemic Modeling Approach
    • System Science concepts characterize MAS operation
      • System Variables: # behavior exhibitions (roles, groups, …)
      • Causal Relationships: rates of variable changes
      •  Feedback-Networks
  • Toolset:
    • Configuration Language
    • Enactment Architecture

reinforcing

/ balancing

+

-

+

+

+

(-)

(+)

+

+

+

+

coordination enactment architecture
CoordinationEnactmentArchitecture

Layered Approach

Application

Coordination

Coordination Media

Interaction techniques

Agent-Modules

Execution Infrastructure

Coordination-Endpoint: Agent-modules

Interface Coordination Media

Publish / Subscribe mechanism

Automatingcoordination-activities

1: Agent observation / modification

2: Controlledbycoordination model

3: Publicationofagentadjustments

Externalized Coordination

Model

coordination enactment architecture1
CoordinationEnactmentArchitecture

Coordination-Endpoint:

  • Agent State Interpreter
    • Observeagentexecution
    • Behavior-Classification
    • Behavior-Change Publication
  • Coordination Information

Interpreter

    • Reception via CM.
    • Adjustmentofagent-behavior

LocalAdaptivity:

  • Declarative: Conditions / Invariants
  • AdaptivityComponent: (optional)

 ProceduralImplementationof

    • ClassificationofObservations
    • Adaptationsof Agent state

Coordination Medium

  • Publish / Subscribe Interface

Realizingself-organizingprocesses:

Information Flows

Local Element Adaptivity

methodic conception of so processes
Methodic Conception of SO-Processes
  • Integration of Coordination Development in AOSE
      • AOSE: Tools / techniques for agent development
      • Plan for concerted phenomena
  • Systematic refinement procedure

Describing System Behavior

    • Identify Problem Dynamic
      • Structures
      • Attractors
      •  coupled feedback loops
    • Propose Solution Dynamic
      • Opposing / Corrective Structure
    • Refinement operations
      • Map Coordination model to Agent models
case study i convention emergence
Case Study I: Convention Emergence
  • Decentralized agreement problem in MAS
    • Communication of local settings
    • Agents adjust accordingly
  • Embedding an externalized Coordination Model
    • Generic agent activity
    • Coordination Model:
      • Observation of activities
      • Communication of configurations
      •  Adjustment

Policy: majority rule

    • +/- feedback loop
    • Coordination Medium: Overlay-Network Topology

Convergence

case study i convention emergence1
Case Study I: Convention Emergence
  • Sample Simulation Run:
    • Random Initialization
    • Value Convergence
      • Random agent activation
      • Communication:

Coordination Medium

  • Impact of Network-Topology:
    • Random Graph
    • Power law Graph:
    • Comparable convergence times
      • Less communicative overhead in power law distributed graphs
case study ii patching dynamics
Case Study II: Patching Dynamics
  • Exemplify refinement process:
  • Problem description  correcting coordination process
  • Problem:
    • Spreading of “infections” in agent population
    • Agent exhibit two Roles:
      • Susceptible
      • Infectious
    • Balancing vs. reinforcing Feedback  Goal-Seeking
  • Possible Solution Dynamic:
    • Additional Balancing Feedback
    • Limit Susceptible and Infectious agents
case study ii patching dynamics1
Case Study II: Patching Dynamics
  • Refined Solution Dynamic
    • Executable!
    • Adaptivity Component
      • Functionality
      • Behavior Classification
    • Information Flow
  • Sample Simulation Run
    • One random infection
    • Fixed infection rate
      •  Epidemic
    • Recovery of initial infection starts recovering process

infected

unsusceptible

conclusions i
Conclusions I

Embedding of self-organizing processes in MAS

  • Architectural Aspect:
    • Proposal:
      • Reference Architecture
      • Declarative language support
    • Supplement Coordination
    • Encapsulation of:
      • Adaptation logic
      • Information Flow / Interaction Technique
  • Methodic Aspect:
    • Equip self-organizing process to correct / oppose problematic dynamics
conclusions ii
Conclusions II

“… how their contribution connects the self‐adaptive

perspective with the self‐organizing perspective”

  • (System) Self-Adaptivity by concerted entity adaptivity
    • Adaptive Software System:
      • Establishment of closed feedback loop, e.g. MAPE, …
    • Here:
      • Collective adjustments of individual elements
      • Closed feedback is distributed among system elements

Sets of feedback loops

System coordination model

slide14
End

Thank you for your Attention!

Questions / Suggestions are welcome!

case study i convention emergence2
Case Study I: Convention Emergence
  • Sample Simulation Run:
    • Random Initialization
    • Value Convergence
      • Random agent activation
      • Communication:

Coordination Medium

  • Impact of Network-Topology:
    • Random Graph
    • Power law Graph:
    • Comparable convergence times
      • Less communicative overhead in power law distributed graphs
encapsulating adaptivity interaction
Encapsulating Adaptivity / Interaction

Foundationalelementsof a self-organizingprocesses

Information FlowsLocal Element Adaptivity

  • Coordination Media:
    • Information exchangetechniques
      • Tuplespace, spatialenvironments,…
    • Here, Overlay-Network
      • Topologyconstraintscommunication
  • Coordination Endpoints:
    • Localadpatationknowledge
    • Automation of coordination-related activities
exemplifying systemic modeling of mas
Exemplifying Systemic Modeling of MAS
  • Systemic Modeling
    • Causal relations of system variables
      • Describe Entity behaviors
    • Anticipation of the

Qualitative System Dynamics

      • Manual inspection

and/ or simulation

  • A Hypothetical System:
    • Producers  Products
    • Products  Storage
    • Storage  Production

Balancing

Feedback

Practical development:

After a suitable causal structure has been found:

How to implement ?

masdynamics declaration of agent behavior interdependencies
MASDynamics: Declaration of Agent Behavior Interdependencies
  • Systemic system model:
    • Nodes  System Variables
      • # of role occupations
      • # of groups
    • Interdependencies: Links
      • Direct:
        • e.g. service invocations, …
      • Mediated:
        • using environment models, e.g. pheromones, tuple spaces, …
    • Description levels:
      • Application independent
      • Alignment with agent implementation:

Node Types

Link

Types

  • Nodes:
    • Referencing reasoning events
    • that indicate behavior adjustments,
    • E.g. goal adoptions, plan activations, …
  • Links:
    • Configuring interaction techniques
    • E.g. environment models, …
coordination strategies
Coordination Strategies
  • Systemic Modeling of macroscopic dynamics
    • Compensating
    • Amplifying
    • Selective
coordination strategies1
Coordination Strategies
  • Systemic Modeling of macroscopic dynamics
    • Compensating:
coordination strategies2
Coordination Strategies
  • Systemic Modeling of macroscopic dynamics
    • Amplifying:
coordination strategies3
Coordination Strategies
  • Systemic Modeling of macroscopic dynamics
    • Selective:
decentralized coordination mechanisms
Decentralized Coordination Mechanisms
  • Information Exchange techniques
  • Classification:
expressing coordination dynamics
Expressing Coordination Dynamics
  • Structural Properties of SO-Systems
    • Positive Feedback
      • Amplification of appropriate entity activities
    • Negative Feedback
      • Damping inappropriate entity activities
    • ...
  • Dynamic Viewpoint on application development:
    • Consider dyn. properties at design-time
    • Design the causes of self-organization
  • MAS specific modelling level:
    • Agent-based design concepts:
      • Roles: Abstraction of agent behaviours
      • Groups: sets of individuals that share common characteristics (e.g.: collective goals)
      • System State:
        • # of behaviour occupations
case study decentral web service management
Case Study: Decentral Web-Service Management
  • Agent-based Web-Service Management Architecture
    • Balance service workloads
  • Management Agents:
    • (J2EE) Service-Endpoint
    • Broker Agents
      • Registries: Service-Endpoints
  • Prototype Implementation:
    • Jadex Agent Platform
      • Cognitive agent model  Beliefs, Goals, Plans, Internal Events, …
    • SUN Appserver Management Extensions (AMX)
      • Server-Management Interface

Conceptual Architecture

http://jadex.informatik.uni-hamburg.de/bin/view/About/Overview

https://glassfish.dev.java.net/javaee5/amx/

case study decentralized web service management
Case Study: Decentralized Web-Service Management
  • A Functional, but un-coordinated Implementation
    • Manual management of is enabled
    • Tropos Modeling Notation
    • Dependencies of agent types
      • Client  Service Endpoint
      • Client  Broker
      • Broker  Service Endpoint
      • Broker  Client
  • Systemic Description of the Causal Application structure
    • Accumulative system variables
  • Complementing the causalities
    • Establish a negative feedback loop
      • Agent state definitions
      • Establishment of interdependencies

Tropos Design Notation

case study decentralized web service management1
Case Study: Decentralized Web-Service Management
  • Embedding Coordination:
    • Strategy Definition:
      • Variable / Link Declarations
    • Strategy alignment / integration
      • Referencing agent models
      • Configuring interaction technique
  • Validation:
    • Provoking the manifestation of the feedback loop
      • Responsive regime
      • Sudden demand for specific service type

Event Publications

Event Perceptions

Middleware Configuration

case study behavioral analysis by applying stochastic process algebra
Case Study: Behavioral Analysis by Applying Stochastic Process Algebra
  • Stochastic Process Algebra:
    • Behavioral modeling
    • System of interacting processes
    • Coupled by synchronized activities
  • Validation of qualitative dynamic:
    • Provoking the effects of the feedback loop
      • Responsive regime
      • Initial Conf.:
        • Allocation of service 1
      • Input:
        • High demand of service 2

Balance of allocations

mesoscopic modeling
Mesoscopic Modeling
  • Available formalisms:
    • Macroscopic System
      • System Sciences
      • Mathematics, …
    • Microscopic System
      • Local entity (inter-)actions
      • State Machines, Process Algebra, …
  • Transition:
    • Simulation / Iteration of microscopic models
  • Proposal: (Renz & Sudeikat, 2005, 2006)
    • Intermediate description levels:
    • Mesoscopic agent states
    • Classification of agent behaviors
      • Relevance of agent activities with respect to the Macroscopic System Behavior
      • Abstraction of the microsopic agent activities
  • Mesoscopic agent states:
  • Not microscopic:
    • Coarse grained agent activities
  • Not macroscopic:
    • Exhibits short time fluctuations
applying mesoscopic modeling
Applying Mesoscopic Modeling

Top-Down:

  • E.g.: MASDynamics
    • Transfer of System Dynamics concepts
    • Graph-based modeling

Bottom-up:

  • E.g.: Stochastic

Situational Calculus

    • Extension of the Sit. Calculus
  • Two orthogonal approaches:
    • Different modeling directions
    • Enabling iterative development:
      • Explain rising phenomena
      • Tune rising phenomena
  • coarse-graining element
  • dynamics
  • inferring collective
  • system properties
  • modeling macroscopic
  • dynamics
  • refinement to
  • intermediate scales
top down systemic mas modeling
Top-Down: Systemic MAS Modeling
  • MAS abstraction by:
    • Agent-based design concepts:
      • Roles: Abstraction of agent behaviours
      • Groups: sets of individuals that share common characteristics (e.g.: collective goals)
      • Global MAS State:
        • # of behaviour occupations
  • Graph Definition:
    • Nodes: System Variables
      • # of role occupations
      • # of organizational groups
      • size of organizational groups
      • quantification of environment

elements ( #, size, etc. )

    • Links: Causal relations
        • Environment mediated
        • Direct agent interactions

MAS Design

  • Modelling the
  • causes of
  • Self-organization:
  • Feedback Loop
  • Structures
top down systemic mas modelling
Top-Down: Systemic MAS Modelling
  • Allows for model refinement
    • Attachment: add detail
    • Link: detail link dynamics
    • Variable: detail variable intern dynamics
  • Example: Ant-based path finding

(-)

(+)
