EEE 360 Energy Conversion and Transport. George G. Karady & Keith Holbert Chapter 5 Transformers. Lecture 10. Transformers. Figure 5.22 Single phase transformer construction. 5.3.1 Ideal Transformer. Transformers. 5.3.1 Ideal transformer

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'EEE 360 Energy Conversion and Transport' - nigel-horn


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

EEE 360

Energy Conversion and Transport

George G. Karady & Keith Holbert

Chapter 5

Transformers

360 Chapter 5 Transformers

slide2
Lecture 10

360 Chapter 5 Transformers

transformers
Transformers

Figure 5.22 Single phase transformer construction

360 Chapter 5 Transformers

slide4
5.3.1 Ideal Transformer

360 Chapter 5 Transformers

transformers1
Transformers

5.3.1 Ideal transformer

  • Winding resistances are zero, no leakage inductance and iron loss
  • Magnetization current generates a flux that induces voltage in both windings

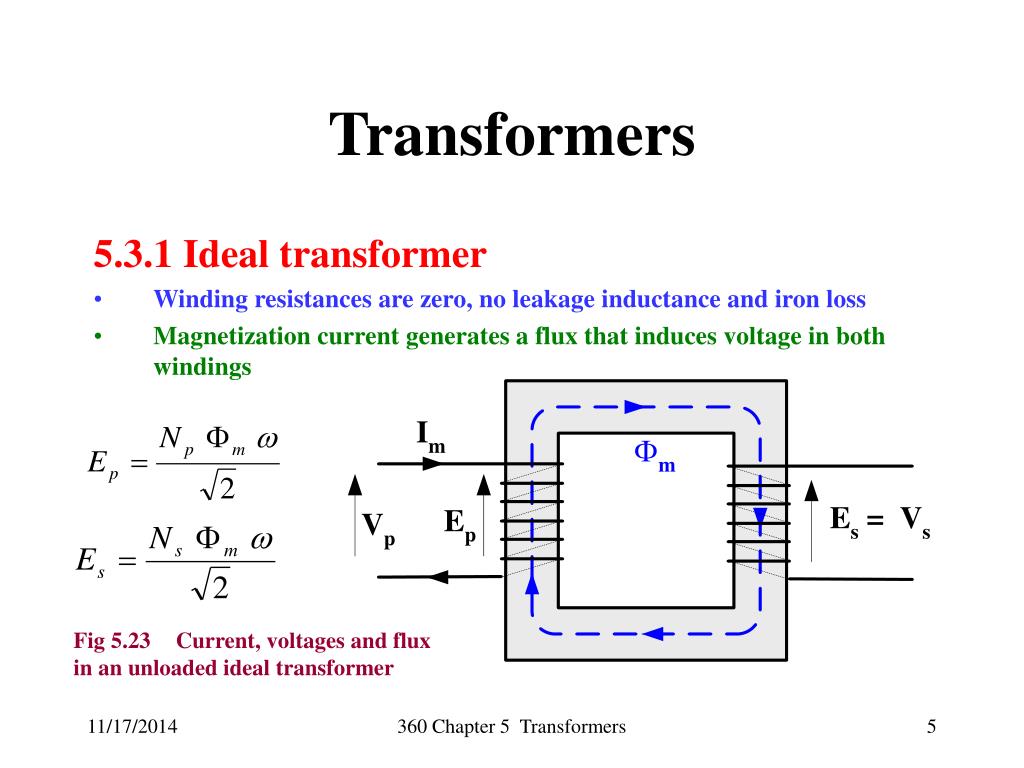

Fig 5.23 Current, voltages and flux in an unloaded ideal transformer

360 Chapter 5 Transformers

transformers2
Transformers

5.3.1 Ideal transformer

  • Loaded transformer

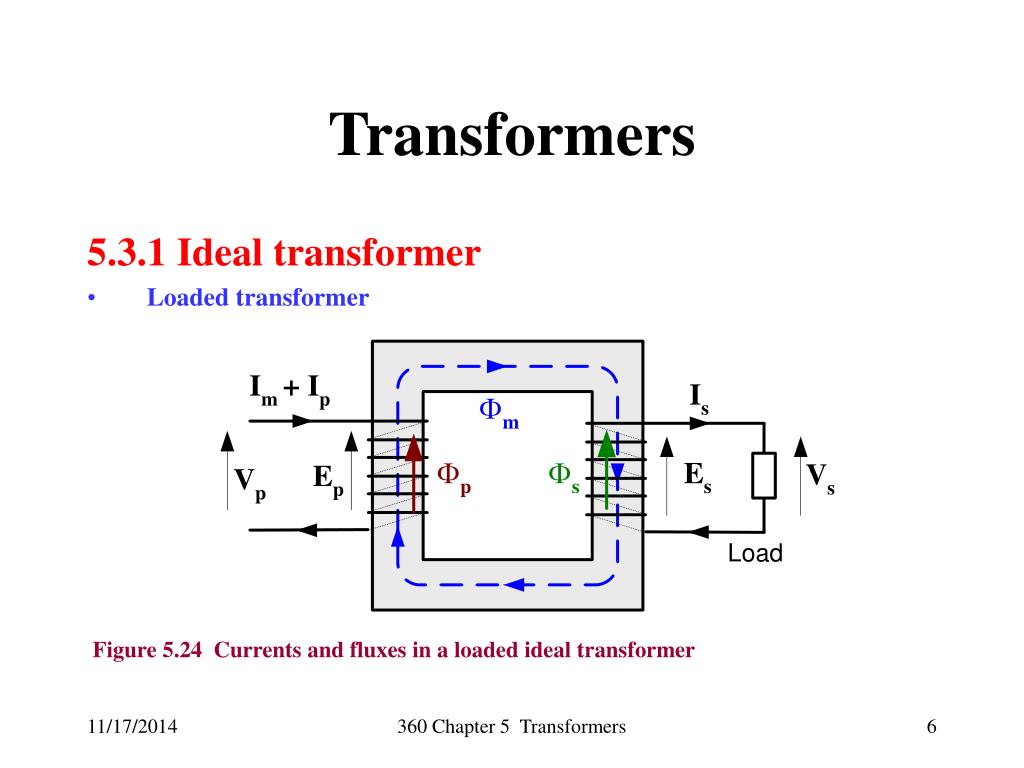

Figure 5.24 Currents and fluxes in a loaded ideal transformer

360 Chapter 5 Transformers

transformers3
Transformers

5.3.1 Ideal transformer

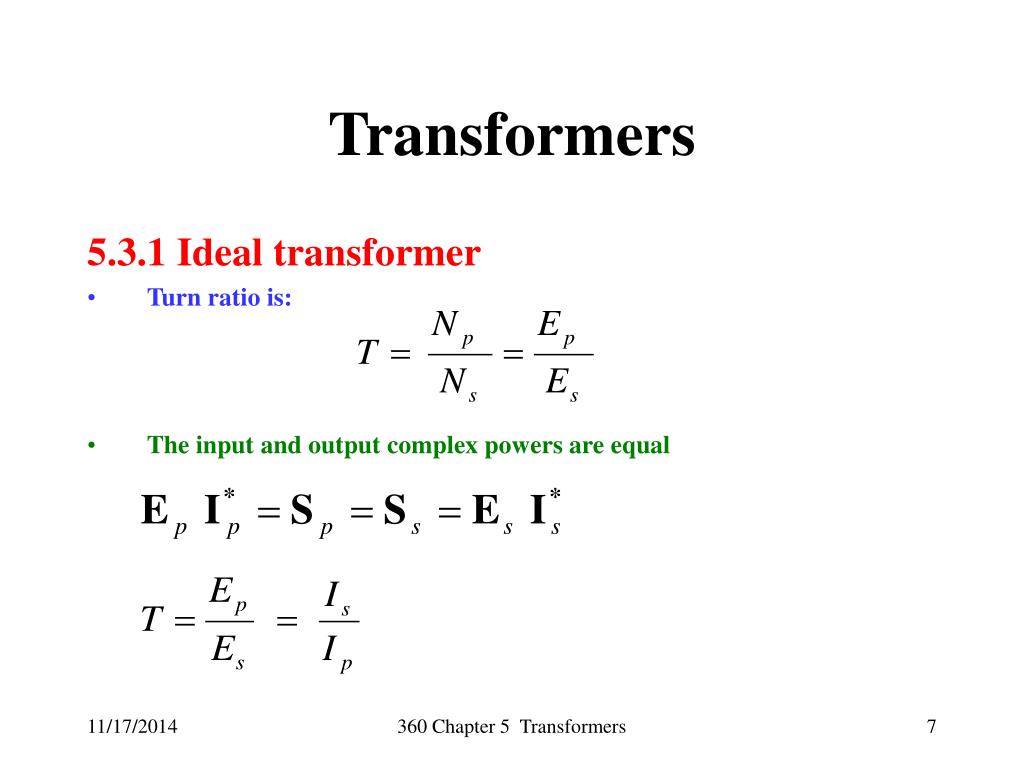

  • Turn ratio is:
  • The input and output complex powers are equal

360 Chapter 5 Transformers

transformers4
Transformers

5.3.1 Ideal transformer

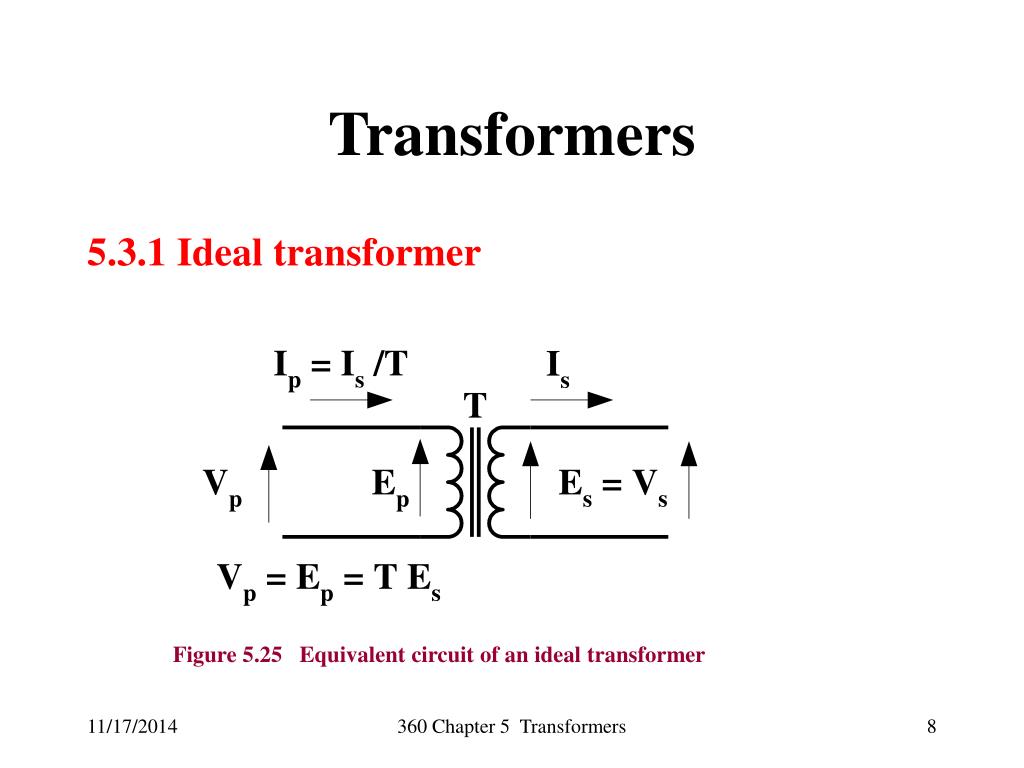

Figure 5.25 Equivalent circuit of an ideal transformer

360 Chapter 5 Transformers

transformers5
Transformers

5.3.1 Ideal transformer

  • Transferring impedances through a transformer

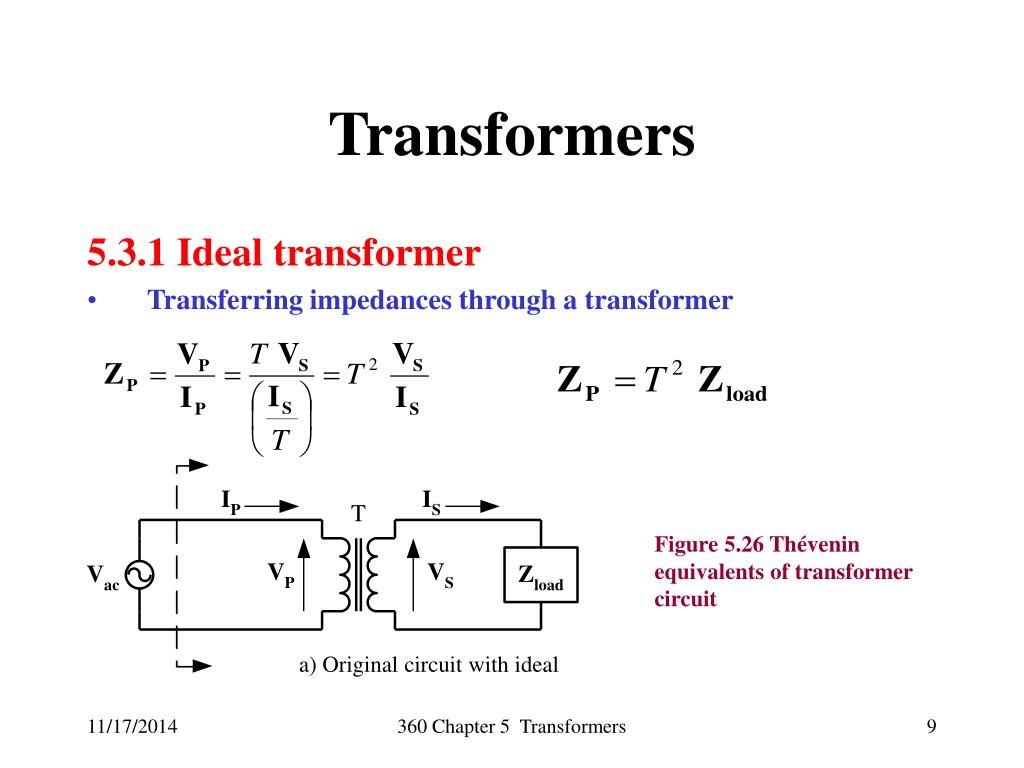

Figure 5.26 Thévenin equivalents of transformer circuit

a) Original circuit with ideal

360 Chapter 5 Transformers

transformers6
Transformers

5.3.1.1 Transferring impedances through a transformer

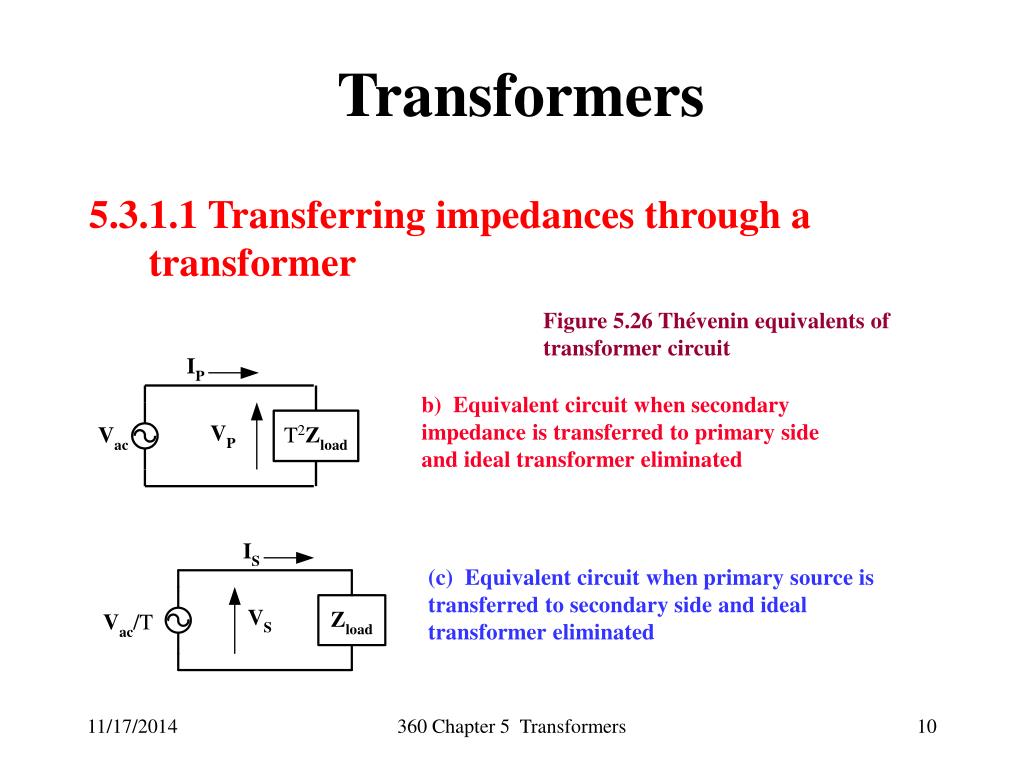

Figure 5.26 Thévenin equivalents of transformer circuit

b) Equivalent circuit when secondary impedance is transferred to primary side and ideal transformer eliminated

(c) Equivalent circuit when primary source is transferred to secondary side and ideal transformer eliminated

360 Chapter 5 Transformers

slide11

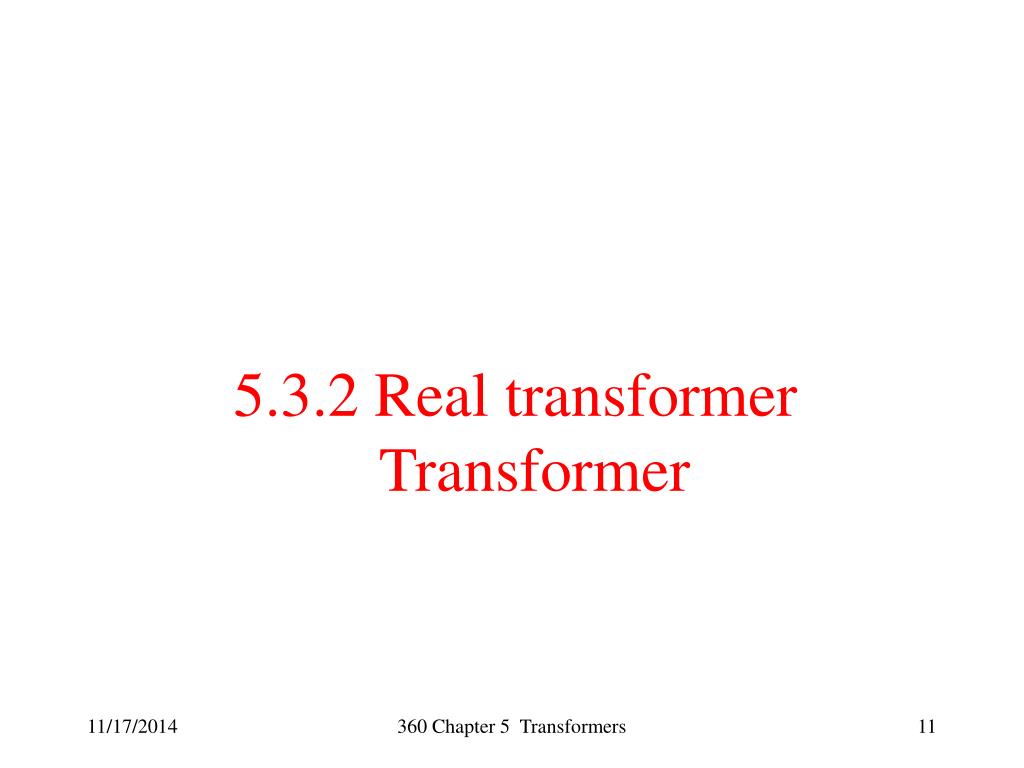

5.3.2 Real transformer Transformer

360 Chapter 5 Transformers

transformers7
Transformers

5.3.1 Real transformer

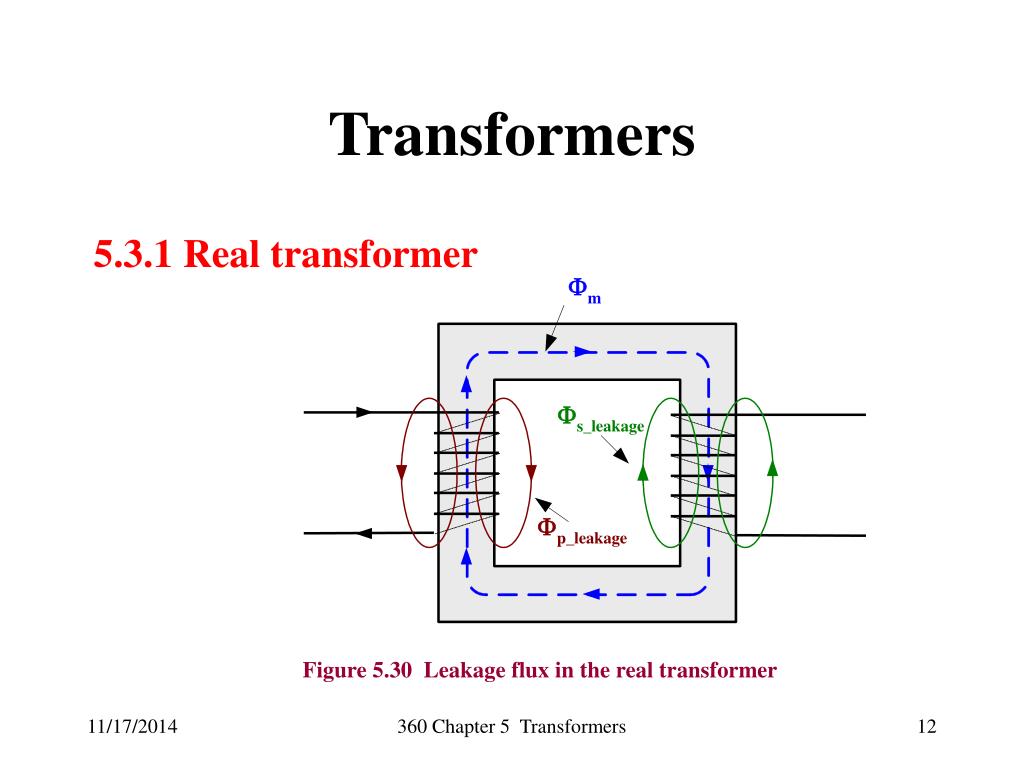

Figure 5.30 Leakage flux in the real transformer

360 Chapter 5 Transformers

transformers8
Transformers

Figure 5.31 Equivalent circuit of a real transformer

360 Chapter 5 Transformers

transformers9
Transformers

Figure 5.32 Modified equivalent circuit of a real transformer

360 Chapter 5 Transformers

transformers10
Transformers

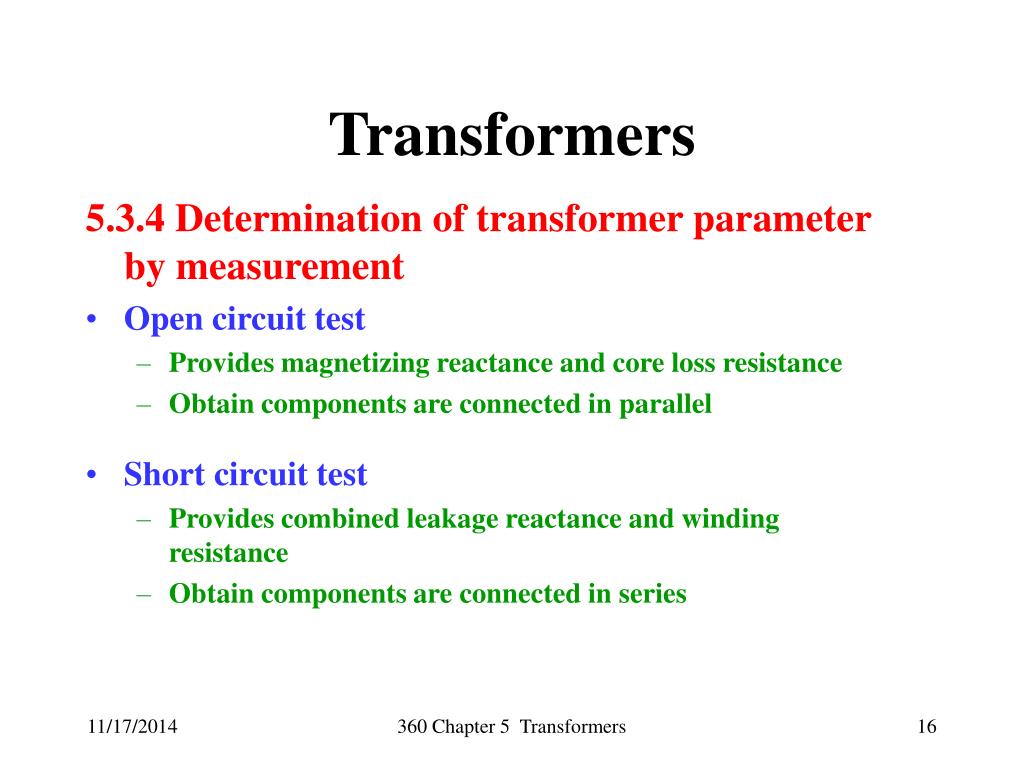

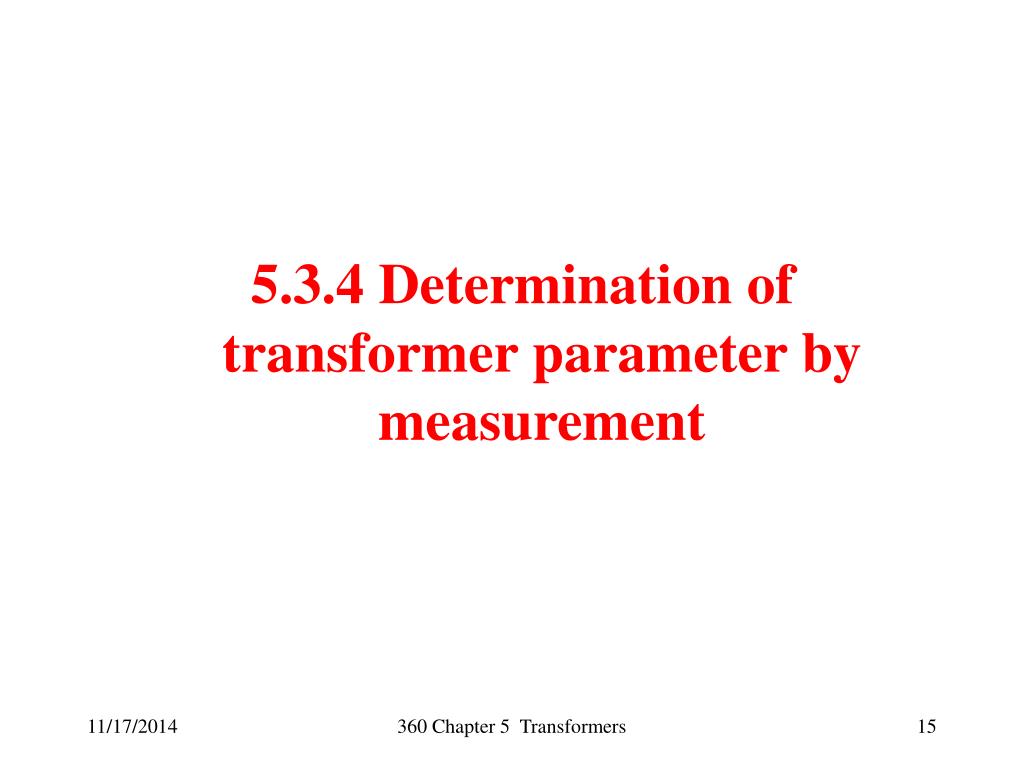

5.3.4 Determination of transformer parameter by measurement

  • Open circuit test
    • Provides magnetizing reactance and core loss resistance
    • Obtain components are connected in parallel
  • Short circuit test
    • Provides combined leakage reactance and winding resistance
    • Obtain components are connected in series

360 Chapter 5 Transformers

transformers11
Transformers

Short Circuit Test

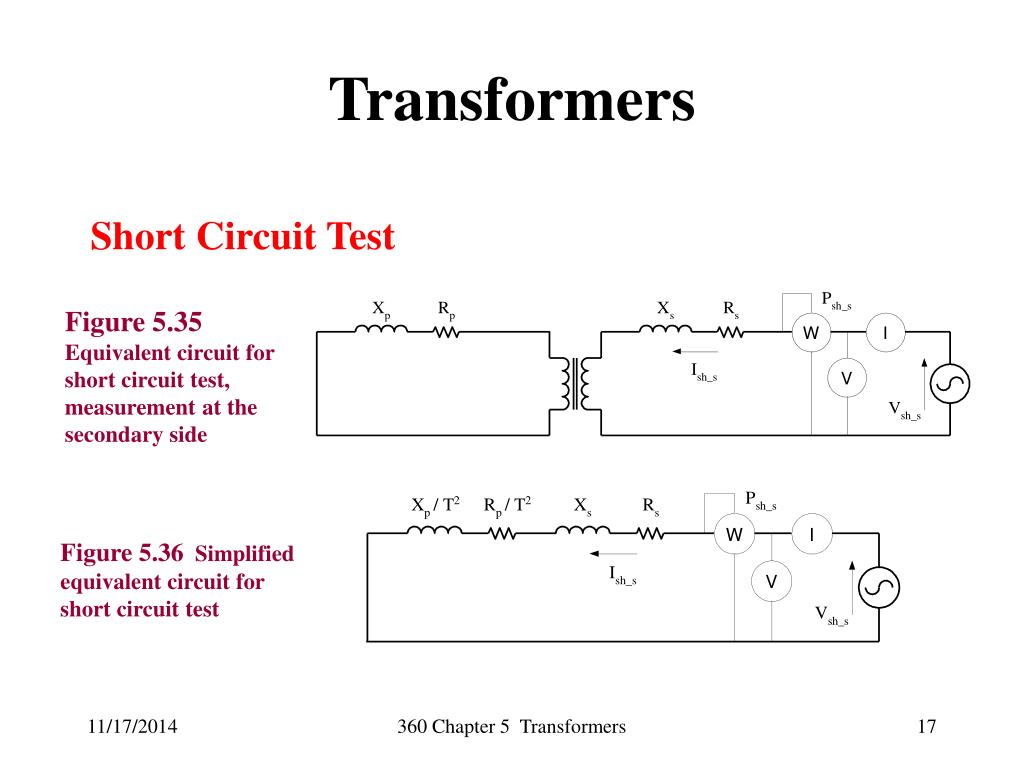

Figure 5.35 Equivalent circuit for short circuit test, measurement at the secondary side

Figure 5.36 Simplified equivalent circuit for short circuit test

360 Chapter 5 Transformers

transformers12
Transformers

5.3.1 Short Circuit Test

Primary and secondary impedances are combined

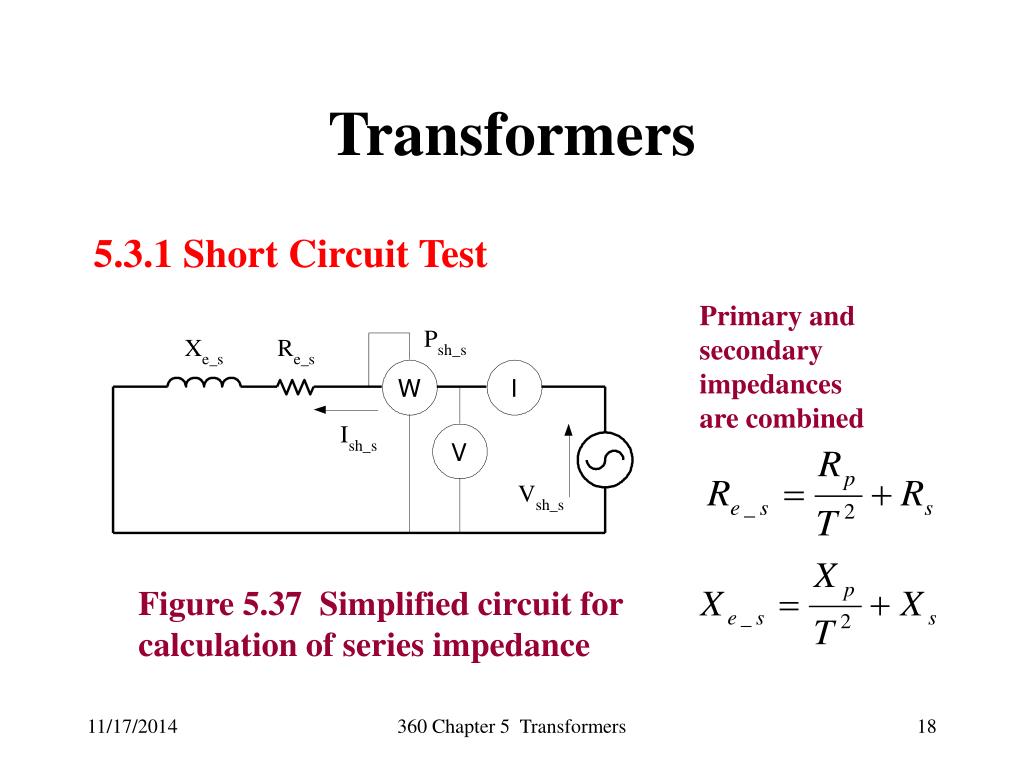

Figure 5.37 Simplified circuit for calculation of series impedance

360 Chapter 5 Transformers

transformers13
Transformers

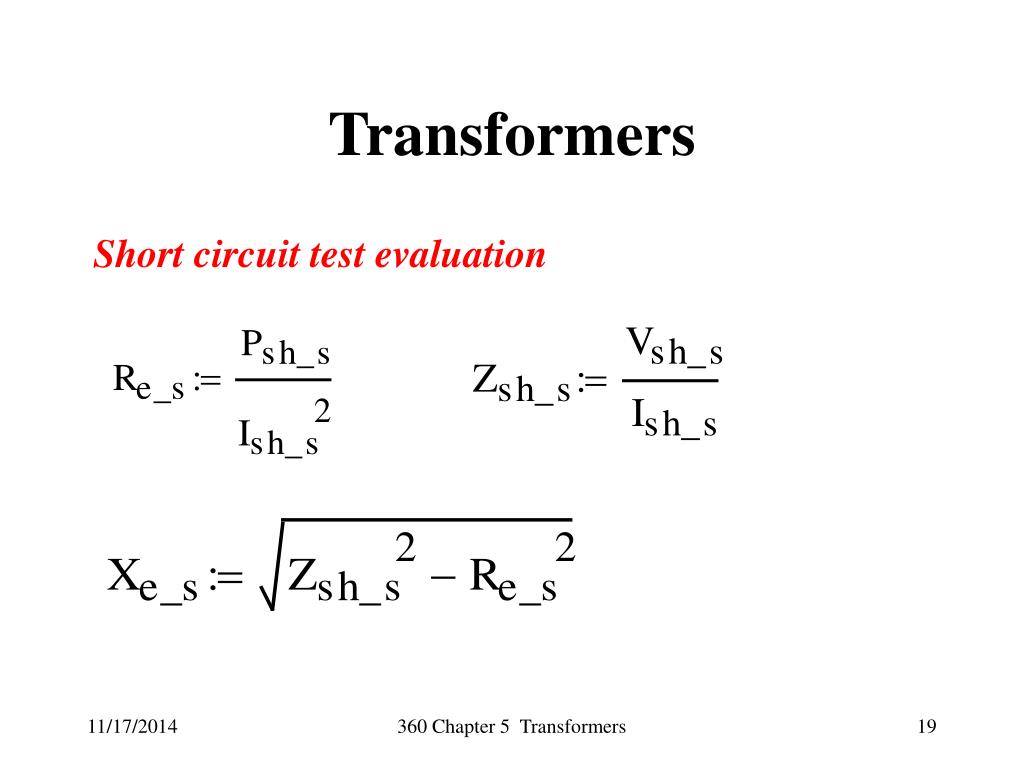

Short circuit test evaluation

360 Chapter 5 Transformers

transformers14
Transformers

Open circuit test

Figure 5.38 Equivalent circuit for open circuit test, measurement at the primary side.

Figure 5.39 Simplified equivalent circuit

360 Chapter 5 Transformers

transformers15
Transformers

Open circuit test evaluation

360 Chapter 5 Transformers

transformers16
Transformers

Equivalent circuit obtained by measurement

Figure 5.40 Equivalent circuit for a real transformer resulting from the open and short circuit tests.

360 Chapter 5 Transformers

slide23
Exercises using MAT CAD

360 Chapter 5 Transformers
