  1. EE689 Lecture 5 • Review of last lecture • More on HPF • RED

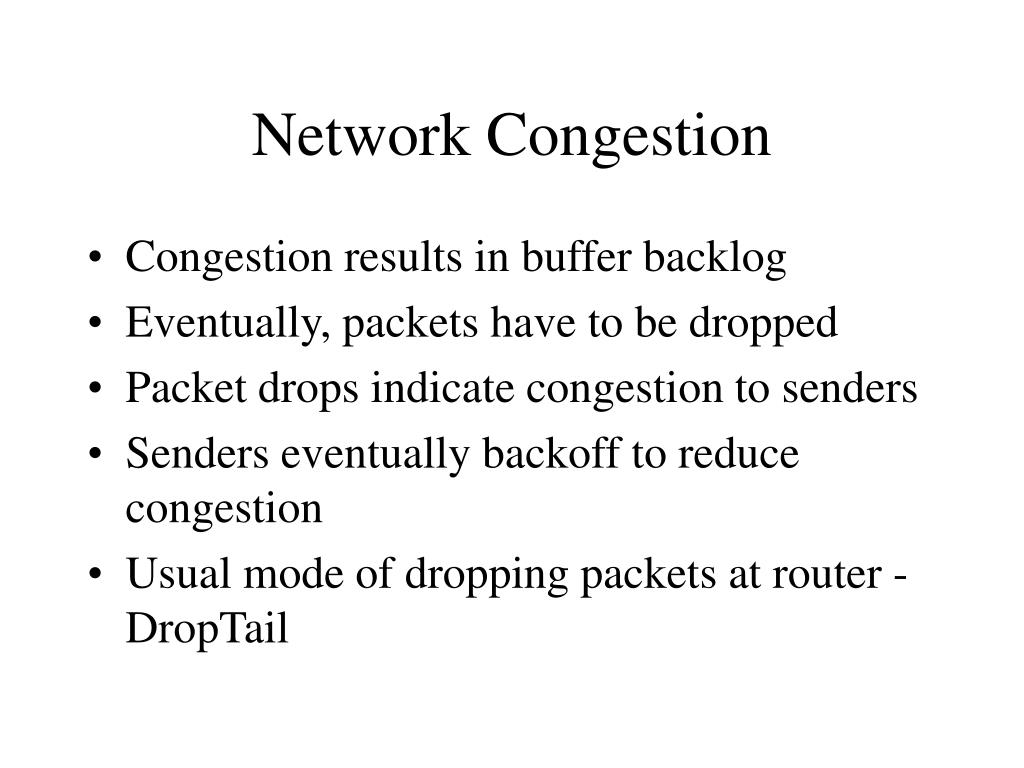

  2. Network Congestion • Congestion results in buffer backlog • Eventually, packets have to be dropped • Packet drops indicate congestion to senders • Senders eventually backoff to reduce congestion • Usual mode of dropping packets at router - DropTail

  3. Problems with DropTail • No indication of congestion until late • May drop several packets at once - leads to global synchronization of flows • Can lead to oscillations of high-low link utilization • Aggressive flows can kill all other flows

  4. Early Congestion Indication • Notify congestion earlier • Individual flows reduce rates at different times -- reducing synchronization problems • Various techniques for early congestion indication/notification • Random Early Drop -- drop packets randomly when queues are starting to buildup

  5. Random Early Detection • Two thresholds, min, max of queue lengths • In between , mark/drop packets randomly • Inform flows early on, avoid global synchronization • Reduces average queue lengths, delays • Flows with higher rates have more packets dropped - fairer distribution of BW

  6. RED For each packet arrival, calculate the average queue size avg if min  avg < max calculate probability pa, mark arriving packet with probability pa else if max  avg, mark the arriving packet

  7. RED • Pb = max(avg - min)/(max -min) • pa = pb/(1 - count*pb) • avg = (1-w)*avg + w * q • count measures the number of packet arrivals since the last marked packet if queue length is between min and max

  8. RED Drop p Queue length

  9. RED properties • Maintains queue lengths low • Allows high utilization of links without oscillations/global synchronization • Higher rate flows get dropped more often -leads to fairer sharing than DropTail • Aggressive flows can still shut down ‘nice’ applications • Small RTT bias of TCP still present

  10. RED properties • FIFO scheduling - doesn’t provide flow isolation - one aggressive flow can hog all the buffers • Favors ‘robust’ applications (ftp) over ‘fragile’ applications (telnet) • FRED - Per Flow RED employs RED and per-flow queuing to solve some of these problems

  11. Buffer management • FIFO scheduling cannot isolate flows • Fair scheduling shown to contain flows • Can fail without appropriate buffer management -- aggressive flows can eat up all the buffers and not let other flows have any backlog • Buffer management important for flow isolation

  12. Buffer management • Fair scheduling doesn’t guarantee flow isolation -- aggressive flows can hog all the buffers • Per-flow queuing is required, contain flows from using too many buffers • Fair sharing of buffers leads to fair sharing of bandwidth

  13. Fair sharing of BW • Drop packets of longest queue • Leads to more losses for aggressive flows • Contains aggressive flows • Leads to fair sharing of BW even without aggressive flows • Possible to achieve BW targets by strict buffer control, assigns buffers proportional to BW targets

  14. Summary • RED provides fairer sharing than DropTail • RED simple to implement • RED cannot contain aggressive flows • Per-flow queuing also not enough • Buffer management required • Effective buffer management can lead to fair sharing of BW even with FIFO scheduling
