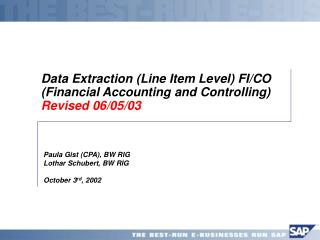

Data Extraction (Line Item Level) FI/CO (Financial Accounting and Controlling)

Revised 06/05/03

Paula Gist (CPA), BW RIG

Lothar Schubert, BW RIG

October 3rd, 2002

content
Content
  • Business Drivers
  • FI Extraction
    • FI line-item extraction
    • Timestamp mechanism
    • Customer extensions
    • Global Settings
    • Availability and further information
  • CO-OM Extraction
    • CO-OM line-item extraction
    • Delta mechanism (Revised 06/05/03)
    • Customer extensions (Revised 06/05/03)
    • Availability and further information
business drivers
Business drivers
  • Flexibility:
    • Need for project specific choice of fields.
    • Check on status fields, like open / cleared items.
  • Drill-down and drill-through (analysis):
    • Drill down capability from summarized data to line-item details.
    • Full through capability, e.g. from Accounts Payable to G/L accounts information.
  • Actuality:
    • Access to recent (or even real-time) data.
  • Scalability:
    • High number / wide variety of users.
    • Large volumes of detailed R/3 transaction data are transferred to BW  Daily full loads are inefficient.

In other words: Detailed data and delta capability

fi line item extraction data sources and data targets

Coupled extraction

Coupled extraction

FI line-item extraction: Data Sources and Data Targets

BW

G/L accounts

Accts. receivable

Accts. payable

InfoCubes -> summarized data

analytical queries on cube data

0FIAP_C03

FIAP: Line item

0FIAR_C03

FIAR: Line item

Drilldown

ODS -> document details

operational queries on line-item data

0FI_GL_O02

FIGL: Line item

0FI_AR_O03

FIAR: Line item

0FI_AP_O03

FIAP: Line item

InfoSources

0FI_GL_4

FIGL: Line item

0FI_AR_4

FIAR: Line item

0FI_AP_4

FIAP: Line item

DataSources

R/3

BKPF

Header

BSAD

Cleared Items

BSAK

Cleared Items

R/3 Tables

BSID

Open Items

BSEG

Segment

BSIK

Open Items

fi line item extraction features
FI line-item extraction: Features

0FI_GL_4 (G/L Accounts: line items)

No redundant fields are transferred into BW:

  • Only fields from the FI document tables (BKPF/BSEG) that are relevant to general ledger accounting (compare table BSIS),
  • No customer or vendor related fields.

0FI_AP_4 (AP: line items) and 0FI_AR_4 (AR: line items)

Vendor / Customer related information (e.g. payment/dunning data).

“Coupled” extraction  consistent “snapshot” of FI data in BW:

  • G/L account extraction determines selection criteria (comp.code, fiscal period) and upper time limit of all extracted FI line-items.
  • AP and AR extraction: no further selection criteria necessary / possible.
  • “Uncoupled” extraction possible with PlugIn PI 2002.2, see OSS note 551044.

Actuality of extracted data

  • The most recent FI documents, which are extracted to BW, are posted in R/3 the day before.
  • See OSS note 485958 if you need to circumvent this restriction.
fi line item extraction delta mechanism

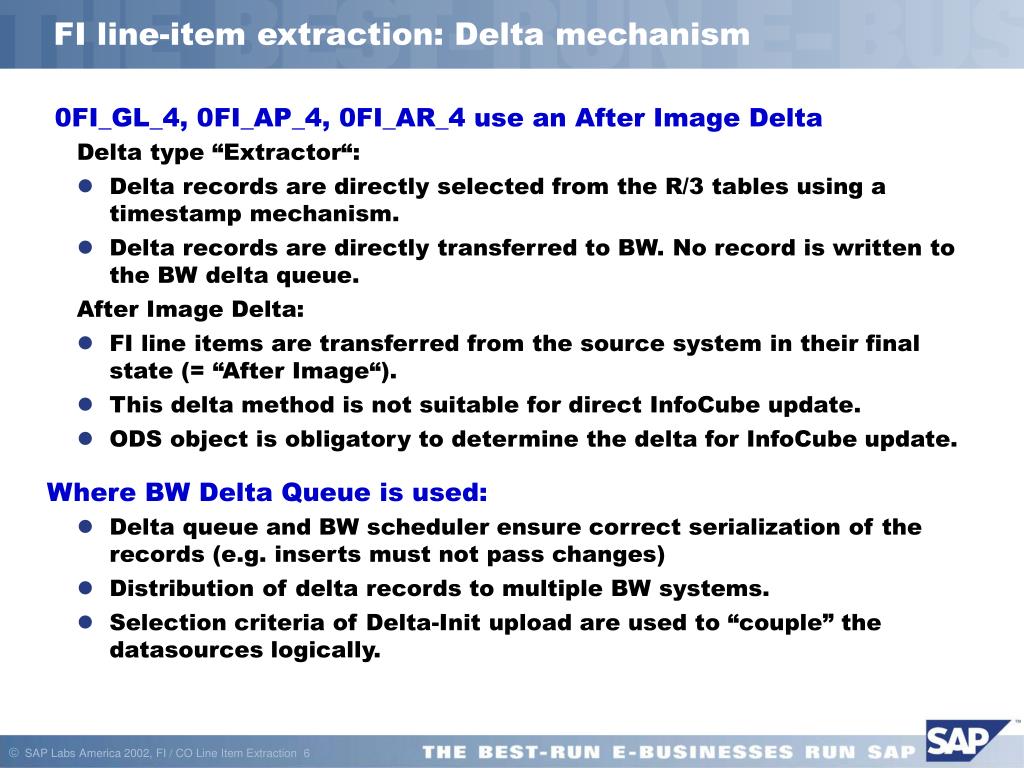

FI line-item extraction: Delta mechanism

0FI_GL_4, 0FI_AP_4, 0FI_AR_4 use an After Image Delta

Delta type “Extractor“:

  • Delta records are directly selected from the R/3 tables using a timestamp mechanism.
  • Delta records are directly transferred to BW. No record is written to the BW delta queue.

After Image Delta:

  • FI line items are transferred from the source system in their final state (= “After Image“).
  • This delta method is not suitable for direct InfoCube update.
  • ODS object is obligatory to determine the delta for InfoCube update.

Where BW Delta Queue is used:

  • Delta queue and BW scheduler ensure correct serialization of the records (e.g. inserts must not pass changes)
  • Distribution of delta records to multiple BW systems.
  • Selection criteria of Delta-Init upload are used to “couple” the datasources logically.
timestamp mechanism new documents
Timestamp Mechanism: New documents

New FI documents

  • Posted in R/3 since the last line-item extraction.
  • Selection based on the field BKPF-CPUDT.

Table BKPF

(FI document header)

MANDT

BUKRS

BELNR

GJAHR

:

:

CPUDT

CPUTM

AEDAT

:

:

Table BWOM2_TIMEST

(Timestamp table)

FI document key

BWOM2_TIMEST

Upper limit:

previous day

new documents

Lower limit:

upper limit of the

last G/L line-item

extraction

changed documents

timestamp mechanism entries in bwom2 timest
Timestamp Mechanism: Entries in BWOM2_TIMEST

Table BWOM2_TIMEST (Timestamp table)

  • Timestamps are stored as Seconds since 01.01.1990”.
  • Other DataSources (e.g. CO line-item extraction) also use this table.
  • Documentation of upload history: Recording of FI data that has already been extracted into BW.
  • Well-defined sync-points, if the delta upload has failed.
timestamp mechanism changed documents
Timestamp Mechanism: Changed documents

Changed FI documents

  • Changed in R/3 since the last line-item extraction
  • Cannot be selected based on field BKPF-AEDAT:
    • BKPF-AEDAT is not updated by all BW relevant changes of FI
    • Example: Clearing of an open invoice (by incoming payment) changes the document state, but does not update BKPF-AEDAT.

Solution

  • Recording of all changed FI documents (FI document key, date of last change) in table BWFI_AEDAT.
  • FI update programs in R/3 had to be changed.
  • Selection of the changed FI documents based on tablesBWFI_AEDAT and (timestamp table)BWOM2_TIMEST.
timestamp mechanism recording of changed docs

functionFI_DOCUMENT_CHANGE

...

update BSEG.

call function OPEN_FI_PERFORM_00005011_P

...

endfunction.

Business Transaction Events (Tab. TPS31)

Process Function

00005011 BWFIP_WRITE_AEDAT_POINTER

function BWFIP_WRITE_AEDAT_POINTER

...

move-corresponding BKPF to I_T_BKPF.

call function BWFIP_INSERT_BWFI_AEDAT

tables I_T_BPKF.

endfunction.

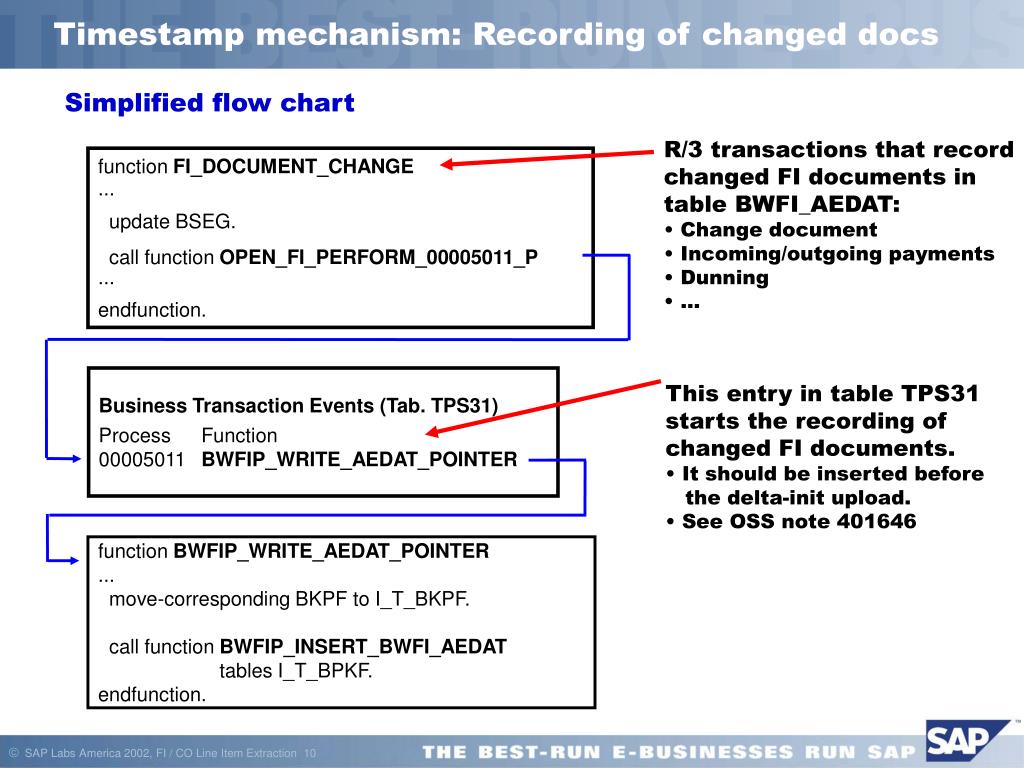

Timestamp mechanism: Recording of changed docs

Simplified flow chart

  • R/3 transactions that record
  • changed FI documents in
  • table BWFI_AEDAT:
  • Change document
  • Incoming/outgoing payments
  • Dunning
  • ...
  • This entry in table TPS31 starts the recording of changed FI documents.
  • It should be inserted before the delta-init upload.
  • See OSS note 401646
customer extensions
Customer Extensions
  • Extension of extract structures using customer includes

Data source R/3 table Extract struct. Customer include

0FI_GL_4 BSEG DTFIGL_4 CI_BSIS

0FI_AP_4 BSIK/BSAK DTFIAP_3 CI_BSIK

0FI_AR_4 BSID/BSAD DTFIAR_3 CI_BSID

  • Case 1: All fields of the customer include are part of the R/3 table.
    • No additional ABAP-coding is required. The fields of the customer include is automatically filled by the extractor.
  • Case 2: Some fields of the customer include are not part of the R/3 table.
    • Use Business Transaction Event 00005021.
    • Build a function module that fills the fields of the customer include. Use the following template: SAMPLE_PROCESS_00005021.
    • No modification of SAP standard extractors required.
    • For more information: See OSS note 410799
  • Clean separation of SAP standard and customer extraction
global settings bwom settings
Global Settings (BWOM_SETTINGS)
  • BWFILOWLIM
    • Here, you can set the lower time limit of the time stamp selection for data requests in update mode initialization of the delta method. Together with the selection criteria, this parameter is a decisive factor for the data volume with data requests in update mode initialization of the delta method.
  • BWFISAFETY
    • Here, you can the upper time limit of the time stamp selection for data requests in all update modes. Value 1 in this parameter means that the upper time limit of the time stamp selection is the previous day. With larger parameter values, the upper limit of the time stamp selection is correspondingly further (in days) in the past.
    • Note that you cannot choose a parameter value cannot be smaller than 1, as this would prevent the delta dataset being found completely.
  • ORGSYSONLY
    • If you SAP R/3 system is part of an ALE scenario, set this parameter to X. This ensures that only those line items that were originally posted to the BW system will be transferred there from the SAP R/3 system. This prevents line items being transferred several times from various SAP R/3 system.
  • DELTIMEST
    • With this parameter, you can set the retention period of entries that are no longer required in time stamp table BWOM2_TIMEST. The default settings for deletion of entries that are no longer required in the time stamp table is 60 days. The minimum retention period for entries in the time stamp table is 15 days. When entries are deleted from table BWOM2_TIMEST, the corresponding entries for the changed FI line items are deleted simultaneously from log table BWFI_AEDAT.
further information and availability
Further information and availability
  • System requirements
    • R/3 source system:
      • Release 4.0B++
      • PlugIn 2001.1++
    • BW:
      • Release 3.0A++
      • (Release 2.0b / 2.1c: See OSS note 401646)

SAPNet (OSS) notes

    • Implementation of new DataSources: 401646
    • Extension of extract structures: 410799 / 430303
    • Extraction of recent updates: 485958
    • Migration from 0FI_AP_3 / 0FI_AR_3: 410797 / 200576
    • “Coupled” extraction: 428571
    • “Uncoupled” extraction: 551044

Online documentation

    • Check documentation on business content, BW 3.0b.
co om line item extraction

Bus. Process

0ABC_C06

Cost Center

0CCA_C11

Project

0WBS_C11

Internal Order

0OPA_C11

0CO_OM_CCA_9

0CO_OM_WBS_6

0CO_OM_ABC_7

0CO_OM_OPA_6

COBK

COEP

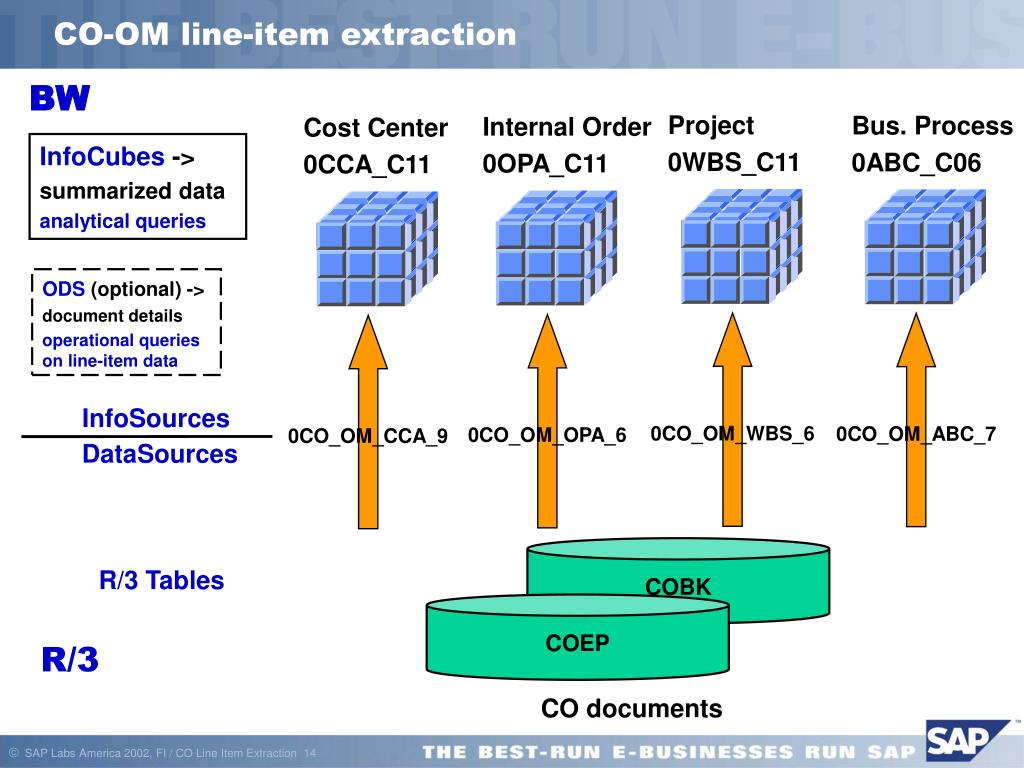

CO-OM line-item extraction

BW

InfoCubes ->

summarized data

analytical queries

ODS (optional) ->

document details

operational queries on line-item data

InfoSources

DataSources

R/3 Tables

R/3

CO documents

co om delta mechanism

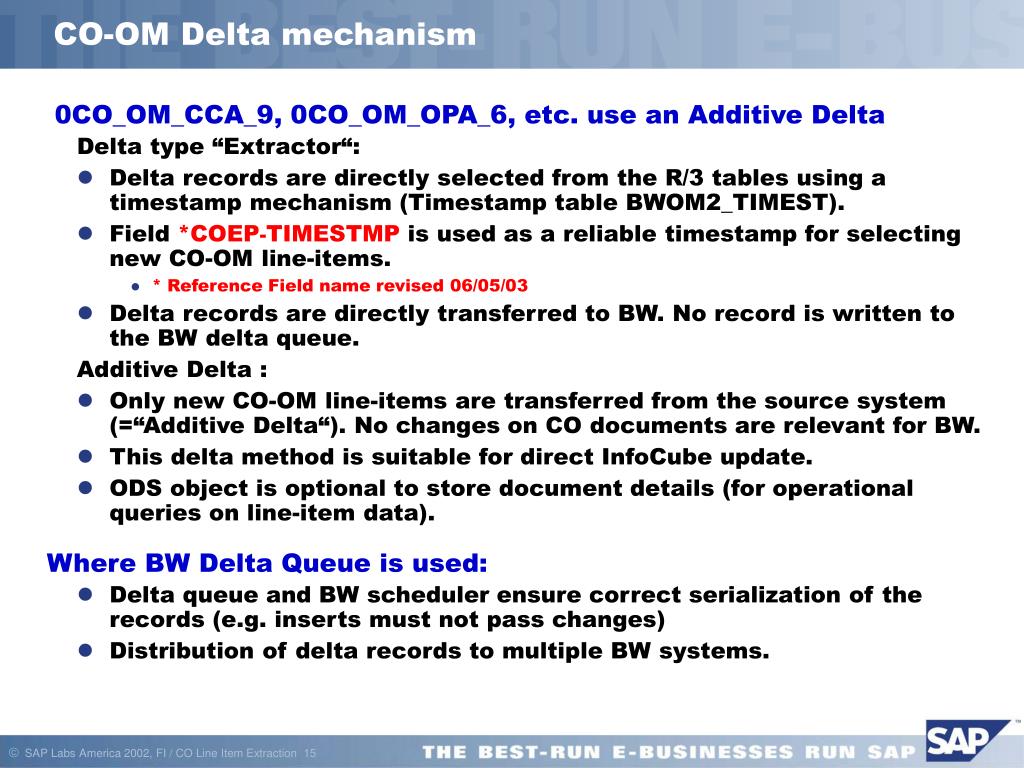

CO-OM Delta mechanism

0CO_OM_CCA_9, 0CO_OM_OPA_6, etc. use an Additive Delta

Delta type “Extractor“:

  • Delta records are directly selected from the R/3 tables using a timestamp mechanism (Timestamp table BWOM2_TIMEST).
  • Field *COEP-TIMESTMP is used as a reliable timestamp for selecting new CO-OM line-items.
    • * Reference Field name revised 06/05/03
  • Delta records are directly transferred to BW. No record is written to the BW delta queue.

Additive Delta :

  • Only new CO-OM line-items are transferred from the source system (=“Additive Delta“). No changes on CO documents are relevant for BW.
  • This delta method is suitable for direct InfoCube update.
  • ODS object is optional to store document details (for operational queries on line-item data).

Where BW Delta Queue is used:

  • Delta queue and BW scheduler ensure correct serialization of the records (e.g. inserts must not pass changes)
  • Distribution of delta records to multiple BW systems.
co om customer extensions
CO-OM Customer extensions
  • Extension of extract structures
  • * If there is a requirement to extract new fields into BW, use transaction RSA6. The extract structure must be increased with the new fields required to be extracted. The new data will be written automatically with the extractor ,but please note, this will not automatically be sent to BW if the fields are not in the extract structure.
  • * The includes CI_COBL e.g. for 0CO_OM_CCA_9 do not have anything to do with BW but it is normal CO include where the customer can fill in some new fields he needs in CO.

Data source R/3 tables Extract struct. Customer include

0CO_OM_CCA_9 COBK/COEP ICCTRCSTA1 CI_COBL

0CO_OM_OPA_6 COBK/COEP ICORDCSTA1 CI_COBL

0CO_OM_WBS_6 COBK/COEP ICWBSCSTA1 CI_COBL

0CO_OM_ABC_7 COBK/COEP ICBPRCSTA1 CI_COBL

* Please review OSS Note 394491 – Handling Errors from DataSource Append Structures (released 05/14/03) for further details

*Revised for content correction 06/05/03

co om further information and availability

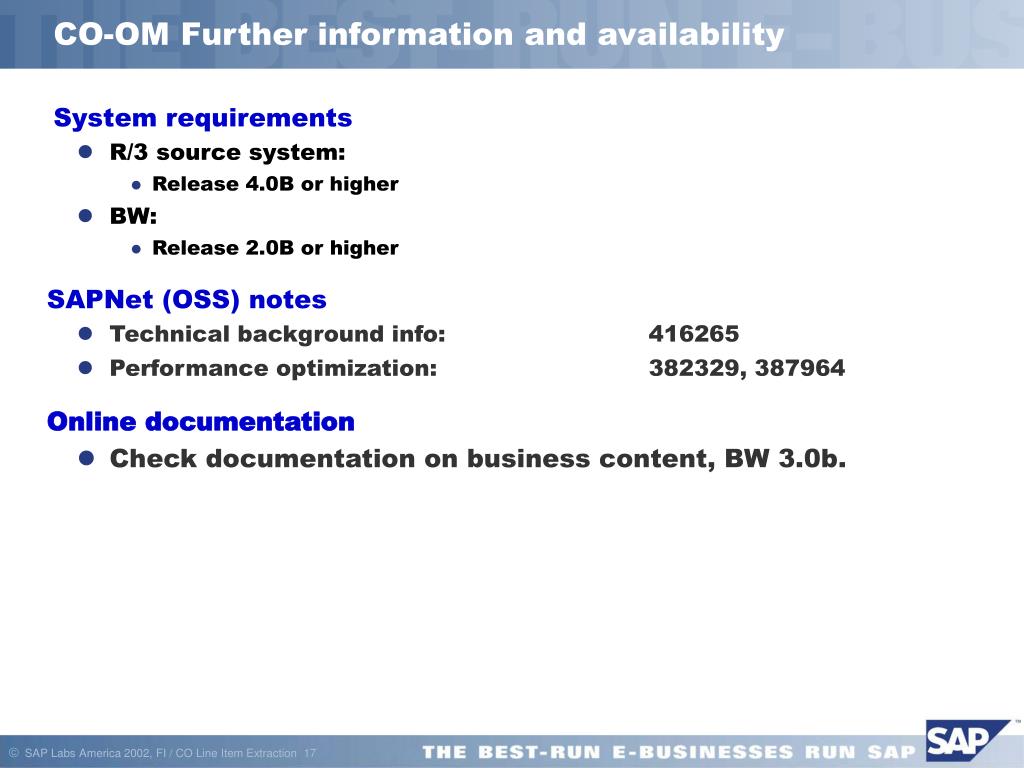

CO-OM Further information and availability
  • System requirements
    • R/3 source system:
      • Release 4.0B or higher
    • BW:
      • Release 2.0B or higher

SAPNet (OSS) notes

    • Technical background info: 416265
    • Performance optimization: 382329, 387964

Online documentation

    • Check documentation on business content, BW 3.0b.
