diabetes guideline based management

Diabetes: Guideline-Based Management

Eric L. Johnson, M.D.

Assistant Medical Director

Altru Diabetes Center

Assistant Professor

Department of Family and Community Medicine

University of North Dakota

School of Medicine and Health Sciences

  • Overview of diabetes
  • Discuss guideline based management for diabetes
  • Apply Diabetes guideline based management in clinical practice
what we ll do today
What We’ll Do Today
  • Overview of Diabetes
  • Introduce Guidelines
  • Screening for Diabetes
  • Treating to Targets
  • Screening for Complications
  • Delivering Guideline Based Treatment in Clinical Settings
  • Case Studies
u s prevalence of diabetes 2010
U.S. Prevalence of Diabetes 2010

Diagnosed: 26 million people—8.3% of population (90%+ have Type 2)

Undiagnosed:7 million people

79 million people have pre-diabetes

CDC 2011

diabetes in the u s 2010
Diabetes In The U.S. 2010
  • 8.3% of all Americans
  • 11.3% of adults age 20 and older
  • 27% of adults age 65 and older
  • 1.9 million diagnosed in 2010
  • Could be 33% by 2050
  • Prediabetes

35% of adults age 20 and older

50% of Americans 65 and older

CDC 2011

diabetes disparities
Diabetes Disparities
  • Native American 16.1%
  • Black 12.6%
  • Hispanic 11.8%
diabetes mellitus
Diabetes Mellitus
  • Type 1: autoimmune betacell destruction, absolute insulin deficiency
  • Type 2: insulin resistance, other mechanisms, eventual betacell failure over time.
the ominous octet type 2
The Ominous Octet-Type 2


Insulin Secretion

Islet a-cell


Glucagon Secretion

Islet b-cell



DecreasedIncretin Effect



Increased Glucose




Decreased Glucose


diabetes mellitus1
Diabetes Mellitus
  • Type 1: Usually younger, insulin at diagnosis
  • Type 2: Usually older, often oral agents at diagnosis
  • Type “1.5” (Latent Autoimmune) mixed features ~10% of type 2
  • Gestational: Diabetes of Pregnancy
diabetes risk and prevention
Diabetes Risk and Prevention


  • Type 1- mostly unknown, some familial
  • Type 2- obesity, smoking, sedentary lifestyle, familial


  • Type 1- none known
  • Type 2- lifestyle management

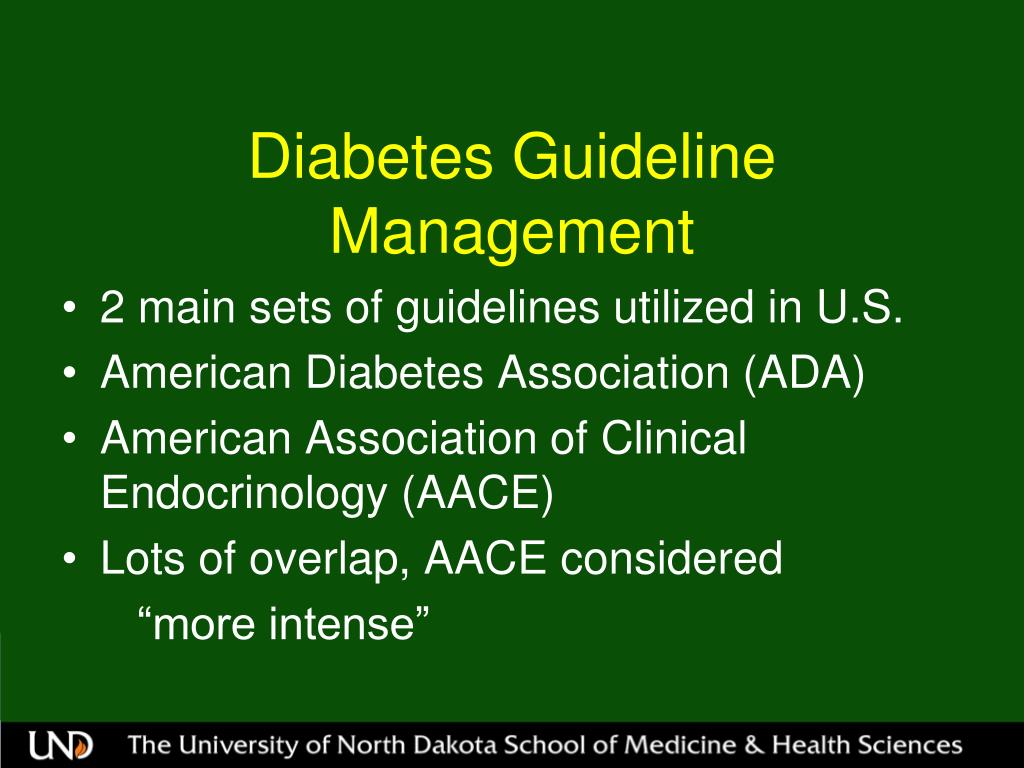

diabetes guideline management
Diabetes Guideline Management
  • 2 main sets of guidelines utilized in U.S.
  • American Diabetes Association (ADA)
  • American Association of Clinical Endocrinology (AACE)
  • Lots of overlap, AACE considered

“more intense”

diabetes guideline management1
Diabetes Guideline Management
  • Evidence based
  • Well accepted
  • Clinically relevant
  • Can be incorporated into clinical practice
  • Emphasize comprehensive risk management
diabetes guideline management2
Diabetes Guideline Management
  • ADA publishes guideline update every January (Diabetes Care)
  • Clinical Practice Recommendations
  • http://professional.diabetes.org/
diabetes guideline management3
Diabetes Guideline Management
  • AACE updates periodically (2011)
  • https://www.aace.com/publications/guidelines
  • AACE Medical Guidelines for Developing a Diabetes Mellitus Comprehensive Care Plan
  • Includes discussion of treatment of risk factors, role of team members, complication screening and management, age groups
screening for diabetes1
Screening For Diabetes
  • A1C or FPG or 75 g oral GTT
  • Testing should be considered in all adults who are overweight (BMI >25 kg/m2)


  • Have the following additional risk factors…….
risk factors for screening
Risk Factors for Screening
  • Physical inactivity
  • First-degree relative with diabetes
  • High-risk race/ethnicity
  • African American
  • Latino
  • Asian American
  • Native American, Pacific Islander
  • Women who delivered a baby weighing

9 lb or were diagnosed with GDM

Diabetes Care 34:Supplement 1, 2011

risk factors for screening1
Risk Factors for Screening
  • Hypertension

(>140/>90 mmHg or on therapy for hypertension)

  • HDL <35 mg/dl and/or a triglycerides >250mg/dl
  • Women with polycystic ovarian syndrome (PCOS)
  • A1C >5.7%, IGT, or IFG on previous testing
  • Other clinical conditions associated with insulin resistance (e.g., severe obesity, acanthosis nigricans)
  • History of CVD

Diabetes Care 34:Supplement 1, 2011

risk factors for screening2
Risk Factors for Screening
  • In the absence of the previous criteria, testing begins at age 45
  • Normal results, repeat at least at 3-year intervals
  • Consider more frequent testing depending results and risk status
  • At-risk BMI may be lower in some ethnic groups (i.e., Native American)

Diabetes Care 34:Supplement 1, 2011

type 2 diabetes screening in children adolescents
Type 2 Diabetes Screening in Children/Adolescents
  • Overweight

-BMI >85th percentile

-weight for height >85th percentile

-weight >120% of ideal for height

  • Plus any two of the following risk factors….
type 2 diabetes screening in children adolescents1
Type 2 Diabetes Screening in Children/Adolescents
  • FH of type 2 diabetes in 1st or 2nd-degree relative
  • Race/ethnicity (Native American, African American, Latino, Asian American,Pacific Islander)
  • Signs of insulin resistance or conditions associated with insulin resistance

(acanthosis nigricans, hypertension, dyslipidemia, PCOS, or small-for -gestational-age (SGA) birth weight)

  • Maternal history of diabetes or GDM during gestation

Diabetes Care 34:Supplement 1, 2011

type 2 diabetes screening for children adolescents
Type 2 Diabetes Screening for Children/Adolescents
  • Age of initiation: at-risk age 10 years or if younger onset puberty
  • Screen every 3 years
  • No screening recommended for Type 1 Diabetes in asymptomatic individuals outside of research protocols

Diabetes Care 34:Supplement 1, 2011

diabetes diagnosis
Diabetes Diagnosis

Category FPG (mg/dL) 2h 75gOGTT A1C

Normal <100 <140 <5.7

Prediabetes 100-125 140-199 5.7-6.4

Diabetes >126** >200 >6.5

Or patients with classic hyperglycemic symptoms with plasma glucose >200

** On 2 separate occasions

Diabetes Care 34:Supplement 1, 2011

https://www.aace.com/publications/guidelines 2011

screening review
Screening Review
  • >45 years old
  • Risk factors
  • Ethnicity
  • Obese
  • Smoking
  • CVD
  • Any Prediabetes syndrome
risks for complications in diabetes
Risks for Complications in Diabetes

Abnormal blood sugar/A1C

Abnormal lipids

Abnormal blood pressure

Sedentary lifestyle


avoiding diabetes complications
Avoiding Diabetes Complications
  • Blood glucose control A1C <7%
  • Treat cholesterol profiles to targets
    • Total cholesterol <200
    • Triglycerides <150
    • HDL (“good”) >40 men, >50 women
    • LDL (“bad”) <100, <70 high risk
  • Treat blood pressure to target <130/<80

For most non-pregnant adults

treating to targets
Treating To Targets
  • A1C <7%: Fewer microvascular complications (eye, nerve, kidney)
  • Less glucose variability: Fewer macrovascular complications (CVD, PAD)
  • BP <130/<80: reduced kidney disease reduced CVD
  • Lipids to target: reduced CVD
treating to targets1
Treating to Targets
  • Treating patients to target early in the course of diabetes most likely to give benefit
  • Tight control late in course of disease with a history of poor control, less likely to benefit
targets for glycemic blood sugar control in most non pregnant adults
Targets for Glycemic (blood sugar) Control In Most Non-Pregnant Adults

*<6 for certain individuals

  • American Diabetes Association. Diabetes Care. 2011;34(suppl 1)
  • Implementation Conference for ACE Outpatient Diabetes Mellitus Consensus Conference Recommendations: Position Statement at http://www.aace.com/pub/pdf/guidelines/OutpatientImplementationPositionStatement.pdf. Accessed January 6, 2006.
  • AACE Diabetes Guidelines – 2002 Update. Endocr Pract. 2002;8(suppl 1):40-82.
a1c average glucose
A1C ~ “Average Glucose”


% mg/dL mmol/L

6 126 7.0

6.5 140 7.8

7 154 8.6

7.5 169 9.4

8 183 10.1

8.5 197 10.9

9 212 11.8

9.5 226 12.6

10 240 13.4

Formula: 28.7 x A1C - 46.7 - eAG

American Diabetes Association


ADA Guidelines for Glucose Management

Children and Adolescents

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

Diabetes Care 2005;28:186–212

diabetes medications glycemic control
Diabetes MedicationsGlycemic Control
  • Type 1: Always insulin, maybe symlin in combo
  • Type 2: Many oral med choices, insulin, non-insulin injectable
  • Complete discussion in

Slide Deck/Podcast

ada easd consensus algorithm to manage type 2
ADA/EASD consensus algorithmto manage type 2

Reinforce lifestyle interventions at every visit and check A1C every 3 months until A1C is <7% and then at least every 6 months. The interventions should be changed if A1C is ≥7%.

Tier 1:

Well-validated core therapies

Lifestyle and MET + intensive insulin

Lifestyle and MET

+ basal insulin

At diagnosis:




Lifestyle and MET+ SUa

Step 1

Step 2

Step 3

Tier 2: Less well-validated studies

Lifestyle and MET + pioglitazone

Lifestyle and MET + pioglitazone + SUa

No hypgglycemia



Bone loss

Lifestyle and MET + GLP-1 agonistb

Lifestyle and MET

+ basal insulin

No hypoglycemia


Weight loss


aSU other than glyburide or chlorpropamide. bInsufficient clinical use to be confident regarding safety.

MET: metformin; SU: sulfonylurea. Nathan et al.Diabetes Care 2009;32(1): 193-203

glucose lowering potential of diabetes therapies
Glucose-lowering Potential of Diabetes Therapies*

Treatment FPG ¯ HbA1C ¯

Sulfonylureas 50-60 mg/dl 1-2%

Metformin 50-60 mg/dl 1-2%

a-Glucosidase Inhibitors (Precose) 15-30 mg/dl 0.5-1%

Repaglinade (Prandin) 60mg/dl 1.7%

Thiazolidinediones 40-60 mg/dl 1-2%

Gliptins (Januvia,Onglyza) targets ppd 0.5 - 0.8%

*based on package insert data as monotherapy

glucose lowering potential of injection diabetes therapies
Glucose-lowering Potential of Injection Diabetes Therapies*

Treatment FPG ¯ HbA1C ¯

Exenatide (Byetta) targets ppd 1-1.5%

Liraglutide (Victoza) targets ppd 1-1.5%

Pramlintide (Symlin) targets ppd 1-2%

Insulin Limited by 1.5-3.5%


*based on package insert data as monotherapy

diabetes medications
Diabetes Medications
  • Dr. Clarens overview of non-injectable medications
  • More on injectable medications later
key points of medication selection in type 2
Key Points of Medication Selection in Type 2
  • Metformin at diagnosis unless a contraindication
  • Second line agents- basal insulin or many other meds
  • A1C >9 at diagnosis-may need more than one medication
goals for older adults
Goals For Older Adults
  • Age and functional status dependent
  • Less than 3 year life expectancy, long- term care, A1C ~8.0%
  • BP goals likewise individualized
  • HTN treatment-”big bang for the buck”
  • Statin?
  • Aspirin?

Johnson EL Brosseau J et al Clinical Diabetes 2008 (26) 4; 152-156

American Medical Directors Association,2002

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

blood pressure
Blood Pressure
  • Done at every visit
  • Target is <130/<80

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

lipids cholesterol
Lipids (Cholesterol)
  • Fasting lipid panel at least annually
  • Goals:

Total cholesterol <200

Triglycerides <150

HDL >40 men, >50 women

LDL <100 (<70, CVD or high risk)

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

children with dm hypertension and lipids
Children with DMHypertension and Lipids
  • Lipids: start screening in childhood if strong FH, or at age 10
  • Hypertension: BP >90th percentile for height and weight or >130/>80
  • Consider medications (statins, ACE) if necessary

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

blood pressure and lipids treatment
Blood Pressure and LipidsTreatment


  • ACEI usually first line, ARB alternate
  • Other meds as necessary (often 2 or 3)


  • Statins usually first line
  • Fibrates, Fish Oil, Niacin
  • Men >50 years of age
  • Women >60 years of age
  • Younger if higher risk

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

nephropathy kidney disease screening
Nephropathy (Kidney Disease)Screening
  • Annual urine testing for micro- or macro- albuminuria
  • Annual creatinine and GFR
  • Start at diagnosis for type 2
  • Start 5 years after diagnosis type 1

Diabetes Care. 2011;34(suppl 1)

kidney disease management
Kidney Disease Management
  • ACEI or ARB for microalbuminuria or proteinuria
  • Serum creatinine and creatinine clearance (or GFR)
  • May need 24 hour urine protein
  • May need nephrology referral
  • Blood pressure to target <130/<80
  • A1C <7

Diabetes Care. 2011;34(suppl 1)

retinopathy screening
Retinopathy Screening
  • Type 1 annual starting after age 10 or after 5 years post diagnosis
  • Type 2 annual starting shortly after diagnosis
  • Consider less frequent if one or more normal exams (not usually done)

Diabetes Care. 2011;34(suppl 1)

retinopathy management
Retinopathy Management
  • A1C < 7
  • Laser photocoagulation by ophthalmologist or retinologist
neuropathy screening
Neuropathy Screening
  • Screen at diagnosis and annual thereafter
  • Be aware of less common presentations

Foot inspection every visit plus annual/prn:

  • Filament testing
  • Vibratory testing (128 HZ)
  • Reflexes

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)


Neuropathy: Treatment

  • Optimize blood glucose control
  • Consider other differentials, i.e. B12 deficiency in metformin users, thyroid
  • Anti-seizure meds (gapapentin, pregabelin)
  • Tricyclic anti-depressants (amitriptyline)
  • Duloxetine-antidepressant with neuropathy indication
  • Capsazincreme
celiac disease screening
Celiac Disease Screening
  • At diagnosis in Type 1 and periodic (?), pregnant
  • Rescreen if GI symptoms, failure to thrive, glycemic control changes
  • ~10% of type 1?


  • Tissue transglutaminase IgA and IgG


  • Anti-endomysialantibiodies with serum IgA
  • Small bowel biopsy to confirm

American Diabetes Association. Diabetes Care. 2011;34(suppl 1)

thyroid screening
Thyroid Screening
  • Type 1 screen at diagnosis and every

1 to 2 years, and if pregnant

  • At diagnosis, thyroid peroxidase and

thyroglobulin antibodies

  • TSH thereafter
liver disease
Liver Disease
  • ~30% of adults with DM
  • LFT’s periodic
  • Imaging (CT, Ultrasound, MRI) if persistent abnormal LFT’s
  • May need biopsy and referral
other screening interventions
Other Screening/Interventions
  • Tobacco cessation
  • Smoking contributes to poor glucose control and increased CVD risk
  • Smokers should be directed to a cessation program, i.e., Quitline, Quitnet, Quitplan, 3rd party payer, etc.
  • Medication(if appropriate)
  • Other routine screens (i.e.,cancer)
routine diabetes clinical encounter
Routine Diabetes Clinical Encounter
  • Physical Exam-Diabetes Directed
  • Labs
  • Team management
  • Systematic clinical encounters- keep everything organized
  • See patient 2 to 4 times a year, prn
diabetes clinical encounters hpi my ehr template
Diabetes Clinical EncountersHPI-My EHR Template

Patient comes in today for follow up on type (1 or 2) diabetes

  • (Other problem list)
  • Home Blood glucose monitoring:
  • Ambulatory/Home Blood Pressures:
  • Current concerns:
  • Last educator appointment:
  • Last dietician appointment:
  • Last eye appointment:
  • Last dental:
  • Flu vaccine (seasonal):
  • Other recent appointments:
  • Complete medication review
diabetes clinical encounters review of systems my ehr template
Diabetes Clinical EncountersReview of Systems-My EHR Template
  • General: Fatigue/Energy level, appetite, recent illnesses, polydipsia
  • HEENT: Vision change, sore throat, neck pain/masses
  • Cardiopulmonary: CP, dyspnea, palpitations
  • Abdomen: Diarrhea, constipation, pain
diabetes clinical encounters review of systems cont d
Diabetes Clinical EncountersReview of Systems (cont’d)
  • Genitourinary: Polyuria, Dysuria, Urgency, Frequency, Nocturia
  • Musculoskeletal: Muscle or Joint Pain, Foot or Leg Pain
  • Neurologic: Dizzy, Lightheaded, Parasthesias, Weakness, Pain
  • Skin: Rash or other
  • Psych: Depression, Anxiety
diabetes clinical encounters physical exam
Diabetes Clinical EncountersPhysical Exam
  • VS: Height, Weight, BP (x2?),Pulse, Tobacco status
  • Fundus exam
  • Cardiopulmonary
  • Carotids
  • Thyroid
  • Abdomen (enlarged liver-fatty liver)
diabetes clinical encounters physical exam cont d
Diabetes Clinical EncountersPhysical Exam (cont’d)
  • Filament and vibratory testing (feet)
  • Reflexes
  • General foot exam (skin, nails, lesions, color, pulses)
  • General skin/injection sites
  • Other complaint directed
  • Growth parameters-children
diabetes foot exam
Diabetes Foot Exam
  • Every visit: visual inspection of skin, nails, lesions, color, deformity (i.e., hammertoes, charcot joint), edema
  • Annual complete foot exam skin, nails, lesions, color, pulses, deformity, edema, 10gm monofilament sensitivity, 128 vibratory sensation, reflexes
diabetes clinical encounters
Diabetes Clinical Encounters
  • Other:

Age appropriate recommendations (cancer screening, etc)


diabetes labs
Diabetes Labs
  • A1C 2-4 times yearly
  • Chemistry panel, to include renal and hepatic 1-2 times yearly, prn
  • Urine for microalbumin annually
  • CBC annually, particularly if on aspirin and/or renal disease
  • Celiac screening in type 1 periodically (ever 3 years and prn)
  • Thyroid screening usually annual in type 1

Diabetes Care 34:Supplement 1, 2011

the diabetes team
The Diabetes Team
  • Physician: Primary Care, Diabetologist, Endocrinologist
  • Mid-level provider: Physician Assistant, APRN,or Nurse Practitioner
  • Other appropriate specialists (eye, kidney, heart, psychologist, foot, dentist)
the diabetes team1
The Diabetes Team

Diabetes Nurse Educator or Certified Diabetes Educator (CDE)

Registered Dietician

The patient !

self monitored blood glucose
Self Monitored Blood Glucose
  • On insulin, generally minimum TID, usually more if MDI or pump
  • CGM clinic or home may be useful
  • Type 2 on orals, maybe less if stable
lifestyle management
Lifestyle Management
  • Medical Nutrition Therapy (MNT)
  • Exercise/Activity Prescriptions- almost everybody can do something
  • Indicated for all patients with Diabetes
ada nutrition strategies
ADA Nutrition Strategies
  • Encourage weight loss in overweight/obese
  • Modest weight loss-improve insulin resistance
  • Reduce calories and fat
  • Saturated fat <7%, minimize trans-fat
  • Customize plans for patients
weight loss bariatric surgery
Weight Loss (Bariatric)Surgery
  • BMI >40
  • BMI >35 and one obesity and/or diabetes related issue
  • Usually results in dramatic improvement in type 2 and related issues
  • Effective tool if combined with medical management in appropriate patients
  • Electronic health records have great potential to monitor diabetes labs, progress, goals, etc
  • Work with your IT department, many systems have customizable “built in” diabetes systems
  • Implementation of evidenced based guidelines improves diabetes outcomes
  • Guidelines are easily available
  • Getting patients to goals is important
  • Organized clinical encounters help get patients to goals
  • North Dakota Department of Health, Karalee Harper
  • Dakota Diabetes Coalition, Tera Miller
  • Centers for Disease Control
  • Office of Continuing Medical Education, UNDSMHS, Mary Johnson
  • Department of Family and Community Medicine, UNDSMHS, Melissa Gardner
  • Brandon Thorvilson, UNDSMHS IT
slide decks and itunes podcasts
Slide Decks and iTunes Podcasts
  • Podcasts 5 to 10 minute Diabetes Topics


“Dr. Eric Johnson Diabetes Podcasts”

  • All slide decks downloadable to view


“Dr. Eric Johnson Diabetes Slide Decks”

contact info slide decks media
Contact Info/Slide Decks/Media





701-739-0877 cell

Slide Decks (Diabetes, Tobacco, other)http://www.med.und.edu/familymedicine/slidedecks.html

iTunes Podcasts (Diabetes) (Free downloads)http://www.med.und.edu/podcasts/ or iTunes>> search UND

WebMD Page: (under construction)http://www.webmd.com/eric-l-johnson

Diabetes e-columns (archived):
