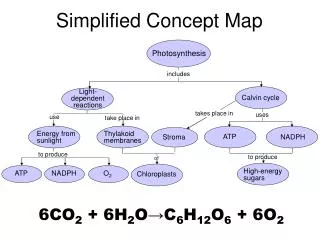

Simplified Concept Map

Light- dependent reactions. Calvin cycle. Energy from sunlight. Thylakoid membranes. ATP. Stroma. NADPH. High-energy sugars. ATP. NADPH. O 2. Chloroplasts. Simplified Concept Map. Concept Map. Section 8-3. Photosynthesis. includes. takes place in. uses. use. take place in.

nguyet
Download Presentation

Simplified Concept Map

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Light- dependent reactions Calvin cycle Energy from sunlight Thylakoid membranes ATP Stroma NADPH High-energy sugars ATP NADPH O2 Chloroplasts Simplified Concept Map Concept Map Section 8-3 Photosynthesis includes takes place in uses use take place in to produce to produce of 6CO2 + 6H2O→C6H12O6 + 6O2 Go to Section:

  2. Summary of Rxns in Chloroplast 6CO2 + 6H2O→C6H12O6 + 6O2

  3. Photosynthesis Chloroplasts: Place where takes place! • Thylakoids – saclike membranes • Contain photosystems (light-collecting units) that are made up of chlorophyll, other pigments and proteins • Chlorophyll absorbs most visible light except green, which is reflected • Grana – stacks of thylakoids • Stroma–space around thylakoids - aqueous

  4. 6CO2 + 6H2O→C6H12O6 + 6O2

  5. HOT ELECTRON! NADP+(Nicotinamide adenine dinucleotide phosphate) • ElectronCarrier – carries e- from chlorophyll to other molecules 2. Holds 2 e- (electrons) and 1 H+ (hydrogen ion) 3. Converts to NADPH by combining with H+ • This conversion traps energy that is used in the calvin cycle (dark reactions) Hi My Name Is NADP+ Hi My Name Is NADP+

  6. Light Reactions Summary: Light Energy from the sun is captured by the chloroplasts and splits apart water molecules and excites electrons. As a result, oxygen NADPH, and ATP are made. Takes place in…. 3 parts!

  7. 1. Photosystem II absorbs light from the sun. • the energy splits water molecules into oxygen, H+ ions, and electrons • Chlorophylls’ electrons get excited by the light • Oxygen leaves the plant into atmosphere

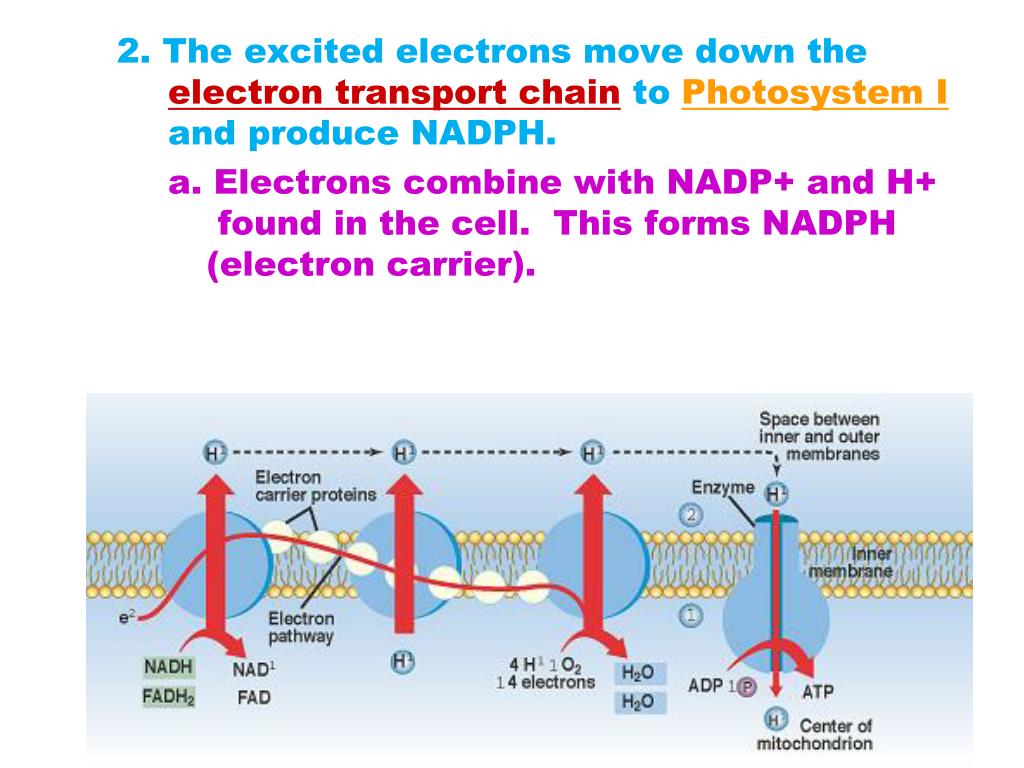

  8. 2. The excited electrons move down the electron transport chaintoPhotosystem Iand produce NADPH. a. Electrons combine with NADP+ and H+ found in the cell. This forms NADPH (electron carrier).

  9. 3. H+ protons move outside the thylakoid and cause ADPand P to become ATP. • Because there is a higher concentration of H+ protons in the thylakoid membrane than in the stroma, so the H+ will move out into the stroma (Diffusion!) • As the H+ protons move into the stroma they release energy which is converted into the chemical energy stored in ATP.

  10. V. Light-Independent Rxns(Calvin Cycle or Dark Rxns) Summary: The Calvin Cycle uses the energy in ATP and NADPH (made during the light rxns) to fix carbon into an organic compound called PGAL. Takes place in: STROMA

  11. 1. CO2 diffuses into the cell and combines with RuBPto form PGA. • 3 molecules of RuBP (5-carbon sugar) are present in the cell • 1 carbon (from CO2) attaches to each RuBP • This 6-carbon is unstable and immediately splits in half • This leaves 3-carbon structures called PGA Ribulose BiPhosphate Phosphoglycerate

  12. 2. PGA is changed into PGAL • PGA interacts with ATP and NADPH (from light rxns) resulting in PGAL (new 3-carbon structure) • The ATP and NADPH are returned to the light rxns as ADP, NADP+ and a phosphate group to be reused • 1 PGAL leaves the cycle to become glucose Phosphoglyceraldehyde

  13. 3. The PGAL is converted back into RuBP • The remaining PGAL (3 carbons) rearrange into RuBP (5 carbons) with ATP’s energy • Cycle starts all over again 

  14. Glucose is not made DURING photosynthesis • PGAL molecules are made, which are built up into carbohydrates (sugars) just after photosynthesis ends. • What enters the Calvin Cycle? • What is produced by the Calvin Cycle?
