ebXML Core Components and Business Processes

1. UN/CEFACT ebXML Core Components and Business Processes Sue Probert Senior Director, Document Standards, Commerce One Vice-Chair, UN/CEFACT Forum’s International Trade & Business Processes Group Electronic Business XML Copenhagen November 7, 2002

2. eb XML Transport, Routing & Packaging, Partner Profile & Agreements and Registry & Repository Architecture, Business Processes and Core Components Syntax Neutral Intl. eBusiness Framework Global XML Technical Framework

3. Introduction to UN/CEFACT Forum • UN/CEFACT has five Groups (TBG, ICG, ATG, TMG & LG) which meet collectively as the UN/CEFACT Forum. • The UN/CEFACT Forum is driven by the business and trade facilitation needs of government and industry. • The Business Group (TBG) is the focal point for the expression of those needs • The other Groups are operational/support Groups addressing technology, implementation and legal issues. • Forum Co-ordination Team (FCT) is responsible for: • Logistical co-ordination of the Forum meeting requirements • Project management

4. UN/CEFACT Forum Structure Forum Co-ordination Team (FCT) Business Processes & Trade Facilitation (TBG) InformationContent (ICG) Applied (ATG)Technologies Technologies & Methodologies (TMG) Legal (LG)

5. ebXML phase 2 TRP TC UN/CEFACT OASIS ebXML Messaging ebXML JCC CPPA TC ebXML Partner Profiles & Agreements Joint Architecture Forum RegRep TC ebXML Registry & Repository TBG ATG TMG UBL TC Syntax Neutral BP Models & CCs Syntax Solutions EDIFACT & XML XSD Design Rules, Document Schemas And Context Assembly ebXML CC & BP Tech Specs

6. UMM BCPS BCPMC BEL CC BPSS BRIM CBPC BPIM CPPA MSG REG ebXML Methodology Architecture Legend: UMM = UN/CEFACT Modeling Methodology BCP = Business Collaboration Protocol BCPMC = Business Collaboration Patterns and Monitored Commitments BEL = Business Entity Library BPSS = Business Process Specification Schema BRIM = Business Registry Information Model BPIM =Business Process Information Model Exchange Schema CBPC = Common Business Process Catalog CC = Core Component Specification CPPA = OASIS ebXML CPPA – Partner Profiles & Agreements MSG = OASIS ebXML Messaging REG = OASIS ebXML Registry & Repsoitory

7. September 2002 BPWG set up within the UN/CEFACT Forum’s TMG – chaired by David Welsh BPWG brings together the former ebTWG projects: BCPMC - Business Collaboration Patterns and Monitored Commitments BCP - Business Collaboration Protocol BEL - Business Entity Library BPIM - Business Process Information Model Exchange Schema BPSS - Business Process Exchange Schema BRIMBusiness Registry Information Model CBPCCommon Business Process Catalog ebXML Business Processes

8. Example BP Catalog Scenario

9. Example of BP Definition

10. Example BP Catalog Entries

11. September 2002 CCWG set up within the UN/CEFACT Forum’s TMG – chaired by Mary Kay Blantz CCWG brings together the former ebTWG projects: CCTS– Core Component Technical Specification V1.85 out for public review under UN/CEFACT Open Development Process End of comment period November 22nd Available from www.unece.org/cefact/ Comments will be processed at interim meeting in early December CCSD – Core Component Supplementary Documents Boeing spare part procurement example completed EAN.UCC despatch advice example under development CC Primer under development ebXML Core Components Methodology

12. Core Component Technical Specification • ‘Discovery’ and Analysis methodologies Library of Core Components • Naming Conventions & Rules Global Semantic Vocabulary • Context Classification of context drivers • Extension Methodology Describe waysin which components are reused

13. Core Component Hierarchy Business Process Model Basic & Aggregate BIEs Basic & Aggregate CCs CC Semantic Framework CC Types Global Semantics Vocabulary

14. Core Component Overview

15. CCTS Normative Section

16. ebXML Naming Convention • Describes the rules for naming ebXML Core Components • Derived from guidelines and principles of ISO 11179 and have drawn from the UN/EDIFACT Design Rules and the TC154 Basic Semantic Registry Methodology naming rules • Specifies reference dictionary to be Oxford English • Requires allocation of Unique Global Identifiers (UID) • Designed to support extensions toother languages

17. ebXML CC Representation Types Primary Secondary Definition Amount A number of monetary units specified in a currency where the unit of currency is explicit or implied. Binary Object Graphic, Picture, Sound, Video A set of finite-length sequences of binary octets. Code A character string (letters, figures or symbols) that for brevity and / or language independence may be used to represent or replace a definitive value or text of a Property. Date Time Date, Time A particular point in the progression of time (ISO 8601). Identifier A character string used to establish the identity of, and distinguish uniquely, one instance of an object within an identification scheme from all other objects within the same scheme. Indicator A list of exactly two mutually exclusive Boolean values that express the only possible states of a Property. Measure A numeric value determined by measuring an object. Measures are specified with a unit of measure. Numeric Value, Rate, Percentage Numeric information that is assigned or is determined by calculation, counting or sequencing. Quantity A counted number of non-monetary units.. Text Name A character string generally in the form of words of a language.

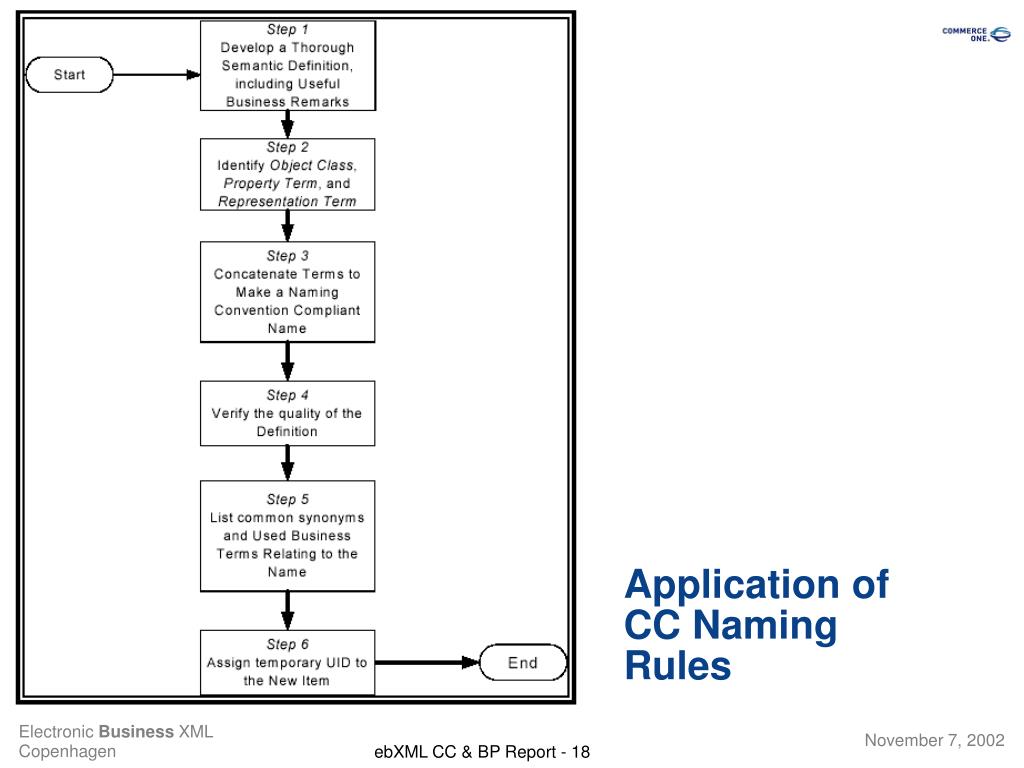

18. Application of CC Naming Rules

19. ebXML Context Drivers • Business Process: Process, collaboration, or transaction. • Business Process Role: Sender and Receiver roles. • Supporting Role: Third-party roles. • Industry Classification: Industry vertical. • Product Classification: Type of product or service. • Geopolitical: Trading region. • Official Constraints: Legal or contractual influence. • System Capabilities: System/Application constraintsor • compliance requirements.

20. Operation of the Context Mechanism

21. Discovery by user communities Collation of candidate definitions Harmonisation within TBG Publication by UN/CEFACT Usage by all! ebXML BP & CC Definitions

22. UN/CEFACT Business Neutral Core Components Project • TBG Harmonisation Group project • Take UN/TDED, UN/EDIFACT, WCO G7, EAN.UCC, ebXML etc. candidate data element definitions • Validate against ebXML naming conventions • Harmonise and simplify • Build Controlled Vocabulary • Put out results for review • Publish, extend and maintain over time • Develop harmonisation check list for tech assessment

23. Work underway in these TBG WGs: TBG2 Procurement & Simpl-eb TBG1 Materials Management TBG3 Transportation & Logistics TBG4 Customs Procedures (WCO) TBG5 Payments TBG6 Construction, Architecture & Engineering TBG8 Insurance (ACORD) TBG9 Travel, Tourism & Leisure TBG11 Accountancy ebXML BP & CC Discovery

24. Work also underway in these User Groups: UBL (Cross Industry Supply Chain) EAN.UCC (FMCG Retail Supply Chain) SWIFT (Interbanking) OAGI (eBusiness & Application Integration) XBRL (Accountancy) SMDX (Statistical Data & Metadata Exchange) SMDG (Maritime Container Terminal Handling) OTA (Travel, Tourism & Leisure) … ebXML BP & CC Discovery

25. Formally stable ebXML CC TS Controlled vocabulary for business terms Common format for candidate submissions Harmonisation methodology and tools Repository for storing UN/CEFACT artefacts Confirmation of user communities willingness to converge on building upon UN/CEFACT CC building blocks Globally agreed XML implementation design rules and business library building blocks What is still required
