Presentation Transcript
slide2

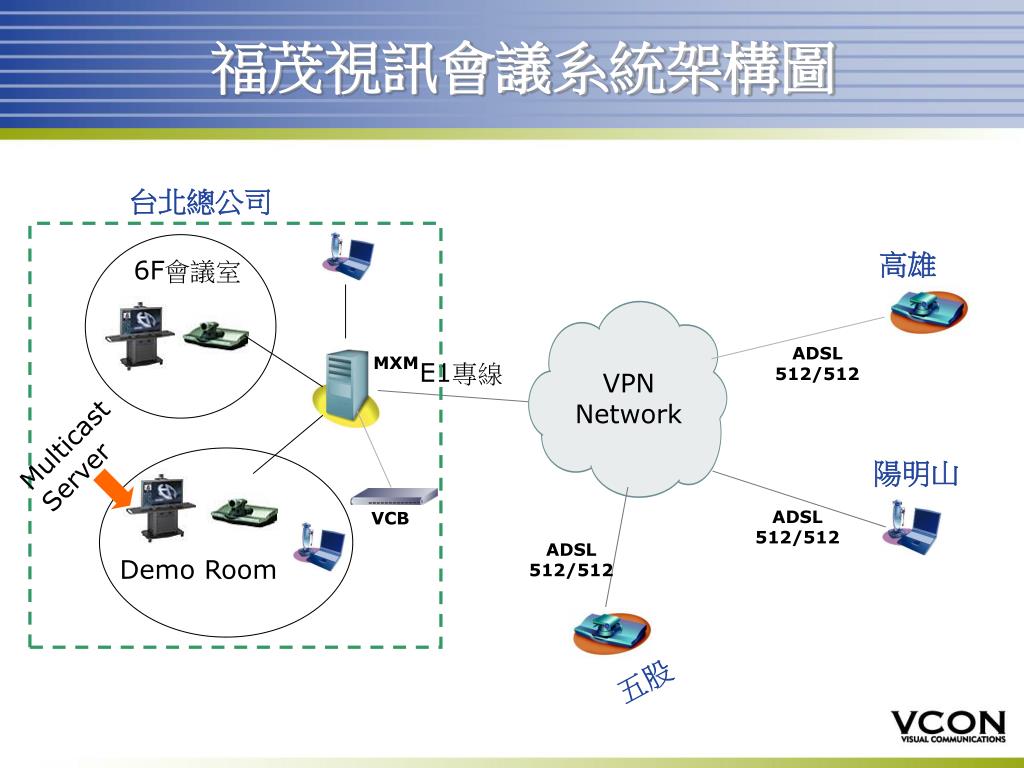

福茂視訊會議系統架構圖

Demo Room

台北總公司

高雄

6F會議室

ADSL

512/512

MXM

E1專線

VPN

Network

Multicast

Server

陽明山

ADSL

512/512

VCB

ADSL

512/512

五股

continous mode vs voice actived
Continous Mode vs. Voice Actived

CIF:352*288

QCIF:176*144

slide4

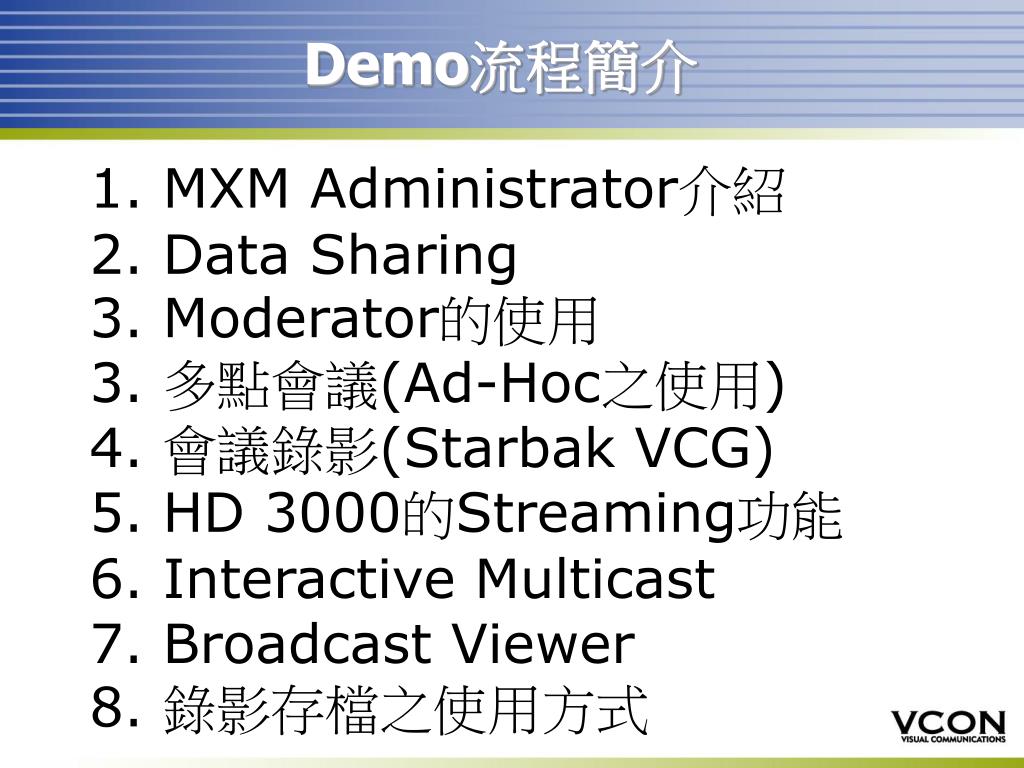

Demo流程簡介

1. MXM Administrator介紹

2. Data Sharing

3. Moderator的使用

3. 多點會議(Ad-Hoc之使用)

4. 會議錄影(Starbak VCG)

5. HD 3000的Streaming功能

6. Interactive Multicast

7. Broadcast Viewer

8. 錄影存檔之使用方式
