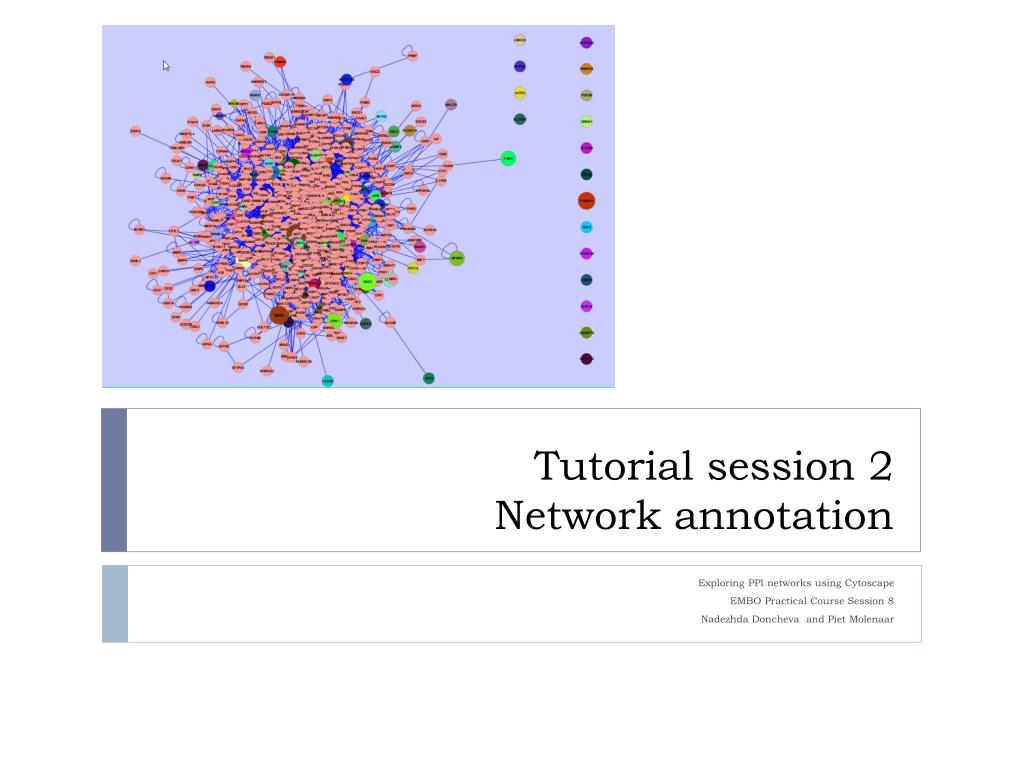

  1. Tutorial session 2Network annotation Exploring PPI networks using Cytoscape EMBO Practical Course Session 8 Nadezhda Doncheva and Piet Molenaar

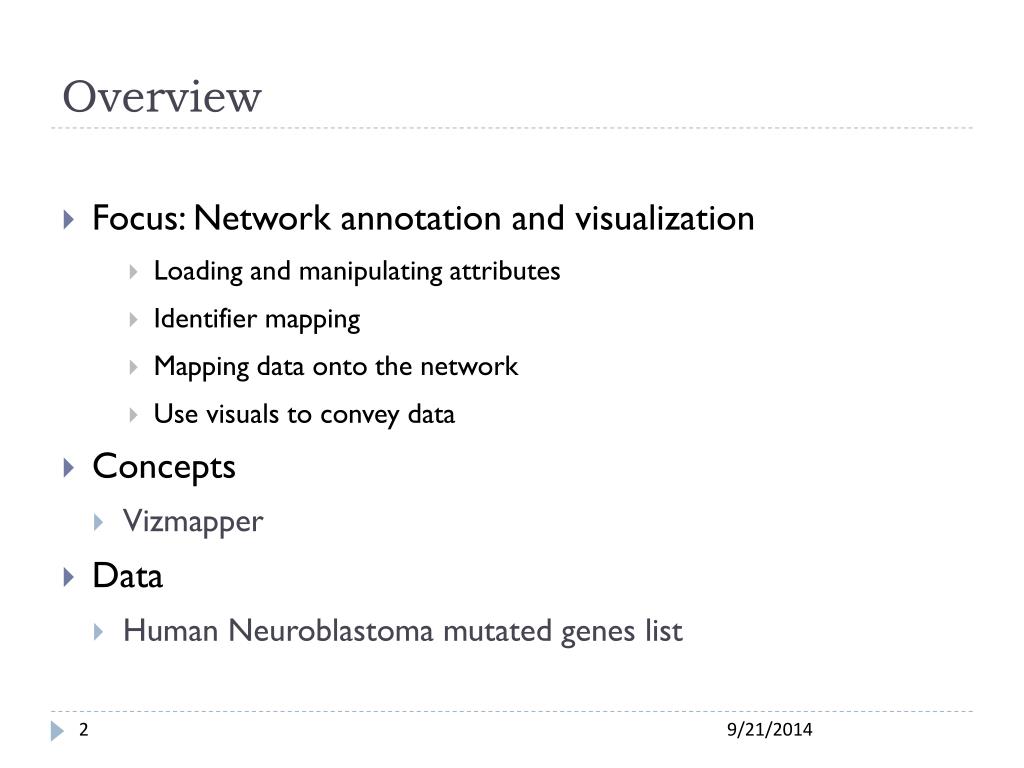

  2. Overview • Focus: Network annotation and visualization • Loading and manipulating attributes • Identifier mapping • Mapping data onto the network • Use visuals to convey data • Concepts • Vizmapper • Data • Human Neuroblastoma mutated genes list

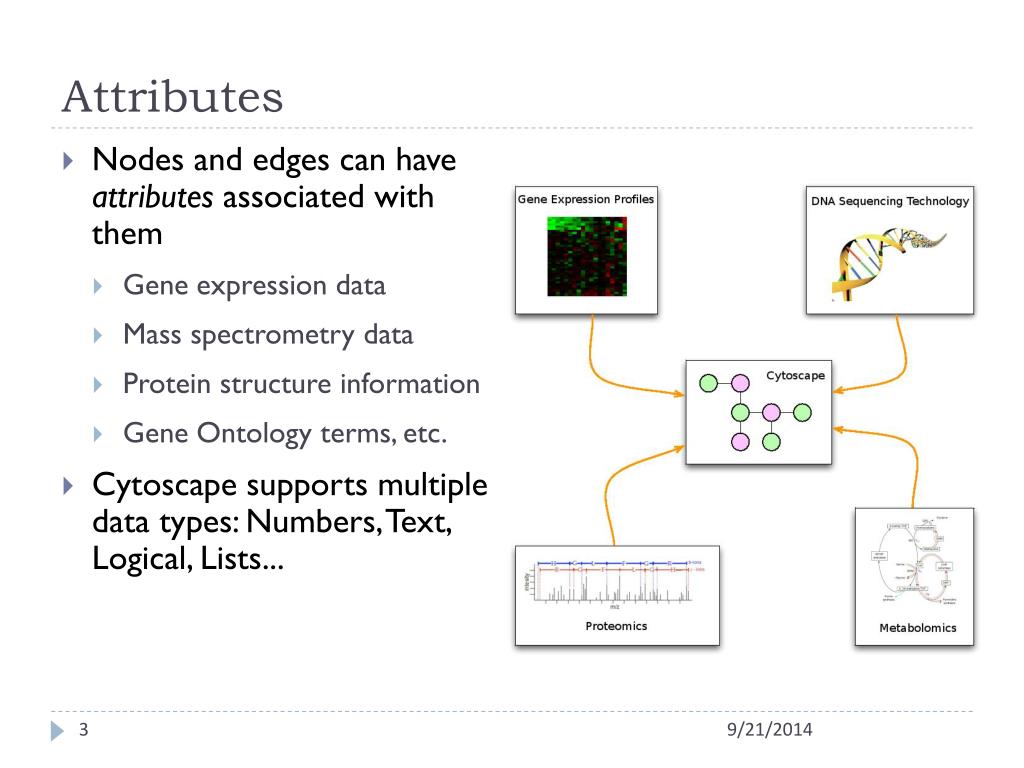

  3. Attributes • Nodes and edges can have attributes associated with them • Gene expression data • Mass spectrometry data • Protein structure information • Gene Ontology terms, etc. • Cytoscape supports multiple data types: Numbers, Text, Logical, Lists...

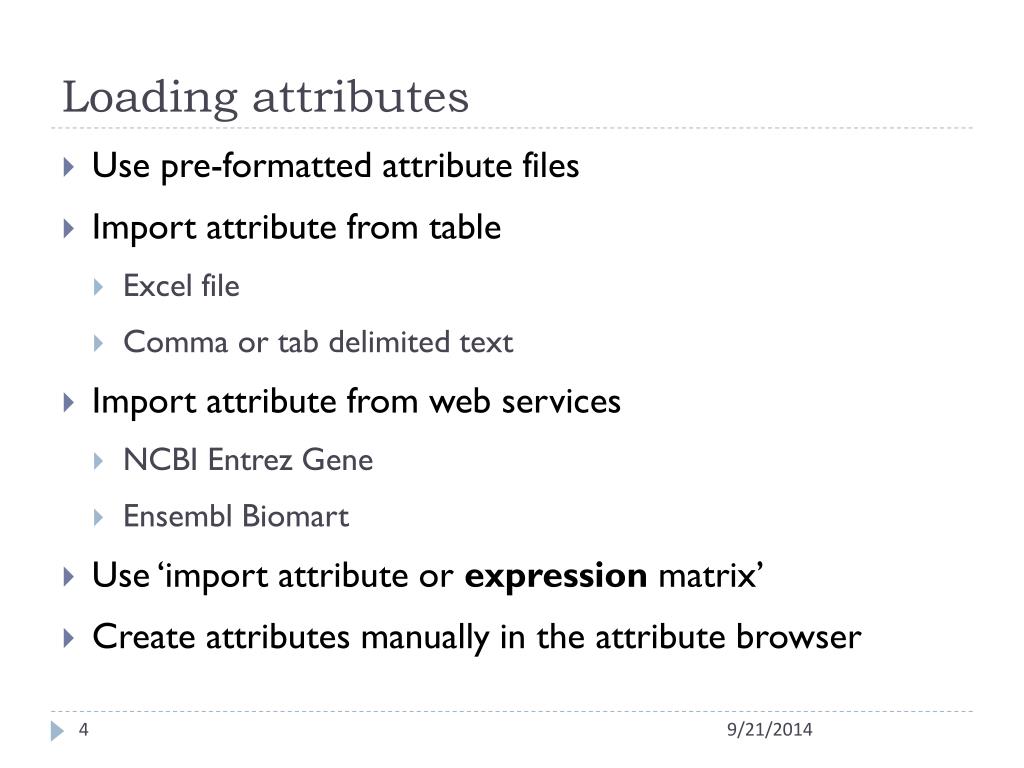

  4. Loading attributes • Use pre-formatted attribute files • Import attribute from table • Excel file • Comma or tab delimited text • Import attribute from web services • NCBI Entrez Gene • Ensembl Biomart • Use ‘import attribute or expression matrix’ • Create attributes manually in the attribute browser

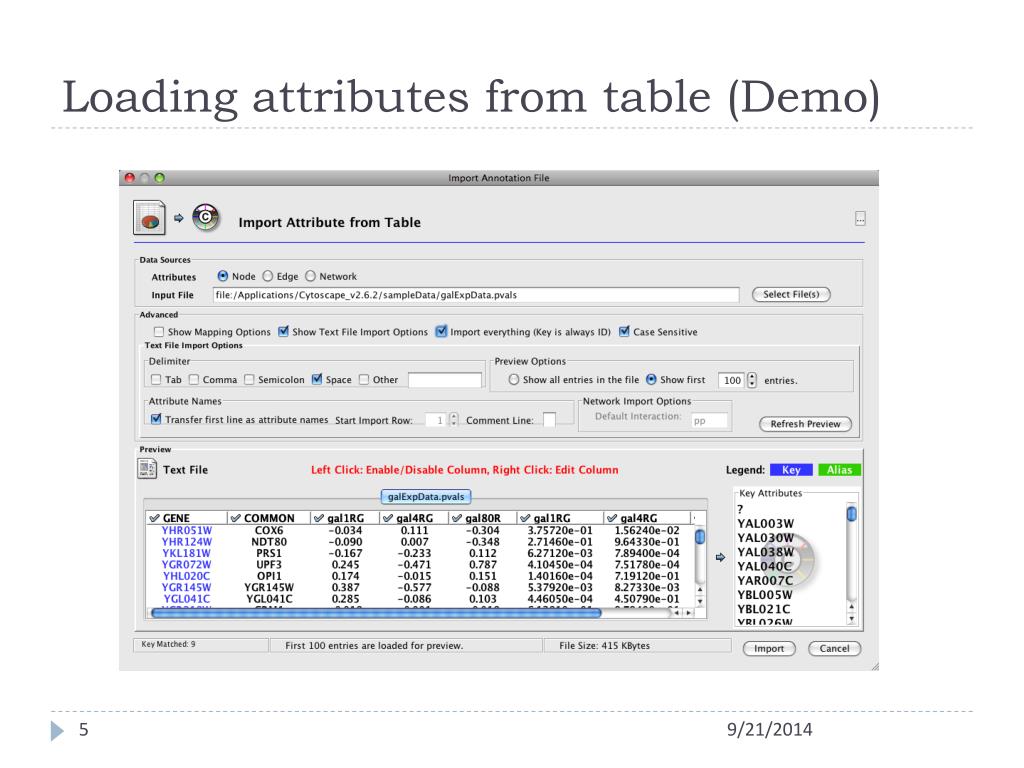

  5. Loading attributes from table (Demo)

  6. Use Case 2.1: Neuroblastoma • Childhood neuro endocrine tumor • Young children • Variable clinical outcome • Low stages • Good prognosis • Numeric changes of chromosomal copy numbers • High stages • Poor prognosis • Structural chromosomal defects (LOH1p / 11q etc) • Few gene defects identified • MYCN amplification (20%) • ALK activation (7%) • CCND1 / PHOX2B / NF1

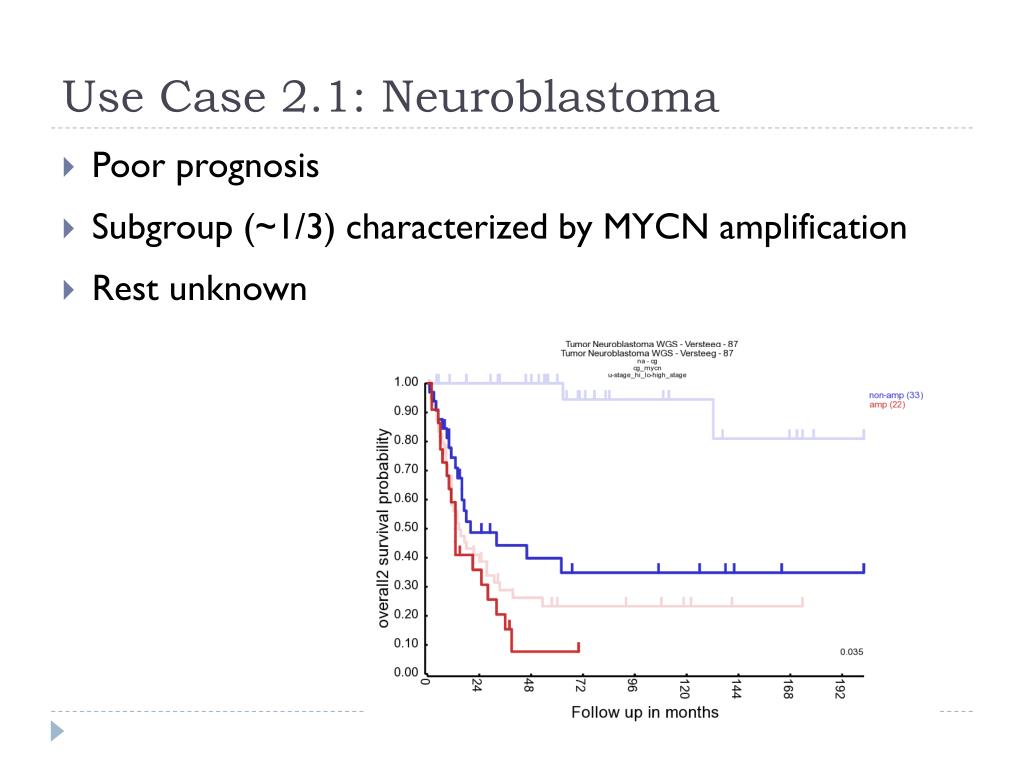

  7. Use Case 2.1: Neuroblastoma • Poor prognosis • Subgroup (~1/3) characterized by MYCN amplification • Rest unknown

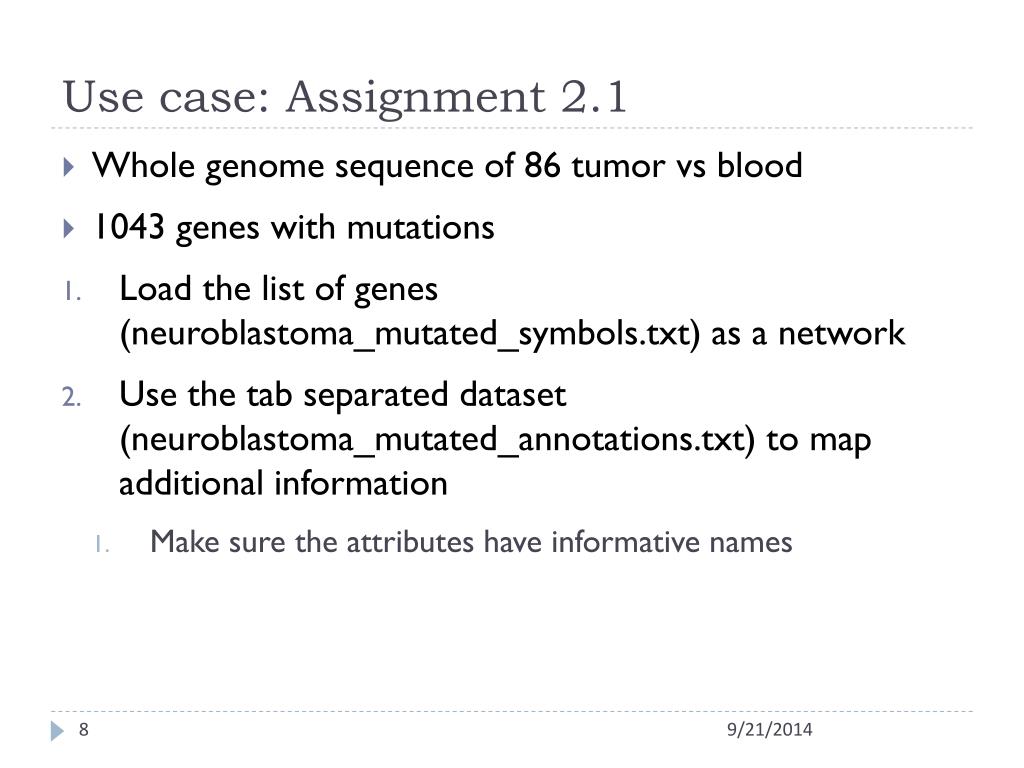

  8. Use case: Assignment 2.1 • Whole genome sequence of 86 tumor vs blood • 1043 genes with mutations • Load the list of genes (neuroblastoma_mutated_symbols.txt) as a network • Use the tab separated dataset (neuroblastoma_mutated_annotations.txt) to map additional information • Make sure the attributes have informative names http://cytoscape.org/manual/Cytoscape2_8Manual.html#Import Attribute Table Files

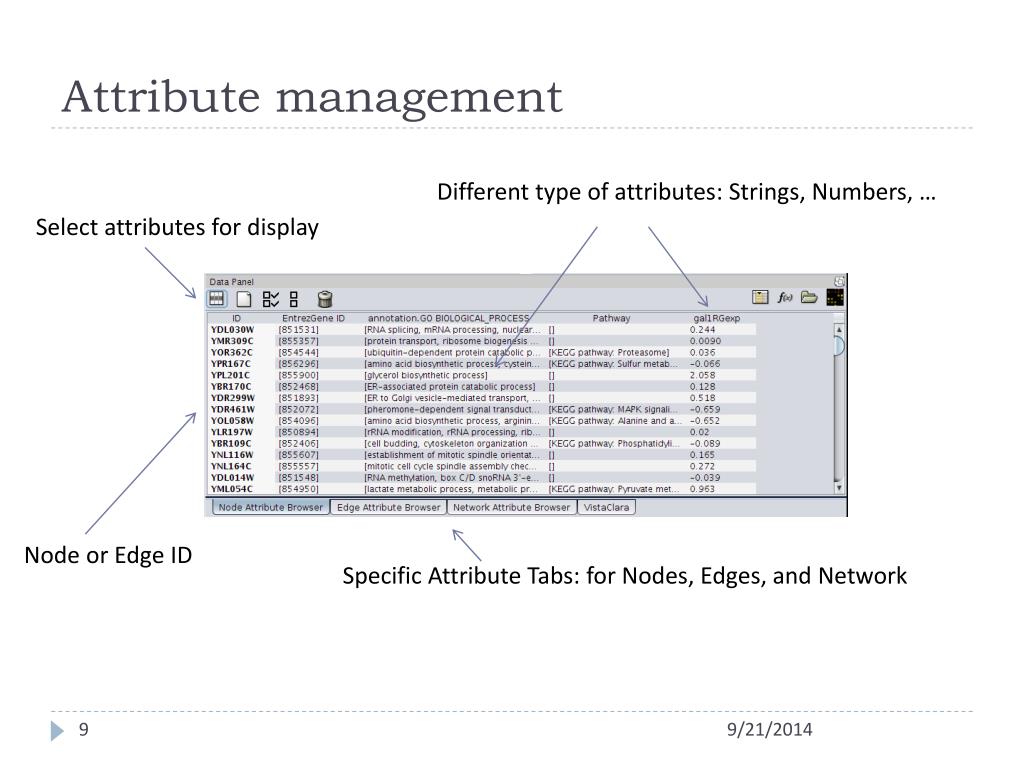

  9. Attribute management Different type of attributes: Strings, Numbers, … Select attributes for display Node or Edge ID Specific Attribute Tabs: for Nodes, Edges, and Network

  10. Tips & Tricks: Root Graph and sessions • ”There is one graph to rule them all...” • The networks in Cytoscape are all ”views” on a single graph. • Changing the attribute for a node in one network will also change that attribute for a node with the same ID in all other loaded networks • There is no way to ”copy” a node and keep the same ID  Make a copy of the session

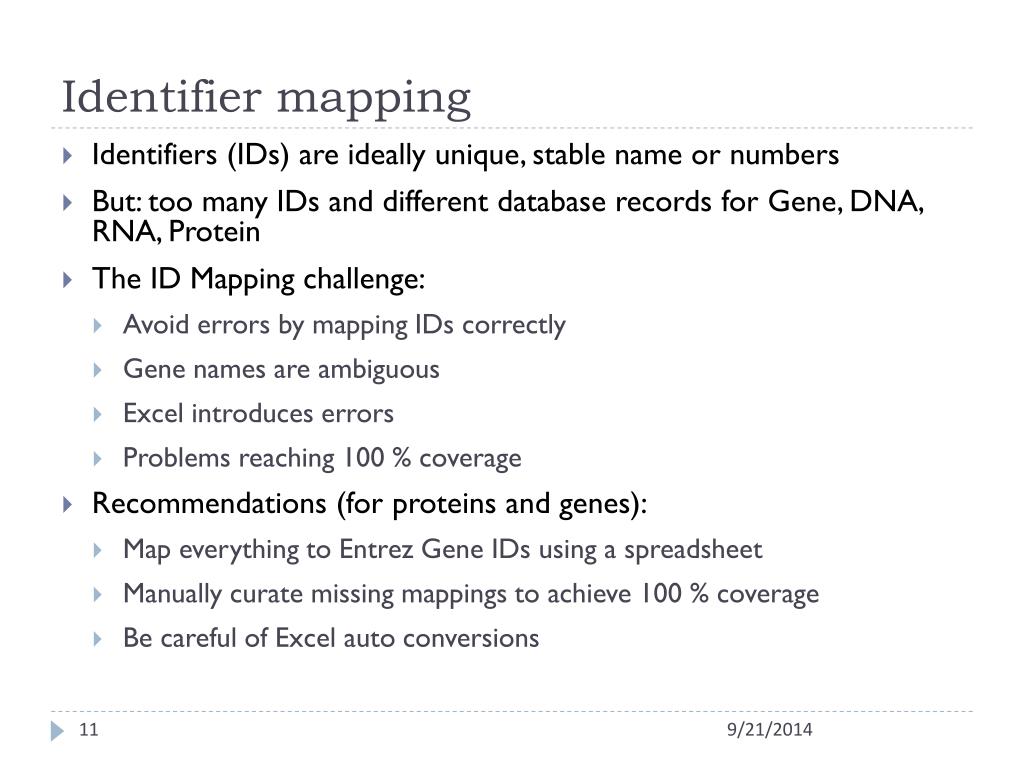

  11. Identifier mapping • Identifiers (IDs) are ideally unique, stable name or numbers • But: too many IDs and different database records for Gene, DNA, RNA, Protein • The ID Mapping challenge: • Avoid errors by mapping IDs correctly • Gene names are ambiguous • Excel introduces errors • Problems reaching 100 % coverage • Recommendations (for proteins and genes): • Map everything to Entrez Gene IDs using a spreadsheet • Manually curate missing mappings to achieve 100 % coverage • Be careful of Excel auto conversions

  12. Identifier mapping (Demo)

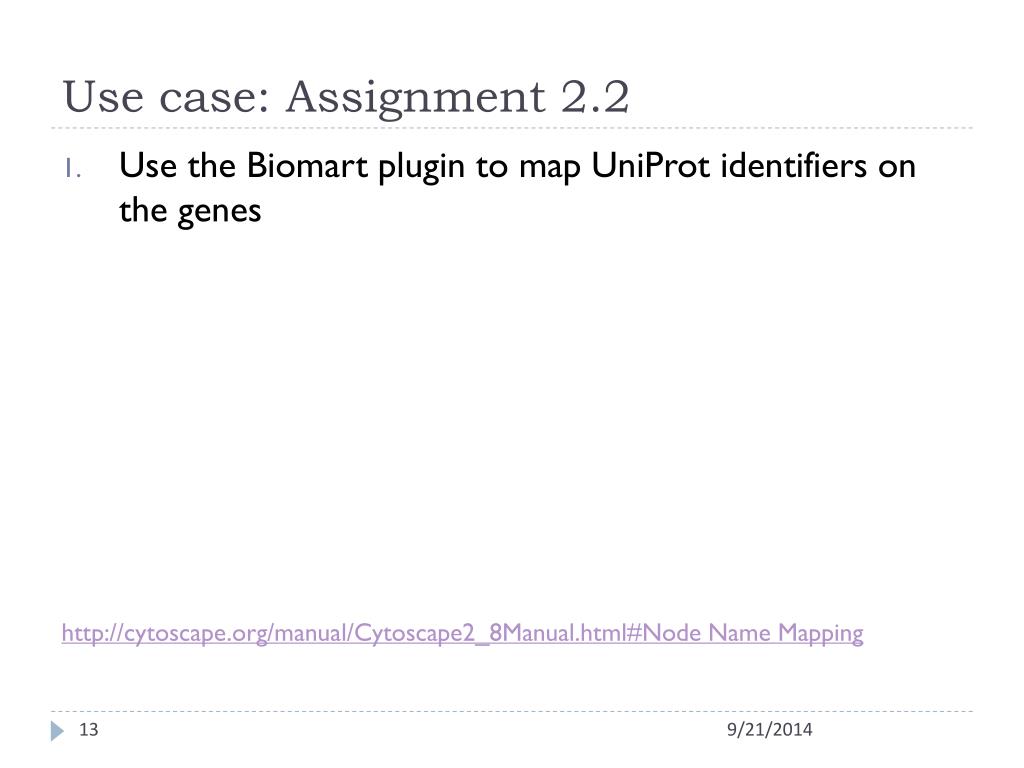

  13. Use case: Assignment 2.2 • Use the Biomart plugin to map UniProt identifiers on the genes http://cytoscape.org/manual/Cytoscape2_8Manual.html#Node Name Mapping

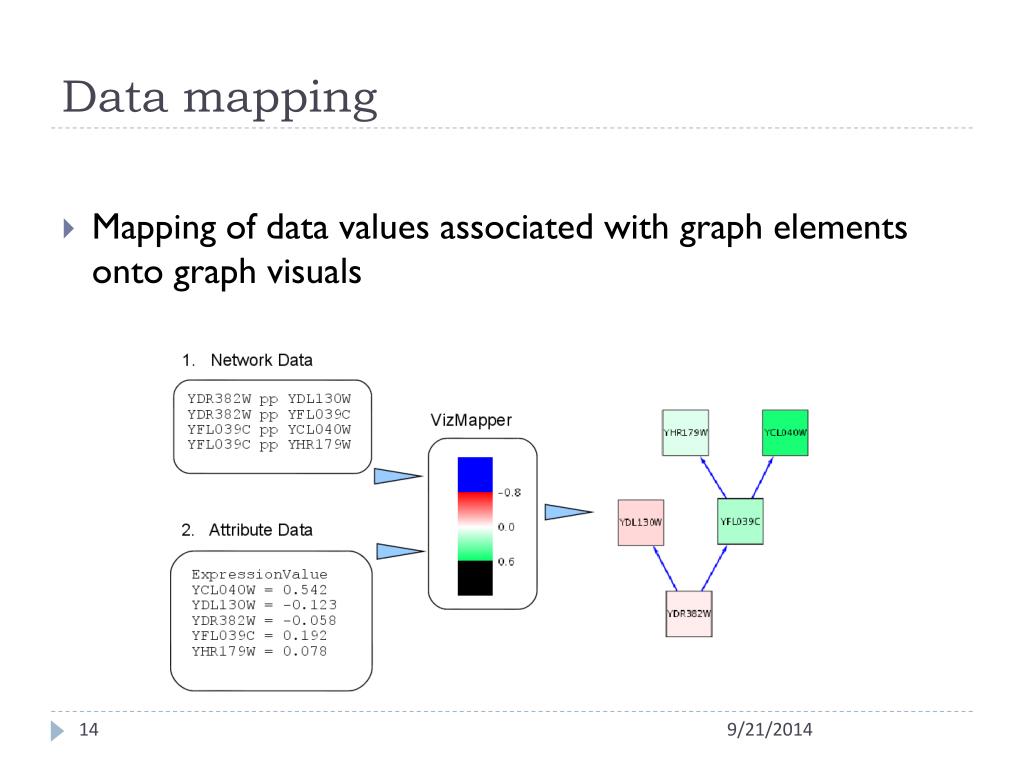

  14. Data mapping • Mapping of data values associated with graph elements onto graph visuals

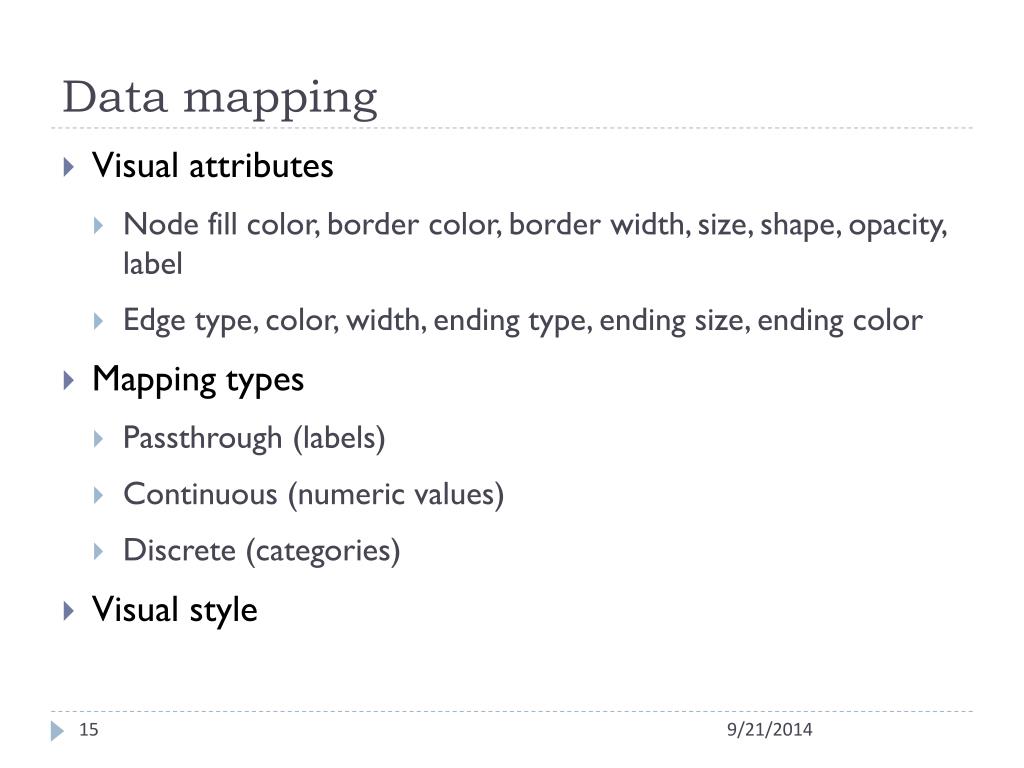

  15. Data mapping • Visual attributes • Node fill color, border color, border width, size, shape, opacity, label • Edge type, color, width, ending type, ending size, ending color • Mapping types • Passthrough (labels) • Continuous (numeric values) • Discrete (categories) • Visual style

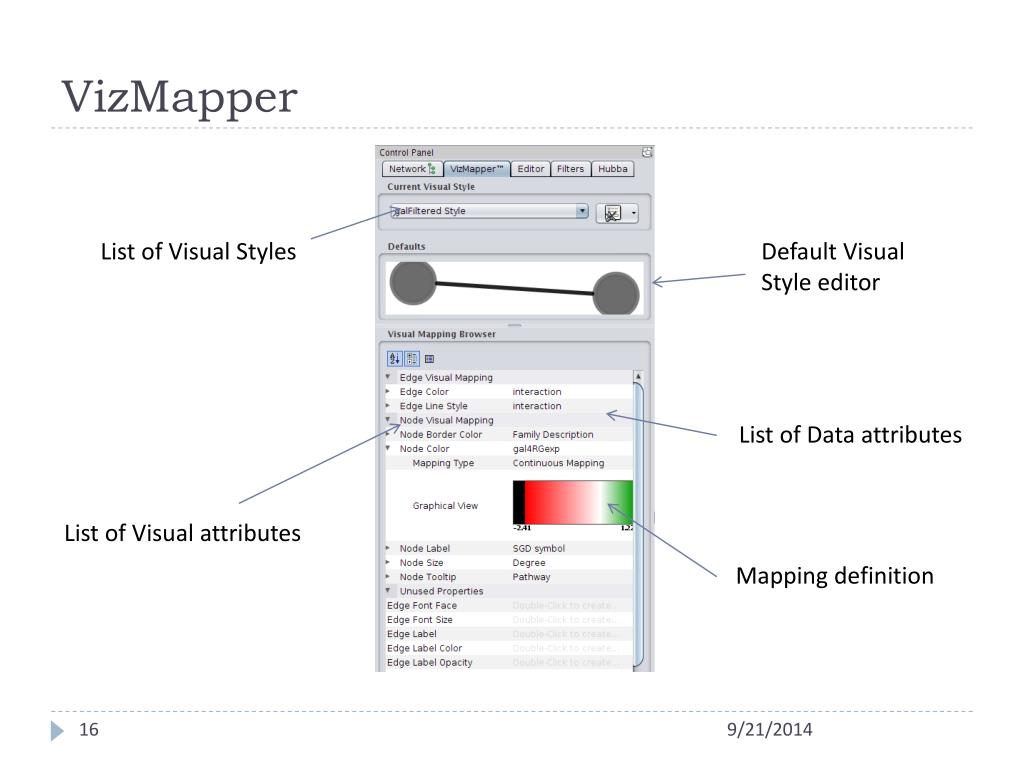

  16. VizMapper List of Visual Styles Default Visual Style editor List of Data attributes List of Visual attributes Mapping definition

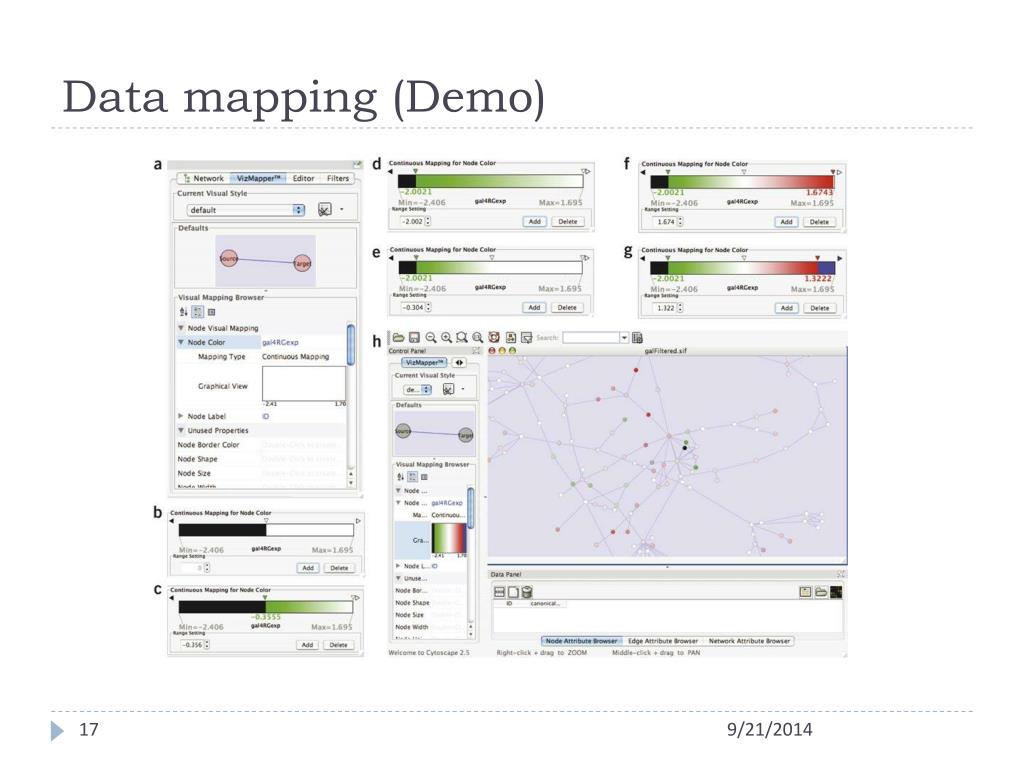

  17. Data mapping (Demo)

  18. Tips & Tricks: Data mapping • Avoid cluttering your visualization with too much data • Map the data you are specifically interested in to call out meaningful differences • Mapping too much data to visual attributes may just confuse the viewer • Create multiple networks and map different values

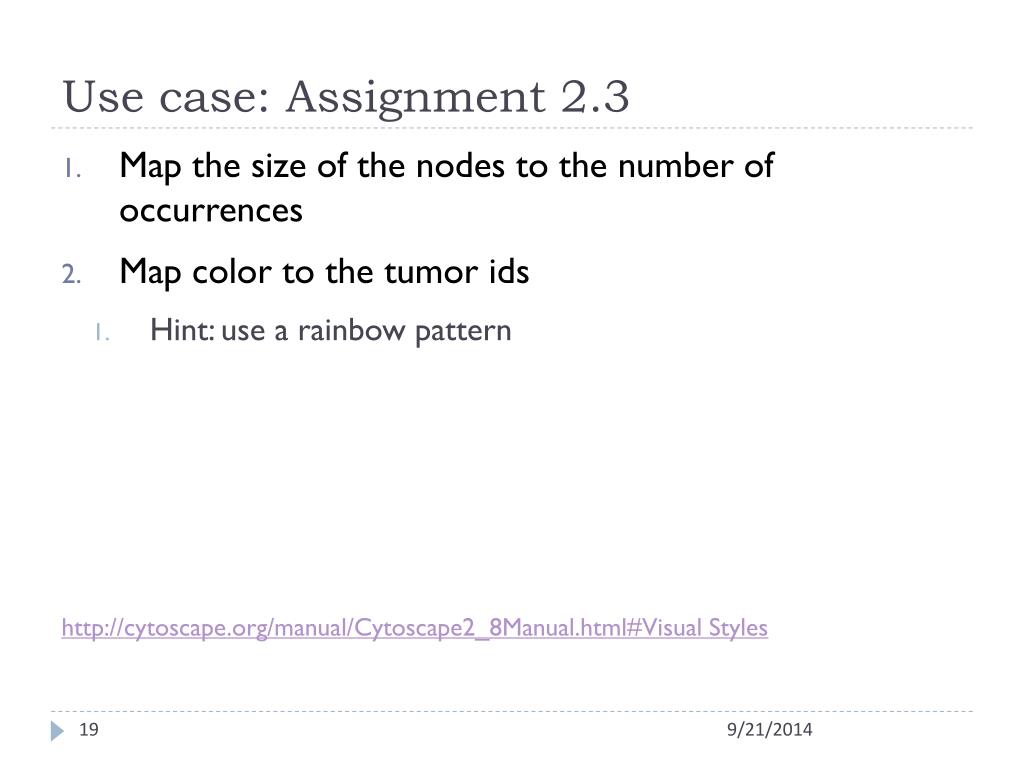

  19. Use case: Assignment 2.3 • Map the size of the nodes to the number of occurrences • Map color to the tumor ids • Hint: use a rainbow pattern http://cytoscape.org/manual/Cytoscape2_8Manual.html#Visual Styles

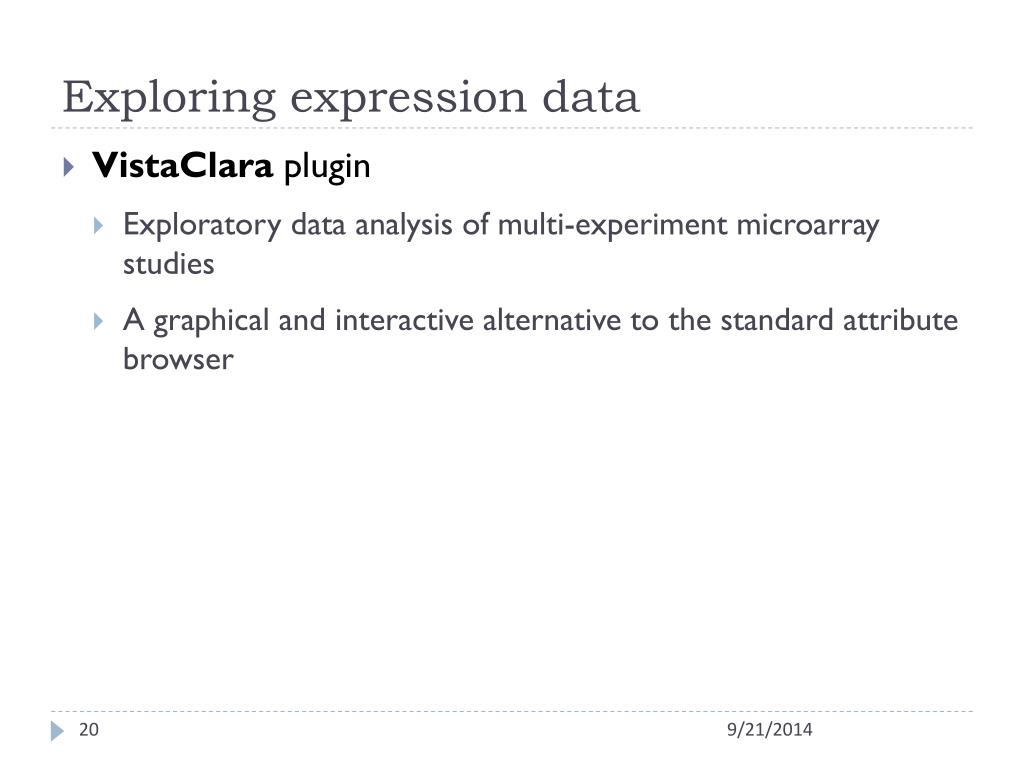

  20. Exploring expression data • VistaClara plugin • Exploratory data analysis of multi-experiment microarray studies • A graphical and interactive alternative to the standard attribute browser

  21. VistaClara (Demo)

  22. Filtering & editing data • Use filters • QuickFind nodes and edges • Index the network based on a node or edge attribute • Dynamic filtering for numerical attributes • Build complex filters using AND, OR, NOT relations • Define topological filters (considers properties of near-by nodes) • Create subnetworks

  23. Filtering & editing data (Demo)

  24. Use case: Assignment 2.4 • What is the gene with most mutations? • Filter the network for genes with more than one mutation (why?) and save the new network. • Use the Bisogenet plugin... • ...to find interactions among these • ...to find interactions among these and their first neighbours (or explore different settings of Bisogenet according to your taste) • Store your session for later use http://cytoscape.org/manual/Cytoscape2_8Manual.html#Finding and Filtering Nodes and Edges http://bio.cigb.edu.cu/biso/BisoGenet_User_Manual.pdf

  25. To be continued… • Build, visualize and analyze your own network with Cytoscape • Network generation • Network annotation and visualization • Network analysis • Identify active subnetworks • Analyze Gene Ontology enrichment • Perform topological analysis • Find network clusters • Find network motifs
