Presentation Transcript
european advances in supermarket refrigeration leak reduction

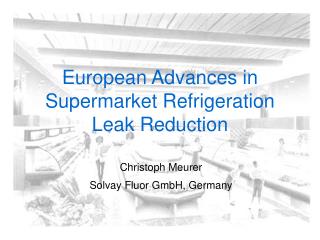

European Advances in Supermarket Refrigeration Leak Reduction

Christoph Meurer

Solvay Fluor GmbH, Germany

agenda
Agenda
  • European Supermarkets
    • Business Specifics
    • Refrigeration Specifics
  • European Legislation and Standards
  • Emission results from the field
market structure germany
Market Structure Germany

European Supermarkets – Business Specifics

european supermarkets
European Supermarkets

Average Retail Space [m²]

European Supermarkets – Business Specifics

european supermarkets5
European Supermarkets
  • Shops are generally smaller
  • Deviations in business structure from country to country
  • Discounters are gaining popularity – especially in GER

European Supermarkets – Business Specifics

european supermarkets6
European Supermarkets

Conventional Multiplex

Low-Charge Multiplex

European Supermarkets – Refrigeration Specifics

european supermarkets7
European Supermarkets
  • Accessability of pipework key design criteria for Supermarket chains
  • Leak test methods are being optimised (pressure drop tests overrated / new detectors find leaks < 5g/anno)
  • Nr. of flares reduced
  • Total pipe length reduced

European Supermarkets – Refrigeration Specifics

european supermarkets8
European Supermarkets
  • Capacity of refrigeration packages relatively small  typical GER supermarket:75 kW medium / 35 kW low
  • Discounter markets (GER) usually operate with plug-in freezers for low temp and distributed systems for medium temp

European Supermarkets – Refrigeration Specifics

stek regulation nl
STEK Regulation (NL)
  • Design Criteria
    • Pipes shall be joined by welded or brazed joints
    • Flares joints shall not be used
    • Detailed requirements for relief / safety valves (usually blowing to low pressure side not ambient)
    • Systems > 300kg shall be located in machinery rooms (min. compressor racks)
    • ….

European Supermarkets – Legislation

stek regulation nl10
STEK Regulation (NL)
  • Service Criteria
    • Systems with charge > 3kg shall be inspected annually
    • Systems with charge > 1000kg shall be under constant supervision
    • Logbooks must be kept for all systems > 3kg charge
    • Refill / top up only permitted if leak is identified

European Supermarkets – Legislation

european legislation
European Legislation

EU F-GAS Regulation (Draft)

  • Service / Maintenance regulation framework similar to NL STEK
  • Mandatory service intervalls:
    • charge > 3kg every 6 months
    • charge > 300kg every 3 months
  • Legal Base for that part is „Protection of the environment“  member states may install additional requirements

European Supermarkets – Legislation

european standardisation
European Standardisation

EN 378-2000

  • No flared joints for pipes between 9mm and 19mm
  • Flared joints shall not be used to connect TXVs
  • Operating party must keep logbooks of refrigerant consumption

European Supermarkets – Standardisation

european supermarkets13
European Supermarkets

Location and Severity of Leaks*

Survey and long term of analysis of

62 supermarket refrigeration systems

in two German states.

Charge size from <10 to >360 kg

  • 96% of the total refrigerant loss was through field assembled joints
  • 15% of the leaks were responsible for 85% of refrigerant loss
  • 21,6% of all detected leaks where flared joints – They are responsible for close to 50% of lost refrigerant

* FKT Study – Leak tightness of Refrigeration Systems (1999, ILK Drseden)

Emission Results from the field

german tightness study
German Tightness Study*
  • 0,16% of brazed joints had leaks
  • Systems with substantial leaks over long periods had leaks in unaccessible parts of the system

* FKT Study – Leak tightness of Refrigeration Systems (1999, ILK Drseden)

Emission Results from the field

german tightness study15
German Tightness Study*

Annual Leakages from Supermarket Systems [%]

* FKT Study – Leak tightness of Refrigeration Systems (1999, ILK Drseden)

Emission Results from the field

german industry targets
German Industry Targets*

Avg. annual Leaks from stationary Systems [%]

FKT Study – Improving Leak tightness of Refrigeration Systems (2003, ILK Drseden)

statistics from nl
Statistics from NL
  • Overall leakage rate < 4.5% (2000)
  • Leackage rate per sector
    • AC < 1%, Process < 1%, industrial < 5%
    • Fishing industry 80% … 200%
  • Tremendous reduction (50%) of refrigerant market in spite of economical grow
  • Elimination of odd-jobbers/fly-by-nighters
  • Increased fleet efficiency (service)
summary
Summary
  • Business Structure in Europe different from US
  • Means for leak reduction are often simple
  • Some areas (NL/GER) have demonstrated that very tight DX systems are possible
  • Target values of 2% leak p.a. are realistic
  • EU legislation will address the issue
