  1. The Evaluation of Cutting-Force Coefficients Using Surface Error Measurements Journal of Materials Processing Technology 196 (2008) 42-51 Mariana Dotcheva, Huw Millward, Alan Lewis Presenter: Andrew Gerla 07 October 2009

  2. Purpose To provide a new approach for the determination of cutting forces.

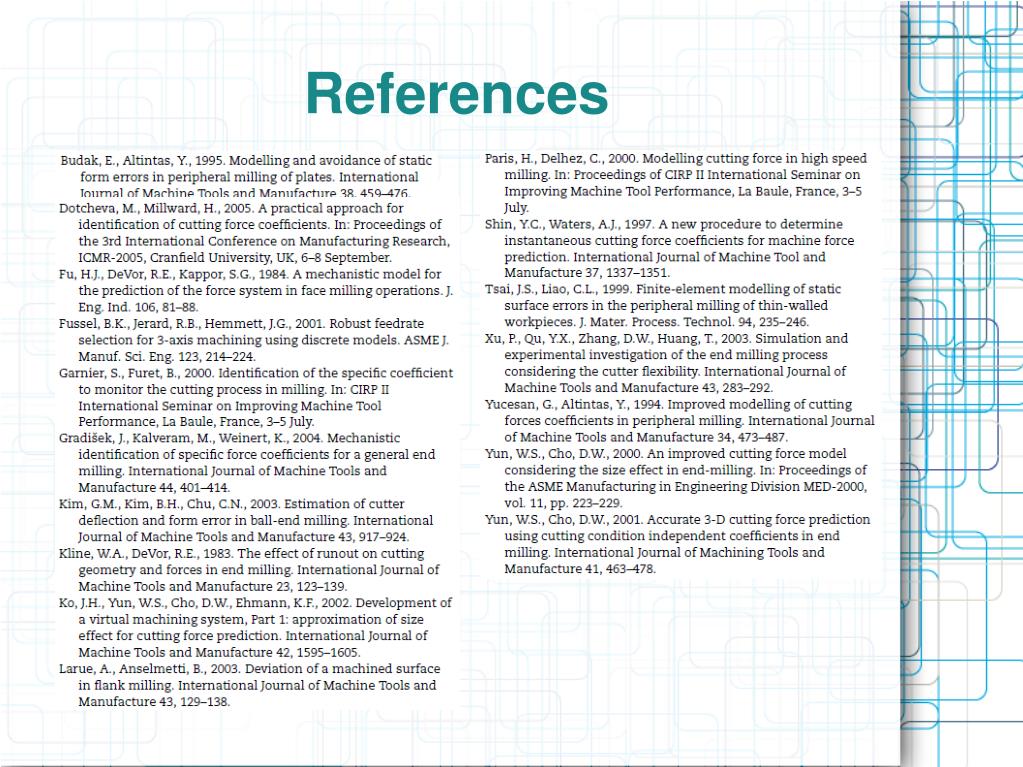

  3. References

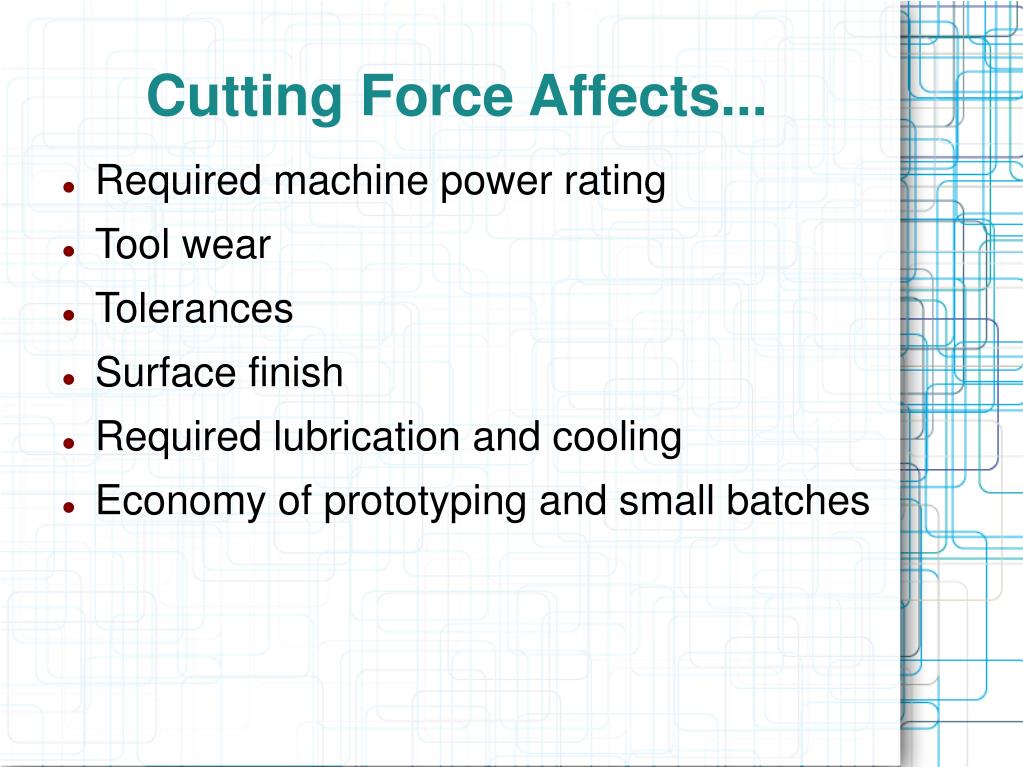

  4. Cutting Force Affects... • Required machine power rating • Tool wear • Tolerances • Surface finish • Required lubrication and cooling • Economy of prototyping and small batches

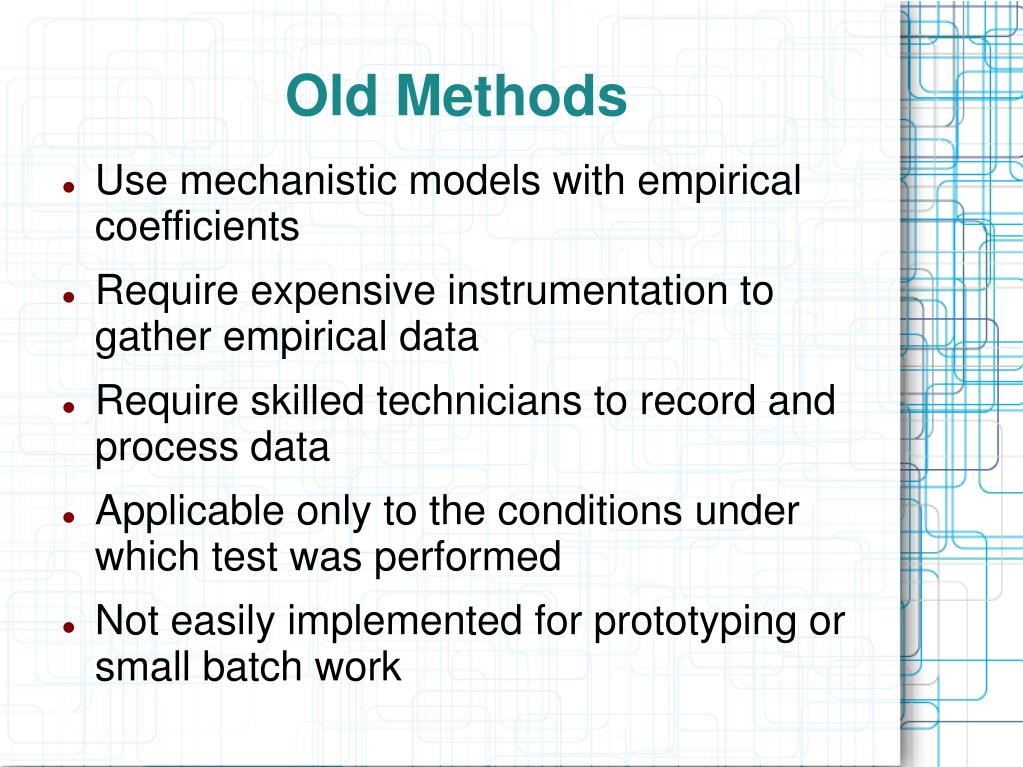

  5. Old Methods • Use mechanistic models with empirical coefficients • Require expensive instrumentation to gather empirical data • Require skilled technicians to record and process data • Applicable only to the conditions under which test was performed • Not easily implemented for prototyping or small batch work

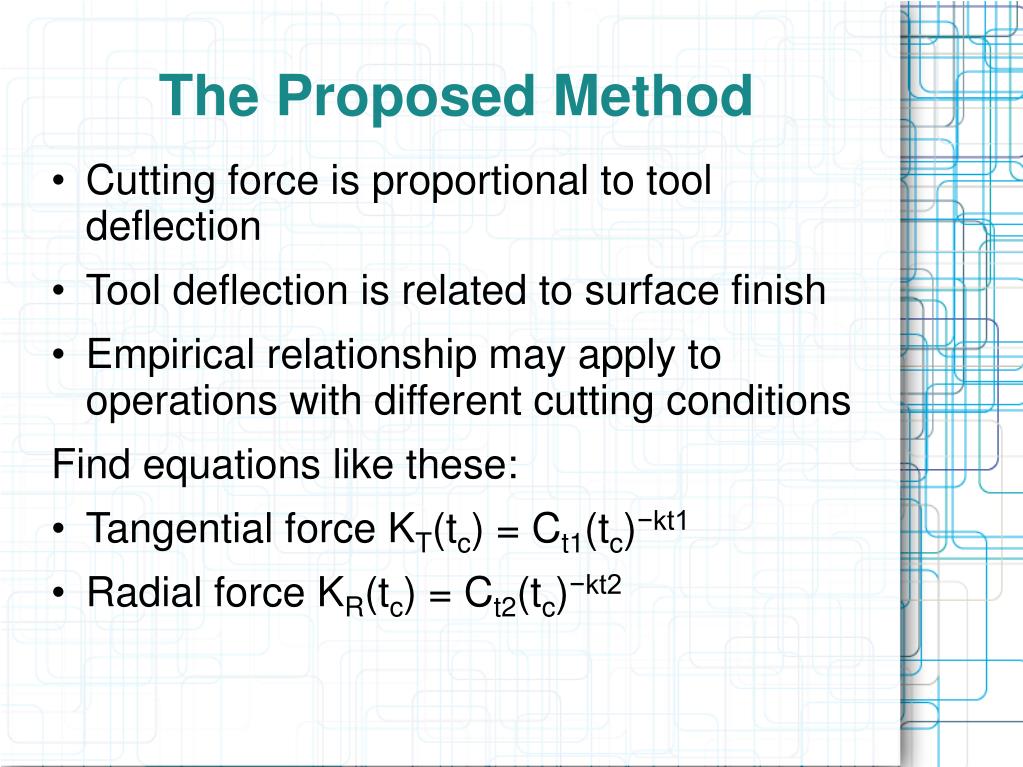

  6. The Proposed Method • Cutting force is proportional to tool deflection • Tool deflection is related to surface finish • Empirical relationship may apply to operations with different cutting conditions Find equations like these: • Tangential force KT(tc) = Ct1(tc)−kt1 • Radial force KR(tc) = Ct2(tc)−kt2

  7. Method

  8. Method • Discretize cutting tool by: • Flute • Angle of rotation • Discs normal to axis of rotation

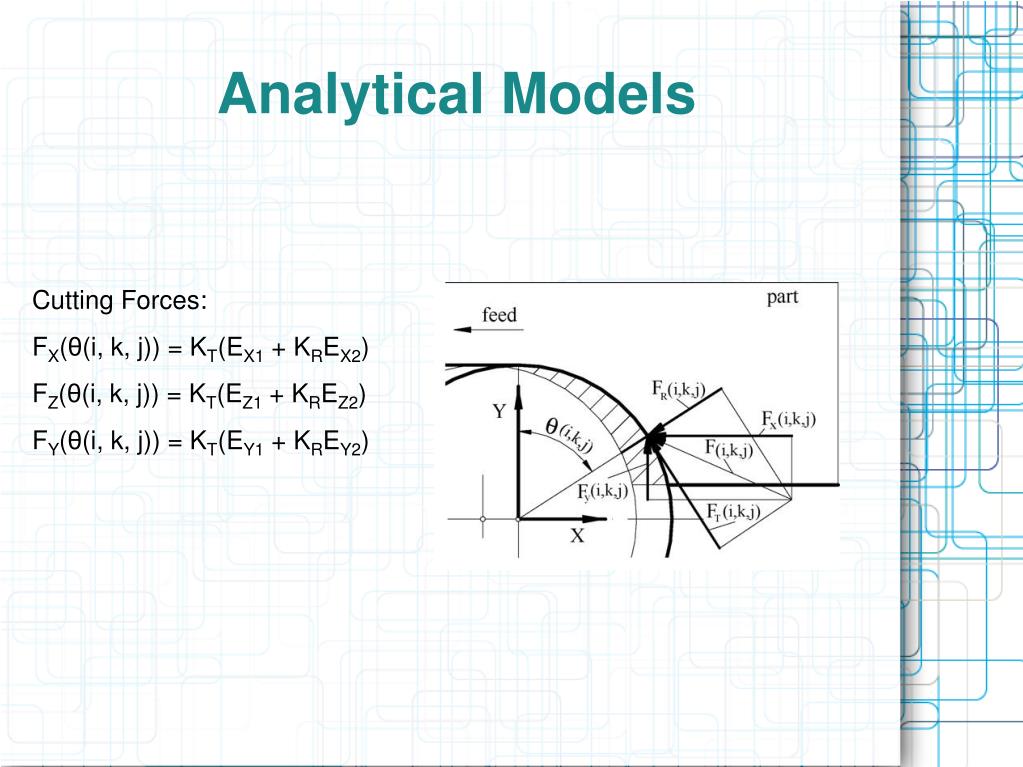

  9. Analytical Models Cutting Forces: FX(θ(i, k, j)) = KT(EX1 + KREX2) FZ(θ(i, k, j)) = KT(EZ1 + KREZ2) FY(θ(i, k, j)) = KT(EY1 + KREY2)

  10. Analytical Models Tool Deflection: δ(h) = δs + θs(h) + δt(h)

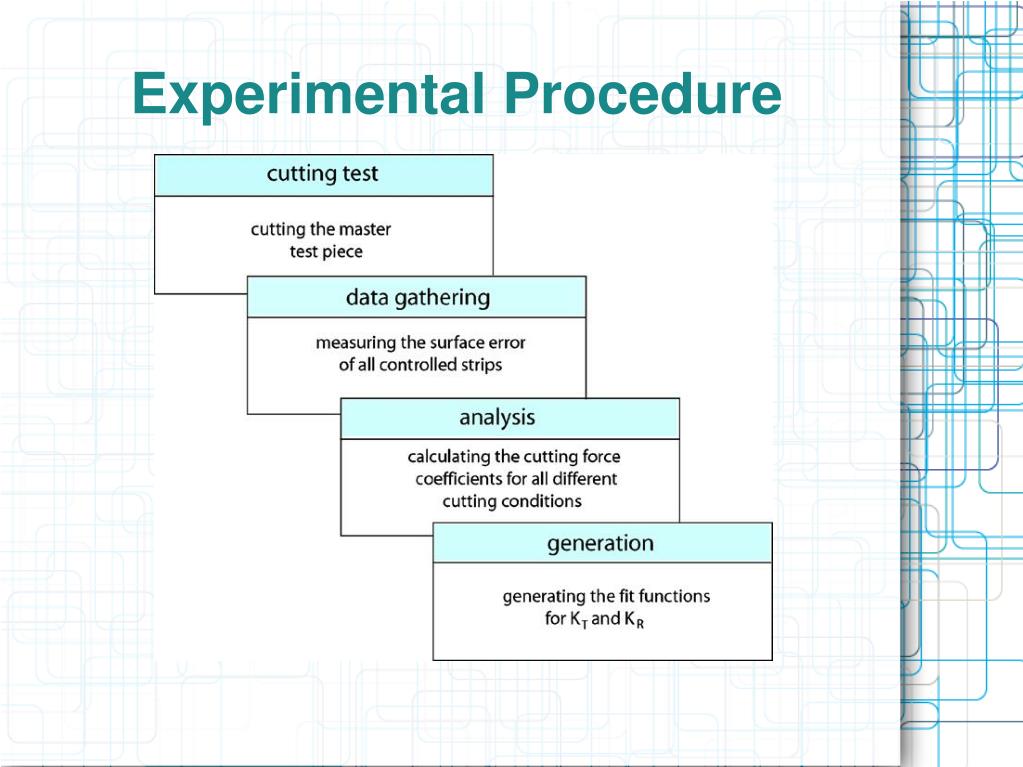

  11. Experimental Procedure

  12. Experimental ProcedureCutting Test • Cut two strips with the same cutting conditions • Vary axial depth by ∆a • Calculate difference in surface finish • Difference in surface finish mainly due to additional forces from elemental disc ∆a • 12 different feed rates

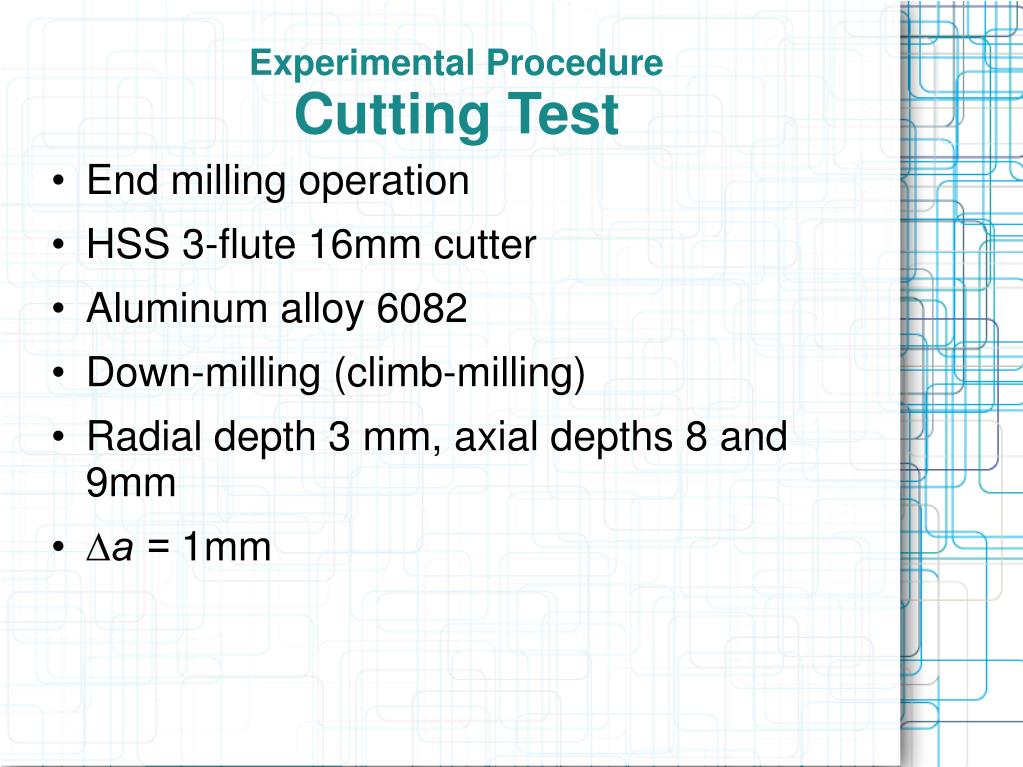

  13. Experimental ProcedureCutting Test • End milling operation • HSS 3-flute 16mm cutter • Aluminum alloy 6082 • Down-milling (climb-milling) • Radial depth 3 mm, axial depths 8 and 9mm • ∆a = 1mm

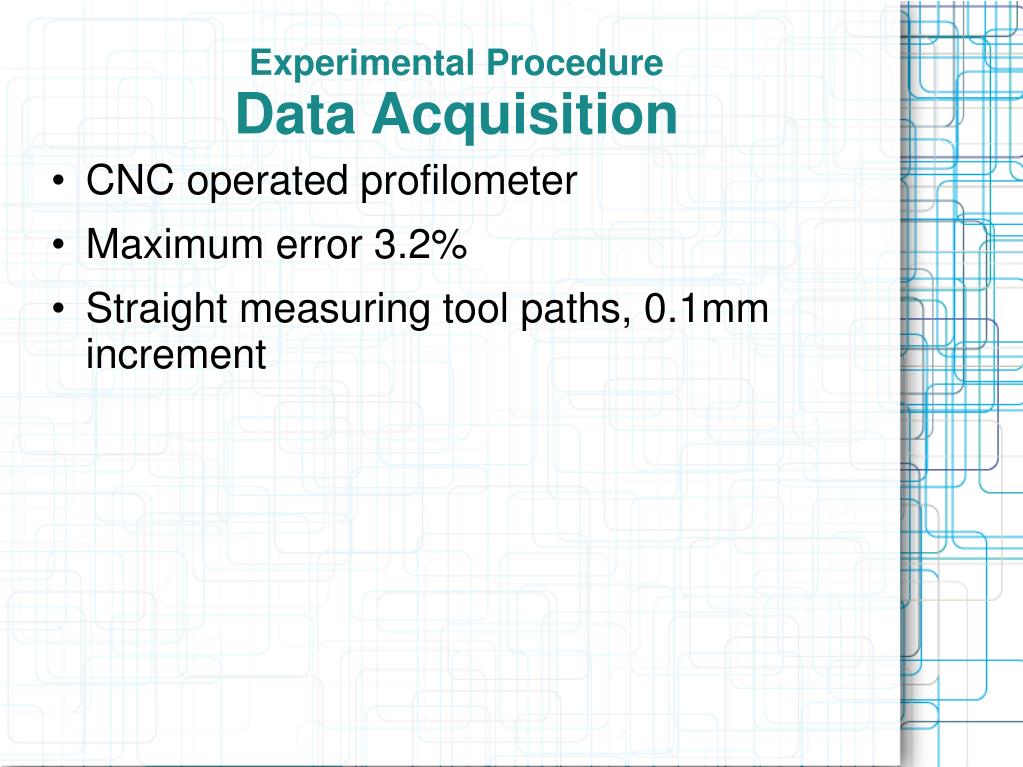

  14. Experimental ProcedureData Acquisition • CNC operated profilometer • Maximum error 3.2% • Straight measuring tool paths, 0.1mm increment

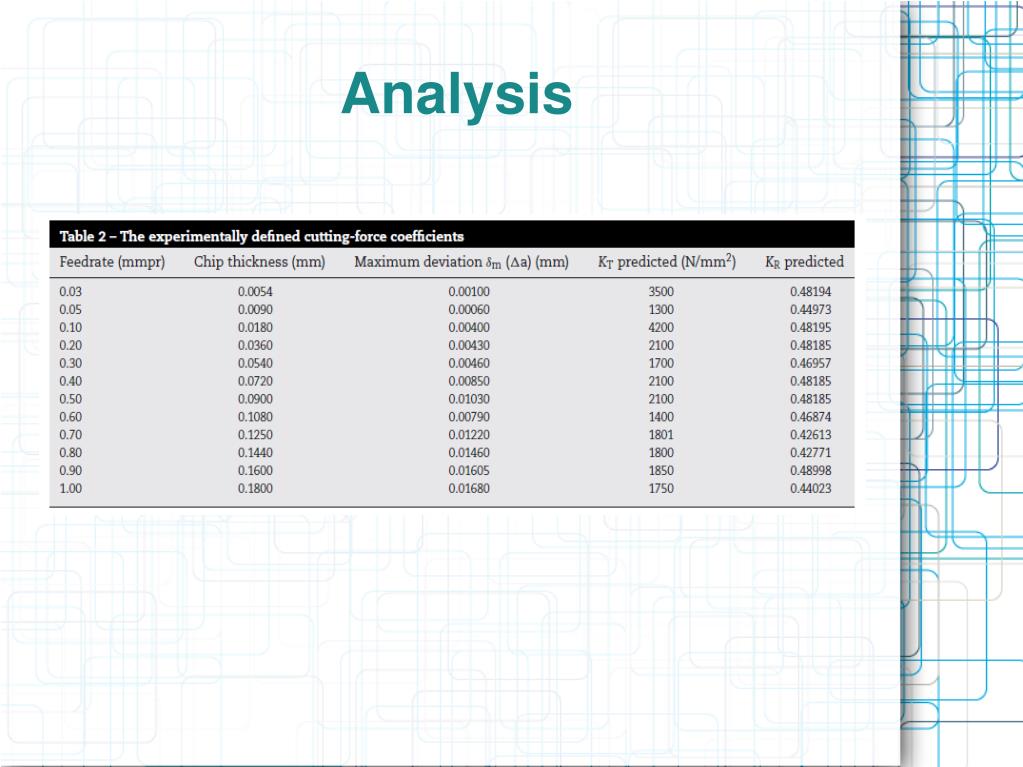

  15. Analysis

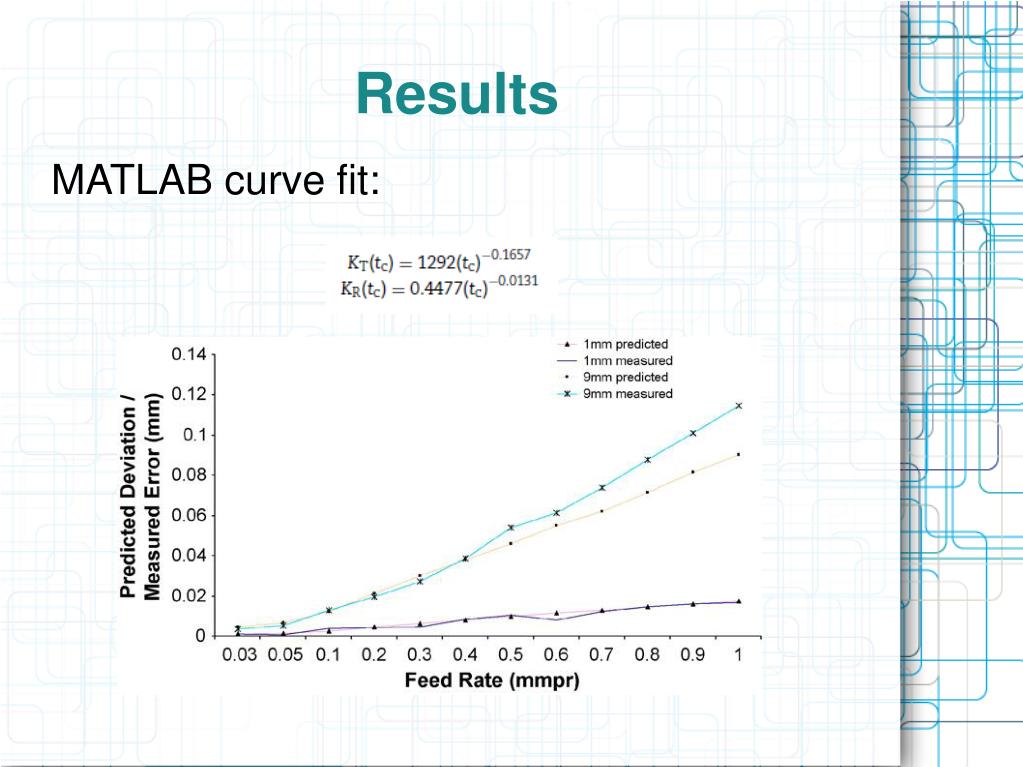

  16. Results MATLAB curve fit:

  17. Conclusions • Analytical model accurately predicts experimental data in similar cutting conditions • Uncut chip thickness can be calculated • Study needs more verification of accuracy for different cutting conditions • Different materials require different coefficients
