  1. The Nervous System

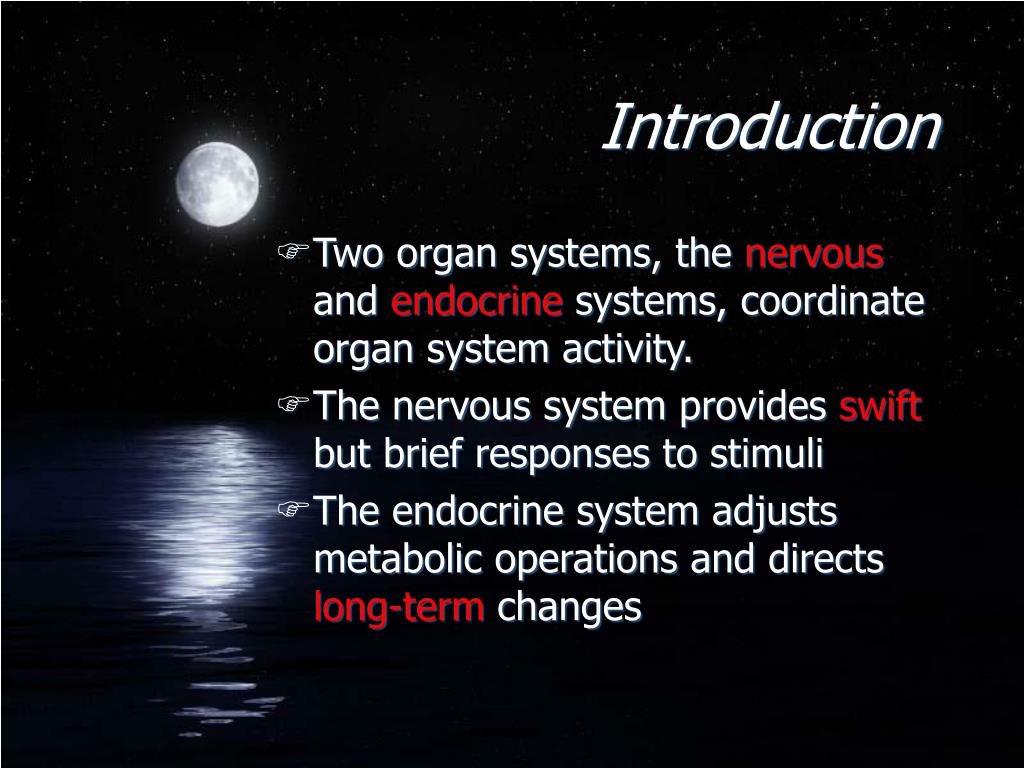

  2. Introduction • Two organ systems, the nervous and endocrine systems, coordinate organ system activity. • The nervous system provides swift but brief responses to stimuli • The endocrine system adjusts metabolic operations and directs long-term changes

  3. The Nervous System • The nervous system includes al the neural tissue in the body. • Its anatomical divisions include the central nervous system (CNS) (the brain and spinal cord • And the peripheral nervous system (PNS) (all neural tissue outside the CNS)

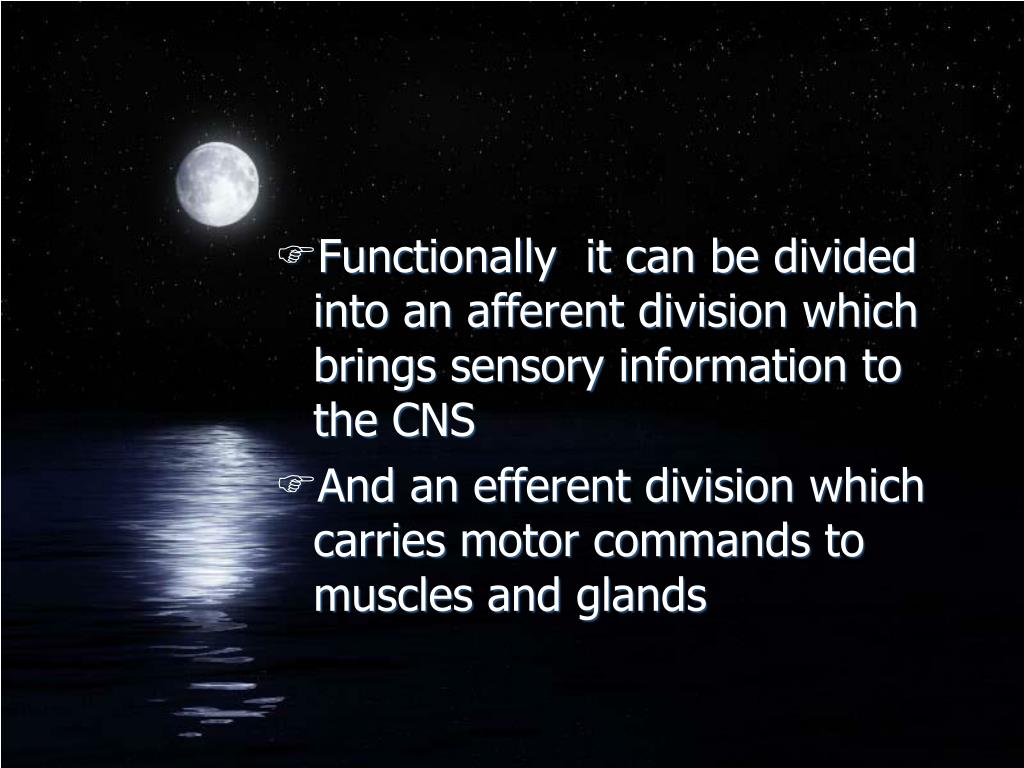

  4. Functionally it can be divided into an afferent division which brings sensory information to the CNS • And an efferent division which carries motor commands to muscles and glands

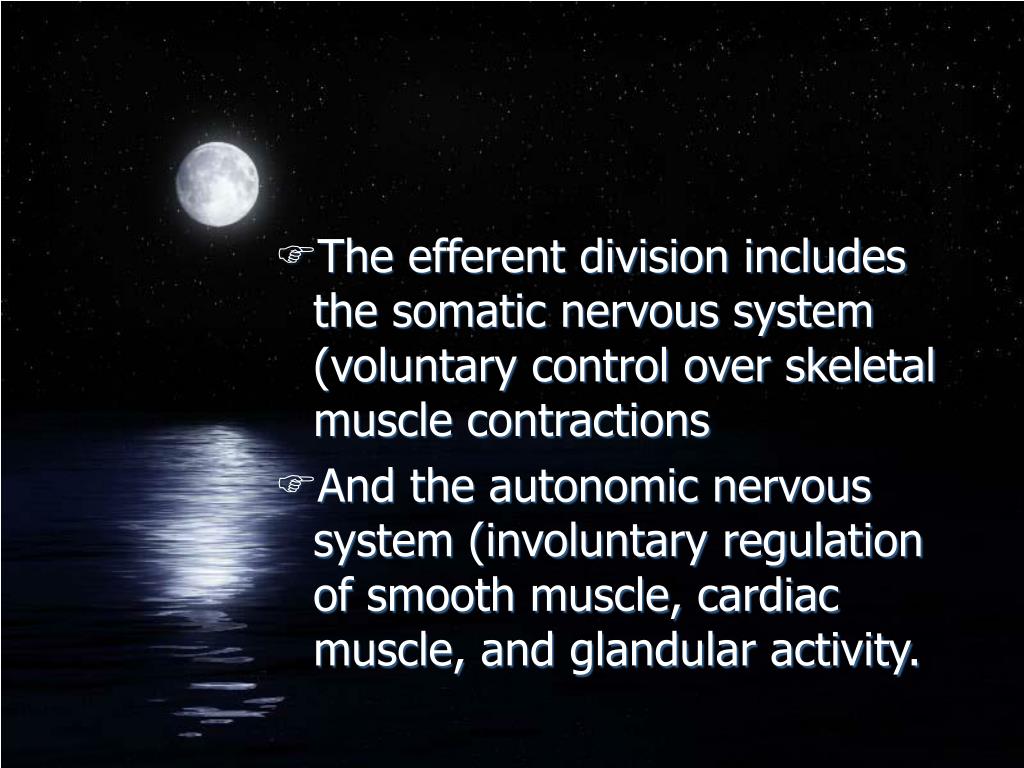

  5. The efferent division includes the somatic nervous system (voluntary control over skeletal muscle contractions • And the autonomic nervous system (involuntary regulation of smooth muscle, cardiac muscle, and glandular activity.

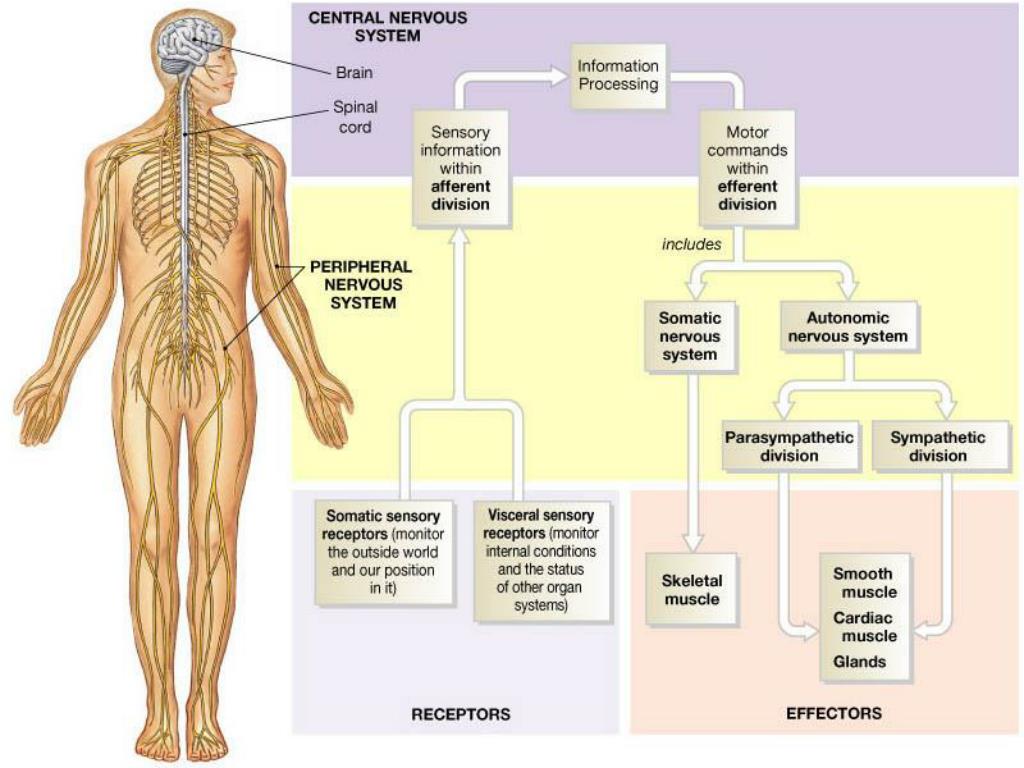

  6. 8-1

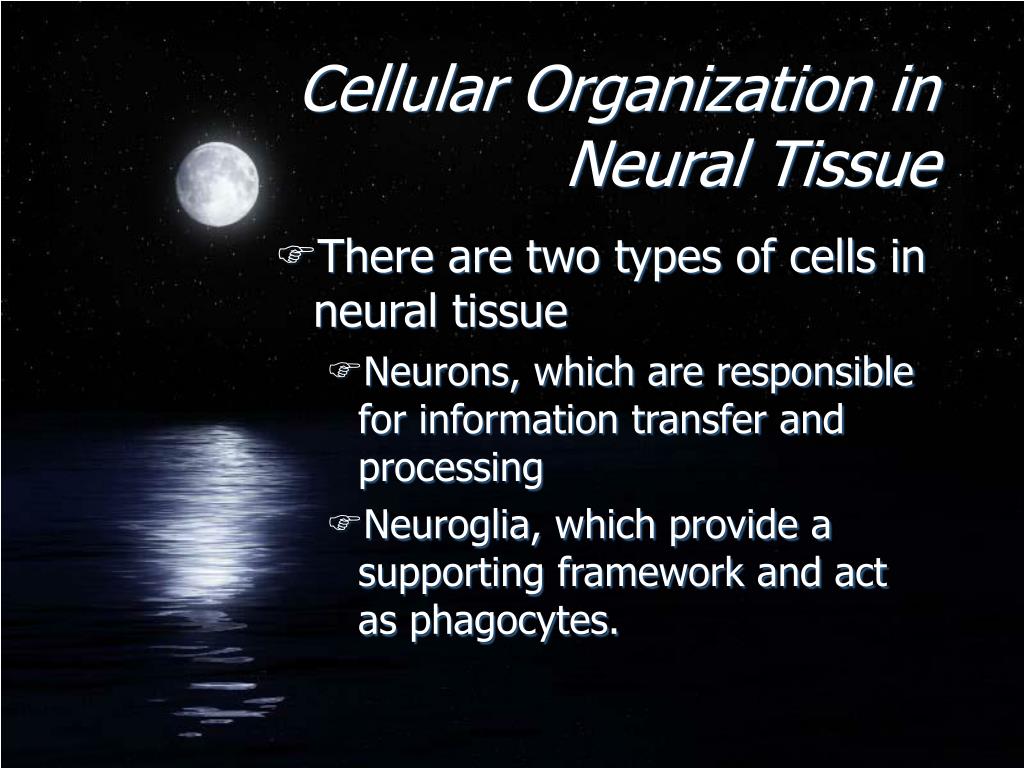

  7. Cellular Organization in Neural Tissue • There are two types of cells in neural tissue • Neurons, which are responsible for information transfer and processing • Neuroglia, which provide a supporting framework and act as phagocytes.

  8. Neurons • Sensory neurons: form the afferent division of the PNS and deliver information to the CNS • Motor neurons: stimulate or modify the activity of a peripheral tissue, organ or organ system

  9. Interneurons: may be located between sensory and motor neurons; they analyze sensory inputs and coordinate motor outputs.

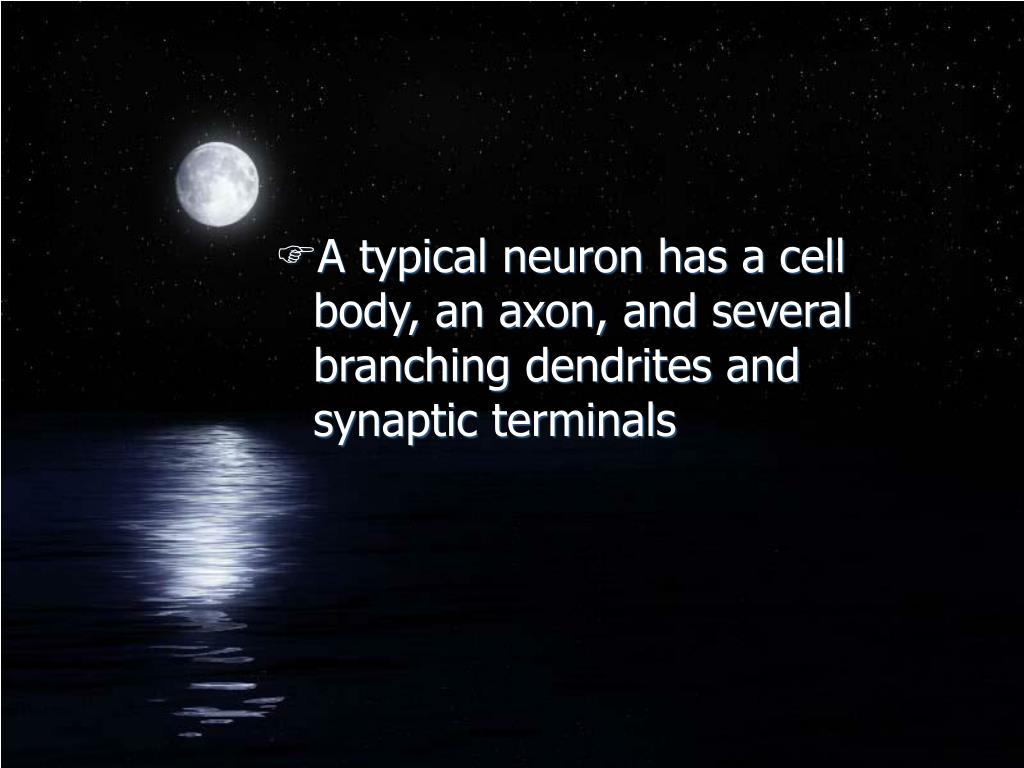

  10. A typical neuron has a cell body, an axon, and several branching dendrites and synaptic terminals

  11. 8-2

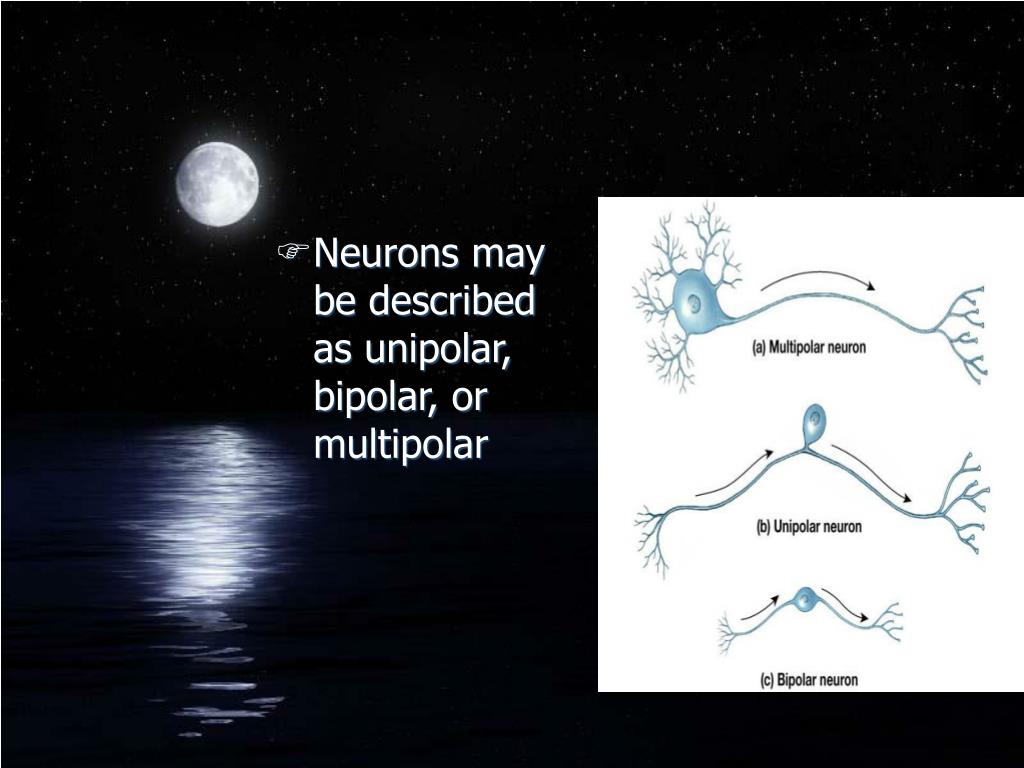

  12. Neurons may be described as unipolar, bipolar, or multipolar • 8-3

  13. Neuroglia • Four types • Astrocytes: largest and most numerous • Oligodendrocytes: myelinate CNS neurons • Microglia: phagocytic white glod cells • Ependymal: produce and help circulate cerebral spinal fluid

  14. 8-4

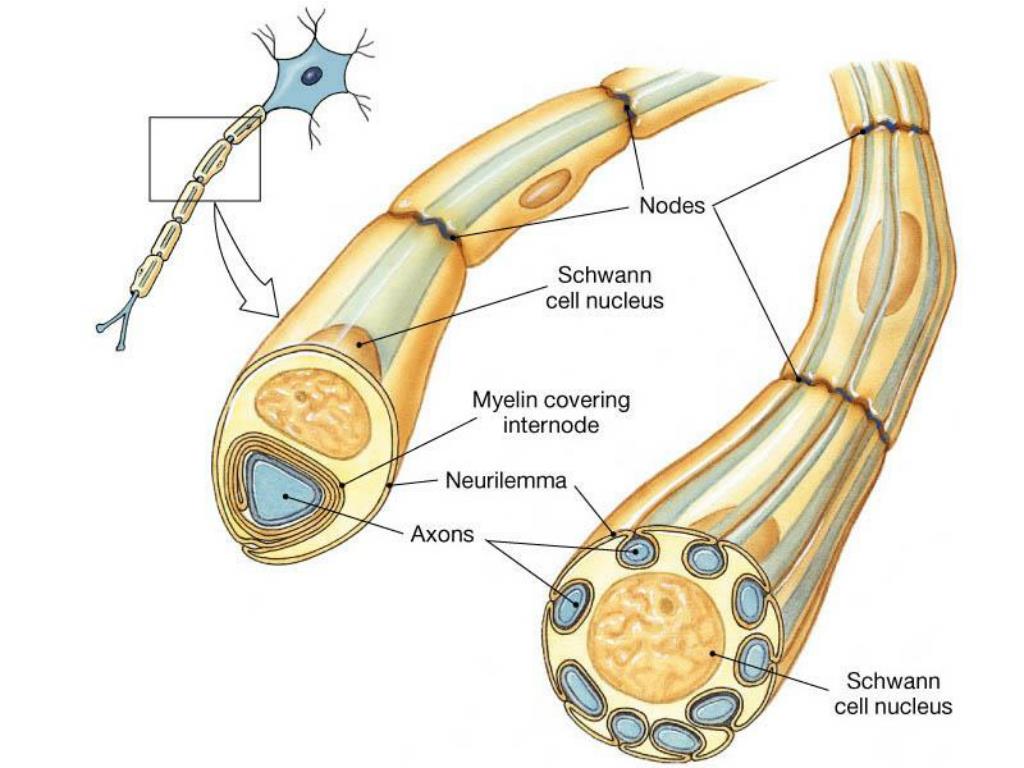

  15. Nerve cell bodies in the PNS are clustered into ganglia. • Their axons are covered by myelin wrappings of Schwann cells.

  16. 8-5

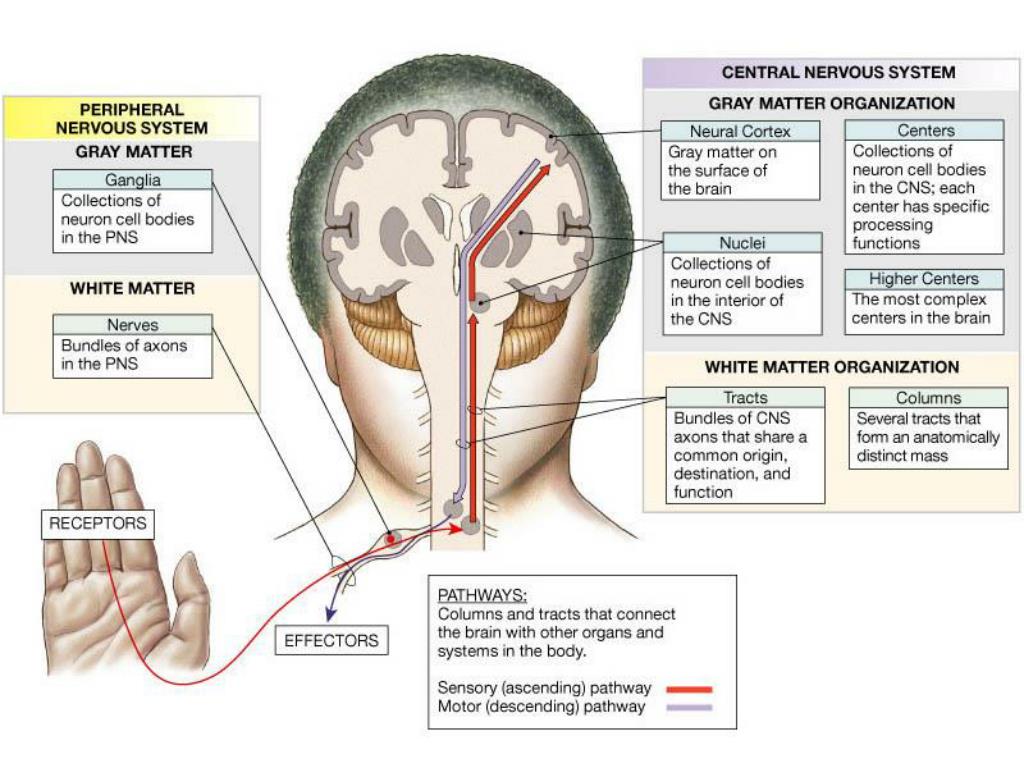

  17. Anatomical organization • In the CNS, a collection of neuron cell bodies that share a particular function is called a center • A center with a a discrete anatomical boundary is called a nucleus. • Portions of the brain surface are covered by a thick layer of gray matter called the neural cortex

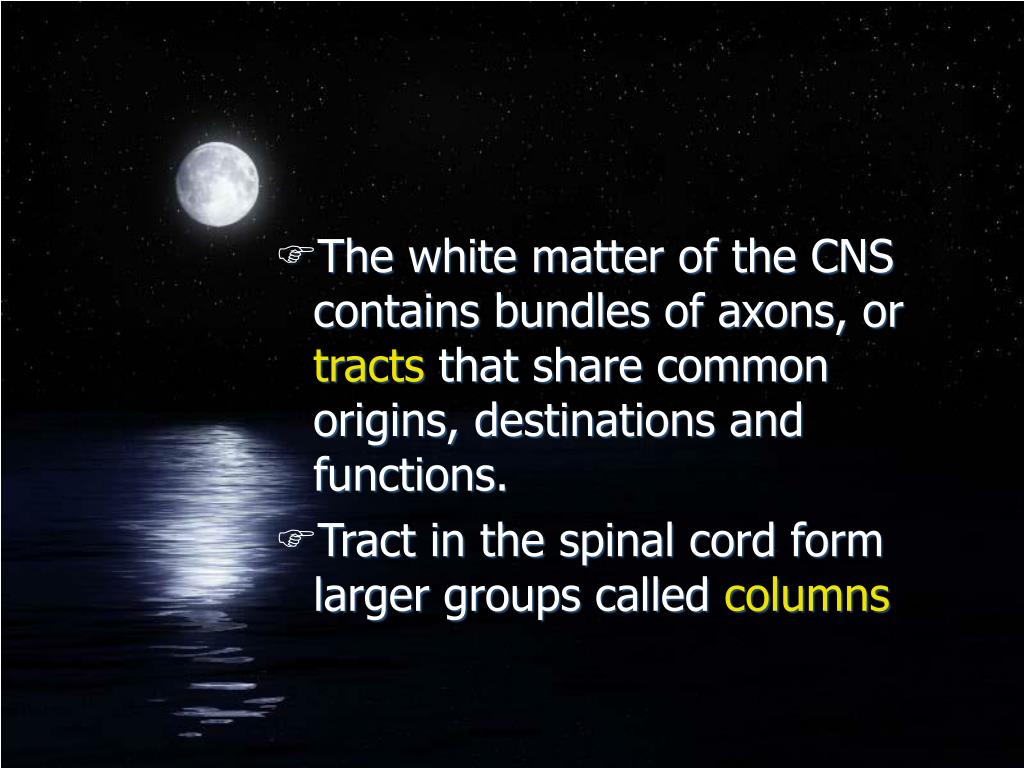

  18. The white matter of the CNS contains bundles of axons, or tracts that share common origins, destinations and functions. • Tract in the spinal cord form larger groups called columns

  19. 8-6

  20. Neuron Function: Membrane Potential • The resting potential, or membrane potential of an undisturbed nerve cell, is due to a balance between the rate of sodium ion entry and potassium ion loss and to the sodium-potassium exchange pump

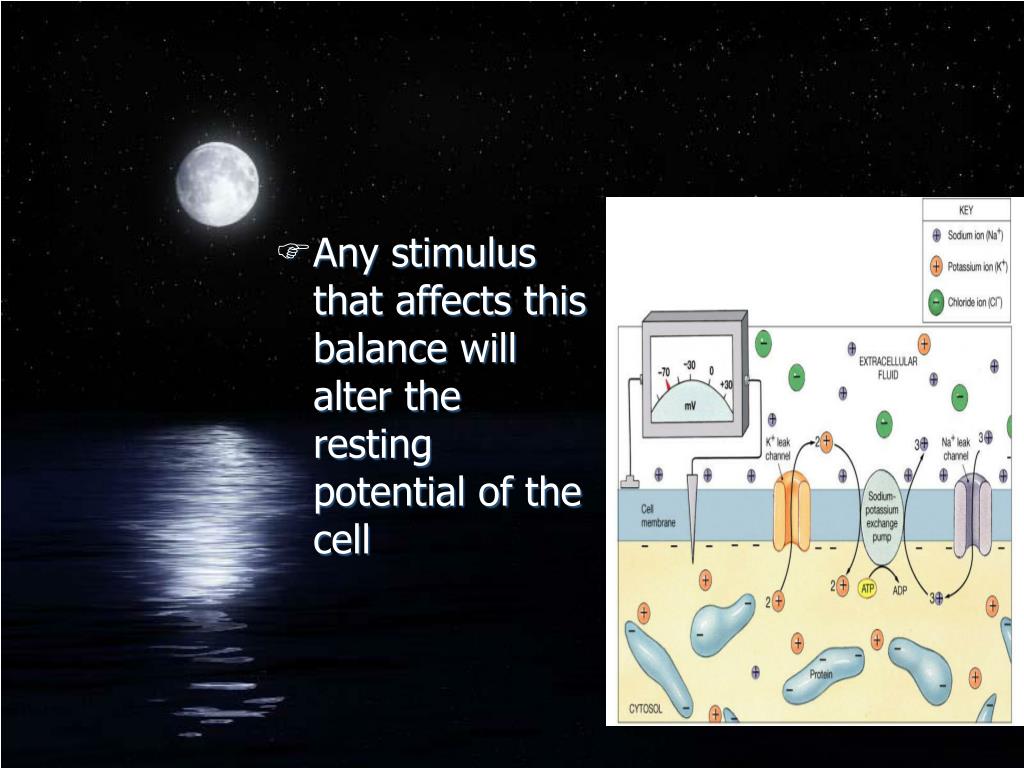

  21. Any stimulus that affects this balance will alter the resting potential of the cell • 8-7

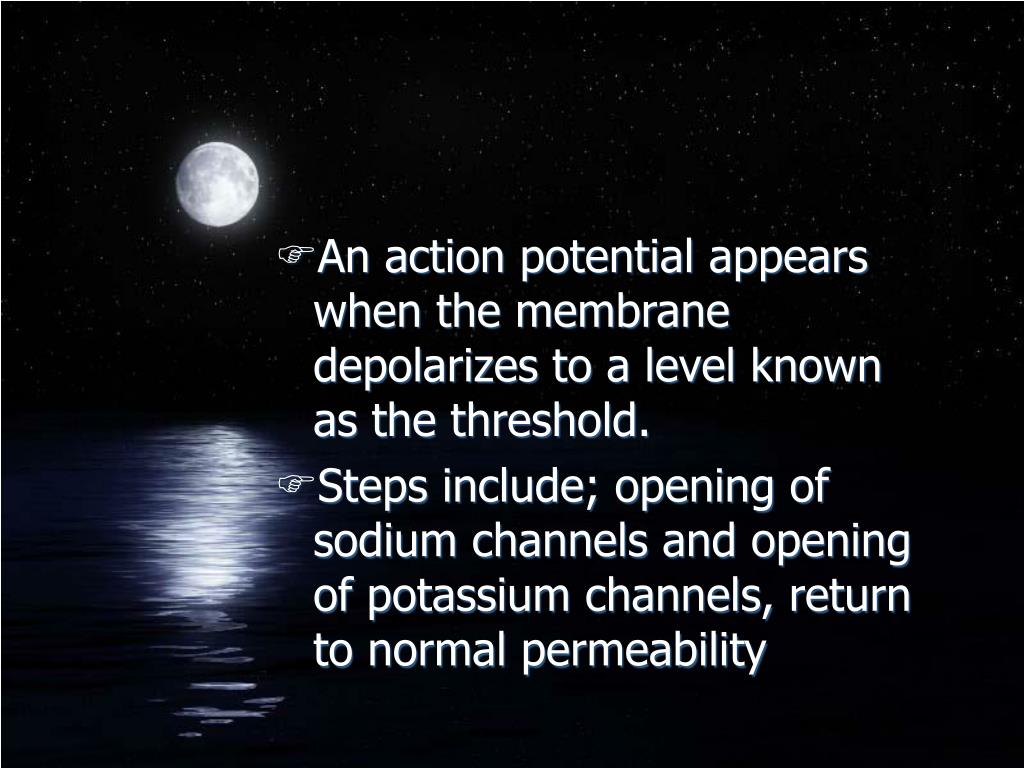

  22. An action potential appears when the membrane depolarizes to a level known as the threshold. • Steps include; opening of sodium channels and opening of potassium channels, return to normal permeability

  23. 8-8

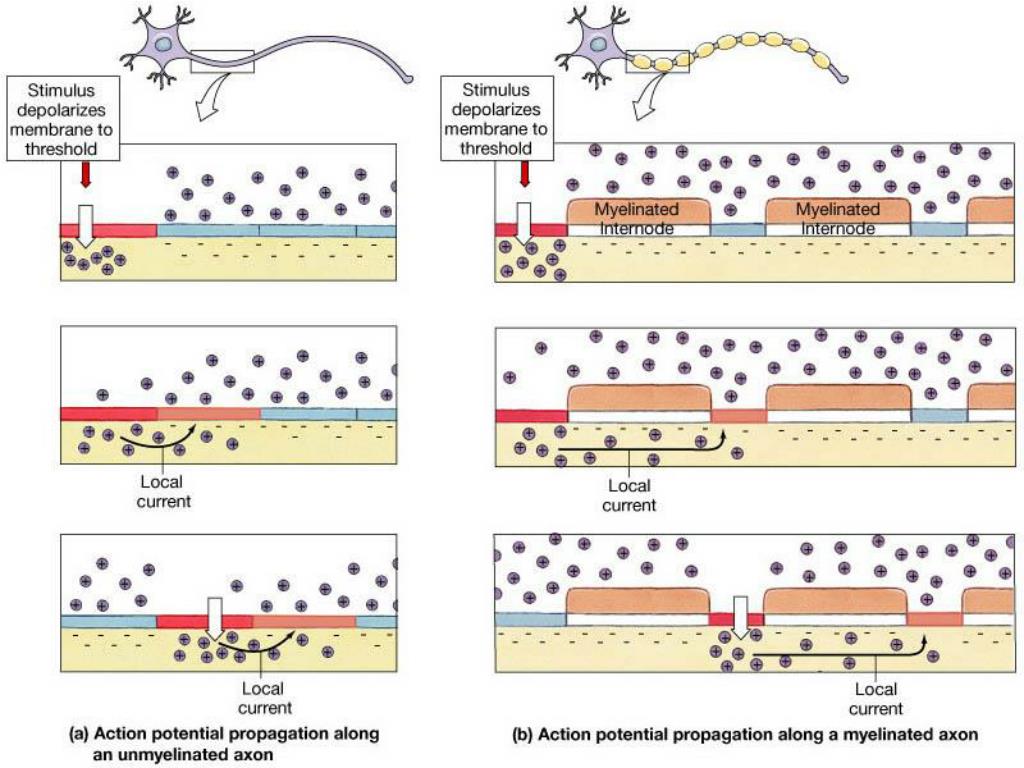

  24. Propagation of an Action Potential • In continuous propagation, an action potential spread across the entire excitable membrane surface in a series of small steps. • During saltatory propagation, the action potential appears to leap from node to node.

  25. 8-9

  26. Action potential

  27. Neural Communication • A synapse is a site where intercellular communication occurs through the release of chemicals called neurotransmitters. • A synapse where neurons communicate with other cell types is a neuroeffector junction.

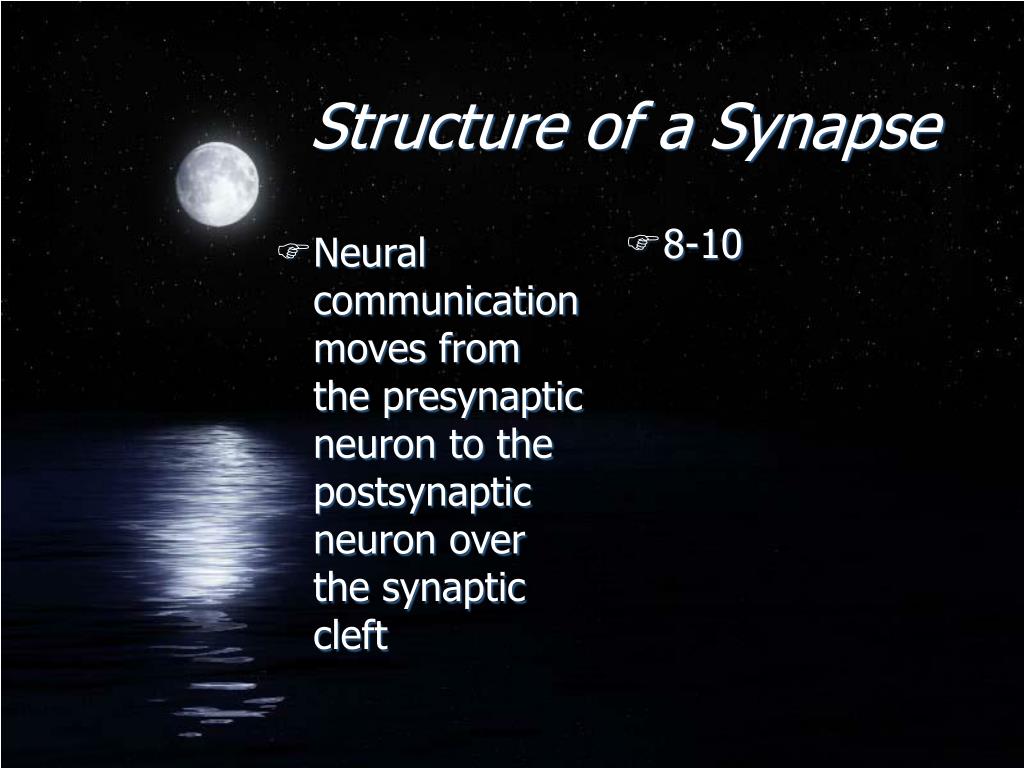

  28. Structure of a Synapse • Neural communication moves from the presynaptic neuron to the postsynaptic neuron over the synaptic cleft • 8-10

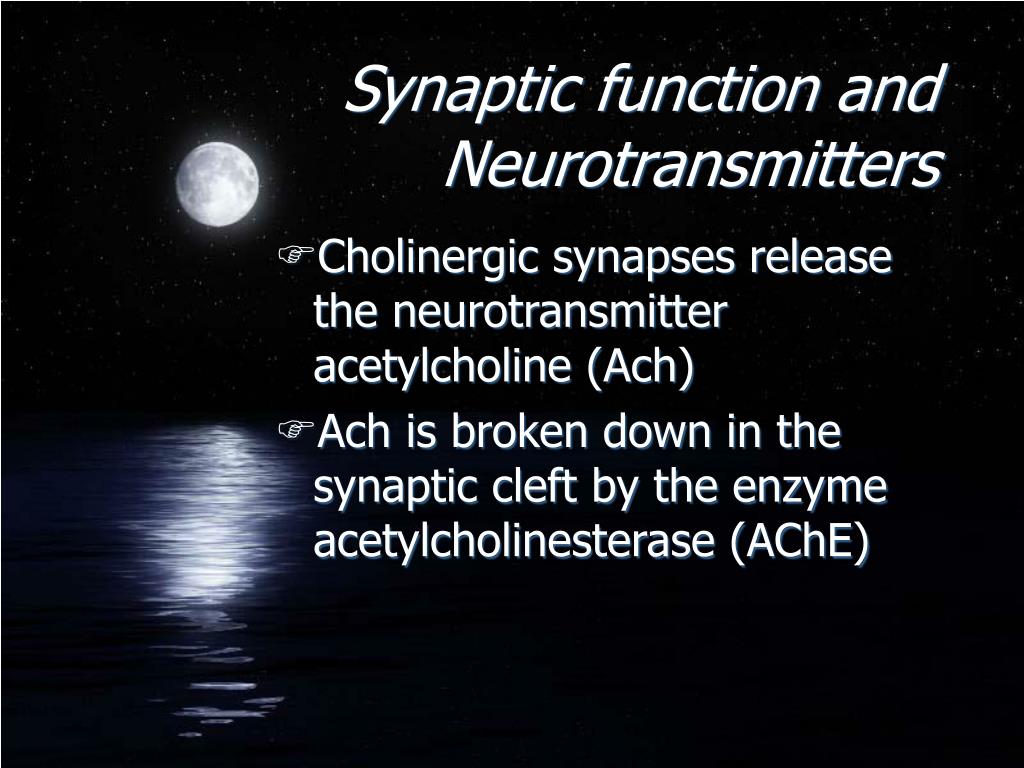

  29. Synaptic function and Neurotransmitters • Cholinergic synapses release the neurotransmitter acetylcholine (Ach) • Ach is broken down in the synaptic cleft by the enzyme acetylcholinesterase (AChE)

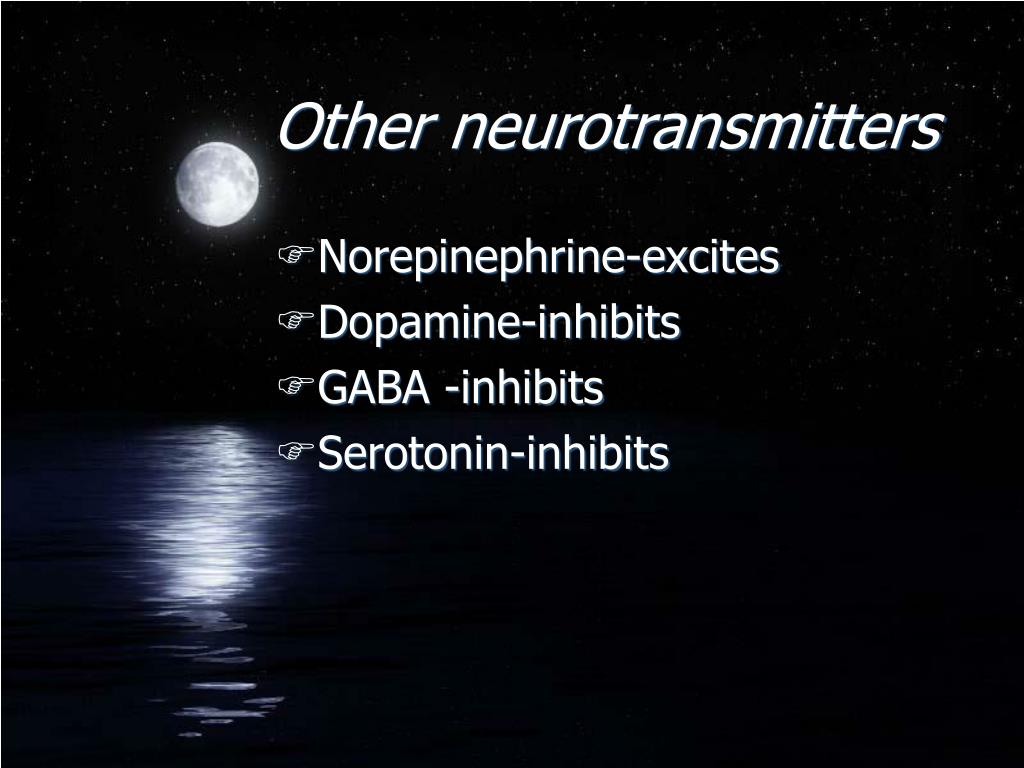

  30. Other neurotransmitters • Norepinephrine-excites • Dopamine-inhibits • GABA -inhibits • Serotonin-inhibits

  31. 8-11, table 8-1

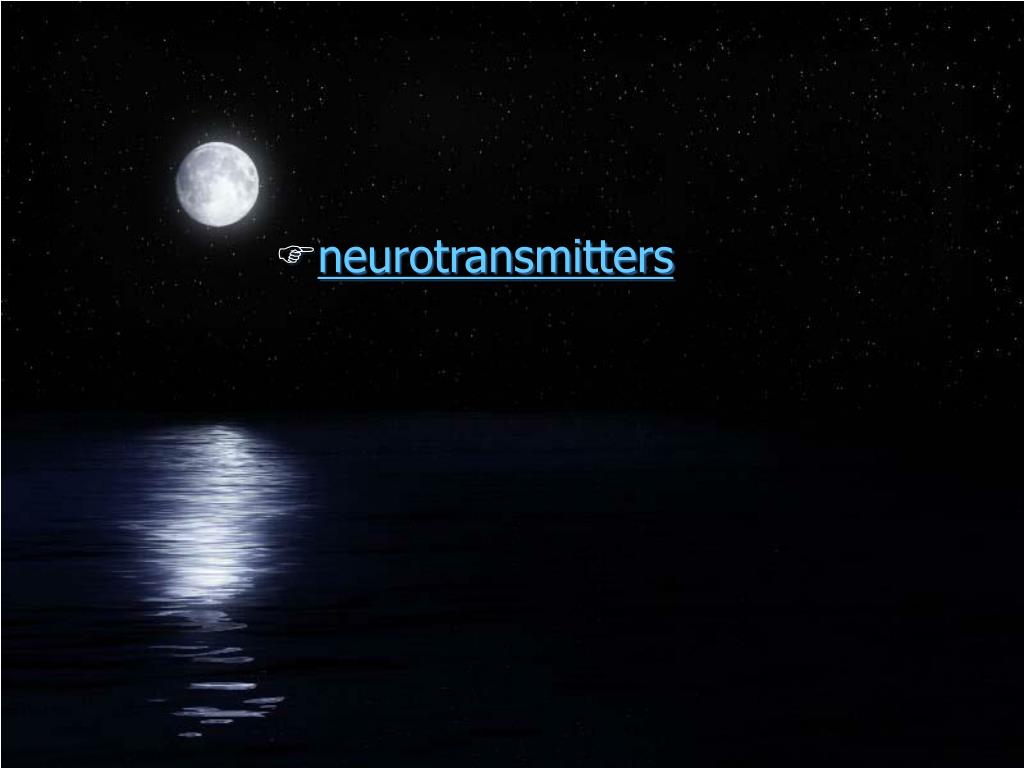

  32. neurotransmitters
