sequential circuits
Sequential Circuits
  • Combinational Circuit
    • Output depends on input
  • Sequential Circuit
    • Output depends on input and state of the machine

Combinational

Circuit

inputs

outputs

Storage

Elements

next state

present state

From Figure 6-1, page 242

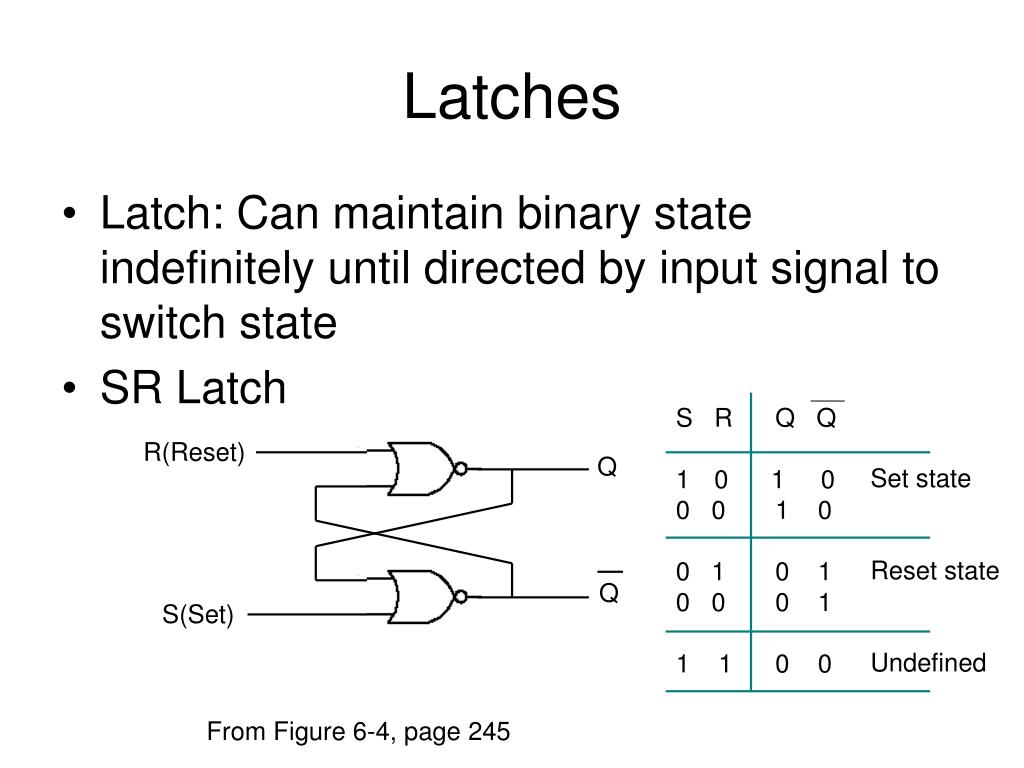

latches
Latches
  • Latch: Can maintain binary state indefinitely until directed by input signal to switch state
  • SR Latch
  • S R Q Q
  • 0 1 0
  • 0 0 1 0
  • 0 1 0 1
  • 0 0 0 1
  • 1 1 0 0

R(Reset)

Q

Set state

Reset state

Undefined

Q

S(Set)

From Figure 6-4, page 245

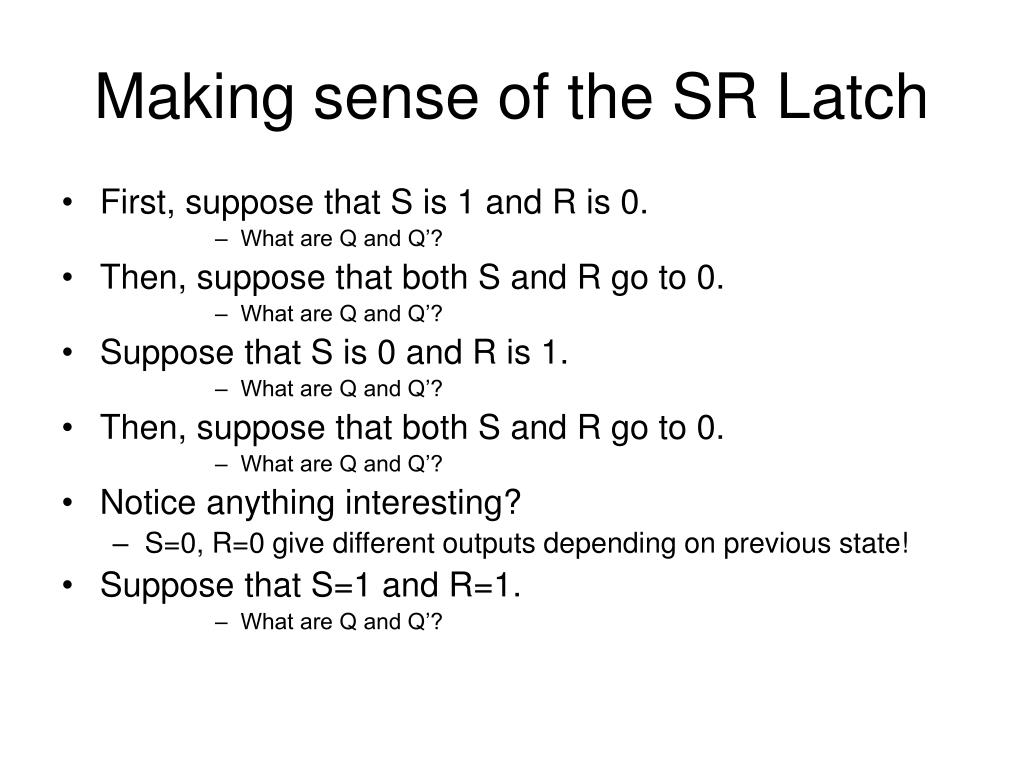

making sense of the sr latch
Making sense of the SR Latch
  • First, suppose that S is 1 and R is 0.
        • What are Q and Q’?
  • Then, suppose that both S and R go to 0.
        • What are Q and Q’?
  • Suppose that S is 0 and R is 1.
        • What are Q and Q’?
  • Then, suppose that both S and R go to 0.
        • What are Q and Q’?
  • Notice anything interesting?
    • S=0, R=0 give different outputs depending on previous state!
  • Suppose that S=1 and R=1.
        • What are Q and Q’?
sr latch with control input
SR Latch with Control Input
  • If C is 0, then Q cannot change, regardless of S, R.
  • If C is 1, then latch functions like SR latch.
  • C S R Next State of Q
  • 0 X X No change
  • 0 0 No change
  • 1 0 1 0
  • 1 1 0 1
  • 1 1 1 Undefined

S

Q

C

Q

R

X means whether 0 or 1

From Figure 6-7(b), page 247

d latch
D Latch
  • Undefined state in SR latch is undesirable.
  • D Latch:

D

Q

C

Q’

C D Next State of Q

0 0

0 1

1 0 0

1 1 1

No change

From Figure 6-8, page 248

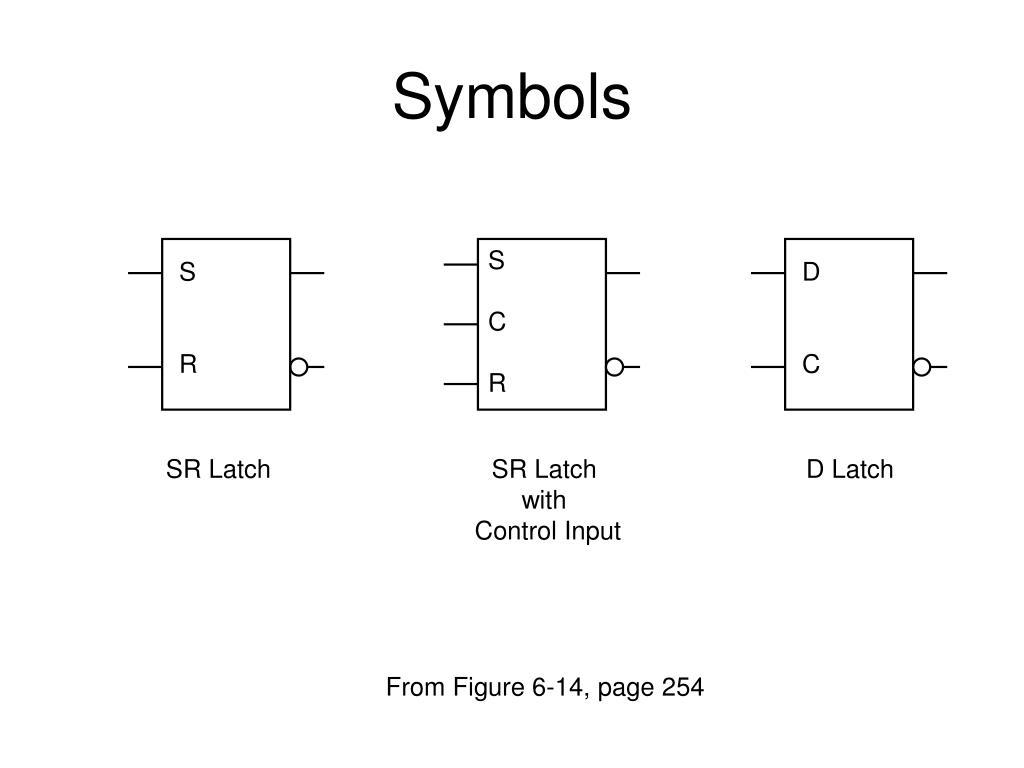

symbols
Symbols

S

C

R

S

R

D

C

SR Latch

SR Latch

with

Control Input

D Latch

From Figure 6-14, page 254

flip flops
Flip-Flops
  • Problem with clock-controlled latches:
  • As long as clock is 1, change in inputs can affect outputs.
  • Consider 2 latches:

Next state/current state of Latch 1

S

C

R

S

C

R

1

2

clock

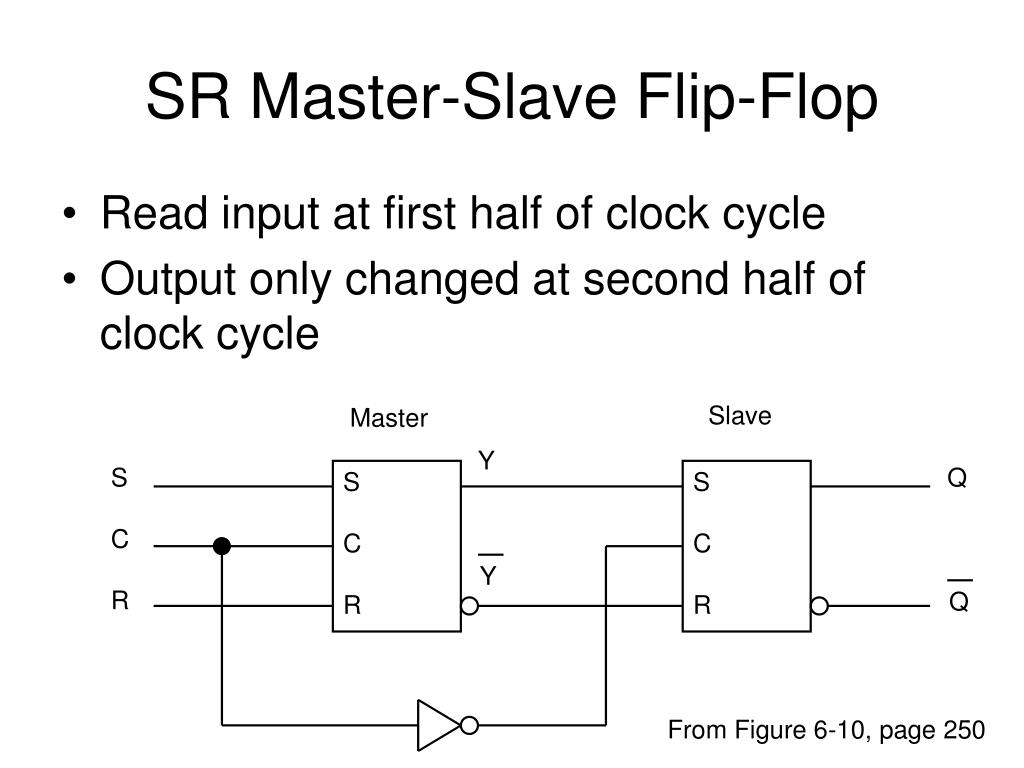

sr master slave flip flop
SR Master-Slave Flip-Flop
  • Read input at first half of clock cycle
  • Output only changed at second half of clock cycle

Slave

Master

Y

S

C

R

Q

S

C

R

S

C

R

Y

Q

From Figure 6-10, page 250

sr master slave flip flop11
SR Master-Slave Flip-Flop
  • An RS Master-Slave Flip-Flop is pulse-triggered.
  • This means:
    • Data are entered on the rising edge of the clock pulse
    • But, output is only changed on the falling edge of the clock pulse
  • Note: Changes while the clock pulse is HIGH can affect the eventual output.
    • Hence, to avoid ambiguity, make sure that the inputs are stable during the entire period while the clock pulse is HIGH.

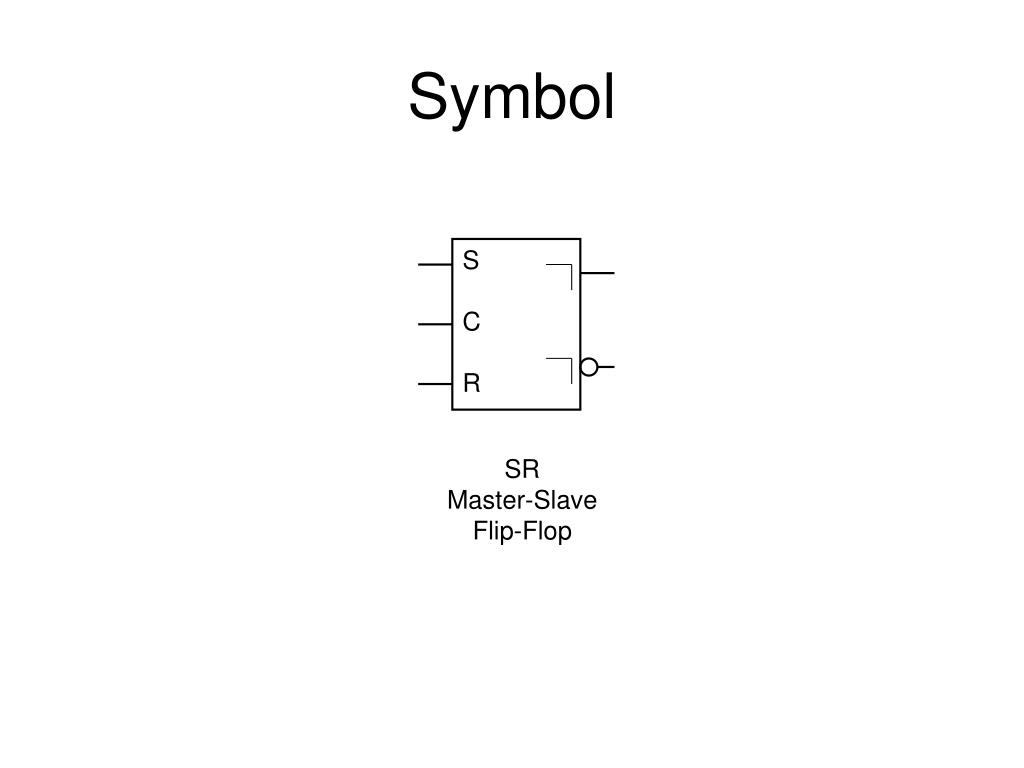

symbol
Symbol

S

C

R

SR

Master-Slave

Flip-Flop
