New Model Evaluation Report. MR. VIJAY KUMAR. Test Detail :-. New model introduced with new Door Profile With new PCM sheet. Drop test done. Energy consumption test done. Pull down test done. Result OK. Tick ( or ) the following for confirmation:-.

nelle-garcia
Download Presentation

Test Detail :-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. New Model Evaluation Report MR. VIJAY KUMAR Test Detail :- • New model introduced with new Door Profile • With new PCM sheet. • Drop test done. • Energy consumption test done. • Pull down test done. • Result OK. Tick ( or ) the following for confirmation:-

  2. New Model :- Feature List NEW MODEL OLD MODEL • Features : • Transparent Accessories • Wire Shelves • 3 Star 190 L Direct cool Refrigerator 115 524 x650 x 1137 570 x 670 x 1205 Net 33 , Gross 37 220-240V/50Hz Blue plant • Capacity kg • Product • Input wattage • Product Dim L x W x H • Packing Dim L x W x H • Weight kg • Voltage • Colour NewModelName : KWP193 New Model Sap Code : KWP193XXRDA Old Model Name KHE 193

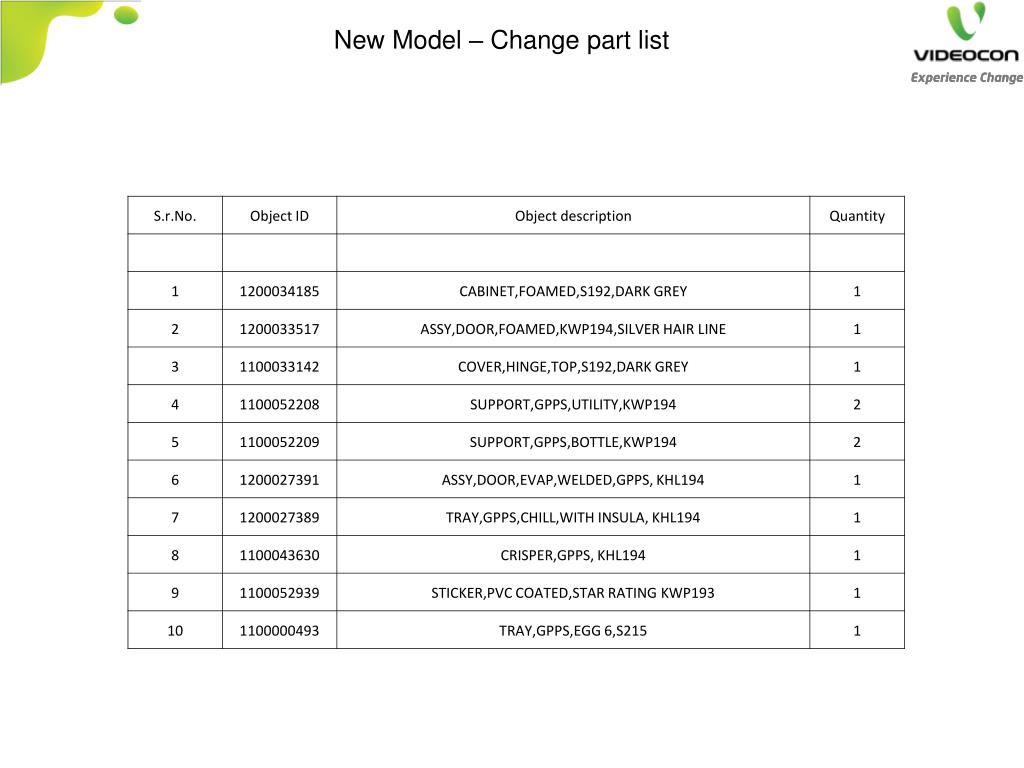

  3. New Model – Change part list

  4. New Model :- PACKING BOX FRONT SIDE

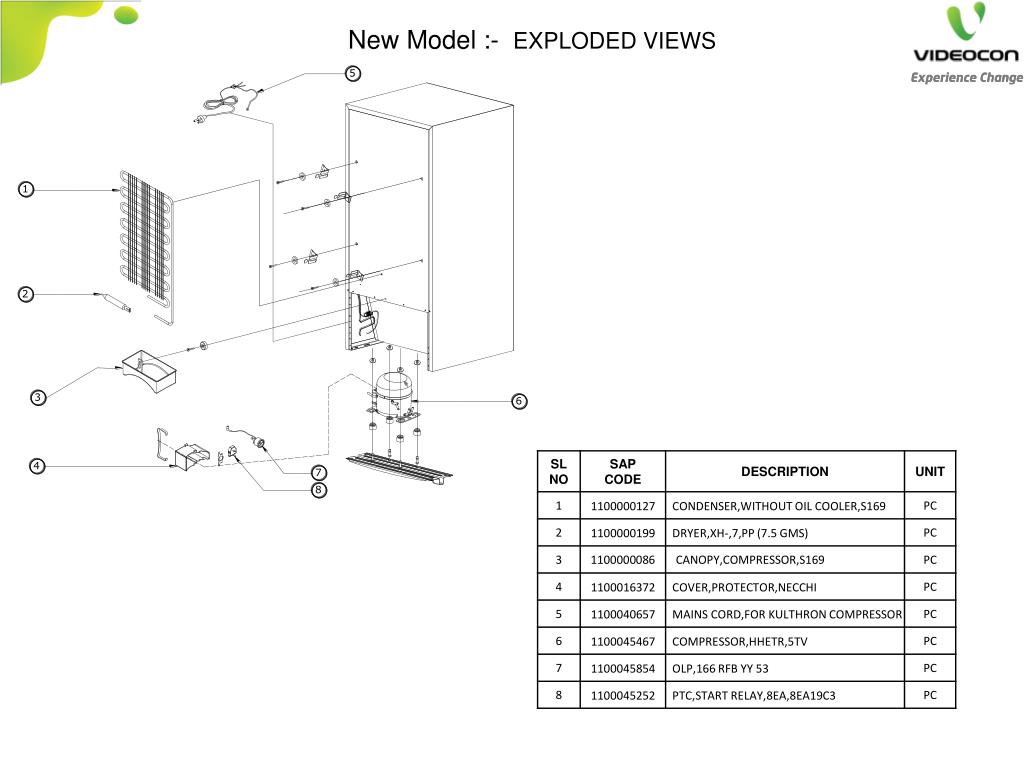

  5. New Model :- EXPLODED VIEWS

  6. New Model :- EXPLODED VIEWS

  7. New Model :- EXPLODED VIEWS

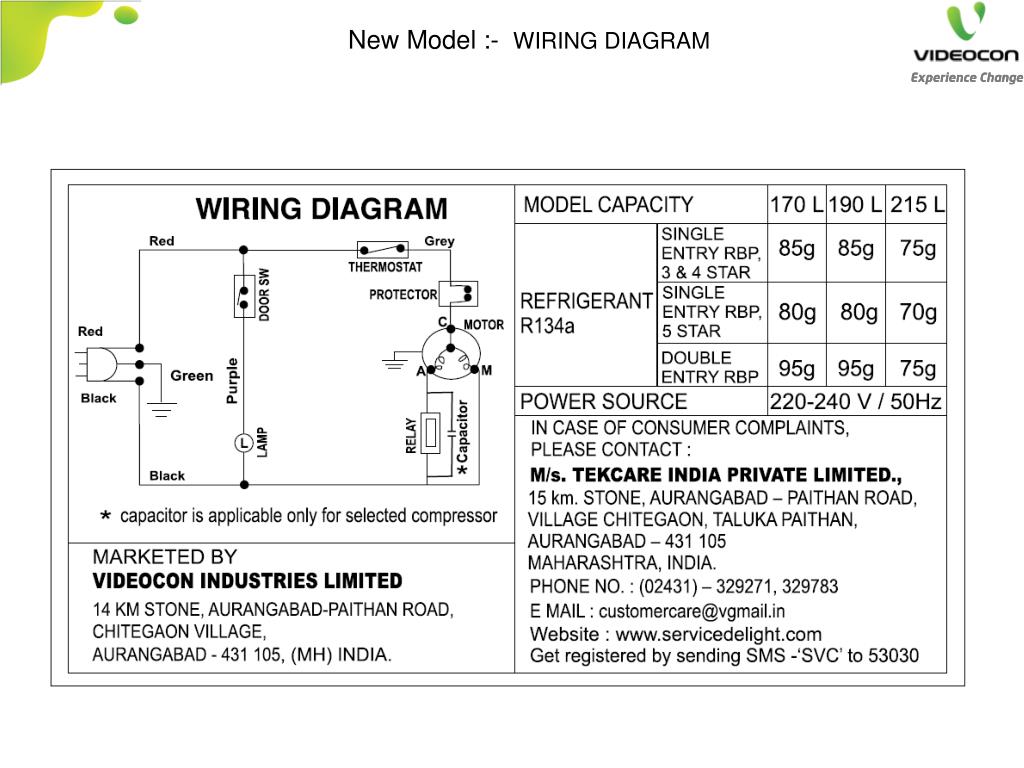

  8. New Model :- WIRING DIAGRAM

  9. Model Test report

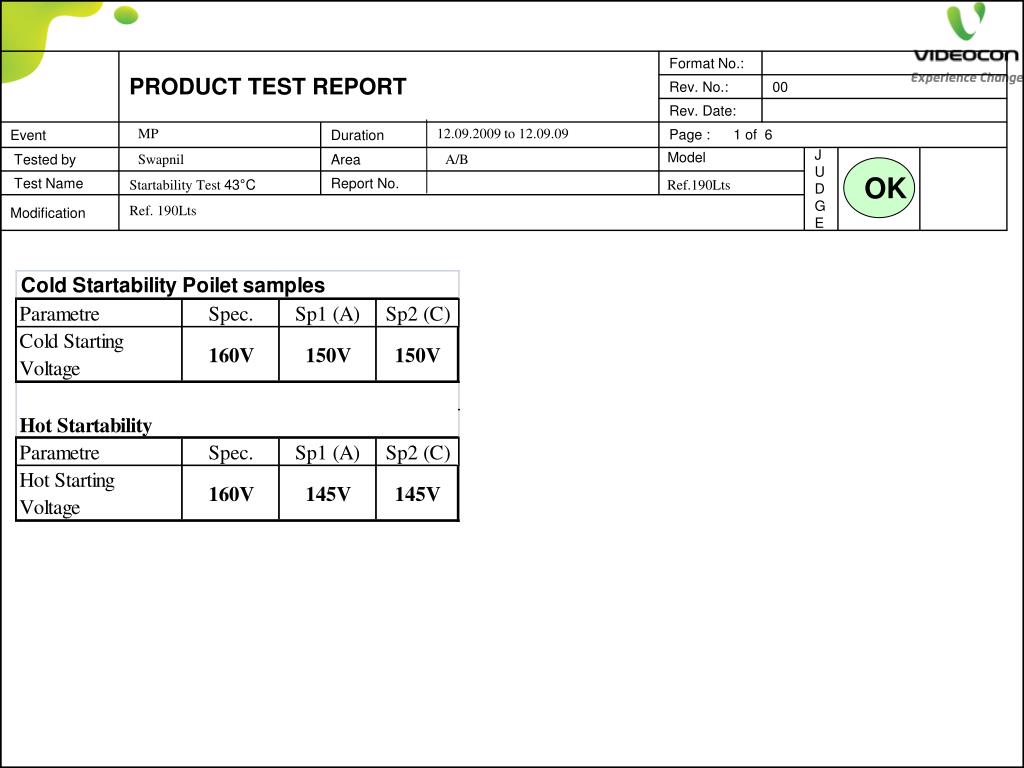

  10. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 12.09.2009 to 12.09.09 Model Swapnil A/B OK Startability Test 43°C Ref.190Lts Ref. 190Lts

  11. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 13.09.2009 to 13.0.09 Model Swapnil A/B OK Pull Down Test 43°C Ref.190Lts Ref. 190Lts

  12. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 2 of 6  Tested by Area JUDGE  Test Name Report No. Modification ES 13.09.2009 to 14.09.09 Model Swapnil A/C OK Pull Down Test 32°C Ref.190Lts Ref. 190Lts

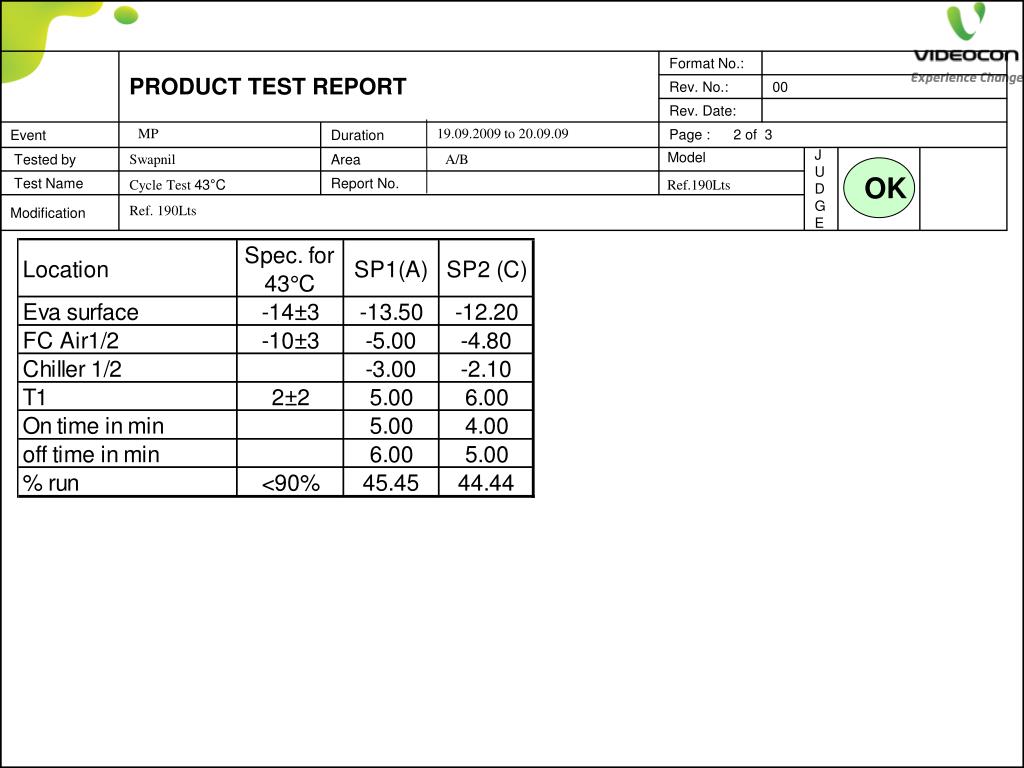

  13. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 2 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 19.09.2009 to 20.09.09 Model Swapnil A/B OK Cycle Test 43°C Ref.190Lts Ref. 190Lts

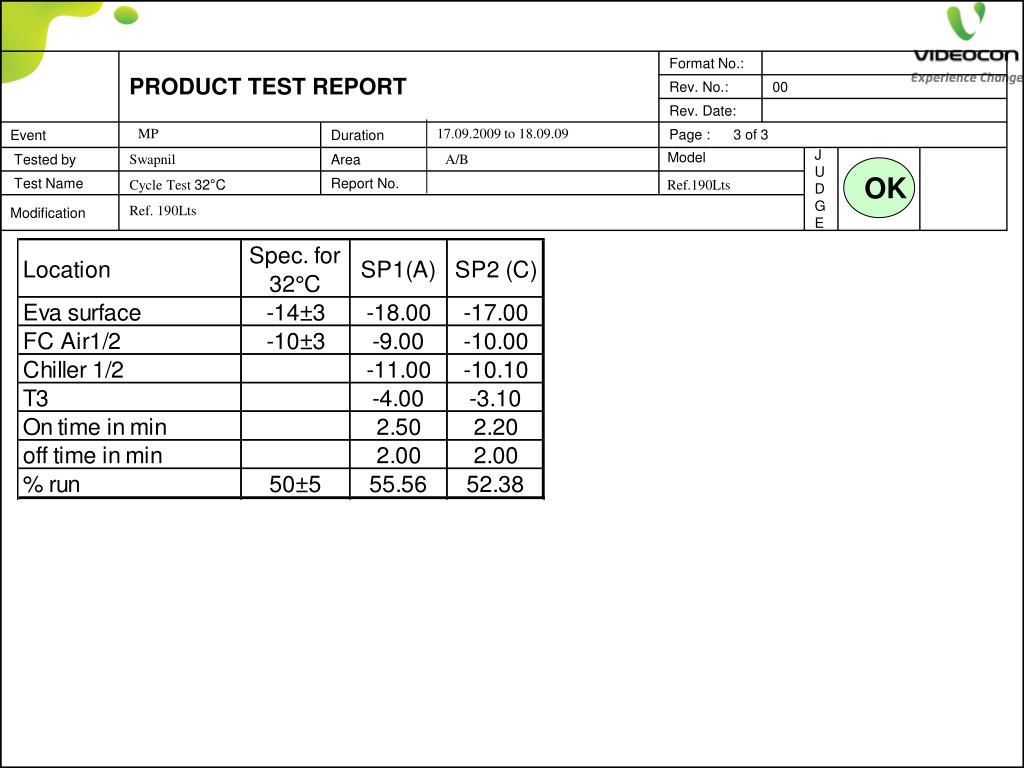

  14. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 3 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 17.09.2009 to 18.09.09 Model Swapnil A/B OK Cycle Test 32°C Ref.190Lts Ref. 190Lts

  15. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 3 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 19.09.2009 to 20.09.09 Model Swapnil A/B OK Ice Making Test 43°C Ref.190Lts Ref. 190Lts

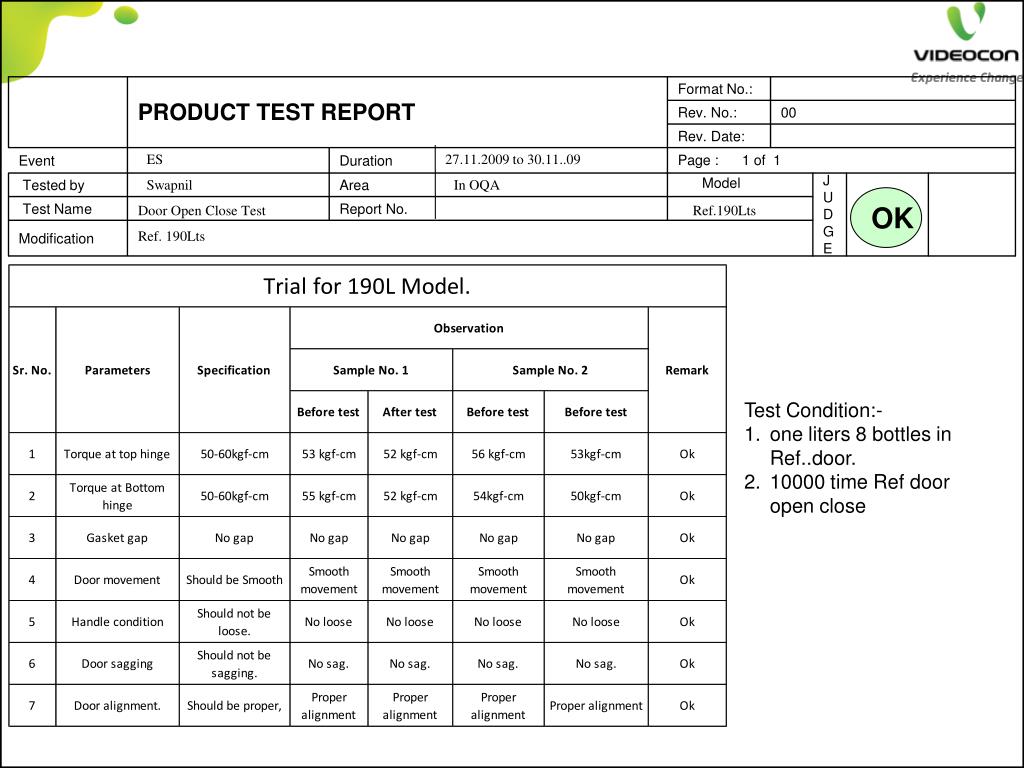

  16. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 1  Tested by Area JUDGE  Test Name Report No. Modification ES 27.11.2009 to 30.11..09 Model Swapnil In OQA OK Door Open Close Test Ref.190Lts Ref. 190Lts • Test Condition:- • one liters 8 bottles in Ref..door. • 10000 time Ref door open close
