SPARQLeR: Extended Sparql for Semantic Association Discovery

Krzysztof Kochut and Maciej Janik

ESWC 2007, Innsbruck, Austria

June 4, 2007

Work supported by the National Science Foundation Grant

No. IIS-0325464, entitled “SemDIS: Discovering Complex Relationships in the Semantic Web”.

Paths in rdf l.jpg
Paths in RDF






Directed path



Undirected path,

but with specific properties and


Undirected path

Why are paths interesting l.jpg

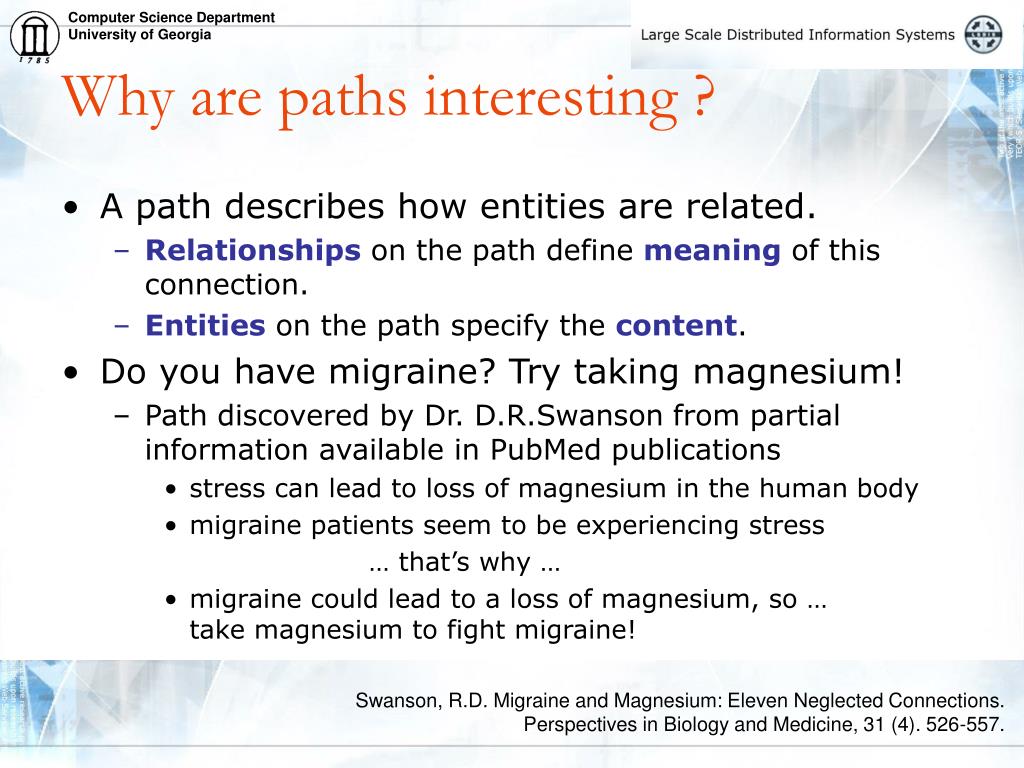

Why are paths interesting ?

  • A path describes how entities are related.

    • Relationships on the path define meaning of this connection.

    • Entities on the path specify the content.

  • Do you have migraine? Try taking magnesium!

    • Path discovered by Dr. D.R.Swanson from partial information available in PubMed publications

      • stress can lead to loss of magnesium in the human body

      • migraine patients seem to be experiencing stress

        … that’s why …

      • migraine could lead to a loss of magnesium, so … take magnesium to fight migraine!

Swanson, R.D. Migraine and Magnesium: Eleven Neglected Connections.

Perspectives in Biology and Medicine, 31 (4). 526-557.

Formally what is a simple path l.jpg
Formally, what is a simple path ?

  • Simple directed path between resources r0 and rn in a description base R:

    • sequence r0 p1 r1 p2 r2 , … , pn-1 rn-1 pn rn (n>0)

    • r0 p1 r1, r1 p2 r2 , … , rn-2 pn-1 rn-1, rn-1 pn rn (n>0) are triples in R.

    • all of the resources ri (0 ≤i ≤ n) in the path are distinct

  • Simple undirected path between resources r0 and rn in R:

    • sequence r0 p1 r1 p2 r2 , … , pn-1 rn-1 pn rn (n>0)

    • for each ri-1 pi ri (0 < i ≤ n) in the path, either ri-1 pi ri or ri pi ri-1 is a triple in R

    • all of the resources ri (0 ≤i ≤ n) in the path are distinct

Paths and sparql l.jpg
Paths and SPARQL

  • SPARQL query can express only static graph patterns.

    • Some flexibility is introduced by an OPTIONAL part, but it does not solve path problems.

  • No support for flexible length path expressions.

    • Glycan biosynthesis pathway in biology has a specific pattern (properties), but its length may be unknown.

    • Path discovery may be of unknown length and pattern, like in Dr. Swanson’s example.

What we need to discover paths l.jpg
What we need to discover paths?

  • Knowledge discovery needs more flexible patterns.

    • Patterns may be partially known or even unknown (unrestricted path).

    • Properties on the path, their order and directionality create a specific meaning.

    • Entities on the path provide content.

    • Relationships to entities outside of the path give an additional context.

Proposed e xtension s l.jpg
Proposed extensions

  • A path may have a flexible length

    • For computational reasons, length is limited.

  • Constraints on properties

    • Specific properties must appear in the path.

    • Their order and directionality is meaningful.

    • They can form a repeating pattern.

  • Constraints on resources

    • Specific resources must be on the path.

    • They can be anywhere on the path or at specific positions.

Sparqler l.jpg

  • Extension of SPARQL for semantic association discovery.

  • Seamlessly integrated into the SPARQL syntax.

  • Graph patterns incorporating simple paths with constraints.

  • Constraints are based on regular expressions over properties.

What is a path in sparqler l.jpg
What is a path in SPARQLeR ?

  • Path is a meta-property that connects two resources.

    • Defined as a sequence of interleaving properties and resources.

    • Starts and ends with properties (endpoint resources are not included).

    • A path of length 1 is a sequence with just one property.

      <rdf:Class rdf:about="">

      <rdfs:isDefinedBy rdf:resource=""/>

      <rdfs:subClassOf rdf:resource=""/>

      <rdfs:subClassOf rdf:resource=""/>


      <rdfs:comment>The class of RDFMS paths.</rdfs:comment>


Path patterns in sparqler l.jpg
Path patterns in SPARQLeR

  • Meta-property – similar concept to a property

    • Resource –[property] Resource

    • Resource –[path] Resource

  • Path as a Sequence

    • Test if a resource is in the path:

      • rdfs:member

    • Test if a resource is at a specific position in the path:

      • rdf:_2, rdf:_4, ...

  • SPARQLeR-specific path properties

    • Test all resources or all properties in the path:

      • rdfms:entityResource and rdfms:propertyResource

        Example: all resources on a path must be of type foo:Person

Path pattern anatomy l.jpg

Path patterns

(match of path variable)








length: 4

elements: 7














Path pattern anatomy





Path types in sparqler l.jpg
Path types in SPARQLeR

  • Directionality of relationships in the path defines its specific semantics.

  • SPARQLeR allows definition of the following path types

    • As defined in graph theory

      • Directed

      • Undirected

    • SPARQLeR specific extension

      • Defined directionality path (includes directed path)

Directionality of properties in path l.jpg
Directionality of properties in path

  • Defined directionality paths:

    • Neither directed nor undirected

    • Each property in a path has a specified directionality

  • Example: simple graph with p relationship

    (a) X p* Y, directed path

    (b) X p* Y, undirected path

    (c) X ( pp-1 )* Y, directional path














Inverse property operator l.jpg
Inverse property operator

  • In standard SPARQL there is no need for inverse property operator

    • Pattern syntax is based on individual statements, so it is easy to reverse direction.

  • Defining path constraints requires the inverse operator

    • A pPath expression defines constraints on properties, not on individual statements.

    • Without the inverse property operator some paths constraints would be impossible to express (as shown in the previous example).

Regexp in path constraints l.jpg
RegExp in path constraints

  • Path constraints on properties are based on regular expressions

    • Uses syntax similar to lex

    • Easy for grep users

  • Examples:

    a c* d a+ (b|c) a

    [abc] c? d ( b a-1 )+ c

Path constraints in sparqler l.jpg
Path constraints in SPARQLeR

  • Defined as regular path expressions

    • Can specify patterns of properties in the path

    • Directionality requirement needs the inverse operator  (‘-’ minus) –p

  • Supported regular expressions

    p (single property)

    -p (the inverse of p)

    [p1 p2 ... pn] (class of properties)

    -[p1 p2 ... pn] (class of inverse properties)

    [^p1 p2 .. pn] (complement of properties)

    -[^p1 p2 .. pn] (inverse of complement of properties)

. (wildcard)

x | y (alternative)

xy (concatenation)

x* (Kleene star);

x+ (one or more repetition)

(x) (match a path matched by x)

Path constraints cont d l.jpg
Path constraints (cont’d)

  • Class of properties and inverse operator

    • Complement operator can be applied only to defined properties, not their inverses

    • Inverse operator

      • Not allowed inside class of properties

      • Inverses set created from defined properties

    • Example:

      properties: q r s t

      [^rt]  q s

      –[^qr]  t-1 s-1 (inverses)

      ([^st] | –[^t])  q r q-1 r-1 s-1

Integratin g path s into sparql l.jpg
Integrating paths into SPARQL

  • Path variable binds a path

    • Name begins with ‘%’ instead of ‘?’

  • Simple patterns – path between two resources

    SELECT ?prop WHERE {<r> ?prop <s>}

    SELECT %path WHERE {<r> %path <s>}

  • Single source path

    SELECT %path, ?res WHERE {<r> %path ?res}

Integratin g path s into sparql19 l.jpg
Integrating paths into SPARQL

  • Resources on the path

    SELECT %path WHERE{<r> %path <s> . %path rdfs:member <e>}

    SELECT %path WHERE{<r> %path <s> . %path rdf:_1 <p>}

  • Listing path elements – listoperator

    SELECT list(%path) WHERE {<r> %path <s>}

Expressing path constraints l.jpg
Expressing path constraints

  • Bounded path length

    • only constants allowed


      FILTER(length(%path)>3 && length(%path)<7)

Expressing path constraints21 l.jpg
Expressing path constraints

  • Constraints added as a regular expression filter (existing syntax in SPARQL)

    regex( pathvariable, pathexpr, pathflags )


    • Flags: i(instances) s (schema) l (literals) h (match using hierarchy)d (set directionality) u (undirected)

    • Default flags: d i

Some examples l.jpg
Some examples

SELECT list(%path), ?res WHERE

{<r> %path ?res .

%path rdfs:member ?x .

?x foo:locatedInwiki:Europe


SELECT list(%path) WHERE

{<r> %path <s> .

%path rdfms:entityResource ?x .

?x rdf:type foo:Person


SELECT list(%path) WHERE

{<r> %path <s>

FILTER(length(%path)<=6 && length(%path)>=4 &&

regex(%path,”(foo:prop -foo:rel)+”)}

Sparqler prototype implementation l.jpg

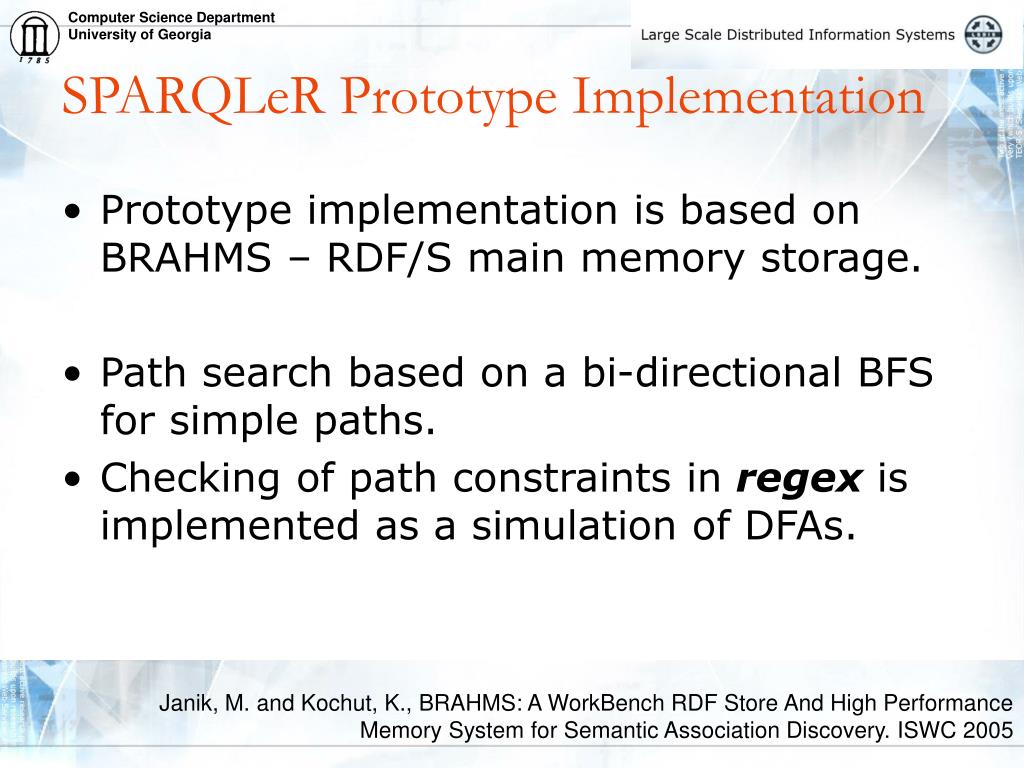

SPARQLeR Prototype Implementation

  • Prototype implementation is based on BRAHMS – RDF/S main memory storage.

  • Path search based on a bi-directional BFS for simple paths.

  • Checking of path constraints in regex is implemented as a simulation of DFAs.

Janik, M. and Kochut, K., BRAHMS: A WorkBench RDF Store And High Performance

Memory System for Semantic Association Discovery. ISWC 2005

Implementation details l.jpg

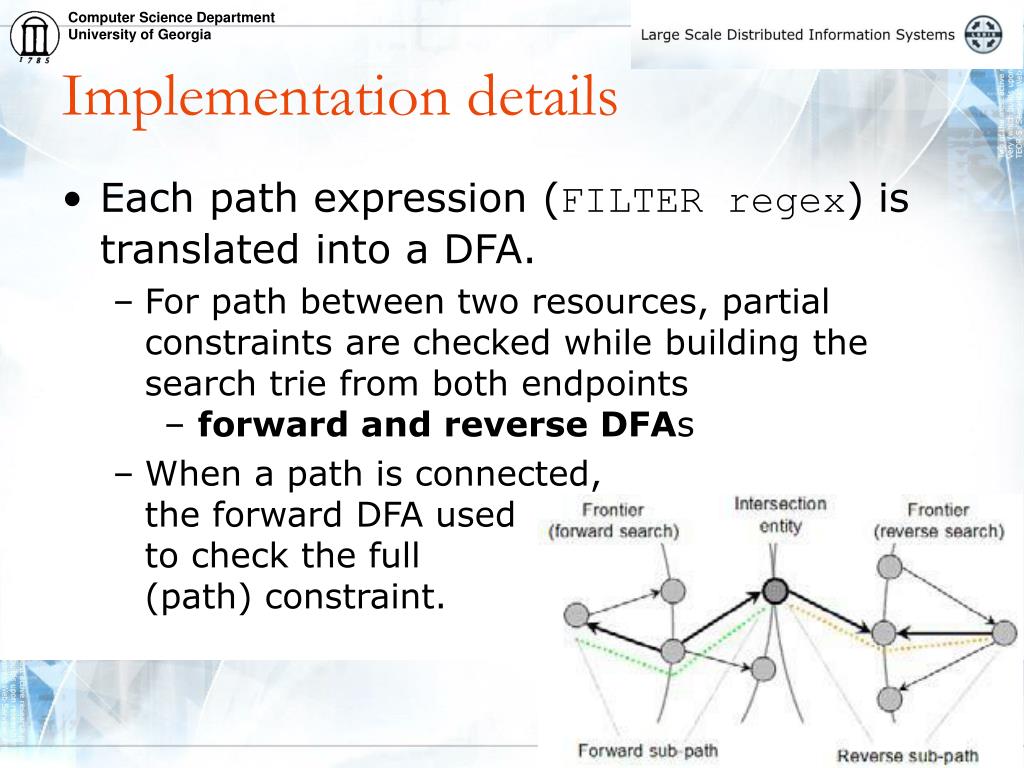

Implementation details

  • Each path expression (FILTER regex) is translated into a DFA.

    • For path between two resources, partial constraints are checked while building the search trie from both endpoints – forward and reverse DFAs

    • When a path is connected,the forward DFA used to check the full (path) constraint.

Experiments biology pathway l.jpg
Experiments: biology pathway

  • Biosynthesis paths in biology (glycomics)

  • How specific glyco peptide is created from a basic structure?

    • Find pathway between dolichol phosphate and glyco peptide G00009

      • Path has 15 reactions (30 hops, as each reaction is represented by its substrates and products)

      • Only undirected path connects the endpoint resources, but a specific directionality pattern is present

        RDF representation: sample reactions in the path

Experiments biology pathway26 l.jpg
Experiments : biology pathway

  • Functionality test - proof of concept

    N-glycan biosynthesis pathway

SELECT list(%path) WHERE {

glyco:dolichol_phosphate %path glyco:glyco_peptide_G00009 .

%path rdfs:member enzyo:R05969

FILTER ( length(%path) <= 30 &&

regex(%path, "((-glyco:has_acceptor_substrate|

-glyco:has_reactant) glyco:has_product)*" ) ) }

Ontology: GlycO

Length: 30 hops

Consists of: 15 reactions

Search time: milliseconds (less than 1 tick)...

courtesy of Dr. Alison Vandersall-Nairn, University of Georgia

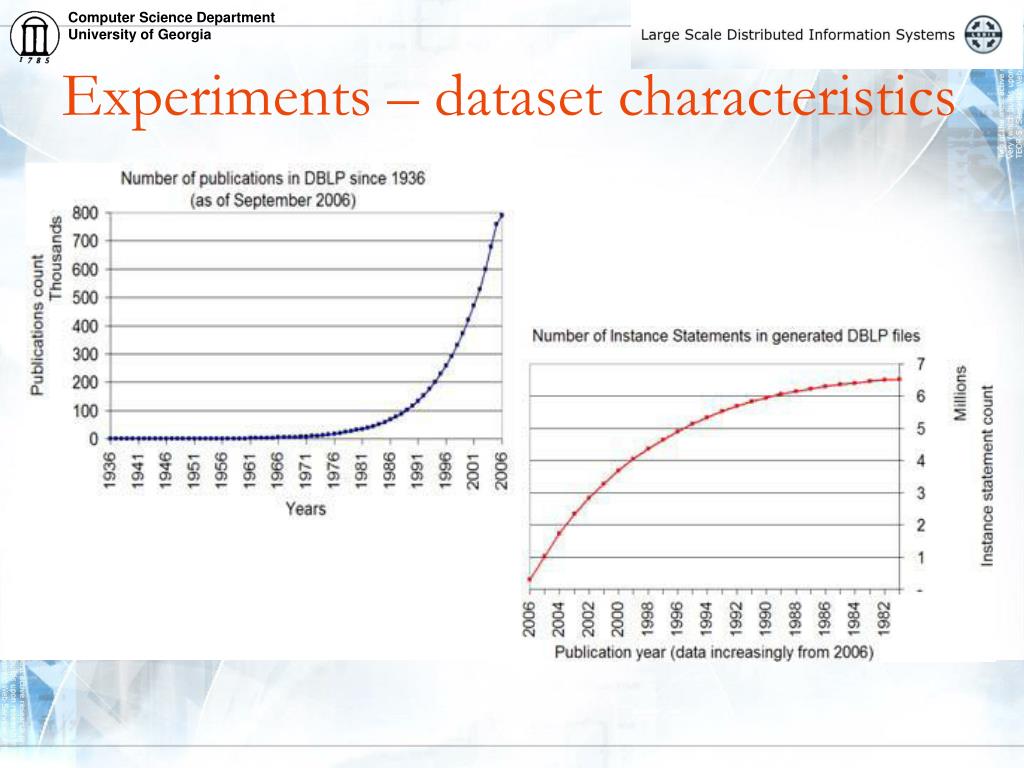

Experiments l.jpg

  • Scalability

    • Modified DBLP datasets in RDF (added random citations)

    • Test on increasing dataset (adding older years of publications)

    • Search for cited publications (transitive)

      PREFIX opus:<>

      SELECT ?end_publication WHERE {

      <>%path ?end_publication

      FILTER ( length(%path)<=26 &&regex(%path, "(opus:cites_publication)*" ) ) }

B. Aleman-Meza et. al. Semantic Analytics on Social Networks:

Experiences in Addressing the Problem of Conflict of Interest Detection. (WWW2006)

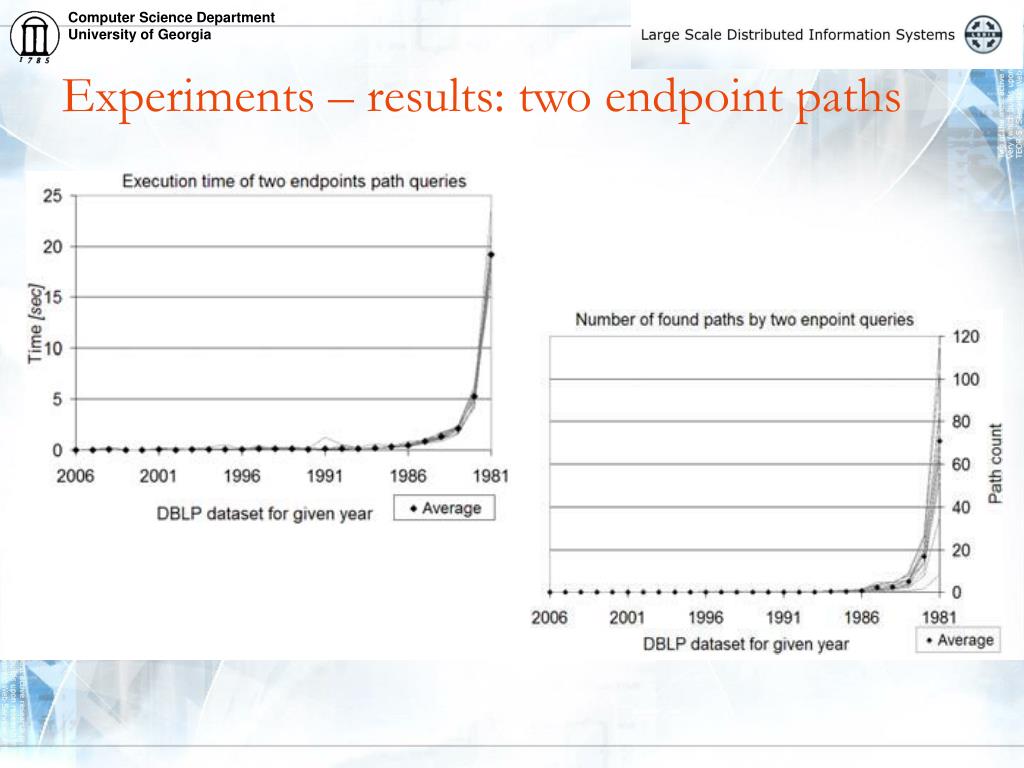

Experiments results single source paths l.jpg
Experiments – results: single source paths

Search paths up to length 26

More complex uses of path expressions l.jpg

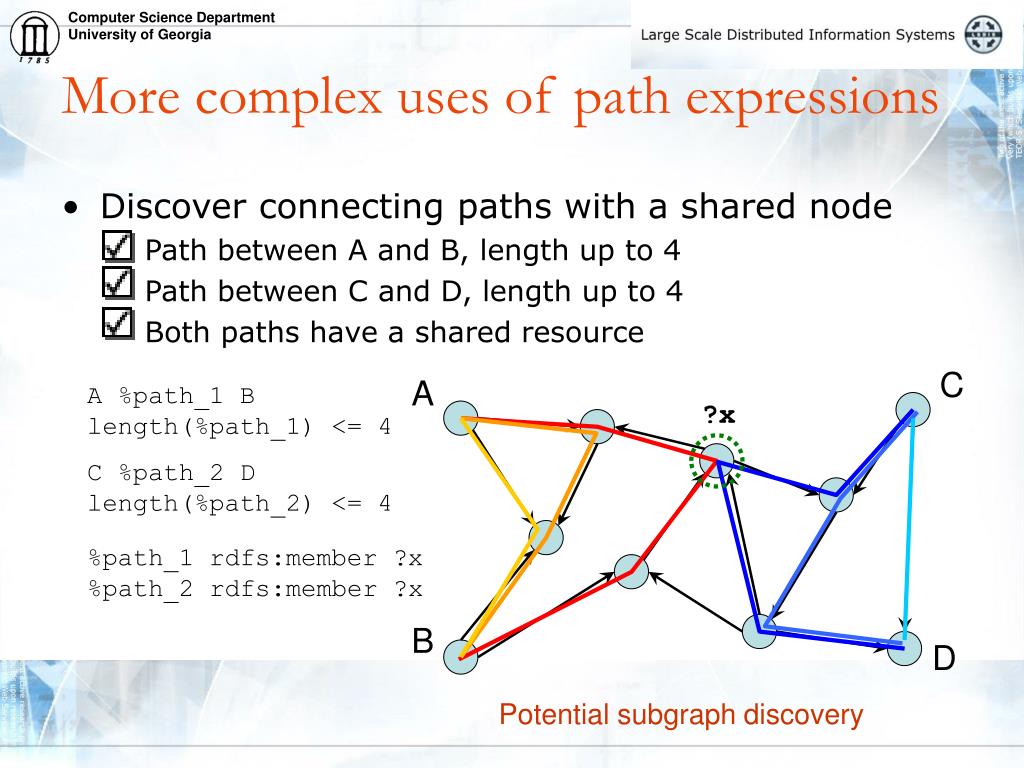

More complex uses of path expressions

  • Discover connecting paths with a shared node

    • Path between A and B, length up to 4

    • Path between C and D, length up to 4

    • Both paths have a shared resource

A %path_1 B

length(%path_1) <= 4


C %path_2 D

length(%path_2) <= 4

%path_1 rdfs:member ?x

%path_2 rdfs:member ?x

Potential subgraph discovery

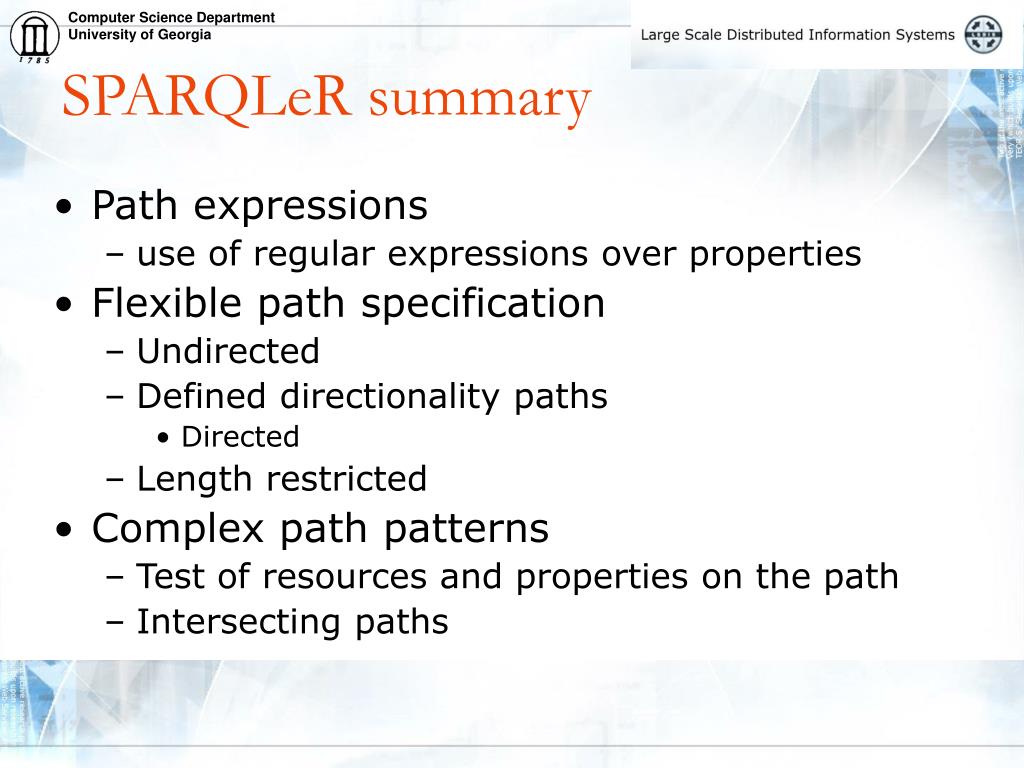

Sparqler summary l.jpg
SPARQLeR summary

  • Path expressions

    • use of regular expressions over properties

  • Flexible path specification

    • Undirected

    • Defined directionality paths

      • Directed

    • Length restricted

  • Complex path patterns

    • Test of resources and properties on the path

    • Intersecting paths

Conclusion and future work l.jpg
Conclusion and future work

  • SPARQLeR extension fits seamlessly into the current SPARQL syntax.

  • Performance of path queries is acceptable (if defined expression is highly selective).

  • Optimization of path queries, complex expressions and multiple paths in query.

  • Inclusion of context.

Sparqler krys kochut maciej janik l.jpg
SPARQLeRKrys Kochut, Maciej Janik

Thank you
