Sistem Persamaan Linier

Sistem Persamaan Linier. SolusiTrivial x 1 =0,x 2 =0,..,x n =0. Konsisten. Solusi Nontrivial Solusi tak terhingga. Homogin. Tidak Konsisten. SPL. 1. Metode Cramer 2. Metode Invers 3. Metode Gauss 4. Metode Gauss- Jordan. Konsisten. Non Homogin. Tidak Konsisten.

nay
Download Presentation

Sistem Persamaan Linier

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SistemPersamaan Linier

  2. SolusiTrivial x1=0,x2=0,..,xn=0 Konsisten Solusi Nontrivial Solusi tak terhingga Homogin Tidak Konsisten SPL 1. Metode Cramer 2. Metode Invers 3. Metode Gauss 4. Metode Gauss- Jordan Konsisten Non Homogin Tidak Konsisten

  3. Sistem persamaan linear 3x1 – 7x2 + x3 = 0 -2x1 + 3x2 – 4x3 = 0 2x1 – x2 + 2x3 = 7 x1 + 3x2 – 5x3 = 0 - x1 + x3 = 4 Dng notasi matriks Dng notasi matriks = = A X = G A = G X Matriks augmented : matriks koefisien A ditambah matriks konstanta G. A, matriks koefisien X, matriks variabel /peubah G, matriks konstanta (A | G) =

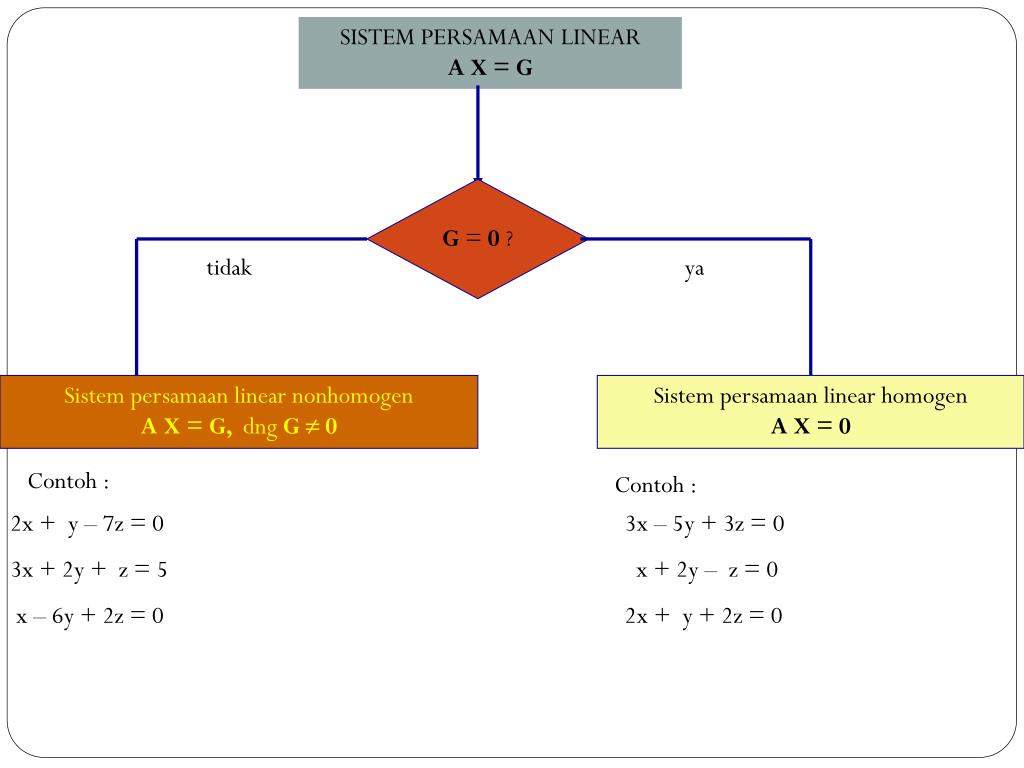

  4. SISTEM PERSAMAAN LINEAR A X = G G = 0 ? tidak ya Sistem persamaan linear nonhomogen A X = G, dng G ≠ 0 Sistem persamaan linear homogen A X = 0 Contoh : Contoh : 2x + y – 7z = 0 3x + 2y + z = 5 x – 6y + 2z = 0 3x – 5y + 3z = 0 x + 2y – z = 0 2x + y + 2z = 0

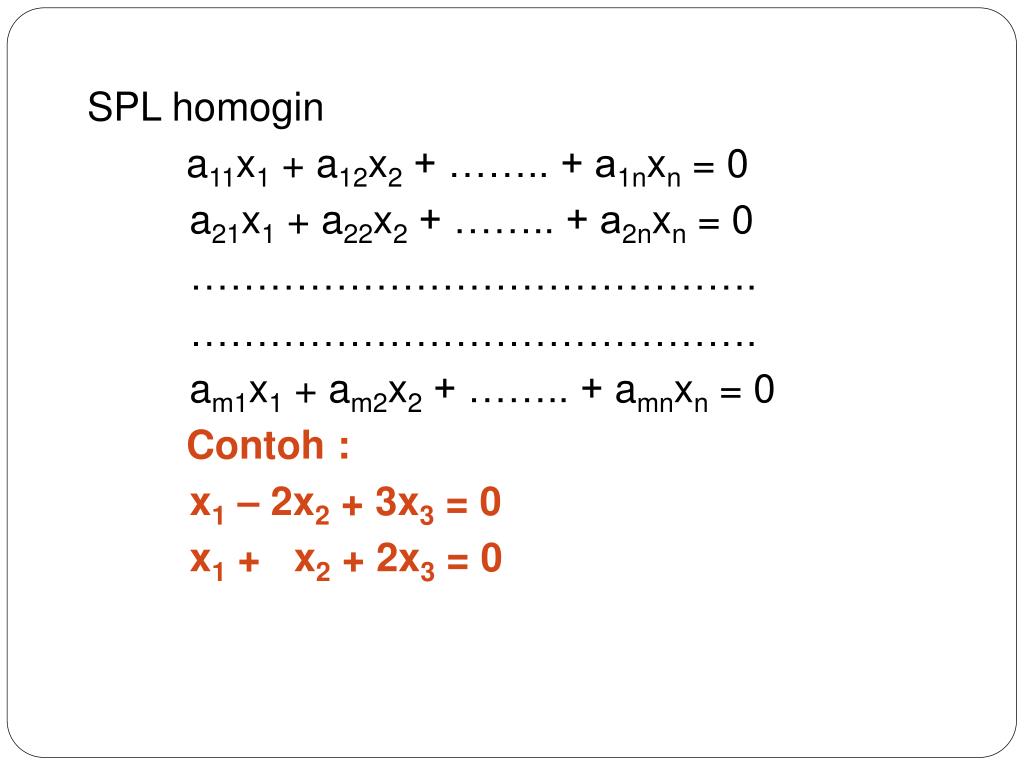

  5. SPL homogin a11x1 + a12x2 + …….. + a1nxn = 0 a21x1 + a22x2 + …….. + a2nxn = 0 ……………………………………. ……………………………………. am1x1 + am2x2 + …….. + amnxn = 0 Contoh : x1 – 2x2 + 3x3 = 0 x1 + x2 + 2x3 = 0

  6. SPL non homogin a11x1 + a12x2 + ….+ a1nxn = b1 a21x1 + a22x2 + ….+ a2nxn = b2 ………………………………… ………………………………… am1x1 + am2x2 + ….+ amnxn = bm CONTOH x1 – 2x2 + 3x3 = 4 X1 + x2 + 2x3 = 5

  7. SPL HOMOGEN • Solusi Trivial • Solusi Non Trivial
