wireless sensor network

Wireless Sensor Network

A Second-Generation Sensor Network Processor with Application-Driven Memory Optimizations and Out-of-Order Execution*

by

Banit Agrawal

*Paper published in CASES 2005 by U Michigan Group

Banit Agrawal @ UCSB

outline

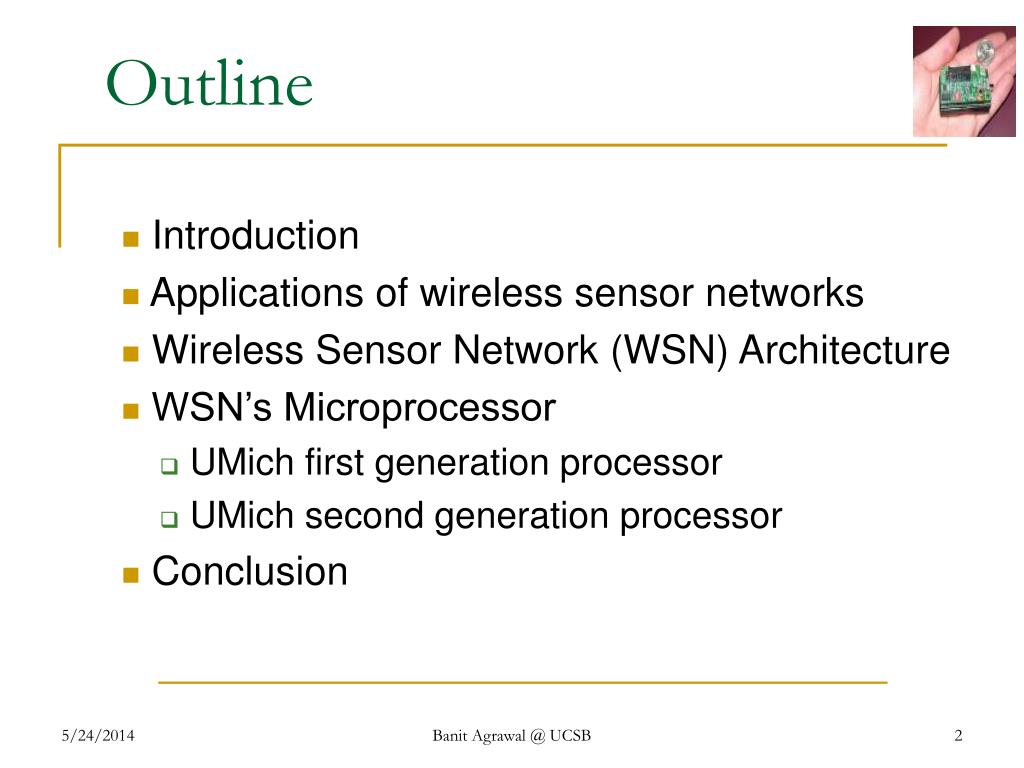

Outline

Introduction

Applications of wireless sensor networks

Wireless Sensor Network (WSN) Architecture

WSN’s Microprocessor

UMich first generation processor

UMich second generation processor

Conclusion

Banit Agrawal @ UCSB

what is wireless sensor network

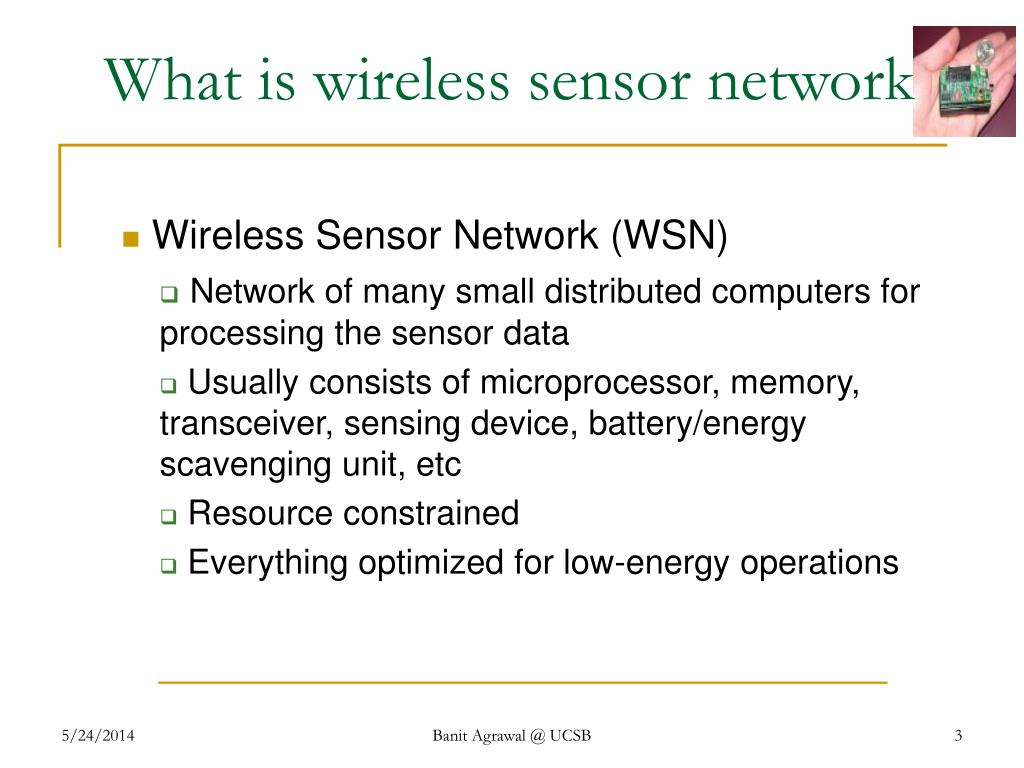

What is wireless sensor network

Wireless Sensor Network (WSN)

Network of many small distributed computers for processing the sensor data

Usually consists of microprocessor, memory, transceiver, sensing device, battery/energy scavenging unit, etc

Resource constrained

Everything optimized for low-energy operations

Banit Agrawal @ UCSB

current challenges

Current Challenges

Energy Conservation

Limited Computation/Storage

Scalability

Fault-tolerance

Routing/Communication

Bandwidth

Autonomous and Distributed Systems

Security

Banit Agrawal @ UCSB

applications 1

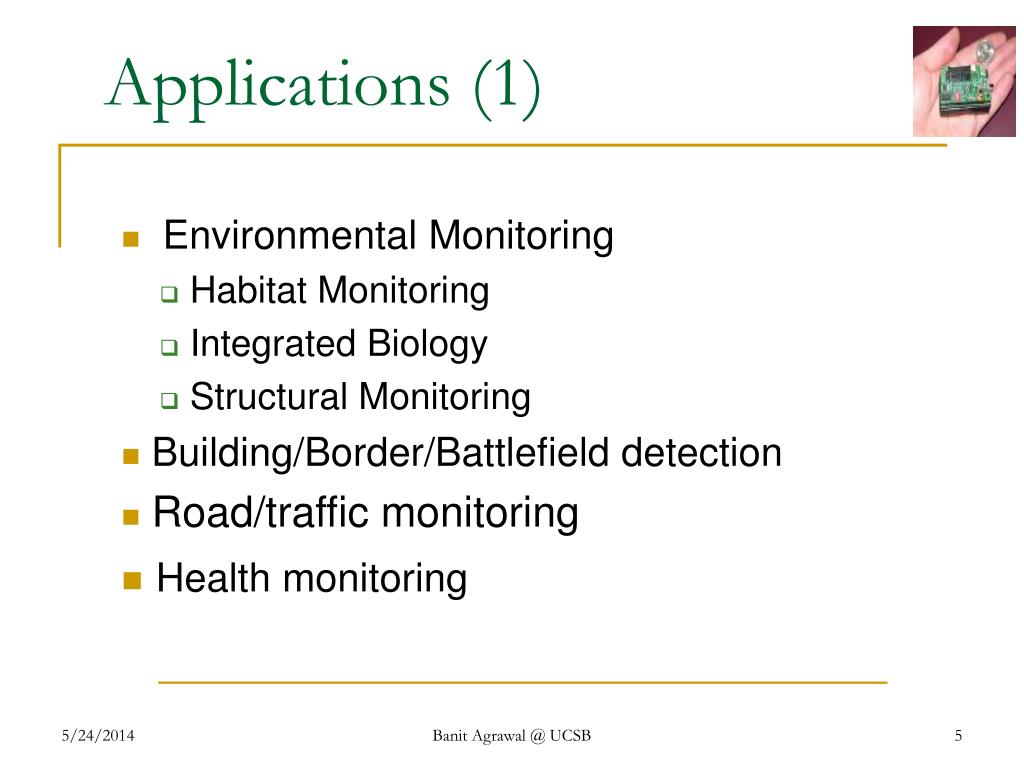

Applications (1)

Environmental Monitoring

Habitat Monitoring

Integrated Biology

Structural Monitoring

Building/Border/Battlefield detection

Road/traffic monitoring

Health monitoring

Banit Agrawal @ UCSB

applications 2

Applications (2)

Business Applications

Supply Chain Management

Expired/Damaged Goods Tracking

Automatic Checkout Systems

Security, surveillance

Context-aware computing

Automation

Banit Agrawal @ UCSB

wsn node architecture

WSN Node Architecture

Ref: Energy-Aware Wireless Microsensor Networks

Banit Agrawal @ UCSB

berkeley motes

Berkeley Motes

Banit Agrawal @ UCSB

sensoria sgate hardware

Flash

RAM

Processor

10/100

Ethernet

Address/Data Bus

Preprocessor

Interface

Modular

Wireless and Digital Interfaces

Imager

Module

Imager

Interface

RF

Modem

1

RF

Modem

2

Digital

I/O

GPS

Analog

Front

End

Multi-

Channel

Sensor

Interface

DSP

Preprocessor

Sensoria SGATE hardware

Banit Agrawal @ UCSB

ucla sensor nodes

UCLA Sensor Nodes

Banit Agrawal @ UCSB

mit amps

MIT AMPS

Banit Agrawal @ UCSB

intel stargate

Intel StarGate

Banit Agrawal @ UCSB

harvard s university isca 05

Micro

Controller

Sensors

Addr/Data

Radio

Addr/Data

Event Processor

Message Processor

System Bus

Interrupt

Power Ctrl

Data Filter

SRAM

Timer

Harvard’s University (ISCA’05)

Banit Agrawal @ UCSB

berkeley s experimental platform

Telos 4/04

Robust

Low Power

250kbps

Easy to use

WeC 99

“Smart Rock”

Rene 11/00

Dot 9/01

Mica 1/02

Small microcontroller 8 kB code 512 B data

Simple, low-power radio 10 kbps ASK

EEPROM (32 KB)

Simple sensors

Mica2 12/02

38.4kbps radioFSK

Demonstrate scale

  • Designed for experimentation
  • sensor boards
  • power boards

NEST open exp. Platform128 kB code, 4 kB data40kbps OOK/ASK radio512 kB Flash

Spec 6/03

“Mote on a chip”

Berkeley’s Experimental Platform

Services

Networking

TinyOS

Ref: HotChips 2004 – “Mote Evolution…”

Banit Agrawal @ UCSB

mote evolution

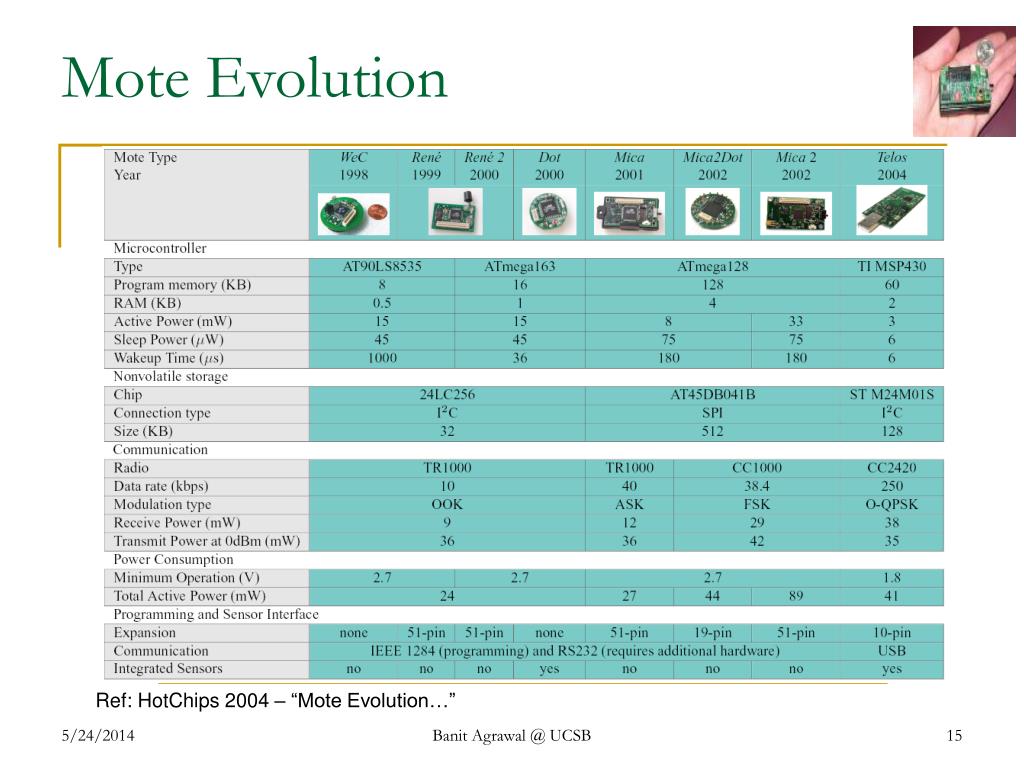

Mote Evolution

Ref: HotChips 2004 – “Mote Evolution…”

Banit Agrawal @ UCSB

wsn s microcontroller

WSN’s Microcontroller

AT/ATmega/ATMEL (AVR) Family

TI Family

Intel XScale

StrongARM

Harvard’s microcontroller

UMich’s first generation processor

UMich’s second generation processor

Banit Agrawal @ UCSB

processor requirements

Processor Requirements

Banit Agrawal @ UCSB

voltage reduction

Voltage Reduction

Not Performance, Energy is important.

Banit Agrawal @ UCSB

sensor network applications

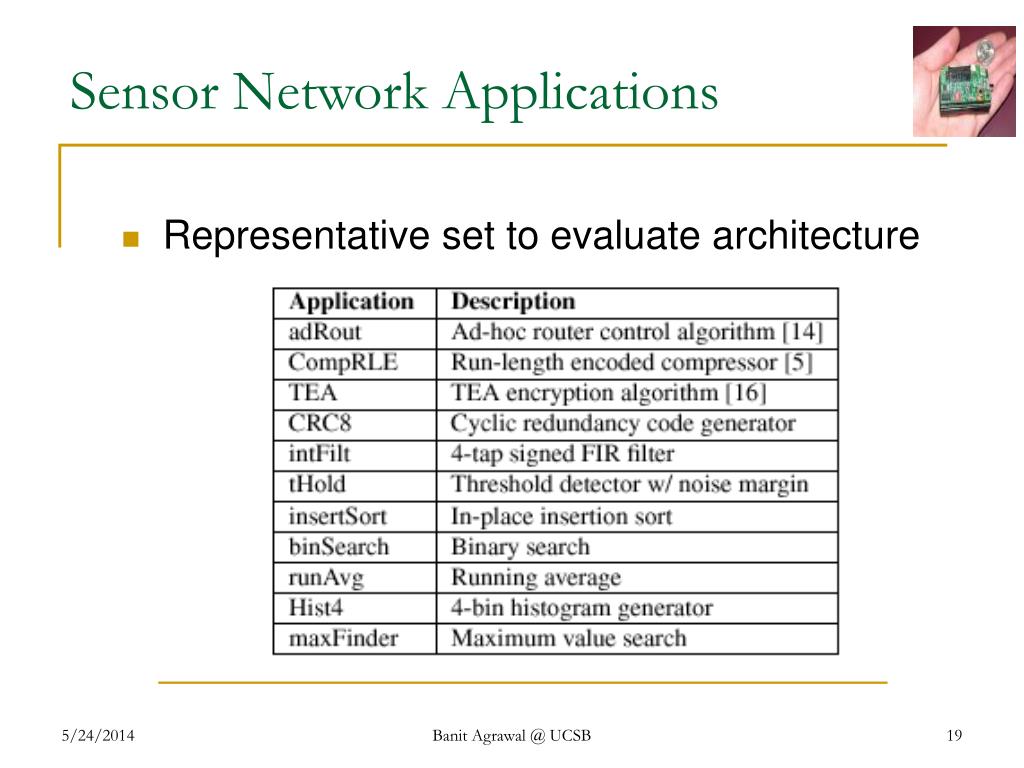

Sensor Network Applications

Representative set to evaluate architecture

Banit Agrawal @ UCSB

optimizing energy efficiency

Optimizing Energy Efficiency

Reduce the area to minimize the static power

Transistor utility must be maximized

CPI must be minimized

Banit Agrawal @ UCSB

processor s characteristics

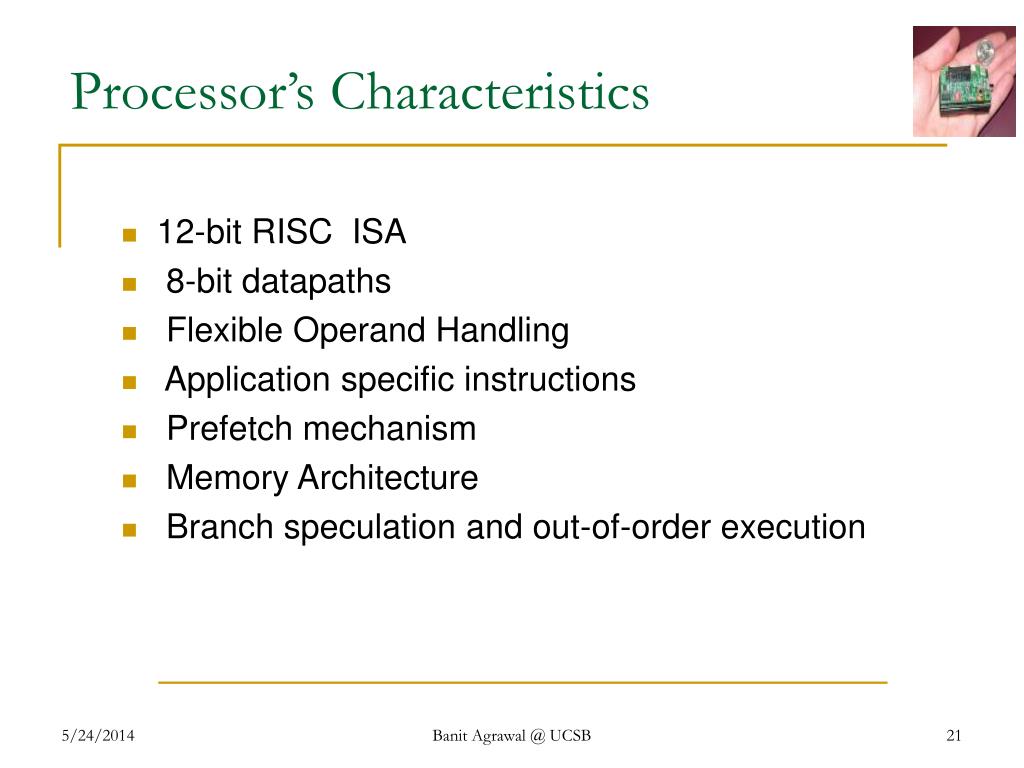

Processor’s Characteristics

12-bit RISC ISA

8-bit datapaths

Flexible Operand Handling

Application specific instructions

Prefetch mechanism

Memory Architecture

Branch speculation and out-of-order execution

Banit Agrawal @ UCSB

isa risc encoding

ISA: RISC Encoding

12-bit RISC encoding simple decoding logic

Reducing code-density and hence area to reduce the leakage energy

96.2% encoding efficiency

Banit Agrawal @ UCSB

isa organization

ISA Organization

Banit Agrawal @ UCSB

isa design

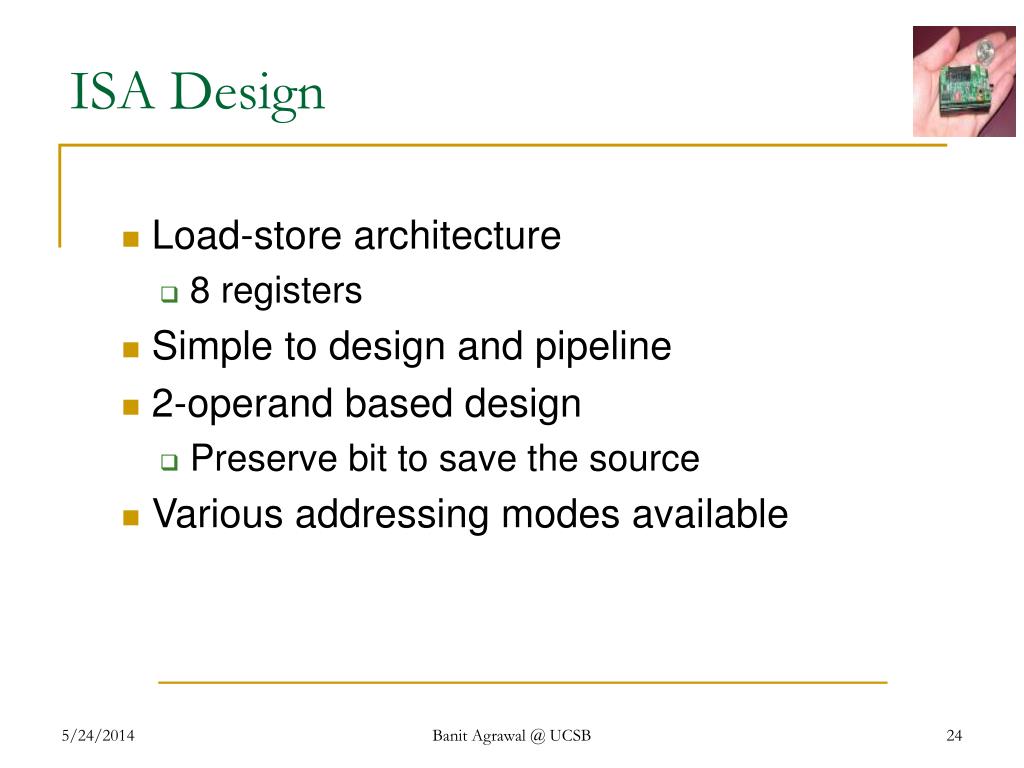

ISA Design

Load-store architecture

8 registers

Simple to design and pipeline

2-operand based design

Preserve bit to save the source

Various addressing modes available

Banit Agrawal @ UCSB

isa design 2

ISA Design (2)

Micro-operations

Application specific instructions

Efficient pointer and carry manipulation

Event scheduler control

Timer control

Reduction in code-size

Banit Agrawal @ UCSB

memory optimizations

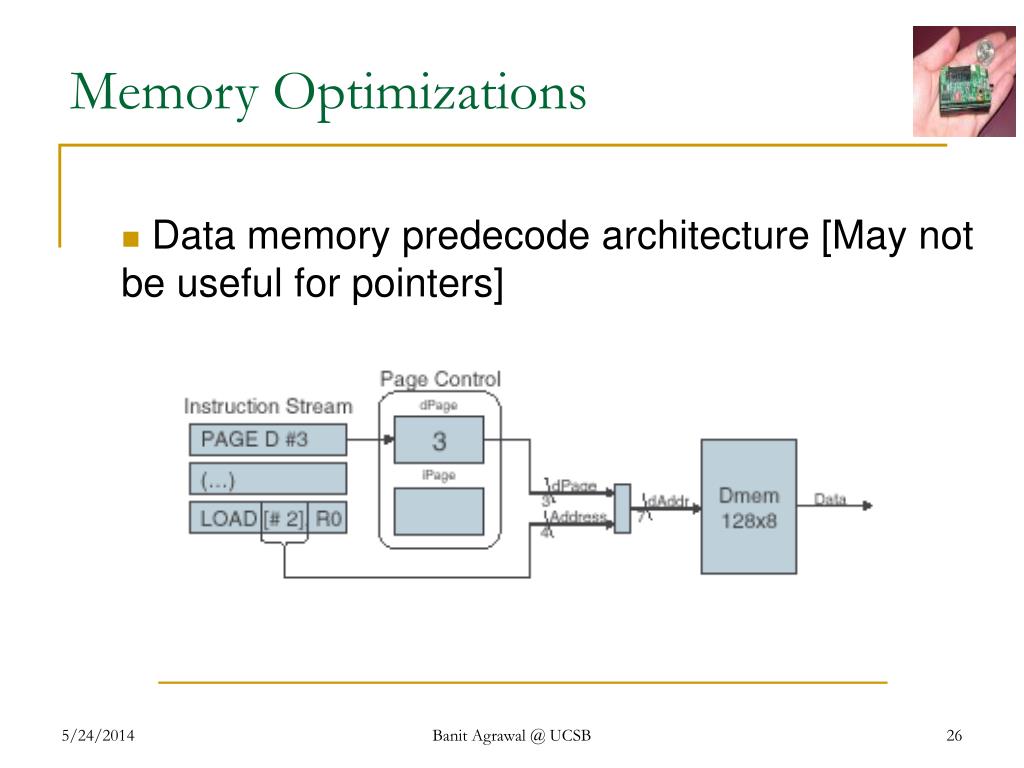

Memory Optimizations

Data memory predecode architecture [May not be useful for pointers]

Banit Agrawal @ UCSB

memory optimizations 2

Memory Optimizations (2)

Instruction memory predecode architecture

2 words and automatically increment the page when PC reaches the end of page

Banit Agrawal @ UCSB

processor pipeline design

Processor pipeline design

3-stage pipeline [optimum, not 4 not 2]

Banit Agrawal @ UCSB

microarchitectural optimizations

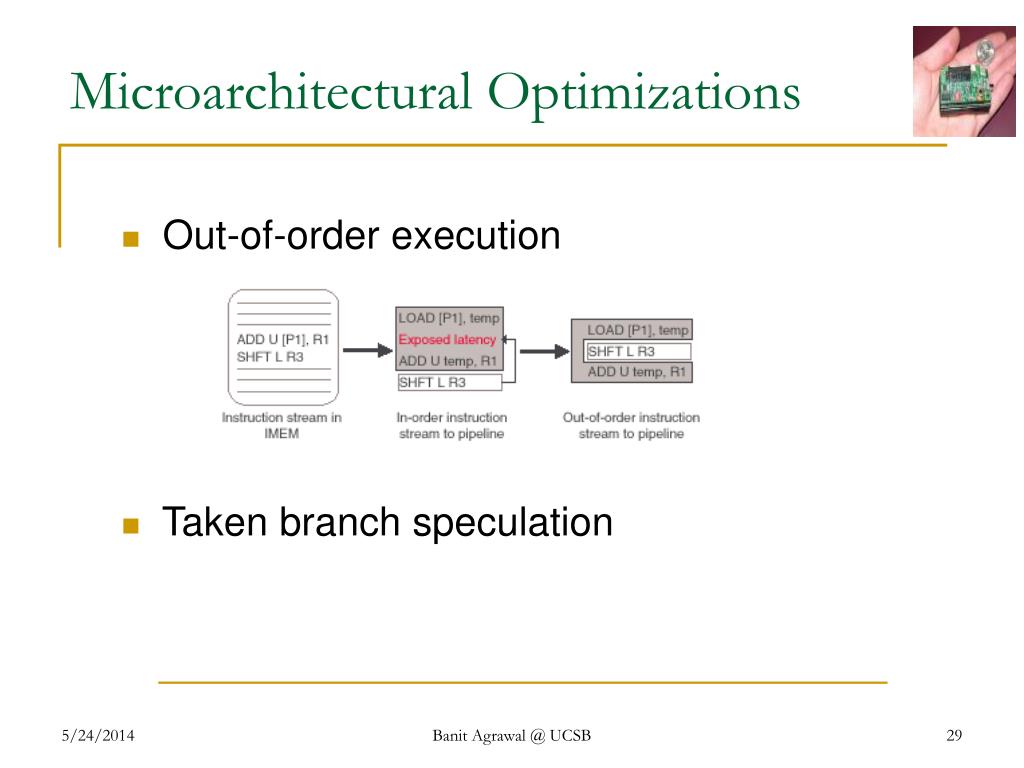

Microarchitectural Optimizations

Out-of-order execution

Taken branch speculation

Banit Agrawal @ UCSB

results

Results

Banit Agrawal @ UCSB

results contributions

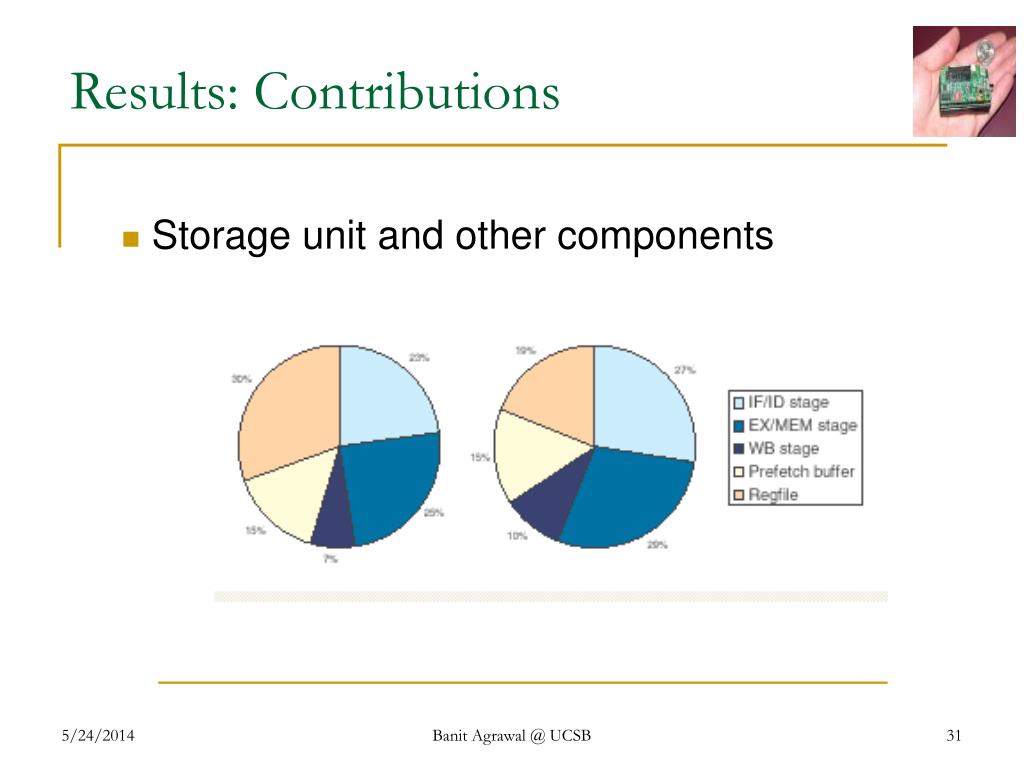

Results: Contributions

Storage unit and other components

Banit Agrawal @ UCSB

related works

Related Works

8-bit ATmega - 1.5 nJ/instruction

Clever Dust 2 – 12 pJ/instruction

StrongARM/XScale - 1nJ/instruction

SNAP/LE – 24 pJ/instruction

Umich first generation – 1.6 pJ/instruction

Umich second generation – 600fJ/instruction

Banit Agrawal @ UCSB

conclusion

Conclusion

Energy-efficient processor (600 fJ/instruction, will run 312 years on single AAA)

Microarchitectural and ISA optimizations to reduce the leakage energy

IBM 130nm fabrication

Intra-ocular pressure sensor

Banit Agrawal @ UCSB

thanks for your attention

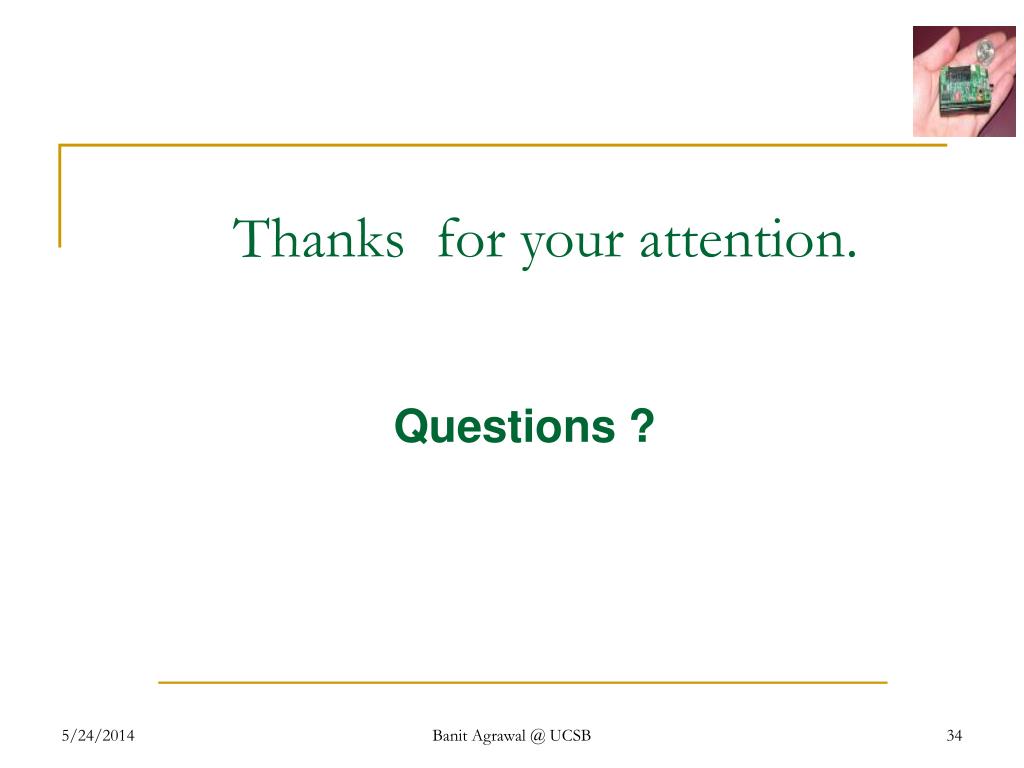

Thanks for your attention.

Questions ?

Banit Agrawal @ UCSB
