the solar dynamo and emerging flux

The Solar Dynamo and Emerging Flux

Presented by Angelo P. Verdoni

Physics 681

Fall 05

George H. Fisher, Yuhong Fan, Dana W. Longcope,

Mark G. Linton and Alexei A. Pevtsov

slide2

Dynamo Theory

Theory that explains planetary and stellar magnetic fields in terms of rotating, conducting material flowing in an object's interior.

http://physics.uoregon.edu/~jimbrau/BrauImNew/Chap07/FG07_23-05.jpg

slide3

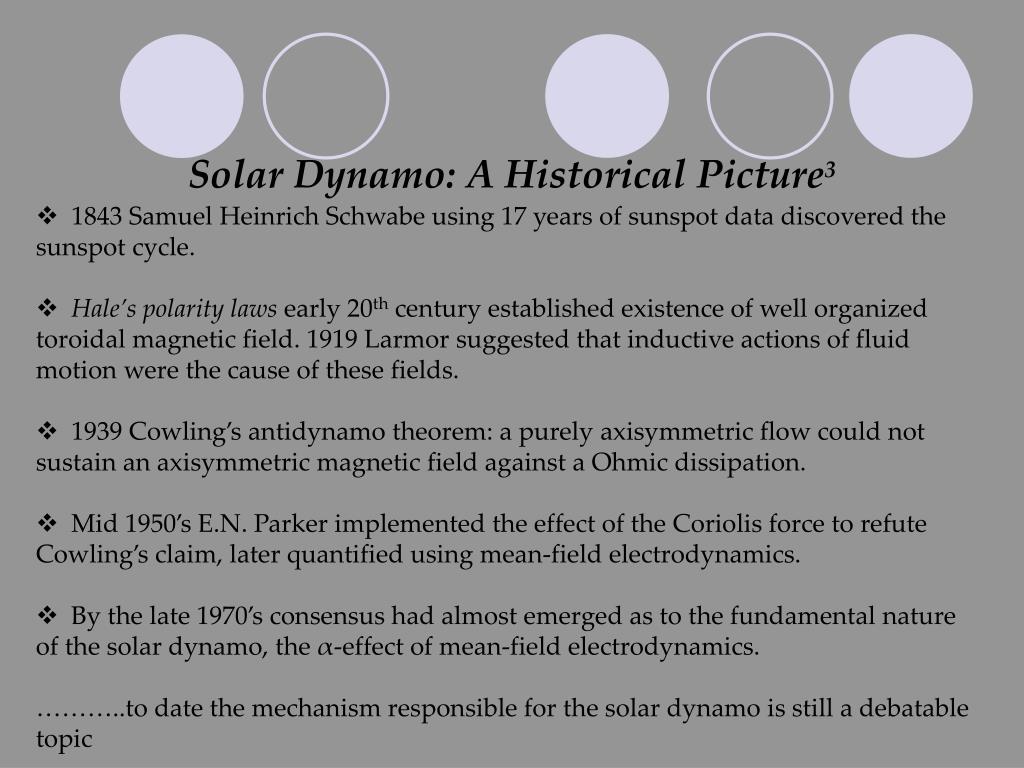

Solar Dynamo: A Historical Picture3

  • 1843 Samuel Heinrich Schwabe using 17 years of sunspot data discovered the sunspot cycle.
  • Hale’s polarity laws early 20th century established existence of well organized toroidal magnetic field. 1919 Larmor suggested that inductive actions of fluid motion were the cause of these fields.
  • 1939 Cowling’s antidynamo theorem: a purely axisymmetric flow could not sustain an axisymmetric magnetic field against a Ohmic dissipation.
  • Mid 1950’s E.N. Parker implemented the effect of the Coriolis force to refute Cowling’s claim, later quantified using mean-field electrodynamics.
  • By the late 1970’s consensus had almost emerged as to the fundamental nature of the solar dynamo, the α-effect of mean-field electrodynamics.

………..to date the mechanism responsible for the solar dynamo is still a debatable topic

slide4

Mark S. Miesch, "Large-Scale Dynamics of the Convection Zone and Tachocline", Living Rev. Solar Phys.2,  (2005),  1. URL (cited on <11/18/2005>): http://www.livingreviews.org/lrsp-2005-1

(http://science.msfc.nasa.gov/ssl/pad/solar/images/cutaway.jpg)

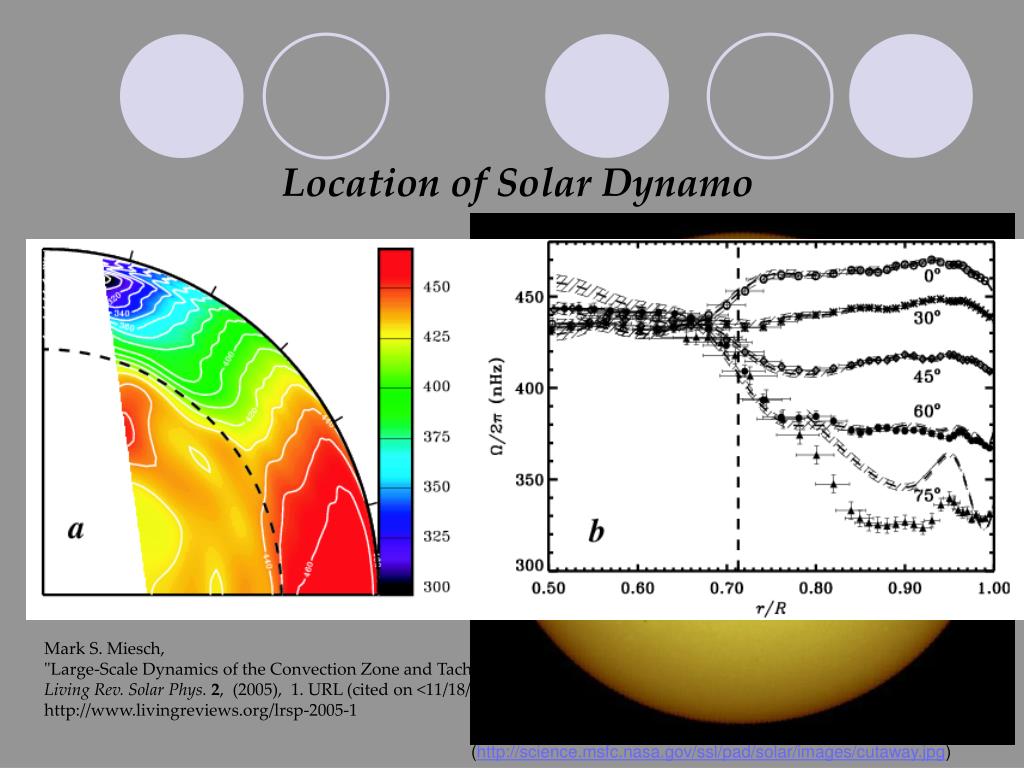

Location of Solar Dynamo

  • Flux tubes originate in the convective overshoot layer where the sun’s dynamo is thought to take place
  • This region happens to coincide with the ‘Tachocline’ generated using inversion methods of the rotation profile from helioseismology
slide5

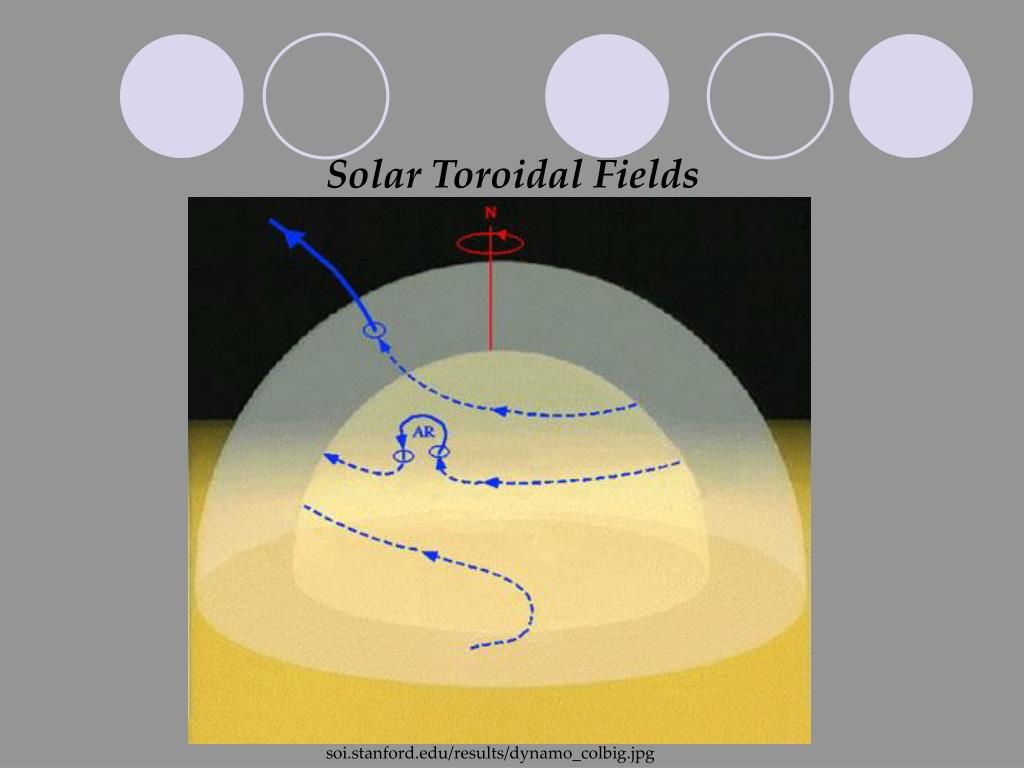

Solar Toroidal Fields

soi.stanford.edu/results/dynamo_colbig.jpg

slide6

Solar Dynamo and Emerging Flux: Introduction

  • A model of flux tube dynamics is presented and compared with observation of known active region properties:
  • Latitude distribution of sunspots
  • The tilt of active regions
  • Asymmetric characteristics of active regions i.e. The rapid separation of the leading spot from the magnetic neutral line
  • The tendency for most active regions to have a negative magnetic twist in the northern hemisphere and positive twist in the southern hemisphere
  • The properties of flare producing δ-spot active regions
slide7

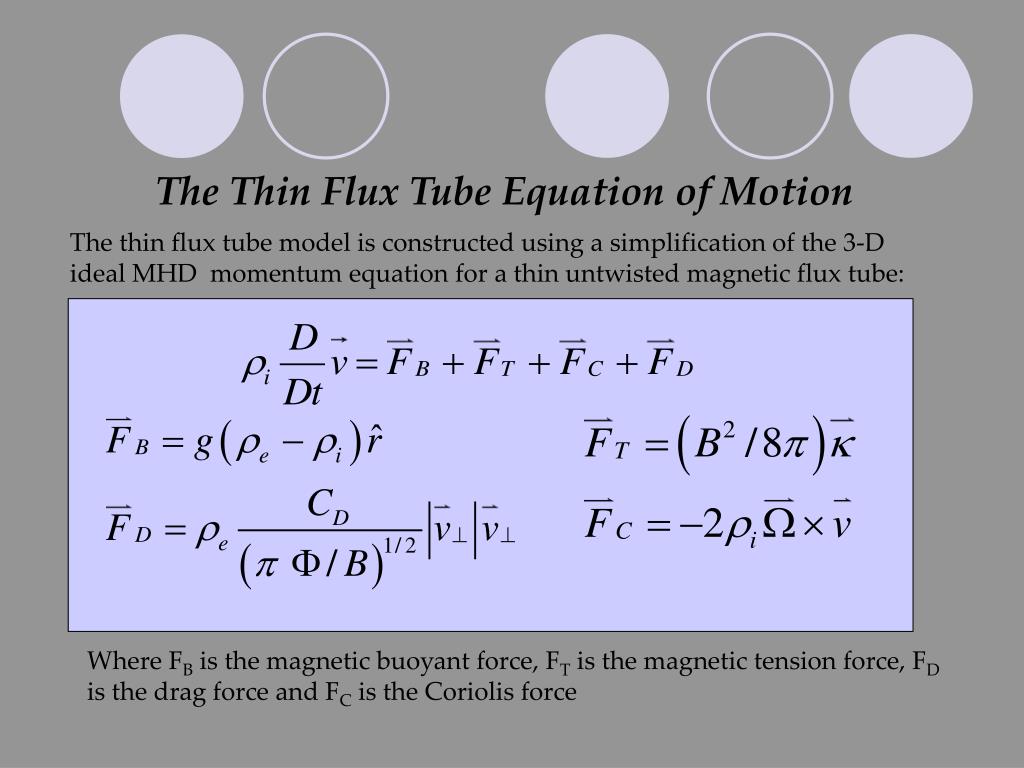

The Thin Flux Tube Equation of Motion

The thin flux tube model is constructed using a simplification of the 3-D ideal MHD momentum equation for a thin untwisted magnetic flux tube:

Where FB is the magnetic buoyant force, FT is the magnetic tension force, FD is the drag force and FC is the Coriolis force

slide8

Field Strength of B = Beq

Field Strength of B = 10Beq

The Thin Flux Tube Equation of Motion

Animations from: http://www.hao.ucar.edu/Public/about/Staff/yfan/

slide9

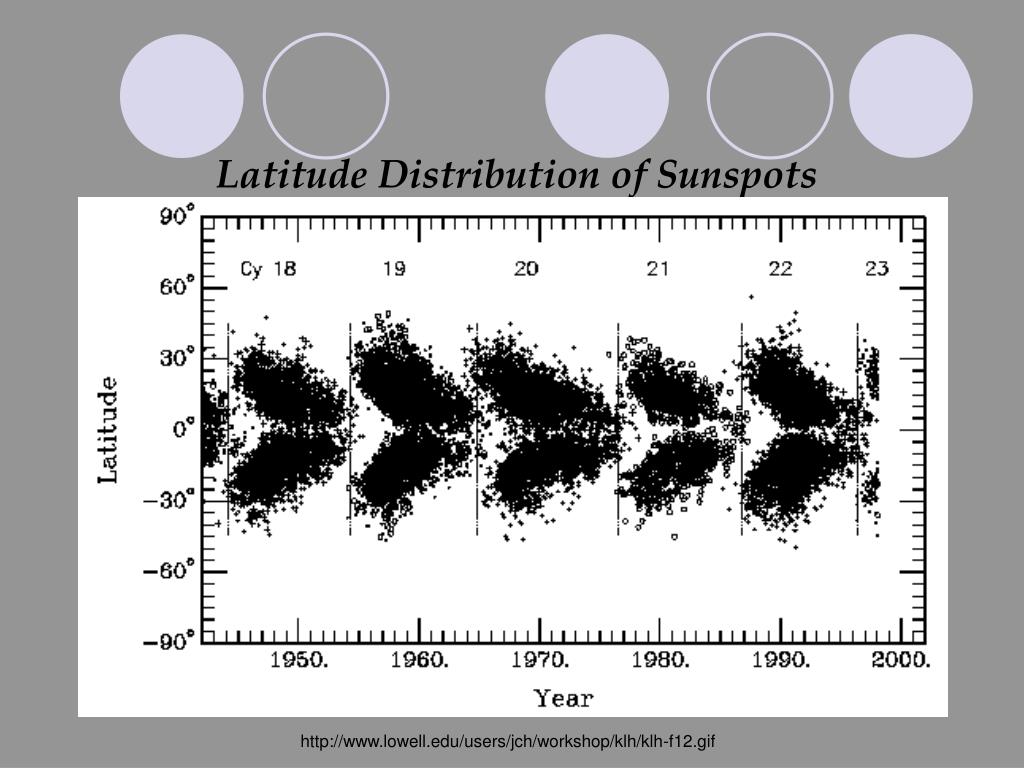

Latitude Distribution of Sunspots

http://www.lowell.edu/users/jch/workshop/klh/klh-f12.gif

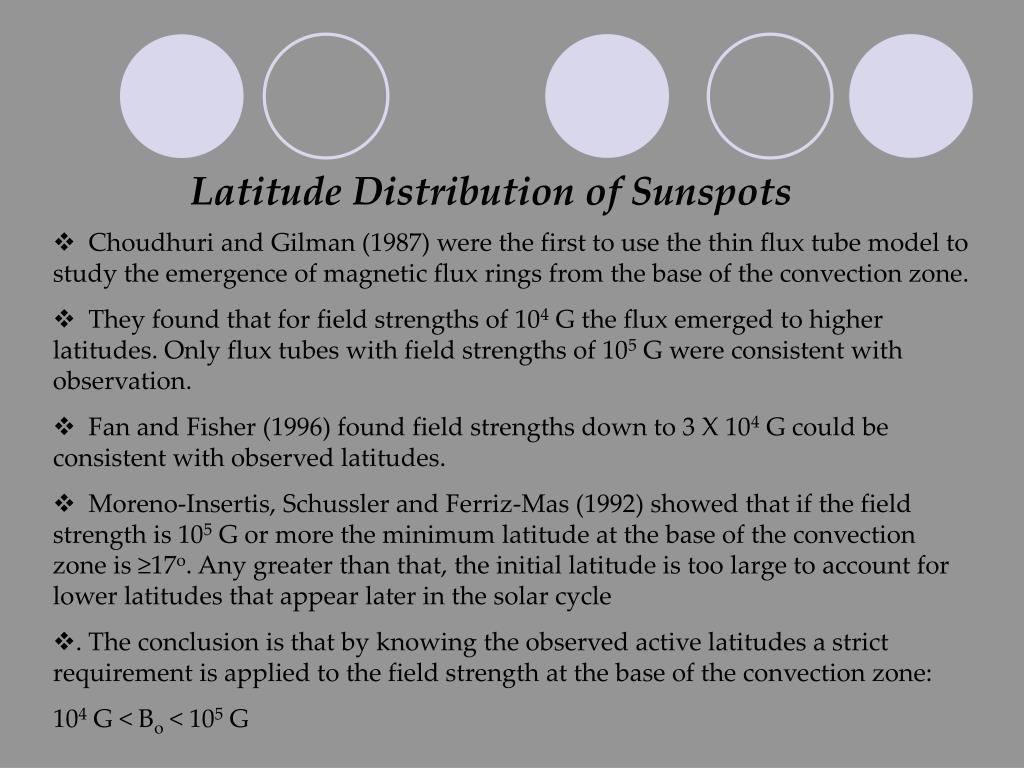

slide10

Latitude Distribution of Sunspots

  • Choudhuri and Gilman (1987) were the first to use the thin flux tube model to study the emergence of magnetic flux rings from the base of the convection zone.
  • They found that for field strengths of 104 G the flux emerged to higher latitudes. Only flux tubes with field strengths of 105 G were consistent with observation.
  • Fan and Fisher (1996) found field strengths down to 3 X 104 G could be consistent with observed latitudes.
  • Moreno-Insertis, Schussler and Ferriz-Mas (1992) showed that if the field strength is 105 G or more the minimum latitude at the base of the convection zone is ≥17o. Any greater than that, the initial latitude is too large to account for lower latitudes that appear later in the solar cycle
  • . The conclusion is that by knowing the observed active latitudes a strict requirement is applied to the field strength at the base of the convection zone:

104 G < Bo < 105 G

slide11

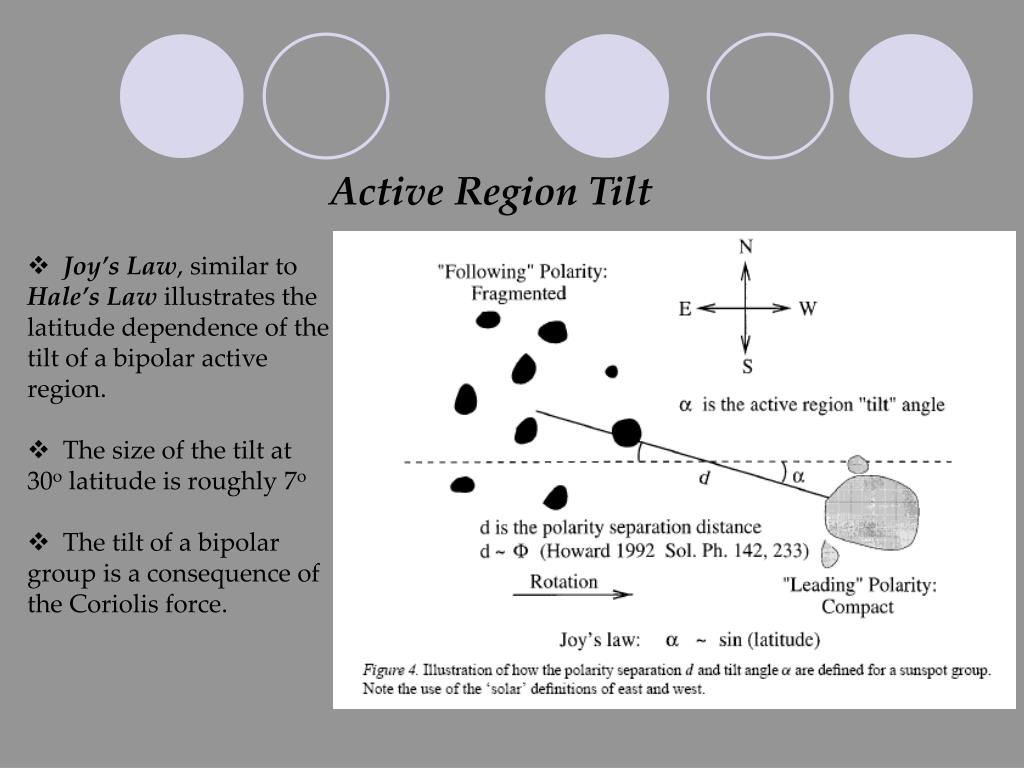

Active Region Tilt

  • Joy’s Law, similar to Hale’s Law illustrates the latitude dependence of the tilt of a bipolar active region.
  • The size of the tilt at 30o latitude is roughly 7o
  • The tilt of a bipolar group is a consequence of the Coriolis force.
slide12

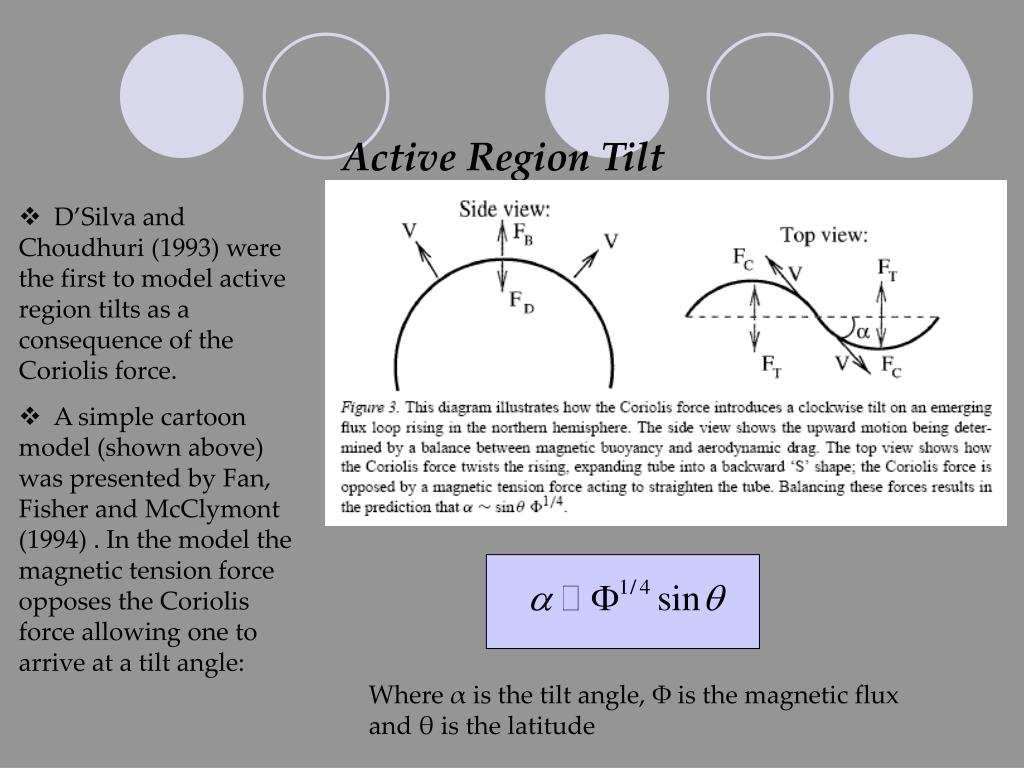

Active Region Tilt

  • D’Silva and Choudhuri (1993) were the first to model active region tilts as a consequence of the Coriolis force.
  • A simple cartoon model (shown above) was presented by Fan, Fisher and McClymont (1994) . In the model the magnetic tension force opposes the Coriolis force allowing one to arrive at a tilt angle:

Where α is the tilt angle, Φ is the magnetic flux and θ is the latitude

slide13

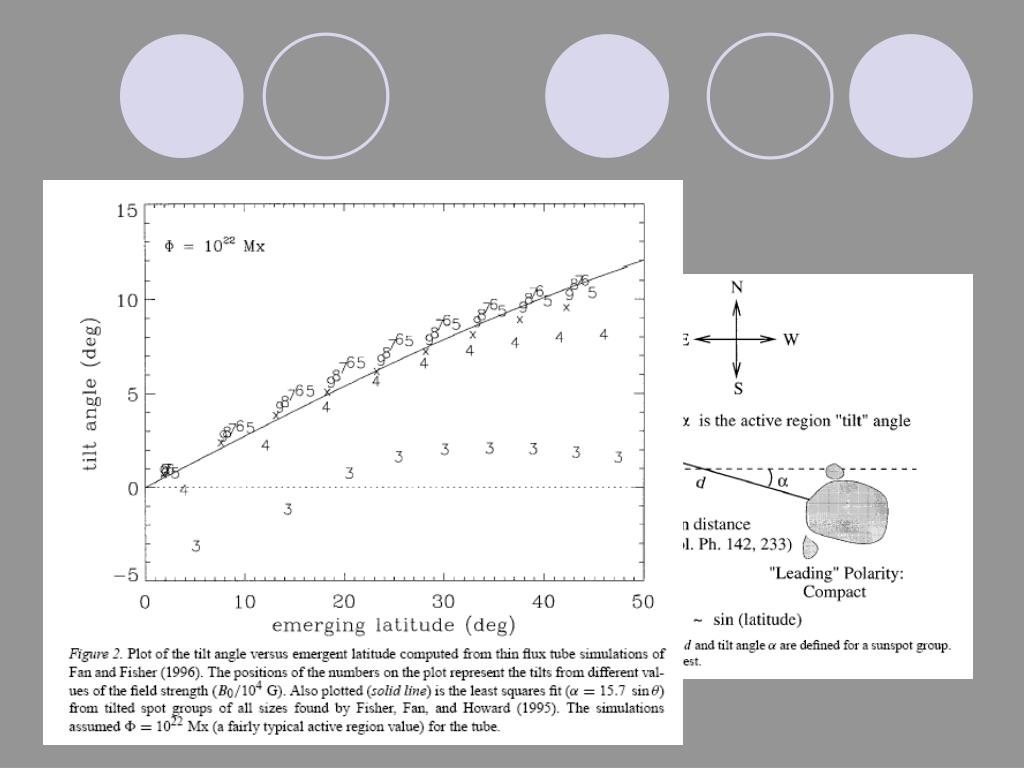

The tilt angle can also be expressed in terms of the separation distance between the poles d as:

Active Region Tilt

slide14

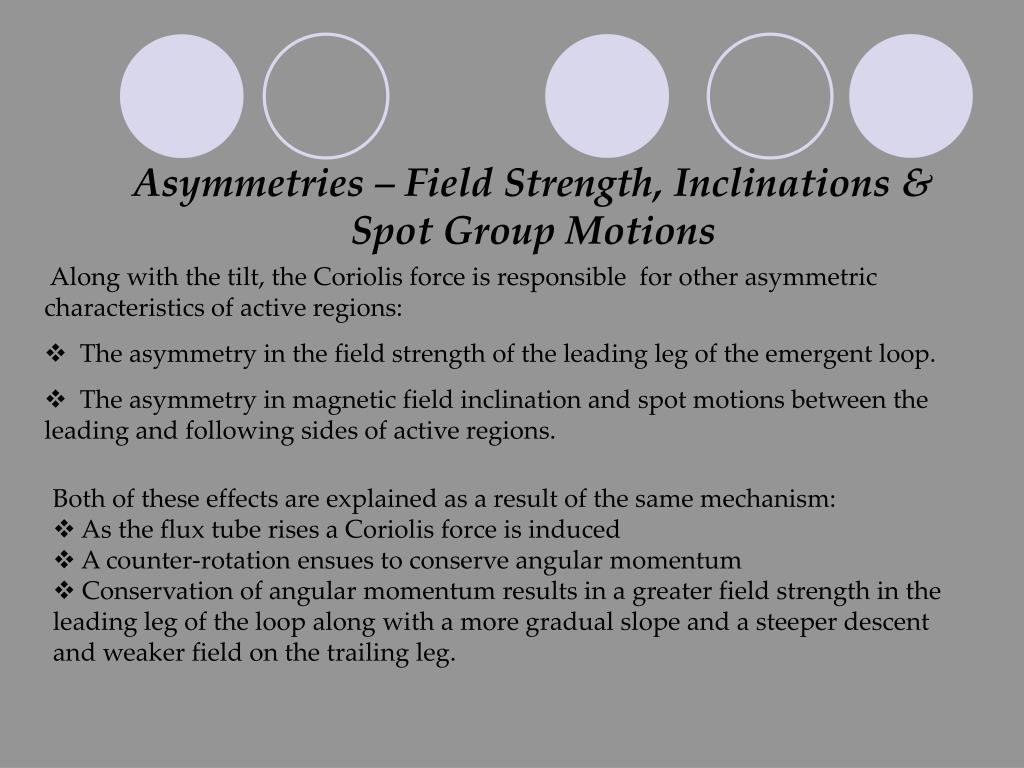

Asymmetries – Field Strength, Inclinations & Spot Group Motions

Along with the tilt, the Coriolis force is responsible for other asymmetric characteristics of active regions:

  • The asymmetry in the field strength of the leading leg of the emergent loop.
  • The asymmetry in magnetic field inclination and spot motions between the leading and following sides of active regions.
  • Both of these effects are explained as a result of the same mechanism:
  • As the flux tube rises a Coriolis force is induced
  • A counter-rotation ensues to conserve angular momentum
  • Conservation of angular momentum results in a greater field strength in the leading leg of the loop along with a more gradual slope and a steeper descent and weaker field on the trailing leg.
slide15

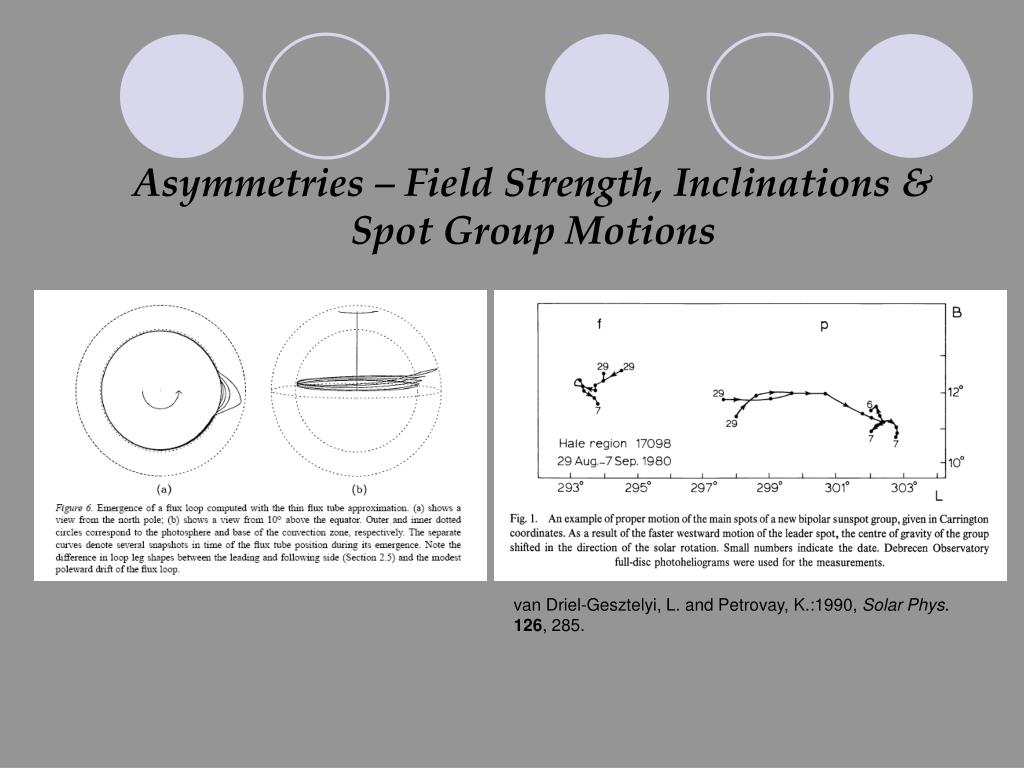

Asymmetries – Field Strength, Inclinations & Spot Group Motions

van Driel-Gesztelyi, L. and Petrovay, K.:1990, Solar Phys. 126, 285.

slide16

Beyond the Thin Untwisted Flux Tube Approximation

& MHD Simulations

  • Most active regions have a modest level of twist
  • There is a trend: northern hemisphere spots have negative twist and southern, positive.
  • Longcope, Fisher and Pevtsov (1998) describe the twist using the ‘Σ-effect’

Longcope, D. W., Fisher, G. H., and Pevtsov, A. A.: 1998, Astrophys. J. 507, 417.

slide17

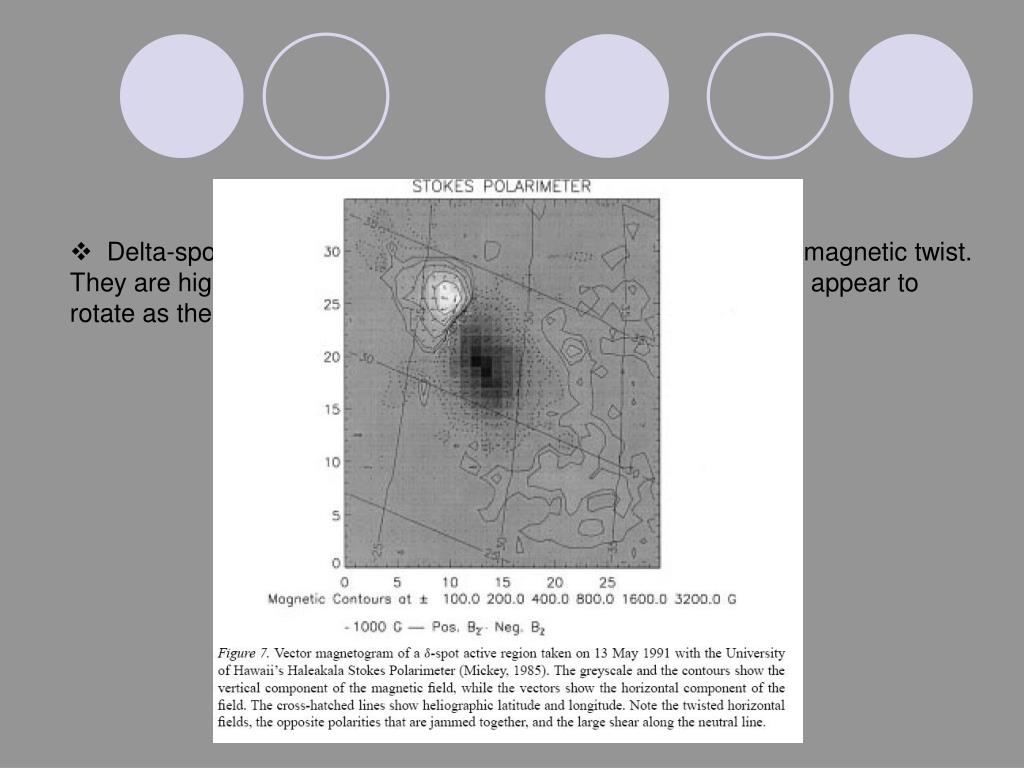

δ – spot Active Regions

  • Delta-spot active regions exhibit an unusually high amount of magnetic twist.
  • They are highly tilted away from the E-W direction and frequently appear to rotate as they emerge

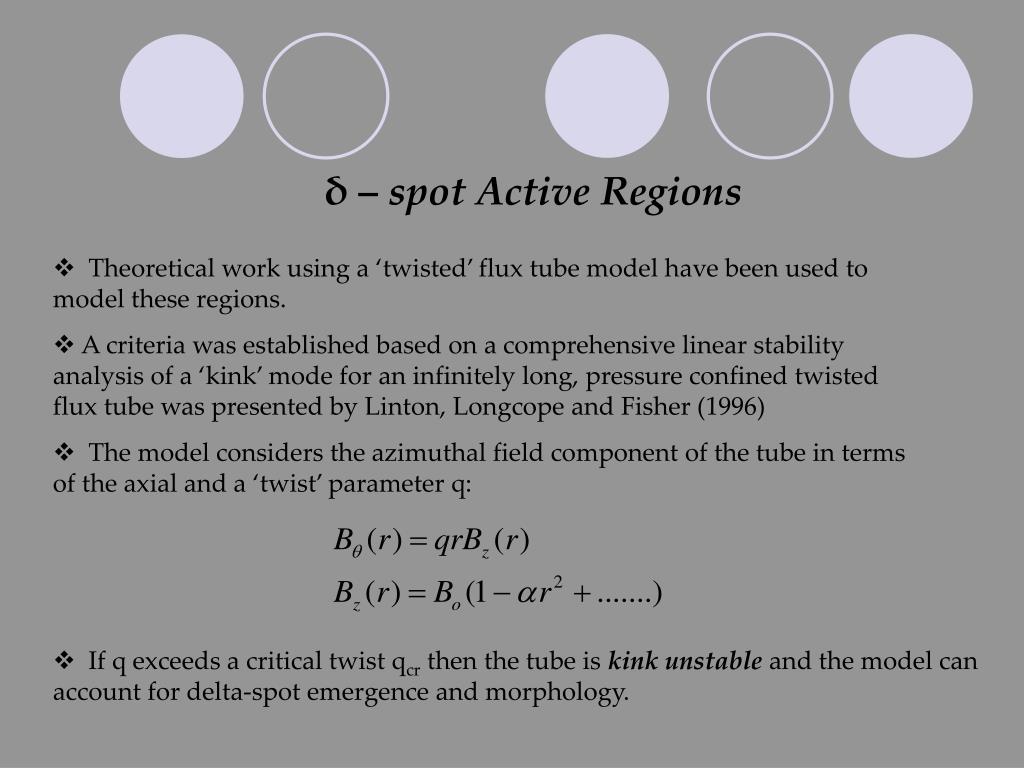

slide18

δ – spot Active Regions

  • Theoretical work using a ‘twisted’ flux tube model have been used to model these regions.
  • A criteria was established based on a comprehensive linear stability analysis of a ‘kink’ mode for an infinitely long, pressure confined twisted flux tube was presented by Linton, Longcope and Fisher (1996)
  • The model considers the azimuthal field component of the tube in terms of the axial and a ‘twist’ parameter q:
  • If q exceeds a critical twist qcr then the tube is kink unstable and the model can account for delta-spot emergence and morphology.
slide19

3D MHD Simulations

http://www.hao.ucar.edu/Public/about/Staff/yfan/

summary
Summary
  • Dynamic flux tube models have been successful in reproducing many observed properties of active regions, such as:

1. Active region latitude emergence.

2. Active region tilt, ‘Joy’s Law’.

3. The asymmetries present in active regions, i.e. Field strengths, Inclinations and spot group motions.

4. The ‘twist’ of active regions and its latitude dependence

5. Delta-spot emergence

slide21

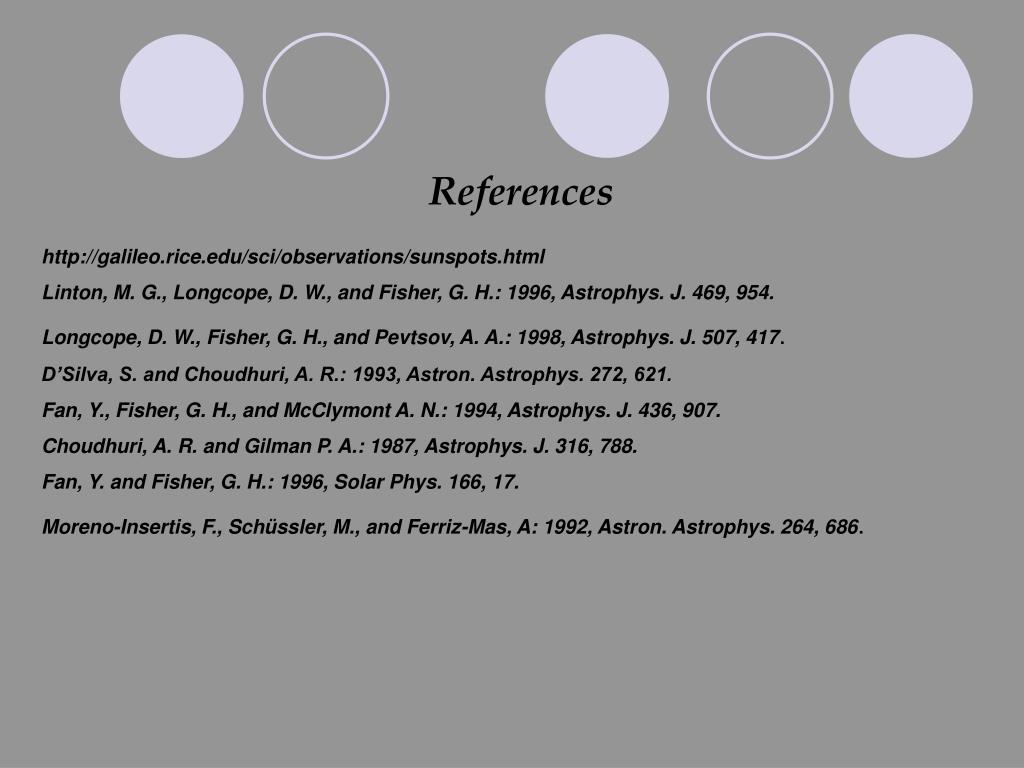

References

http://galileo.rice.edu/sci/observations/sunspots.html

Linton, M. G., Longcope, D. W., and Fisher, G. H.: 1996, Astrophys. J. 469, 954.

Longcope, D. W., Fisher, G. H., and Pevtsov, A. A.: 1998, Astrophys. J. 507, 417.

D’Silva, S. and Choudhuri, A. R.: 1993, Astron. Astrophys. 272, 621.

Fan, Y., Fisher, G. H., and McClymont A. N.: 1994, Astrophys. J. 436, 907.

Choudhuri, A. R. and Gilman P. A.: 1987, Astrophys. J. 316, 788.

Fan, Y. and Fisher, G. H.: 1996, Solar Phys. 166, 17.

Moreno-Insertis, F., Schüssler, M., and Ferriz-Mas, A: 1992, Astron. Astrophys. 264, 686.
