Dilations. Example 1. Write the coordinates of the vertices after a dilation with a scale factor of 3, centered at the origin. K (3, - 1)  →  K ′( , ) L (3, 0)  →  L ′( , ) M ( - 2, 0)  →  M ′( , ) . Example 2.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Dilations' - nara


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
example 1

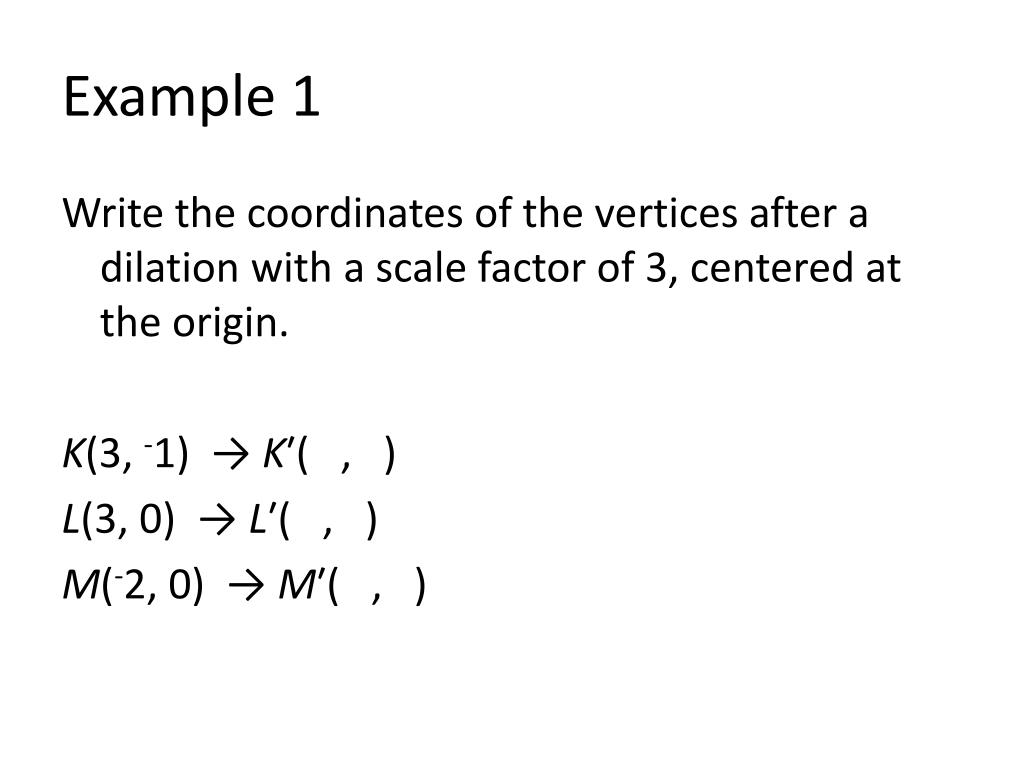

Example 1

Write the coordinates of the vertices after a dilation with a scale factor of 3, centered at the origin.

K(3, -1)  → K′( , )

L(3, 0)  → L′( , )

M(-2, 0)  → M′( , )

example 2

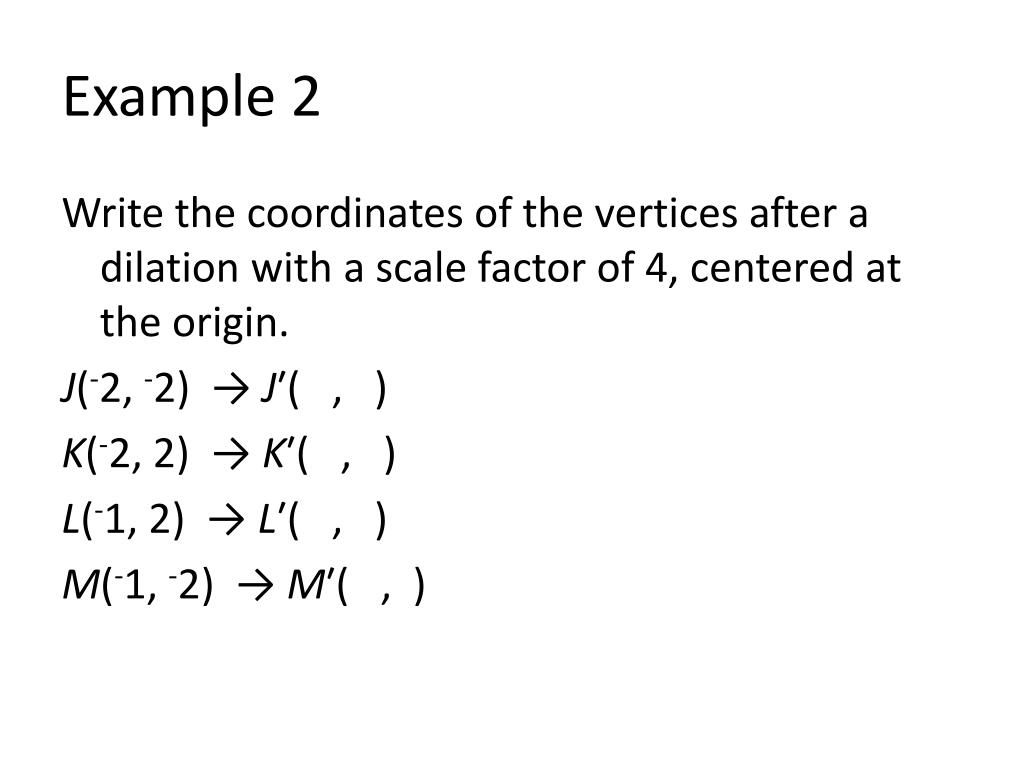

Example 2

Write the coordinates of the vertices after a dilation with a scale factor of 4, centered at the origin.

J(-2, -2)  → J′( , )

K(-2, 2)  → K′( , )

L(-1, 2)  → L′( , )

M(-1, -2)  → M′( , )

example 3

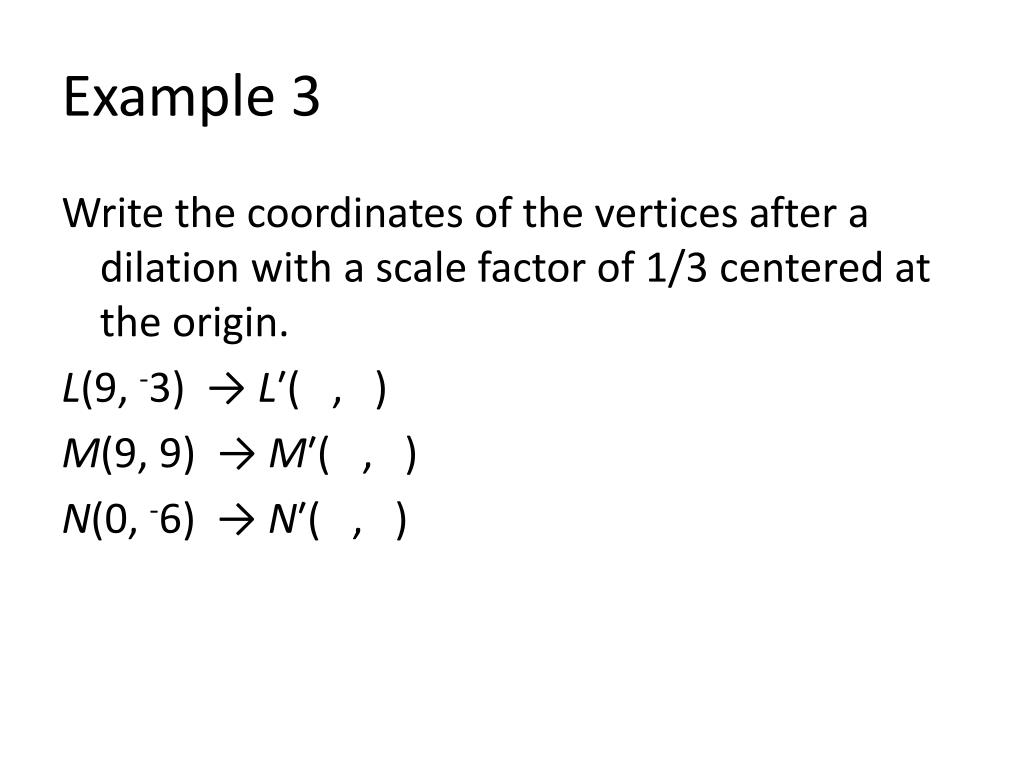

Example 3

Write the coordinates of the vertices after a dilation with a scale factor of 1/3 centered at the origin.

L(9, -3)  → L′( , )

M(9, 9)  → M′( , )

N(0, -6)  → N′( , )

example 4

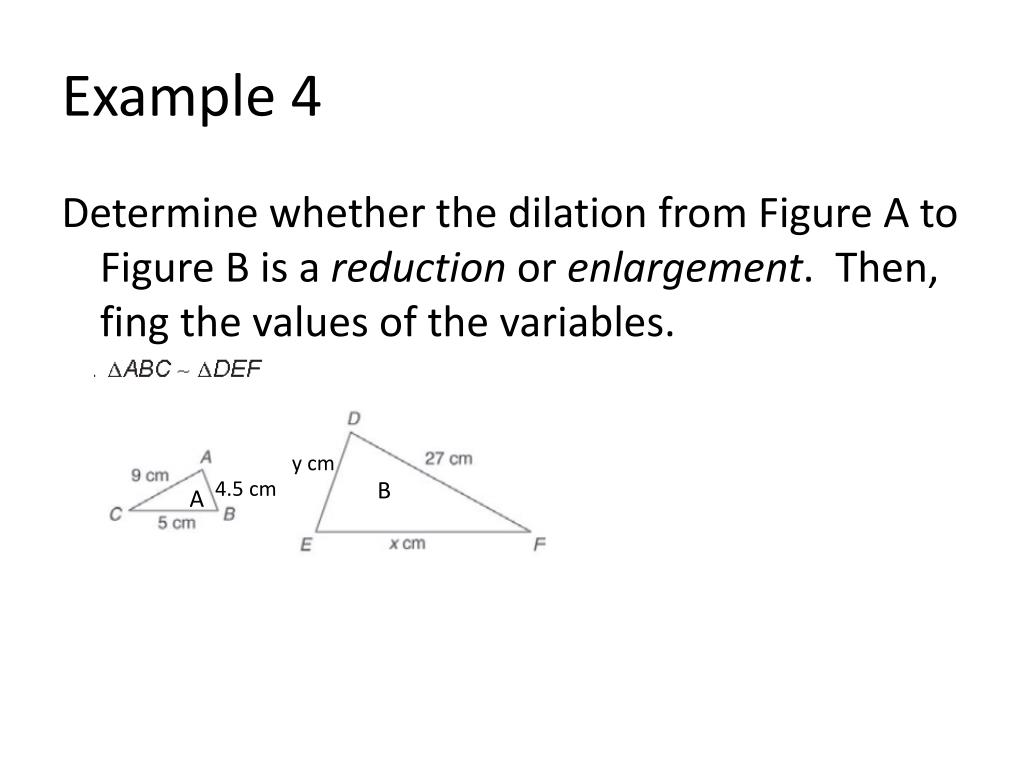

Example 4

Determine whether the dilation from Figure A to Figure B is a reduction or enlargement. Then, fing the values of the variables.

y cm

4.5 cm

B

A

example 5

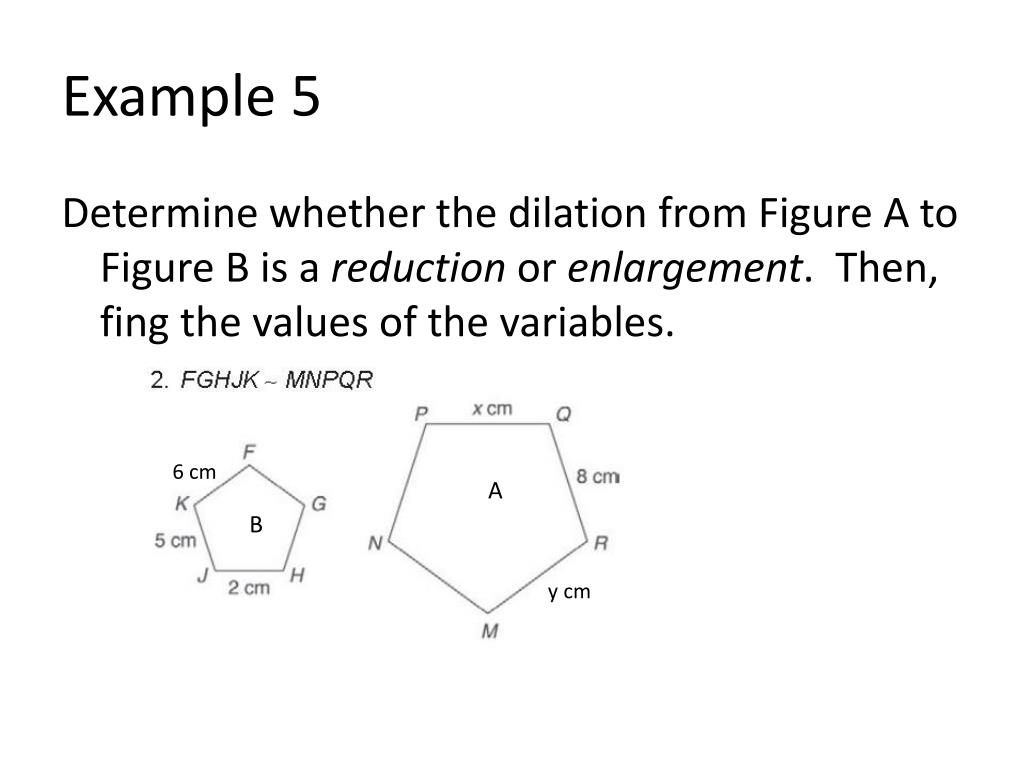

Example 5

Determine whether the dilation from Figure A to Figure B is a reduction or enlargement. Then, fing the values of the variables.

6 cm

A

B

y cm

example 51

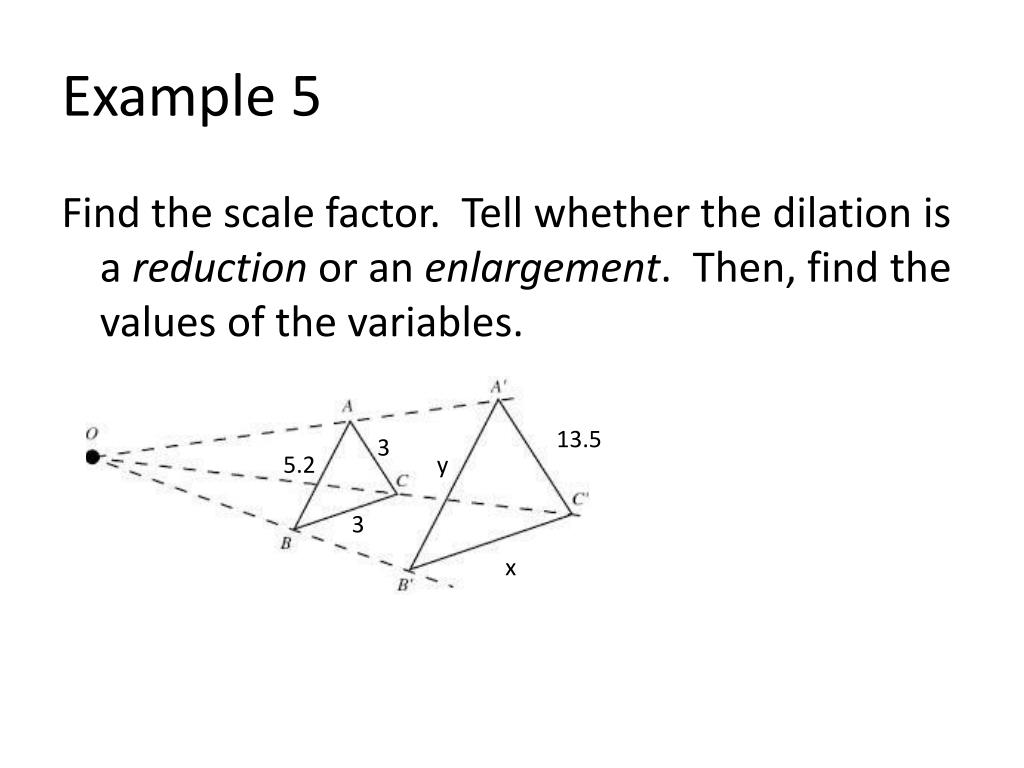

Example 5

Find the scale factor. Tell whether the dilation is a reduction or an enlargement. Then, find the values of the variables.

13.5

3

5.2

y

3

x

example 6
Example 6

Determine whether the following scale factor would create an enlargement, reduction, or isometric figure.

a. 7.9 b. 2/3 c. 8/5

example 7

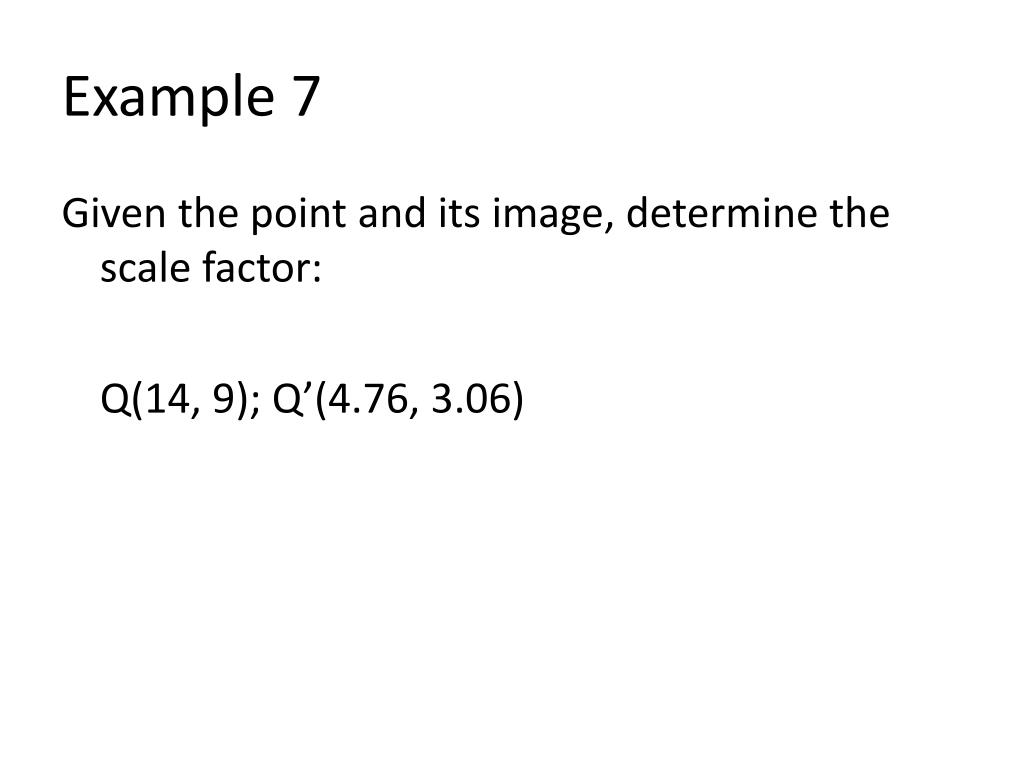

Example 7

Given the point and its image, determine the scale factor:

Q(14, 9); Q’(4.76, 3.06)
