dilations

Dilations

Objective:

dilation
Dilation

A Dilation can enlarge or reduce a figure by a scale factor.

  • What is a Dilation?

A dilation is a transformation that changes the size but not the shape of the figure. We use “  ” to identify new points.

scale factor
Scale Factor
  • What is a Scale Factor?

A scale factor is scale that enlarges or reduces similar figures, can be expressed as a decimal, a fraction, or percent.

Example: A 10% increase is a scale factor of 1.1 and a 10% decrease is a scale factor of 0.9.

helpful hints
Helpful Hints!!

A scale factor between 0 and 1 reduces a figure.

A scale factor greater than 1 enlarges it.

Scale Factor = 1/2

Scale Factor = 2

try this
Try This!!!

Tell whether each transformation is a dilation.

The transformation is a dilation

The transformation is not a dilation

try this1

A'

A

A'

B'

B

B'

C'

C

C'

A

B

C

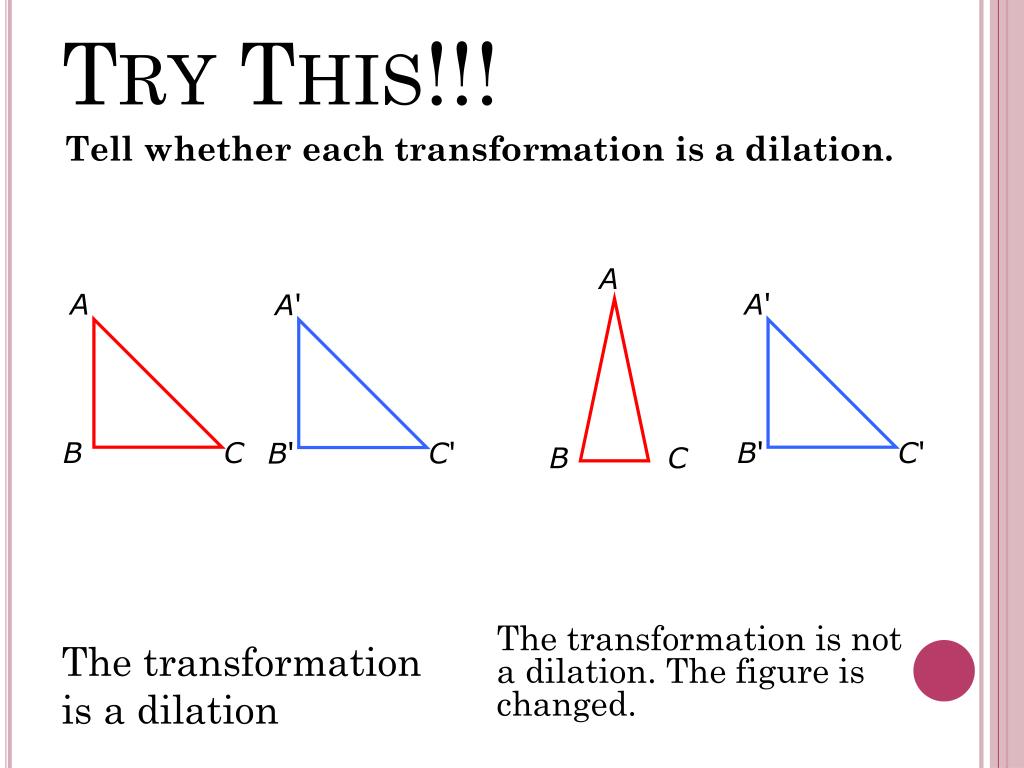

Try This!!!

Tell whether each transformation is a dilation.

The transformation is a dilation

The transformation is not a dilation. The figure is changed.

center of dilation
Center of Dilation
  • What is the center of Dilation?

A center of dilation is a fixed point of every dilation, found by drawing a line that connects each of the pairs of corresponding vertices.

try this2

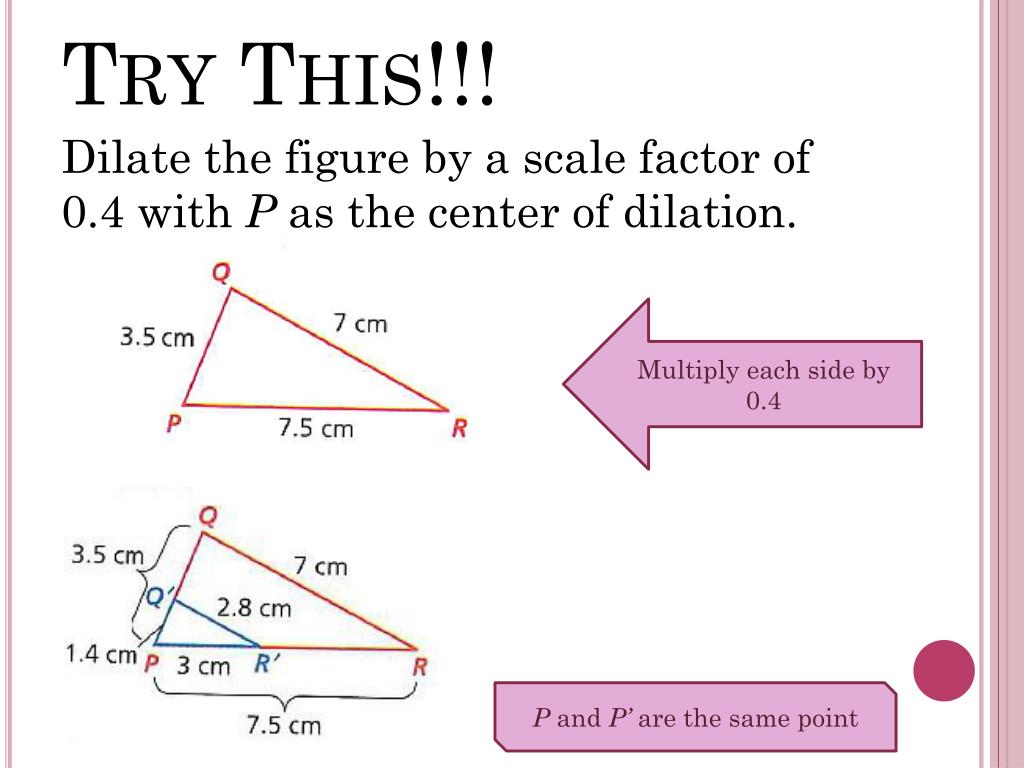

Try This!!!

Dilate the figure by a scale factor of 0.4 with P as the center of dilation.

Multiply each side by 0.4

P and P’ are the same point

try this3
Try This!!!

Dilate the figure by a scale factor of 1.5. What are the vertices of the image?

Multiply the coordinates by 1.5 to find the vertices of the image

The vertices of the image are

try this4
Try This!!!

Dilate the figure by a scale factor of . What are the vertices of the image?

Multiply the coordinates by to find the vertices of the image

The vertices of the image are

example 3

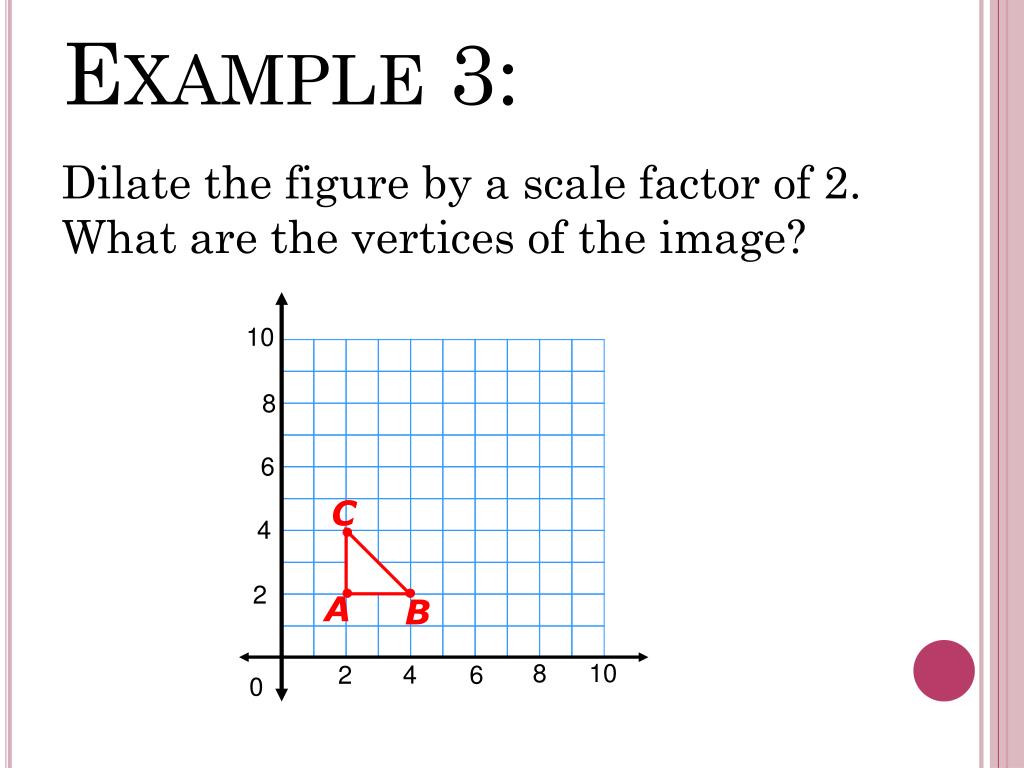

Example 3:

Dilate the figure by a scale factor of 2. What are the vertices of the image?

10

8

6

C

4

2

A

B

10

8

4

6

2

0

example 4

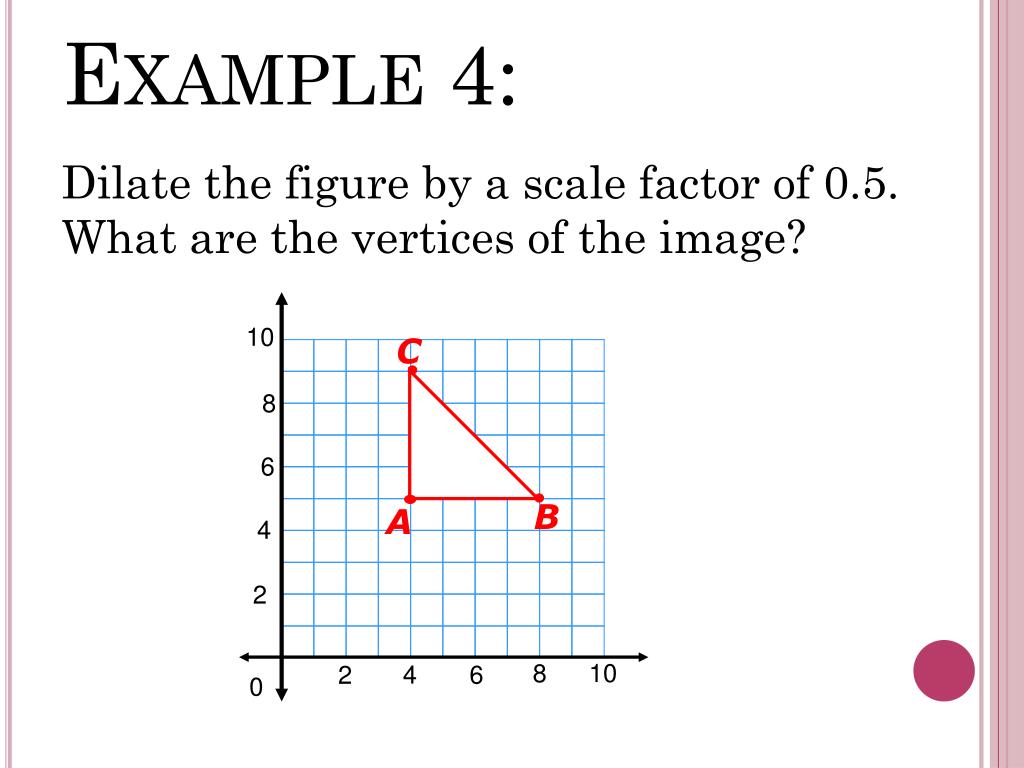

Example 4:

Dilate the figure by a scale factor of 0.5. What are the vertices of the image?

10

C

8

6

B

A

4

2

10

8

4

6

2

0
