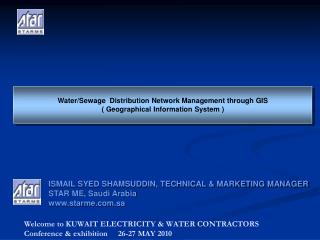

Water/Sewage Distribution Network Management through GIS

( Geographical Information System )

ISMAIL SYED SHAMSUDDIN, TECHNICAL & MARKETING MANAGER

STAR ME, Saudi Arabia

www.starme.com.sa

table of contents
TABLE OF CONTENTS
  • Objectives
  • Goals
  • Methods Adopted
  • Various Stages Implemented
  • Systems Developed
  • Summary
objectives
Objectives
  • Qassim, Riyadh Water and Sewage Authority Managing the Utility Networks
  • Qassim Located at the heart of the country, and almost in the center of the Arabian Peninsula. It has a population of 1,016,756 and an area of 65,000 km².
  • To Provide Effective and

Efficient services of

Water and Sewage Facilities

to the community

slide4

Goals

  • Design Single platform contains three applications Integrated as Enterprise Solution

(water – sewage – city management )

  • Transferring the paper maps ( Old into digital platform
  • Linking the Various Sections data together ( Graphic & Database )
  • Information exchange between the Various departments without replicated the data
  • The coordination of the work between operation maintenance ,engineering others
  • Saving the time and producing the effective results
  • Good analysis for the spatial data and non spatial data
  • The support for the strategic and management decisions
  • The Improvement of the Operation process that done by the companies and Contractors
  • Introducing better services for the community
slide5

Various Stages Implemented

The first stage : Collecting and preparing the data of the project through contractors

  • Collecting of the text data that is existing in paper ( as built ) , Office Suite Softwares .
  • Design a unified data base by using oracle 10g
  • Transfer the drawing elements to STAR GIS systems
  • Transfer the text data and input it in Oracle DB
  • The execution of (QC & QA) for these data to getting the better accuracy
  • Execution of cleaning & topology for the drawing elements
  • Performing additional processing and improving for data base tables and coordinating the relationship between them
slide6

System Execution Stages

The second stage : Design a platform for system as required

  • Design a platform for the applications ( City Management – Sewage – Water )
  • Activating of Rule-Base commands to prevent user errors through the dealing
  • With system
  • Design a special programming codes for the automatically calculations inside platforms
  • Performing of all required analysis to insert it in the special platform in the system
  • Activating of the user profile properties
slide7

System Execution Stages

The Third Stage : Testing of all commands of the system

  • Software Testing If there is any error in system , it is fixed by the developers in R & D division
  • After the checking every thing is OK ,the system is delivered to the users

The Fourth Stage : Delivering the system for the water & sewage authority

  • In this stage , the system is delivered and trained to water & sewage authority to starting the operation cycle
slide8

Users Friendly Interface Adopted

In accordance to the users Privileges

AQUA Layout

AQUA Analysis

  • Creation of different analysis
  • Create longitudinal section for pipes automatically
  • Determine the direction of wastewater y
  • Complete support for Arabic language
  • Administrate the Different Features
  • The control of Adding , Removal , Linking elements with DB Oracle
  • Complete support for Arabic language
slide9

Sewage (wastewater) Application

Sewage Network

  • Management of Sewage Network Features

Inspection Chamber

Manholes

SP Cement Welds

SP Y connections

Pipe Lines

Sewer Pump Station

slide10

Water Application

Water Application

  • Management of Sewage Network Features

Fire Hydrant

Water Meter

Water Special Pieces

Special Pieces

Water Valve Chamber

Valve Chamber

Water Valve

Water Pipe Lines

Water Pump Station

Pump Station

slide11

City Management Application

City Management along with Water/Sewage Applications

Base Map

Control point

District

Land use


Road CL

Road local

Road TK 350

School

  • Social Service
  • Squares
  • Text Arabic
  • Text English
  • Utility point
  • Government buildings
  • Land Mark
  • Medical
  • Mosques
slide12

Performing the Analysis of Day-Day Business Operation

These Operations are helping the users and the community to answer their about

the parts of the networks and assist in planning decision-making process of scientific methods (methods of various strategic and tactical )

  • Query >All Applications <
  • Charts Statistic Study >All Applications <
  • Buffer Zone >All Applications <
  • Spatial Analyses >All Applications <
  • Thematic Study >All Applications <
  • Longitude Cross Section > Sewage Application<
  • (Flow Direction)>Sewage Application <
  • Follow Water Network >Water Application <
  • Routing >City Management Application <
slide13

Query

Search tool (searching about parts of the network) based on different criteria and presentation of the form

  • Querying Branch Line , Main line
  • The possibility to query about pipe lines that executed by certain contractor
  • The possibility to query about a manhole Depending on the number of inlets
  • The possibility to query about a manhole Depending on the diameter
  • The possibility to query about the pipe lines that connected to A particular pumping station and Many more

The possibility to query about the pipe lines that connected to

A particular pumping station

slide14

Charts(Statistic Study)

Statistical Studies is a statistical analysis of digital data helps the user to have access to

diagrams for scientific accuracy in the analysis of the data difficult to obtain manually

Proportion of each contractor to find an outlet for the sewage system pipes

slide15

Buffer Zone

Analytical studies for the analysis of particular parts of the network to locate sewage network locations to help determine the location of the new ones

The possibility of identifying parts of the network after 300 meters from the pumping stations

slide16

Spatial Analysis

Spatial Analysis An examination of (integration) layers of the network with each other to find a relationship between them

The possibility of analyzing the network layer of water that locating on districts layer (Khaleej district )

slide17

500mm

DI

200mm

UPVC

PE

1400mm

Thematic Study

The possibility of showing pipes lines of

different colors

depending on pipe line material

(AC,UPVC,ACP,DI,GRP,PE)

The possibility of showing pipes lines of

different colors depending

on the Contractors and

Diameters

(200,300,400,450,500,700

slide18

Engineering Application Integration

Cross Section

Longitudinal Cross Section : Tool to determine levels of natural ground level and the bottom line

slide19

إتجاة سريان مياه الصرف (Flow Direction)

Flow Direction : Tool to determine the direction of the entry into force of the sewage with the report to show errors, if any,

slide20

Routing

This analysis is used to identify and determine the shortest road route with a route to show report

slide21

Programs can be incorporated in the future with programs

Programs can be incorporated in the future with AQUA STAR

  • WaterCAD(Analysis of water quality, water flow analysis, analysis of the hydraulic network )
  • SewerCAD(The establishment of models of hydraulic analysis, water pressure, the analysis of the forces of gravity and pressure )
  • Piccolo (Way for the establishment of a comprehensive application of geographical parts of the network through the visual effects )
  • Porteau (Study to improve the performance of water supply to consumer pressure required )
  • EDM (Electronic Document Management
summary
Summary
  • Sustainable Growth of the Water/Sewage Networks is Maintained by Designing, Installing and Maintaining the Infrastructure more precisely
  • More Efficient and Effective of services to the Community
  • Achieving a pragmatic & systematic approach in resolving the challenges .
slide23

Any Questions ?

Thanks For Attending
