evaluation of data and request distribution policies in clustered servers

Evaluation of Data and Request Distribution Policies in Clustered Servers

Adnan Khaleel and A. L. Narasimha Reddy

Texas A&M University

adnan,reddy@ee.tamu.edu

introduction
Introduction
  • Internet use has skyrocketed
    • 74MB/month in ‘92, several gigabytes/hour today
  • Trend can be expected to grow in coming years
  • Increasing load has placed burdens on hardware and software beyond their original designs
introduction cont d
Introduction (cont’d)

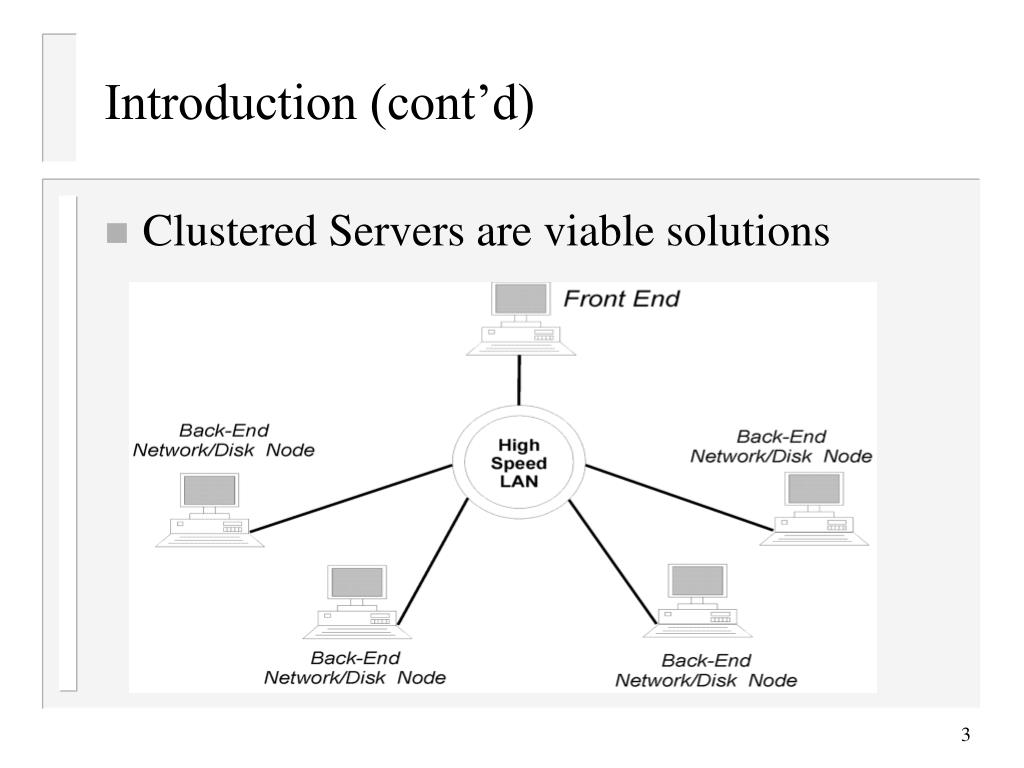

  • Clustered Servers are viable solutions
issues in clustered servers
Issues in Clustered Servers
  • Need to present a single server image
    • DNS aliasing, magic routers etc
  • Multiplicity in Back-End Servers:
    • How should data be organized on back-end ?
    • How should incoming requests be distributed amongst the back-end servers ?
issues in clustered servers cont d
Issues in Clustered Servers (cont’d)
  • Data Organization
    • Disk Mirroring
      • Identical data maintained on all back-end servers
      • Every machine able to service requests without having to access files on other machines.
      • Several redundant machines present, good system reliability
      • Disadvantages
        • Inefficient use of disk space
        • Data cached on several nodes simultaneously
issues in clustered servers cont d1
Issues in Clustered Servers (cont’d)
  • Data Organization (cont’d)

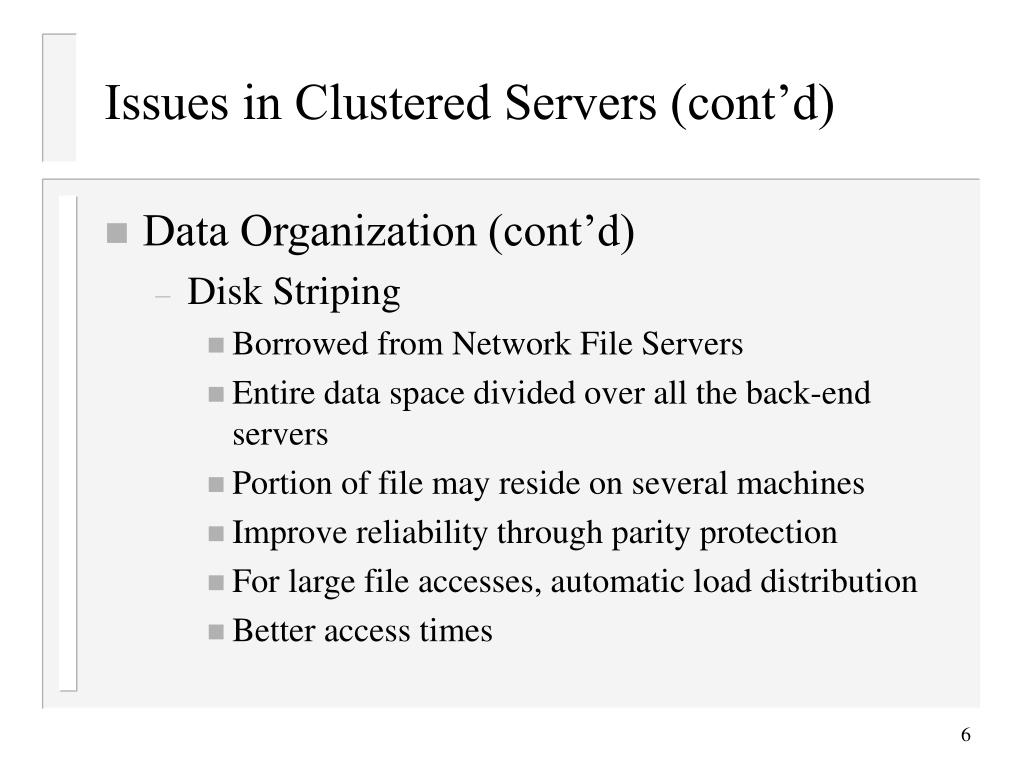

    • Disk Striping
      • Borrowed from Network File Servers
      • Entire data space divided over all the back-end servers
      • Portion of file may reside on several machines
      • Improve reliability through parity protection
      • For large file accesses, automatic load distribution
      • Better access times
issues in clustered servers cont d2
Issues in Clustered Servers (cont’d)
  • Locality
    • Taking advantage of files already cached in back-end server’s memory
    • For clustered Server System
      • Requests accessing same data be sent to the same set of servers
issues in clustered servers cont d3
Issues in Clustered Servers (cont’d)
  • Distribution Vs Locality ?
    • Load balanced system
      • Distribute requests evenly among back-end servers
    • Improve hit-rate and response time
      • Maximize locality
  • Current studies focus only on one aspect and ignore the other
request distribution schemes cont d
Request Distribution Schemes (cont’d)
  • Round Robin Request Distribution
request distribution schemes cont d1
Request Distribution Schemes (cont’d)
  • Round Robin Request Distribution (cont’d)
    • Requests distributed in a sequential manner
    • Results in ideal distribution
    • Does not take server loading into account
      • Weighted Round Robin
      • Two Tier Round Robin
    • Cache Hits purely coincidental
request distribution schemes cont d2
Request Distribution Schemes (cont’d)

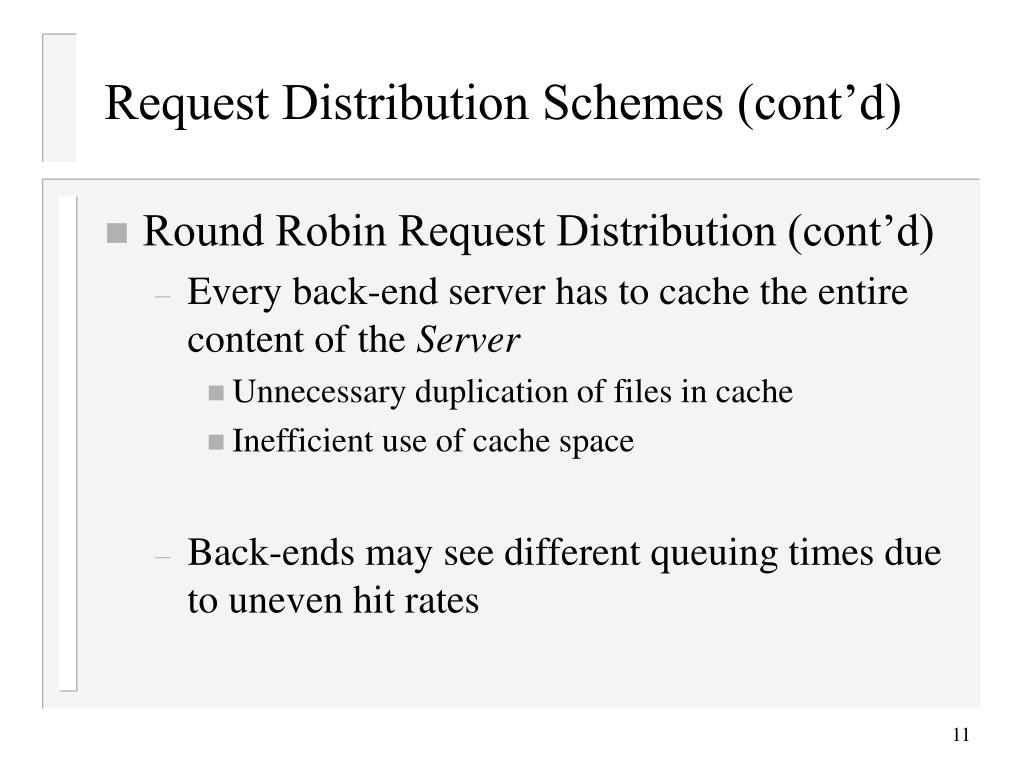

  • Round Robin Request Distribution (cont’d)
    • Every back-end server has to cache the entire content of the Server
      • Unnecessary duplication of files in cache
      • Inefficient use of cache space
    • Back-ends may see different queuing times due to uneven hit rates
request distribution schemes cont d3
Request Distribution Schemes (cont’d)
  • File Based Request Distribution
request distribution schemes cont d4
Request Distribution Schemes (cont’d)

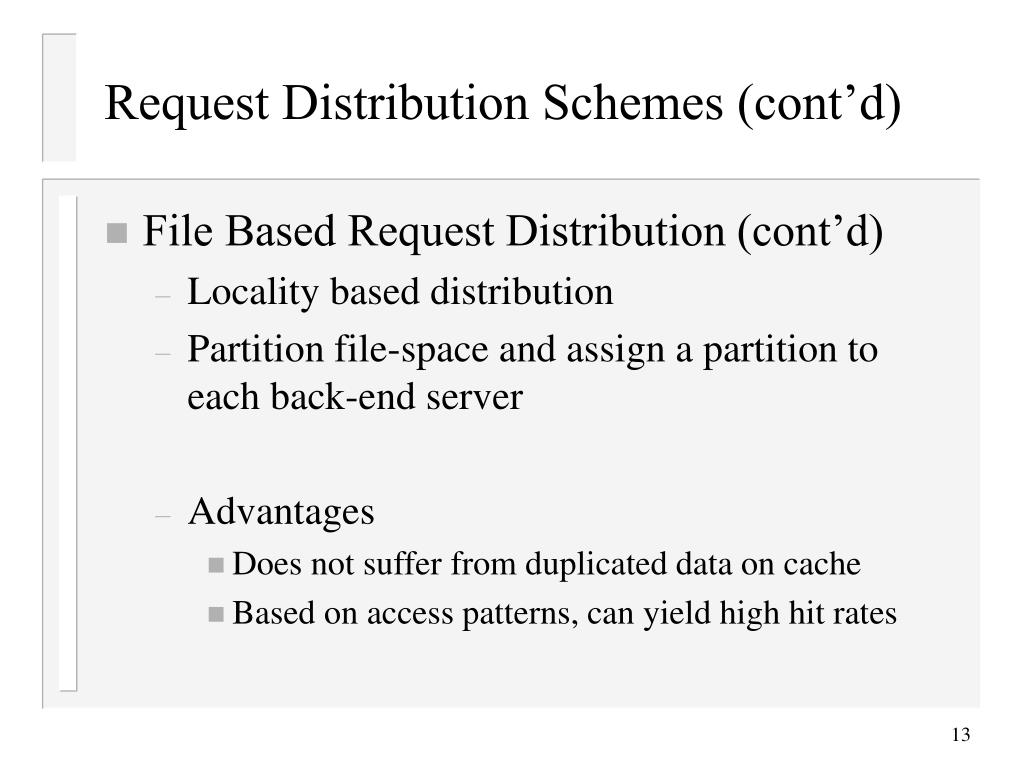

  • File Based Request Distribution (cont’d)
    • Locality based distribution
    • Partition file-space and assign a partition to each back-end server
    • Advantages
      • Does not suffer from duplicated data on cache
      • Based on access patterns, can yield high hit rates
request distribution schemes cont d5
Request Distribution Schemes (cont’d)
  • File Based Request Distribution (cont’d)
    • Disadvantages
      • How to determine file-space partitioning ?
        • Difficult to partition so requests load back-ends evenly
        • Dependent on client access patterns, no one partition scheme can satisfy all cases
      • Some files will always be requested more than others
      • Locality is of primary concern, distribution ignored
        • Hope that partitioning achieves the distribution
request distribution schemes cont d6
Request Distribution Schemes (cont’d)
  • Client Based Request Distribution
request distribution schemes cont d7
Request Distribution Schemes (cont’d)
  • Client Based Request Distribution (cont’d)
    • Also locality based
    • Partition client-space and assign a partition to each back-end server
    • Advantages and disadvantages similar to file-based
      • Difficult to find ideal partitioning scheme
      • Ignores distribution
request distribution schemes cont d8
Request Distribution Schemes (cont’d)
  • Client Based Request Distribution (cont’d)
    • Slightly modified from DNS used in Internet
      • Allows flexibility in client-server mapping
        • TTL set during first resolution
        • On expiration, client expected to re-resolve name
        • Possibly different TTL could be used for different workload characteristics
        • However, clients ignore TTL
        • Hence a STATIC scheme
request distribution schemes cont d9
Request Distribution Schemes (cont’d)

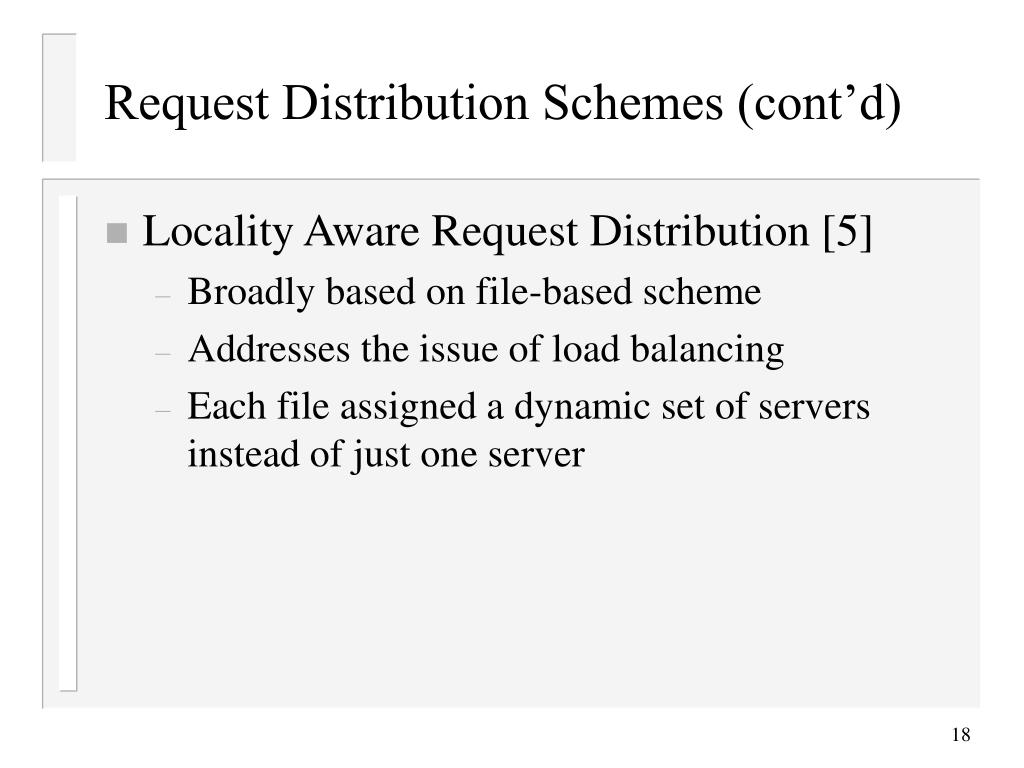

  • Locality Aware Request Distribution [5]
    • Broadly based on file-based scheme
    • Addresses the issue of load balancing
    • Each file assigned a dynamic set of servers instead of just one server
request distribution schemes cont d10
Request Distribution Schemes (cont’d)
  • LARD (cont’d)

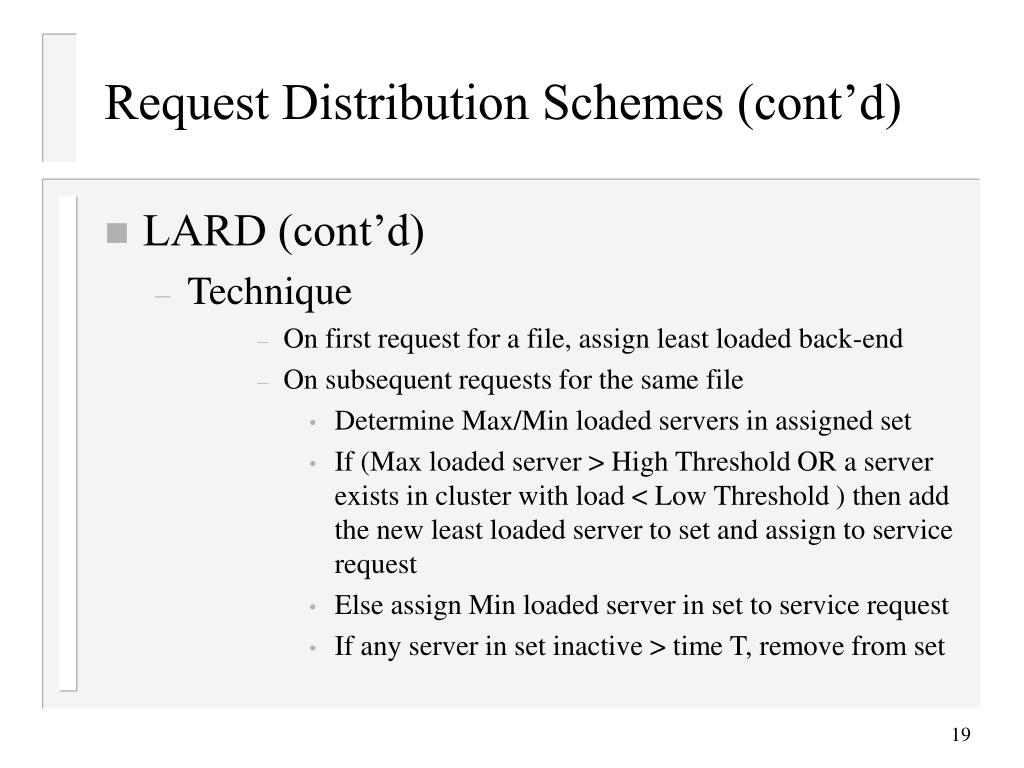

    • Technique
        • On first request for a file, assign least loaded back-end
        • On subsequent requests for the same file
          • Determine Max/Min loaded servers in assigned set
          • If (Max loaded server > High Threshold OR a server exists in cluster with load < Low Threshold ) then add the new least loaded server to set and assign to service request
          • Else assign Min loaded server in set to service request
          • If any server in set inactive > time T, remove from set
request distribution schemes cont d11
Request Distribution Schemes (cont’d)
  • LARD (cont’d)
    • File-space partitioning done on the fly
    • Disadvantages
      • Large amounts of processing needs to be performed by the front-end
      • Large amount of memory needed to maintain information on each individual file
      • Possible bottleneck as system is scaled
request distribution schemes cont d12
Request Distribution Schemes (cont’d)
  • Dynamic Client Based Request Distribution
    • Based on the premise that file reuse among clients is high
    • Complete ignorance of server loads
    • Propose a modification to the static client based distribution to make it actively modify distribution based on back-end loads.
request distribution schemes cont d13
Request Distribution Schemes (cont’d)
  • Dynamic Client Based (cont’d)
    • Use of time-to-live (TTL) for server mappings within cluster - TTL is continuously variable
    • In heavily loaded systems
      • RR type distribution preferable as queue times predominate
      • TTL values should be small
    • In lightly loaded systems
      • TTL values should be large in order to maximize benefits of locality
request distribution schemes cont d14
Request Distribution Schemes (cont’d)
  • Dynamic Client Based (cont’d)

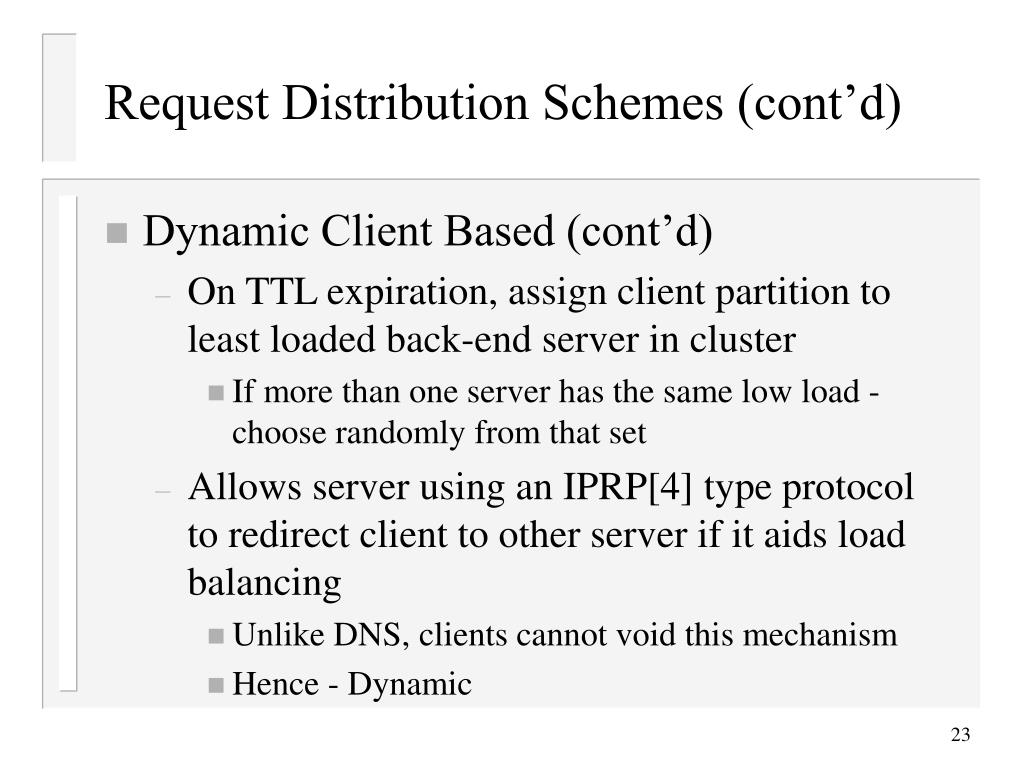

    • On TTL expiration, assign client partition to least loaded back-end server in cluster
      • If more than one server has the same low load - choose randomly from that set
    • Allows server using an IPRP[4] type protocol to redirect client to other server if it aids load balancing
      • Unlike DNS, clients cannot void this mechanism
      • Hence - Dynamic
request distribution schemes cont d15
Request Distribution Schemes (cont’d)
  • Dynamic Client Based (cont’d)
    • Trend in server load essential to determine if TTL is to be increased or decreased
    • Need to average out the requests to smooth out transient activity
    • Moving Window Averaging Scheme
    • Only requests that come within the window period actively contribute towards load calculation
simulation model
Simulation Model
  • Trace Driven simulation model
  • Based on CSIM [8]
  • Modelled an IBM OS/2 for various hardware parameters
  • Several parameters could be modified
    • # of servers, memory size, CPU capacity in MIPS (50), disk access times, Network communication time/packet, data organization - disk mirror or stripe
simulation model cont d
Simulation Model (cont’d)
  • In disk mirror and disk striping, data cached at request servicing nodes
  • In disk striping, data is also cached at disk-end nodes
simulation model cont d1
Simulation Model (cont’d)

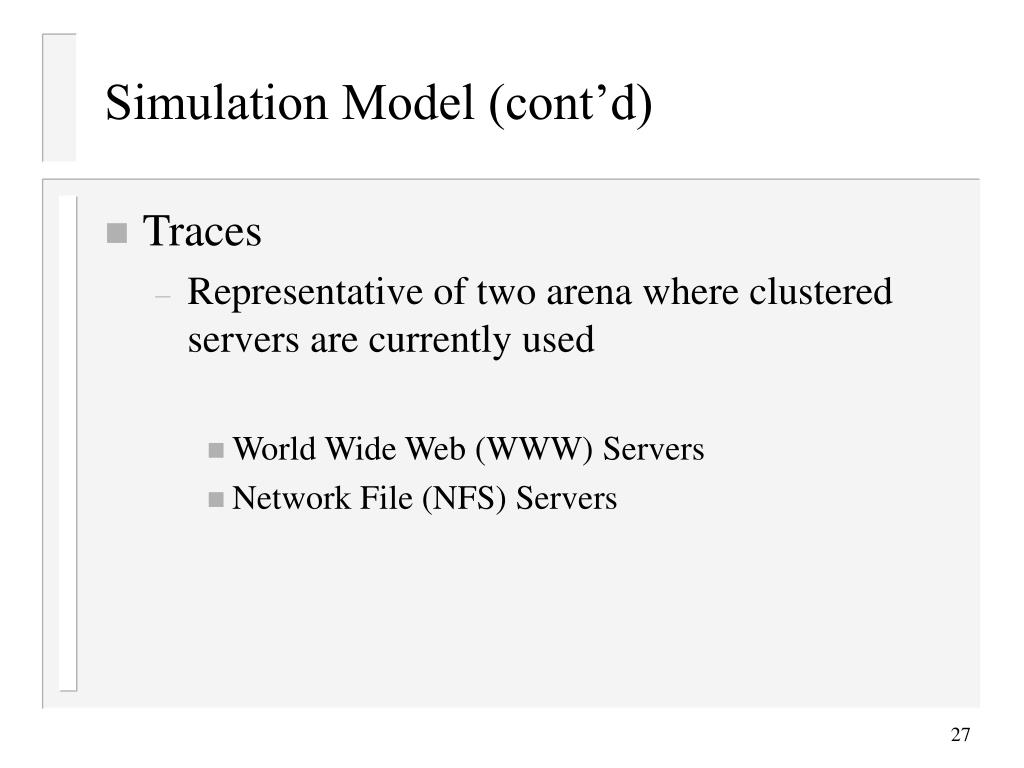

  • Traces
    • Representative of two arena where clustered servers are currently used
      • World Wide Web (WWW) Servers
      • Network File (NFS) Servers
simulation model cont d2
Simulation Model (cont’d)

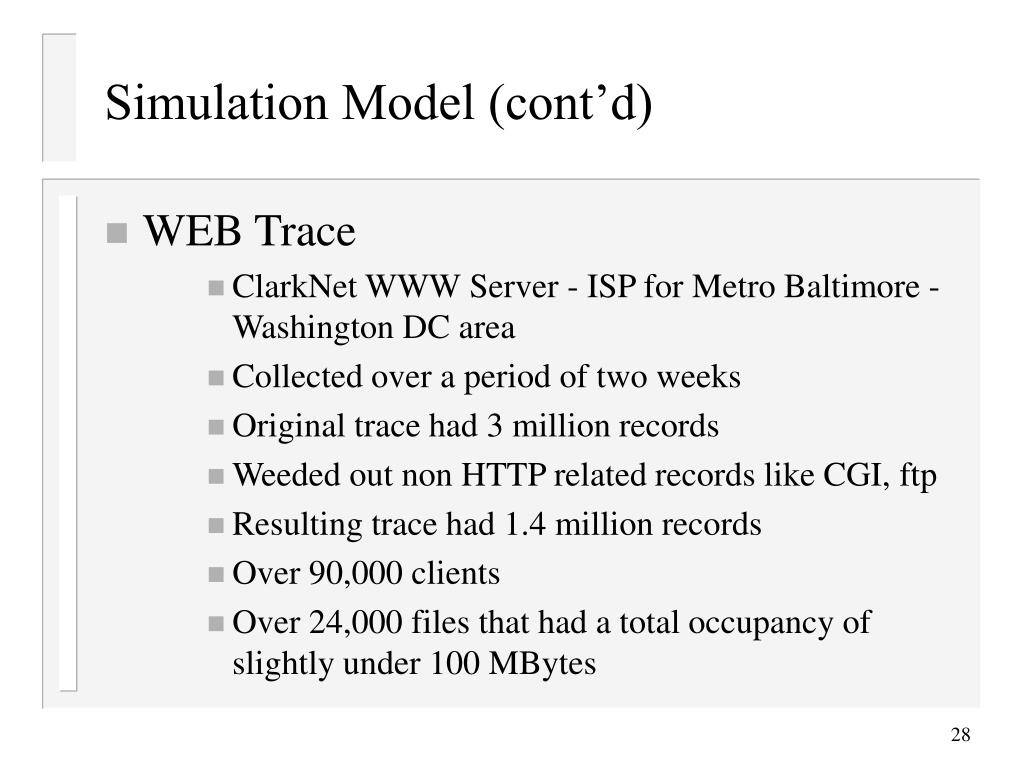

  • WEB Trace
      • ClarkNet WWW Server - ISP for Metro Baltimore - Washington DC area
      • Collected over a period of two weeks
      • Original trace had 3 million records
      • Weeded out non HTTP related records like CGI, ftp
      • Resulting trace had 1.4 million records
      • Over 90,000 clients
      • Over 24,000 files that had a total occupancy of slightly under 100 MBytes
simulation model cont d3
Simulation Model (cont’d)
  • WEB Trace (cont’d)
    • Records had timestamps with 1 second resolution
      • Did not accurately represent real manner of request arrivals
      • Requests that arrived in the same second were augmented with a randomly generated microsecond extension
simulation model cont d4
Simulation Model (cont’d)
  • NFS Trace
    • Obtained from Auspex [9] file server at UC Berkeley
    • Consists of post client-cache misses
    • Collected over a period of one week
    • Had 231 clients, over 68,000 files that had a total occupancy of 1,292 Mbytes
simulation model cont d5
Simulation Model (cont’d)
  • NFS Trace (cont’d)
    • Original trace had a large amount of backup data at night and over weekends, only daytime records used in simulation
    • Records had timestamps with microsecond resolution
  • Cache allowed to WARM-UP prior to any measurements being made
results effects of memory size
Results - Effects of Memory Size
  • NFS Trace,Disk Stripe
    • Increase mem = increase cache space

Response time for 4 back-end servers.

results effects of memory size1
Results - Effects of Memory Size
  • NFS trace, Disk Stripe
    • FB better at extracting locality
    • RR hits are purely probabilistic

Cache-hit ratio for 4 back-end servers.

results effects of memory size2
Results - Effects of Memory Size
  • WEB trace, Disk Stripe
    • WEB trace has a smaller working set
    • Increase in memory as less of an effect

Response time for 4 back-end servers.

results effects of memory size3
Results - Effects of Memory Size
  • WEB trace, Disk Stripe
    • Extremely high hit rates, even at 32 Mbytes
    • FB able to extract maximum locality
    • Distribution scheme less of an effect on response time
    • Load distribution was acceptable for all schemes, best RR , worst FB

Cache hit rates for 4 back-end system.

results effects of memory size4
Results - Effects of Memory Size
  • WEB Trace,Disk Mirror
    • Very similar to DS
    • With smaller memory, hit rates slightly lower as no disk end caching

Disk Stripe

Disk Mirror

Disk stripe vs. disk mirror.

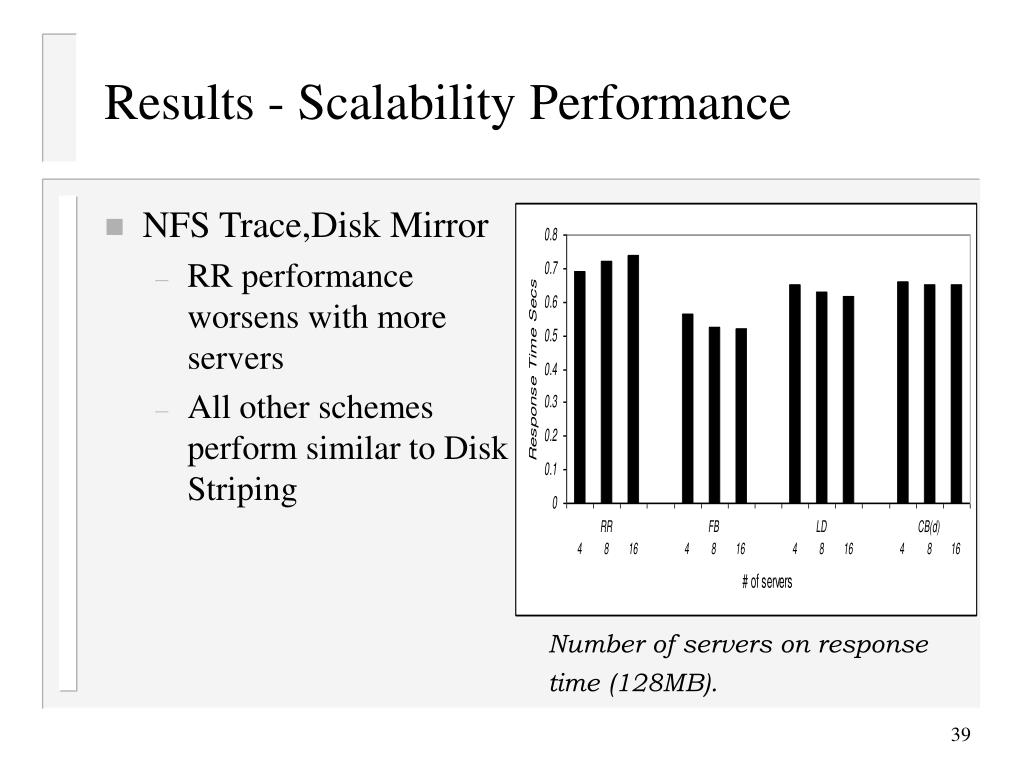

results scalability performance
Results - Scalability Performance
  • NFS trace, Disk Stripe
    • RR shows least benefit
      • Due to probabilistic cache hits

Number of servers on response time (128MB memory).

results scalability performance1
Results - Scalability Performance
  • NFS Trace,Disk Stripe
    • ROUND ROBIN
      • Drop in hit rates with more servers
      • Lesser “probabilistic” locality

Cache hit rate vs. memorysize and number of back-end servers

results scalability performance2
Results - Scalability Performance
  • NFS Trace,Disk Mirror
    • RR performance worsens with more servers
    • All other schemes perform similar to Disk Striping

Number of servers on response time (128MB).

results scalability performance3
Results - Scalability Performance
  • NFS Trace,Disk Mirror
    • For RR, lower hit rates with more servers - lower response time
    • For RR, disk-end caching offers better hit rates in disk striping than in disk mirror

Disk Stripe

Disk Mirror

Cache hit rates for RR under Disk striping vs. mirroring (128MB)

results effects of memory size5
Results - Effects of Memory Size
  • NFS trace, Disk Mirror
    • Similar effect of more memory
    • Stagnation of hit rates in FB, DM does better than DS due to caching of data at disk end
    • RR exhibits better hit rates with DS than DM, greater variety of files in cache

Cache hit rates with disk mirror and disk striping.

results disk stripe vs disk mirror
Results - Disk Stripe Vs Disk Mirror
  • Implicit distribution of load in Disk striping produces low disk queues

Disk Stripe

Disk Mirror

Queueing time in Disk stripe and disk mirror. NFS trace with a 4 back-end system used.

conclusion future work
Conclusion & Future Work
  • RR ideal distribution, poor response rates due to probabilistic nature of cache hit rates.
  • File -based was the best at extracting locality, complete lack of server loads, poor load distribution
  • LARD, similar to FB but better load distribution
  • For WEB Trace, cache hit rates were so high that distribution did not play a role in determining response time
conclusion future work1

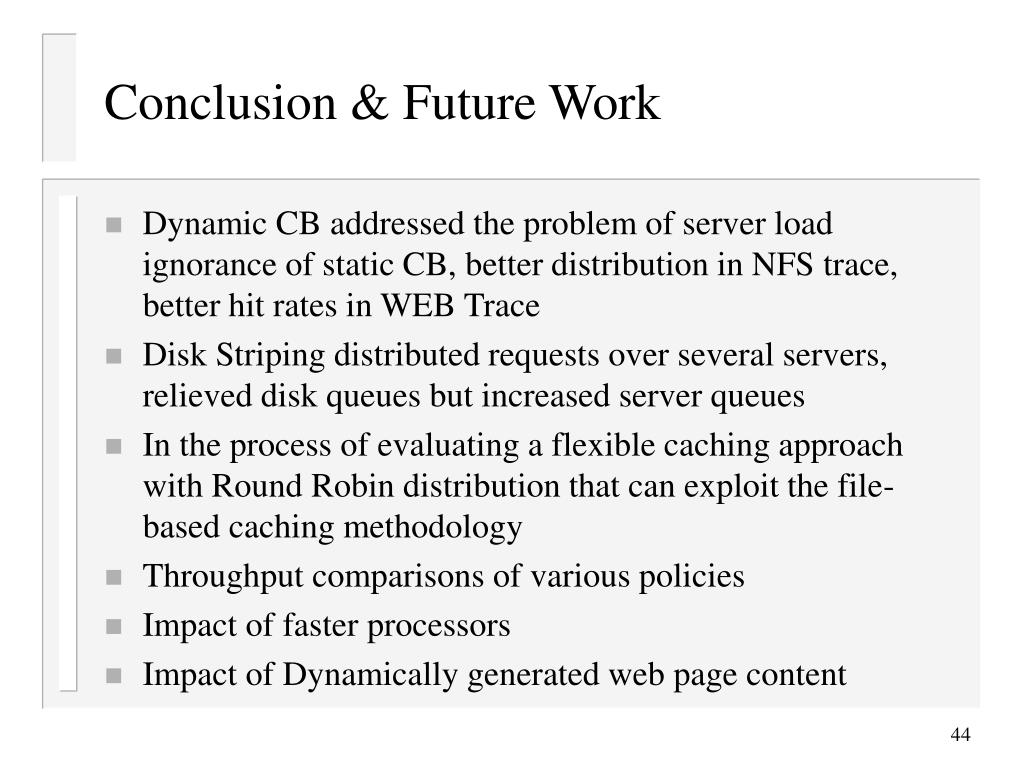

Conclusion & Future Work
  • Dynamic CB addressed the problem of server load ignorance of static CB, better distribution in NFS trace, better hit rates in WEB Trace
  • Disk Striping distributed requests over several servers, relieved disk queues but increased server queues
  • In the process of evaluating a flexible caching approach with Round Robin distribution that can exploit the file-based caching methodology
  • Throughput comparisons of various policies
  • Impact of faster processors
  • Impact of Dynamically generated web page content
