locality aware request distribution in cluster based network servers

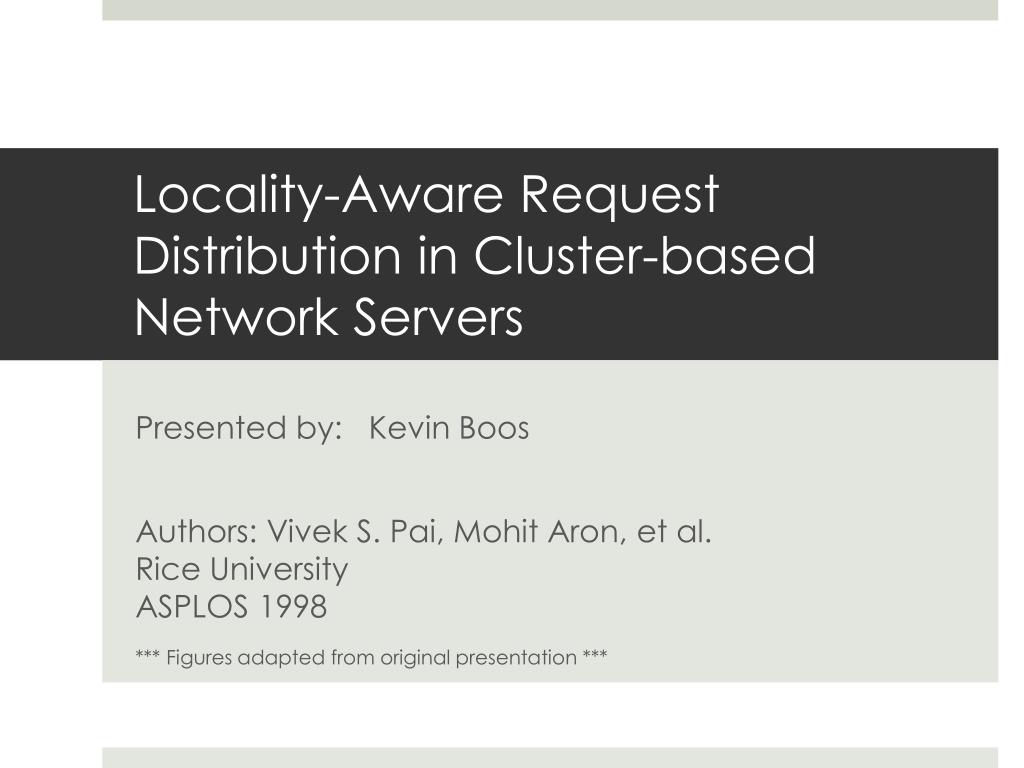

Locality-Aware Request Distribution in Cluster-based Network Servers

Presented by: Kevin Boos

Authors: Vivek S. Pai, MohitAron, et al.Rice UniversityASPLOS 1998*** Figures adapted from original presentation ***

time warp to 1998
Time Warp to 1998
  • Rapid Internet growth
  • Bandwidth limitations
  • “Cheap” PCs and “fast” LANs
  • Need for increased throughput
clustered servers
Clustered Servers

Front-End Node

Back-End Node

Client

Back-End Node

LAN (Switch)

Back-End Node

Client

motivation for change

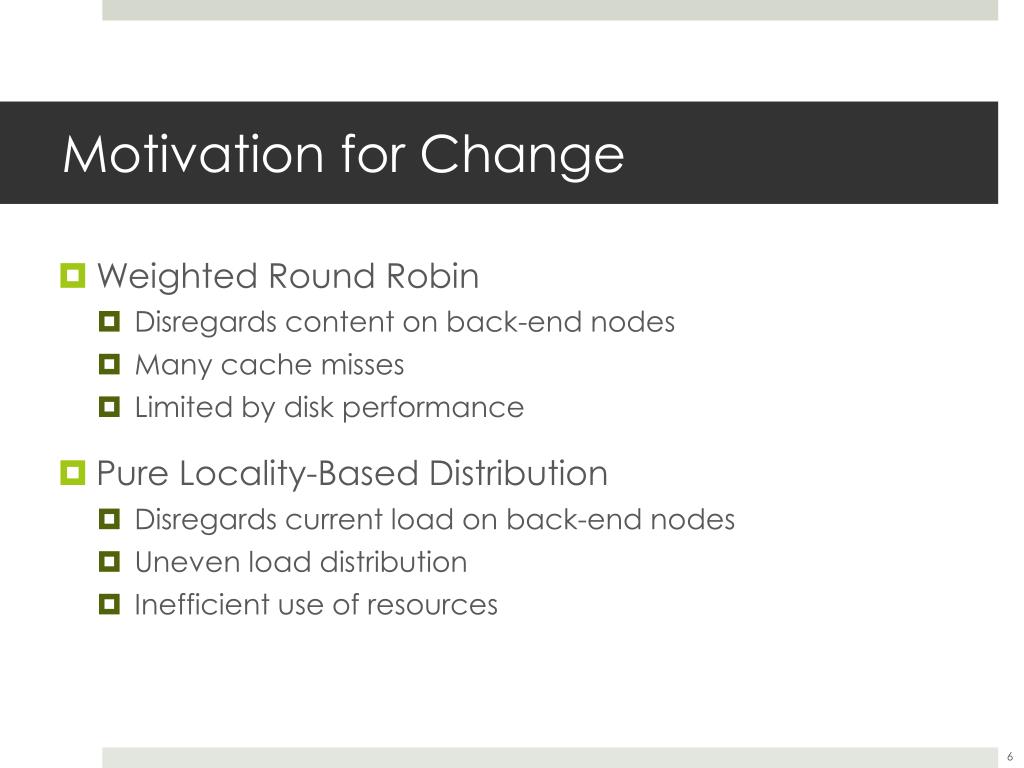

Motivation for Change
  • Weighted Round Robin
    • Disregards content on back-end nodes
    • Many cache misses
    • Limited by disk performance

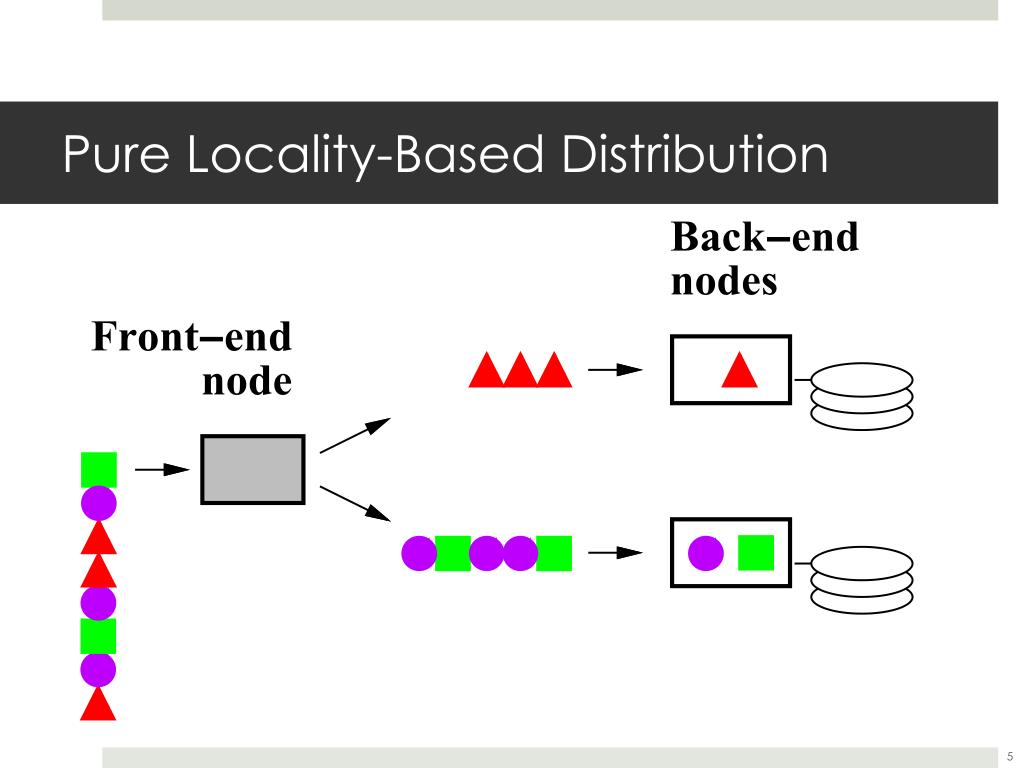

  • Pure Locality-Based Distribution
    • Disregards current load on back-end nodes
    • Uneven load distribution
    • Inefficient use of resources
lard concepts
LARD Concepts
  • Locality-Aware Request Distribution
  • Goal: improve performance
    • Higher throughput
    • Higher cache hit rates
    • Reduced disk access
  • Even load distribution + content-based distribution
    • The best of both algorithms
outline
Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • TCP Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
outline1

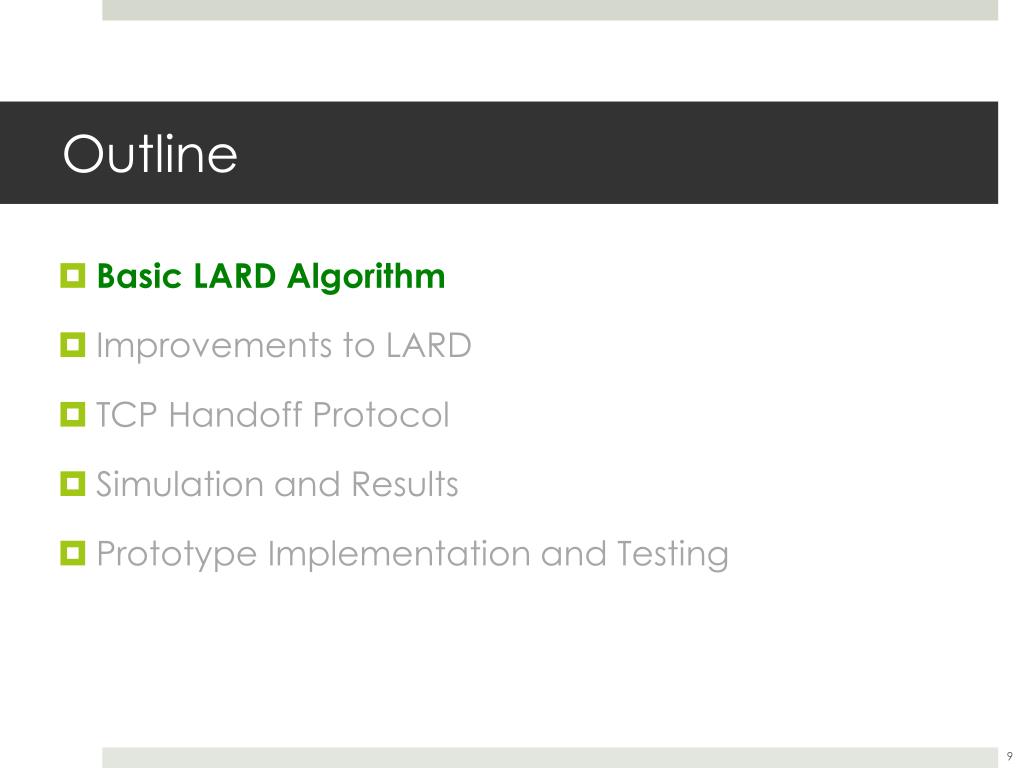

Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • TCP Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
basic lard algorithm

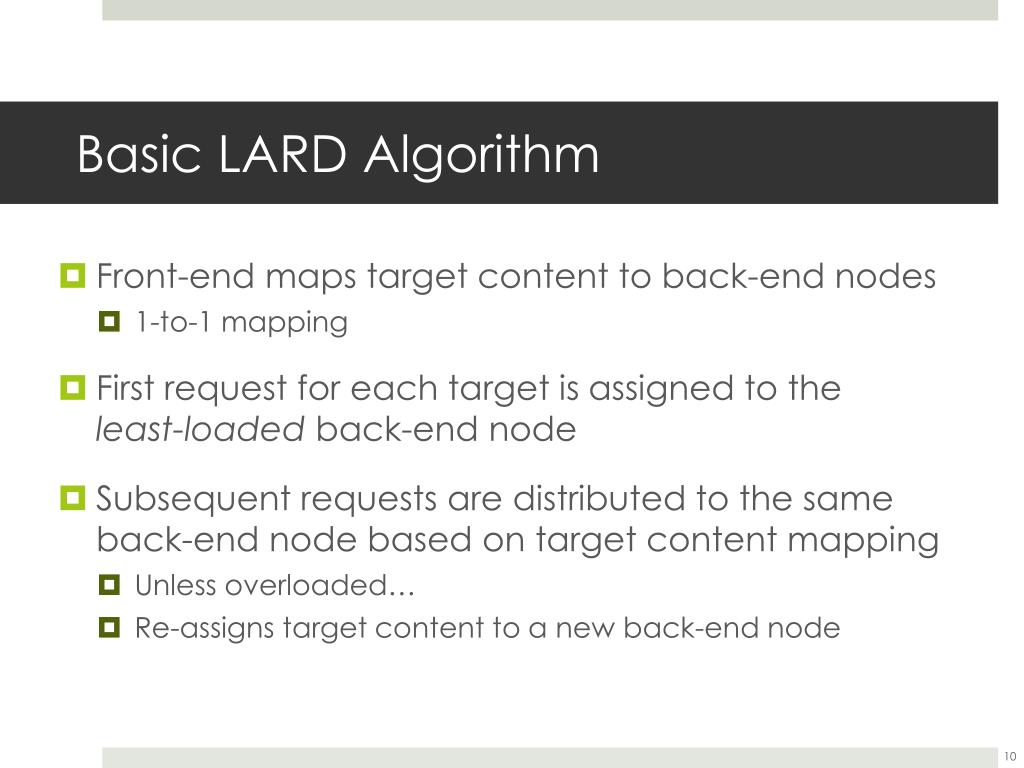

Basic LARD Algorithm
  • Front-end maps target content to back-end nodes
    • 1-to-1 mapping
  • First request for each target is assigned to the least-loaded back-end node
  • Subsequent requests are distributed to the same back-end node based on target content mapping
    • Unless overloaded…
    • Re-assigns target content to a new back-end node
flow of basic lard
Flow of Basic LARD

Front-End

A

a

A

a

A

A

Client

determining load in basic lard
Determining Load in Basic LARD
  • Ask the server?
    • Introduces unnecessary communication
  • Current load = number of open connections
    • Tracked in the front-end node
  • Use thresholds to determine when to re-balance
    • Low, High, and Limit
    • Re-balance when (load > Tlimit) or (load > Thigh and there is a “free” node with load < Tlow)
outline2

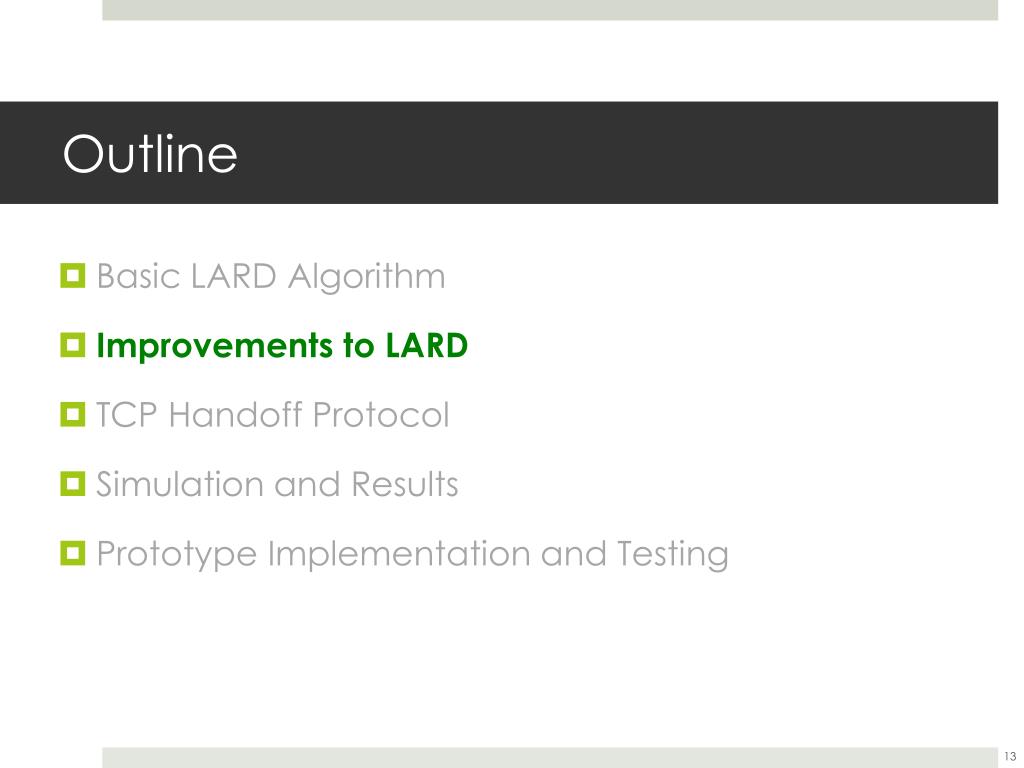

Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • TCP Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
lard needs improvement
LARD Needs Improvement
  • Only one back-end node per target content
    • Working set is a single node
    • Front-end must limit total connections
  • Still need to increase throughput
    • One node per content type is unrealistic
    • …add more back-end nodes?
lard r
LARD/R
  • LARD with Replication
  • Maps target content to a setof back-end nodes
    • Working set is several nodes with similar cache content
  • Sends new requests to least-loaded node in set
  • Moves nodes to/from sets based on load imbalance
    • Idle nodes in a low-load set are moved to higher-load set
flow of lard r
Flow of LARD/R

Front-End

A

a

A

a

A

a

A

A

A

Client

lard outline
LARD Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • Request Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
determining content type

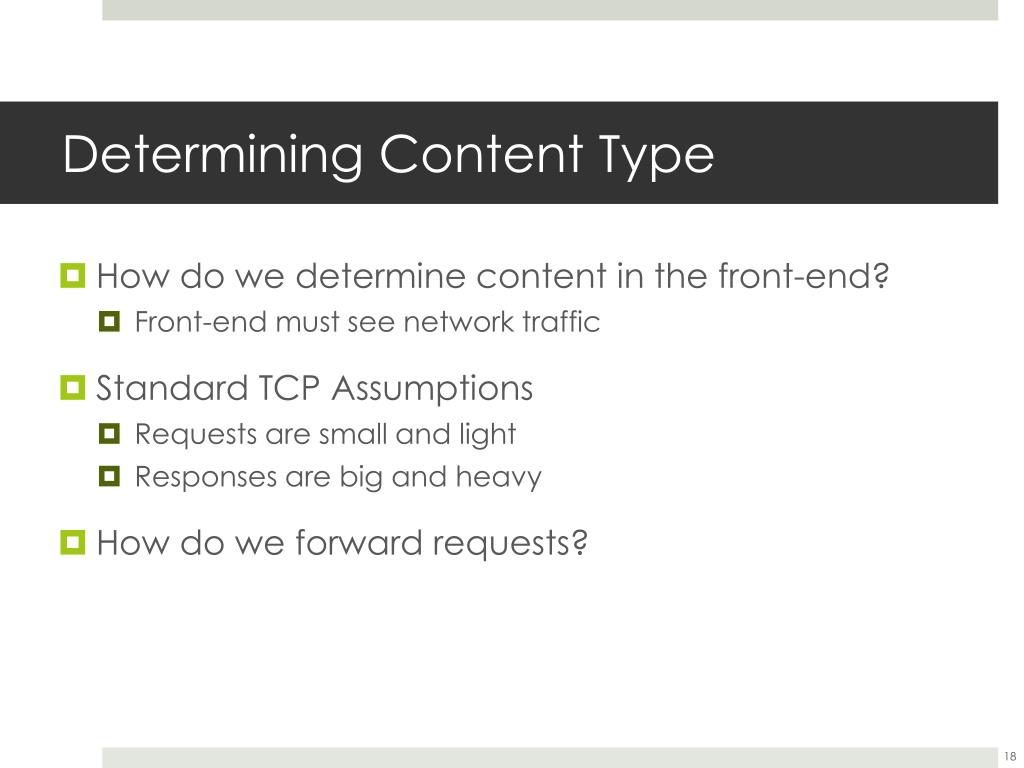

Determining Content Type
  • How do we determine content in the front-end?
    • Front-end must see network traffic
  • Standard TCP Assumptions
    • Requests are small and light
    • Responses are big and heavy
  • How do we forward requests?
potential tcp solutions

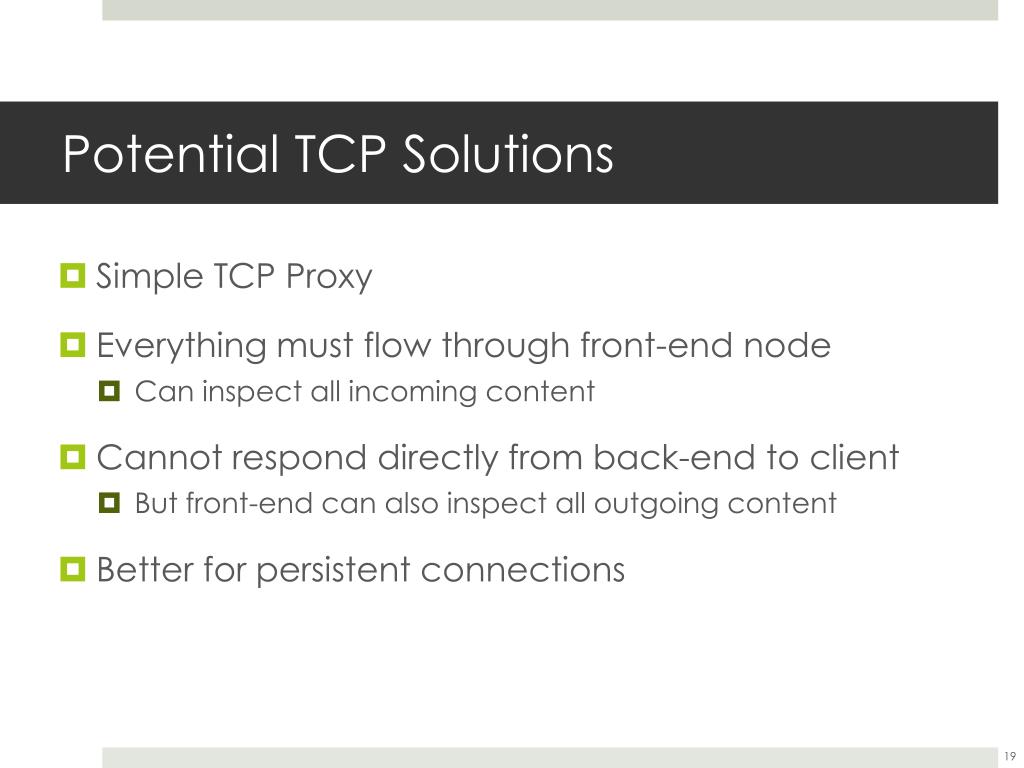

Potential TCP Solutions
  • Simple TCP Proxy
  • Everything must flow through front-end node
    • Can inspect all incoming content
  • Cannot respond directly from back-end to client
    • But front-end can also inspect all outgoing content
  • Better for persistent connections
tcp connection handoff

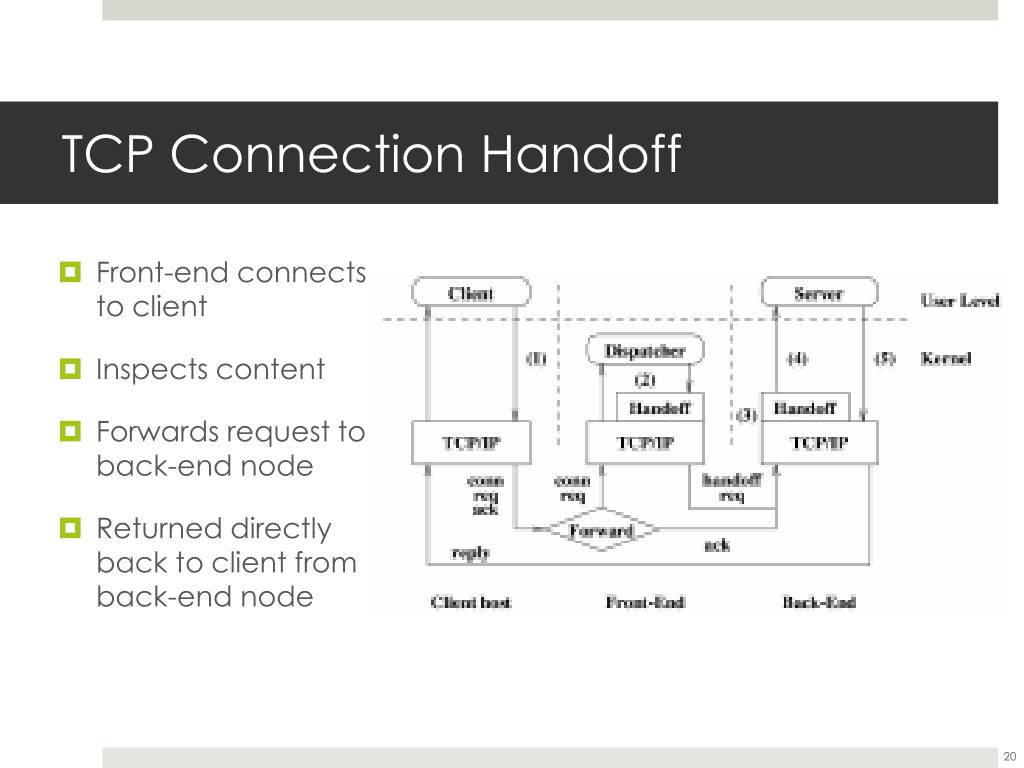

TCP Connection Handoff
  • Front-end connects to client
  • Inspects content
  • Forwards request to back-end node
  • Returned directly back to client from back-end node
lard outline1
LARD Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • TCP Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
evaluation goals
Evaluation Goals
  • Throughput
    • Requests/second served by entire cluster
  • Hit rate
    • (Requests that hit memory cache) / (total requests)
  • Underutilization time
    • Time that a node’s load is ≤ 40% of Tlow
simulation model

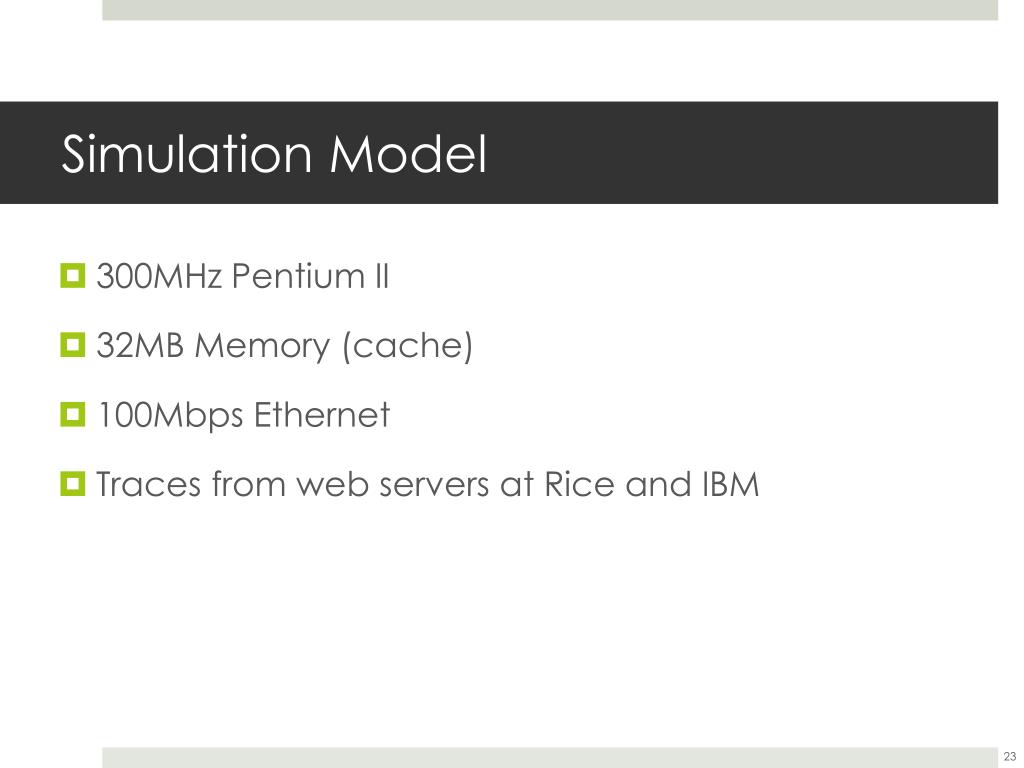

Simulation Model
  • 300MHz Pentium II
  • 32MB Memory (cache)
  • 100Mbps Ethernet
  • Traces from web servers at Rice and IBM
simulation results prior work
Simulation Results – Prior Work
  • Weighted Round Robin
    • Lowest throughput
    • Highest cache miss ratio
    • But lowest idle time
  • Pure Locality-Based
    • An increase in nodes  decrease in cache miss ratio
    • But idle time increases (unbalanced load)
    • Only minor improvement over WRR

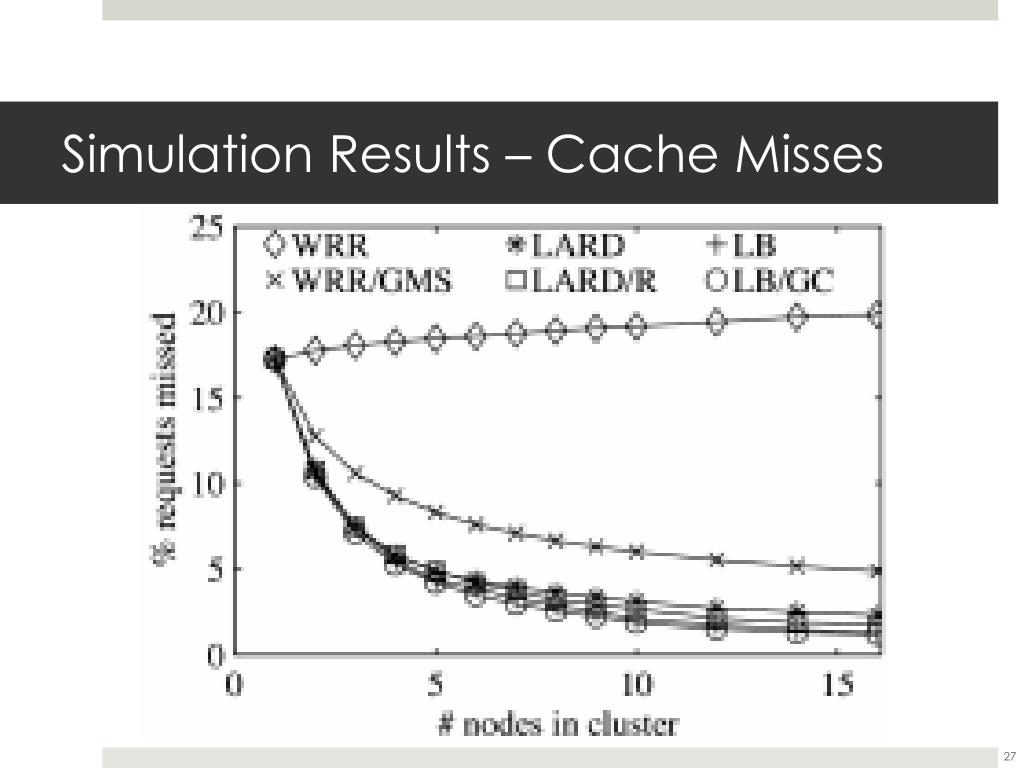

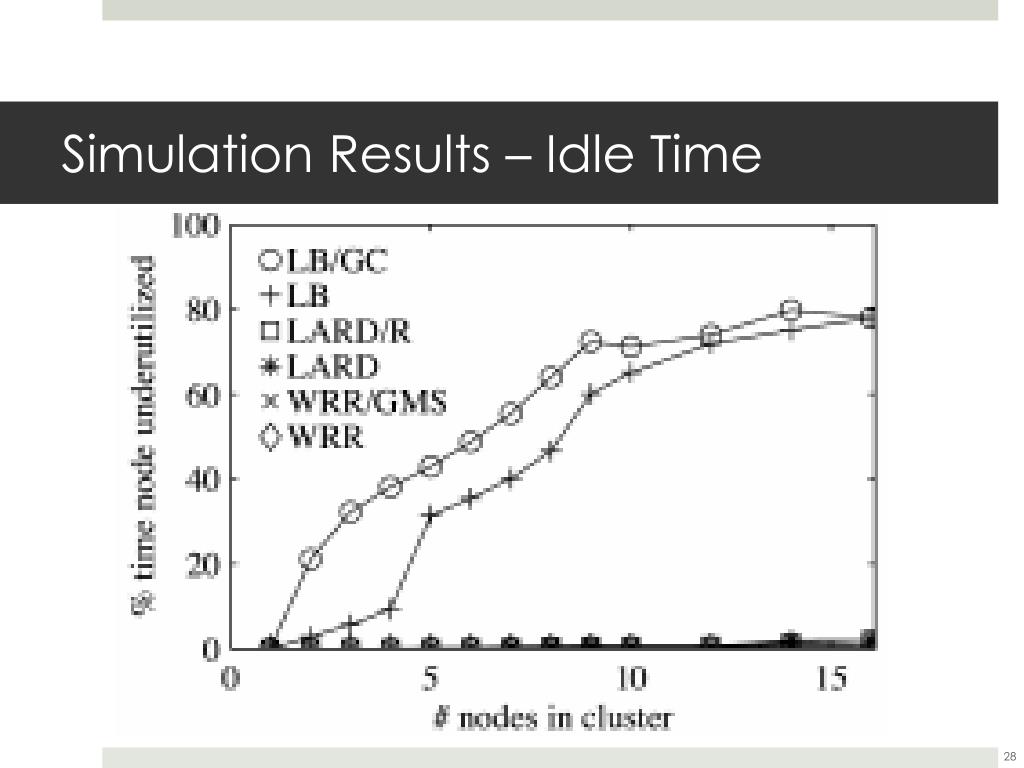

simulation results lard lard r

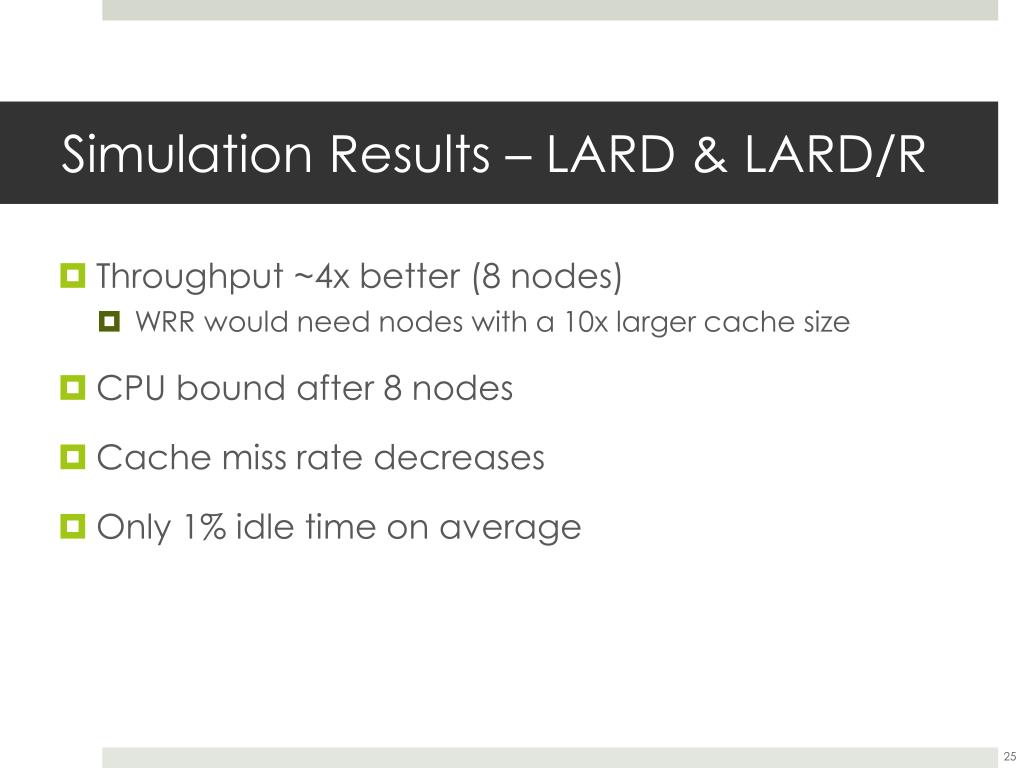

Simulation Results – LARD & LARD/R
  • Throughput ~4x better (8 nodes)
    • WRR would need nodes with a 10x larger cache size
  • CPU bound after 8 nodes
  • Cache miss rate decreases
  • Only 1% idle time on average
what affects performance

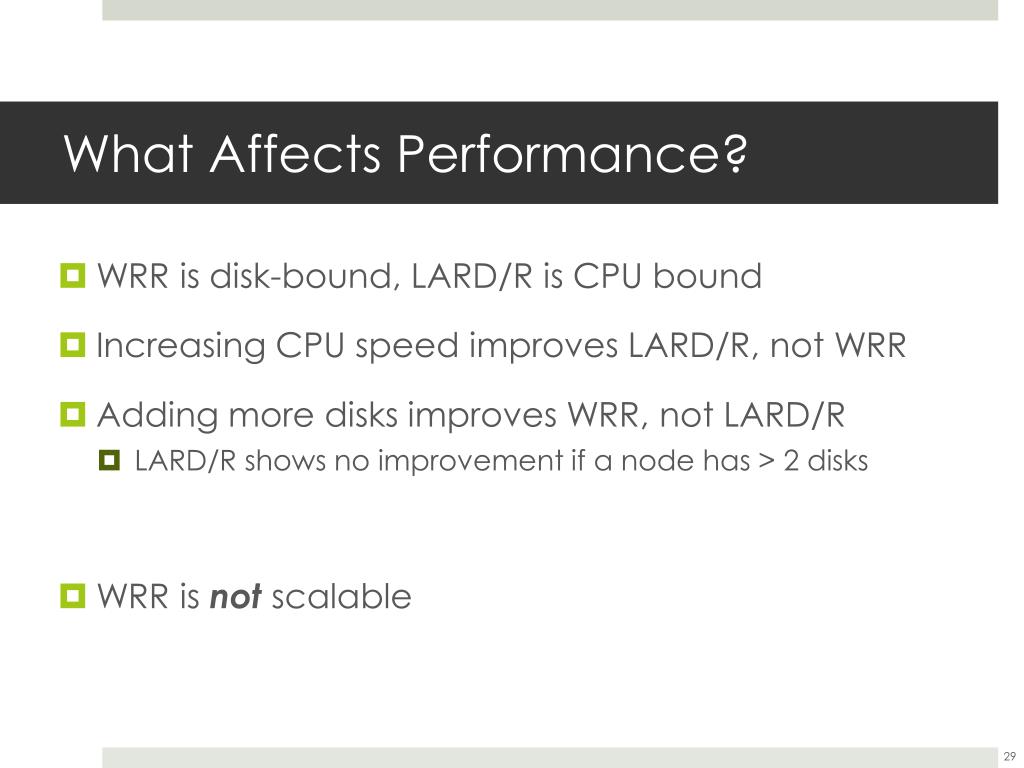

What Affects Performance?
  • WRR is disk-bound, LARD/R is CPU bound
  • Increasing CPU speed improves LARD/R, not WRR
  • Adding more disks improves WRR, not LARD/R
    • LARD/R shows no improvement if a node has > 2 disks
  • WRR is not scalable
lard outline2
LARD Outline
  • Basic LARD Algorithm
  • Improvements to LARD
  • TCP Handoff Protocol
  • Simulation and Results
  • Prototype Implementation and Testing
prototype implementation

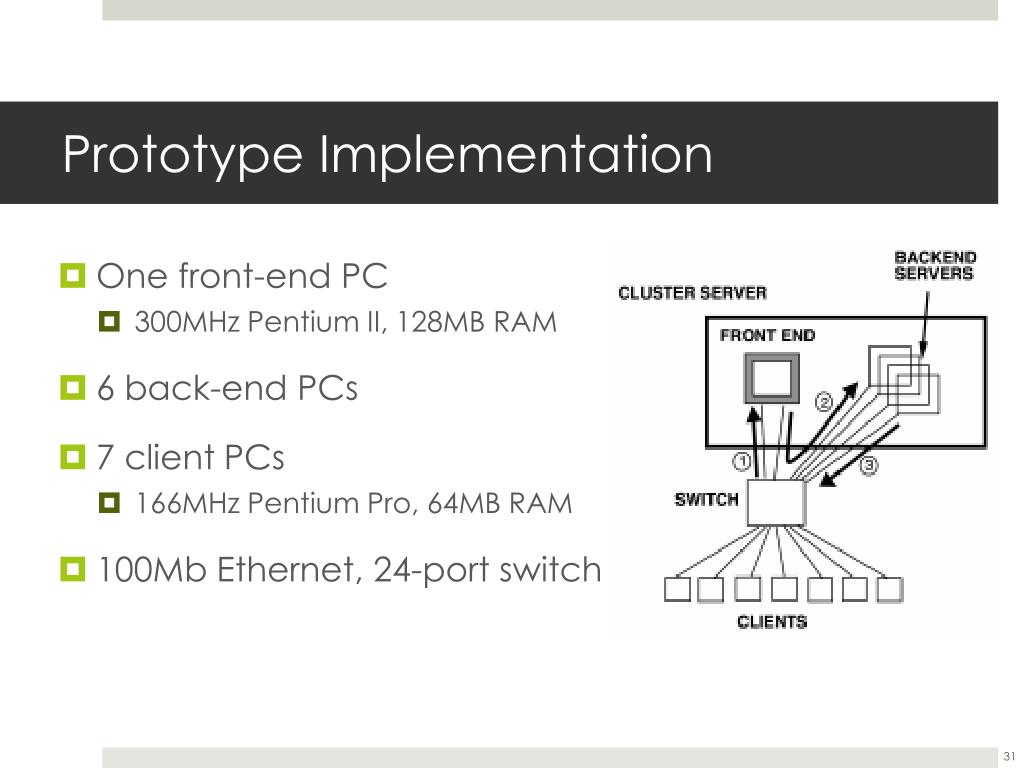

Prototype Implementation
  • One front-end PC
    • 300MHz Pentium II, 128MB RAM
  • 6 back-end PCs
  • 7 client PCs
    • 166MHz Pentium Pro, 64MB RAM
  • 100Mb Ethernet, 24-port switch
evaluation shortcomings
Evaluation Shortcomings
  • What influences the results more?
    • LARD/R protocol?
    • TCP handoff protocol?
conclusion
Conclusion
  • LARD and LARD/R significantly better than WRR
    • Higher throughput
    • Better CPU utilization
    • More frequent cache hits
    • Reduced disk access
  • Benefits of Locality-Based and Load-Balanced
  • Scalable at low cost
