architecture 2a
ARCHITECTURE 2A

Composing Architecture

Jagoda Dojkovski

500144764

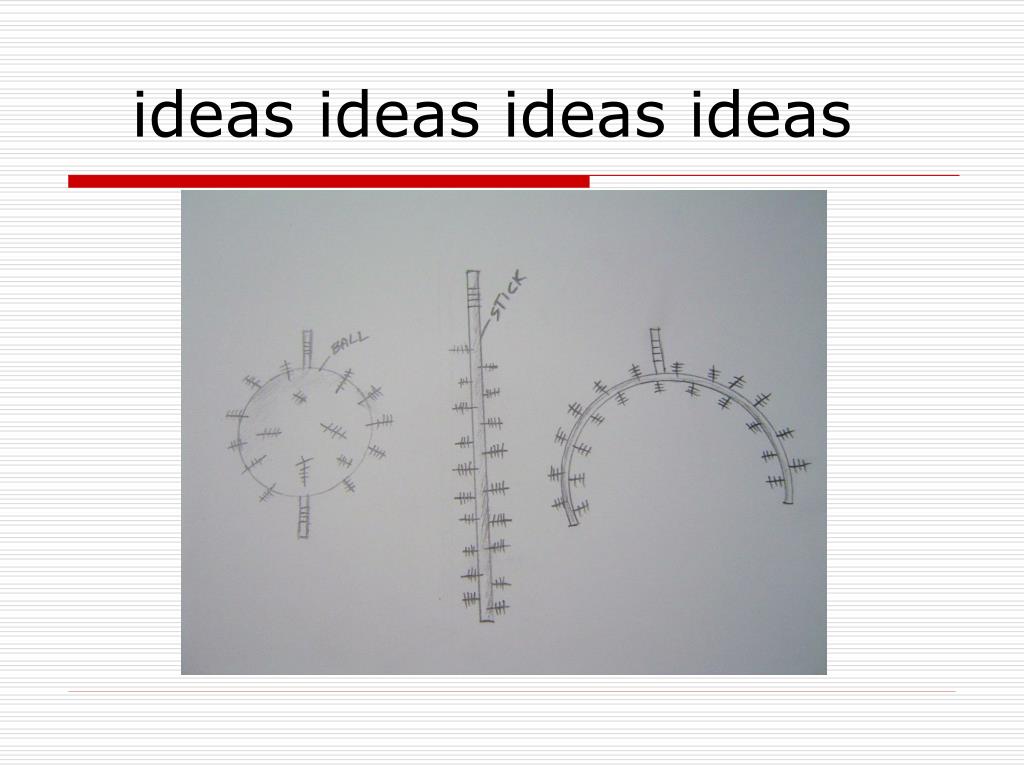

slide3

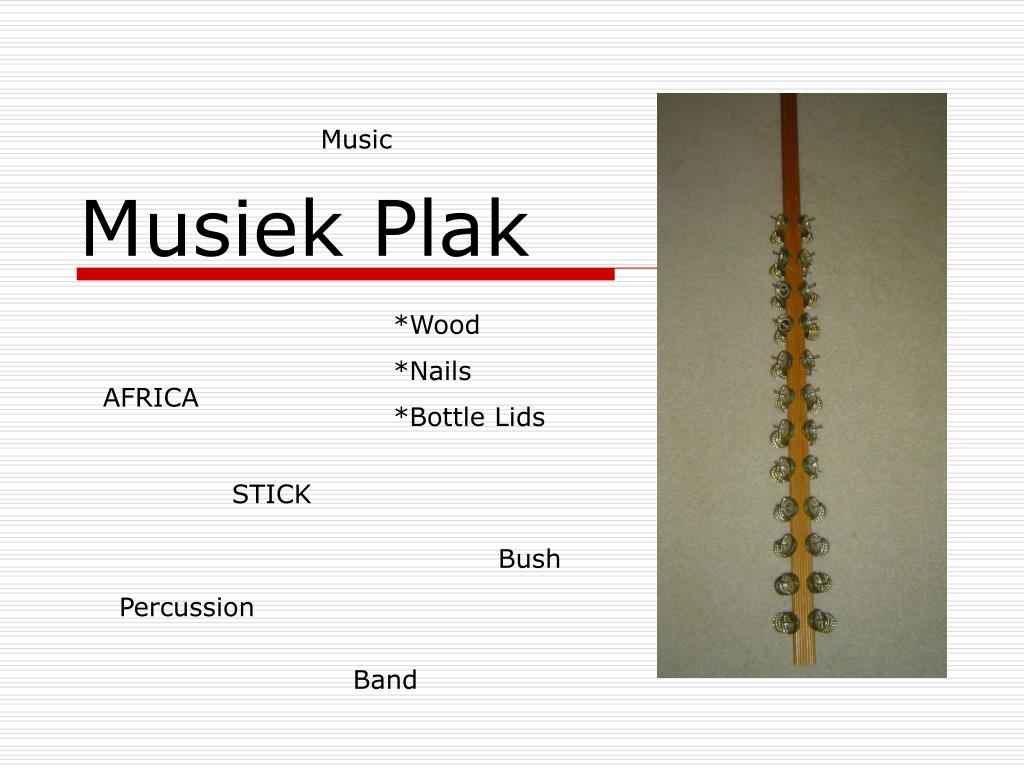

Music

Musiek Plak

*Wood

*Nails

*Bottle Lids

AFRICA

STICK

Bush

Percussion

Band

more ideas

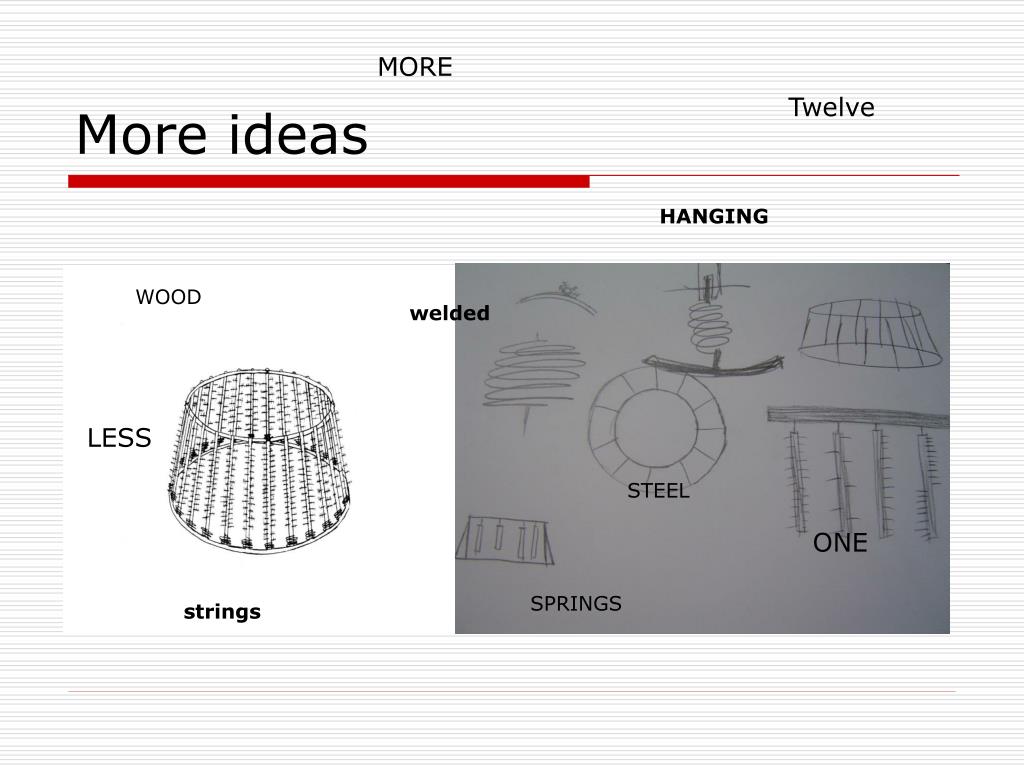

More ideas

MORE

Twelve

HANGING

WOOD

welded

LESS

STEEL

ONE

SPRINGS

strings

slide5

SECTION

Height = 1500m

PLAN VIEW

Diameter of Bottom Ring 3000mm

Diameter of Top Ring 2000m

  • Musiek Plak
  • Steel Ring
  • Spring Connection to Steel Ring
  • Stiffness in Spring will give different sound to each Plak.
  • Top End resting on another Steel Ring.

ELEVATION

slide7

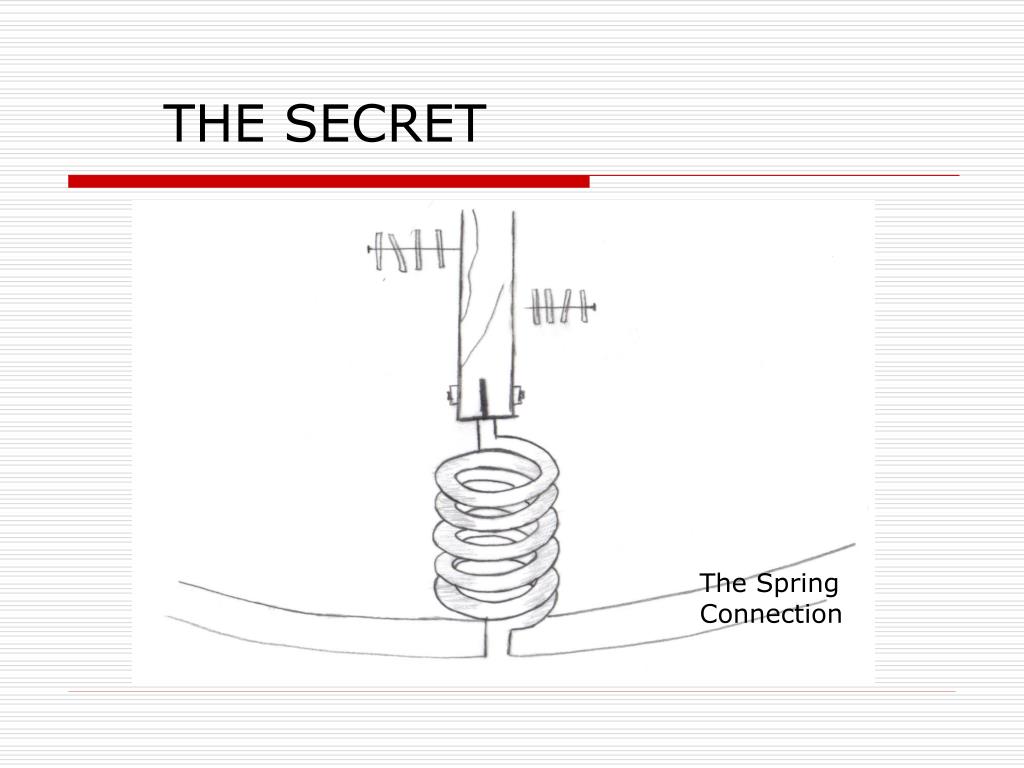

THE SECRET

The Spring Connection
