Presentation Transcript

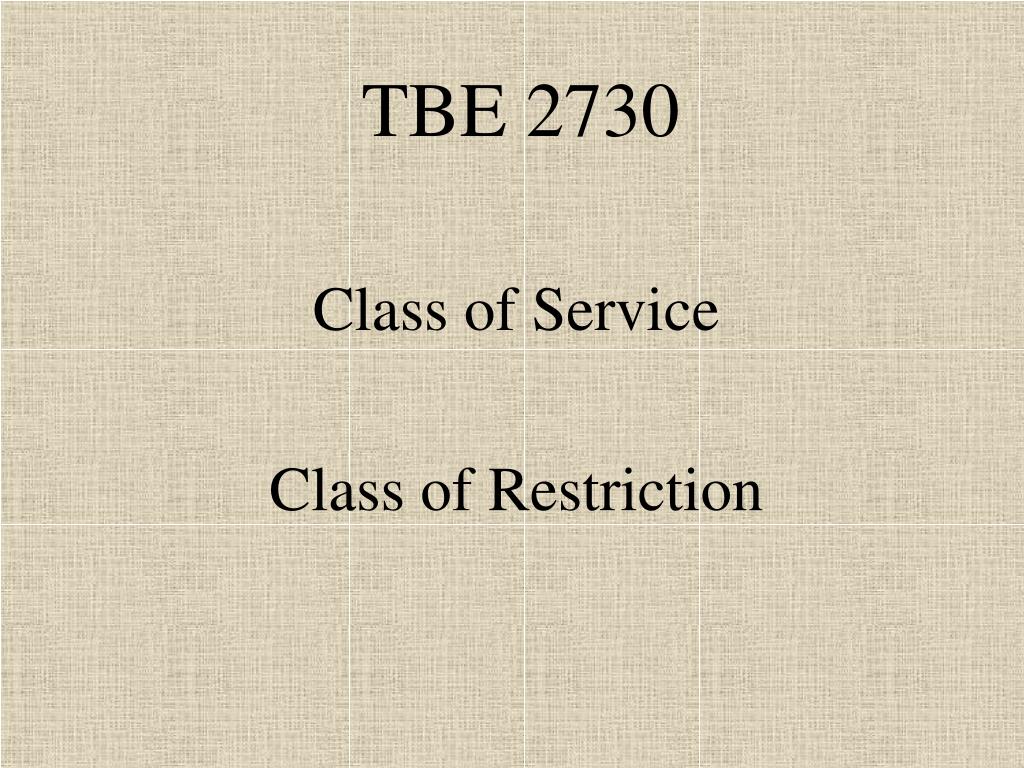

tbe 2730

TBE 2730

Class of Service

Class of Restriction

cos cor
COS/COR
  • COS restricts services and features
    • Auto callback
    • Transfer
    • Call forward off-net
  • COR restricts access to network facilities
    • Can/cannot be called
    • Can/cannot call
    • Toll calling restrictions
    • Relates to routing translations tables (ARS)
slide3
COS
  • Restricts services and features
  • 16 different COS profiles
  • Prebuild them and input on station form
  • 13 services/features to restrict or allow
    • Y or N
    • Cannot change which services/features
  • Less critical features
  • More critical features
    • Trunk to trunk transfer override
    • Restrict call fwd off-net
slide4
COR
  • Restricts access to network facilities
  • 96 different COR profiles
  • Prebuild profiles and add on station form
  • Calling party restriction
    • Origination – cannot originate calls. Can only be called.
    • Outward – cannot call off-net. Can only call other stations on-net.
    • All-toll – no LD/toll calls.
    • TAC-toll – restricts toll to certain areas.
  • Called party restrictions
    • Inward – blocks station from receiving incoming public or op.calls

no DID calls or transferred calls. Can get on-net calls.

    • Manual – blocks incoming public calls except those transferred by the operator. No DID calls. Can get on-net calls.
    • Termination – no incoming calls at all.
  • Forced Entry of account codes – must enter an account code for toll calls.
