  1. Carbon Nanotubes David McDermott Jake Borrajo PHYS43 Modern Physics, SRJC Section 5756 Instructor: Dr. Younes Ataiiyan Modern Physics Project

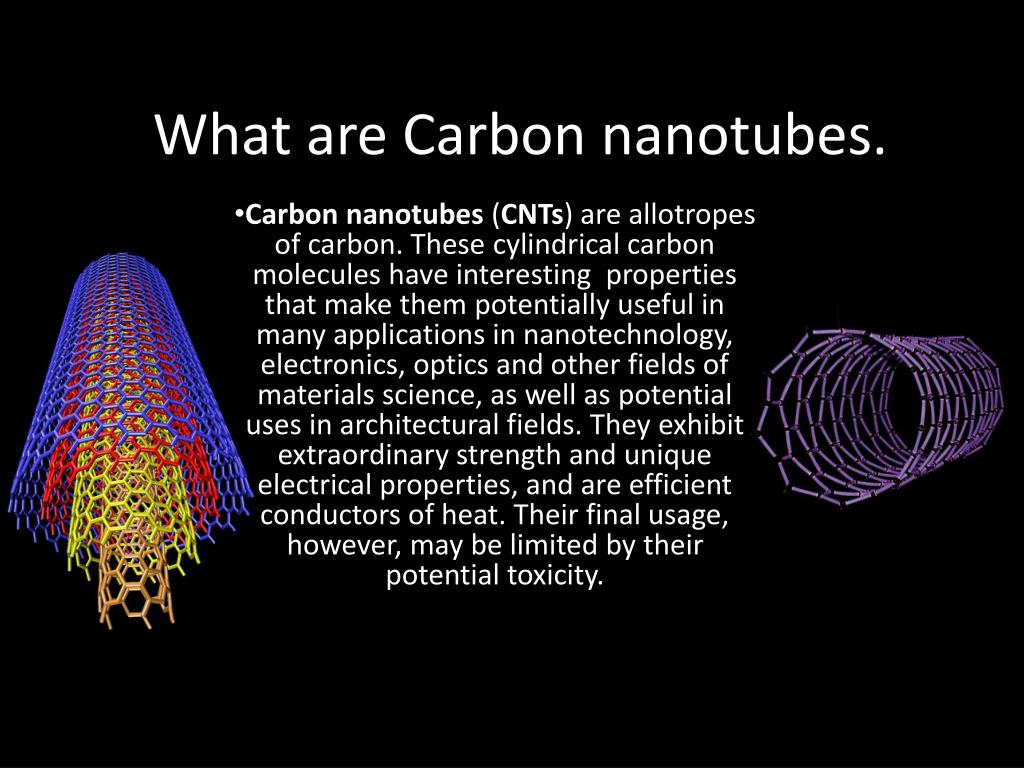

  2. What are Carbon nanotubes. Carbon nanotubes (CNTs) are allotropes of carbon. These cylindrical carbon molecules have interesting properties that make them potentially useful in many applications in nanotechnology, electronics, optics and other fields of materials science, as well as potential uses in architectural fields. They exhibit extraordinary strength and unique electrical properties, and are efficient conductors of heat. Their final usage, however, may be limited by their potential toxicity.

  3. How CNTs are made • Arc discharge • CNTs Can be found in the carbon soot of graphite electrodes during an arc discharge involving high current. This process yields CNTs with lengths up to 50 microns. • Laser Ablation • In the laser ablation process, a pulsed laser vaporizes a graphite target in a high-temperature reactor while an inert gas is inserted into the reactor. Nanotubes develop on the cooler surfaces of the reactor as the vaporized carbon condenses. • Other methods where CNTs are created: - Chemical Vapor Decomposition - Natural, incidental, and controlled flame environments

  4. Properties • Strength • Electrical • Thermal • Defects • One-Dimensional Transport • Toxicity

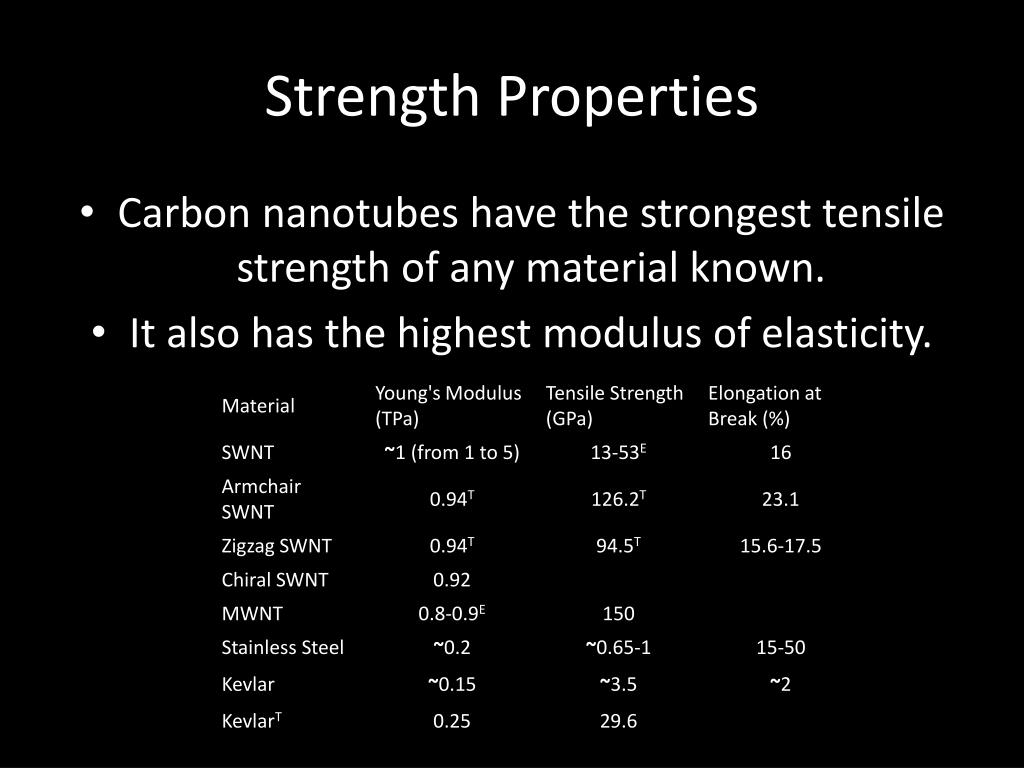

  5. Strength Properties • Carbon nanotubes have the strongest tensile strength of any material known. • It also has the highest modulus of elasticity.

  6. Electrical Properties • If the nanotube structure is armchair then the electrical properties are metallic • If the nanotube structure is chiral then the electrical properties can be either semiconducting with a very small band gap, otherwise the nanotube is a moderate semiconductor • In theory, metallic nanotubes can carry an electrical current density of 4×109 A/cm2 which is more than 1,000 times greater than metals such as copper

  7. Thermal Properties • All nanotubes are expected to be very good thermal conductors along the tube, but good insulators laterally to the tube axis. • It is predicted that carbon nanotubes will be able to transmit up to 6000 watts per meter per Kelvin at room temperature; compare this to copper, a metal well-known for its good thermal conductivity, which transmits 385 watts per meter per K. • The temperature stability of carbon nanotubes is estimated to be up to 2800oC in vacuum and about 750oC in air.

  8. Defects • Defects can occur in the form of atomic vacancies. High levels of such defects can lower the tensile strength by up to 85%. • Because of the very small structure of CNTs, the tensile strength of the tube is dependent on its weakest segment in a similar manner to a chain, where the strength of the weakest link becomes the maximum strength of the chain.

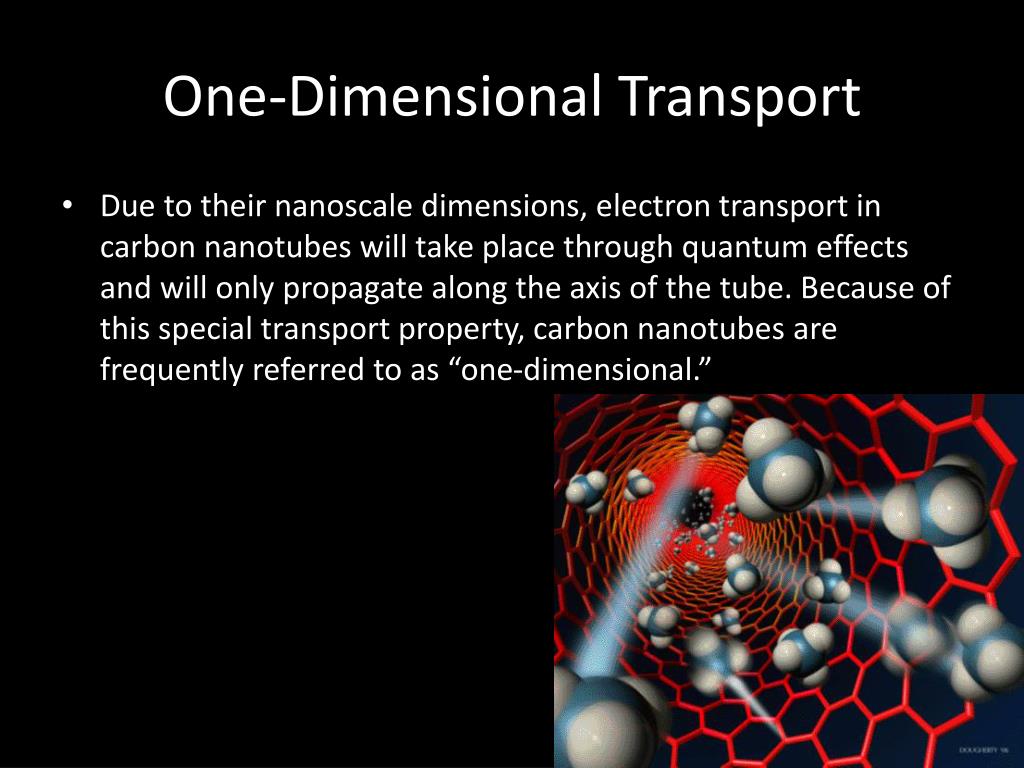

  9. One-Dimensional Transport • Due to their nanoscale dimensions, electron transport in carbon nanotubes will take place through quantum effects and will only propagate along the axis of the tube. Because of this special transport property, carbon nanotubes are frequently referred to as “one-dimensional.”

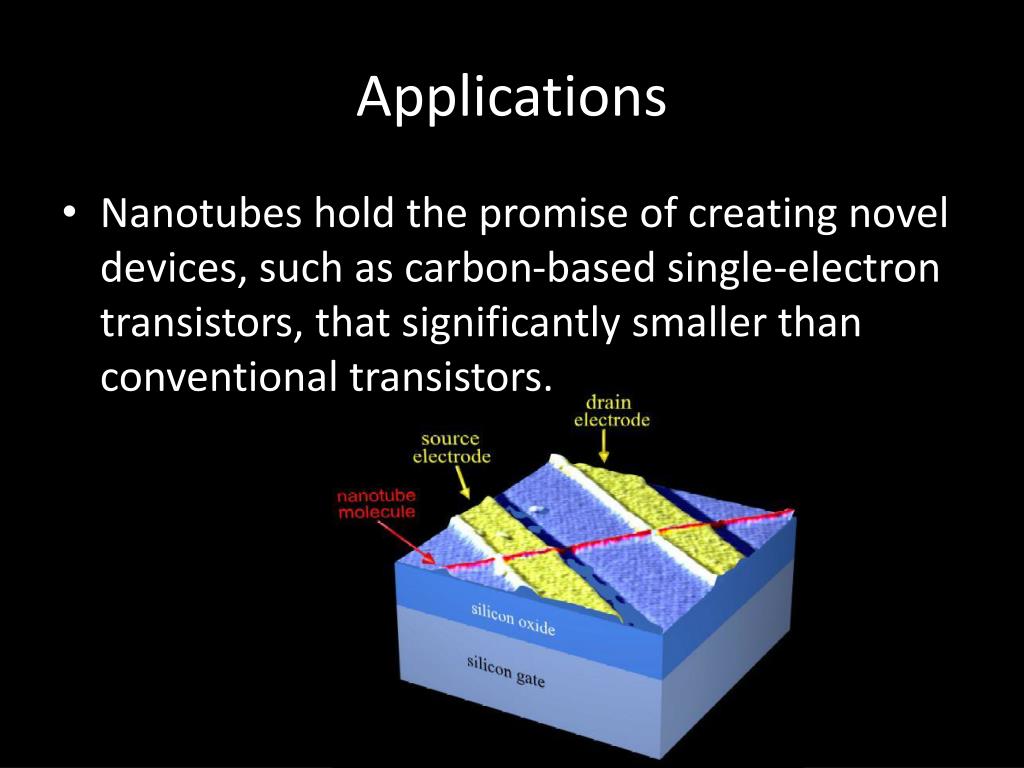

  10. Applications • Nanotubes hold the promise of creating novel devices, such as carbon-based single-electron transistors, that significantly smaller than conventional transistors.

  11. Nanotubes’ excellent strength to weight ratio creates the potential to build an elevator to space.

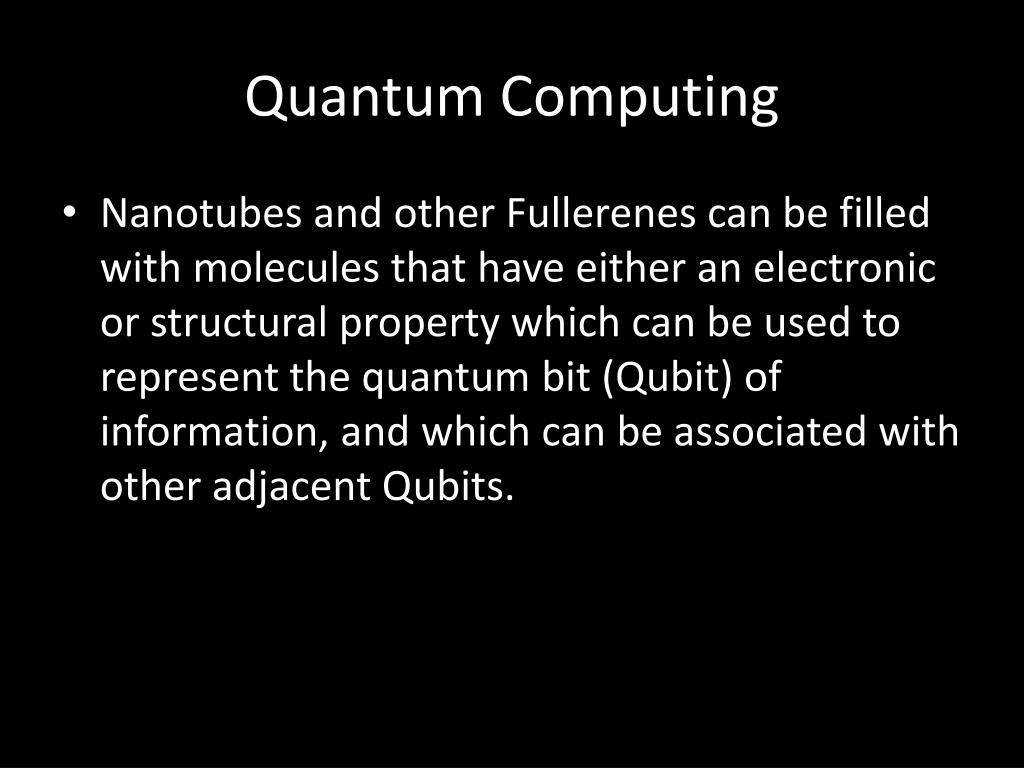

  12. Quantum Computing • Nanotubes and other Fullerenes can be filled with molecules that have either an electronic or structural property which can be used to represent the quantum bit (Qubit) of information, and which can be associated with other adjacent Qubits.

  13. Health Hazards • According to scientists at the National Institute of Standards and Technology, carbon nanotubes shorter than about 200 nanometers readily enter into human lung cells similar to the way asbestos does, and may pose an increased risk to health. • Carbon nanotubes along with the majority of nanotechnology, are an unexplored matter, and many of the possible health hazards are still unknown.

  14. References • http://www.news-medical.net/news/22799.aspx • Chae, H.G.; Kumar, S. (2006). "Rigid Rod Polymeric Fibers". Journal of Applied Polymer Science100:791-802: 791. doi:10.1002/app.22680.  • Hong, Seunghun; Sung Myung (2007). "Nanotube Electronics: A flexible approach to mobility". Nature Nanotechnology2: 207–208. doi:10.1038/nnano.2007.89 • Meo, S.B.; Andrews R. (2001). "Carbon Nanotubes: Synthesis, Properties, and Applications". Crit. Rev. Solid State Mater. Sci.26(3):145-249: 145. doi:10.1080/20014091104189.  • Kolosnjaj J, Szwarc H, Moussa F (2007). "Toxicity studies of carbon nanotubes". Adv Exp Med Biol.620: 181–204. PMID 18217344 • Ebbesen, T. W.; Ajayan, P. M. (1992). "Large-scale synthesis of carbon nanotubes". Nature358: 220–222. doi:10.1038/358220a0
