Omron motion solutions

Omron Motion Solutions

Charles Manning

Product Marketing Manager

Mechatronics


Overview
Overview

  • Our New Focus

  • Omron Motion Products

  • Mechatrolink-II

  • WN-Series (Available now)

  • CJ1W-NCF71 (Available now)

  • CJ1W-MCH71/CS1W-MCH71 (Certification required)

  • FQM1 (Coming soon)

  • Motion Software

  • Smart Platform Libraries


Our new focus

Our New Focus

Where do we go from here?


Our new focus1
Our New Focus

  • Support our Motion customers

    • Create a strong support structure

      • Technical Support

      • Application Engineers

      • Sales

    • Training

      • Certification course for MCH

      • Training courses for other new products

    • Increase inventory levels

      • Stock key products

    • Reduce lead times

      • Promote Japan-stocked products

      • Provide a list of Japanese stock to distribution


Our new focus2

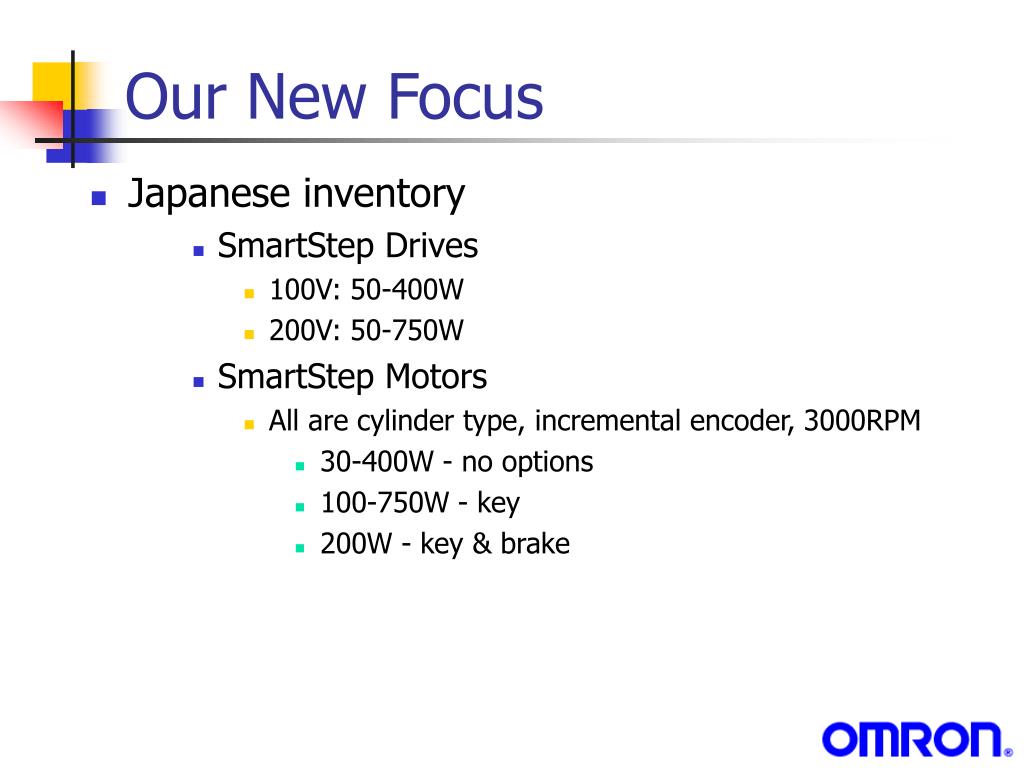

Our New Focus

  • Japanese inventory

    • SmartStep Drives

      • 100V: 50-400W

      • 200V: 50-750W

    • SmartStep Motors

      • All are cylinder type, incremental encoder, 3000RPM

        • 30-400W - no options

        • 100-750W - key

        • 200W - key & brake


Our new focus3
Our New Focus

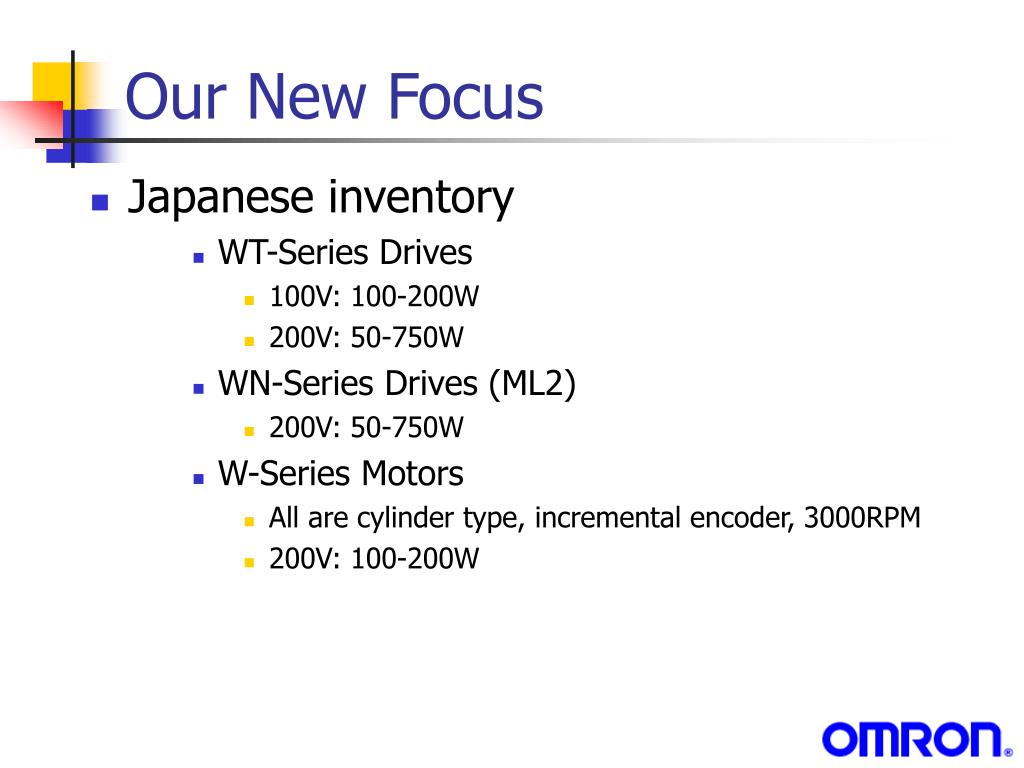

  • Japanese inventory

    • WT-Series Drives

      • 100V: 100-200W

      • 200V: 50-750W

    • WN-Series Drives (ML2)

      • 200V: 50-750W

    • W-Series Motors

      • All are cylinder type, incremental encoder, 3000RPM

      • 200V: 100-200W


Our new focus4
Our New Focus

  • Your inventory?

    • Which Drives?

      • SmartStep

      • WT-Series

      • WN-Series

    • What sizes?

    • What voltages?

    • What motor options?

      • Key

      • Key & Tap

      • Brake

      • Incremental or Absolute encoder

      • IP67

      • Other


Our new focus5

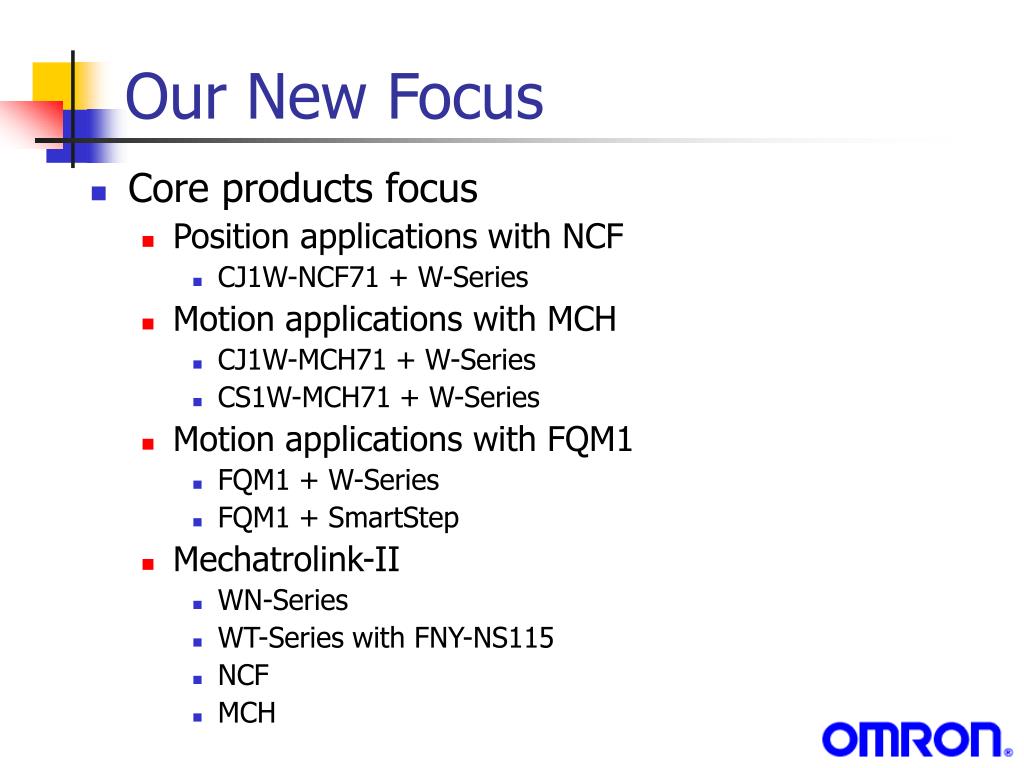

Our New Focus

  • Core products focus

    • Position applications with NCF

      • CJ1W-NCF71 + W-Series

    • Motion applications with MCH

      • CJ1W-MCH71 + W-Series

      • CS1W-MCH71 + W-Series

    • Motion applications with FQM1

      • FQM1 + W-Series

      • FQM1 + SmartStep

    • Mechatrolink-II

      • WN-Series

      • WT-Series with FNY-NS115

      • NCF

      • MCH


Omron motion products

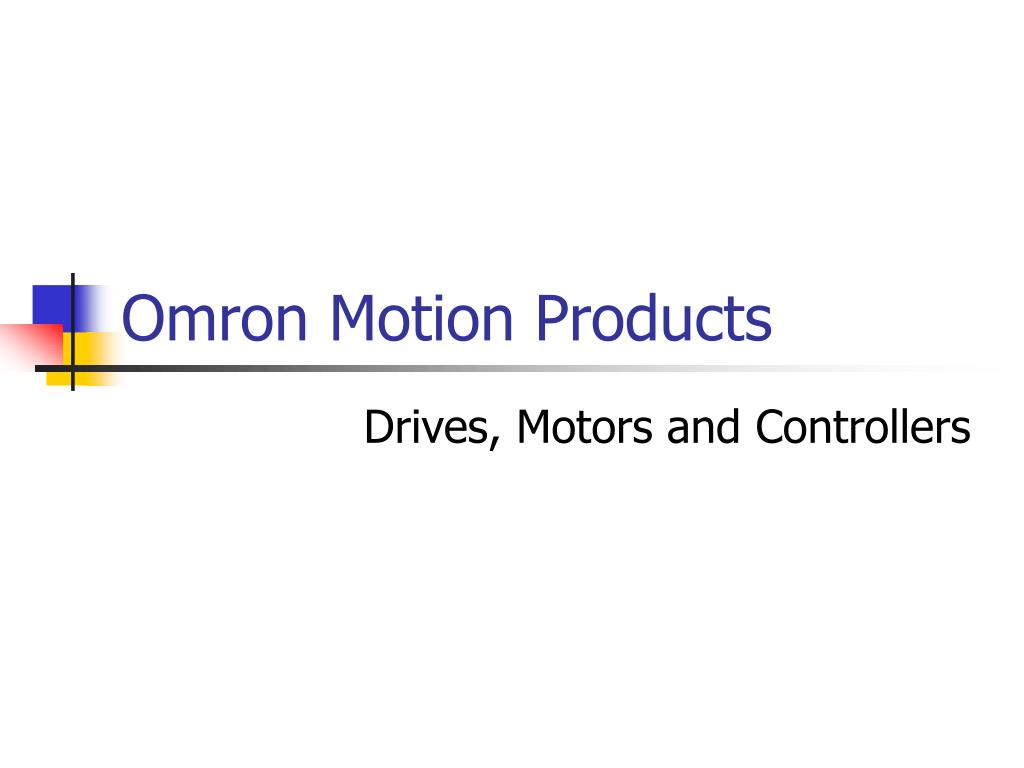

Omron Motion Products

Drives, Motors and Controllers


Omron motion products1
Omron Motion Products

  • Servo Drives and Motors

    • WT-Series

      • Full-featured servo drive

    • WN-Series

      • Built-in Mechatrolink-II

    • SmartStep

      • Simple servo drive


Omron motion products2
Omron Motion Products

  • Controllers

    • Position Controllers

      • CJ1W-NCF71

      • CJ1W-NC113/213/413

      • CJ1W-NC133/233/433

      • CS1W-NC113/213/413

      • CS1W-NC133/233/433

      • C200HW-NC113/213/413


Omron motion products3

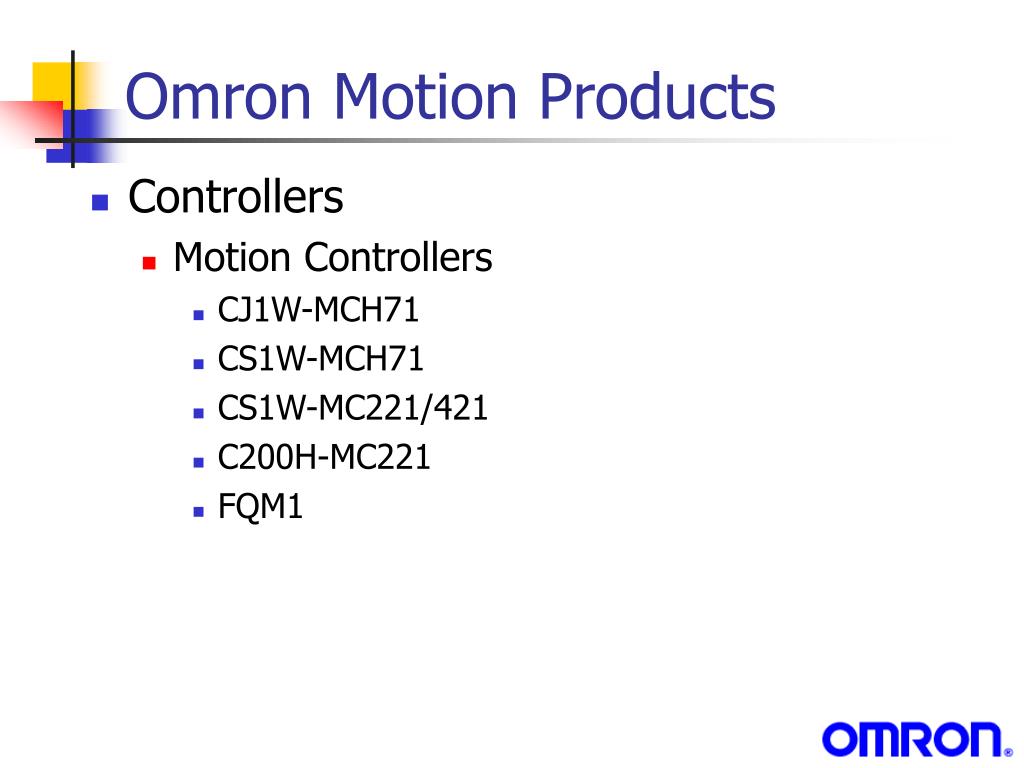

Omron Motion Products

  • Controllers

    • Motion Controllers

      • CJ1W-MCH71

      • CS1W-MCH71

      • CS1W-MC221/421

      • C200H-MC221

      • FQM1


Omron motion products4
Omron Motion Products

  • Programmable Logic Controllers

    • CJ1

      • With MCH or NCF controller

    • CS1

      • With MCH controller

    • CQM1H

      • With pulse I/O board

    • CPM2A/CPM2C

      • Built-in synchronized pulse control


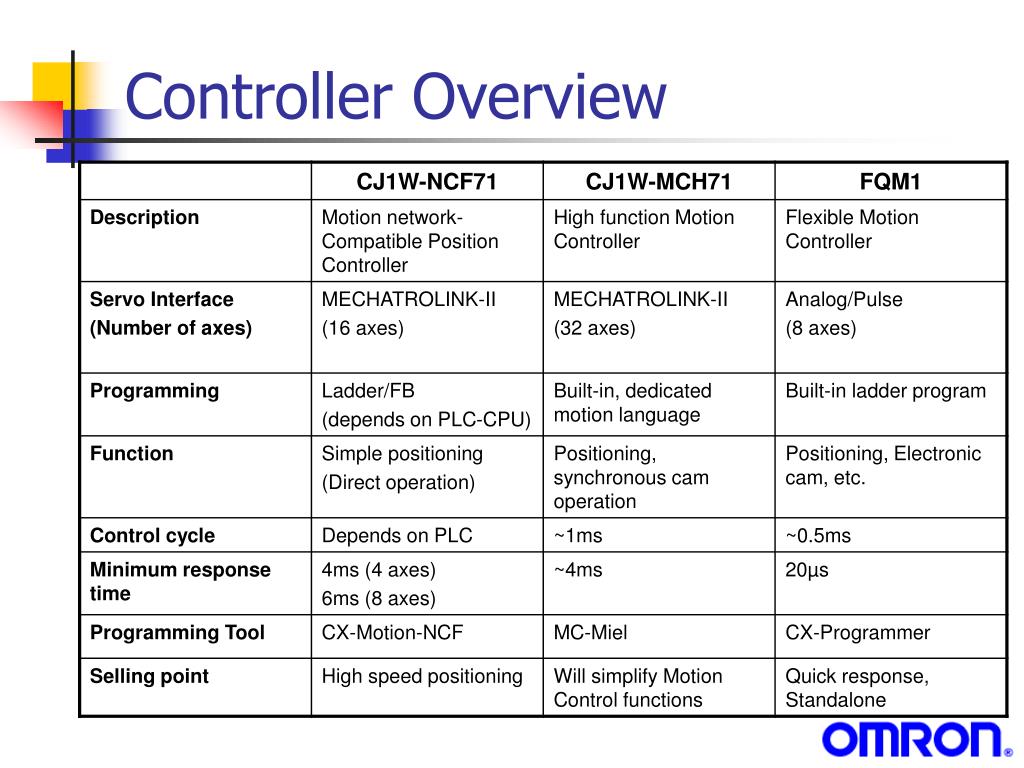

Controller evolution

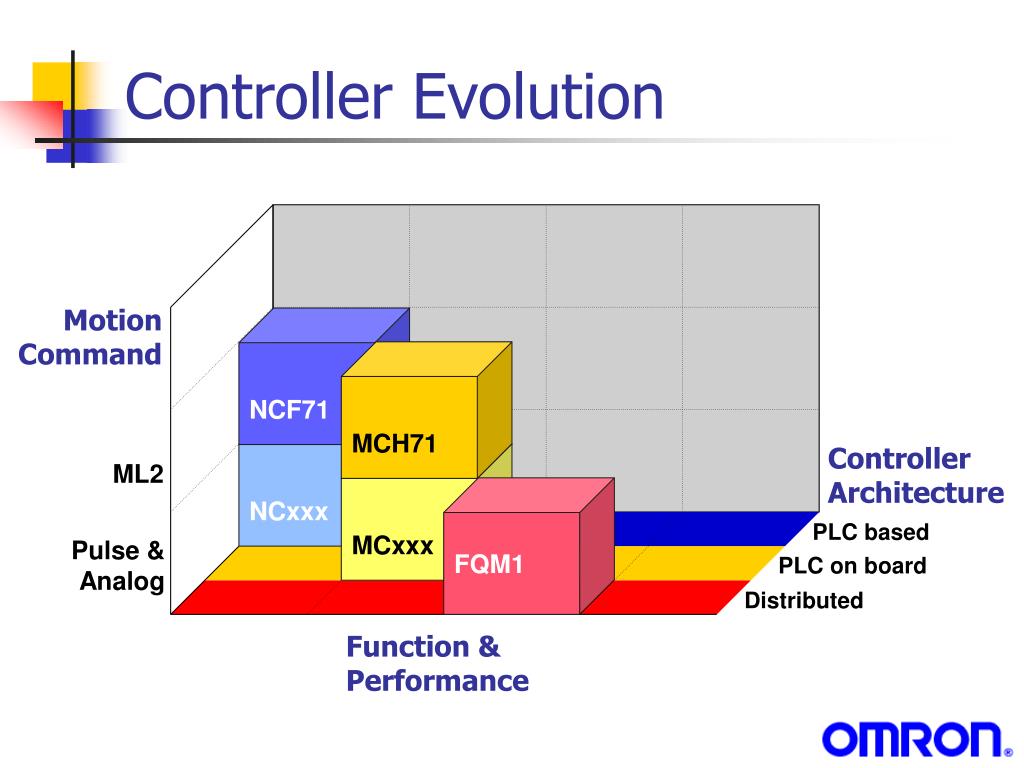

Controller Evolution

Motion

Command

NCF71

MCH71

NCxxx

Controller Architecture

MCxxx

ML2

FQM1

PLC based

Pulse & Analog

PLC on board

Distributed

Function &

Performance



Omron motion products5
Omron Motion Products

  • AC Inverters

    • 3G3JV

      • V/Hz micro Inverter

    • 3G3MV

      • Open Loop Vector micro Inverter

  • Networks

    • DeviceNet

    • Mechatrolink-II


Mechatrolink ii

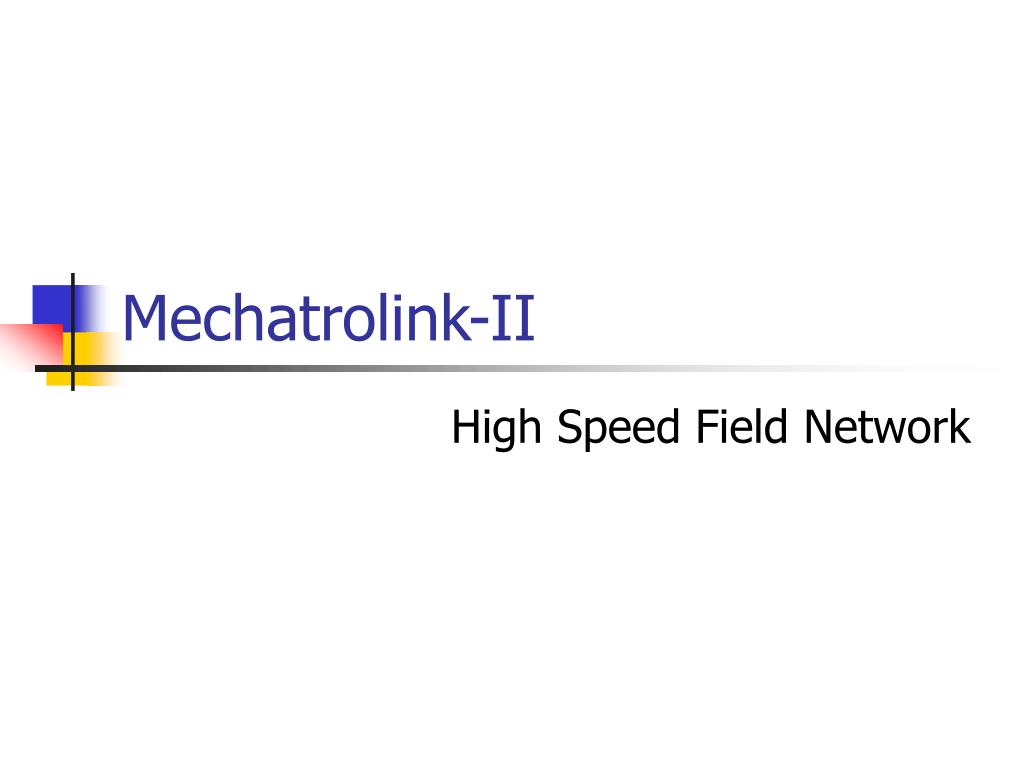

Mechatrolink-II

High Speed Field Network


Mechatrolink ii1
Mechatrolink-II

  • High speed motion field network

  • Designed for Motion Control applications

    • Position, speed and I/O data is transferred in real time

    • Speed, torque and position modes can be switched during run

    • Synchronous phase control

      • Electronic line shaft

      • Electronic cam

  • Comparable to SERCOS


Mechatrolink ii2
Mechatrolink-II

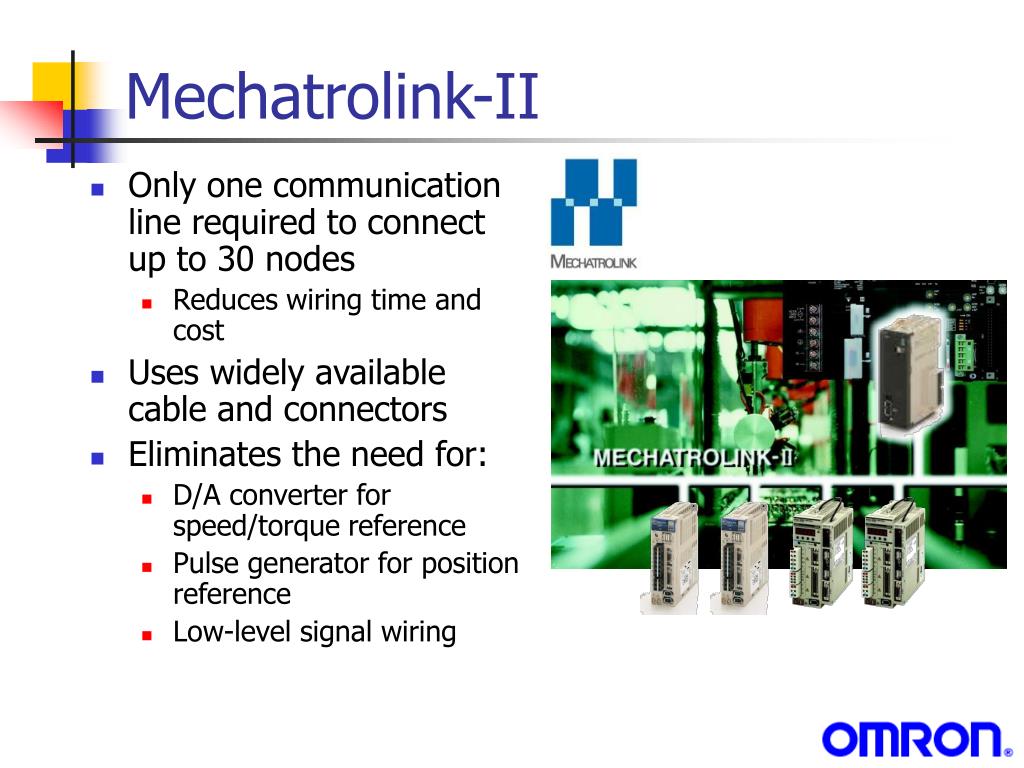

  • Only one communication line required to connect up to 30 nodes

    • Reduces wiring time and cost

  • Uses widely available cable and connectors

  • Eliminates the need for:

    • D/A converter for speed/torque reference

    • Pulse generator for position reference

    • Low-level signal wiring




Wn series

WN-Series

Servo Drive with Built-in ML2


Wn series1
WN-Series

  • WN-Series servo drives are designed specifically for use on Mechatrolink-II high speed networks

  • Does not require ML2 adapter (saves money)

  • WN-Series drives are 25% smaller than the equivalent WT-Series

  • Works with our existing W-Series motors


Wn series2
WN-Series

  • Control commands are sent via ML2 connection between the drive and controller

    • Motor performance is not limited by control interface specifications

      • Response times are reduced

    • Data control is simplified because it is managed by the host controller



Wn series4
WN-Series

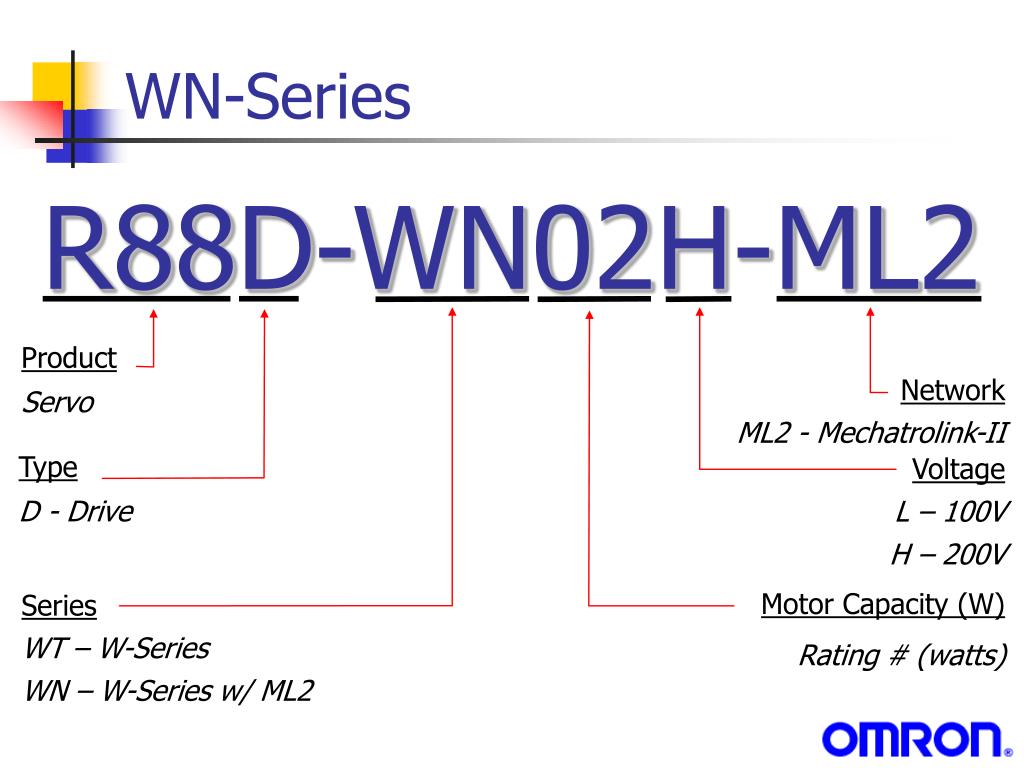

R88D-WN02H-ML2

Product

Servo

Network

ML2 - Mechatrolink-II

Type

D - Drive

Voltage

L – 100V

H – 200V

Motor Capacity (W)

Rating # (watts)

Series

WT – W-Series

WN – W-Series w/ ML2


Wn series5
WN-Series

  • How to sell it

    • Designed specifically for ML2 high-speed network

      • Built-in network connection

      • Can compete against SERCOS

    • Less expensive than separate drive & network card

    • Recognized automatically by other Omron devices

      • Smart Platform libraries


Wn series6
WN-Series

  • How to sell it

    • Physically smaller

    • Higher functionality

      • Improved deviation control

        • Minimizes settling times

      • Reduced torque ripple

        • Promotes smooth rotation

      • Advanced autotuning

        • Manual or automatic

        • Set four gains with one parameter


Wn series7
WN-Series

  • Sample Applications

    • Palletizing

    • Wafer Handling

    • Assembly

    • Printing

    • Filling

    • Cutting


Cj1w ncf71

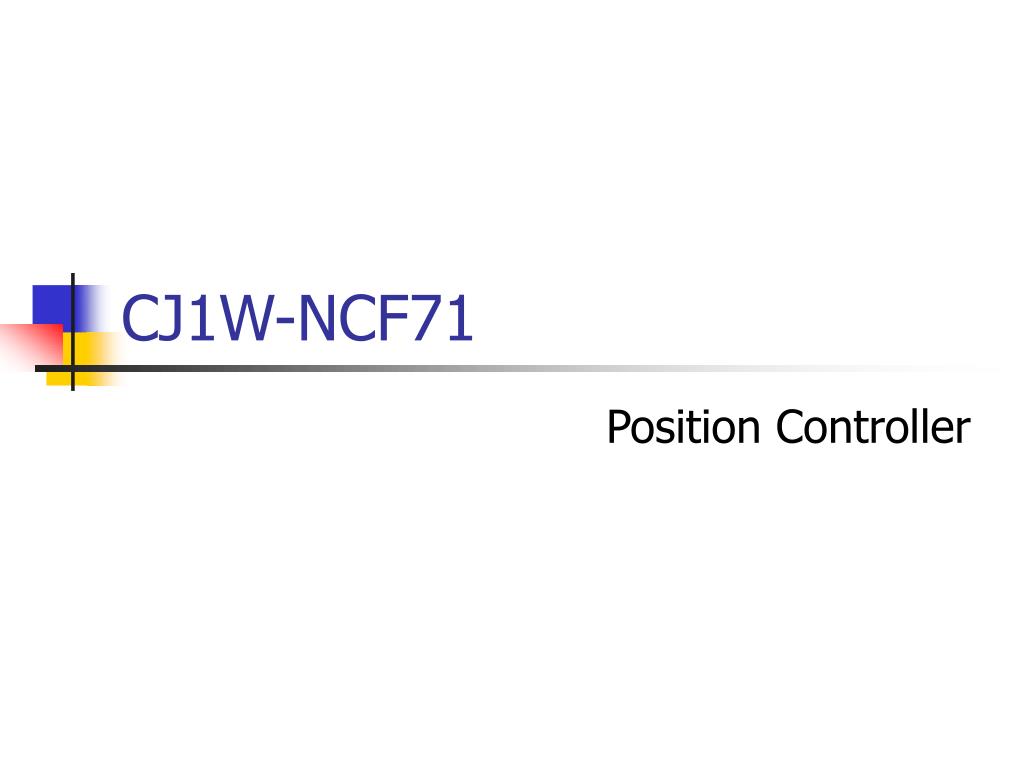

CJ1W-NCF71

Position Controller


Cj1w ncf711
CJ1W-NCF71

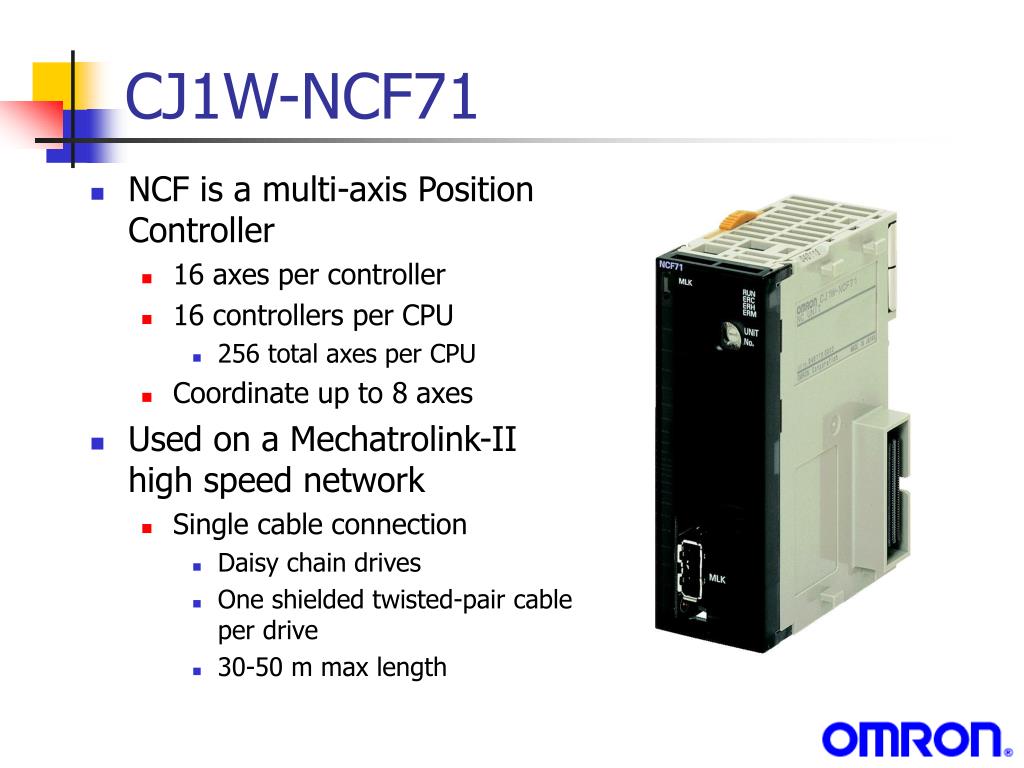

  • NCF is a multi-axis Position Controller

    • 16 axes per controller

    • 16 controllers per CPU

      • 256 total axes per CPU

    • Coordinate up to 8 axes

  • Used on a Mechatrolink-II high speed network

    • Single cable connection

      • Daisy chain drives

      • One shielded twisted-pair cable per drive

      • 30-50 m max length


Cj1w ncf712
CJ1W-NCF71

  • Position Control

    • Absolute position

    • Relative position

    • Linear interpolation

    • Interrupt feeding

  • Speed Control

  • Torque Control

  • Toggle between speed, position & torque control during operation

    • Not possible before even with Motion Control units

    • Shortens operation time

      • No stopping


Cj1w ncf713
CJ1W-NCF71

  • Compatible with absolute encoders

    • No need for origin search

  • Simple expansion

    • One cable per drive

    • Add an axis

      • At start-up

      • In the future

    • Smart platform connectivity

    • Configure new axes from the PLC


Cj1w ncf714
CJ1W-NCF71

  • Centralized Data Control

    • Controller and drive can be programmed from the PLC CPU

      • Separate programmer not required

      • Alarm status and monitors available at the PLC

    • Less start up and maintenance time

  • Uses ladder programming

    • Position & speed data are set from the ladder program in the CPU


Cj1w ncf715
CJ1W-NCF71

  • Servo drives

    • WT-Series

      • FNY-NS115 ML2 interface required

      • Software version 39 or later

    • WN-Series

      • All versions connect directly to NCF


Cj1w ncf716
CJ1W-NCF71

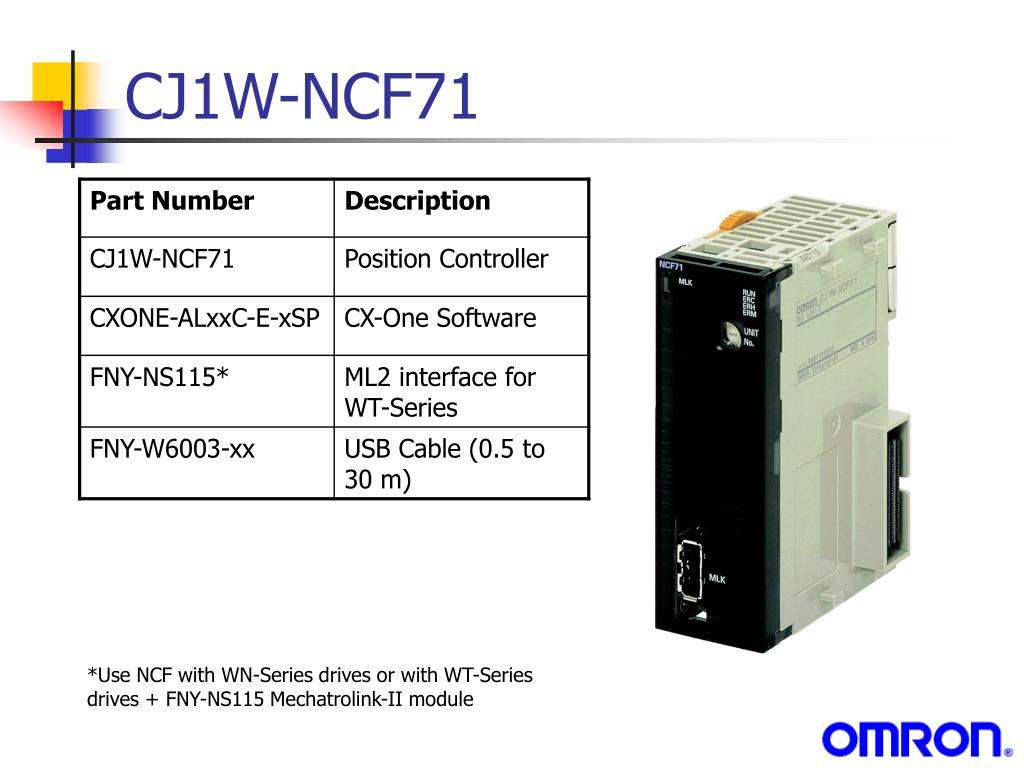

*Use NCF with WN-Series drives or with WT-Series drives + FNY-NS115 Mechatrolink-II module


Cj1w ncf717
CJ1W-NCF71

  • Before

    • A controller cable connected to each axis

    • Controller and each drive programmed separately

      • Different software

    • Adding future axes required adding cable connections to the controller

      • May require more controllers


Cj1w ncf718
CJ1W-NCF71

  • After

    • Drives are connected by a single wire in a daisy-chain

      • Minimizes wiring

      • Neat connections

    • Controller and servo drives can be programmed through PLC CPU

    • Adding future axes is simple, up to 16 axes


Cj1w ncf719
CJ1W-NCF71

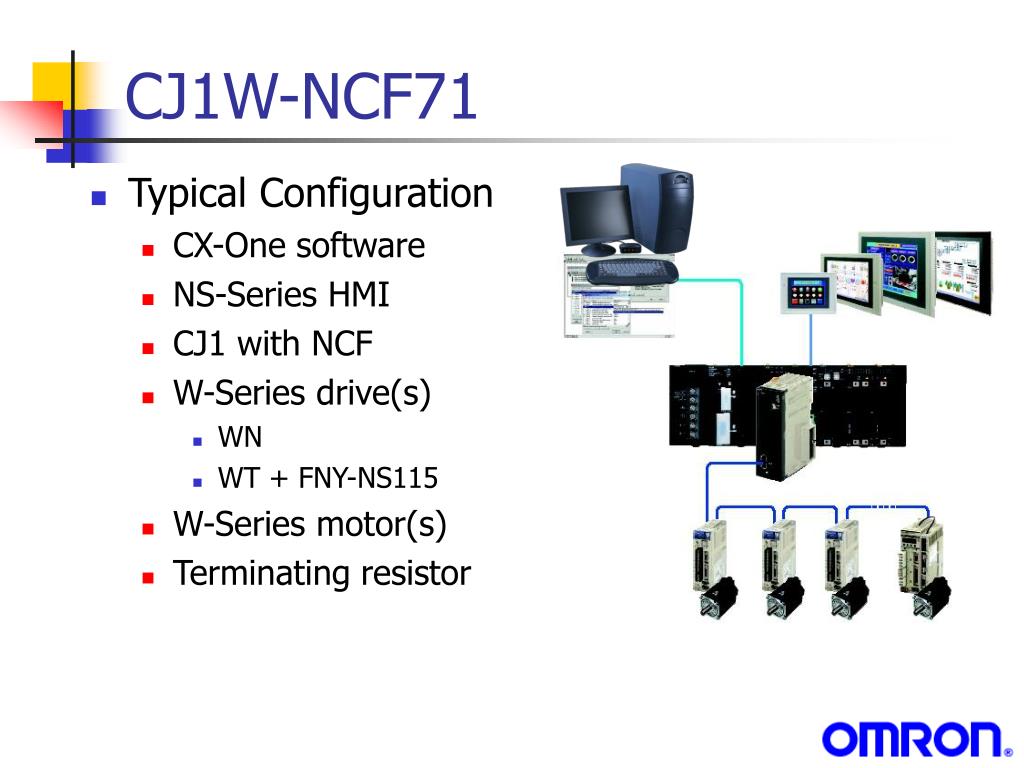

  • Typical Configuration

    • CX-One software

    • NS-Series HMI

    • CJ1 with NCF

    • W-Series drive(s)

      • WN

      • WT + FNY-NS115

    • W-Series motor(s)

    • Terminating resistor


Cj1w ncf7110

Before NCF

CJ1-NCxx3

WT-Series Drive

W-Series Motor

CX-Position

CX-Programmer

Drive Cable

Control Cable

Terminal Block

Power Cable

Encoder Cable

After NCF

CJ1W-NCF71

WN-Series Drive

W-Series Motor

CX-One

Mechatrolink-II Cable

Control Cable

Terminal Block

Power Cable

Encoder Cable

CJ1W-NCF71


Cj1w ncf7111
CJ1W-NCF71

*Assume pulse train command, 16 axes


Cj1w ncf7112
CJ1W-NCF71

  • How to sell it

    • Compatible with CJ1

    • Smart Platform

    • High-speed communication

      • Mechatrolink-II (10Mbps)

      • Up to 16 axes on a single communication line

    • Works with absolute encoder

      • No origin search required

        • Define origin only once

    • PLC Open Certification

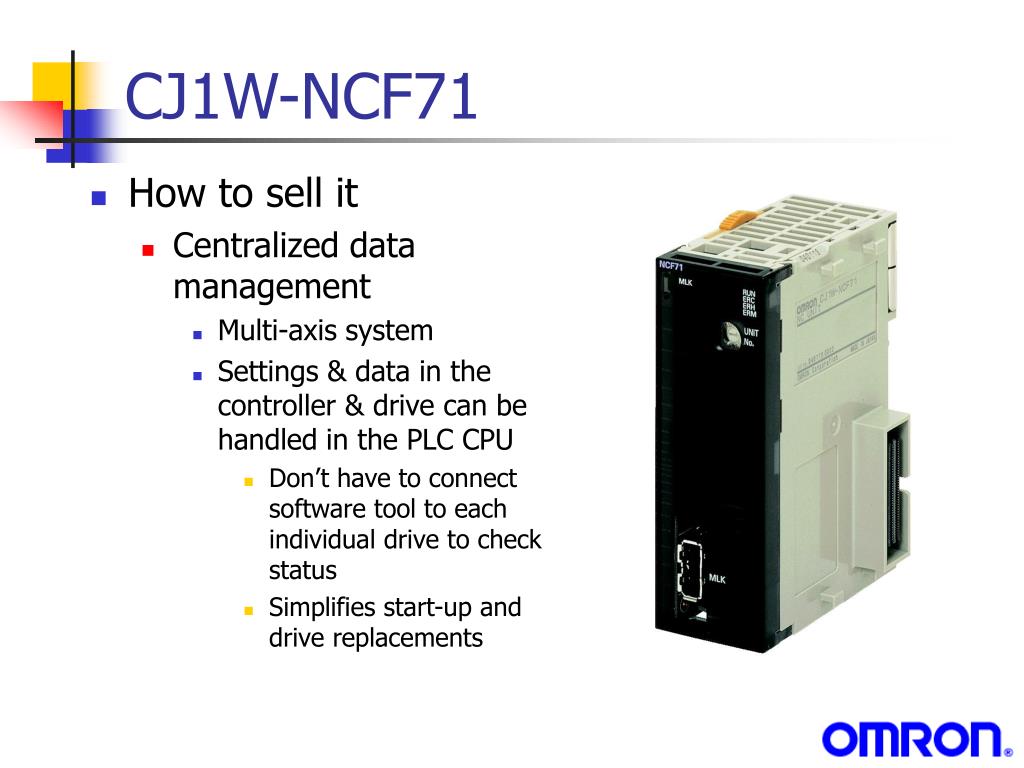

Cj1w ncf7113
CJ1W-NCF71

  • How to sell it

    • Centralized data management

      • Multi-axis system

      • Settings & data in the controller & drive can be handled in the PLC CPU

        • Don’t have to connect software tool to each individual drive to check status

        • Simplifies start-up and drive replacements


Cj1w ncf7114
CJ1W-NCF71

  • How to sell it

    • Functionality

      • Position / Speed / Torque

      • Absolute / Relative position

      • Linear interpolation

      • Improved speed/torque control compared to previous products

      • Toggle between position and torque control during operation


Cj1w ncf7115
CJ1W-NCF71

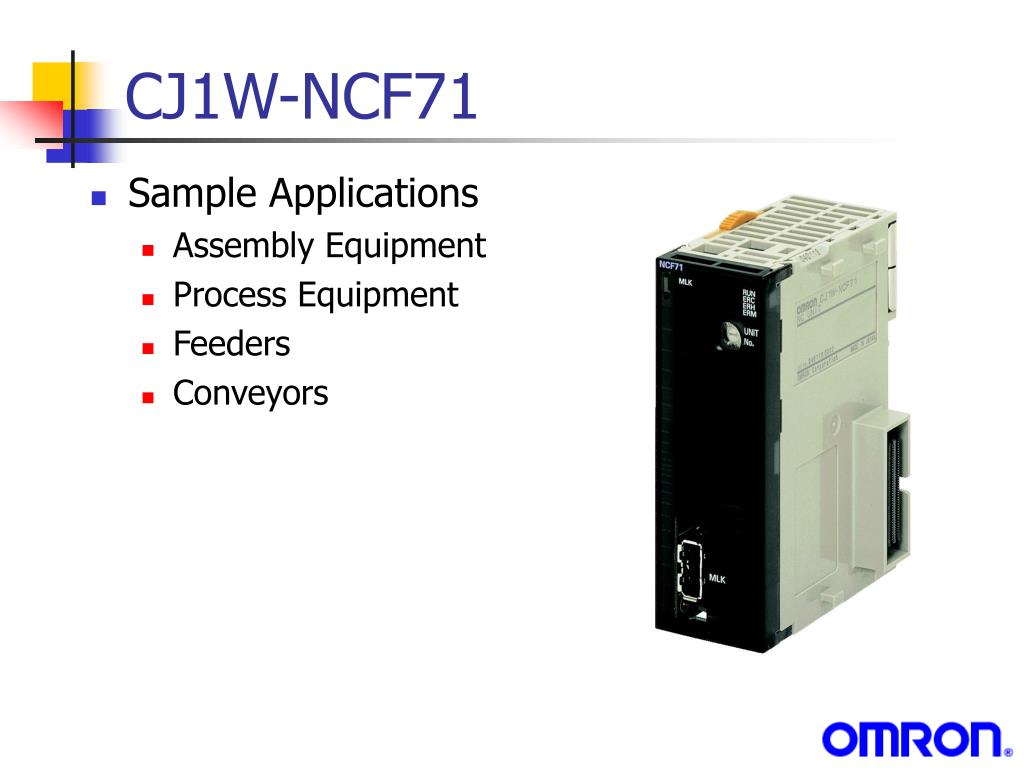

  • Sample Applications

    • Assembly Equipment

    • Process Equipment

    • Feeders

    • Conveyors


Cj1w ncf7116
CJ1W-NCF71

  • Assembly Equipment

    • Absolute and relative positioning of multiple

    • Target position and speed can be changed instantly

      • Even during a positioning operation

      • Simply send another command

    • Toggle between position & torque during run


Cj1w ncf7117
CJ1W-NCF71

  • Processing Equipment

    • Position, speed and torque can be controlled using a torque limit

    • Torque limit can be enabled, disabled or updated during operation


Cj1w ncf7118
CJ1W-NCF71

  • Feeders

    • Position, speed and torque can be controlled directly from the PLC

    • Position, speed and torque can be changed during operation

S-Curve


Cj1w ncf7119
CJ1W-NCF71

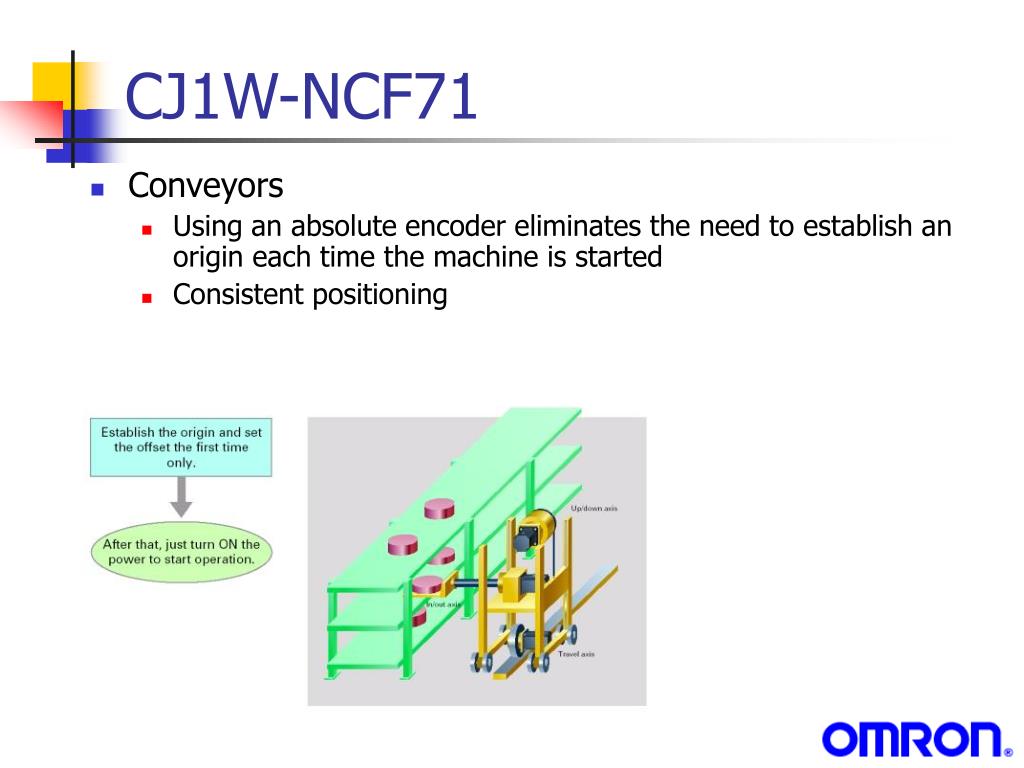

  • Conveyors

    • Using an absolute encoder eliminates the need to establish an origin each time the machine is started

    • Consistent positioning


Cj1w mch71 cs1w mch71

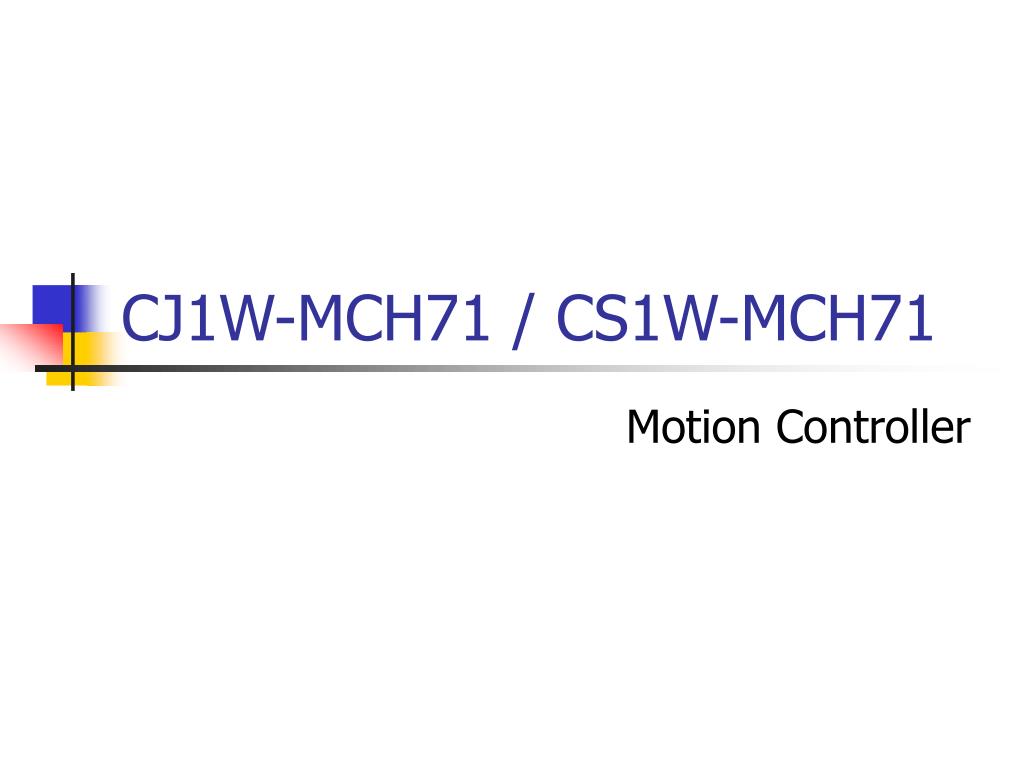

CJ1W-MCH71 / CS1W-MCH71

Motion Controller


Cj1w mch71 cs1w mch711
CJ1W-MCH71 / CS1W-MCH71

  • MCH is a multi-axis Motion Controller

    • 32 axes per controller

      • 30 physical or virtual

      • 2 virtual

    • 12 CJ1 controllers per CPU

      • 384 axes per CPU

    • 16 CS1 controllers per CPU

      • 512 axes per CPU

  • Used on a Mechatrolink-II high speed network

    • Single cable connection

      • Daisy chain drives

      • One shielded twisted-pair cable per drive

      • 30-50 m max length


Cj1w mch71 cs1w mch712
CJ1W-MCH71 / CS1W-MCH71

  • Control Types

    • Point-to-Point

      • Pathway varies

    • Continuous Path

      • Travel path is controlled

    • Interrupt Feed

    • Speed

    • Torque

    • Synchronized

      • Electronic line shaft

      • Electronic cam

      • Electronic gear ratio

      • Follow-up


Cj1w mch71 cs1w mch713
CJ1W-MCH71 / CS1W-MCH71

  • Control Types

    • Independent axes

    • Combined axes

      • Interpolation

        • Linear

        • Circular

        • Helical


Cj1w mch71 cs1w mch714
CJ1W-MCH71 / CS1W-MCH71

  • Uses simple Omron motion language for programming

  • PLC functionality on-board

  • Motion Controller, High-function


Cj1w mch71 cs1w mch715
CJ1W-MCH71 / CS1W-MCH71

  • Cycle times

    • Control cycle times

      • 2 to 12 ms

    • Unit cycle times

      • 1 to 8 ms

    • Communication cycle times

      • 1 to 4 ms

    • Counter latch startup times

      • 10 to 260 ms


Cj1w mch71 cs1w mch716
CJ1W-MCH71 / CS1W-MCH71

  • Simple expansion

    • One cable per drive

    • Add an axis

      • At start-up

      • In the future

    • Smart platform connectivity

    • Configure new axes from the PLC


Cj1w mch71 cs1w mch717
CJ1W-MCH71 / CS1W-MCH71

  • Multi-tasking

    • Run up to 8 programs simultaneously

    • Each program has 8 branches

    • All branches in all programs are executed every system cycle

    • Coordinate up to 16 axes


Cj1w mch71 cs1w mch718
CJ1W-MCH71 / CS1W-MCH71

  • PC support software can read and set

    • Motion programs

      • Controller constants

      • Controller variables

    • Drive parameters

    • System parameters

    • System data

  • Monitor equipment status and operating conditions


  • Cj1w mch71 cs1w mch719
    CJ1W-MCH71 / CS1W-MCH71

    • Servo drives

      • WT-Series

        • FNY-NS115 ML2 interface required

        • Software version 39 or later

      • WN-Series

        • All versions connect directly to MCH


    Cj1w mch71 cs1w mch7110
    CJ1W-MCH71 / CS1W-MCH71

    *Use MCH with WN-Series drives or with WT-Series drives + FNY-NS115 Mechatrolink-II module


    Cj1w mch71 cs1w mch7111

    Before MCH

    CS1W-MCx21

    WT-Series Drive

    W-Series Motor

    CX-Motion

    CX-Programmer

    Drive Cable

    Control Cable

    Terminal block

    After MCH

    CS1W-MCH71

    WN-Series Drive

    W-Series Motor

    CX-One

    FNY-W6003-xx Cable

    Control Cable

    Terminal Block

    CJ1W-MCH71 / CS1W-MCH71


    Cj1w mch71 cs1w mch7112
    CJ1W-MCH71 / CS1W-MCH71

    *Assume CS1 PLC, analog command, 16 axes


    Cj1w mch71 cs1w mch7113
    CJ1W-MCH71 / CS1W-MCH71

    • How to sell it

      • Save panel space

        • 30 axes in one controller

      • Set up quickly

        • Reduced commissioning and wiring costs & time

      • Cost effective solution for multi-axis apps

        • Connect more than one MCH to a single CPU

      • Adding axes after installation is simplified


    Cj1w mch71 cs1w mch7114
    CJ1W-MCH71 / CS1W-MCH71

    • How to sell it

      • Versatility

        • Control Modes

          • Speed

          • Torque

          • Position

          • Synchronized

        • Move profiles

          • Point to Point

          • Continuous Path

          • Interpolation

          • Electronic Gear

          • Electronic Cam

          • Interrupt Feeding


    Cj1w mch71 cs1w mch7115
    CJ1W-MCH71 / CS1W-MCH71

    • Sample Applications

      • Bottling

      • Horizontal filling

      • Labeling

      • Packaging

      • Rotary cutting

      • Flying shear

      • Winding

      • Palletizing

      • Wafer handling

      • Printing

      • X-Y table


    Cj1w mch71 cs1w mch7116
    CJ1W-MCH71 / CS1W-MCH71

    • Bottling, Filling, Labeling, Packaging

      • Coordinates multiple driven points and activity areas

      • Change between position, speed, torque modes during operation


    Cj1w mch71 cs1w mch7117
    CJ1W-MCH71 / CS1W-MCH71

    • Rotary cutting

      • Replaces mechanical systems

      • Coordinates line speed, print registration and cut


    Cj1w mch71 cs1w mch7118
    CJ1W-MCH71 / CS1W-MCH71

    • Flying shear

      • Accurate registration & error correction

      • All machine axes can be commanded by one controller

      • Coordination between driven areas


    Cj1w mch71 cs1w mch7119
    CJ1W-MCH71 / CS1W-MCH71

    • Rotary Print

      • Accurate print registration

      • Cam profiles available

      • Synchronization between printed piece and ink cylinders

      • Coordination between ink cylinders


    Omron motion solutions

    FQM1

    Standalone Motion Controller


    Omron motion solutions
    FQM1

    • FQM1 is a standalone motion controller that can command up to 8 axes

      • 2 axes per motion module

    • Uses ladder programming

    • Proven architecture

      • Based on CS-series PLC

    • Flexible, Quick Motion


    Omron motion solutions
    FQM1

    • Flexible

      • Modular design

        • Add up to

          • 4 pulse modules

          • 3 analog modules

        • Combine pulse and analog modules with one coordinator module

      • Change motion parameters during operation

        • Toggle between speed, position & torque control during operation

      • Works with absolute or incremental encoders


    Omron motion solutions
    FQM1

    • Modular Design

      • Power supply

      • Coordinator module

      • Motion control modules

        • Up to 4 pulse, 3 analog

      • End module


    Omron motion solutions
    FQM1

    • Quick

      • Fast processing of built-in pulse and analog I/O

        • 0.5 to 2 ms cycle from input to control output

      • Parallel distributed processing for 2 to 8 axes

      • Synchronization of cycles between axes

        • Sync bus

      • Faster than MCH, NCF


    Omron motion solutions
    FQM1

    • Motion

      • High-speed Control

        • Position

          • Linear interpolation

          • Circular interpolation

        • Speed

        • Torque

        • Synchronous control

          • Electronic cam

          • Follow-up


    Omron motion solutions
    FQM1

    • Each module controls its own I/O directly

      • Coordinator distributes control to each module

        • Independent I/O processing

        • Coordinator shares processing load to speed up cycle times

        • Motion modules have top priority to speed up application response times


    Omron motion solutions
    FQM1

    • Servo drives

      • W-Series

      • SmartStep



    Omron motion solutions
    FQM1

    • Can be a door opener

      • Standalone Controller

        • Can work with other manufacturers’ products

          • Can solve motion problems without changing hardware

          • We prove our capabilities in a non-threatening way

      • High performance

        • Fast

        • High-speed data collection synchronized with input pulses


    Omron motion solutions
    FQM1

    • Sample applications

      • Wire winding

        • Spindle (bobbin)

        • Traverse

      • Labeling

        • Feed

        • Cut position

        • Printing

      • Laminating

        • Feed

        • Alignment sync

      • Parallel conveyor

        • Synchronize two lines


    Motion software

    Motion Software

    Configuration


    Motion software1
    Motion Software

    • CX-One

      • Allows users to configure all Omron equipment in a motion system

      • Combines our PLC-based motion software into one unified package

        • CX-Motion (v2.2)

        • CX-Motion-NCF (v1.2)

        • CX-Position (v2.1)

        • CX-Programmer (v6.00)


    Motion software2
    Motion Software

    • CX-One

      • Used with

        • CJ1W-NCF71

        • CJ1-NC

        • CS1-NC

        • CJ1-MC

        • CS1-MC

        • C200H-MC

        • CV-MC

        • FQM1


    Motion software3
    Motion Software

    • MC-Miel

      • Free software

      • Used with

        • CJ1W-MCH71

        • CS1W-MCH71

    • WMON

      • Free software

      • Used with

        • W-Series

        • SmartStep


    Smart platform libraries

    Smart Platform Libraries

    Smart Platform


    Smart platform libraries1
    Smart Platform Libraries

    • Standard Libraries

      • Software applications that users can load into their equipment and run without modification

      • Simplify software development for devices that interface with PLC’s and HMI’s

      • Two types of standard libraries

        • Function Blocks

        • Smart Active Parts

      • Works with

        • CJ-Series processor v3.0 or later

        • NS-Series v6 or later


    Smart platform libraries2
    Smart Platform Libraries

    • Function Blocks

      • Contains functional PLC components

        • Components can be used to quickly create finished programs that interface directly with other Omron devices

        • Components are standardized, which improves the quality of finished programs

      • Uses ladder logic

        • Paste function blocks directly into ladder programming to reduce development time

      • Multiple function blocks create a library that enhances programming

      • Create unique solutions


    Smart platform libraries3
    Smart Platform Libraries

    • Function Blocks


    Smart platform libraries4

    Application Pack

    Basic position block

    Basic position block

    FQM1

    Virtual axis block

    Virtual axis block

    Velocity control block (Vref)

    Velocity control block (Vref)

    PG

    PG

    Position control block (Xref)

    Position control block (Xref)

    Pulse

    Counter block

    Counter block

    Counter block

    (PosFB)

    (PosFB)

    (PosFB)

    Pulse control block

    Pulse control block

    Position control

    Smart Platform Libraries

    • Function Blocks

    Function Blocks

    Function Blocks can be combined into Application Packs

    Applications:

    • Rotary cut

    • Flying cut

    • Torque control

    • Tension control

    • Etc.


    Smart platform libraries5
    Smart Platform Libraries

    • Smart Active Parts

      • Pre-configured HMI screen objects

      • Quickly create completed screens that automatically interface with Omron devices

        • Insert SAP’s directly

          • Simplify design efforts

          • Eliminate unnecessary user programming

        • Over 1000 available now

          • Includes operating screens for motion & position controllers

      • Improves overall screen quality


    Smart platform libraries6
    Smart Platform Libraries

    • Smart Active Parts


    Any questions

    Any Questions?

    Thanks for your time!
