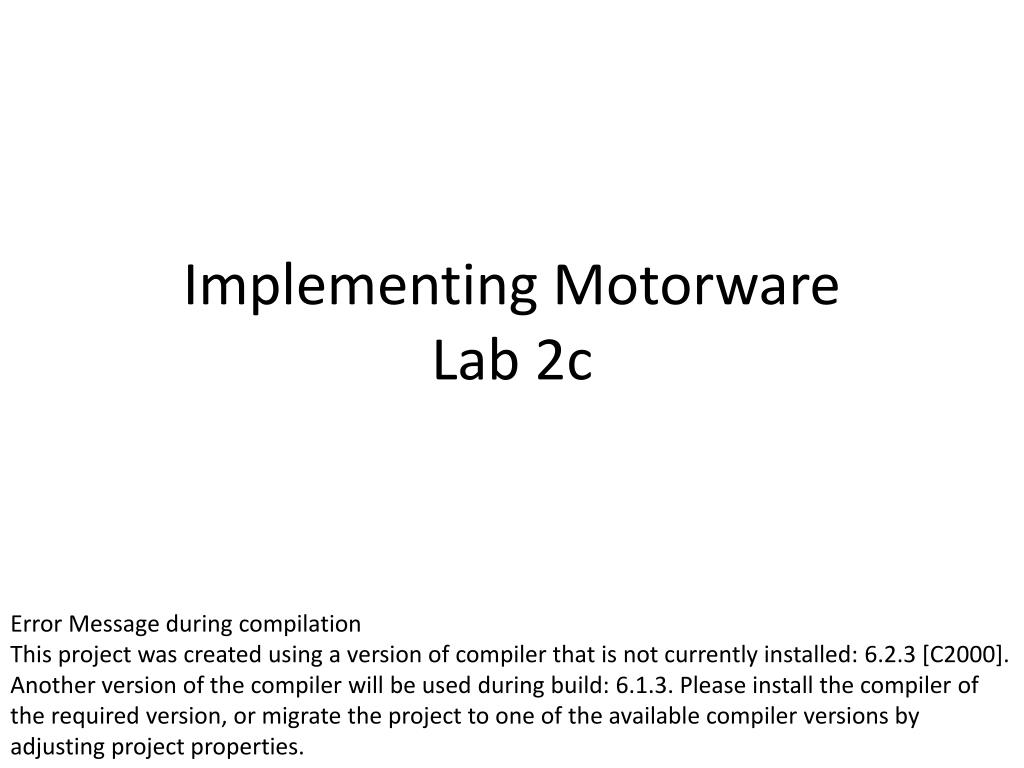

  1. Implementing MotorwareLab 2c Error Message during compilation This project was created using a version of compiler that is not currently installed: 6.2.3 [C2000]. Another version of the compiler will be used during build: 6.1.3. Please install the compiler of the required version, or migrate the project to one of the available compiler versions by adjusting project properties.

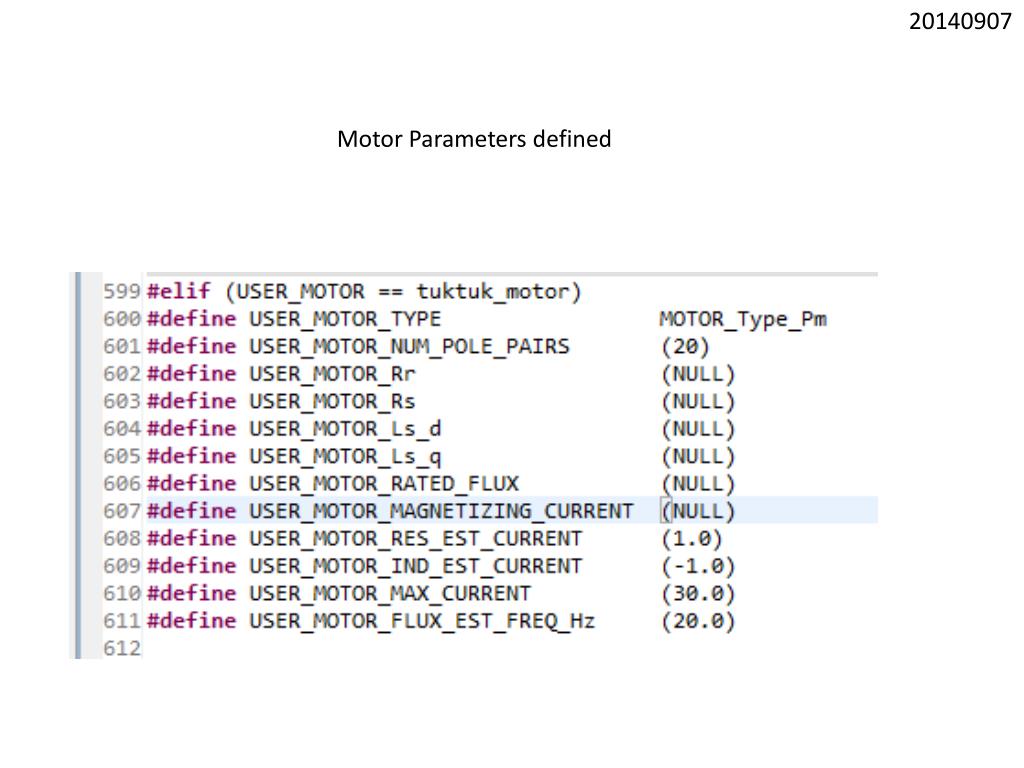

  2. 20140907 Motor Parameters defined

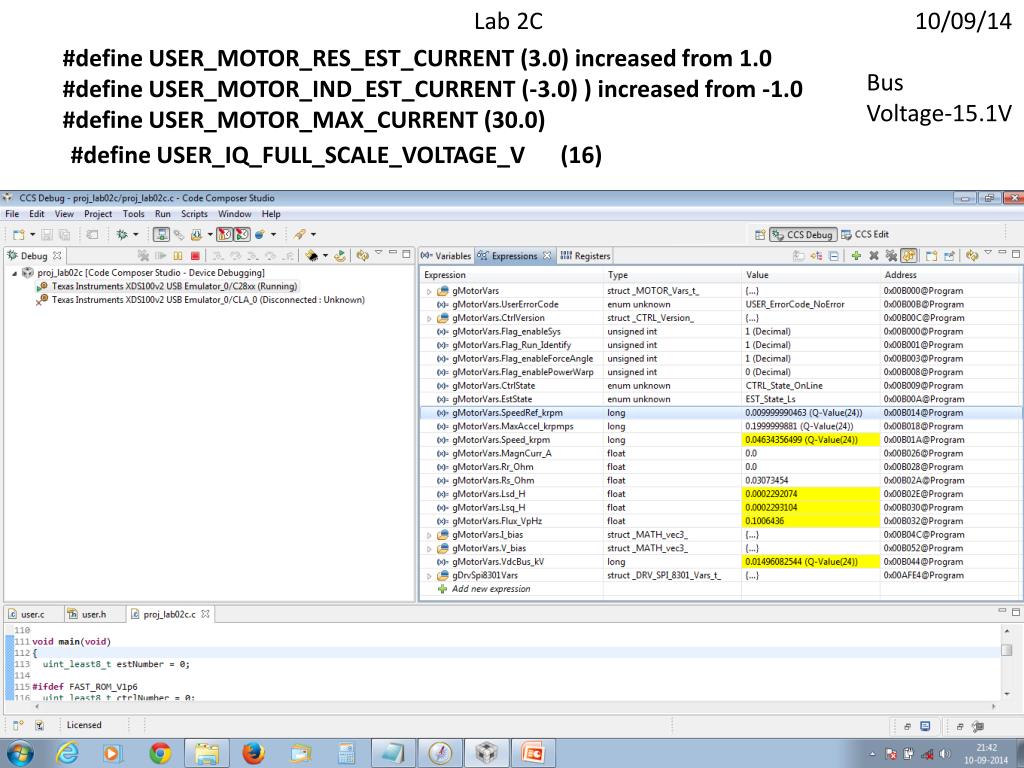

  3. Lab 2C 10/09/14 #define USER_MOTOR_RES_EST_CURRENT (3.0) increased from 1.0 #define USER_MOTOR_IND_EST_CURRENT (-3.0) ) increased from -1.0 #define USER_MOTOR_MAX_CURRENT (30.0) Bus Voltage-15.1V #define USER_IQ_FULL_SCALE_VOLTAGE_V (16)

  4. Bus Voltage-15.1V State RoverL

  5. Bus Voltage-15.1V State _ Rs

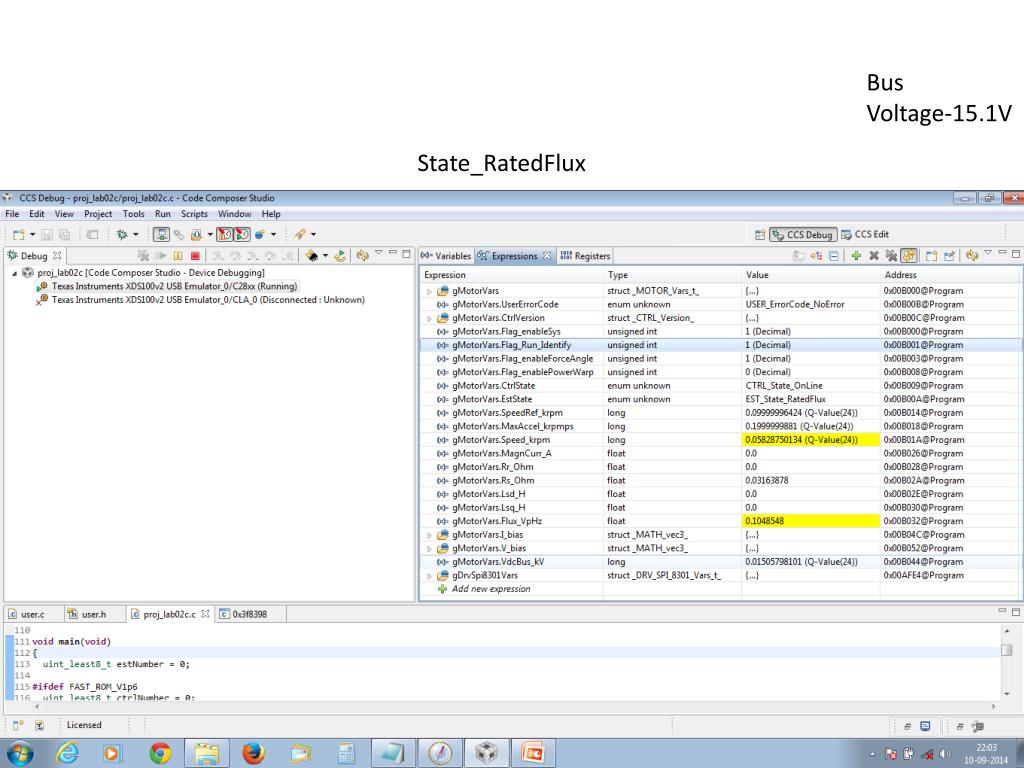

  6. Bus Voltage-15.1V State_RatedFlux

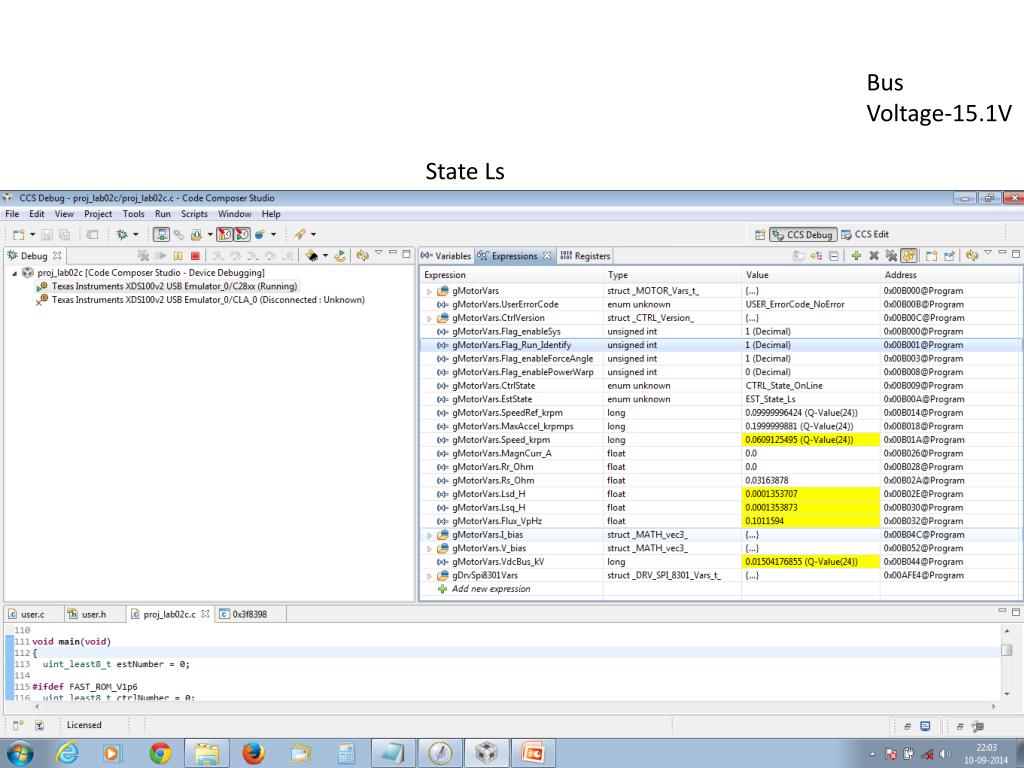

  7. Bus Voltage-15.1V State Ls

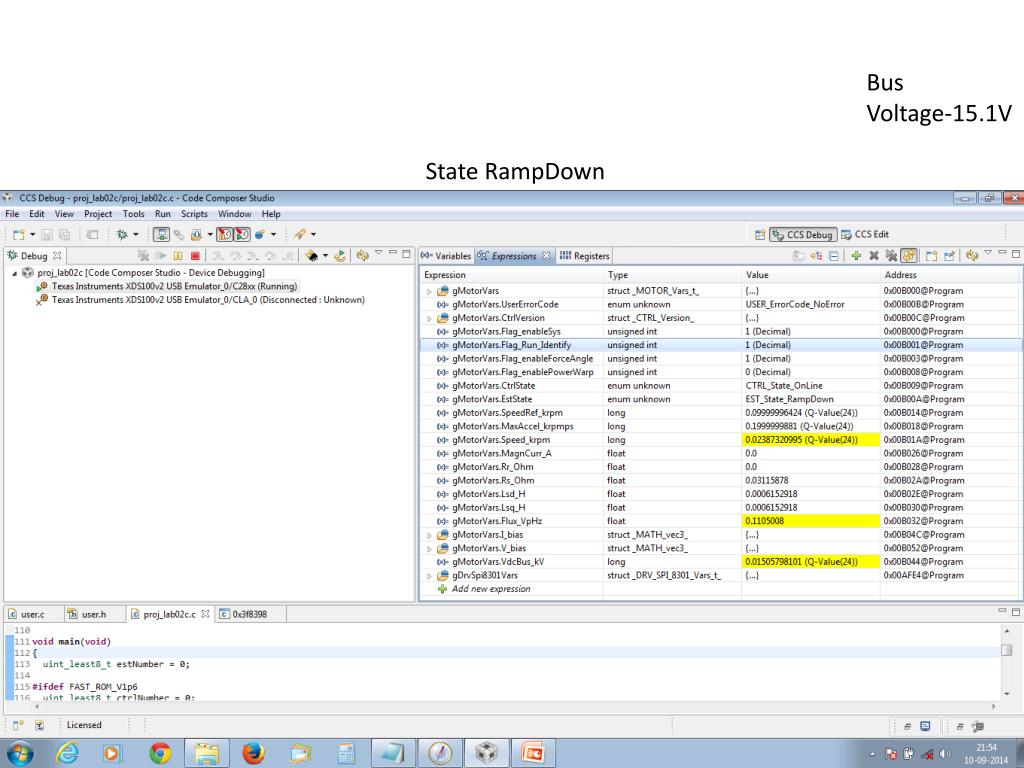

  8. Bus Voltage-15.1V State RampDown

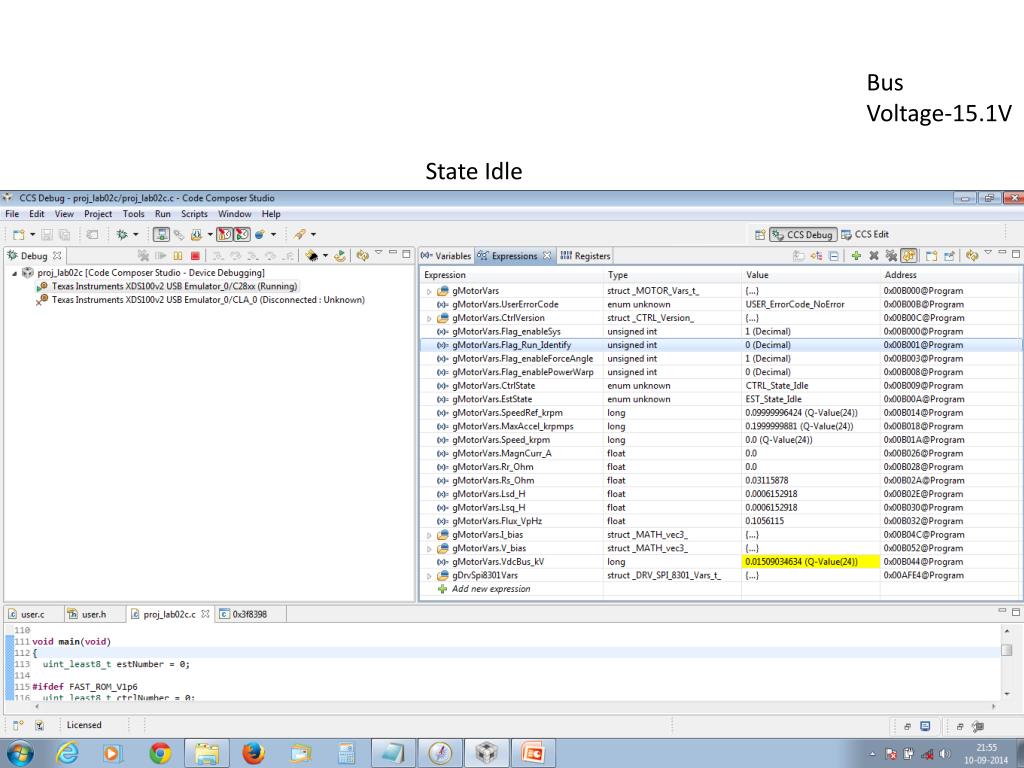

  9. Bus Voltage-15.1V State Idle

  10. Bus Voltage-15.1V

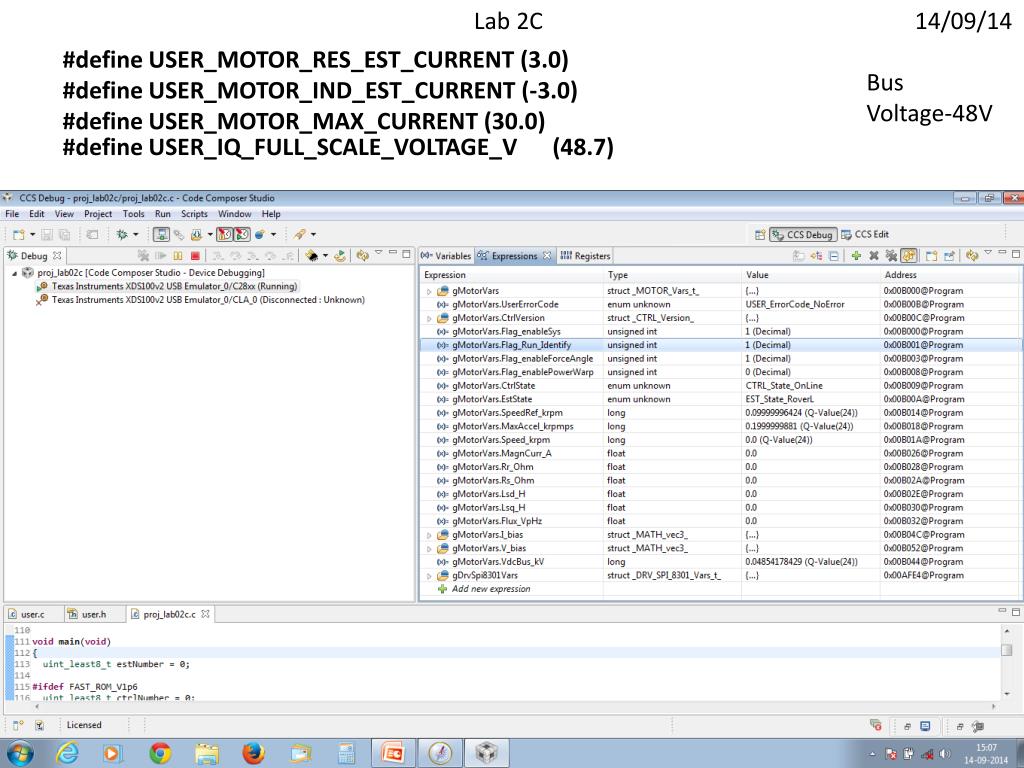

  11. Lab 2C 14/09/14 #define USER_MOTOR_RES_EST_CURRENT (3.0) #define USER_MOTOR_IND_EST_CURRENT (-3.0) #define USER_MOTOR_MAX_CURRENT (30.0) Bus Voltage-48V #define USER_IQ_FULL_SCALE_VOLTAGE_V (48.7)

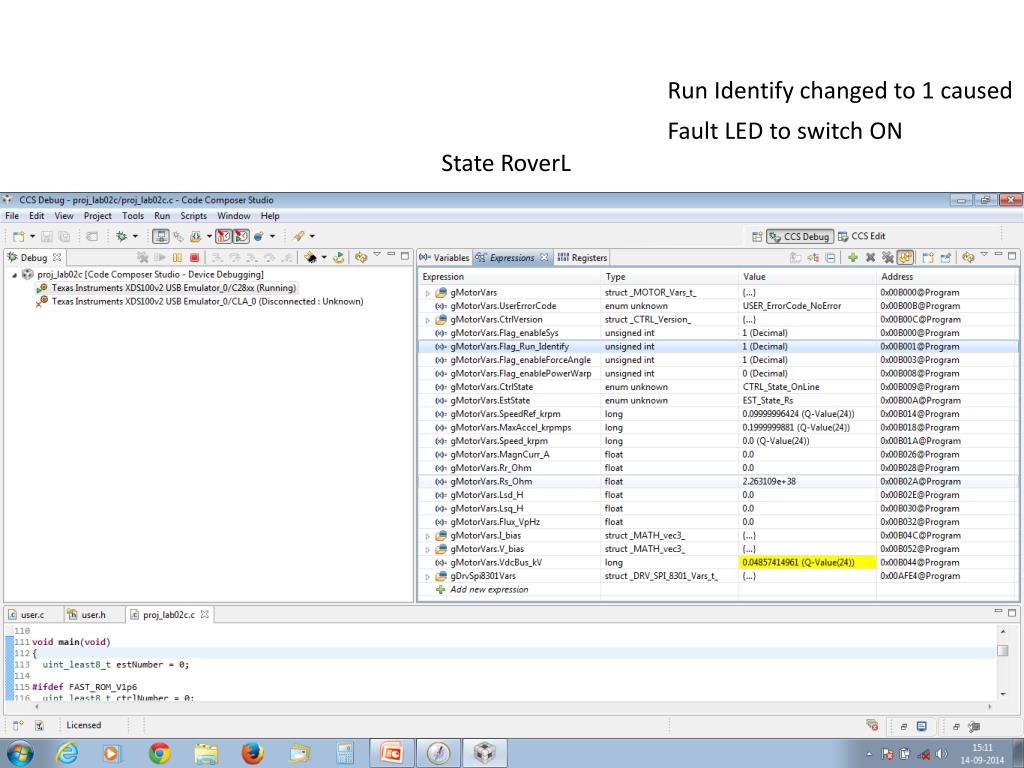

  12. Run Identify changed to 1 caused Fault LED to switch ON State RoverL

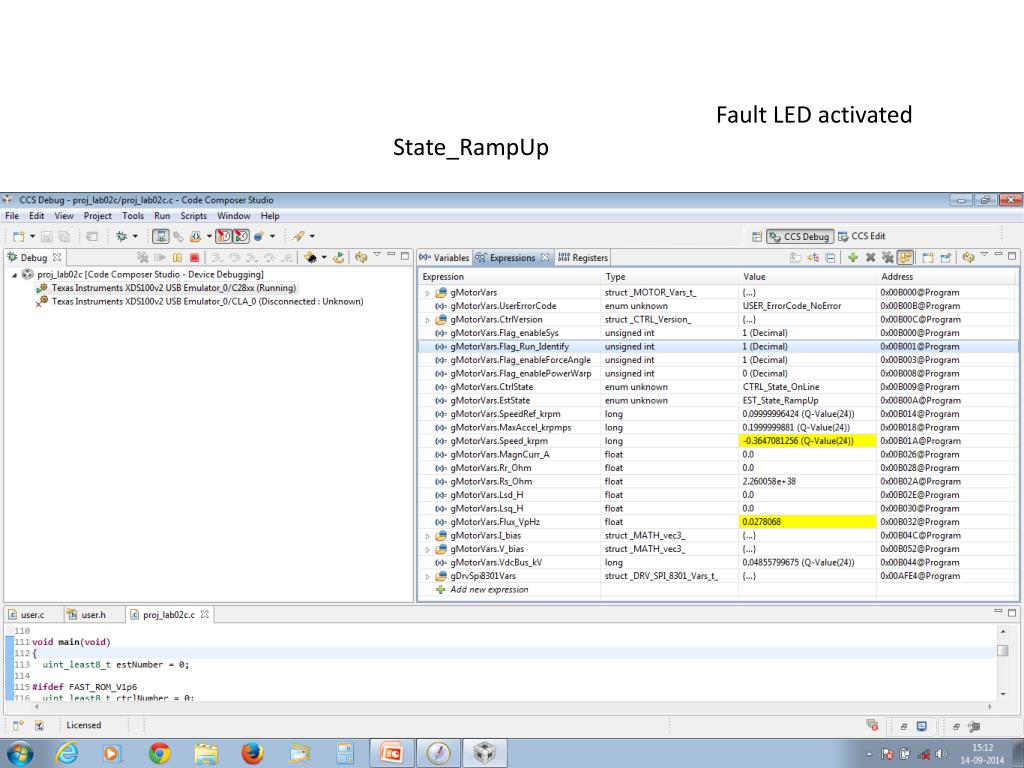

  13. Fault LED activated State_RampUp

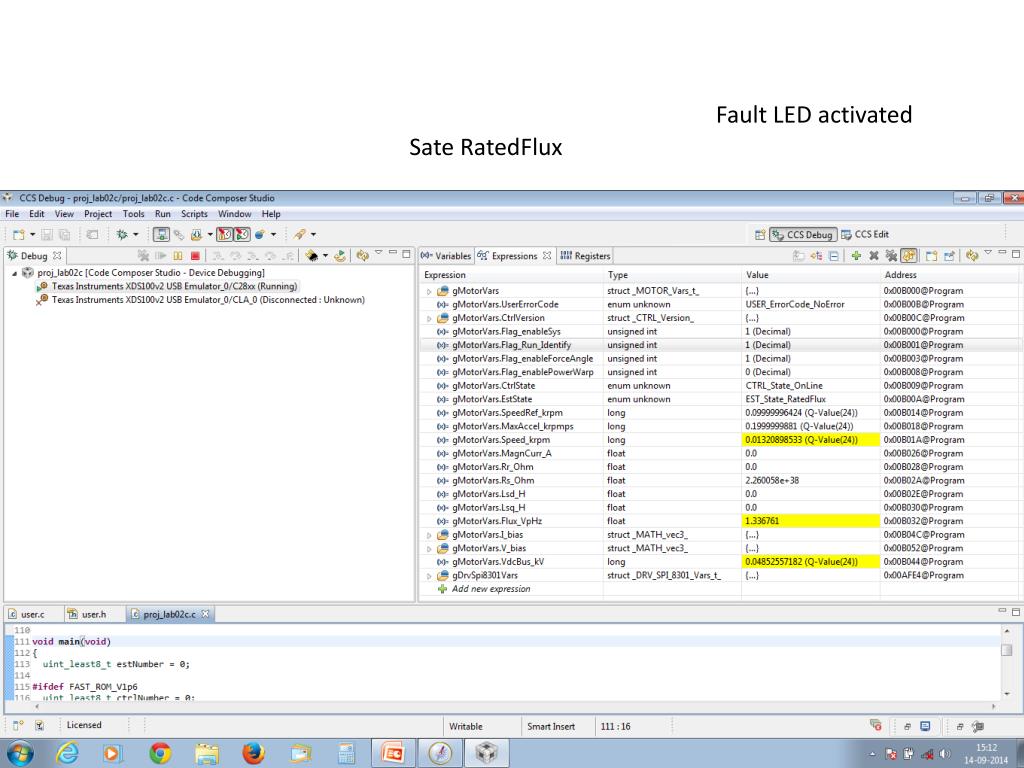

  14. Fault LED activated Sate RatedFlux

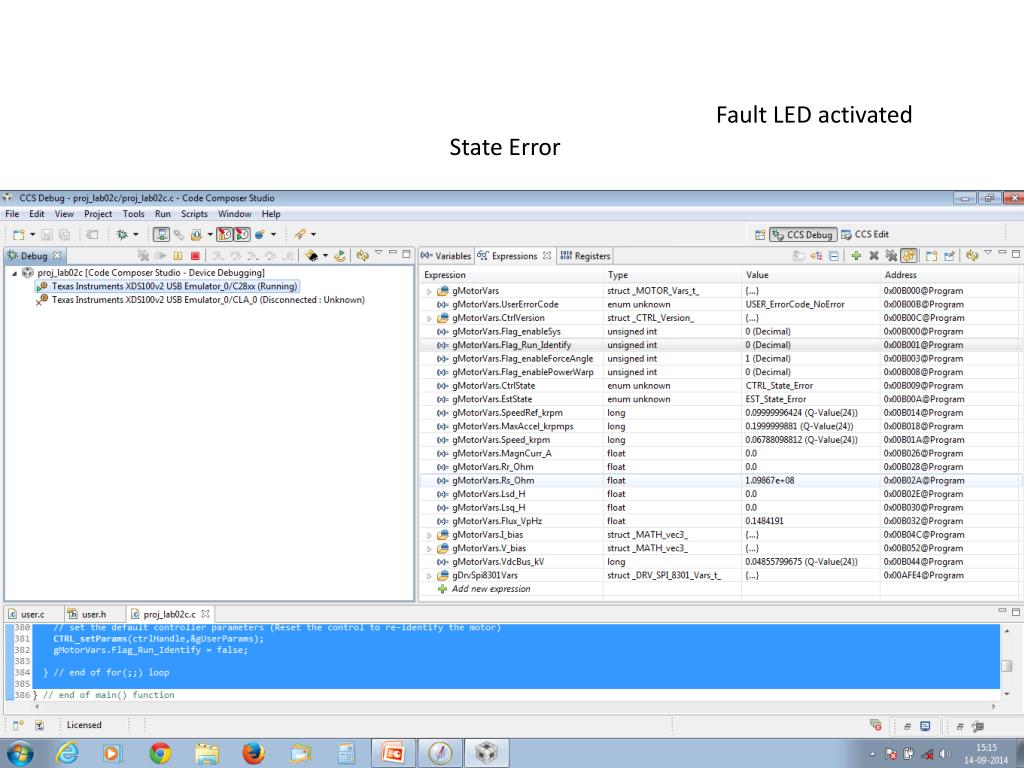

  15. Fault LED activated State Error

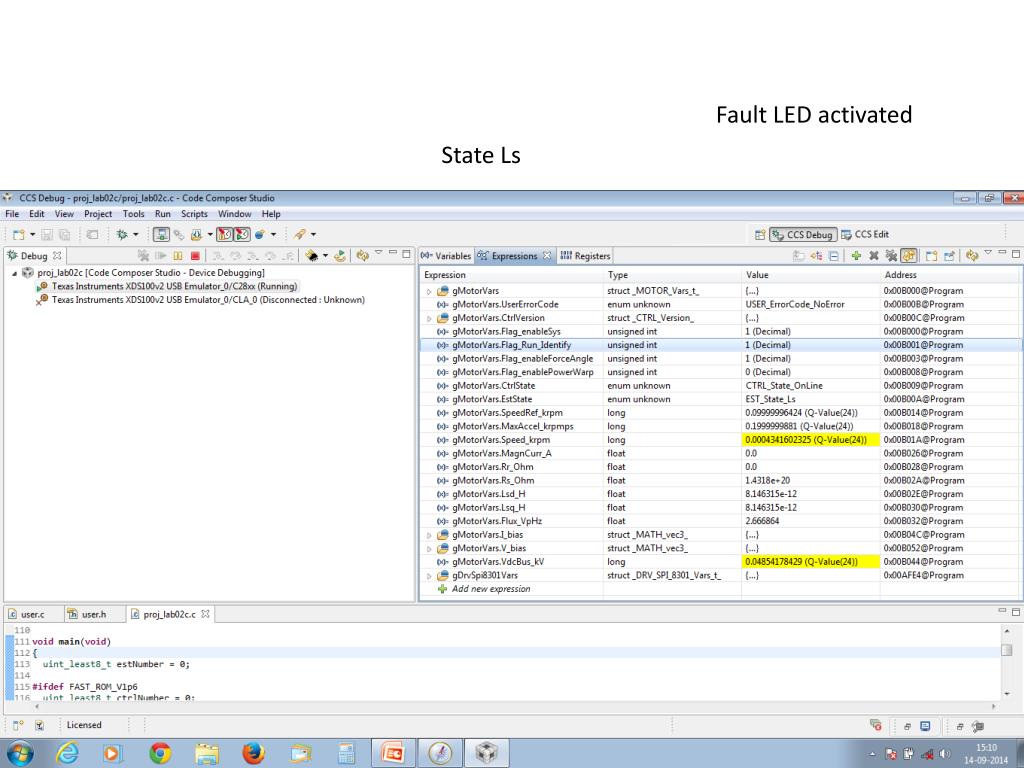

  16. Fault LED activated State Ls

  17. Lab 01 run

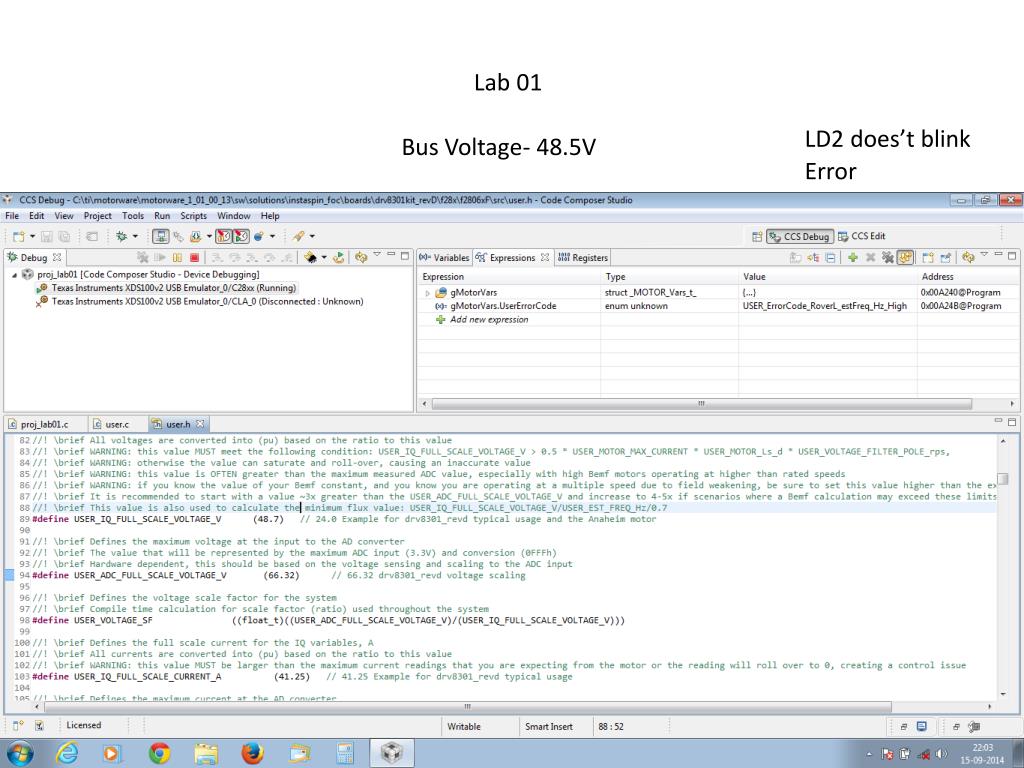

  18. Lab 01 LD2 does’t blink Bus Voltage- 48.5V Error

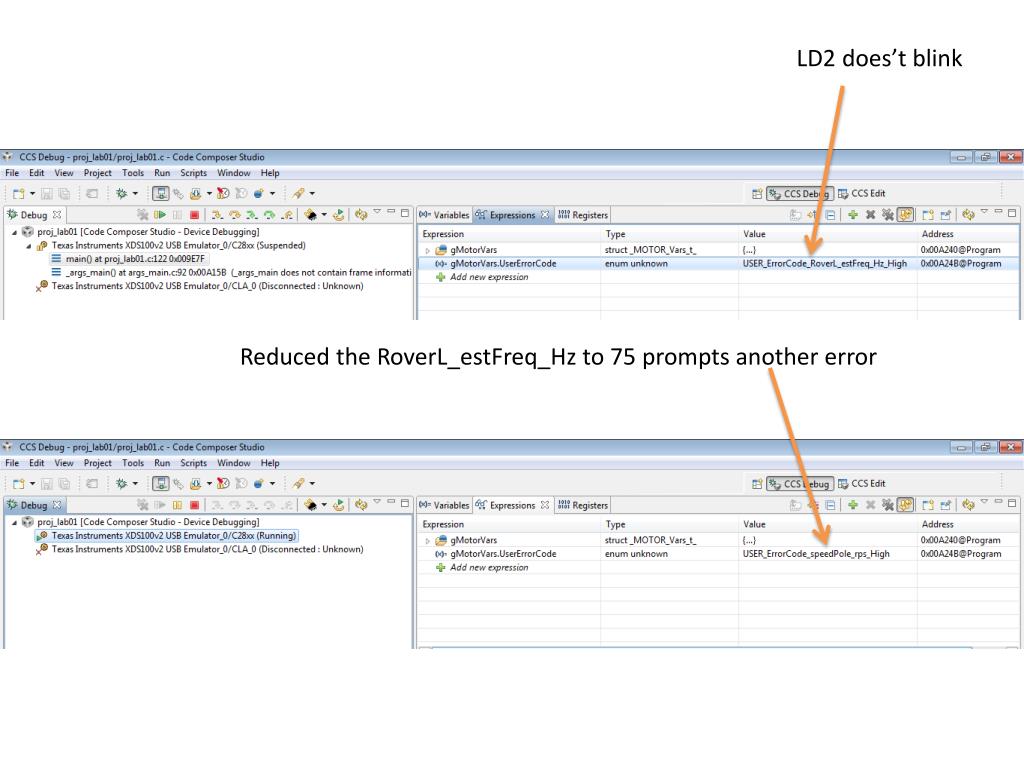

  19. LD2 does’t blink Reduced the RoverL_estFreq_Hz to 75 prompts another error
