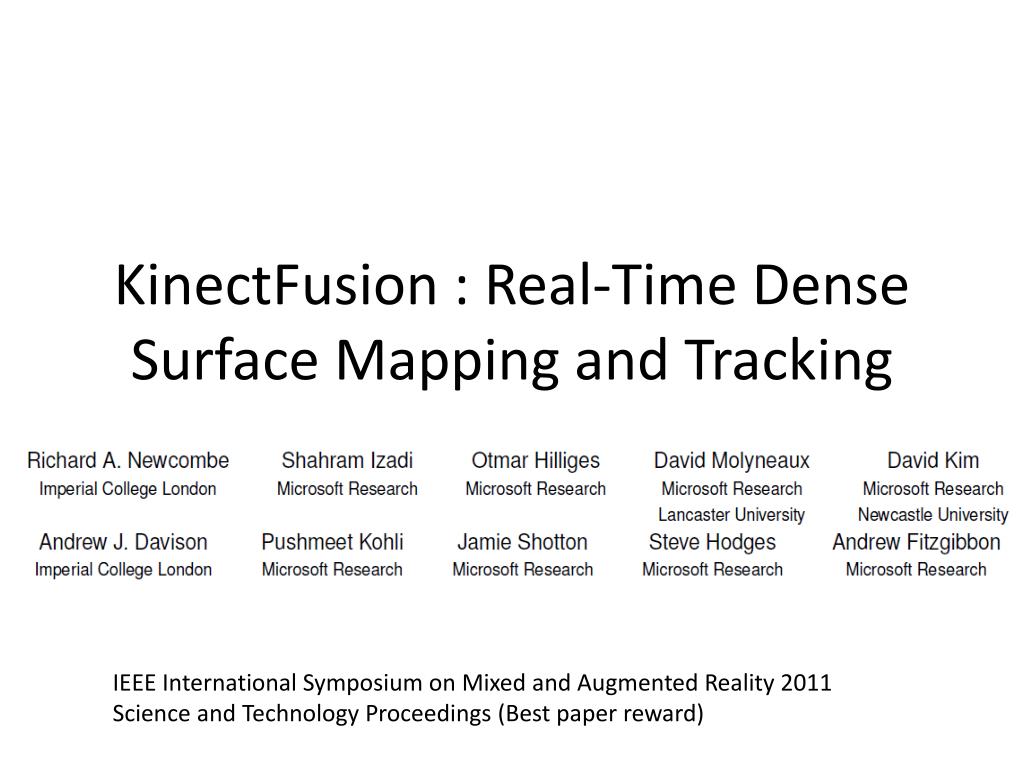

  1. KinectFusion : Real-Time Dense Surface Mapping and Tracking IEEE International Symposium on Mixed and Augmented Reality 2011 Science and Technology Proceedings(Best paper reward)

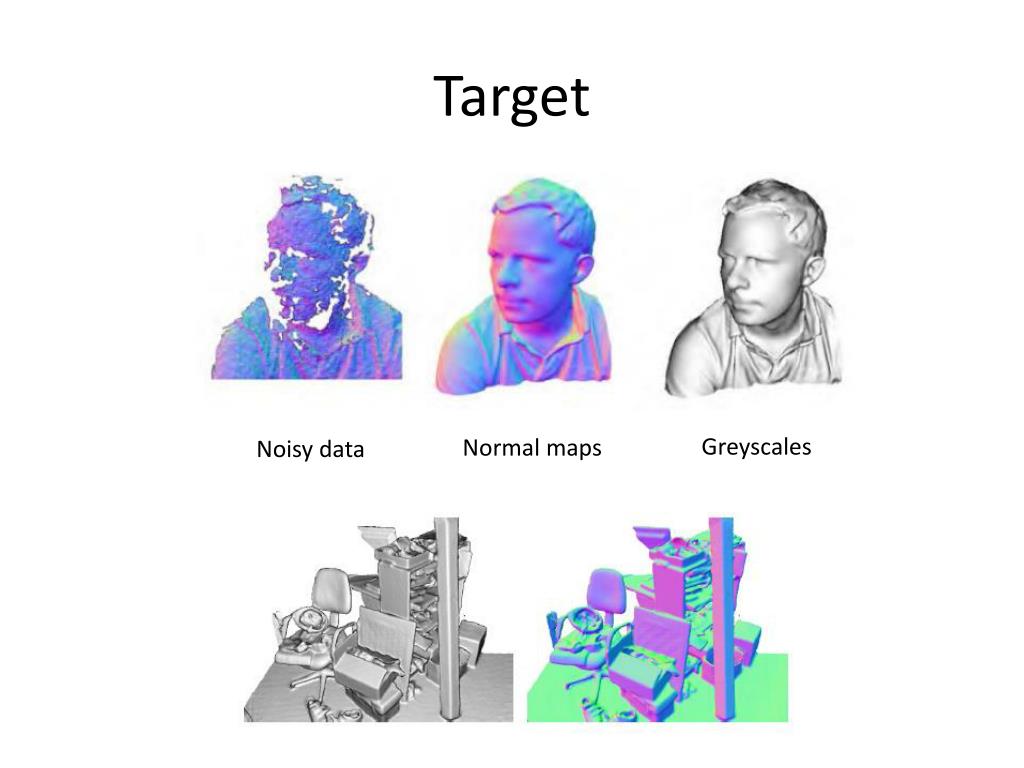

  2. Target Greyscales Normal maps Noisy data

  3. Outline • Introduction • Motivation • Background • System diagram • Experiment results • Conclusion

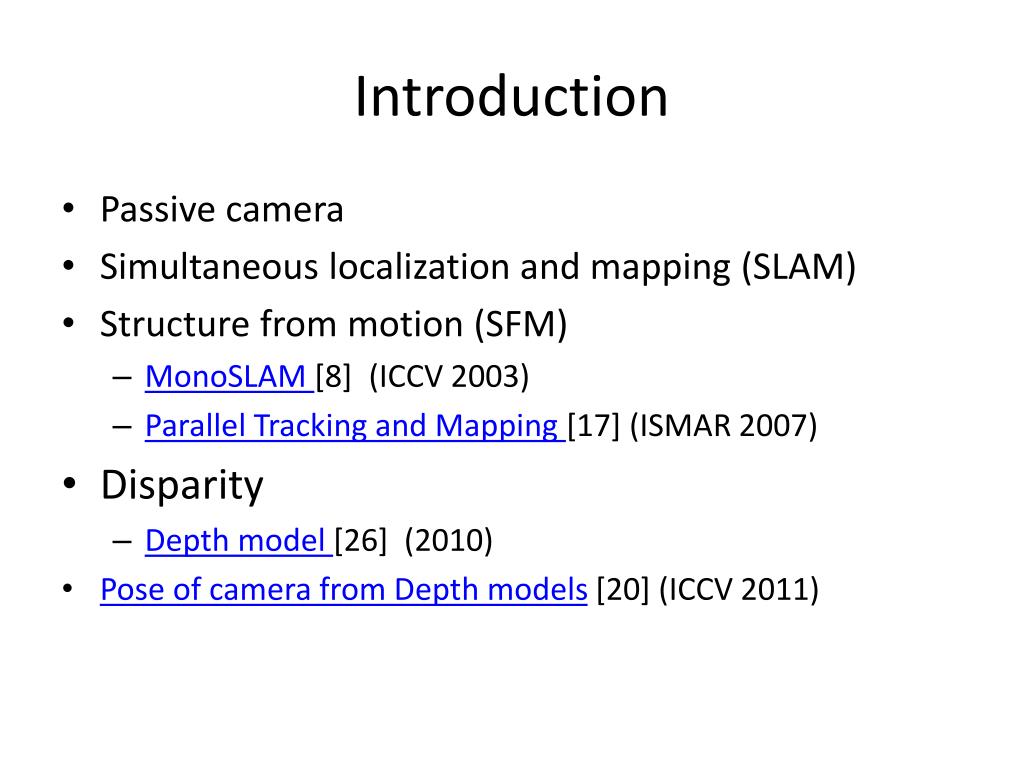

  4. Introduction • Passive camera • Simultaneous localization and mapping (SLAM) • Structure from motion (SFM) • MonoSLAM [8] (ICCV 2003) • Parallel Tracking and Mapping [17] (ISMAR 2007) • Disparity • Depth model [26] (2010) • Pose of camera from Depth models [20] (ICCV 2011)

  5. Motivation • Active camera : Kinect sensor • Pose estimation from depth information • Real-time mapping • GPU

  6. Background- Camera sensor • Kinect Sensor • Infra-red light • Input Information • RGB image(1) • Raw depth data • Calibrated depth image(2) (1) (2)

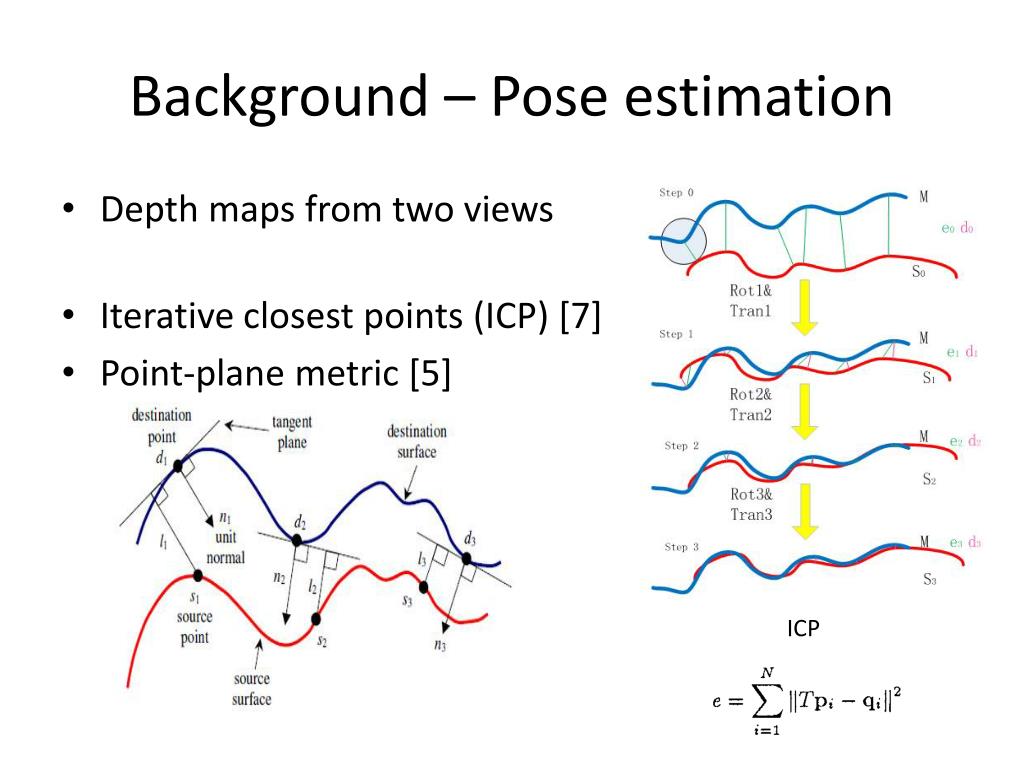

  7. Background – Pose estimation • Depth maps from two views • Iterative closest points (ICP) [7] • Point-plane metric [5] ICP

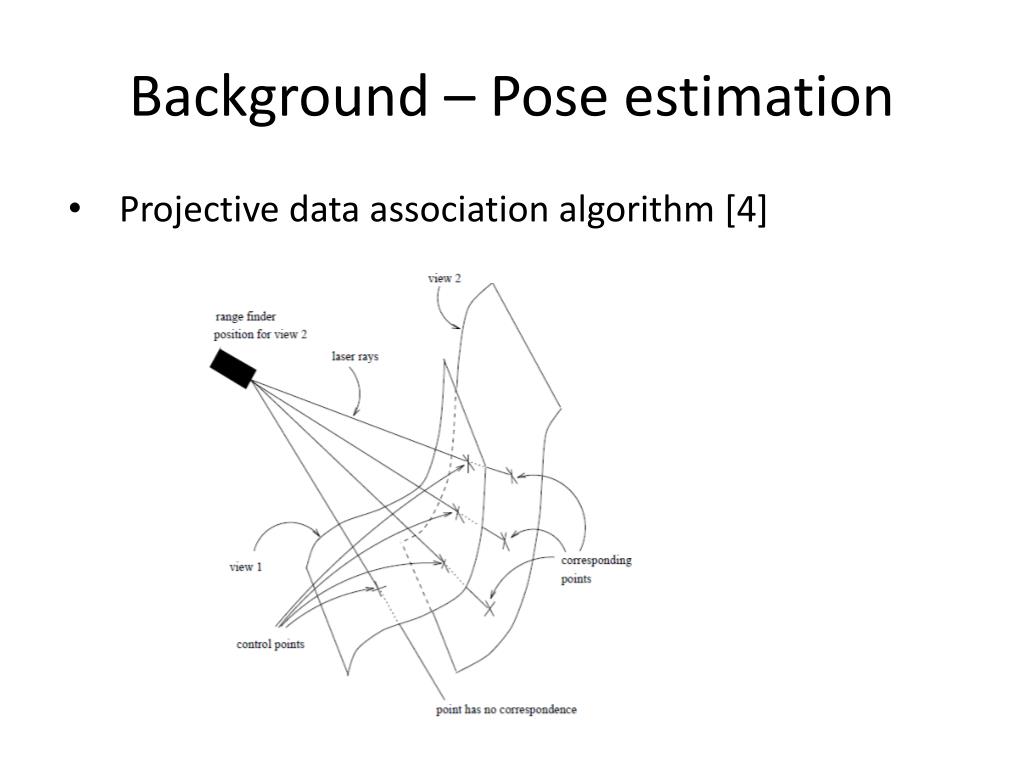

  8. Background – Pose estimation • Projective data association algorithm [4]

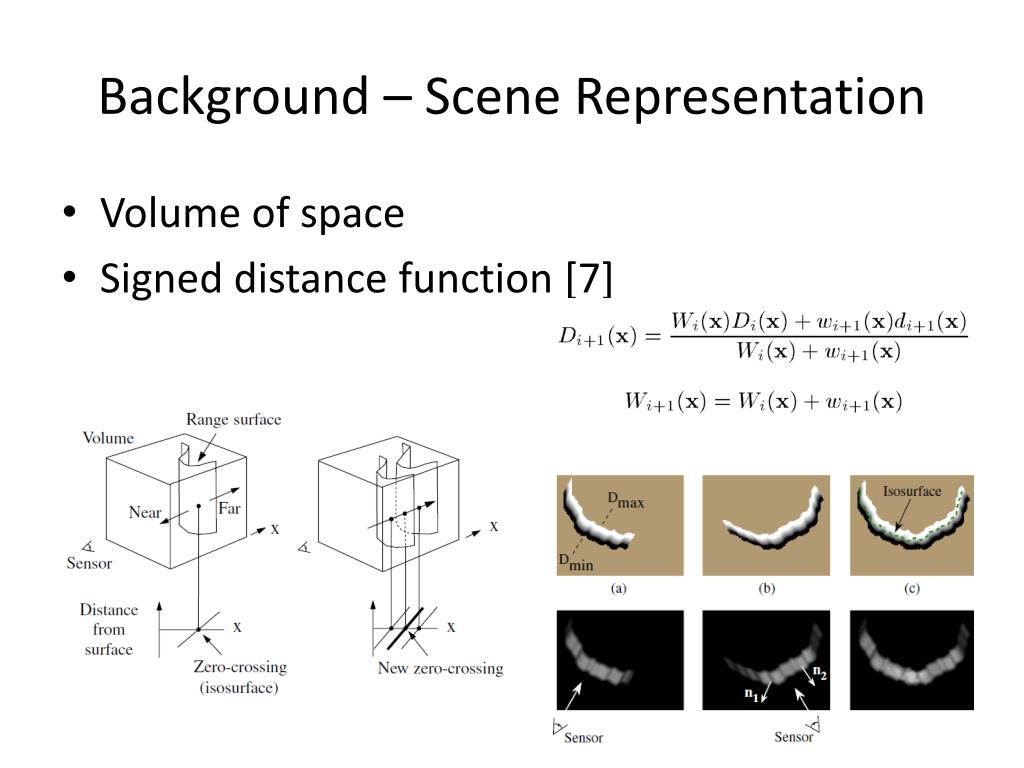

  9. Background – Scene Representation • Volume of space • Signed distance function [7]

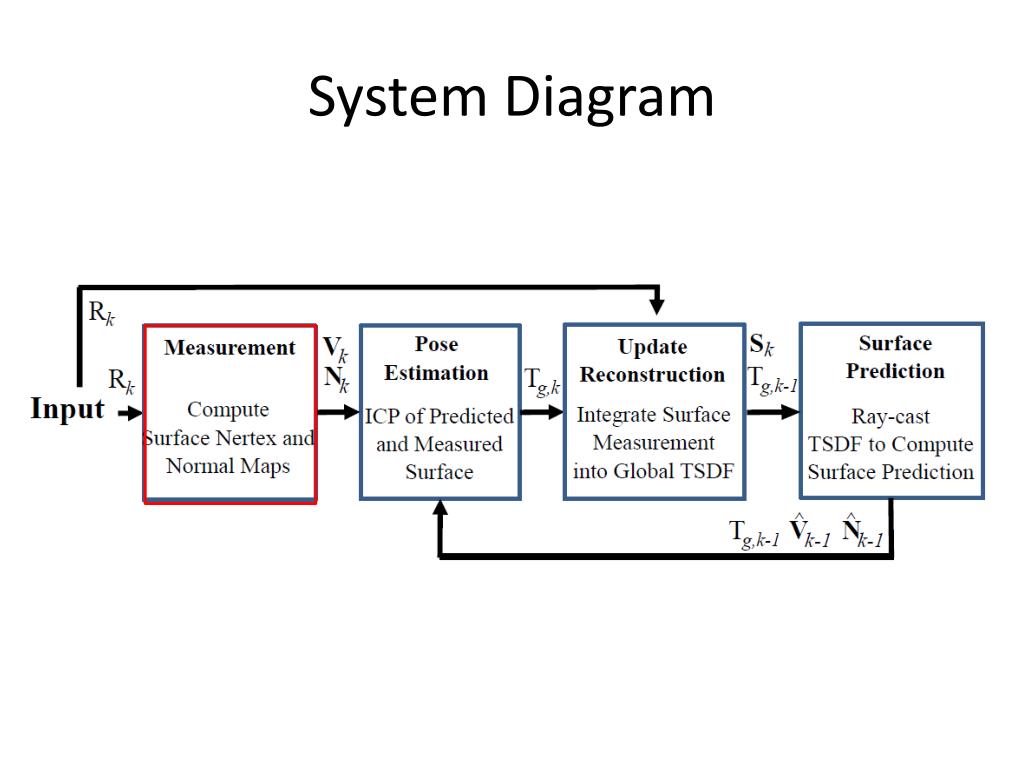

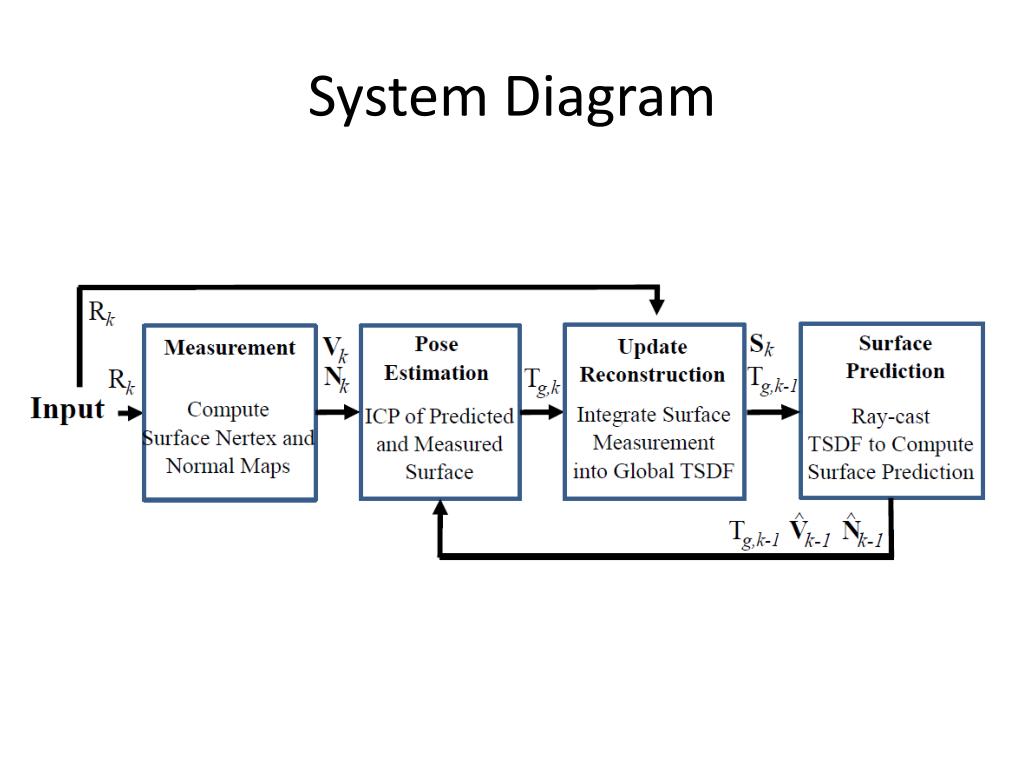

  10. System Diagram

  11. System Diagram

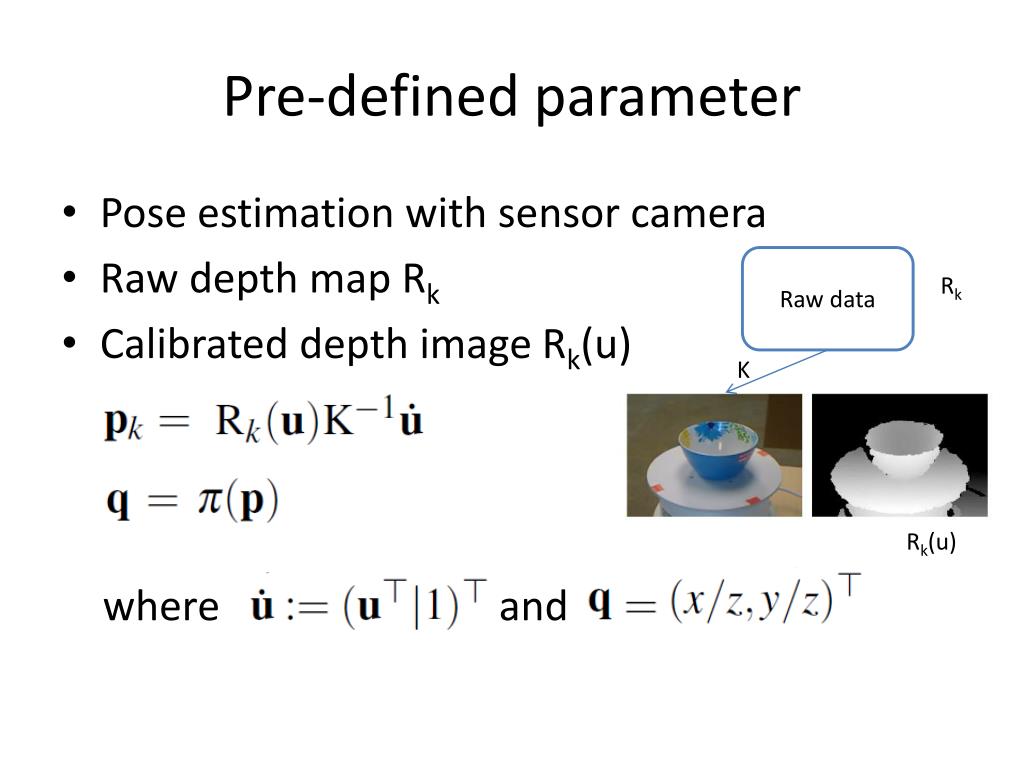

  12. Pre-defined parameter • Pose estimation with sensor camera • Raw depth map Rk • Calibrated depth image Rk(u) where and Raw data Rk K Rk(u)

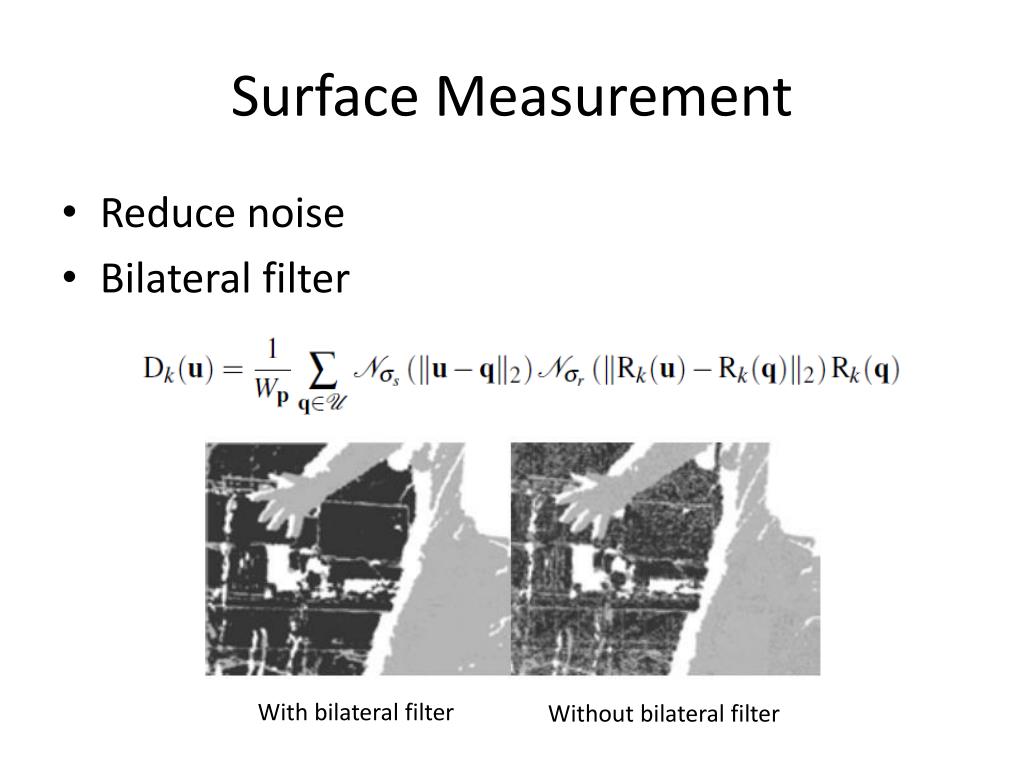

  13. Surface Measurement • Reduce noise • Bilateral filter With bilateral filter Without bilateral filter

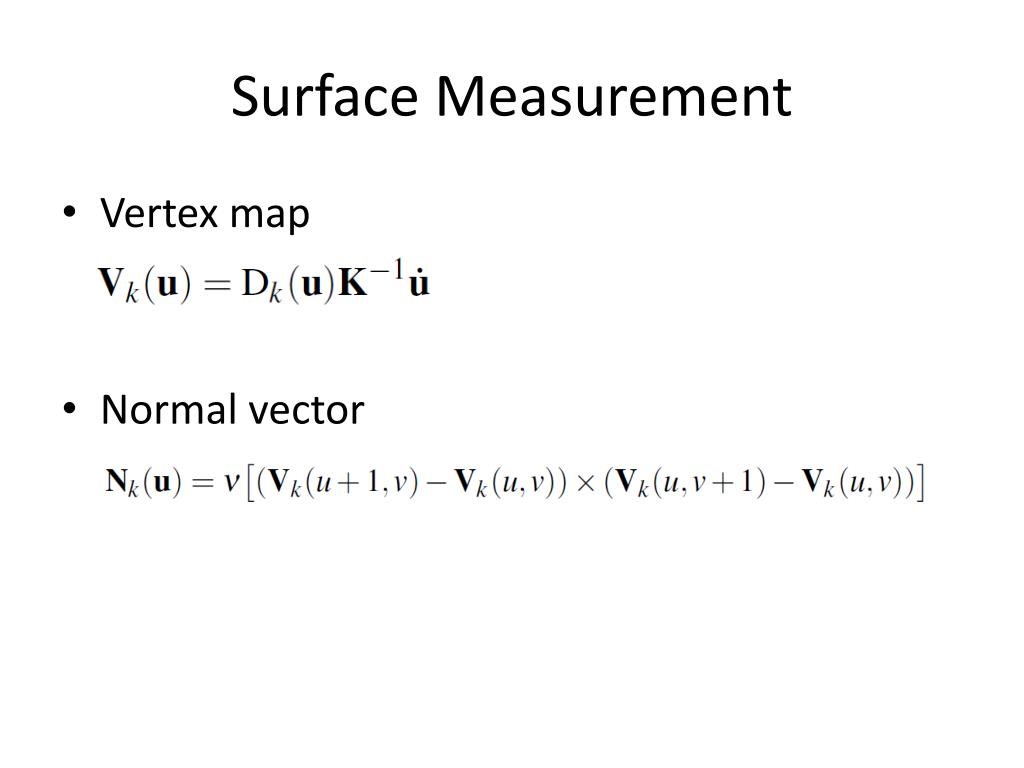

  14. Surface Measurement • Vertex map • Normal vector

  15. Define camera pose Camera frame k is transferred into the global frame

  16. System Diagram

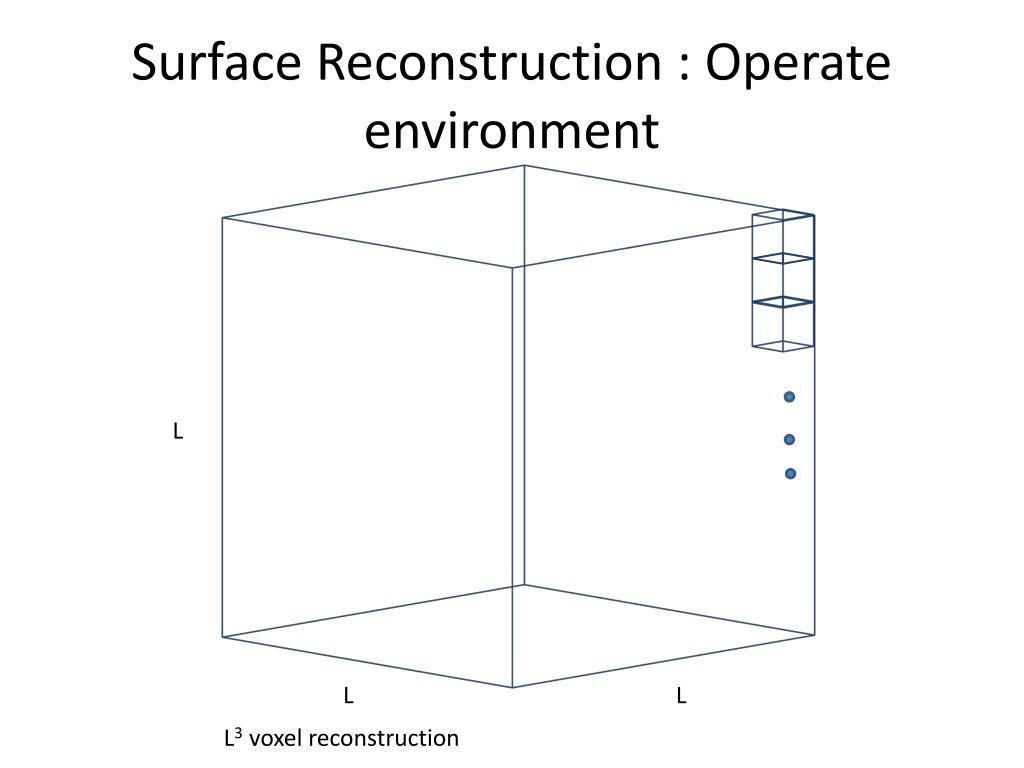

  17. Surface Reconstruction : Operate environment L L L L3 voxel reconstruction

  18. Surface Reconstruction • Signed distance function

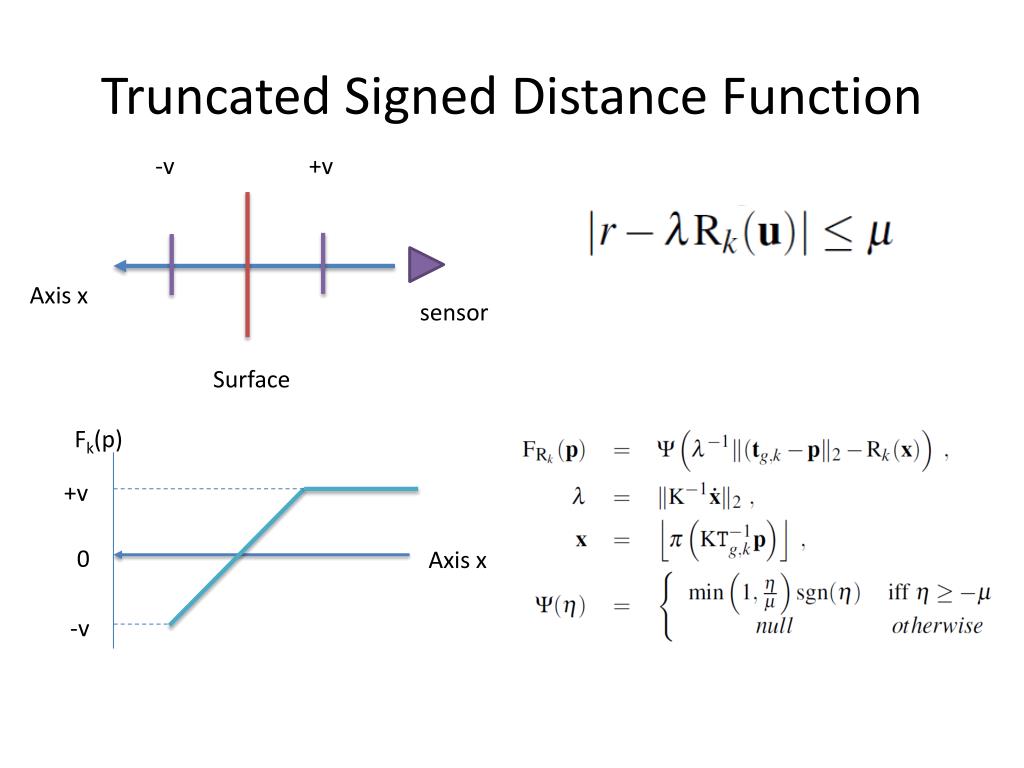

  19. Truncated Signed Distance Function -v +v Axis x sensor Surface Fk(p) +v 0 Axis x -v

  20. Weighting running average • Dynamic object motion

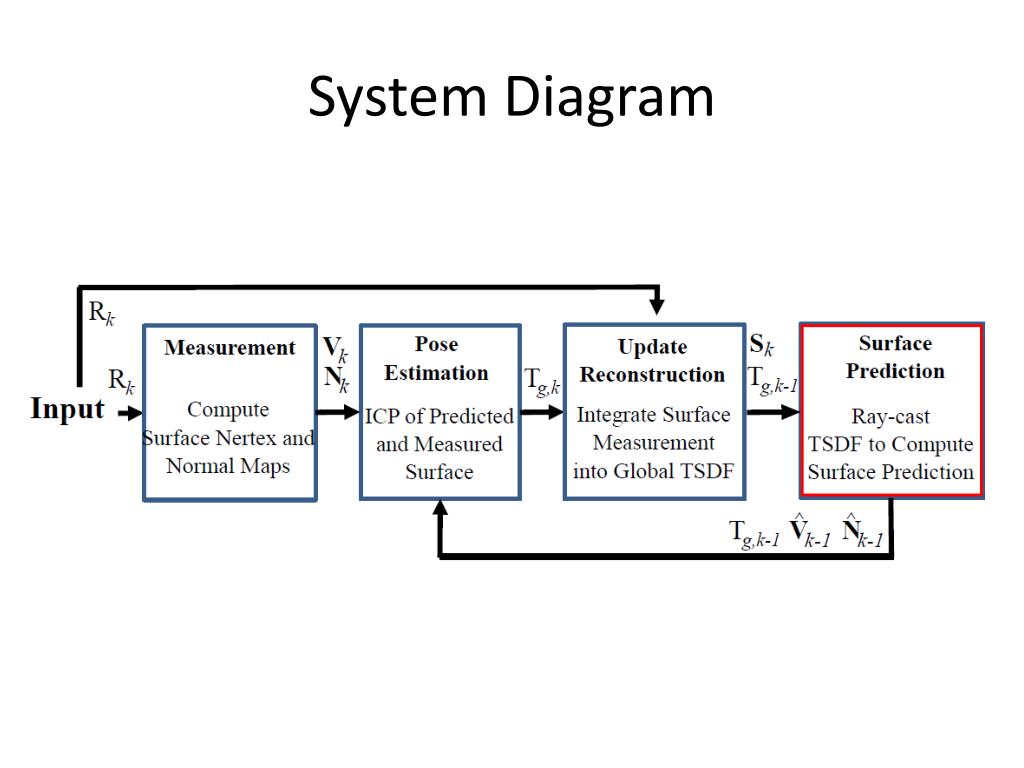

  21. System Diagram

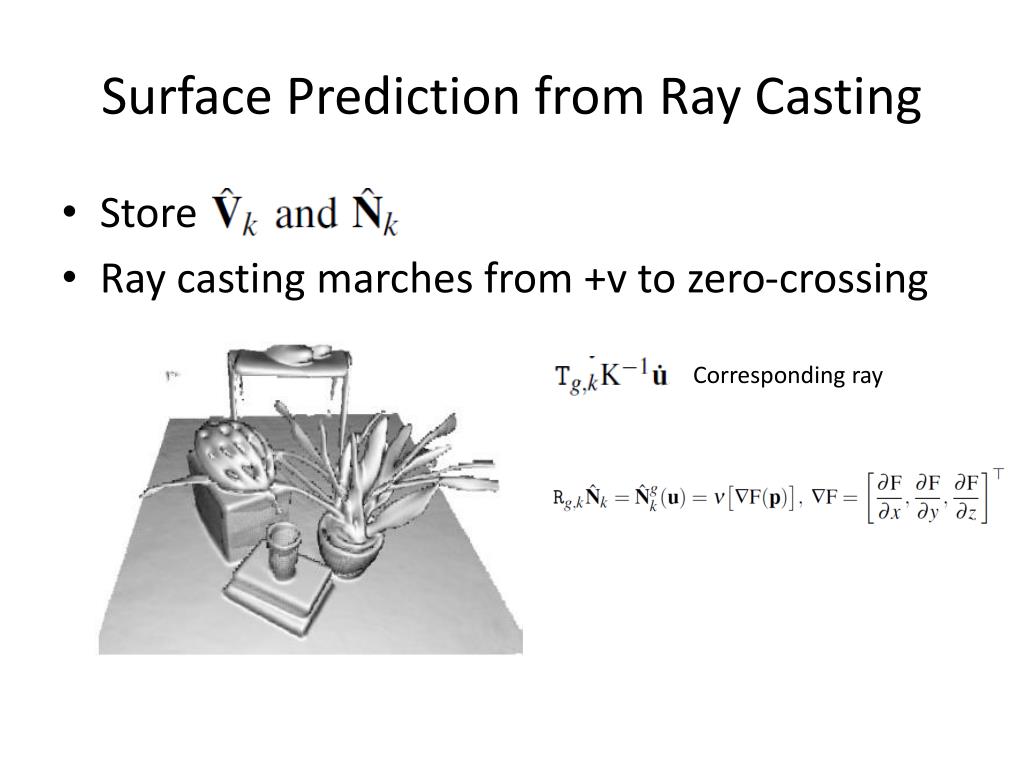

  22. Surface Prediction from Ray Casting • Store • Ray casting marches from +v to zero-crossing Corresponding ray

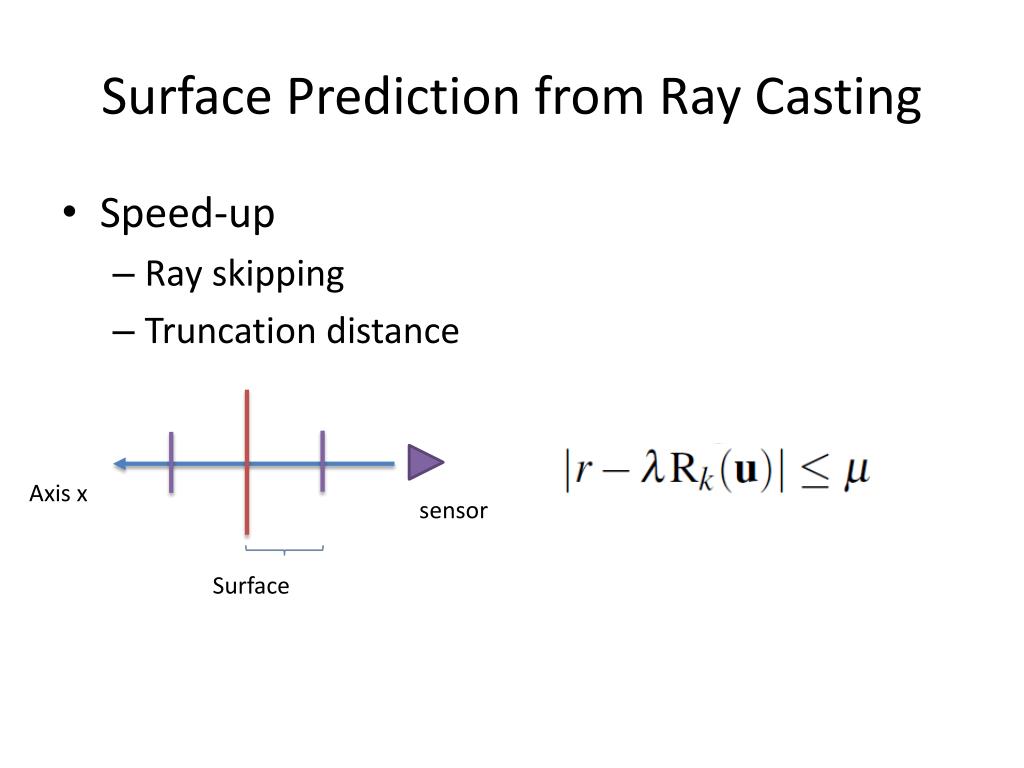

  23. Surface Prediction from Ray Casting • Speed-up • Ray skipping • Truncation distance Axis x sensor Surface

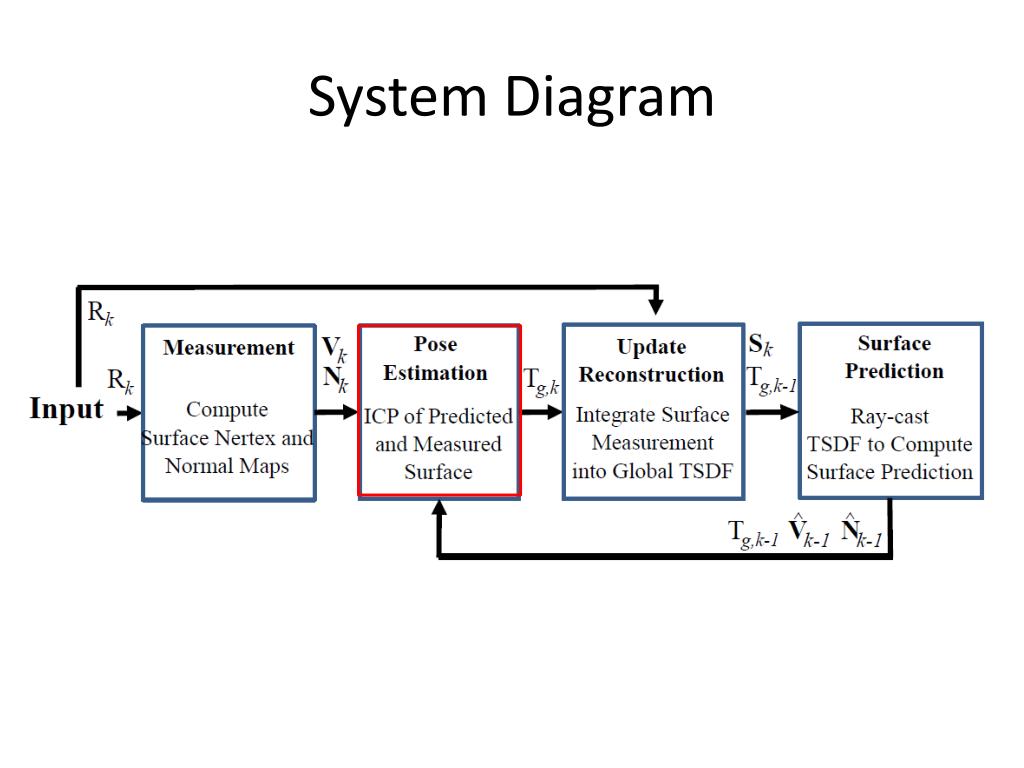

  24. System Diagram

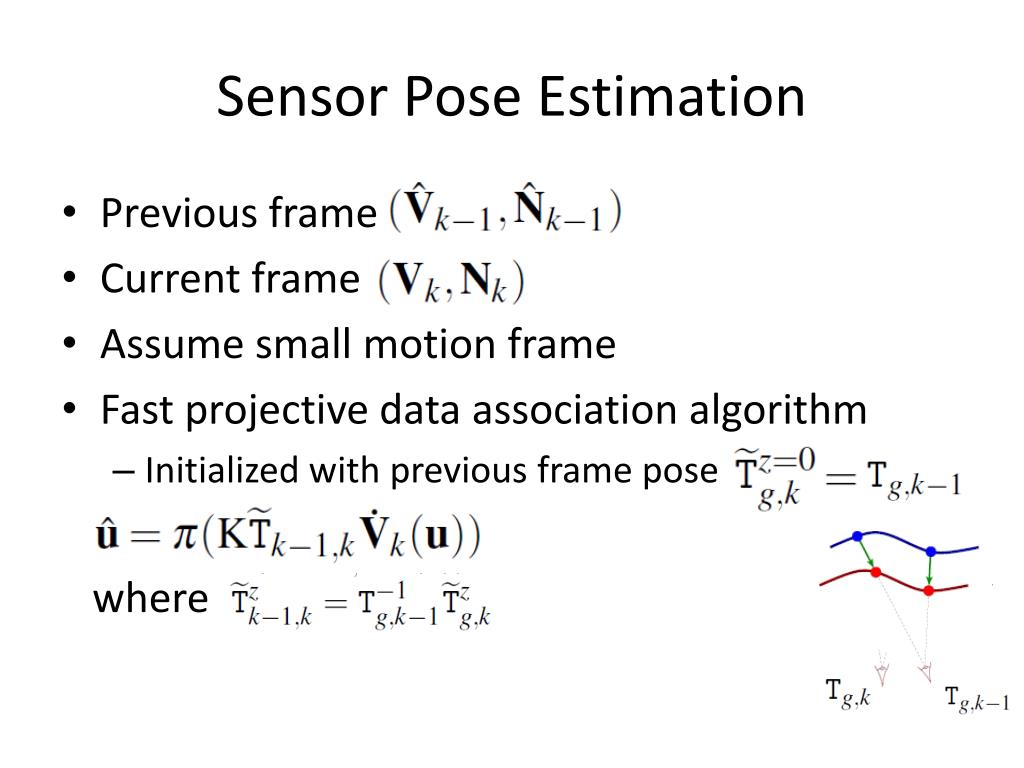

  25. Sensor Pose Estimation • Previous frame • Current frame • Assume small motion frame • Fast projective data association algorithm • Initialized with previous frame pose where

  26. Vertex correspondences where • Point-plane energy

  27. For z > 0 • Modified equation where

  28. Experiment Results • Reconstruction resolution : 2563 • Test camera pose • kinect camera rotates and captures 560 frame over 19 seconds in turntable

  29. Experiment Results • Using every 8th frame

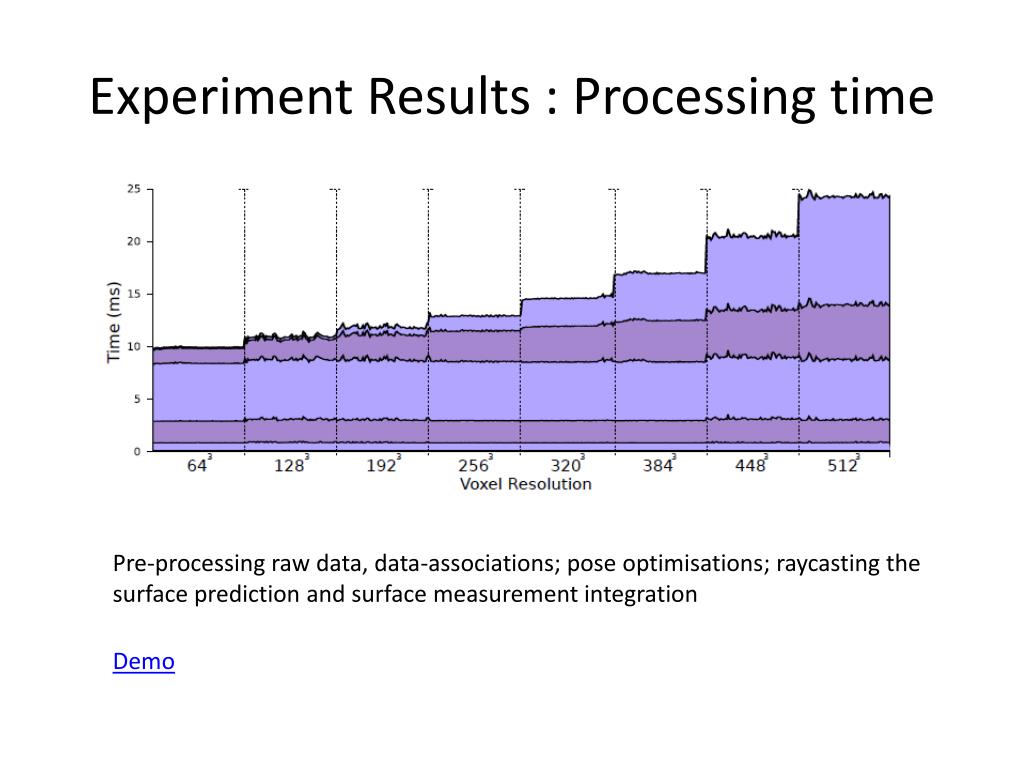

  30. Experiment Results : Processing time Pre-processing raw data, data-associations; pose optimisations; raycasting the surface prediction and surface measurement integration Demo

  31. Conclusion • Robust tracking of camera pose by all aligning all depth points • Parallel algorithms for both tracking and mapping

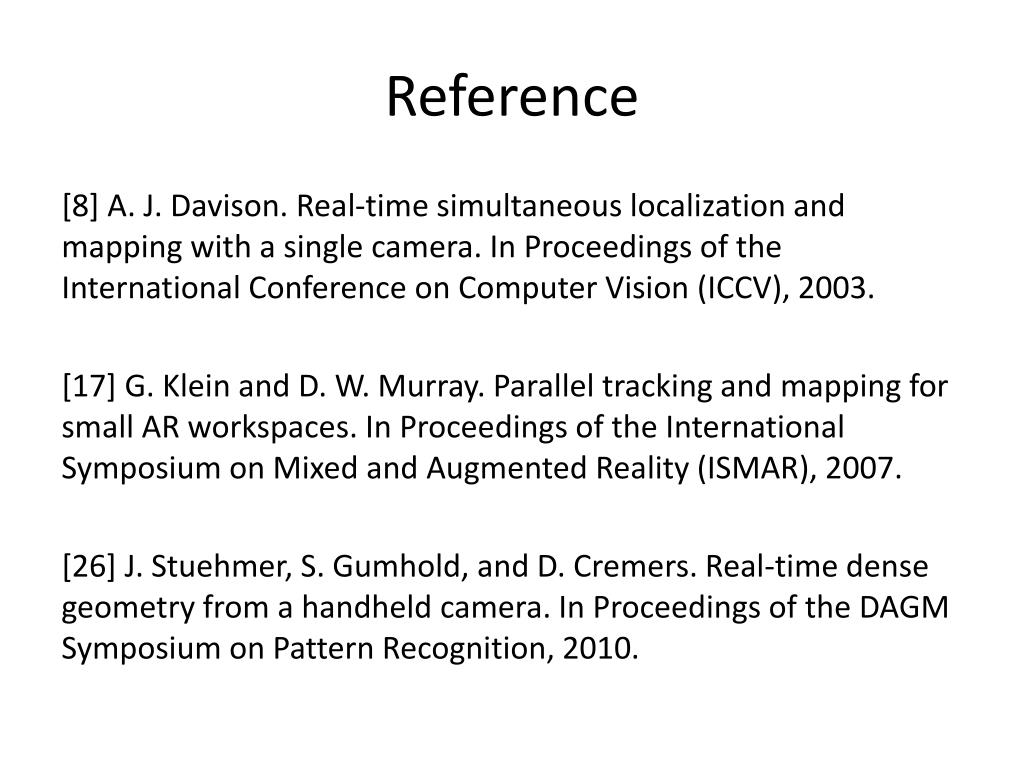

  32. Reference [8] A. J. Davison. Real-time simultaneous localization and mapping with a single camera. In Proceedings of the International Conference on Computer Vision (ICCV), 2003. [17] G. Klein and D. W. Murray. Parallel tracking and mapping for small AR workspaces. In Proceedings of the International Symposium on Mixed and Augmented Reality (ISMAR), 2007. [26] J. Stuehmer, S. Gumhold, and D. Cremers. Real-time dense geometry from a handheld camera. In Proceedings of the DAGM Symposium on Pattern Recognition, 2010.

  33. [20] R. A. Newcombe, S. J. Lovegrove, and A. J. Davison. DTAM: Dense tracking and mapping in real-time. In Proceedings of the International Conference on Computer Vision (ICCV), 2011 [7] B. Curless and M. Levoy. A volumetric method for building complex models from range images. In ACM Transactions on Graphics (SIGGRAPH), 1996. [5] Y. Chen and G. Medioni. Object modeling by registration of multiple range images. Image and Vision Computing (IVC), 10(3):145–155, 1992. [4] G. Blais and M. D. Levine. Registering multiview range data to create 3D computer objects. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 17(8):820–824, 1995.
