  1. High Performance ComputingCourse Notes 2006-2007Course Administration

  2. Course Administration • Course organiser: • Dr. Ligang He http://www.dcs.warwick.ac.uk/~liganghe • Contact details • Email: liganghe@dcs.warwick.ac.uk • Office hours: • Monday: 2pm-3pm • Wednesday: 2pm-3pm

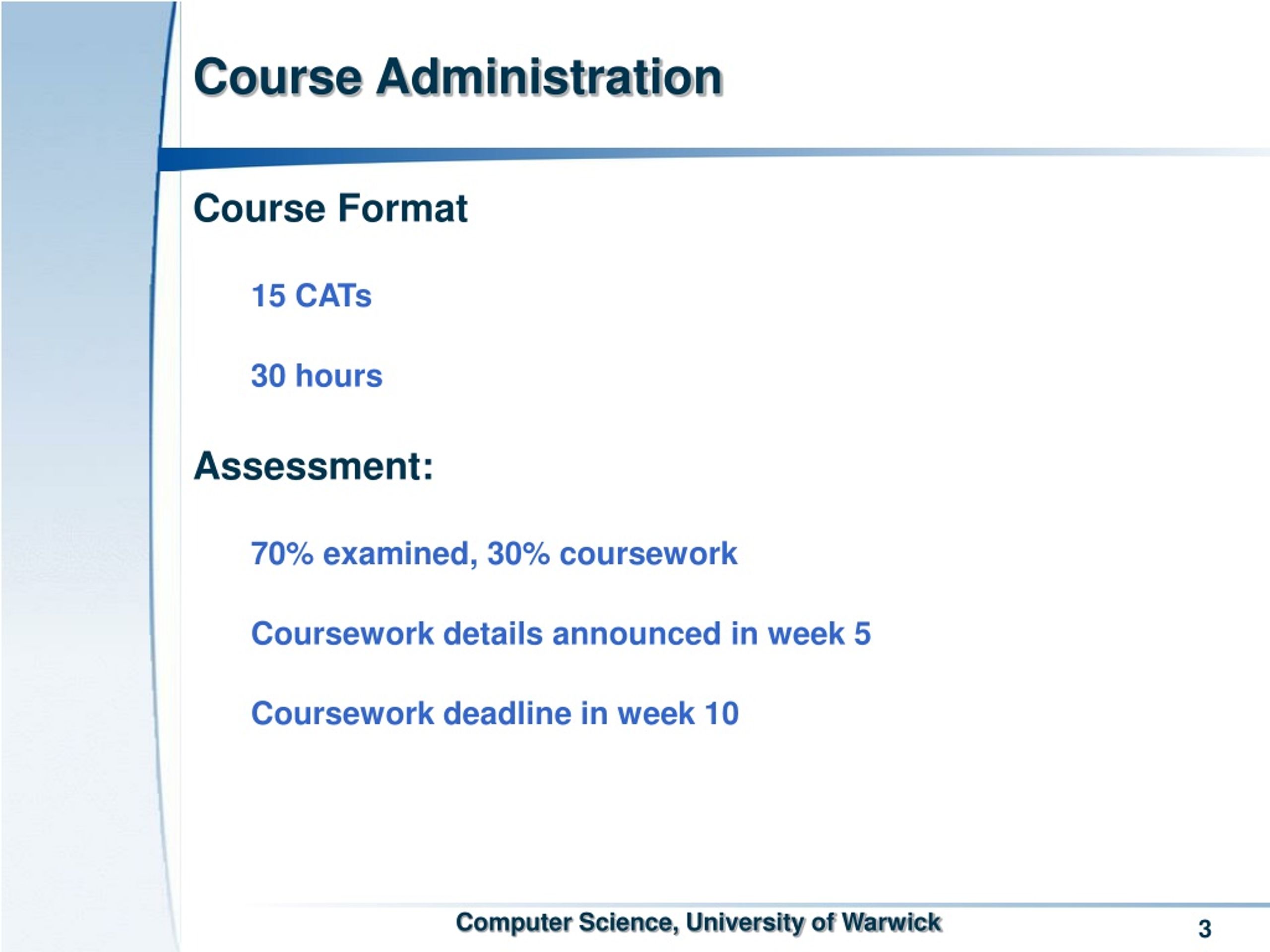

  3. Course Administration • Course Format • 15 CATs • 30 hours • Assessment: • 70% examined, 30% coursework • Coursework details announced in week 5 • Coursework deadline in week 10

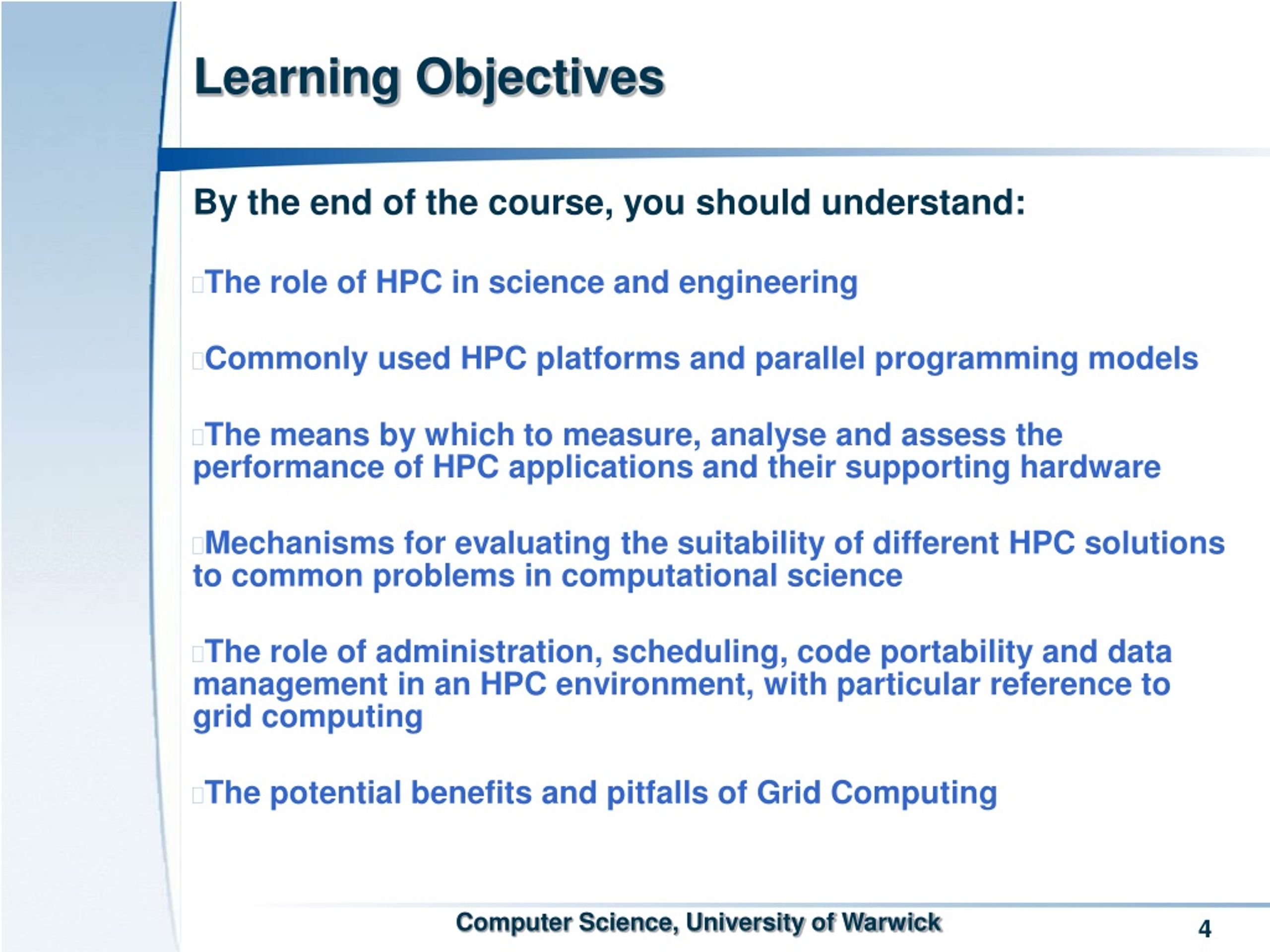

  4. Learning Objectives • By the end of the course, you should understand: • The role of HPC in science and engineering • Commonly used HPC platforms and parallel programming models • The means by which to measure, analyse and assess the performance of HPC applications and their supporting hardware • Mechanisms for evaluating the suitability of different HPC solutions to common problems in computational science • The role of administration, scheduling, code portability and data management in an HPC environment, with particular reference to grid computing • The potential benefits and pitfalls of Grid Computing

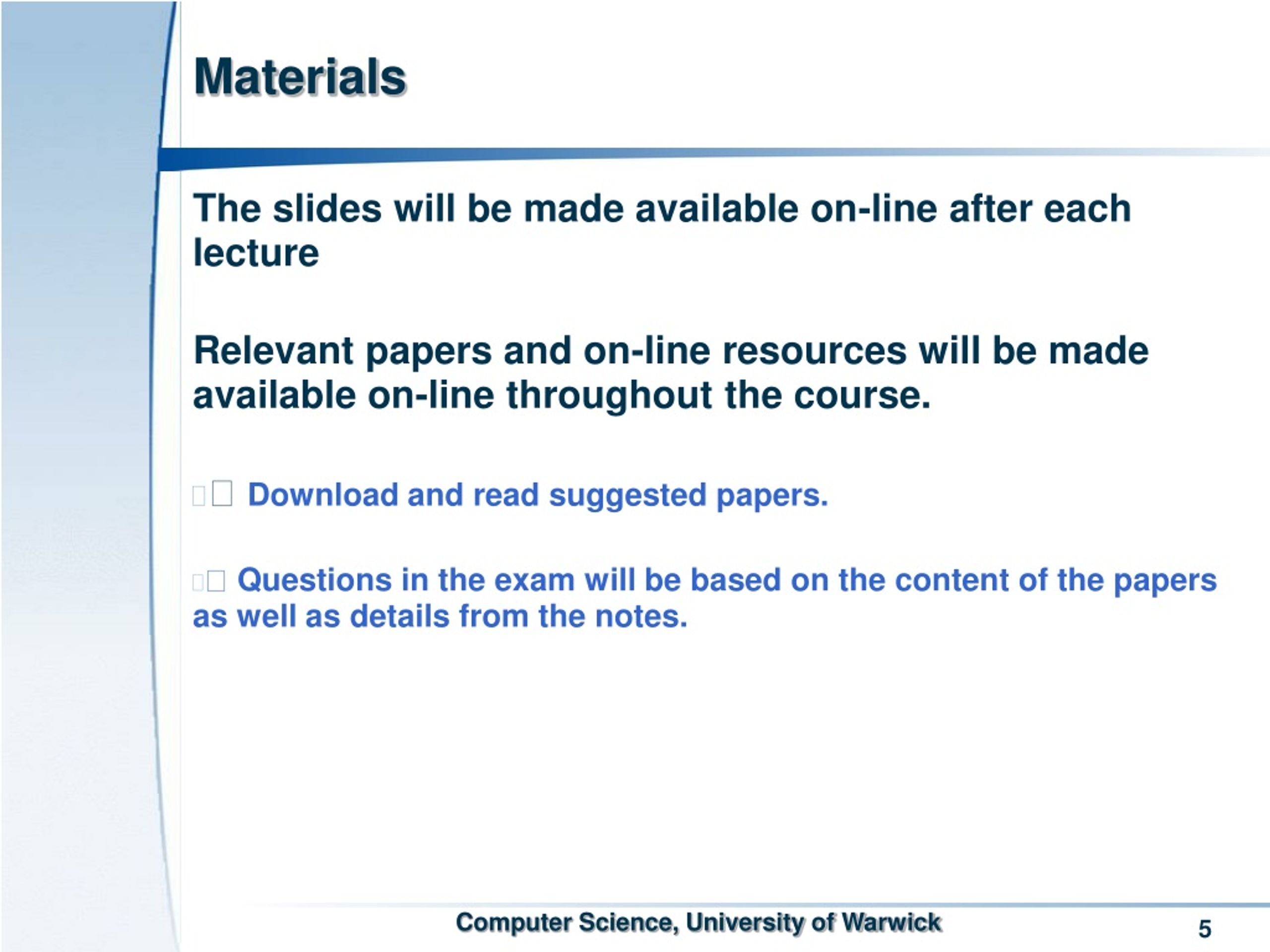

  5. Materials • The slides will be made available on-line after each lecture • Relevant papers and on-line resources will be made available on-line throughout the course. •  Download and read suggested papers. •  Questions in the exam will be based on the content of the papers as well as details from the notes.

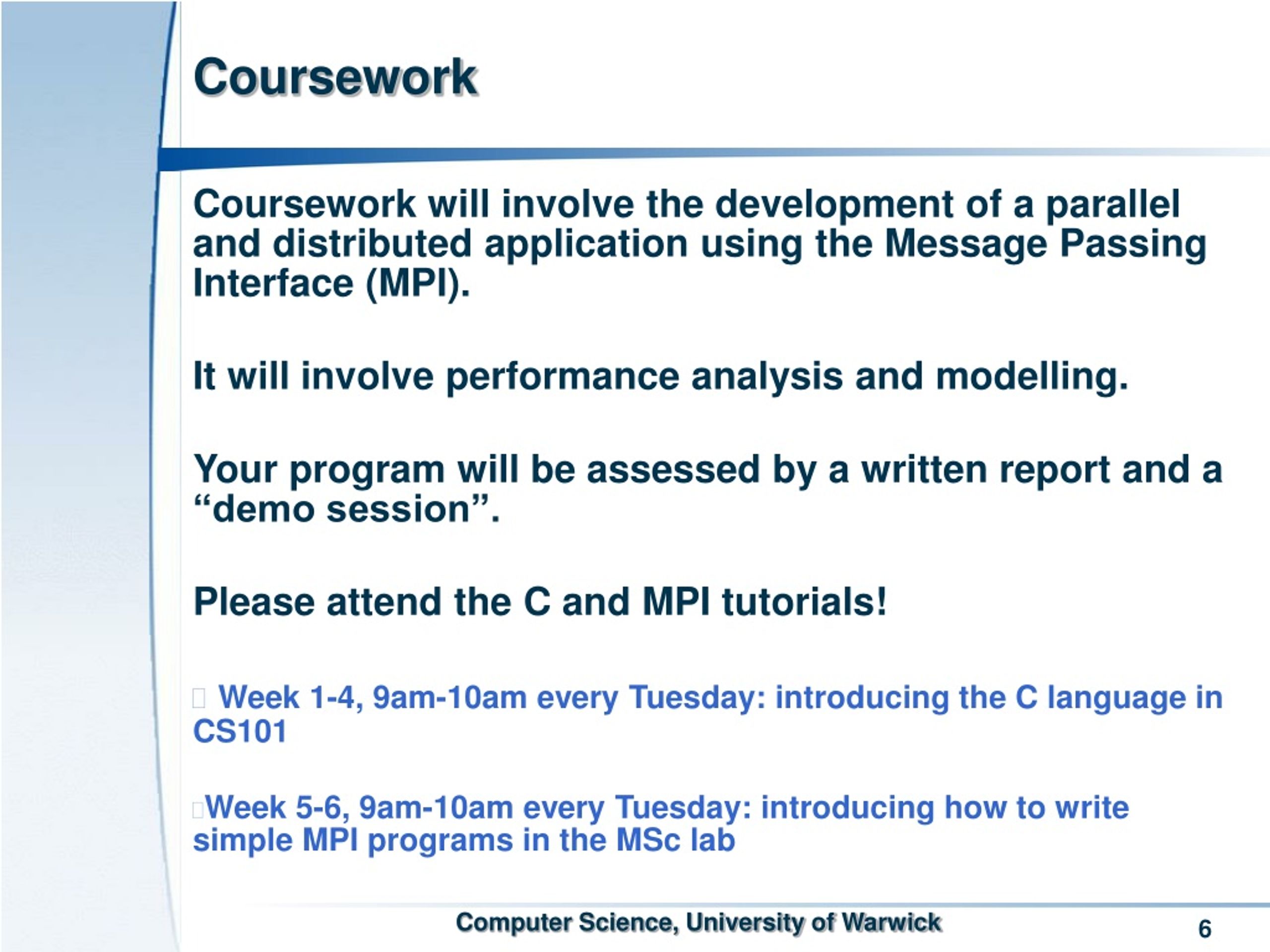

  6. Coursework • Coursework will involve the development of a parallel and distributed application using the Message Passing Interface (MPI). • It will involve performance analysis and modelling. • Your program will be assessed by a written report and a “demo session”. • Please attend the C and MPI tutorials! • Week 1-4, 9am-10am every Tuesday: introducing the C language in CS101 • Week 5-6, 9am-10am every Tuesday: introducing how to write simple MPI programs in the MSc lab

  7. High Performance ComputingCourse Notes 2006-2007HPC Fundamentals

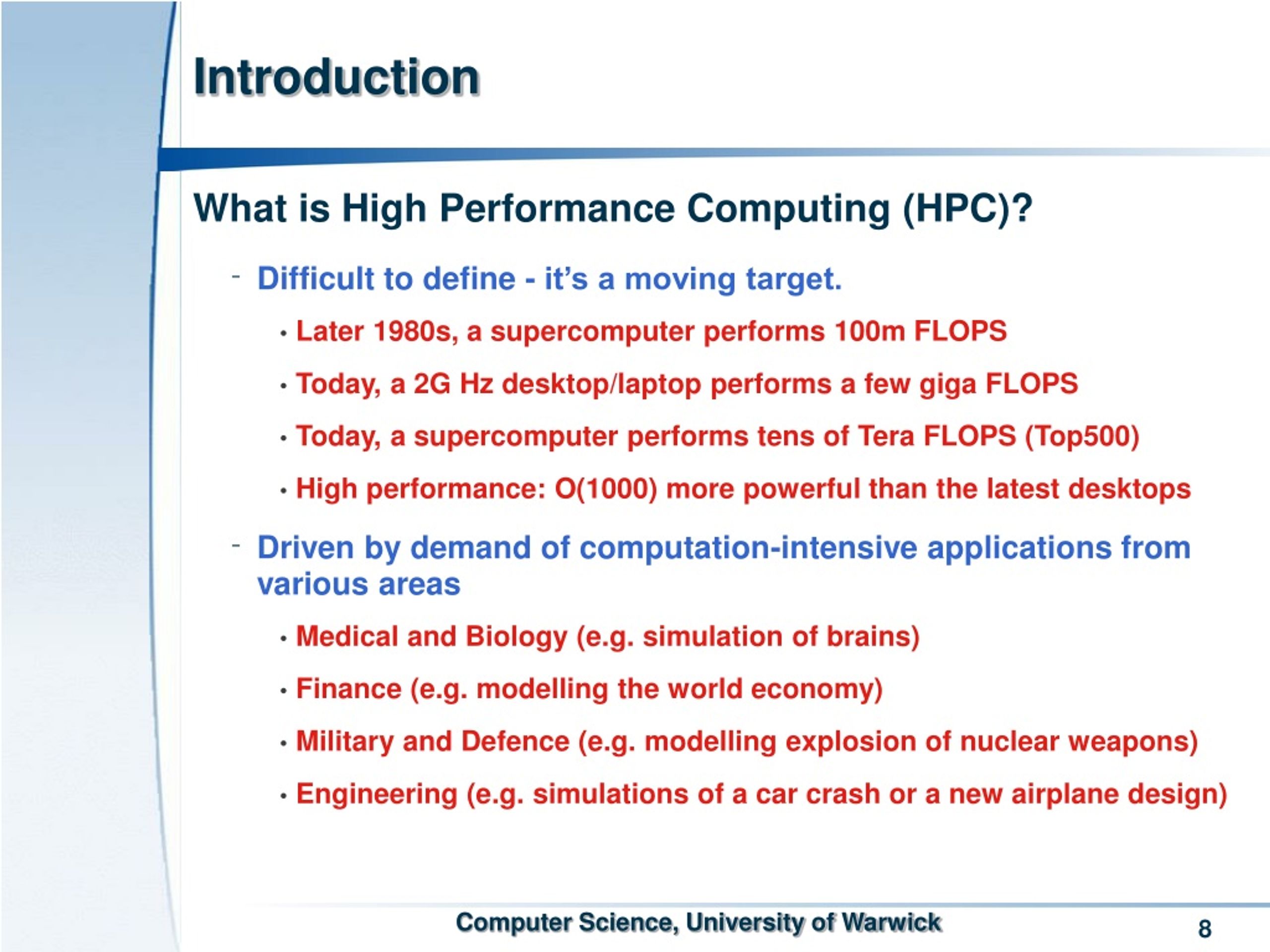

  8. Introduction • What is High Performance Computing (HPC)? • Difficult to define - it’s a moving target. • Later 1980s, a supercomputer performs 100m FLOPS • Today, a 2G Hz desktop/laptop performs a few giga FLOPS • Today, a supercomputer performs tens of Tera FLOPS (Top500) • High performance: O(1000) more powerful than the latest desktops • Driven by demand of computation-intensive applications from various areas • Medical and Biology (e.g. simulation of brains) • Finance (e.g. modelling the world economy) • Military and Defence (e.g. modelling explosion of nuclear weapons) • Engineering (e.g. simulations of a car crash or a new airplane design)

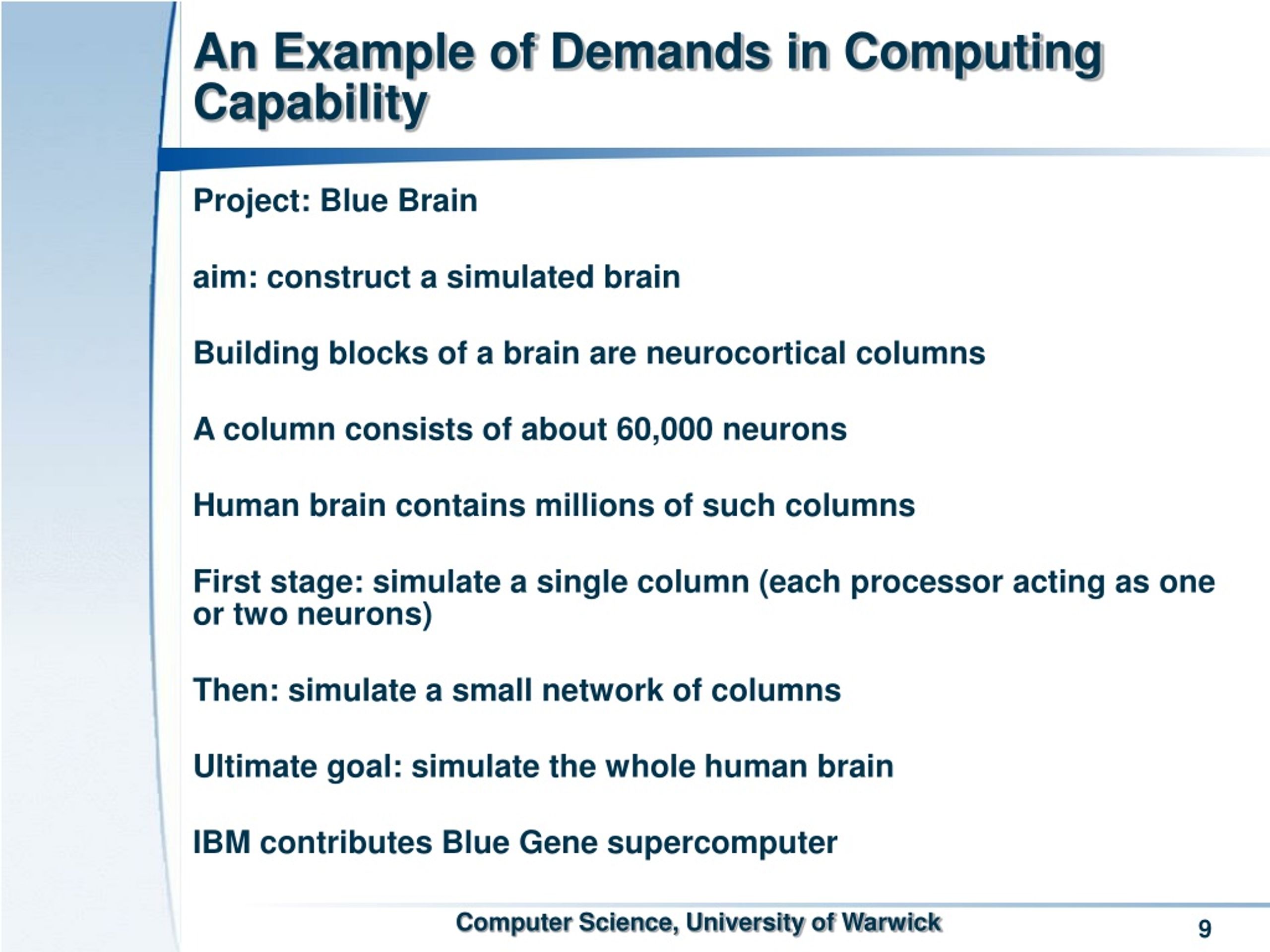

  9. An Example of Demands in Computing Capability • Project: Blue Brain • aim: construct a simulated brain • Building blocks of a brain are neurocortical columns • A column consists of about 60,000 neurons • Human brain contains millions of such columns • First stage: simulate a single column (each processor acting as one or two neurons) • Then: simulate a small network of columns • Ultimate goal: simulate the whole human brain • IBM contributes Blue Gene supercomputer

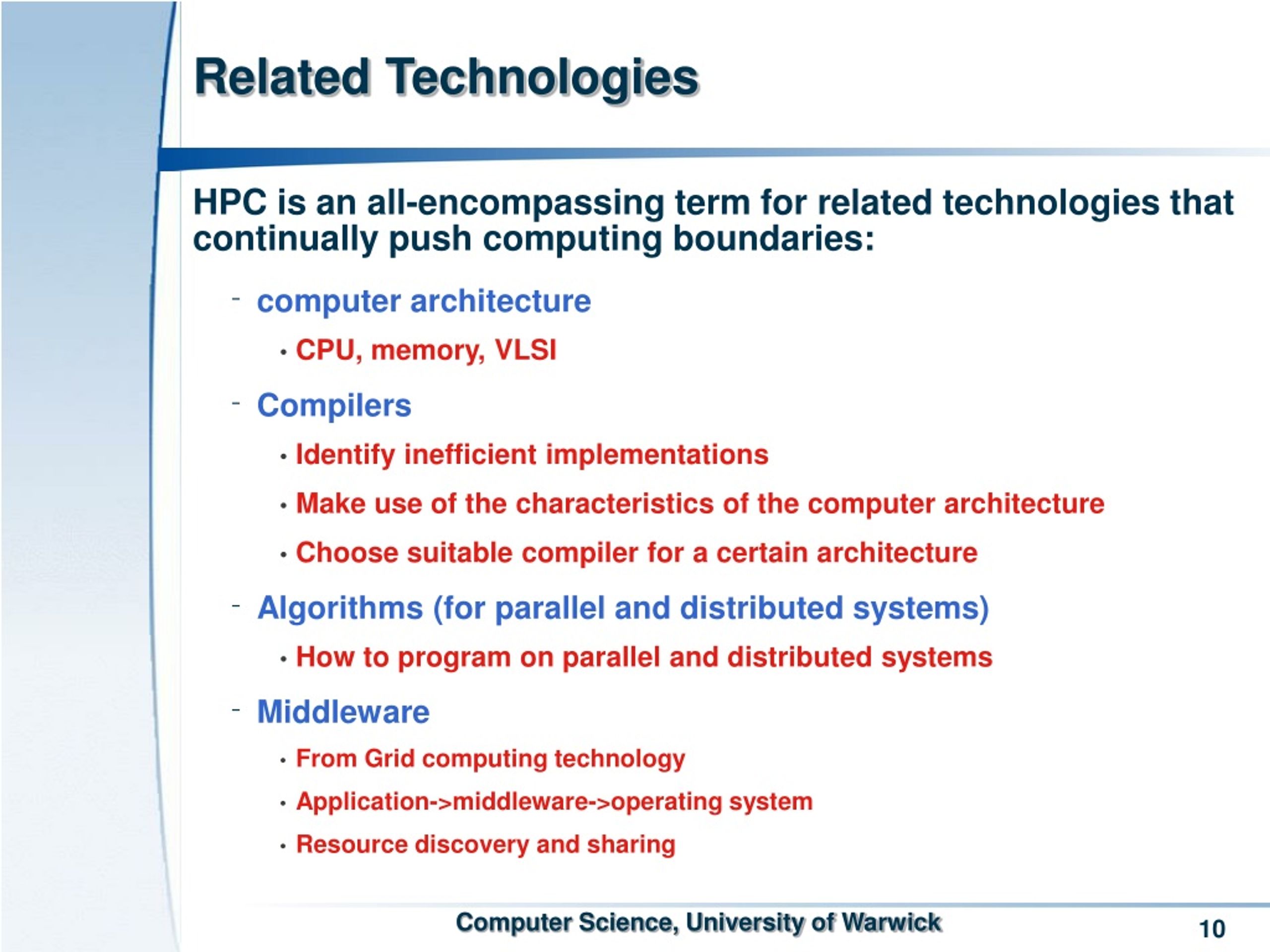

  10. Related Technologies • HPC is an all-encompassing term for related technologies that continually push computing boundaries: • computer architecture • CPU, memory, VLSI • Compilers • Identify inefficient implementations • Make use of the characteristics of the computer architecture • Choose suitable compiler for a certain architecture • Algorithms (for parallel and distributed systems) • How to program on parallel and distributed systems • Middleware • From Grid computing technology • Application->middleware->operating system • Resource discovery and sharing

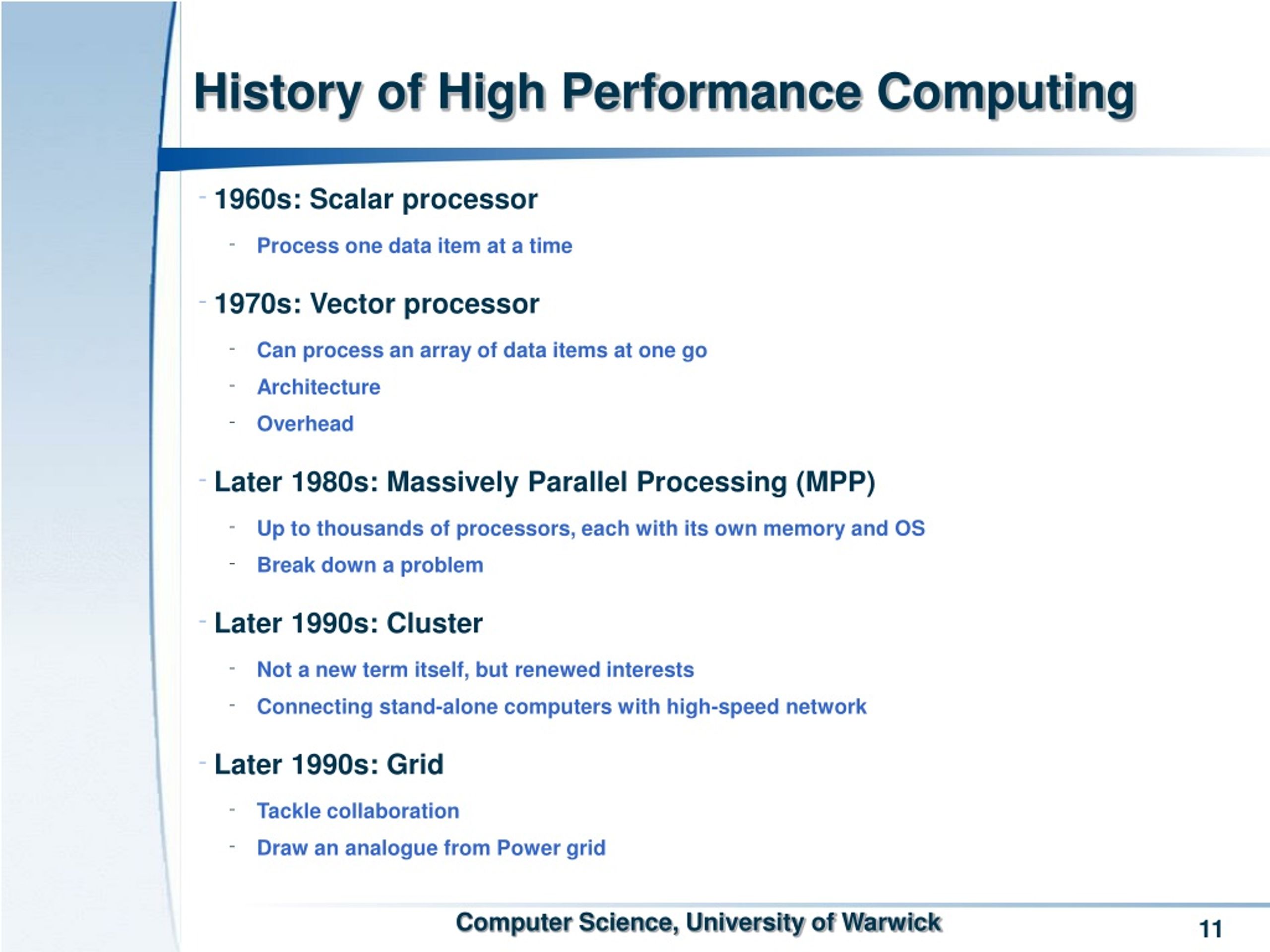

  11. History of High Performance Computing • 1960s: Scalar processor • Process one data item at a time • 1970s: Vector processor • Can process an array of data items at one go • Architecture • Overhead • Later 1980s: Massively Parallel Processing (MPP) • Up to thousands of processors, each with its own memory and OS • Break down a problem • Later 1990s: Cluster • Not a new term itself, but renewed interests • Connecting stand-alone computers with high-speed network • Later 1990s: Grid • Tackle collaboration • Draw an analogue from Power grid

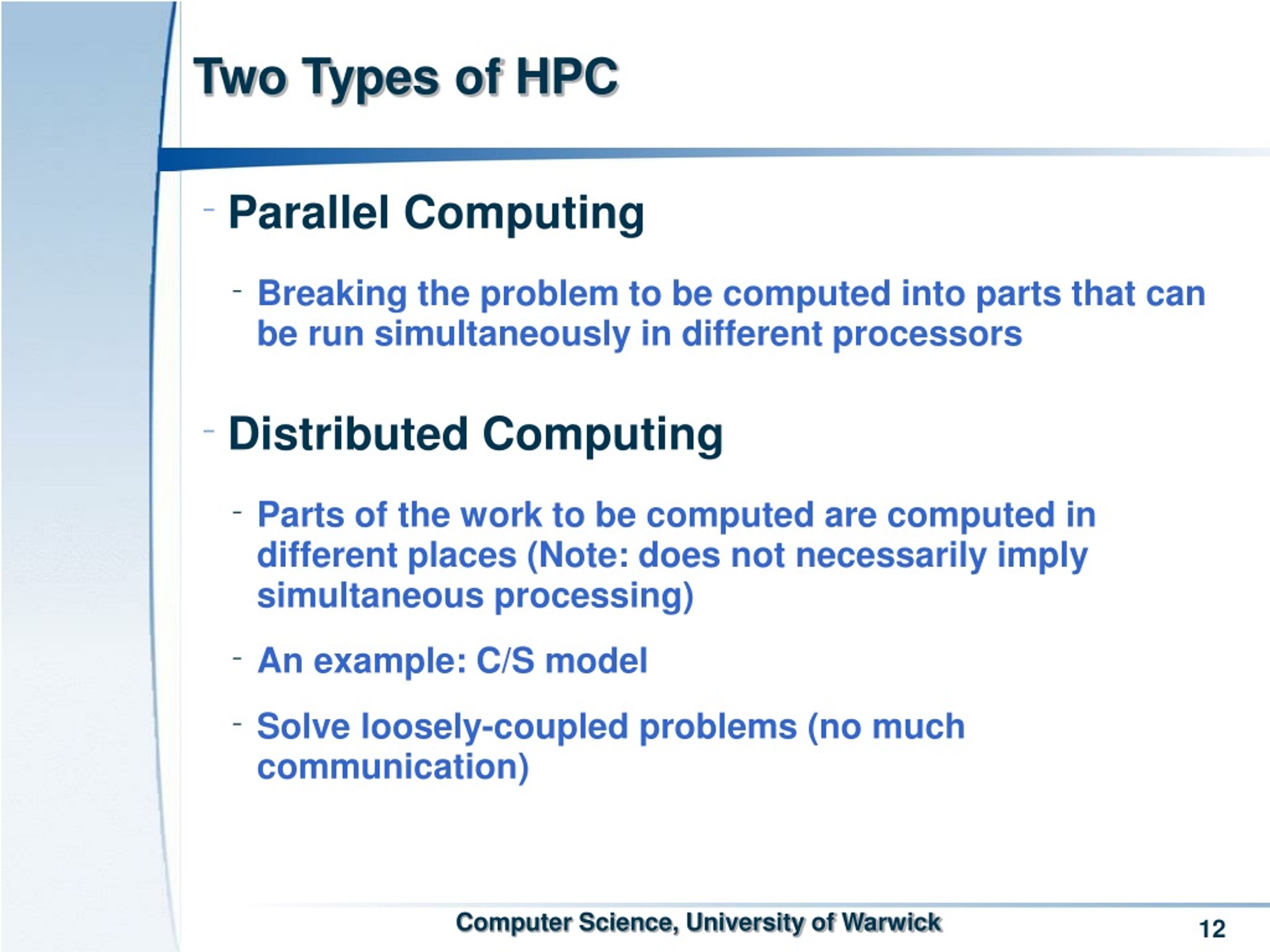

  12. Two Types of HPC • Parallel Computing • Breaking the problem to be computed into parts that can be run simultaneously in different processors • Distributed Computing • Parts of the work to be computed are computed in different places (Note: does not necessarily imply simultaneous processing) • An example: C/S model • Solve loosely-coupled problems (no much communication)

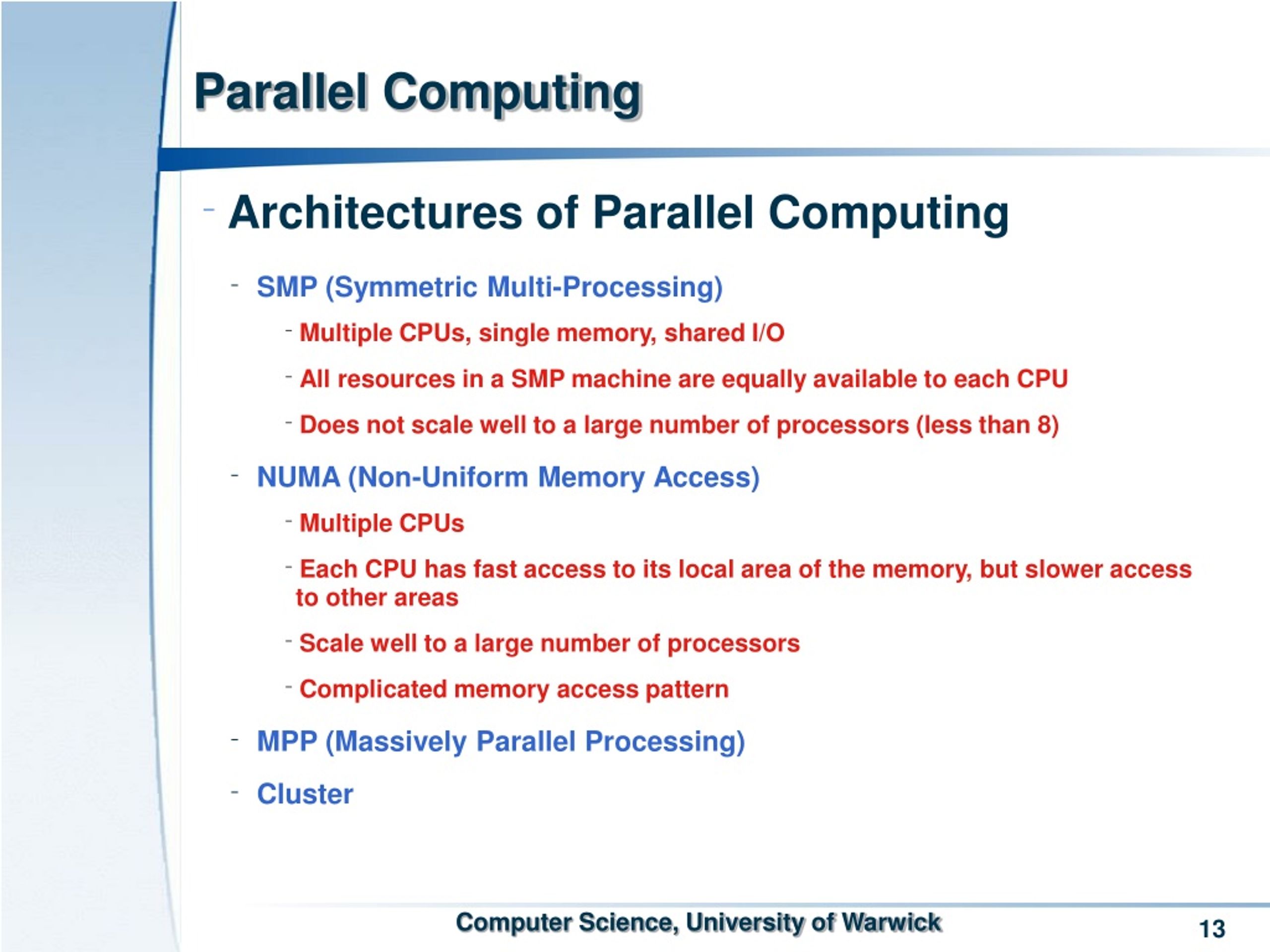

  13. Parallel Computing • Architectures of Parallel Computing • SMP (Symmetric Multi-Processing) • Multiple CPUs, single memory, shared I/O • All resources in a SMP machine are equally available to each CPU • Does not scale well to a large number of processors (less than 8) • NUMA (Non-Uniform Memory Access) • Multiple CPUs • Each CPU has fast access to its local area of the memory, but slower access to other areas • Scale well to a large number of processors • Complicated memory access pattern • MPP (Massively Parallel Processing) • Cluster

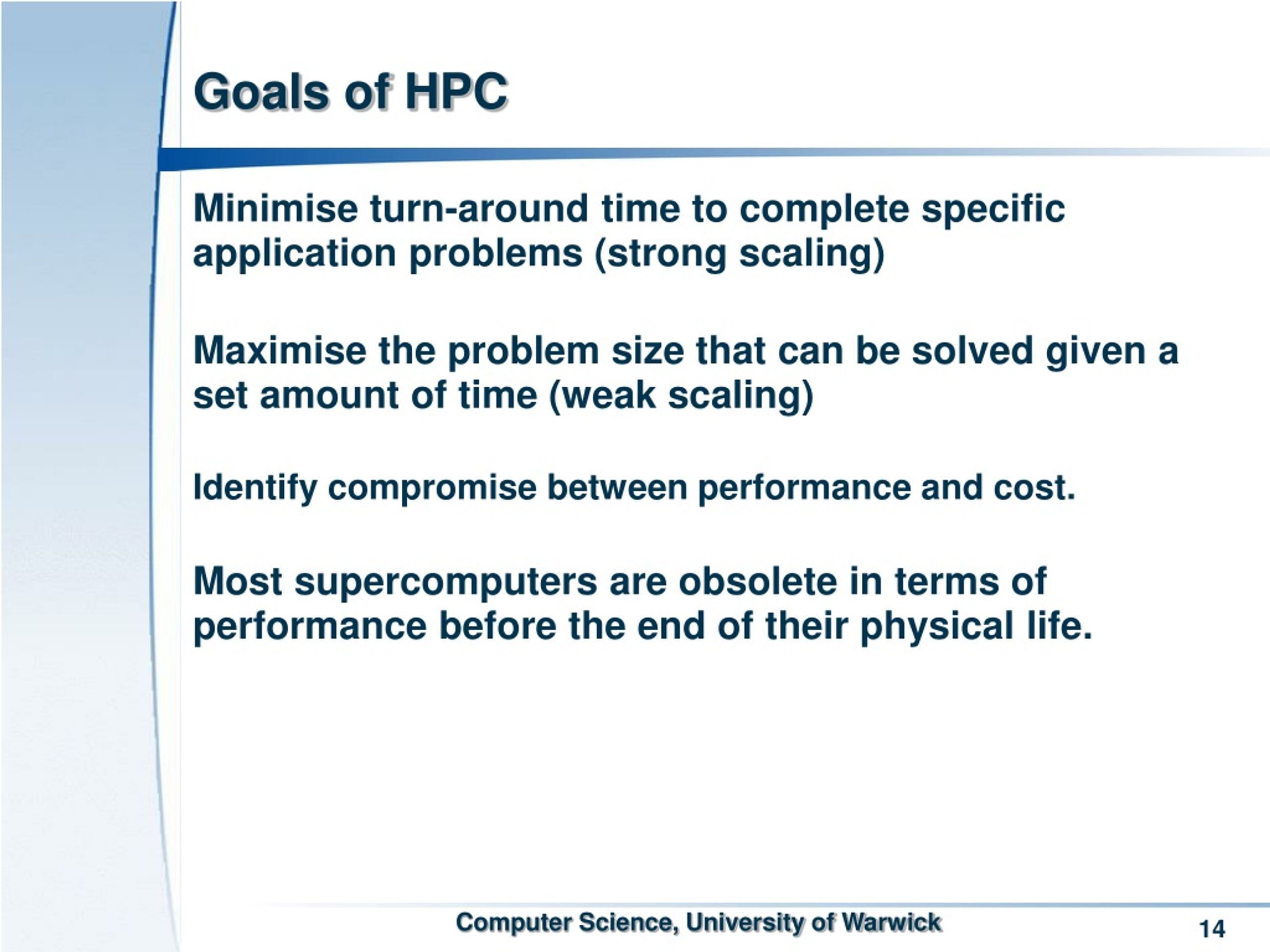

  14. Goals of HPC • Minimise turn-around time to complete specific application problems (strong scaling) • Maximise the problem size that can be solved given a set amount of time (weak scaling) • Identify compromise between performance and cost. • Most supercomputers are obsolete in terms of performance before the end of their physical life.

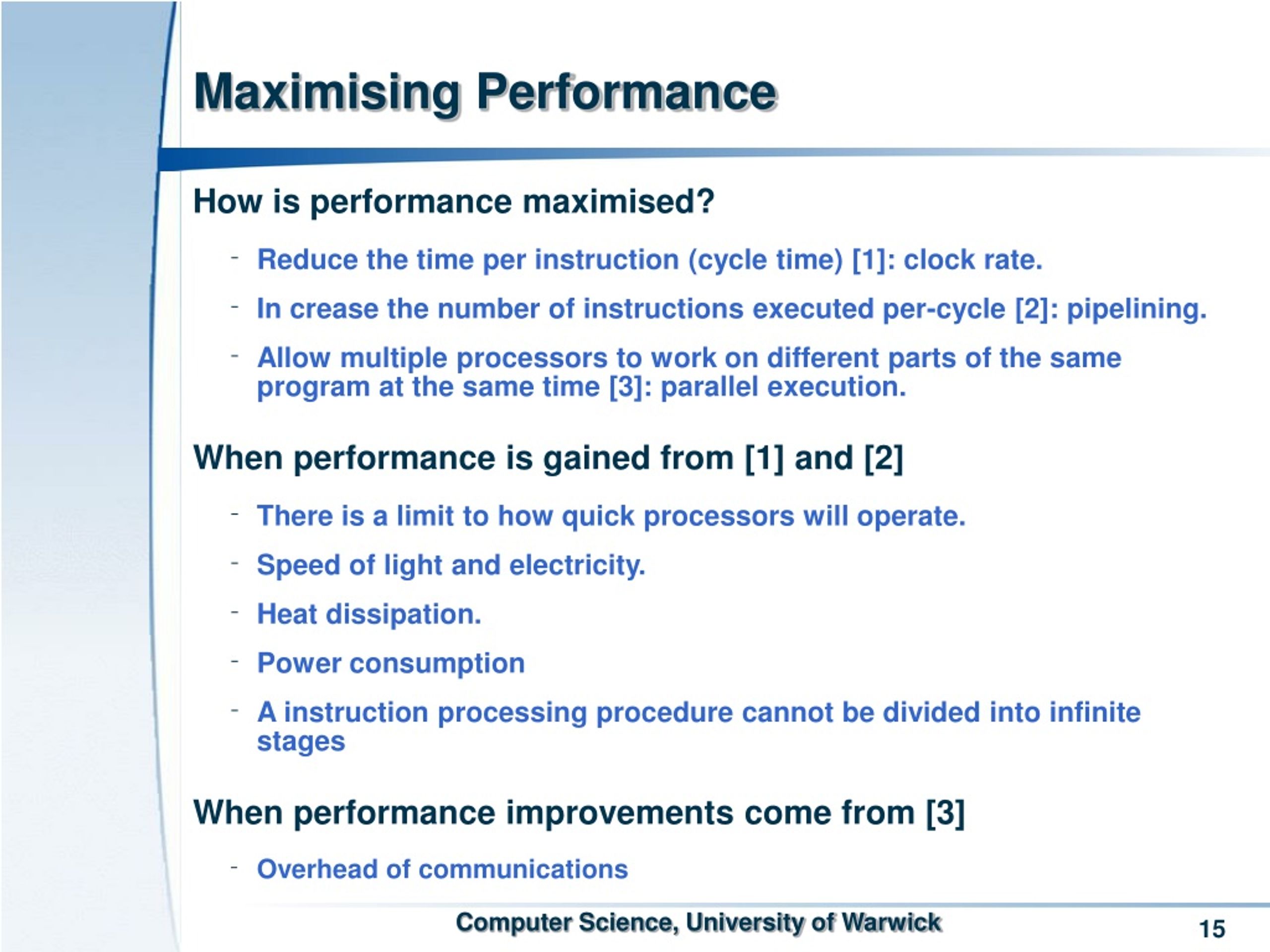

  15. Maximising Performance • How is performance maximised? • Reduce the time per instruction (cycle time) [1]: clock rate. • In crease the number of instructions executed per-cycle [2]: pipelining. • Allow multiple processors to work on different parts of the same program at the same time [3]: parallel execution. • When performance is gained from [1] and [2] • There is a limit to how quick processors will operate. • Speed of light and electricity. • Heat dissipation. • Power consumption • A instruction processing procedure cannot be divided into infinite stages • When performance improvements come from [3] • Overhead of communications
