  1. How to Setup VLAN for EPL-1000? EPL-1000 / EPN-102

  2. Outline • Connection Topology • Prepare the environment for Management • Configuration Setup • EPL-1000 • FGSD-1022

  3. UnTag Stream Tag 2 Stream Tag 2 Stream UnTag Stream UnTag Packetes Tag 3 Packets Tag 3 Packets UnTag Packets Connection Topology

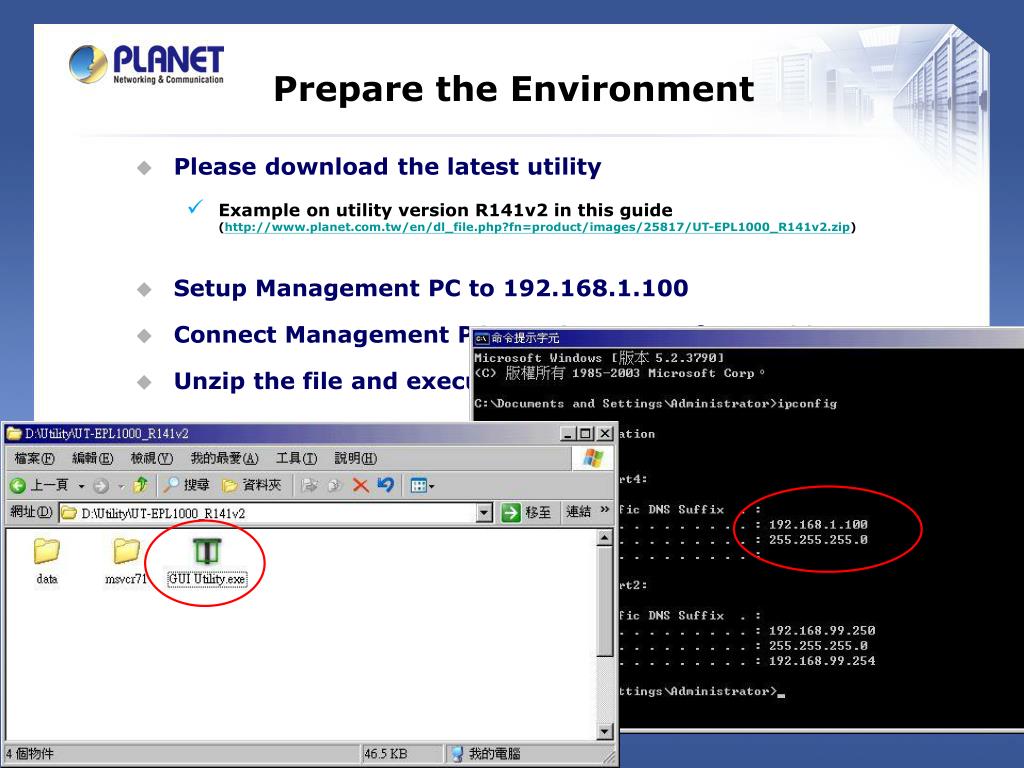

  4. Prepare the Environment • Please download the latest utility • Example on utility version R141v2 in this guide (http://www.planet.com.tw/en/dl_file.php?fn=product/images/25817/UT-EPL1000_R141v2.zip) • Setup Management PC to 192.168.1.100 • Connect Management PC to MGMT port of EPL-100 • Unzip the file and execute the Utility

  5. Configuration – EPL-1000 • Please check the followings for the step of EPL-1000 setup for both EPL-1000 and EPN-102. • Firstly, Enable the PON port.

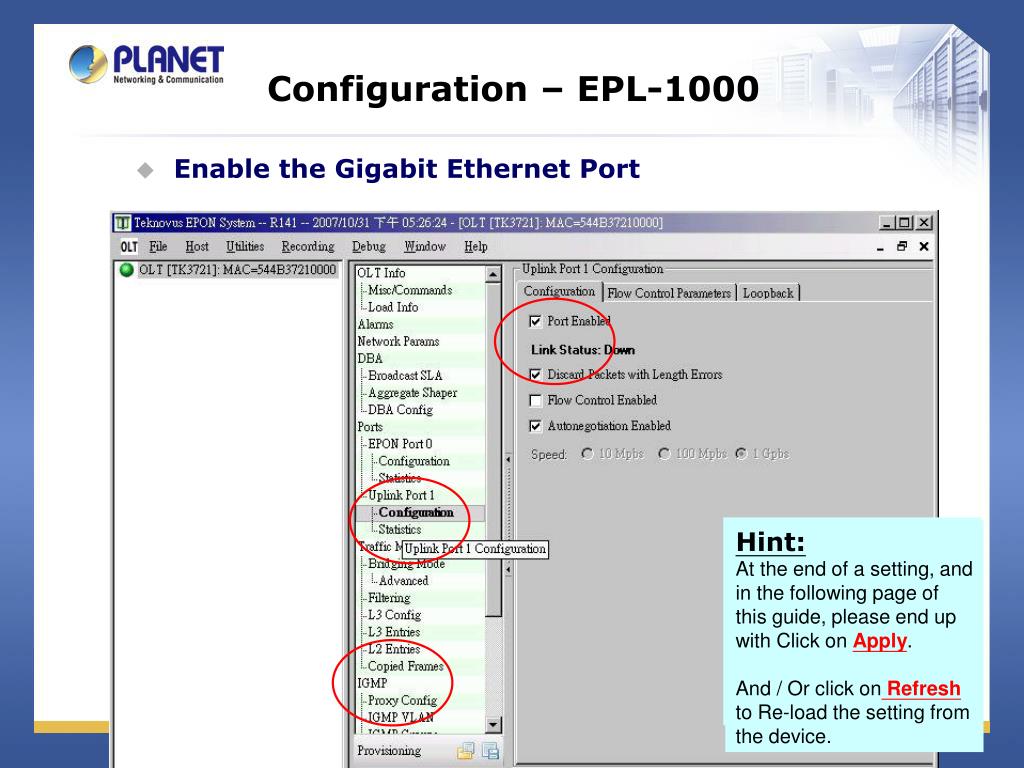

  6. Configuration – EPL-1000 • Enable the Gigabit Ethernet Port Hint: For GbE TP port, you can also turn on Auto-Negotiation. For SFP Fiber connection, it is suggested to fix the mode at option 1 Gbps. Hint: At the end of a setting, and in the following page of this guide, please end up with Click on Apply. And / Or click on Refresh to Re-load the setting from the device.

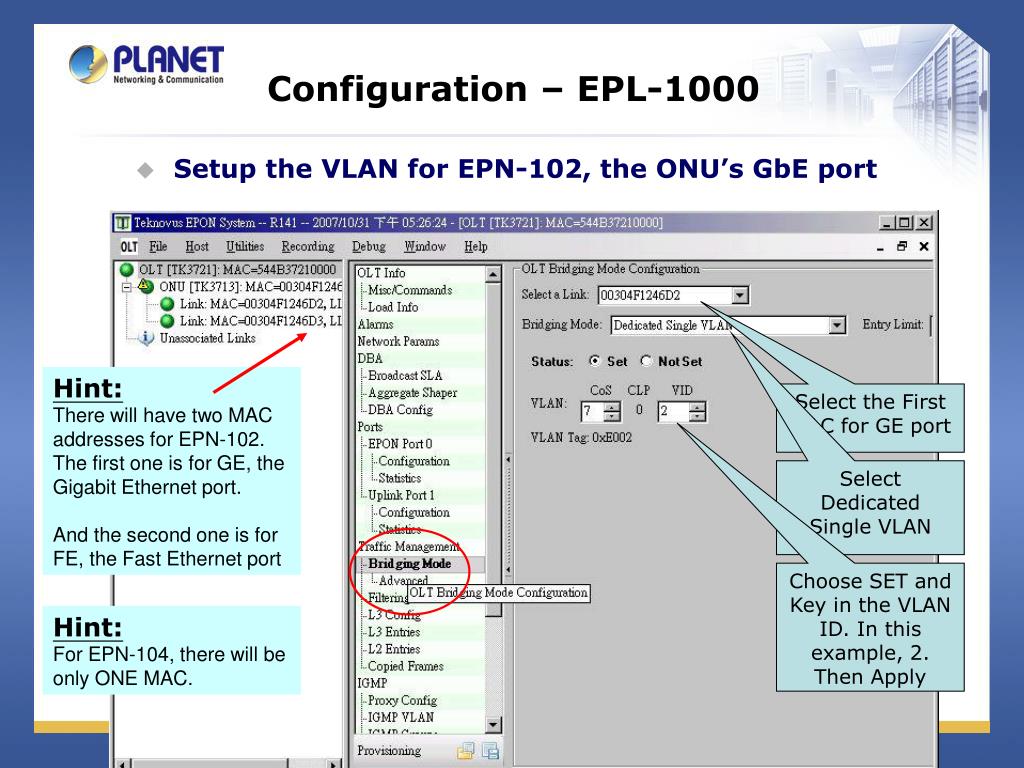

  7. Configuration – EPL-1000 • Setup the VLAN for EPN-102, the ONU’s GbE port Hint: There will have two MAC addresses for EPN-102. The first one is for GE, the Gigabit Ethernet port. And the second one is for FE, the Fast Ethernet port Select the First MAC for GE port Select Dedicated Single VLAN Choose SET and Key in the VLAN ID. In this example, 2. Then Apply Hint: For EPN-104, there will be only ONE MAC.

  8. Configuration – EPL-1000 • Setup the VLAN for FE port of EPN-102 Select the Second MAC for FE port Hint: After this Bridge Mode is setup and applied, the EPL-1000 is Ready. Of course, if there are setting for IGMP VLAN, you can continue to add a IGMP for a specified VLAN. Say in this example, VLAN 2. Yet, in this guide, we focus on VLAN setup. Select Dedicated Single VLAN Choose SET and Key in the VLAN ID. In this example, 3. Then Apply

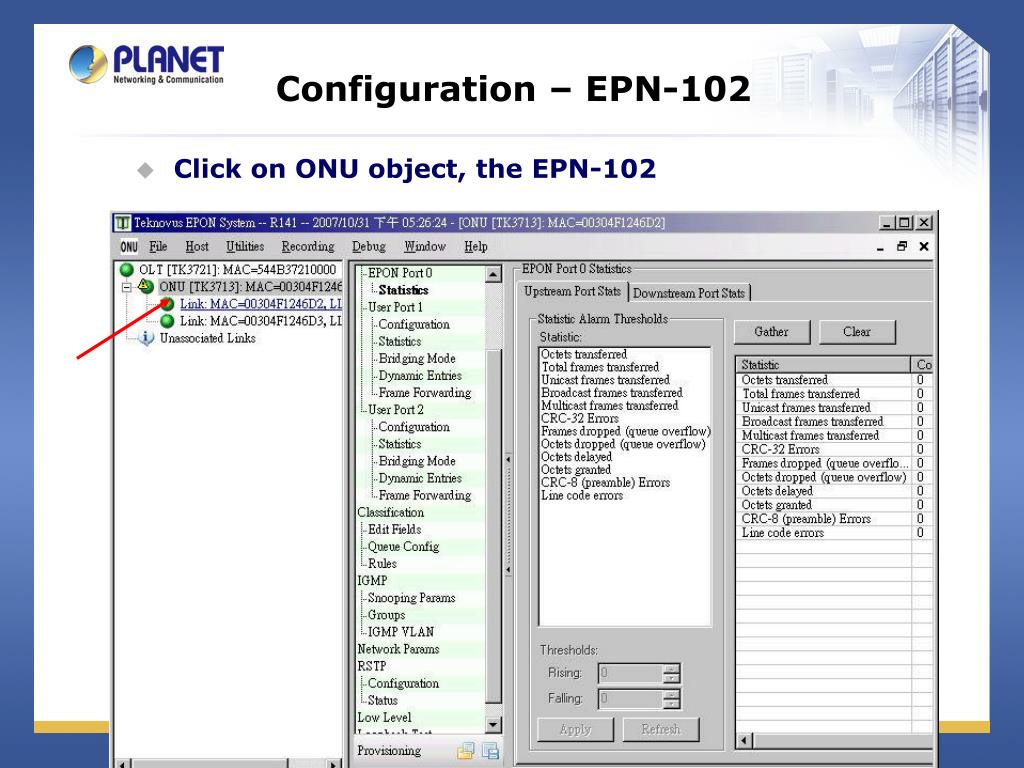

  9. Configuration – EPN-102 • Click on ONU object, the EPN-102

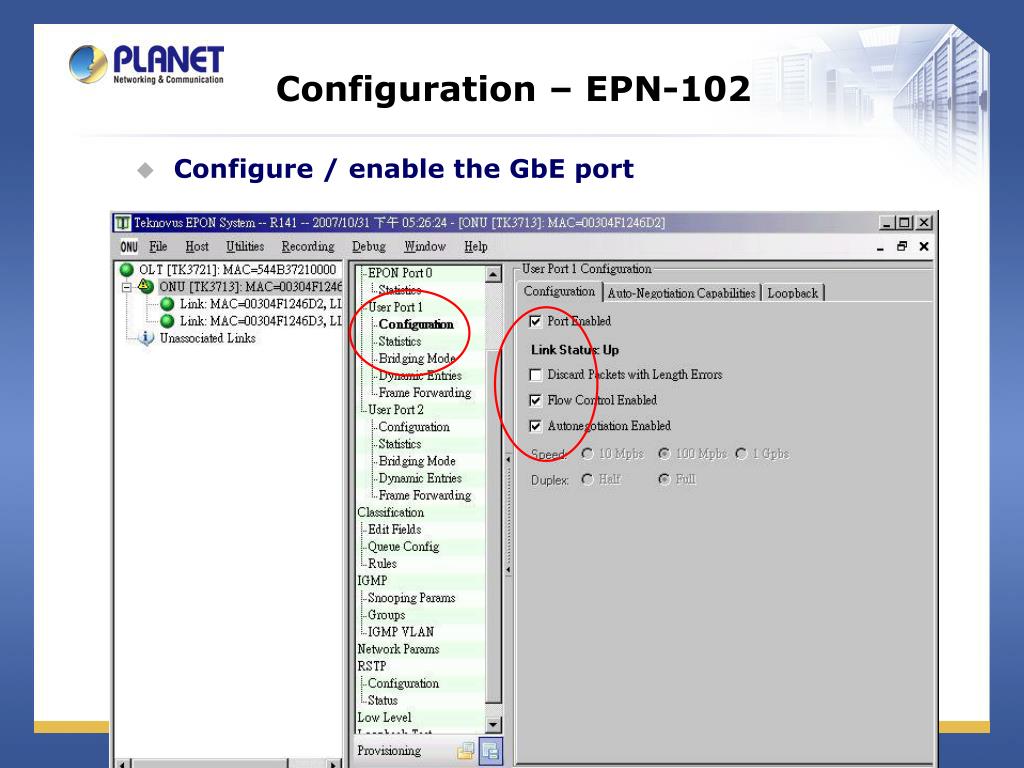

  10. Configuration – EPN-102 • Configure / enable the GbE port

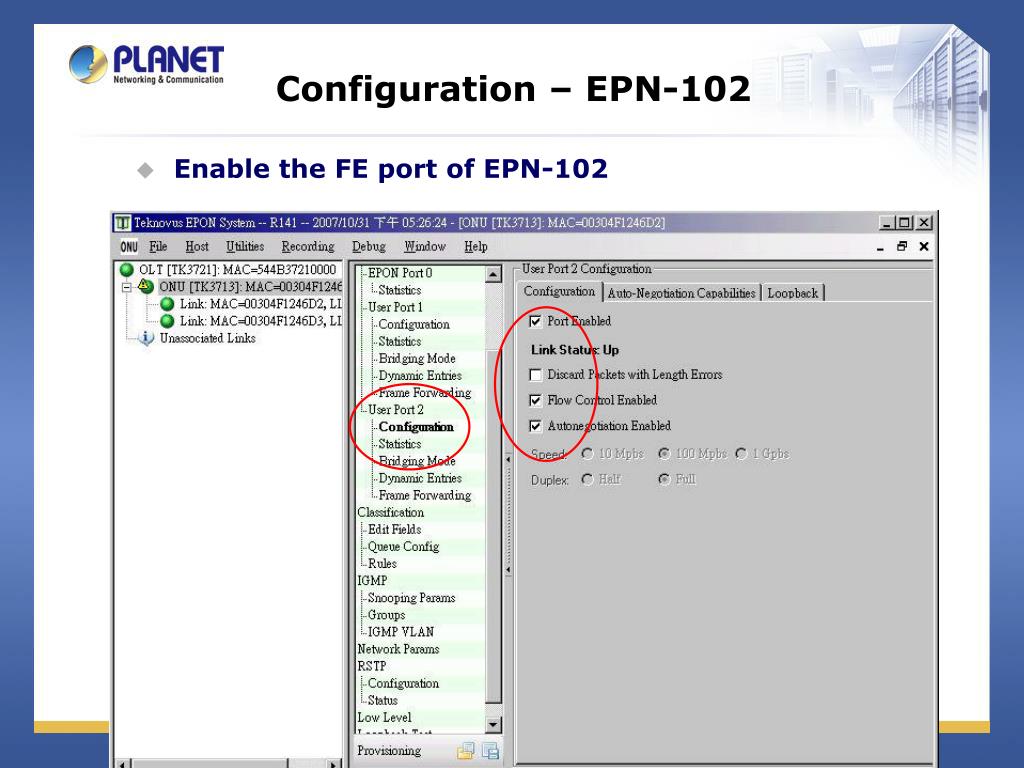

  11. Configuration – EPN-102 • Enable the FE port of EPN-102

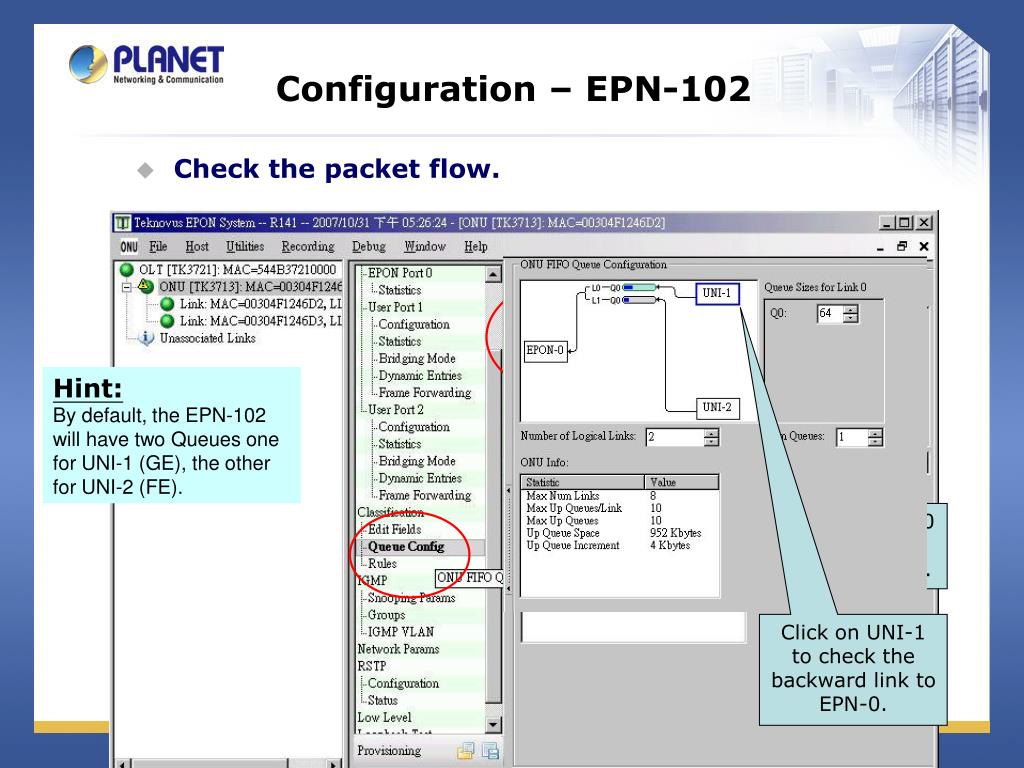

  12. Configuration – EPN-102 • Check the packet flow. Hint: By default, the EPN-102 will have two Queues one for UNI-1 (GE), the other for UNI-2 (FE). Click on EPON-0 to check the Queue Linkage. Click on UNI-1 to check the backward link to EPN-0.

  13. Configure – EPN-102 • Start to define the Queue Rules -> GE/FE packet out Select Delete Tag Forward Hint: After we added the out-going rule for GE / FE port. Then let’s setup the backward packets from GE / FE port back to EPL-1000 Hint: By default, there are two <Pri 12> that help to forward the packets to two different Ligical Link and Queues. Choose Precedence say, 15 Choose the rule. Here we choose if VID !=0. Of course, it can also be: Operator: Always Match (Suggested) Hint: Since here control the packets going out to the GE or FE port, so, in here we take out the VLAN tag if the PC connected to GE/FE do not suppot tag packets. Click on EPON-0 Click on Rules Then Add this rule Click on Add for new Rule

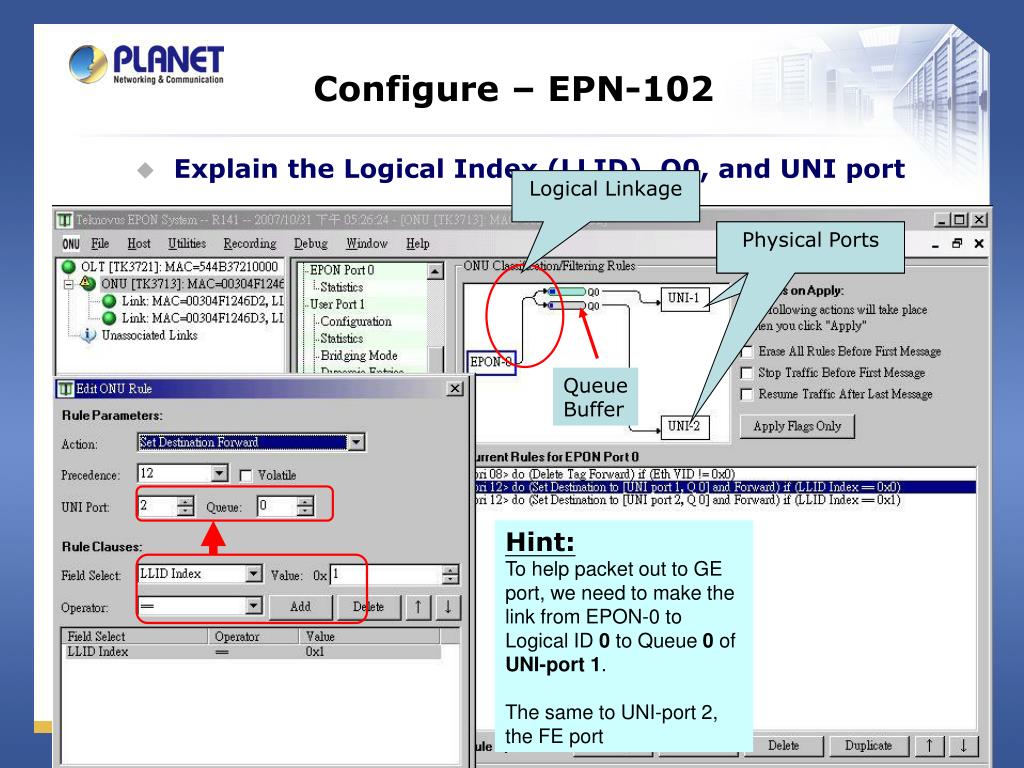

  14. Configure – EPN-102 • Explain the Logical Index (LLID), Q0, and UNI port Logical Linkage Physical Ports Queue Buffer Hint: This page have a brief explain for the relationship between: Logical ID Queues UNI ports Hint: To help packet out to GE port, we need to make the link from EPON-0 to Logical ID 0 to Queue 0 of UNI-port 1. The same to UNI-port 2, the FE port

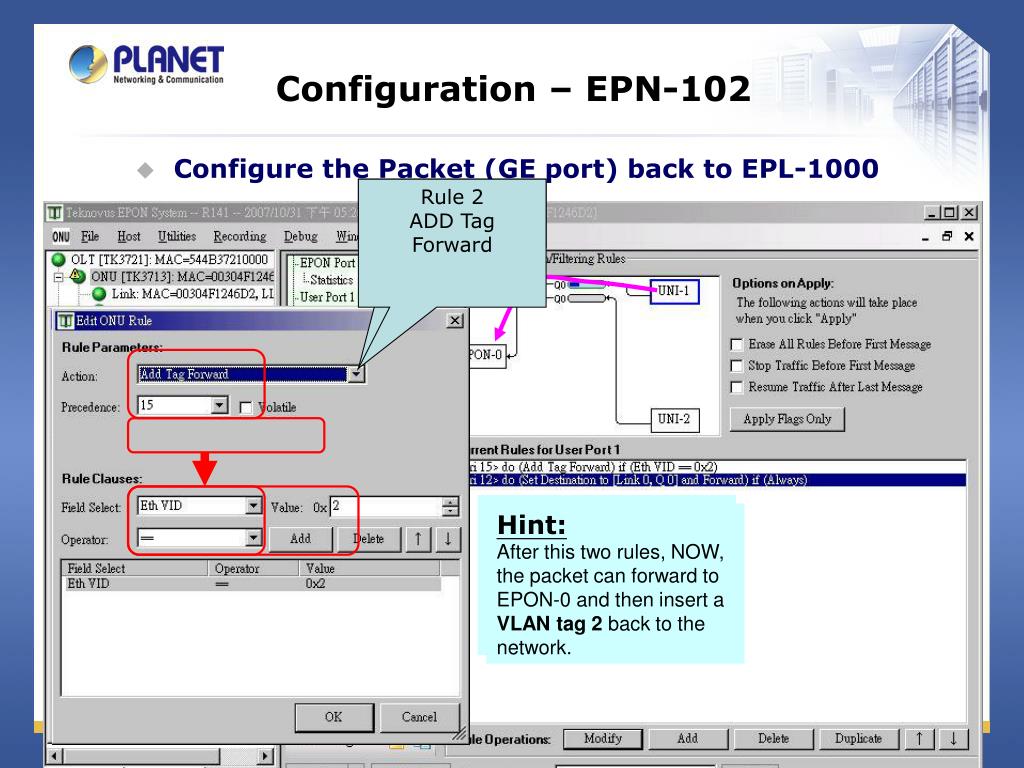

  15. Configuration – EPN-102 • Configure the Packet (GE port) back to EPL-1000 Rule 1. Set Dest. Forward Rule 2 ADD Tag Forward Hint: For packet back, we need the rule. Add the VLAN Tag and forward the packets Hint: After this two rules, NOW, the packet can forward to EPON-0 and then insert a VLAN tag 2 back to the network.

  16. Configuration – EPN-102 • Configure the packet (FE) back to EPL-1000 Hint: The same setting for FE port. Click on UNI-2 to setup the two rules again.

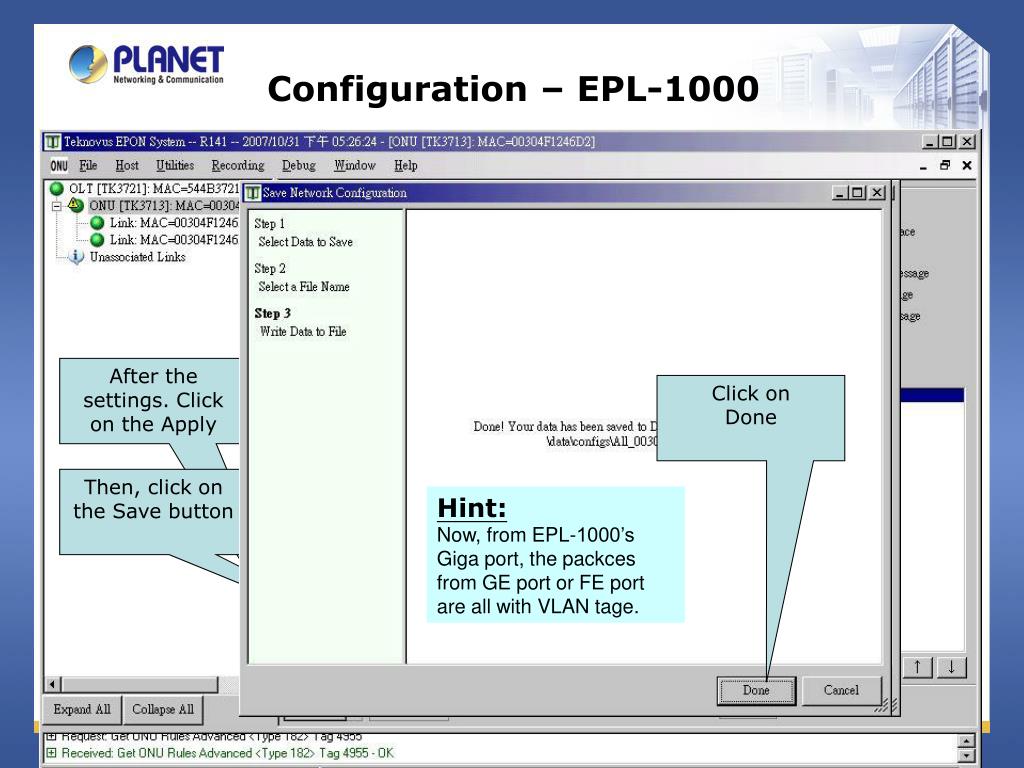

  17. Configuration – EPL-1000 After the settings. Click on the Apply Click on Next Choose Location and Click on Next Click on Done Then, click on the Save button Hint: Now, from EPL-1000’s Giga port, the packces from GE port or FE port are all with VLAN tage.

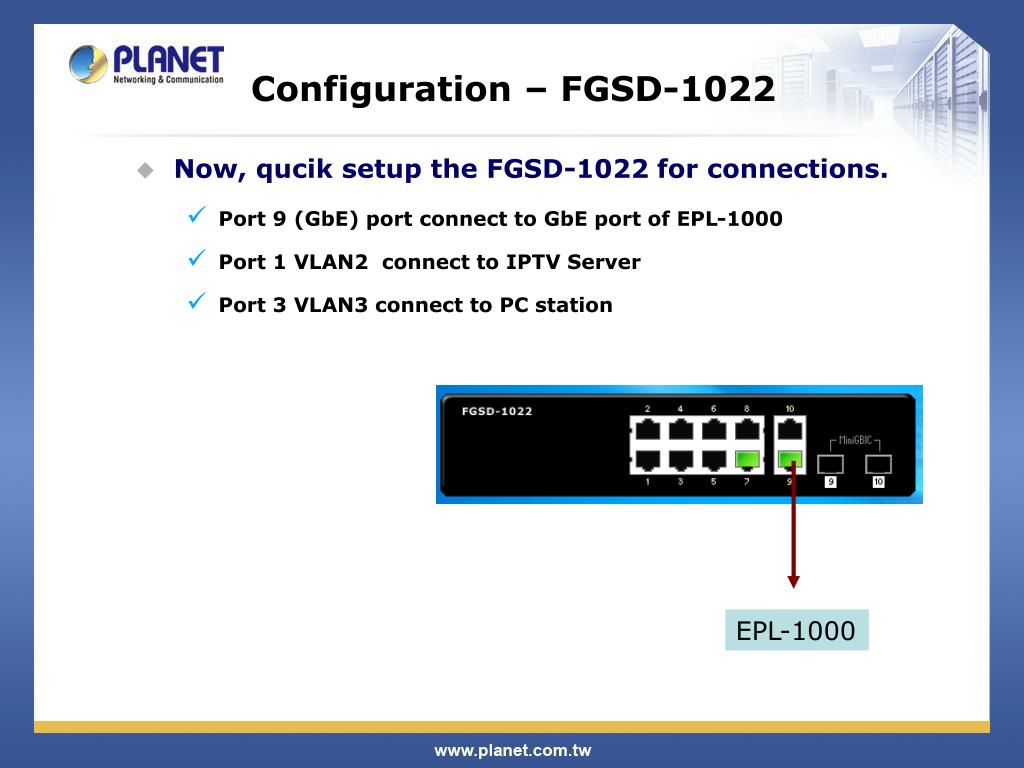

  18. Configuration – FGSD-1022 • Now, qucik setup the FGSD-1022 for connections. • Port 9 (GbE) port connect to GbE port of EPL-1000 • Port 1 VLAN2 connect to IPTV Server • Port 3 VLAN3 connect to PC station EPL-1000

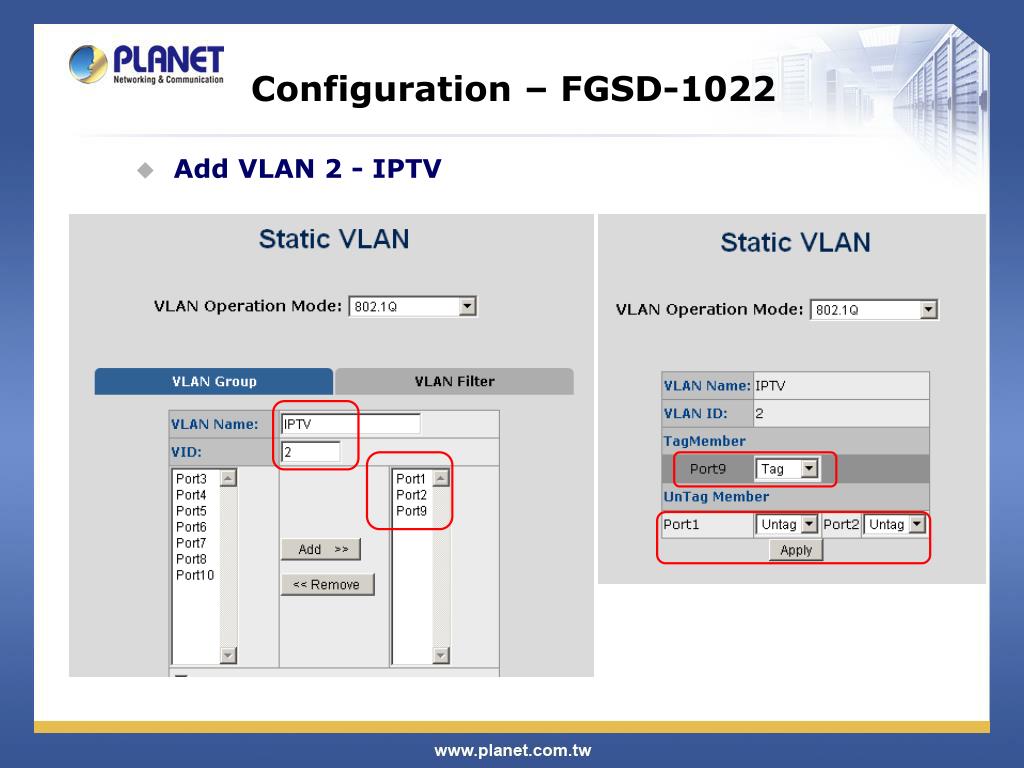

  19. Configuration – FGSD-1022 • Add VLAN 2 - IPTV

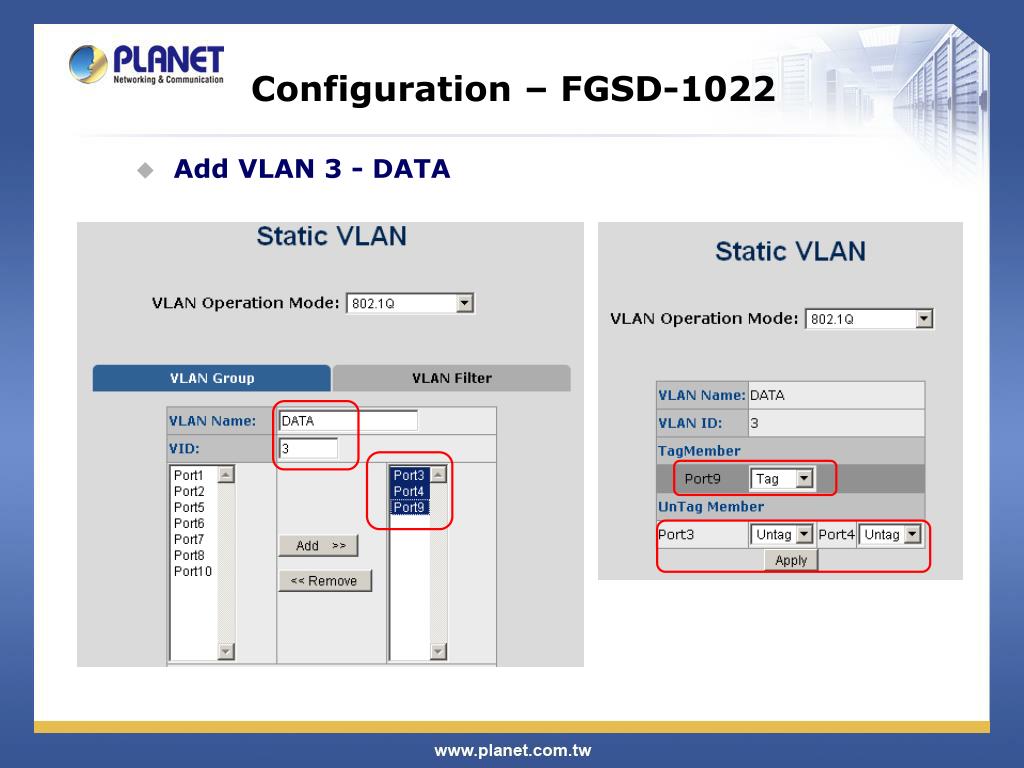

  20. Configuration – FGSD-1022 • Add VLAN 3 - DATA

  21. Configuration – FGSD-1022 • Setup PORT PVID for port 1, port 2

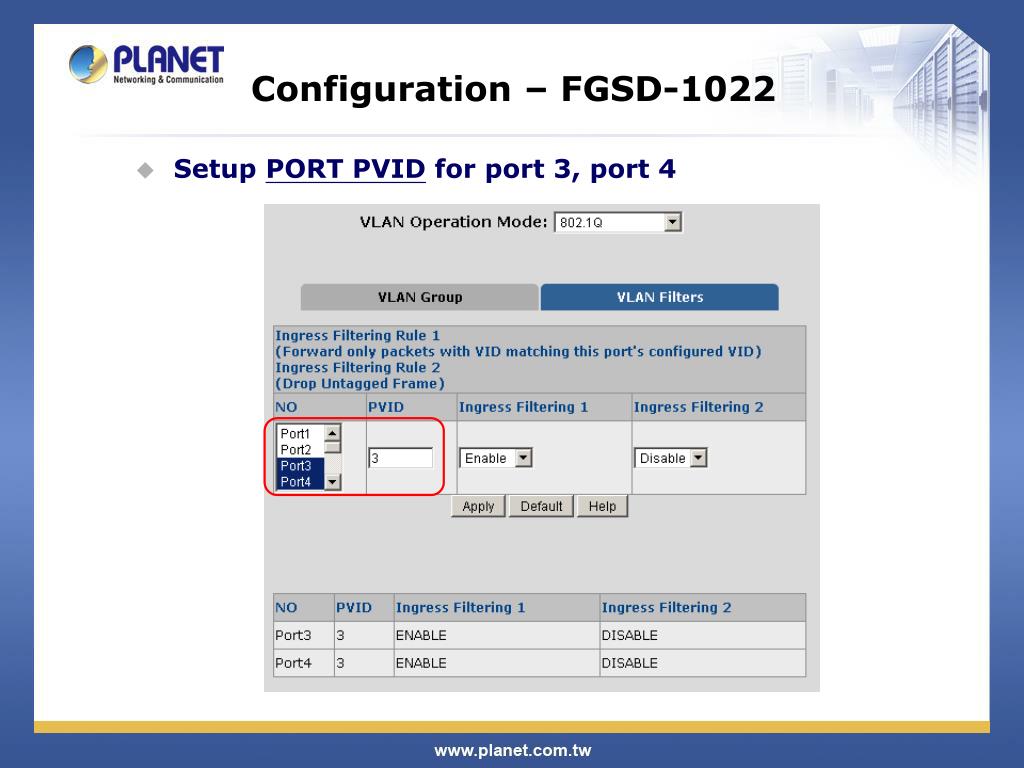

  22. Configuration – FGSD-1022 • Setup PORT PVID for port 3, port 4

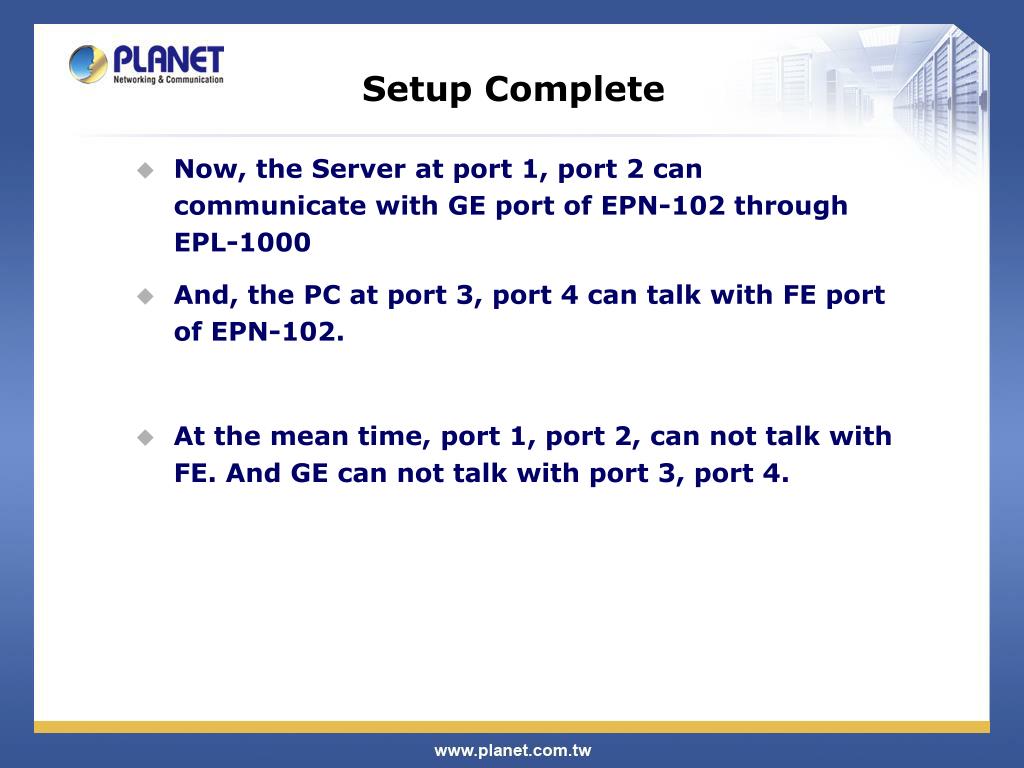

  23. Setup Complete • Now, the Server at port 1, port 2 can communicate with GE port of EPN-102 through EPL-1000 • And, the PC at port 3, port 4 can talk with FE port of EPN-102. • At the mean time, port 1, port 2, can not talk with FE. And GE can not talk with port 3, port 4.
