Presentation Transcript
Comp 14 control flow if if then l.jpg

COMP 14: Control Flow: if, if-then

May 26, 2000

Nick Vallidis


Review l.jpg
Review

  • We talked about input and output

  • What symbols do we use to force the order of operations?

  • What are the equality operators?

  • What are the relational operators?

  • What are the logical operators?


Let s try this again l.jpg

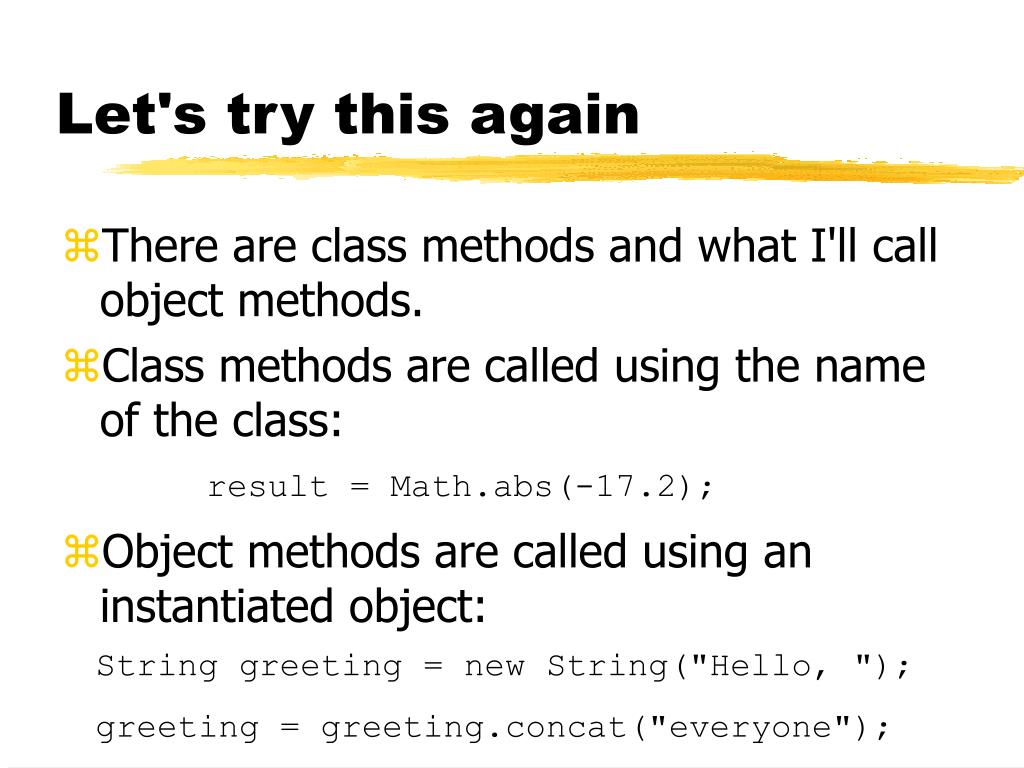

Let's try this again

  • There are class methods and what I'll call object methods.

  • Class methods are called using the name of the class:

  • Object methods are called using an instantiated object:

result = Math.abs(-17.2);

String greeting = new String("Hello, ");

greeting = greeting.concat("everyone");


What s the difference l.jpg
What's the difference?

  • The difference is that class methods have static in front of them when they are defined


Today l.jpg
Today

  • Control Flow

  • if statement

  • if-else statement

  • nested if and if-else statements


Back to the cake l.jpg

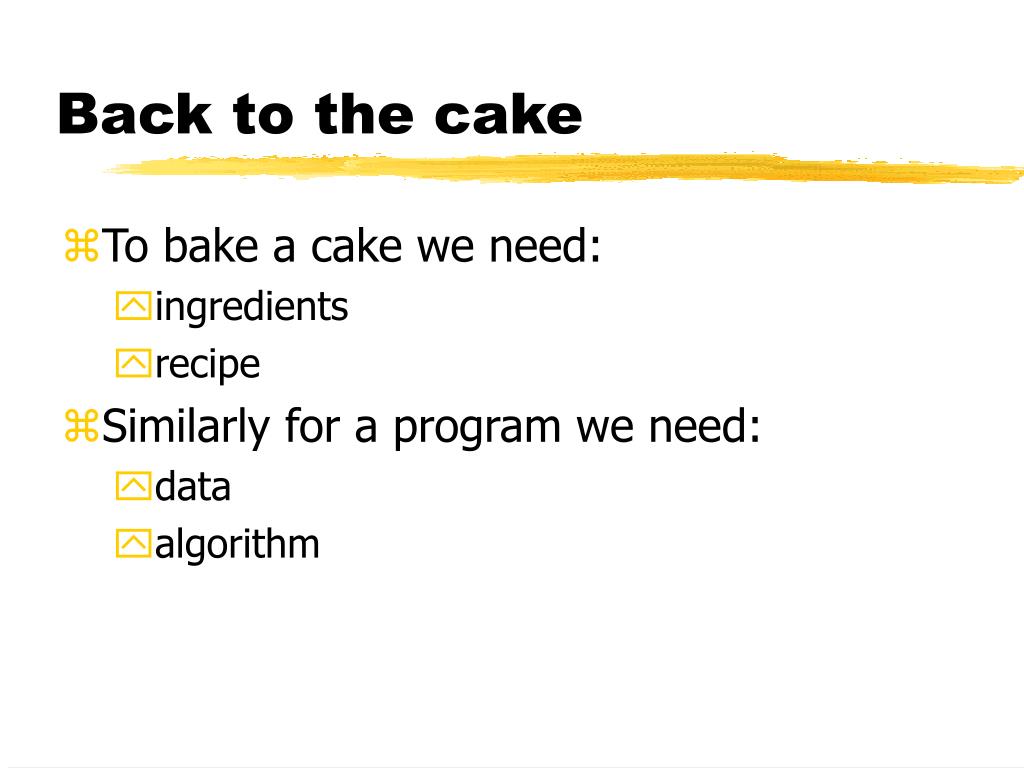

Back to the cake

  • To bake a cake we need:

    • ingredients

    • recipe

  • Similarly for a program we need:

    • data

    • algorithm


Yep time for the algorithm l.jpg
Yep, time for the algorithm

  • We've already talked some about representing algorithms:

    • assignment

    • expressions

    • methods

  • But, we need to be able to control the flow of the program...


Control flow l.jpg
Control Flow

  • Generally, Java statements are just executed in order, one after another

  • This is pretty dull. We couldn't even make a calculator…

  • It would be nice to be able to control which statements get executed (we need to make decisions!)

p. 110


Good news l.jpg

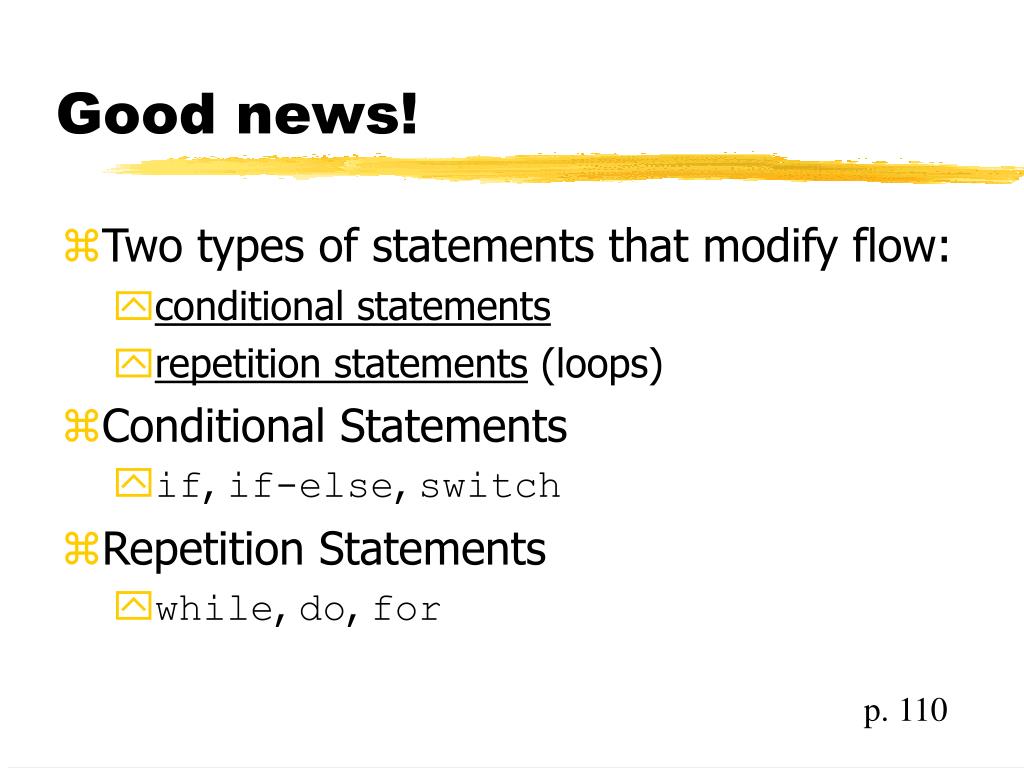

Good news!

  • Two types of statements that modify flow:

    • conditional statements

    • repetition statements (loops)

  • Conditional Statements

    • if, if-else, switch

  • Repetition Statements

    • while, do, for

p. 110


If if else l.jpg
if, if-else

  • Today, we'll cover these two

  • We'll come back to switch at a later date

  • We'll talk about loops next week


Slide11 l.jpg
if

  • Here is the general form for an if statement:

if (condition)

statement;

p. 111


Slide12 l.jpg
if

  • Here is the general form for an if statement:

if is a Java reserved word

if (condition)

statement;


Slide13 l.jpg
if

  • Here is the general form for an if statement:

condition is a boolean expression

It must evaluate to true or false

if is a Java reserved word

if (condition)

statement;


Slide14 l.jpg
if

  • Here is the general form for an if statement:

condition is a boolean expression

It must evaluate to true or false

if is a Java reserved word

if (condition)

statement;

If the condition evaluates to true, then the statement is executed, otherwise it is skipped


Slide15 l.jpg
if

  • Here is the general form for an if statement:

if (condition)

statement;

This indent is VERY important. The compiler doesn't need it, but it helps people read the program


Example l.jpg
Example

int age = 22;

if (age < 18)

System.out.println("Can't vote!");

System.out.println("Always printed");


If control flow diagram l.jpg

condition

evaluated

true

false

statement

if Control Flow Diagram

if (condition)

statement;


Another example l.jpg

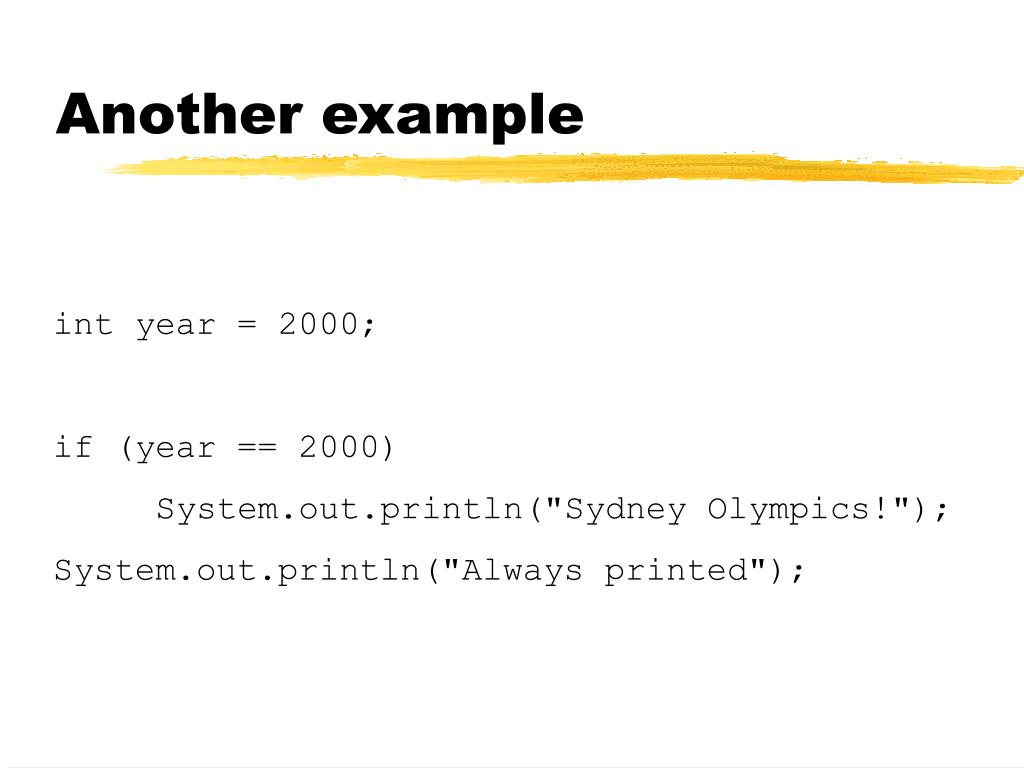

Another example

int year = 2000;

if (year == 2000)

System.out.println("Sydney Olympics!");

System.out.println("Always printed");


Another example19 l.jpg
Another example

int age = 12;

if ((age <=12) || (age >= 65))

System.out.println("Discount!");

System.out.println("Always printed");


If else l.jpg
if-else

  • Here is the general form for an if-else statement:

if (condition)

statement1;

else

statement2;

p. 114


If else21 l.jpg

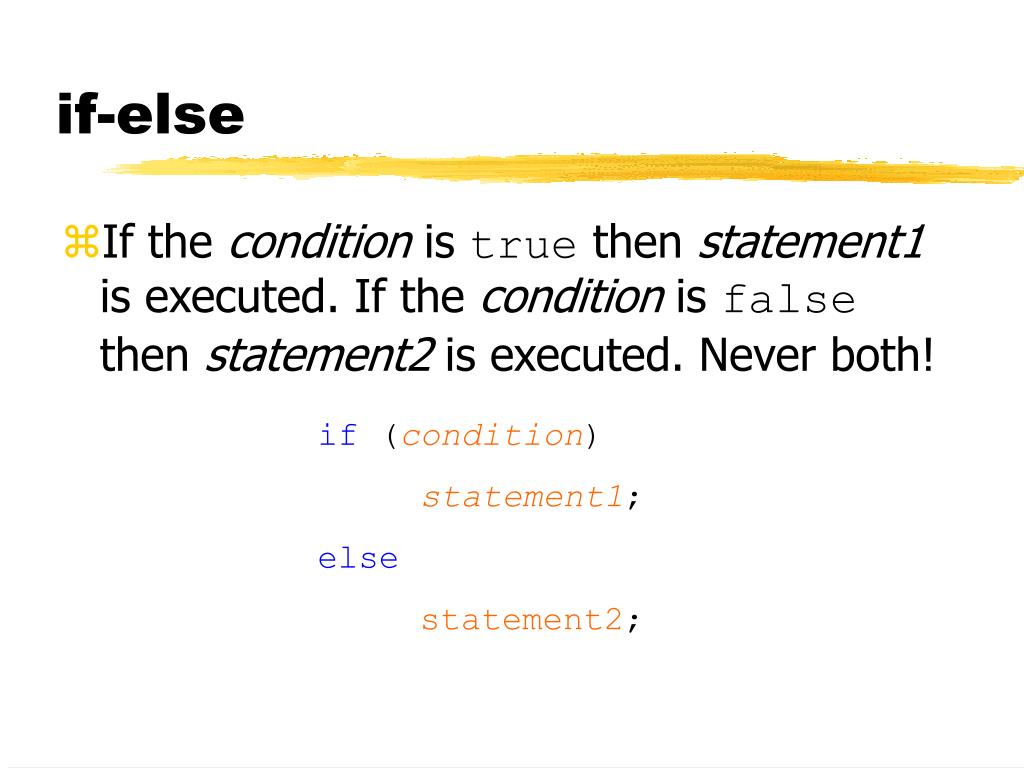

if-else

  • If the condition is true then statement1 is executed. If the condition is false then statement2 is executed. Never both!

if (condition)

statement1;

else

statement2;


If else diagram l.jpg
if-else Diagram

condition

evaluated

if (condition)

statement1;

else

statement2;

true

false

statement2

statement1


If else example l.jpg
if-else example

int age = 22;

if (age < 18)

System.out.println("Can't vote!");

else

System.out.println("Can vote!");

System.out.println("Always printed");


Block statements l.jpg

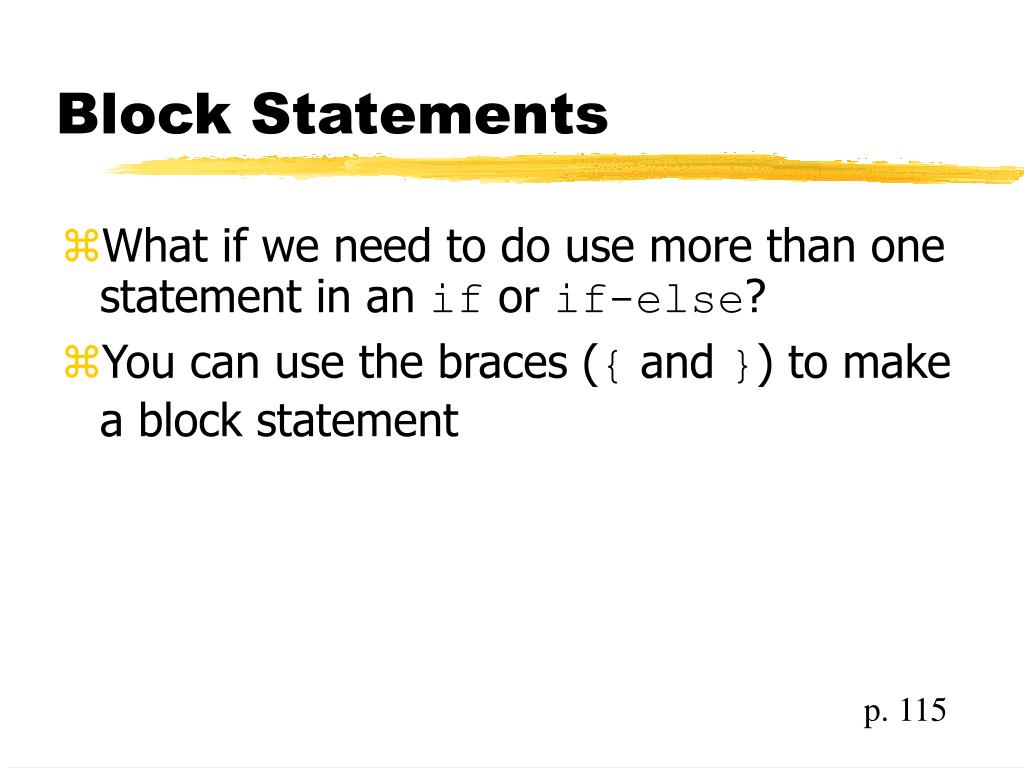

Block Statements

  • What if we need to do use more than one statement in an if or if-else?

  • You can use the braces ({ and }) to make a block statement

p. 115


Example25 l.jpg
Example

int age = 22;

boolean canVote = true;

if (age < 18)

{

System.out.println("Can't vote!");

canVote = false;

}

System.out.println("Always printed");


General format l.jpg
General format

{

statement1;

statement2;

.

.

.

statementn;

}


Recommendation l.jpg
Recommendation

  • A block statement doesn't have to contain more than 1 statement

  • I recommend always using the block statement form with if and if-else:

if (age < 18)

{

System.out.println("Can't vote!");

}


Nested if and if else l.jpg
Nested if and if-else

  • The statements you execute could be another if or if-else!


Nested if and if else29 l.jpg
Nested if and if-else

if (age > 12)

{

if (age > 65)

System.out.println("Discount");

else

System.out.println("Normal price");

}

else

System.out.println("Child Discount");



Homework l.jpg

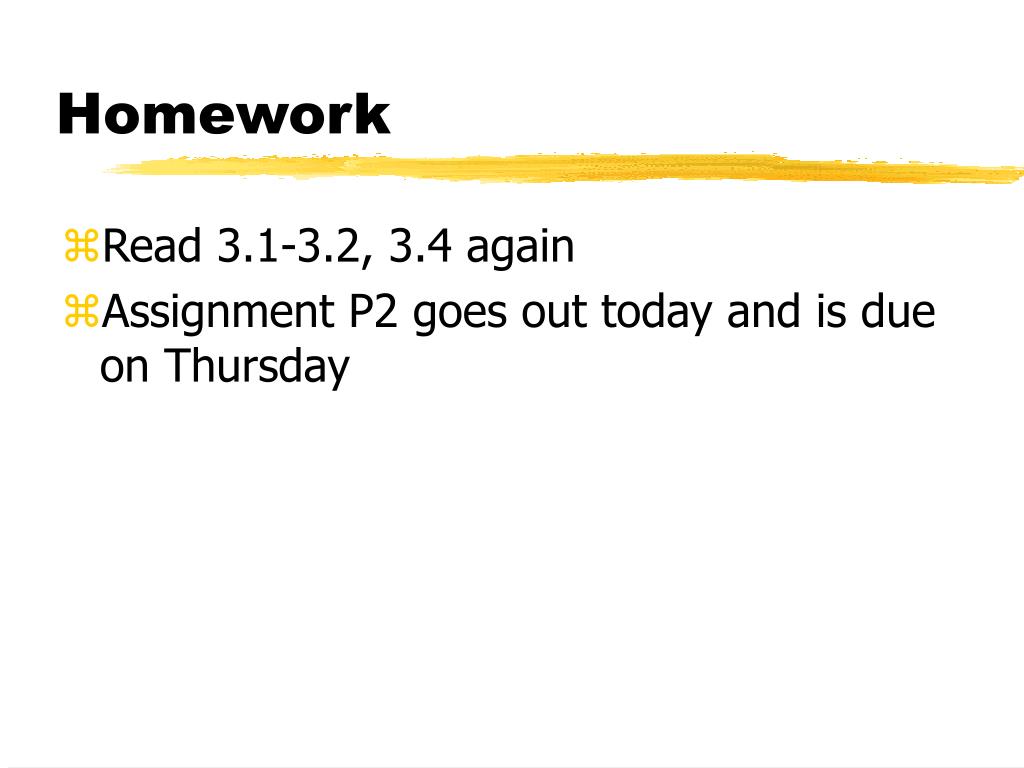

Homework

  • Read 3.1-3.2, 3.4 again

  • Assignment P2 goes out today and is due on Thursday
