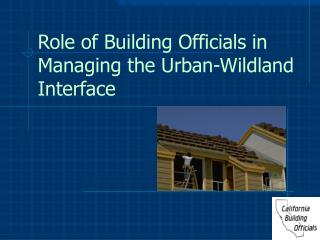

Role of Building Officials in Managing the Urban-Wildland Interface PowerPoint Presentation
Download Presentation
Role of Building Officials in Managing the Urban-Wildland Interface

Loading in 2 Seconds...

play fullscreen
1 / 23

Role of Building Officials in Managing the Urban-Wildland Interface - PowerPoint PPT Presentation


  • 135 Views
  • Uploaded on

Role of Building Officials in Managing the Urban-Wildland Interface. California Building Officials (CALBO). 42 years in California Representing approx 470 cities and counties State mandates regulations to be enforced by Local Building Official

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Role of Building Officials in Managing the Urban-Wildland Interface' - monty


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
california building officials calbo
California Building Officials (CALBO)
  • 42 years in California
  • Representing approx 470 cities and counties
  • State mandates regulations to be enforced by Local Building Official
  • Organization acts as liaison between local jurisdictions and State
california building officials calbo1
California Building Officials (CALBO)
  • Local Building Departments perform approx. 95% of inspections
  • State-wide mutual aid program to assist in post disaster safety assessments
  • The Local Building Official will be a key player in the rebuilding effort for many years after the fire
benefits of building code based requirements
Benefits of Building Code Based Requirements
  • Components are in place at all times (24/7/365)
  • Generally one-time expenditure by builder/homeowner
  • Generally Not dependant upon outside influences
    • Wind direction or speed
    • Temperature and drought conditions
    • State and local budget climate
    • Lack of mutual aid resources
building code requirements
Building Code Requirements
  • Class C or better roof assemblies (Class B in Severe Fire Hazard Areas)
  • Double paned windows
  • Screened ventilation openings
  • Chimney spark arrestors
  • Visible Addresses
available resources
Available Resources
  • International Urban-Wildland Interface Code – ICC
  • Standard for Protection of Life and Property from Wildfire - NFPA 1144
  • Public Resources Code Sec 4290-91 for state responsibility areas (SRA)
  • Government Code Sec 51175-89
graduated scale based on hazard severity iuwic table 502
Graduated Scale Based on Hazard Severity (IUWIC Table 502)
  • Fuel Load (light, medium, heavy)
  • Frequency of critical fire weather (Santa Ana Winds)
  • Slope
graduated scale based on hazard severity or iuwic appendix c
Graduated Scale Based on Hazard Severity OR (IUWIC Appendix C)
  • Fire access roads (number, width, grade, turnarounds, street signage)
  • Fuel Types (light, medium, heavy)
  • Defensible Space & topography

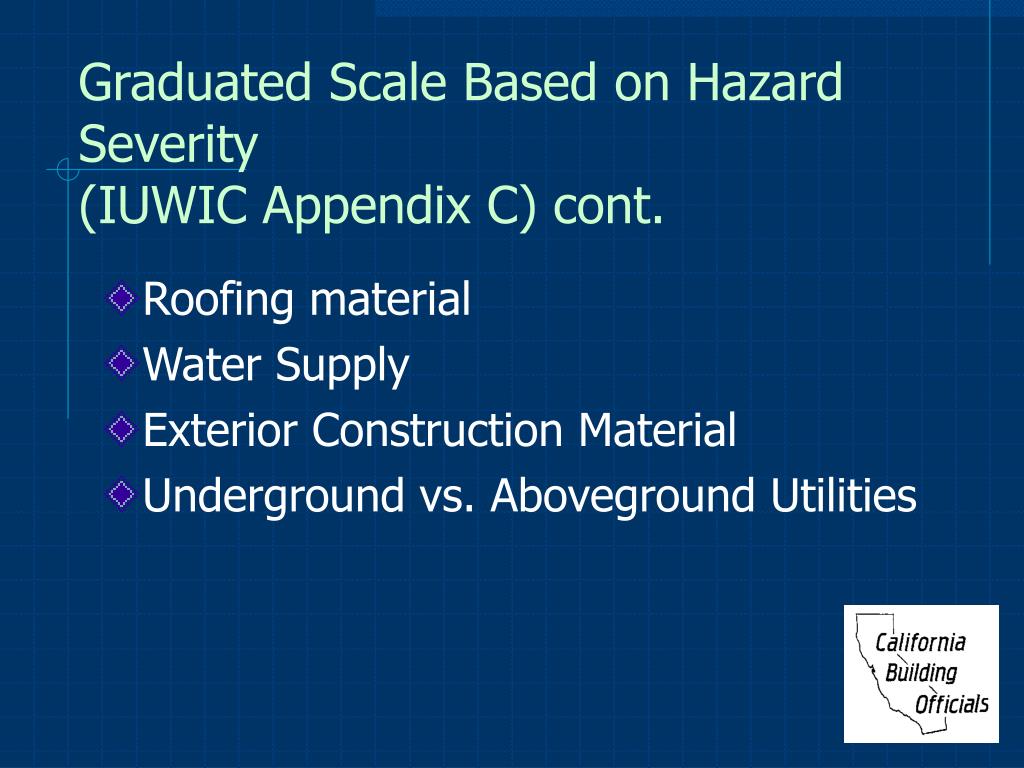

graduated scale based on hazard severity iuwic appendix c cont
Graduated Scale Based on Hazard Severity (IUWIC Appendix C) cont.
  • Roofing material
  • Water Supply
  • Exterior Construction Material
  • Underground vs. Aboveground Utilities
ignition resistant construction
Ignition-Resistant Construction
  • Based on Hazard Severity Score (Moderate, High, Extreme)
  • Modified based on Defensible Space (Nonconforming, Conforming, 1.5 X Conforming) and Water Supply
  • Result determines need for Class 1, Class 2 or Class 3 Ignition-Resistant Construction
class 3 ignition resistant construction least restrictive
Class 3 Ignition-Resistant Construction -Least Restrictive
  • Class C roof covering or assembly
  • Enclosed underfloor areas or 1 hr. construction
  • Vents maximum 144 sq. in. and covered with ¼” mesh
  • Reroofs must meet new code specs if > 25% replacement
class 2 ignition resistant construction
Class 2 Ignition-Resistant Construction
  • Class B roof covering or assembly
  • Enclosed soffits and eaves (min ¾” solid material)
  • Noncombustible raingutters and downspouts
  • Noncombustible, 1hr. Fire Resistant or heavy timber Exterior walls
  • Enclosed underfloor areas or 1 hr./heavy timber construction
class 2 ignition resistant construction cont
Class 2 Ignition-Resistant Construction (cont.)
  • Attached Decks – 1 hr., heavy timber or noncombustible
  • Exterior doors – solid core, 20 min F.R., or noncombustible (except vehicle access doors)
  • Vents maximum 144 sq. in. and covered with ¼” mesh
  • Detached accessory structures (<50’ away) – 1 hr., heavy timber, or noncombustible on exterior side
class 1 ignition resistant construction most restrictive
Class 1 Ignition-Resistant Construction – Most Restrictive
  • Class A roof covering or assembly
  • Enclosed soffits and eaves (min ¾” solid material)
  • Noncombustible raingutters and downspouts
  • Noncombustible, 1hr. Fire Resistant or heavy timber Exterior walls
  • Enclosed underfloor areas or 1 hr./heavy timber construction
class 1 ignition resistant construction cont
Class 1 Ignition-Resistant Construction (cont.)
  • Attached Decks – 1 hr., heavy timber or noncombustible
  • Exterior doors – solid core, 20 min F.R., or noncombustible (except vehicle access doors)
  • Vents maximum 144 sq. in. and covered with ¼” mesh
  • Detached accessory structures (<50’ away) – 1 hr., heavy timber, or noncombustible on exterior side
  • Automatic Fire Sprinkler System
implementation challenges
Implementation Challenges
  • Jurisdiction’s level of acceptable risk
  • Willingness to enforce new code requirements for post-fire rebuilding
  • Threshold of justification for increased requirements (burden of proof)
  • Lack of knowledge of techniques for mapping high fire hazard areas
implementation challenges cont
Implementation Challenges (cont.)
  • Ability to maintain defensible space over time
  • Balancing Environmental protection and brush management policies
  • Establishing stable funding sources; assessment districts, general fund, grants
implementation challenges cont1
Implementation Challenges (cont.)
  • Lack of wildfire based fire testing on building materials
  • Balancing prescriptive requirements against maintaining architectural freedom
  • Coordination between fire officials, building officials and planners
recommendations
Recommendations
  • Building Official’s involvement in solution – representation on committees
  • Utilize International Urban-Wildland Interface Code as framework
  • Recognize the need for flexibility in enforcement at the local level
  • Provide training for local building and fire authorities
recommendations cont
Recommendations (cont.)
  • Establish long-term financial commitment to implementation
  • Reconcile conflicts between environmental and brush management agendas before the next major event
  • Stress performance criteria over prescriptive requirements where possible to allow for architectural freedom
recommendations cont1
Recommendations (cont.)
  • Promote strong working relationships between Fire, Building, Planning and Environmental groups to enhance communication
  • Support State Fire Marshal’s fire testing efforts (FEMA grant)
  • Develop model plan for post-disaster rebuilding
