  1. Towards Sensate Media and Electronic Skins Testbeds for very high density sensor networks Joseph Paradiso, Joshua Lifton, Michael Broxton Responsive Environments Group MIT Media Laboratory

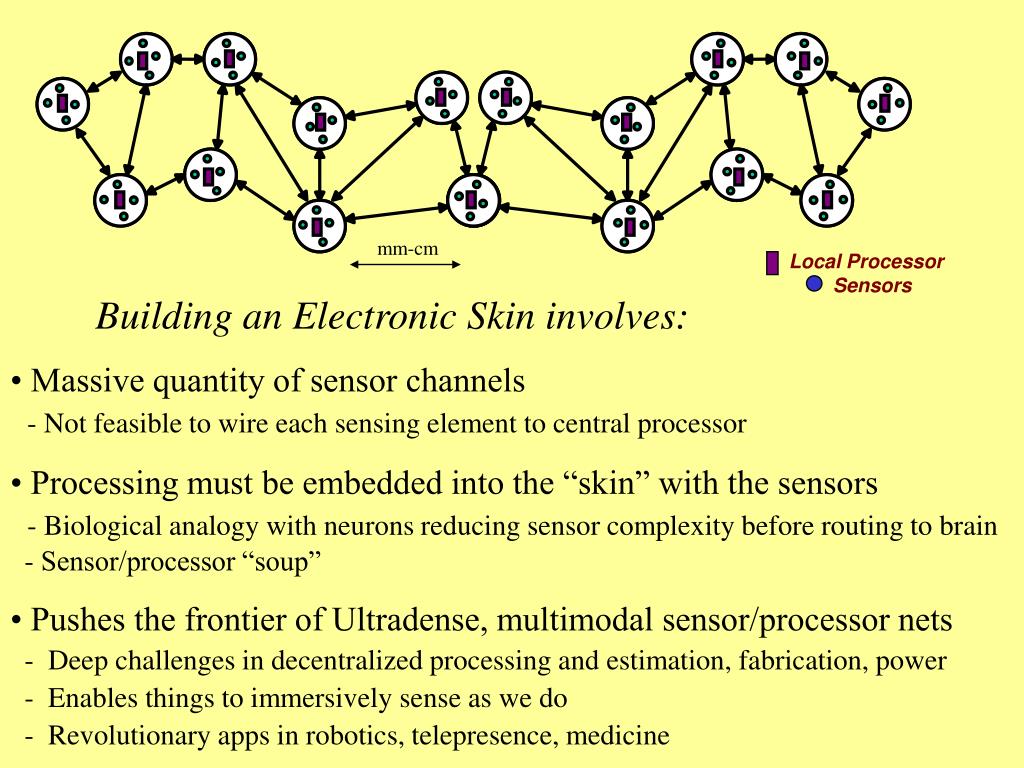

  2. mm-cm Local Processor Sensors Building an Electronic Skin involves: • Massive quantity of sensor channels - Not feasible to wire each sensing element to central processor • Processing must be embedded into the “skin” with the sensors - Biological analogy with neurons reducing sensor complexity before routing to brain - Sensor/processor “soup” • Pushes the frontier of Ultradense, multimodal sensor/processor nets - Deep challenges in decentralized processing and estimation, fabrication, power - Enables things to immersively sense as we do - Revolutionary apps in robotics, telepresence, medicine

  3. Nervous system processes (inhibits, enhances) signals from skin receptors enroute to brain

  4. The Pushpin Computing Testbed Completely Configurable Topology • Pushpin nature lets one place nodes wherever desired • Dynamic density • Easily block or shield parts of network • Easy to access each node directly • Easy to collectively stimulate sensors on groups of nodes • Layered Circuitry • Communications Layer (currently IR, capacitive prototype) • Processor Layer (currently 22 MIPs) • Sensor layer (photo sensor with LED outputs) • Layers easily swapped for customization, upgrades • Toolkit – all over ML, MIT • Over 100 constructed (Currently IR communication) • Capacitive (low-power RF) layer coming – more isotrophic

  5. Pushpin Structure

  6. Distributed Pattern Recogniton Light sensor & LED top layer New top layer under development that adds fast photonics and ultrasound pickup for synchronization/location

  7. Current Pushpin Specs • Current processor is the Cygnal C8051F016 • 22 MHz clock • 1-2 cycles per instruction typical • 92 kbits per second (slow due to flash write speed when updating OS) • ~20mA @ 3V per Pushpin running with all analog systems & comm. • PWMs, comparators, 8 10-bit ADC lines, timers, external interrupts… • Power, processing, communication, expansion layers all modular • Transmit is fanned out from a common line to all IR LED’s • Receive is from one of four ports – each port separately detected • Can determine pulse width (~ signal strength) from external interrupts • Substrate is polyurethane and aluminum, ~1.2 m2 • Comm protocol is random back-off • >100 nodes have been built and used together

  8. Testbed #2 – The Trible Tactile Reactive Interface Based on Linked Elements • First step at a multimodal electronic skin • 32 networked elements • Each measuring up to 12 channels of touch via tactile whiskers, distributed pressure at 3 points, local temperature, local illumination, local sound • Each with local speaker, pager motor, RGB LED • Elements talk to neighbors • No central processor • Behavior from decentralized algorithms • Peer-peer signals routed directly through Trible frame • Research platform for distributed sensing, processing, and control

  9. Trible Construction

  10. Completed Hairless Ball Single Cell Element

  11. Public Exhibition – Artbots (NYC), 7/03

  12. Trible Specs • 20 hexagons, 12 pentagons • Hex: 12 whiskers, 3 pressure, 1 light, 1 microphone, 1 temperature, 1 speaker, 1 pager motor, 1 PWM’ed RGB LED. • Pent: same as hex, but only 7 whiskers • Frame is laser cut ABS plastic joined with aluminum, all custom • Shell is lasercut, heat-formed, sand-blasted polyethylene • Whiskers are paintbrush hairs glued into piezoelectric foil picku[ • Same processing layer used as with Pushpins • Rechargeable battery power provides central power, can also take power from an external wired supply • Communication is neighbor-to-neighbor through aluminum joiners in frame • Central comm bus is only used for debugging and code updates • Communication is at 115200bps between panels • Maintains windowed average of each sensor channel • Plays 8-bit additive synthesis and sampled sounds • 17.2 kHz total sampling bandwidth spread among all channels... can go up • 72 kHz total sampling bandwidth by sacrificing processing time. • Output also updated at 17.2kHz, spread out depending on mapping of inputs to outputs • All input channels are sampled at 10 bits, but only 8 are used • Total of 516 sensor channels • Assembled Tribble is about 13" in diameter.

  13. - A sensate floor as a sensor net • Self-tiling elements w. a processor and a dozen 2.5 cm pressure sensors • Network formed as tiles snap together • - Tiles talk to neighbors to parameterize footstep • Route results peer-peer to outside connection • Applications in entertainment, health care, smart homes/UbiComp… Z-Tiles (collaboration with U. Limerick)
