Toe Cap Impact Tester TZ-FTI100

Testoz Toe Cap Impact Tester evaluates the impact resistance of safety footwear toe caps with adjustable impact heights. It features a 20 kg wedge-shaped striker, photoelectric speed detection, an automatic lift, customisable settings, and an emergency stop for safety.

monroelillie
Download Presentation

Toe Cap Impact Tester TZ-FTI100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

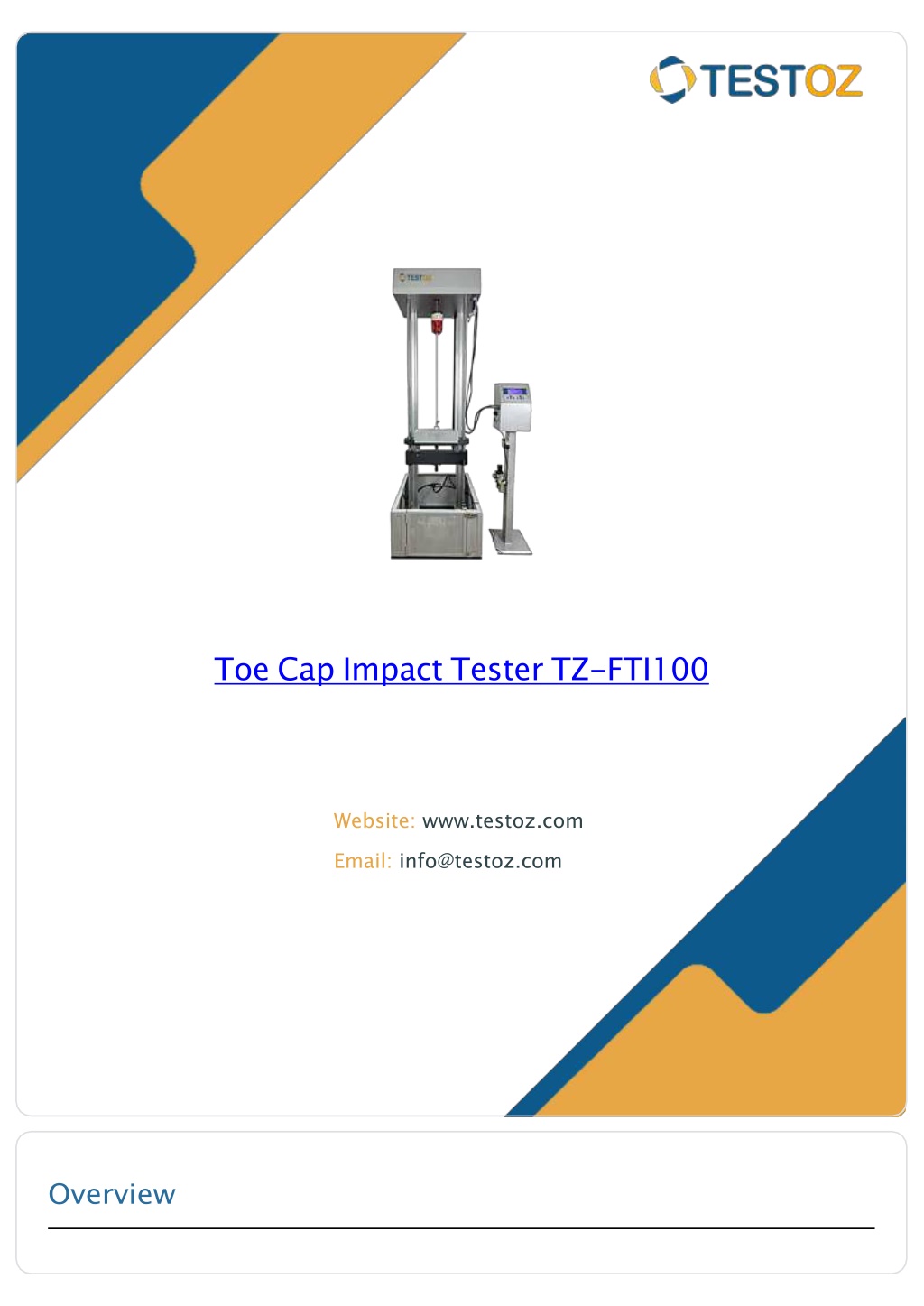

  1. Toe Cap Impact Tester TZ-FTI100 Website: www.testoz.com Email: info@testoz.com

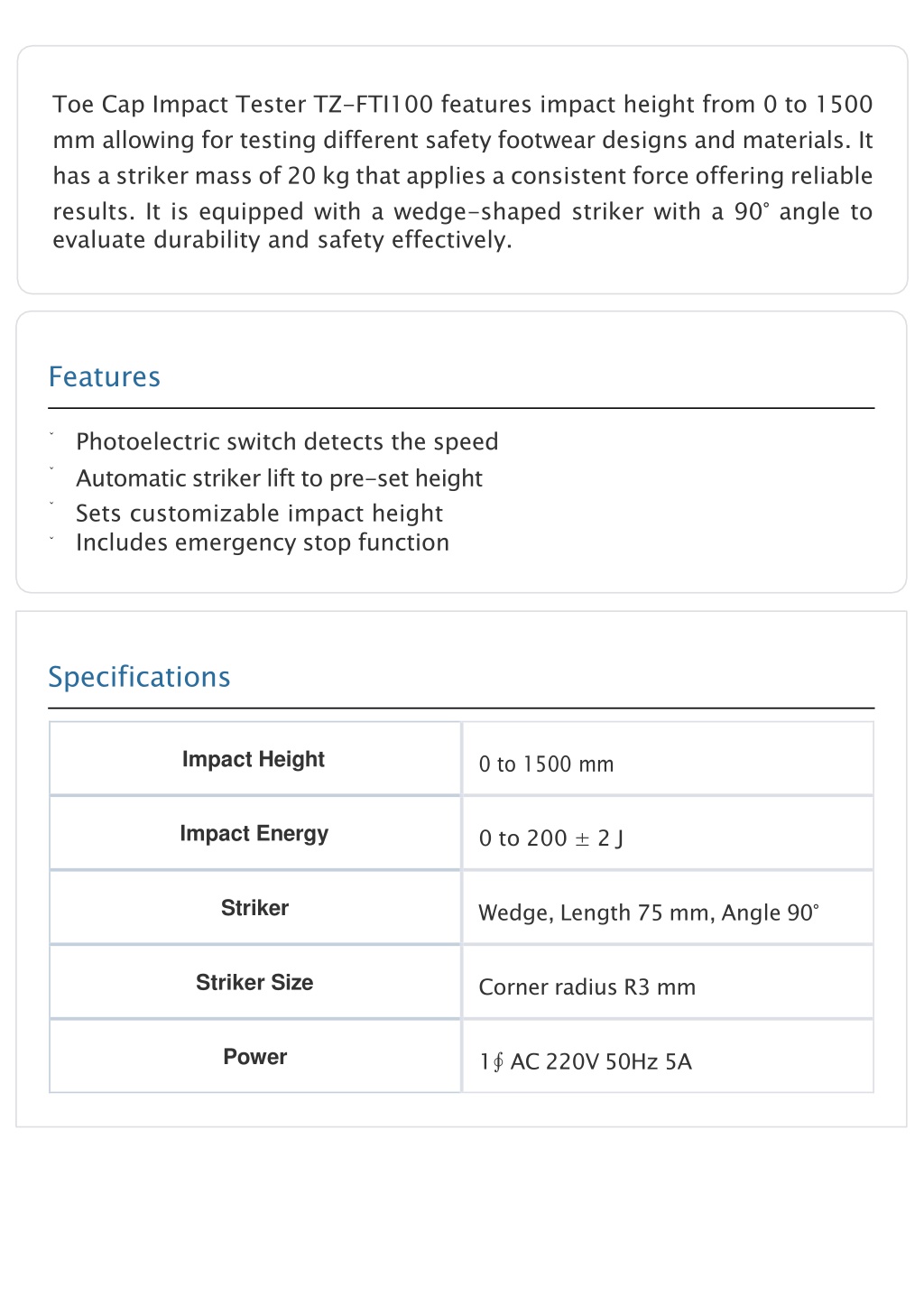

  2. Toe Cap Impact Tester TZ-FTI100 features impact height from 0 to 1500 mm allowing for testing different safety footwear designs and materials. It has a striker mass of 20 kg that applies a consistent force offering reliable results. It is equipped with a wedge-shaped striker with a 90° angle to evaluate durability and safety effectively. Features Photoelectric switch detects the speed Automatic striker lift to pre-set height Sets customizable impact height Includes emergency stop function ˇ ˇ ˇ ˇ Specifications Impact Height 0to1500mm Impact Energy 0 to 200 ± 2 J Striker Wedge, Length 75 mm, Angle 90° Striker Size Corner radius R3 mm Power 1∮ AC 220V 50Hz 5A

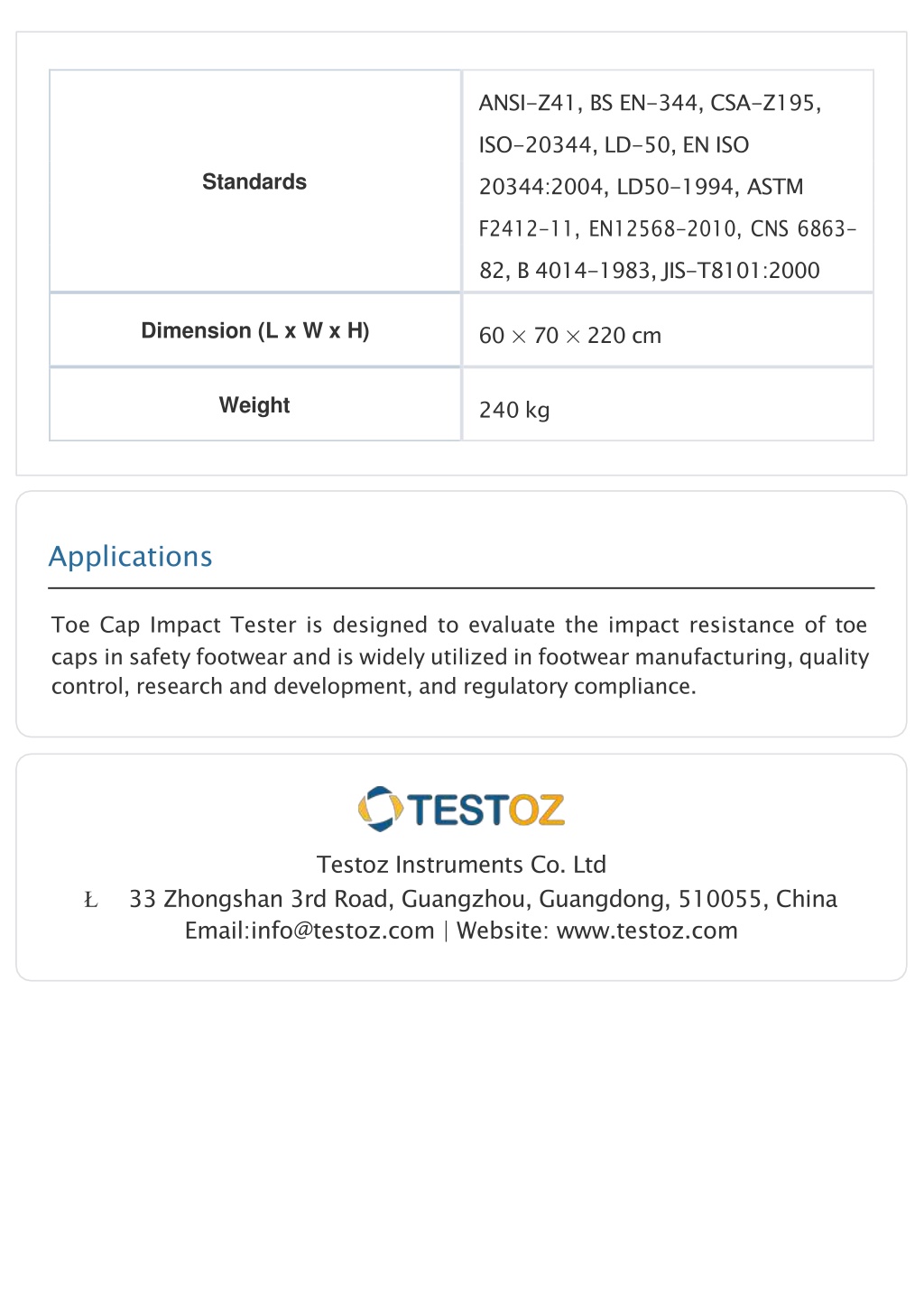

  3. ANSI-Z41, BS EN-344, CSA-Z195, ISO-20344, LD-50, EN ISO 20344:2004, LD50-1994, ASTM F2412-11,EN12568-2010,CNS6863- 82, B 4014-1983, JIS-T8101:2000 Standards Dimension (L x W x H) 60 × 70 × 220 cm Weight 240 kg Applications Toe Cap Impact Tester is designed to evaluate the impact resistance of toe caps in safety footwear and is widely utilized in footwear manufacturing, quality control, research and development, and regulatory compliance. Testoz Instruments Co. Ltd 33 Zhongshan 3rd Road, Guangzhou, Guangdong, 510055, China Email:info@testoz.com | Website: www.testoz.com Ł
